Maytag
Bottom-Mount Refrigerator

Model #MBB1953XEW1 Maytag refrigerator

Here are the diagrams and repair parts for Maytag MBB1953XEW1 refrigerator, as well as links to manuals and error code tables, if available.

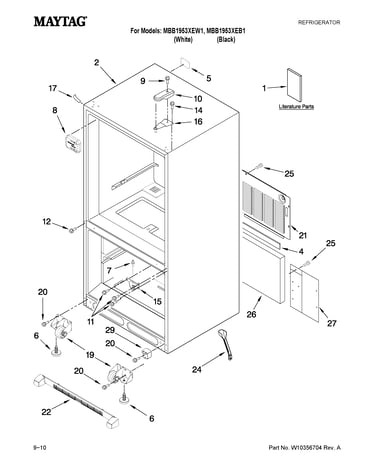

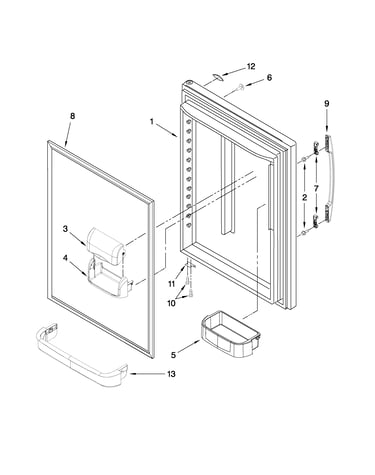

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes

    Showing 10 of 172 parts

    Appliance Light Bulb, 40-watt

    See All Related Diagrams

    Bulb-light

    Part #2255743N
    Replaced by #40A15
    ?
    Manufacturer substitution
    This part replaces 2255743N. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $6.39
    Refrigerator Crisper Drawer Center Rail#1

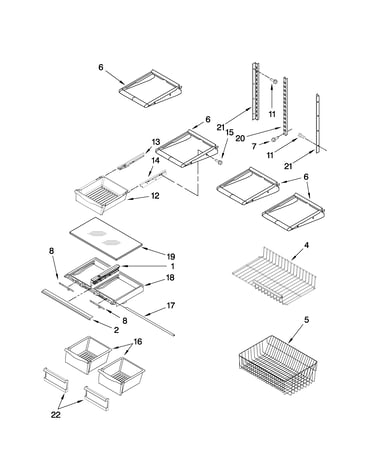

    Shelf parts Diagram

    Refrigerator central rail

    Part #12530701N
    Replaced by #WPW10671238
    ?
    Manufacturer substitution
    This part replaces 12530701N. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $51.19
    Refrigerator Door Switch#16

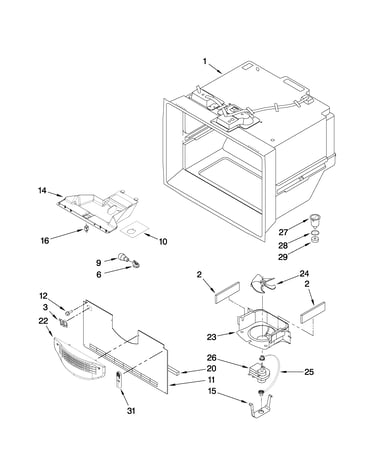

    Freezer liner parts Diagram

    Light swit

    Part #12466105
    Replaced by #W11396033
    ?
    Manufacturer substitution
    This part replaces 12466105. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $24.83
    Refrigerator Door Switch#6

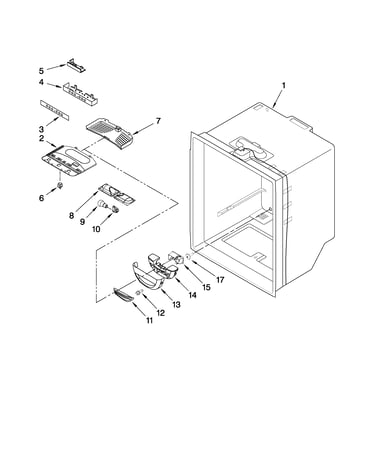

    Refrigerator liner parts Diagram

    Refrigerator switch

    Part #C3680310V
    Replaced by #W11384469
    ?
    Manufacturer substitution
    This part replaces C3680310V. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $21.02 |
    16% OFF
    MSRP: $25.00
    Refrigeration Appliance Run Capacitor#29

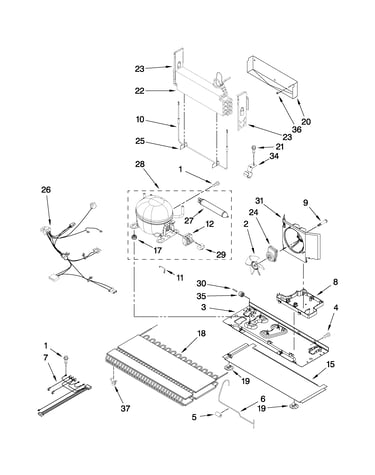

    Unit parts Diagram

    Refrigerator run capacitor

    Part #2264017
    Replaced by #WPW10662129
    ?
    Manufacturer substitution
    This part replaces 2264017. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $50.09
    Appliance Touch-Up Paint, 0.6-oz (White)#NI

    Optional parts Diagram

    Appliance touch-up paint, 0.6-oz (white)

    Part #72017
    BEST SELLER
    This item is not returnable
    Back Order
    $8.29
    Refrigerator Electronic Control Board#5

    Refrigerator liner parts Diagram

    Refrigerator electronic control

    Part #12784415V
    Replaced by #WPW10503278
    ?
    Manufacturer substitution
    This part replaces 12784415V. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $220.49
    Refrigerator Evaporator Fan Blade#24

    Freezer liner parts Diagram

    Refrigerator evaporator fan blade

    Part #2169142
    Replaced by #WP2169142
    ?
    Manufacturer substitution
    This part replaces 2169142. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $35.39
    Refrigerator Air Damper Control Assembly#15

    Refrigerator liner parts Diagram

    Refrigerator damper control assembly

    Part #W10196393
    Replaced by #WPW10196393
    ?
    Manufacturer substitution
    This part replaces W10196393. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $83.89 |
    16% OFF
    MSRP: $100.00
    Appliance Touch-Up Paint, 0.6-oz (Black)#NI

    Optional parts Diagram

    Appliance touch-up paint, 0.6-oz (black)

    Part #72032
    BEST SELLER
    This item is not returnable
    In Stock
    $4.89 |
    30% OFF
    MSRP: $7.00

    Symptoms common to all refrigerators

    Choose a symptom to see related refrigerator repairs.

    Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan not running
    Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, clean the drain pan
    Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freezer not cold enough
    Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer or control board
    Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost timer problems
    Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, sensor problems
    Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condenser fan not working
    Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubing, leaking door seal
