Amana
Side-By-Side Refrigerator

Model #ARS9168AW-PARS9168AW0 Amana side-by-side refrigerator

Here are the diagrams and repair parts for Amana ARS9168AW-PARS9168AW0 side-by-side refrigerator, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

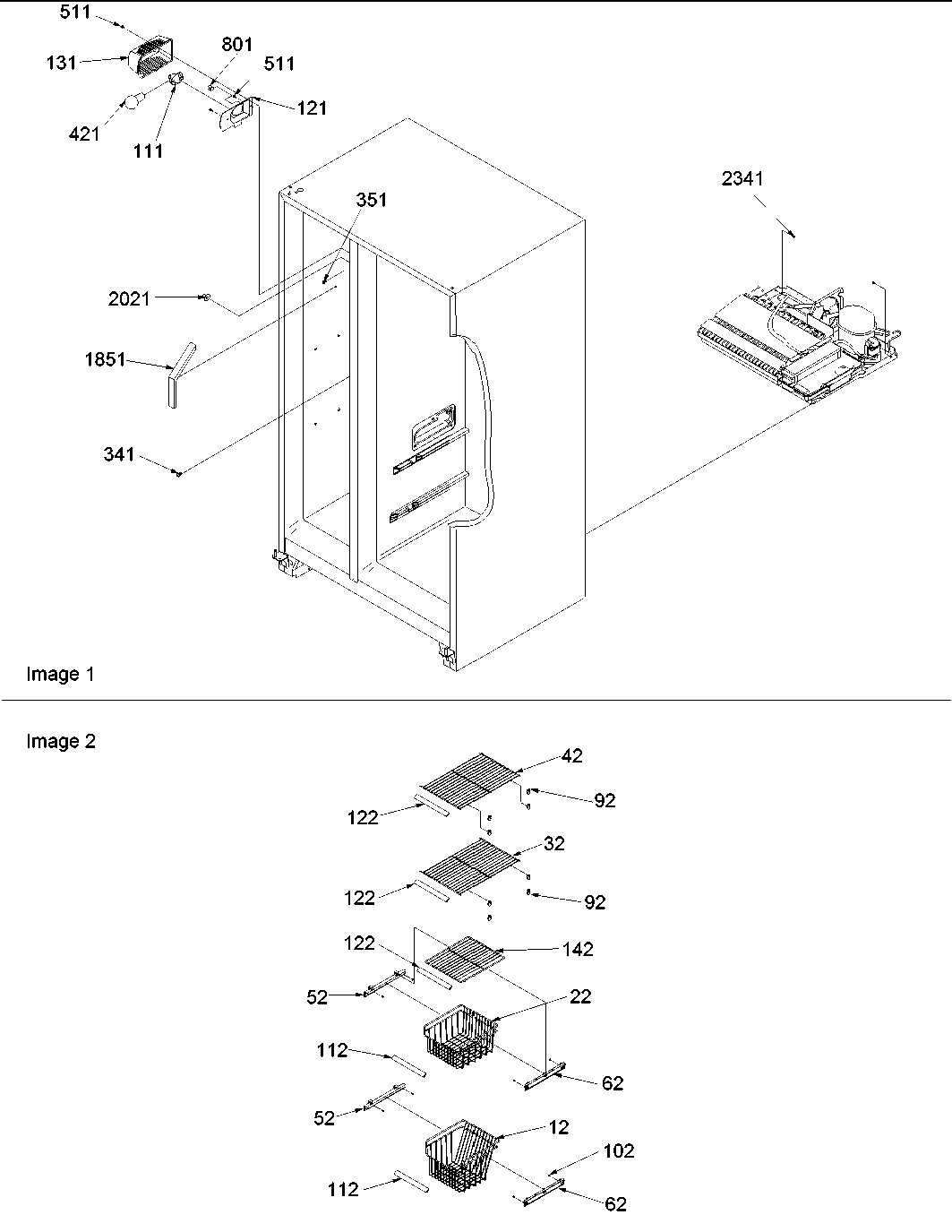

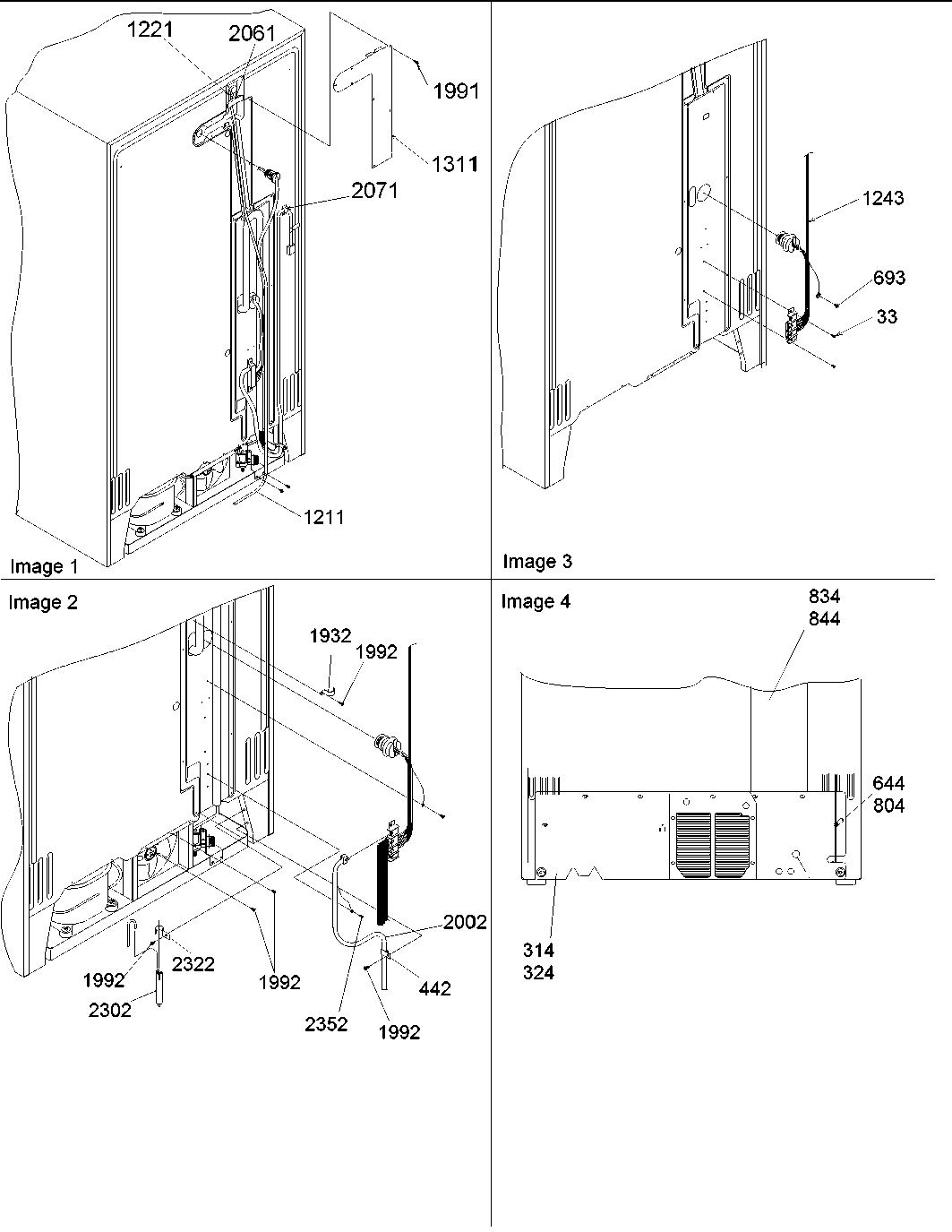

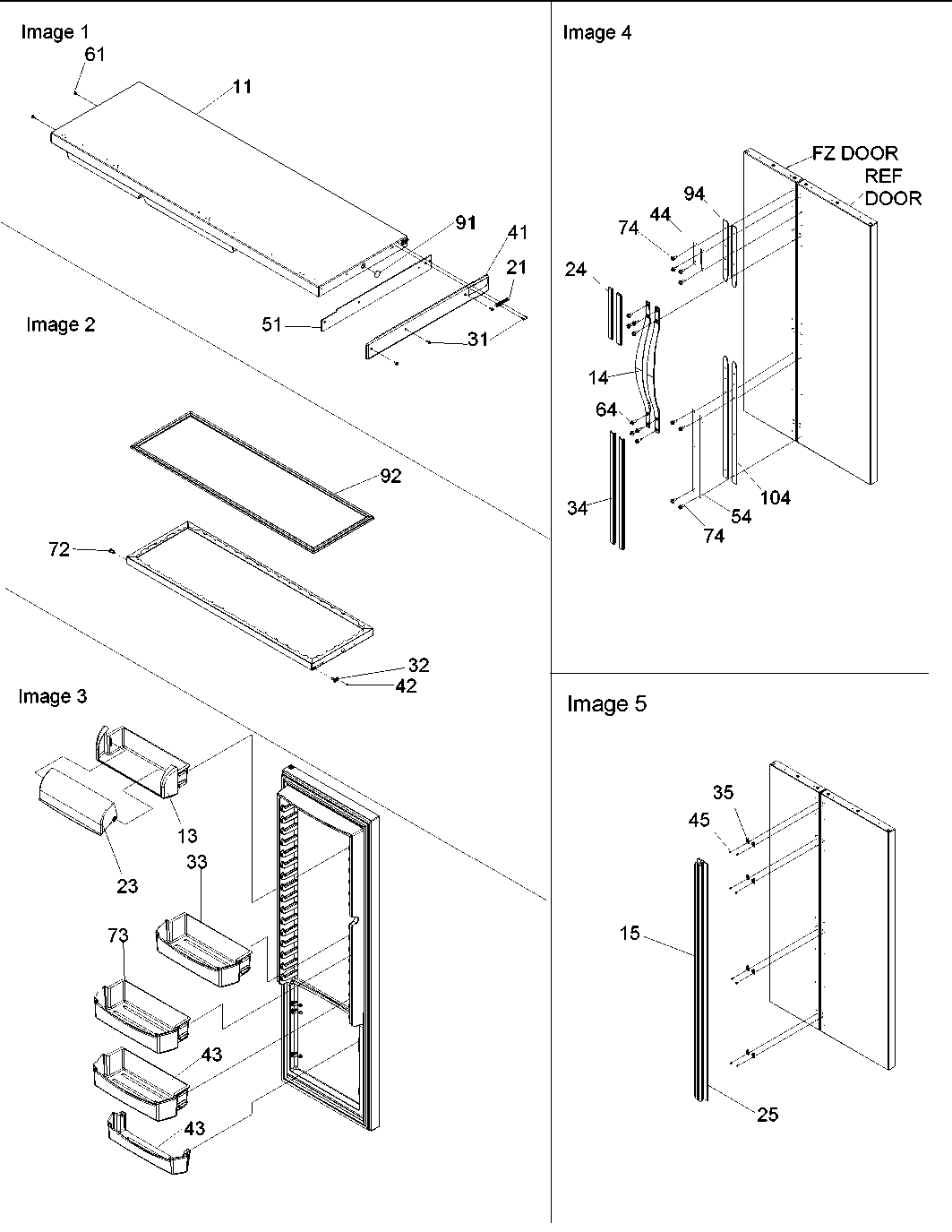

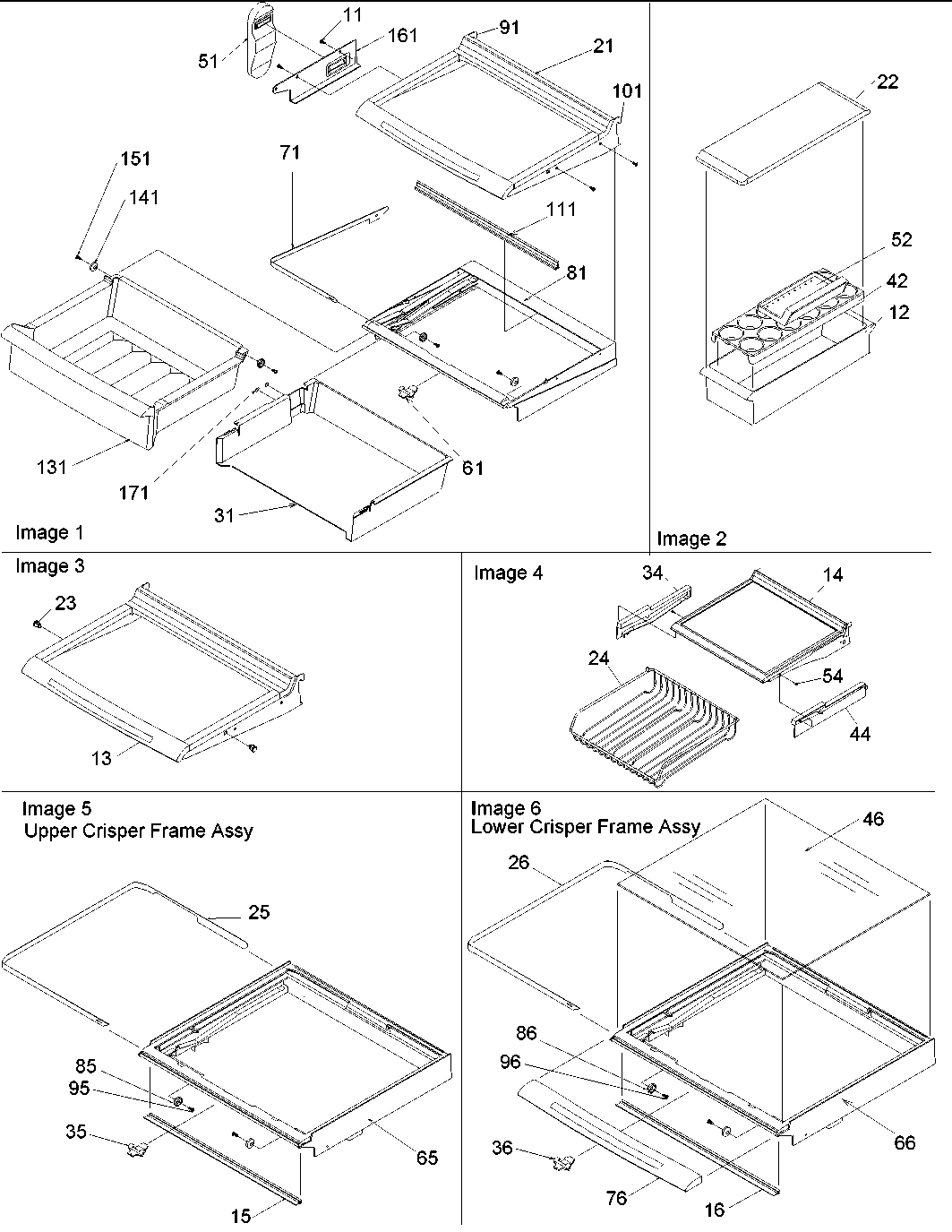

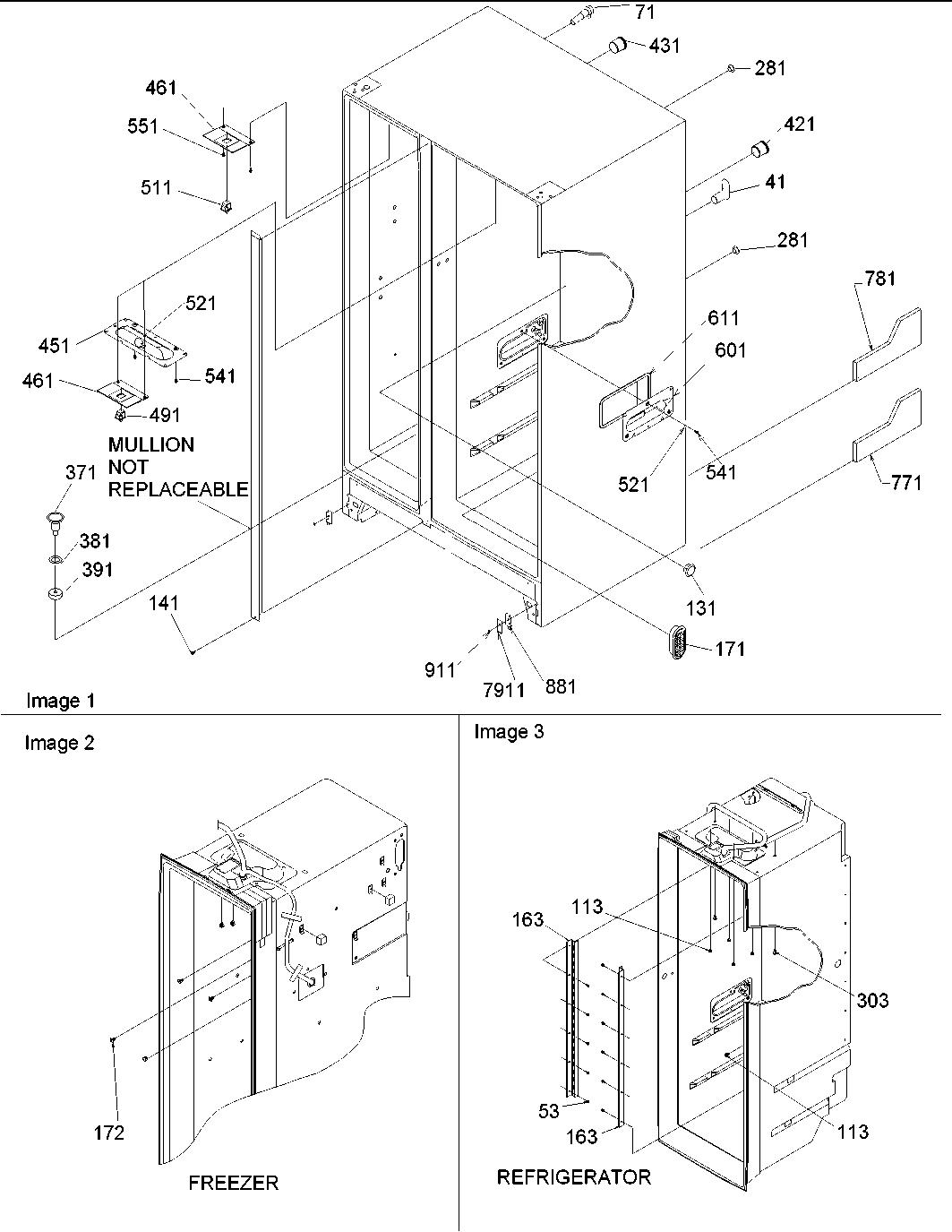

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

Showing 10 of 351 parts

Refrigerator Evaporator Heater Clip

#32

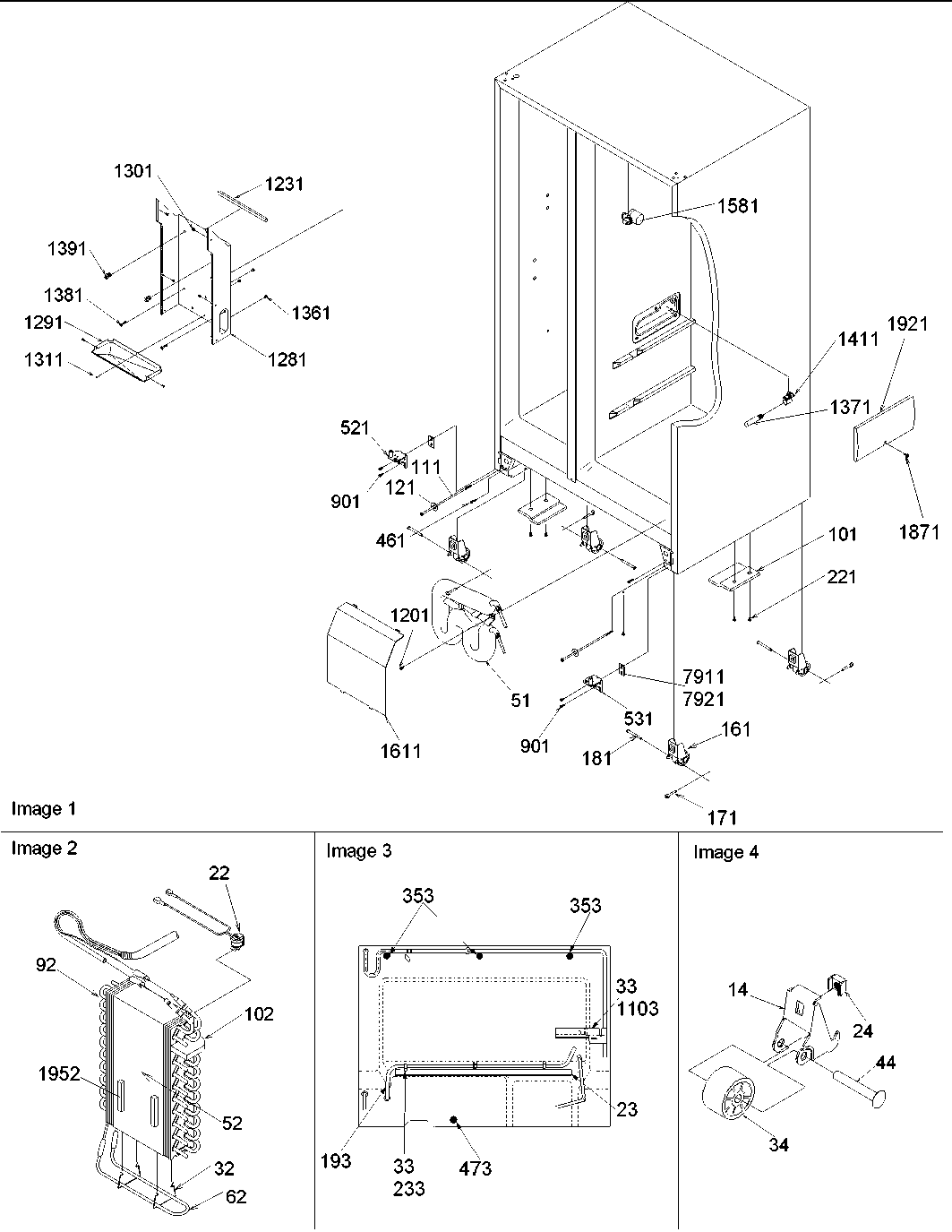

Drain, rollers & evap assy Diagram

Refrigerator evaporator heater clip

Part #10428101
This item is not returnable
$5.41 |
10% OFF MSRP:$5.99

In Stock

Refrigerator Speed Nut

#24

Drain, rollers & evap assy Diagram

Refrigerator speed nut

Part #M0286708
?
Manufacturer substitution
This part replaces M0286708. Substitute parts can look different from the original.
This part replaces M0286708
$25.17

In Stock

Genuine Kenmore Refrigerator Water Filter

#302

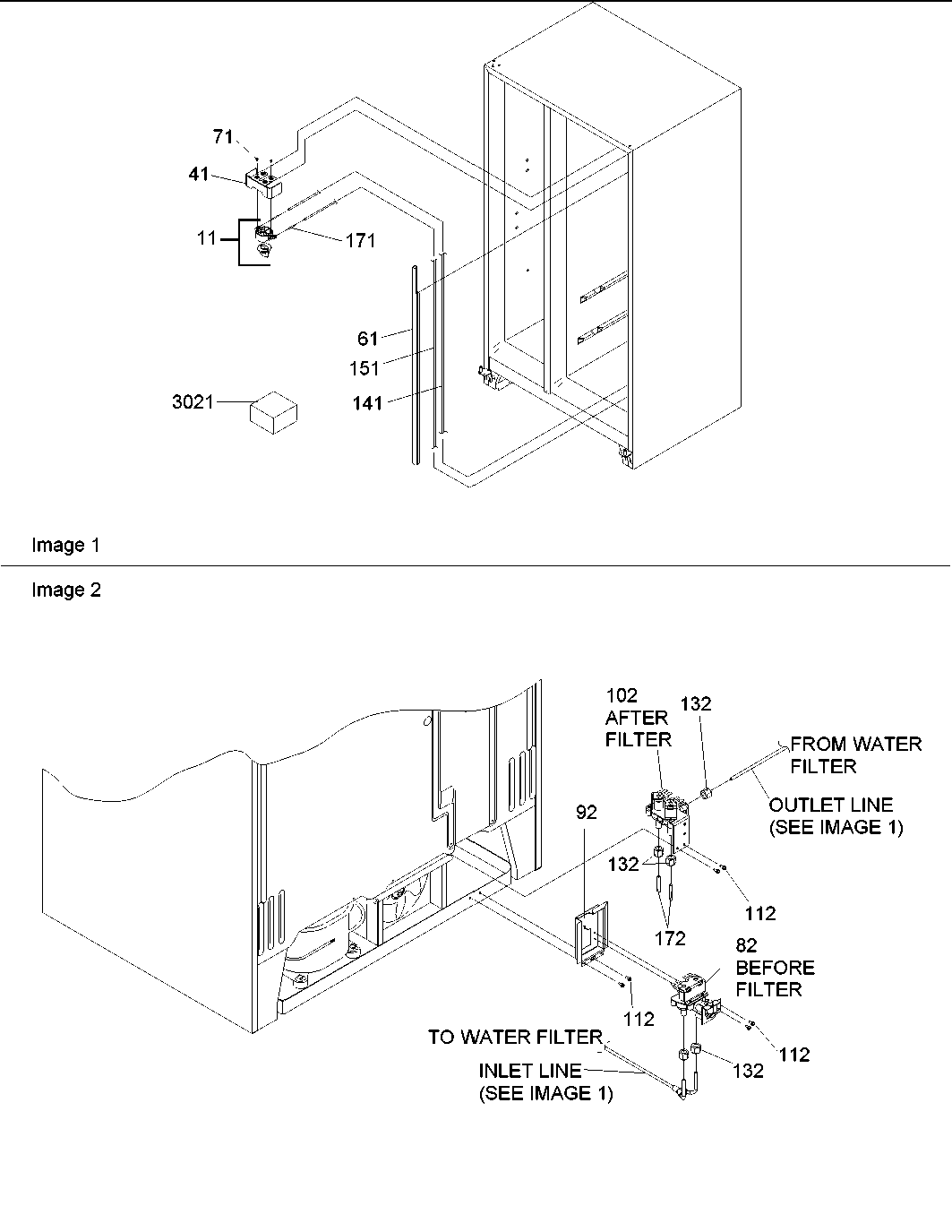

Water filter assy Diagram

Genuine kenmore refrigerator water filter

Part #9014
?
Manufacturer substitution
This part replaces 12527301. Substitute parts can look different from the original.
This part replaces 12527301

Get free shipping with Automatic Reorder

$54.98

In Stock

Refrigerator Evaporator Fan Motor

#41

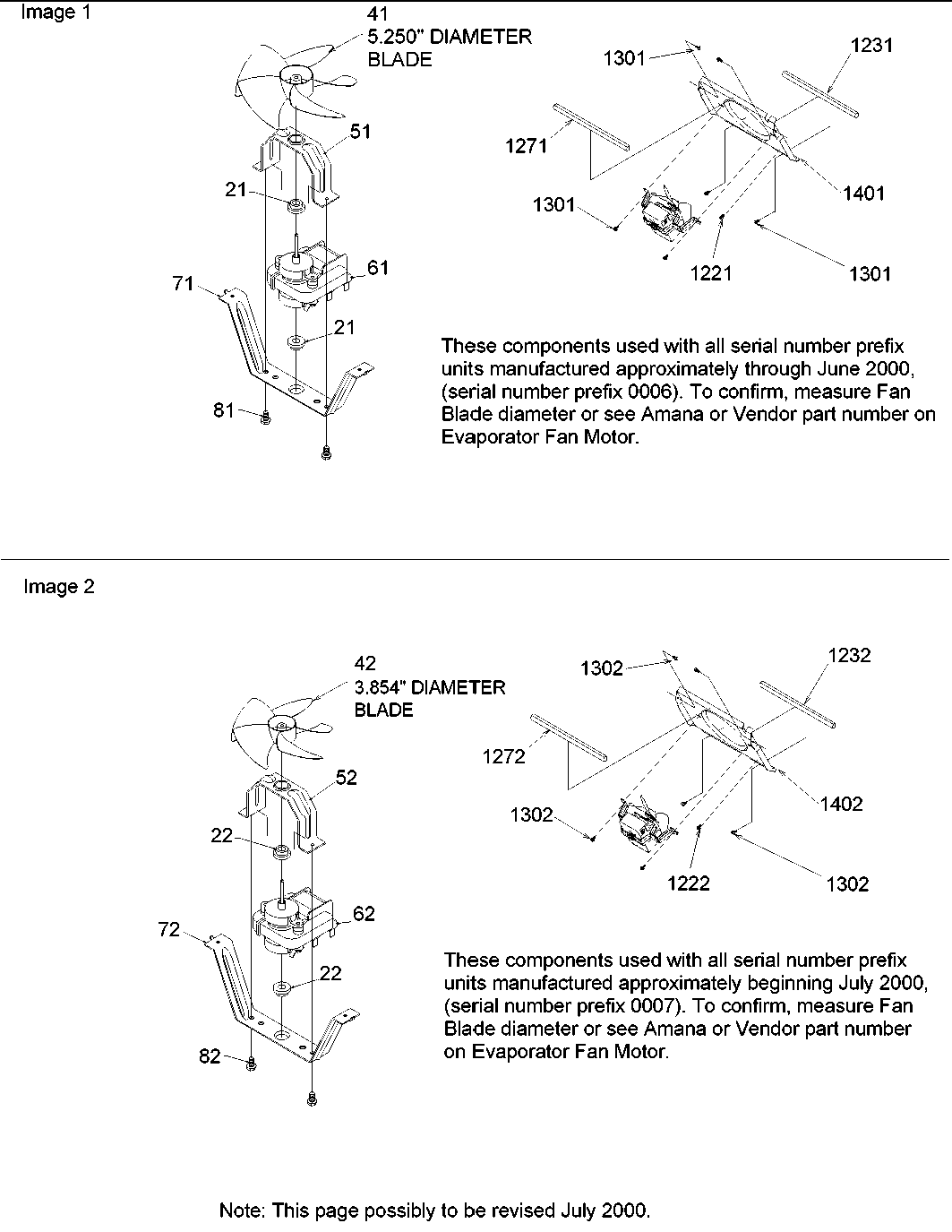

Evaporator fan shroud & motor assemblies Diagram

Refrigerator evaporator fan motor

Part #R0000199
?
Manufacturer substitution
This part replaces 10890101. Substitute parts can look different from the original.
This part replaces 10890101
$38.21 |
42% OFF MSRP:$66.00

In Stock

Refrigerator Door Chiller Frame

#108

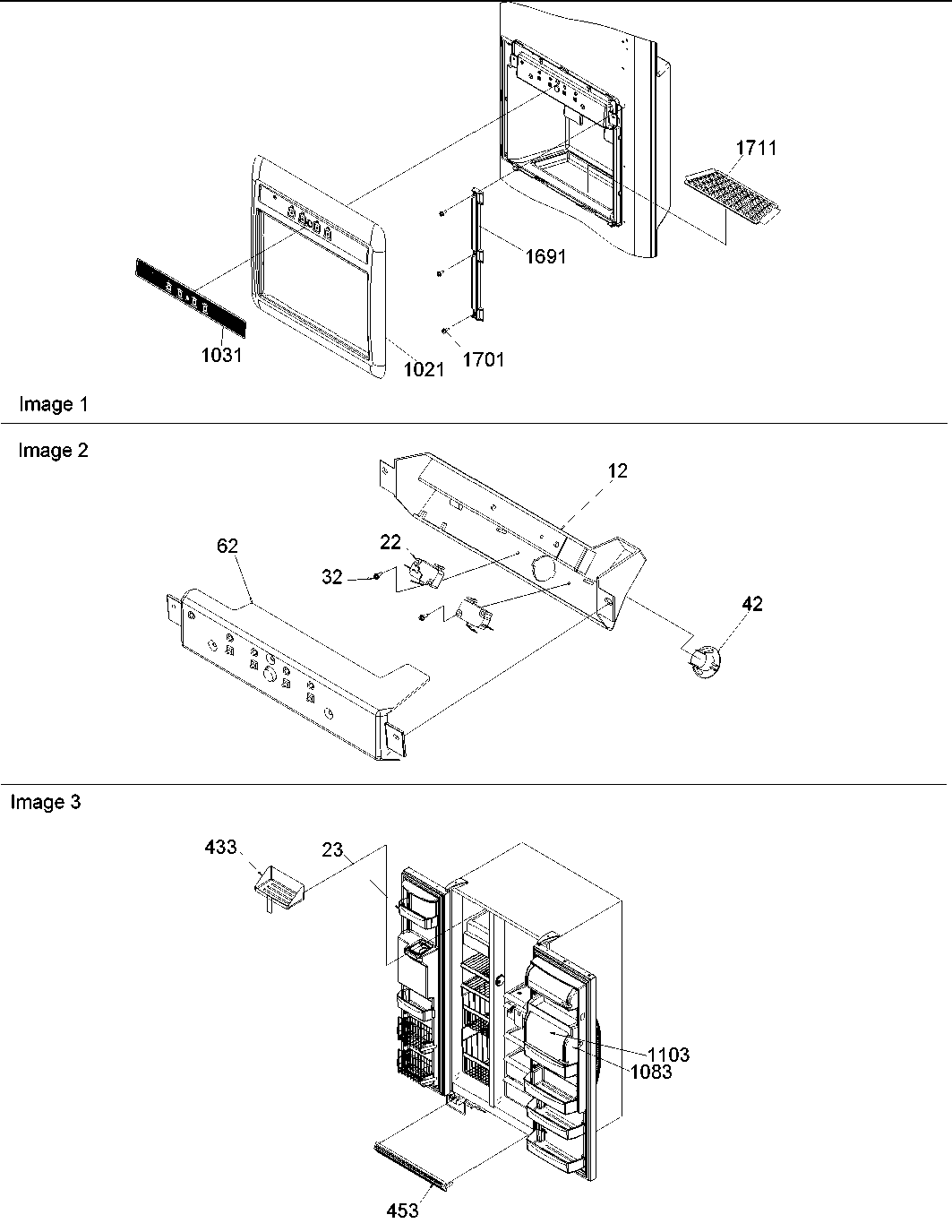

Fa€ade dispenser cover, & elec brkt assy Diagram

Refrigerator door chiller frame

Part #12313702
?
Manufacturer substitution
This part replaces 12313702. Substitute parts can look different from the original.
This part replaces 12313702
$25.25

In Stock

Refrigerator Screw

#111

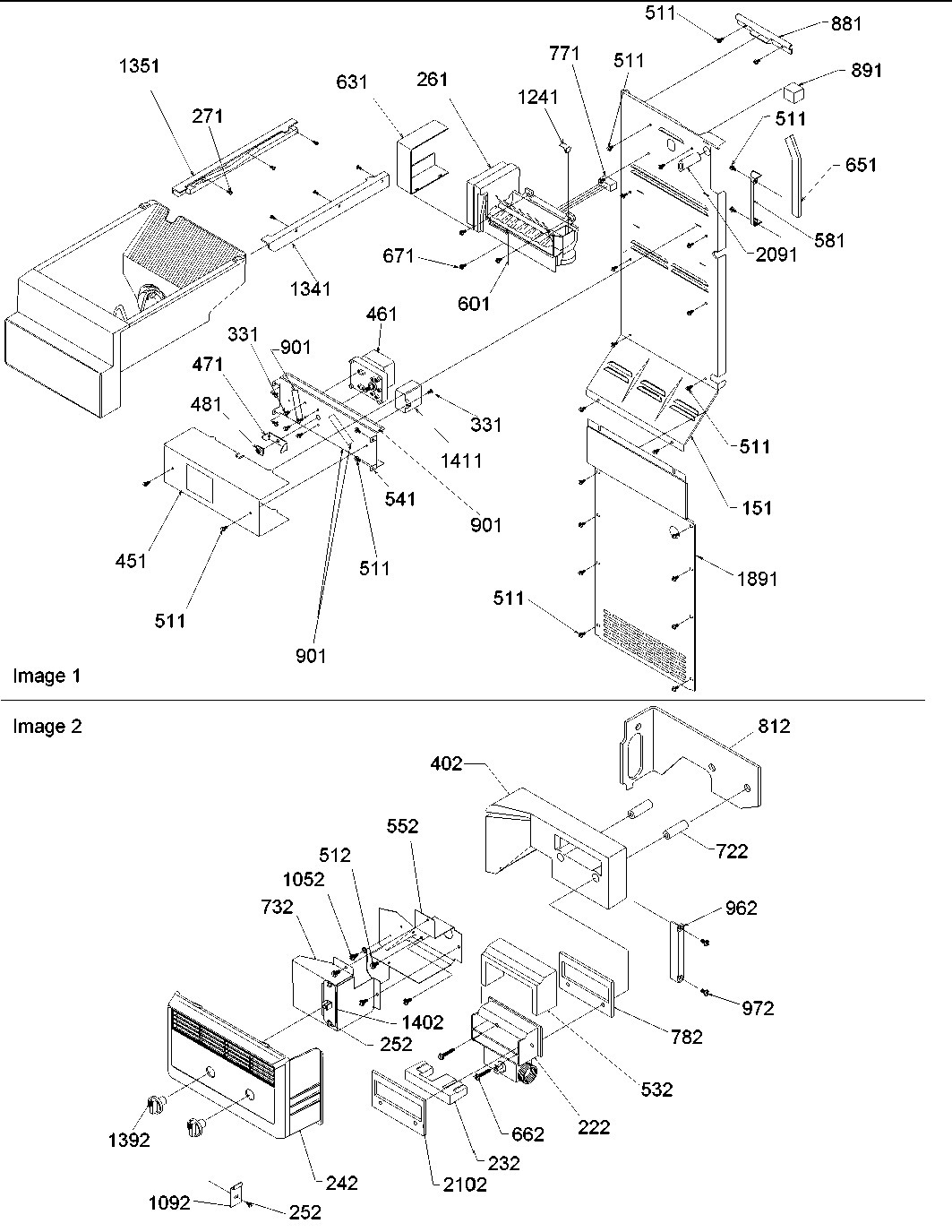

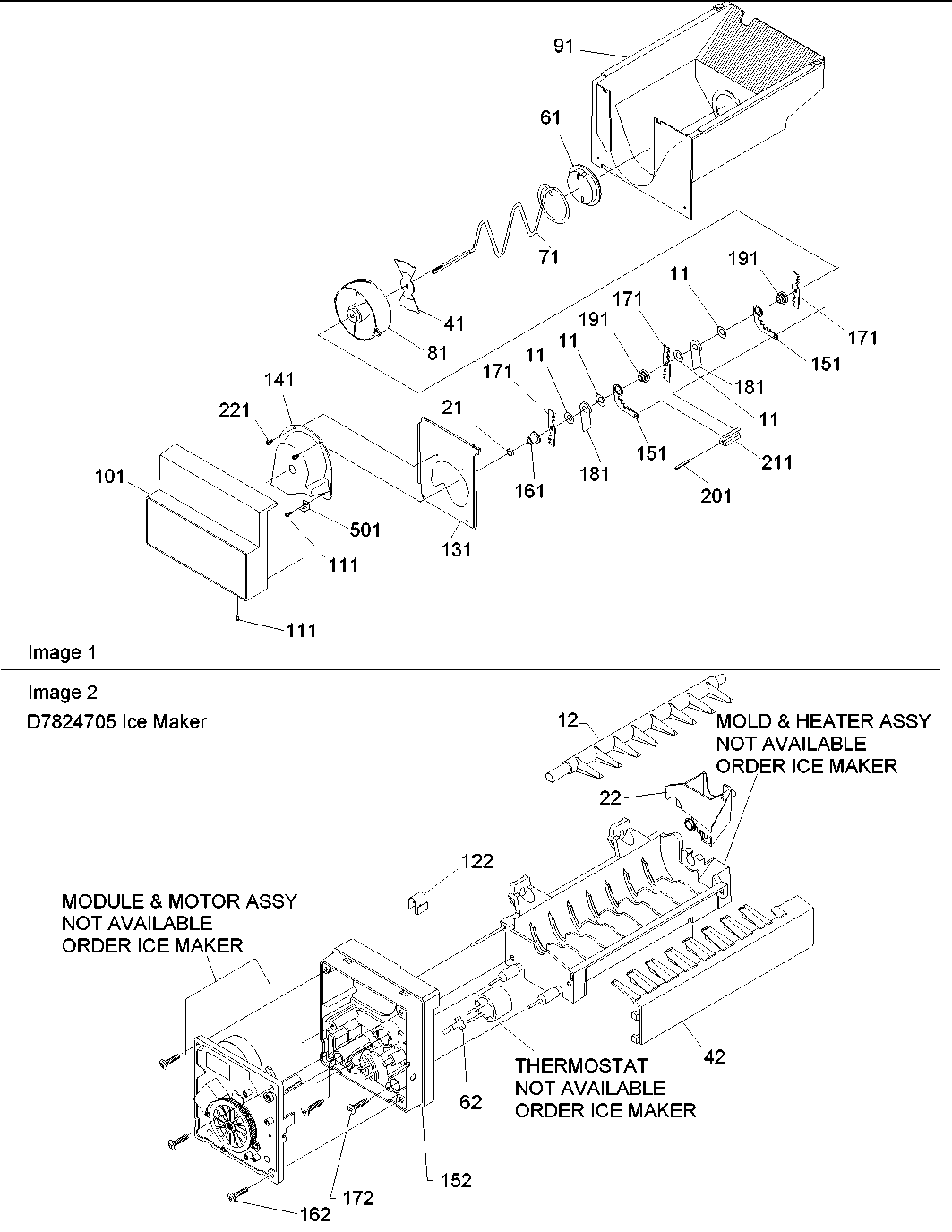

Ice bucket auger & ice maker parts Diagram

Refrigerator screw

Part #67006425
?
Manufacturer substitution
This part replaces M0238642. Substitute parts can look different from the original.
This part replaces M0238642
This item is not returnable
$5.11

In Stock

Refrigerator Chute Spring

#151

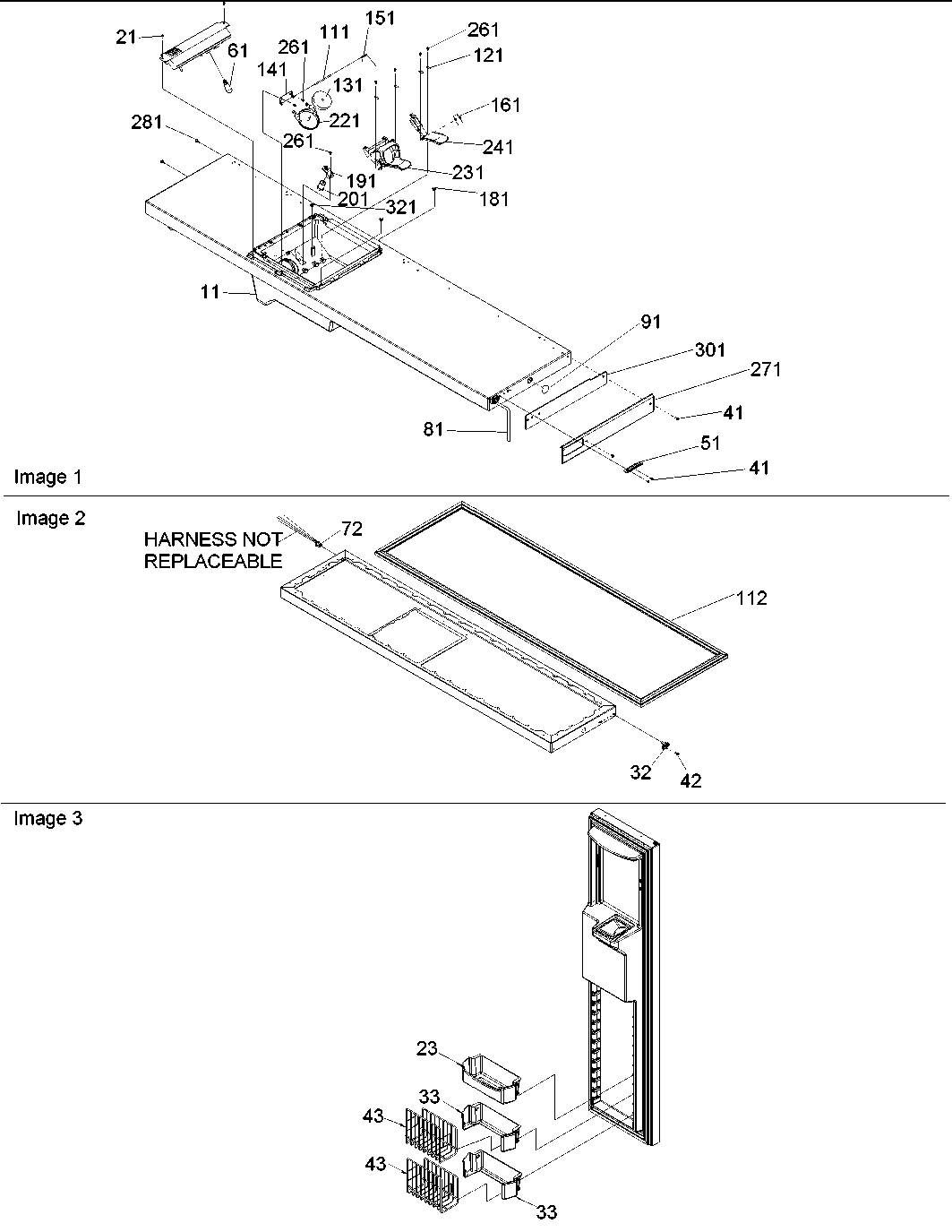

Freezer door Diagram

Refrigerator chute spring

Part #B8380901
?
Manufacturer substitution
This part replaces B8380901. Substitute parts can look different from the original.
This part replaces B8380901
This item is not returnable
$6.99

In Stock

Refrigerator Auger Drum

#81

Ice bucket auger & ice maker parts Diagram

Refrigerator auger drum

Part #WP67002052
?
Manufacturer substitution
This part replaces 10114703. Substitute parts can look different from the original.
This part replaces 10114703
$26.40 |
9% OFF MSRP:$29.00

In Stock

Screw

#531

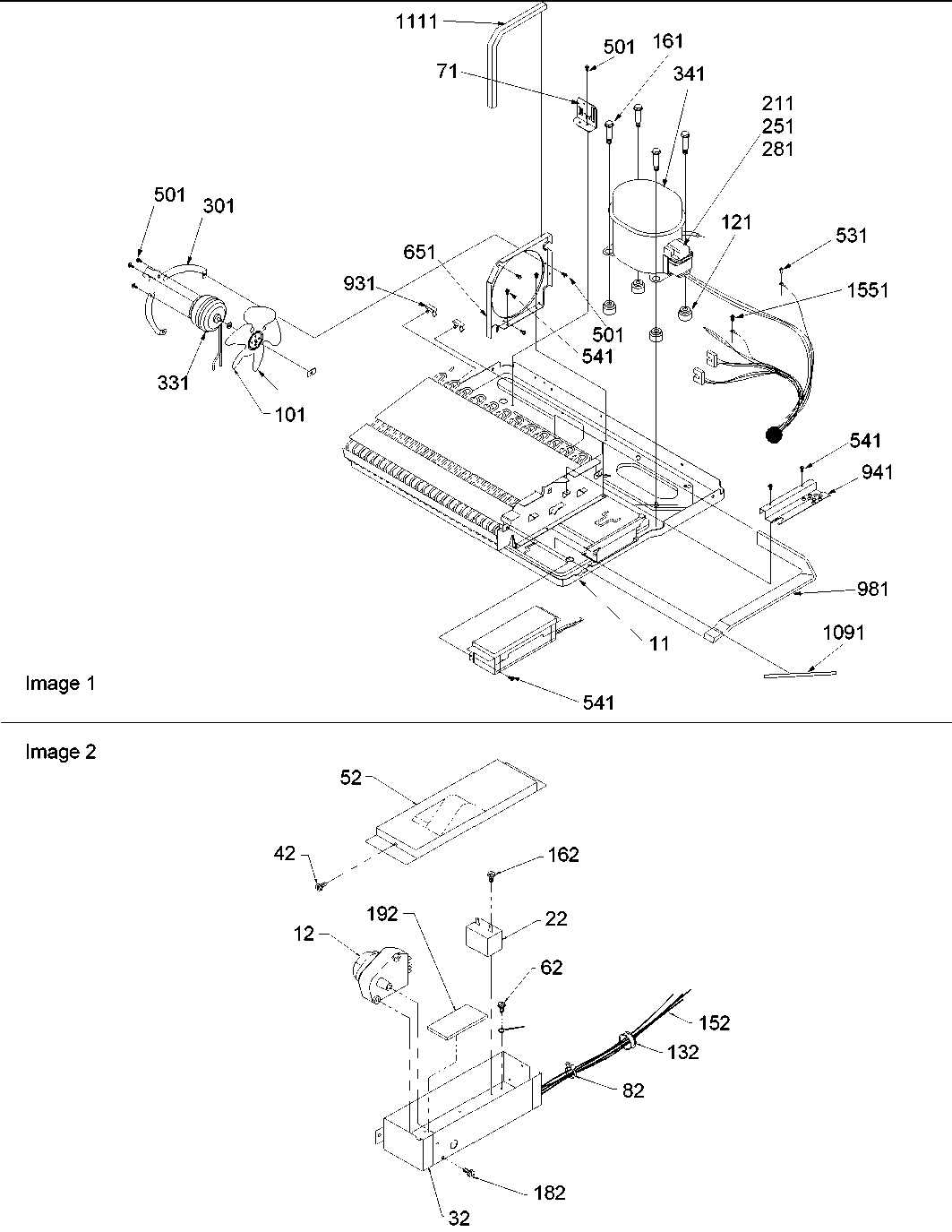

Machine compartment Diagram

Screw

Part #12992301
?
Manufacturer substitution
This part replaces M0231604. Substitute parts can look different from the original.
This part replaces M0231604
$20.82

In Stock

Refrigerator Door Closer Cam Kit

#400

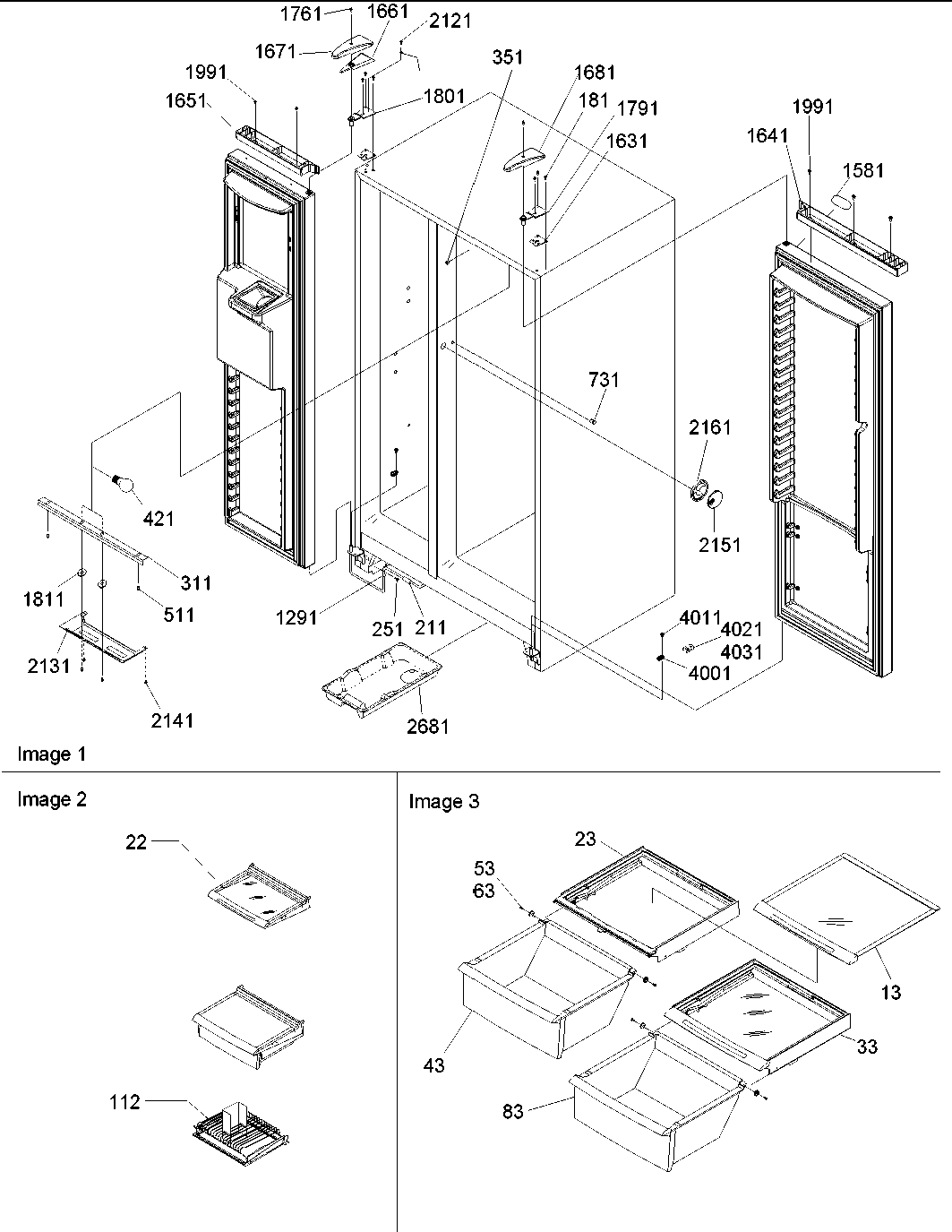

Refrigerator/freezer lights & hinges Diagram

Refrigerator door closer cam kit

Part #R0181181
?
Manufacturer substitution
This part replaces 12431301. Substitute parts can look different from the original.
This part replaces 12431301
This item is not returnable
$4.49 |
8% OFF MSRP:$4.89

In Stock
