Where to find part number on GE dryer?
On your GE dryer model DBXR453GT5WW, the model and serial information you need for ordering parts is on the identification label on the front of the dryer behind the door (open the door and check the door opening area). Use that model number when matching parts.
Where to look on DBXR453GT5WW
Check these common label locations first:
- Front panel area behind the door (most common on this GE dryer)
- Door opening or door frame area near the latch
- Inside the door itself (less common, but possible)
- If the label is worn: look for an imprint or adhesive outline where the sticker was
For diagrams and the exact label callout for this model, use the DBXR453GT5WW owner's manual.
What number to use when ordering parts
GE dryers typically show multiple identifiers. Here is what each one is for:
| What you see on the label | What it’s used for | Example (format) |
|---|---|---|
| Model number | Matches the correct parts list | DBXR453GT5WW |
| Serial number | Date/production info; service reference | Letters and numbers |
| Part number (on a component) | Identifies a specific replacement part | WE12M0022 |
If you are replacing a common wear item like the drum belt, match by model first, then confirm the part ID. For example, the drive belt WE03X29897 is a model-matched belt option for this dryer.
Why it matters
Using the model number (not just a number printed on a knob, timer, or panel) prevents ordering the wrong GE dryer parts, especially for fit-critical items like a drive belt, idler pulley, or door switch.
Last updated: February 2026
Where is the thermal fuse on a GE DBXR453GT5WW?

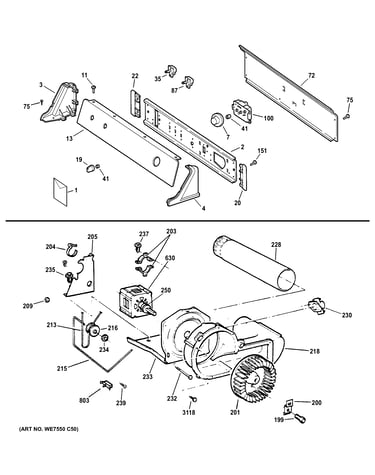

On the GE DBXR453GT5WW dryer, the thermal fuse is typically mounted on the blower housing (airflow housing) inside the cabinet, close to where the exhaust air leaves the drum area. Use the wiring diagram and cabinet access steps in the DBXR453GT5WW owner's manual to pinpoint the exact spot for your configuration.
How to access it (common layout)
- Unplug the dryer (and shut off gas if you have a gas version).
- Remove the lint screen.

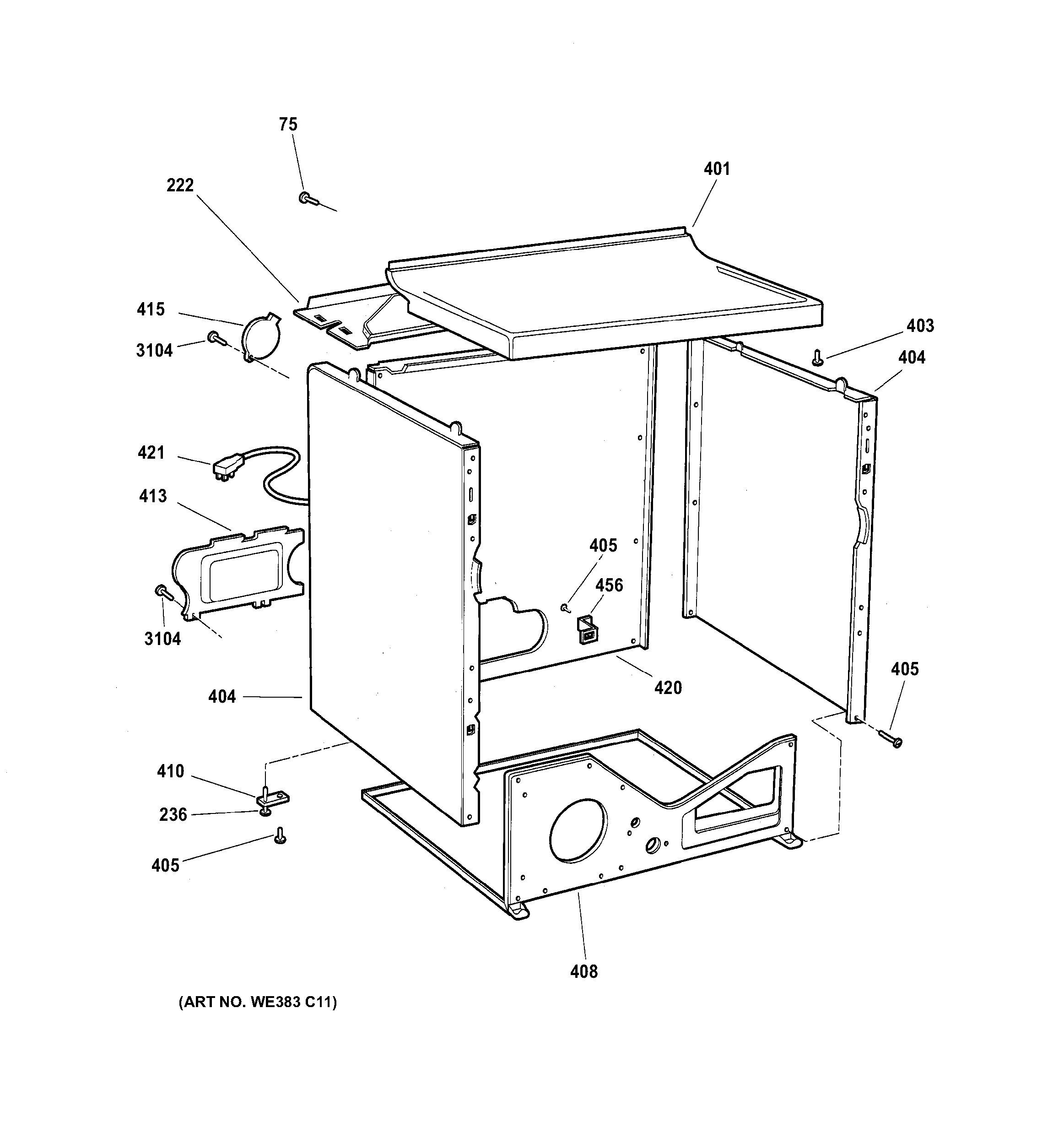

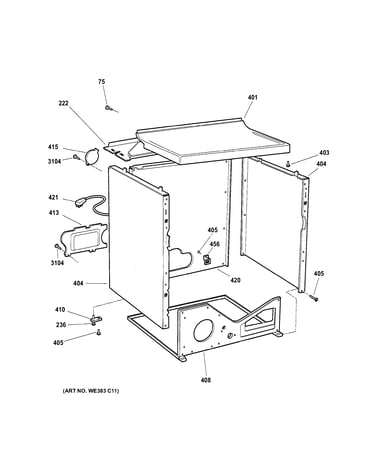

- Open the cabinet (most GE designs use either a front panel removal or a top panel lift, depending on the series).

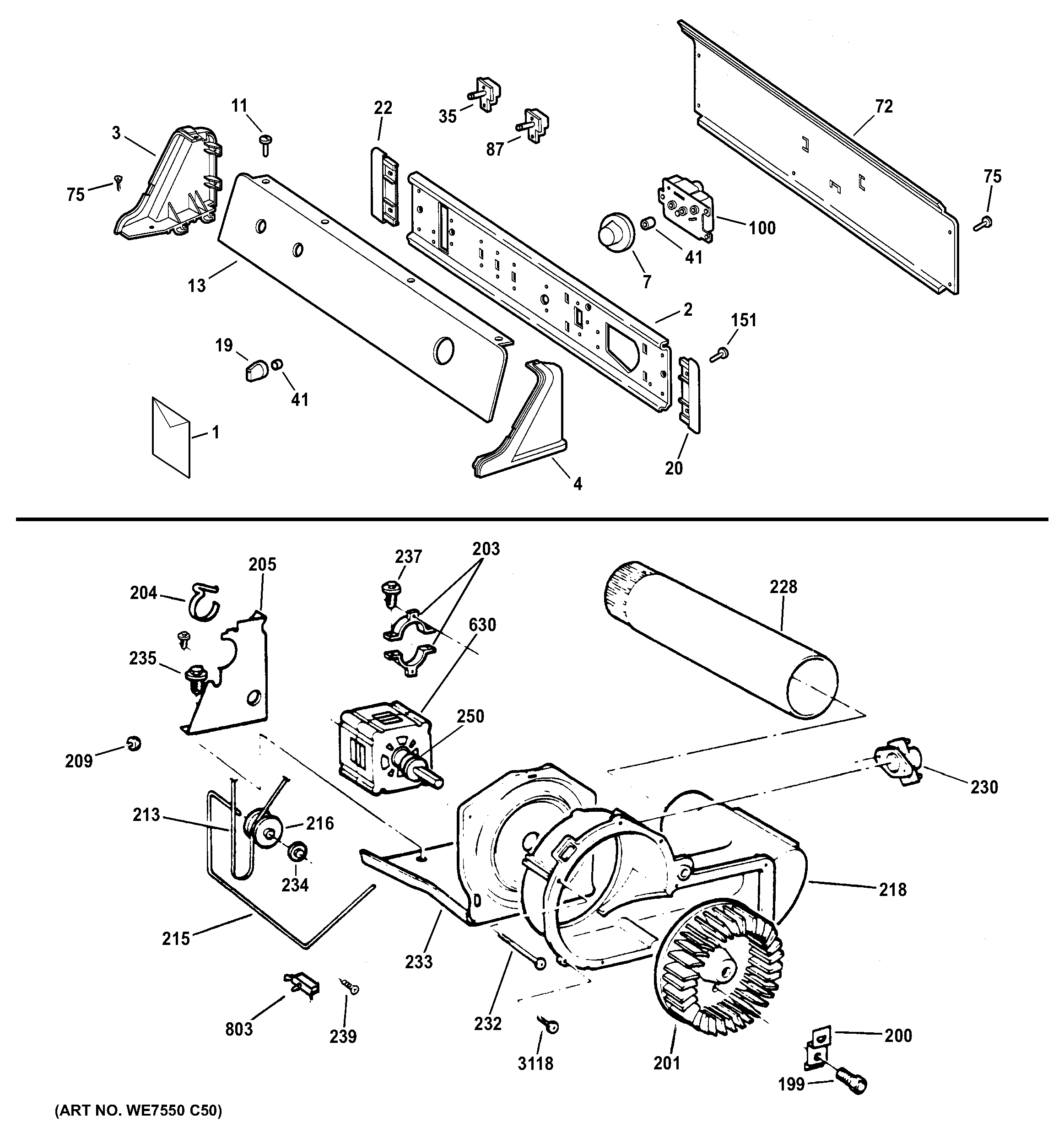

- Locate the blower housing near the motor and exhaust outlet; the thermal fuse is usually a small, flat safety device with two wires.
What you will usually see
- Blower housing near the lower front or lower rear area (varies by build)
- A small fuse body with two terminals
- Wires leading into the heater circuit (electric) or burner control circuit (gas)
- Nearby safety parts such as thermostats
Quick ID checklist (so you do not confuse parts)
- Thermal fuse: one-time safety; opens permanently if overheating occurs
- Thermostat: cycling control; opens and closes repeatedly during normal operation
- High-limit thermostat: safety backup; may reset depending on design
| Part type | Typical behavior | What it affects |
|---|---|---|
| Thermal fuse | Opens once, stays open | Dryer will not heat or may not run |
| Cycling thermostat | Opens/closes normally | Maintains drum temperature |
| High-limit thermostat | Trips on overheat | Prevents dangerous temperatures |
Why it matters
If the thermal fuse is open, replacing it without fixing the overheating cause often leads to repeat failure. The most common causes are restricted venting, a clogged lint path, or a failing blower wheel.
Prevent repeat fuse trips
- Clean the lint screen and lint chute
- Inspect and clear the vent duct to the outside
- Confirm strong airflow at the exterior vent hood
- Check the blower wheel for damage or looseness
- Avoid crushing or kinking flexible venting
Last updated: February 2026
Do GE dryers have a thermal fuse?
Yes. GE dryers, including model DBXR453GT5WW, use a thermal safety device (commonly called a thermal fuse) to shut the dryer down if it overheats; the most common reason it trips is restricted airflow from lint buildup or improper venting.
What the thermal fuse does (and what it does not)
A thermal fuse is a one-time safety cutoff. If it opens, the dryer typically will not run until the fuse is replaced and the overheating cause is corrected.
- Protects the dryer by cutting power when temperatures get unsafe
- Usually trips because airflow is blocked (lint screen, duct, outside damper)
- Does not reset; replacement is required after it blows
- Often fails along with, or because of, venting problems
What to check first on DBXR453GT5WW
We recommend addressing airflow before replacing any parts. Use the venting and troubleshooting guidance in the DBXR453GT5WW owner’s manual and confirm the vent setup matches the DBXR453GT5WW installation guide.
- Clean the lint screen before every load
- Inspect the entire exhaust duct for kinks, crushing, or lint blockage
- Confirm the outside wall damper opens freely
- Use the shortest, straightest vent run practical
- Make sure the dryer is on a level surface (reduces vibration and rubbing)
Symptoms and likely causes
| Symptom | Common cause | What to do |
|---|---|---|
| Dryer will not start | Thermal fuse open, door switch issue, power supply issue | Verify power, then test safety devices and door switch |
| Dryer runs but no heat | House fuses/breakers, gas supply off (gas models), heating circuit issue | Check supply first, then diagnose heating components |
| Long dry times | Restricted venting, lint buildup | Clean venting and confirm correct ducting |
Why it matters
When airflow is restricted, heat builds up inside the cabinet and heater area. That overheating is exactly what causes thermal fuses to open, and it can also shorten the life of other components like thermostats and the blower system.
Last updated: February 2026
How to reset GE dryer not heating?
Resetting a GE DBXR453GT5WW dryer that isn’t heating is mainly a power reset: unplug the dryer (or switch the breaker off) for 1 minute, then restore power and run a heat cycle. If it still tumbles but won’t heat, the issue is usually power supply, gas supply, or airflow, not the reset.
Quick reset and heat check (DBXR453GT5WW)
- Unplug the dryer for 60 seconds (or turn both dryer breakers off, then on).
- Set a Timed Dry cycle with a high heat selection.
- Start the dryer and let it run 3 to 5 minutes.
- Confirm the drum is tumbling and warm air is moving at the exhaust.
- If it’s a gas model, confirm the gas shutoff valves are fully open.
Most common reasons it tumbles but won’t heat
- House fuse/breaker issue: many electric dryers use two fuses/breakers; one can trip and the dryer will still run but not heat.
- Gas supply off (gas models): shutoff at the dryer or main shutoff is closed.
- Restricted venting/ducting: kinks, lint buildup, or a stuck outside damper.
- Controls set incorrectly: cycle or temperature not matched to the load.
- Internal heat circuit failure: components in the heating system can fail and require testing.
Airflow and venting checklist
Use the venting requirements in the installation guide and confirm:
- Duct is clean and not crushed behind the dryer
- Outside wall damper opens easily
- Lint screen is cleaned before every load
- Dryer is installed to vent outdoors (required for gas dryers)
What to check first (fast triage)
| What you observe | Most likely cause | What we do next |
|---|---|---|
| Tumbles, no heat (electric) | One breaker/fuse tripped | Reset/replace and verify both legs of power |
| Tumbles, no heat (gas) | Gas shutoff closed | Open shutoffs and retry Timed Dry |
| Heats poorly, long dry times | Vent restriction | Clean/repair ducting and damper |
| No start plus no heat | Power/door switch issue | Verify outlet/breaker and door switch |
Why it matters
A “reset” can clear a temporary control state, but no-heat problems on the DBXR453GT5WW are most often caused by power supply, gas supply, or blocked exhaust airflow, which also increases drying time and can overheat components.
For cycle settings, troubleshooting steps, and safety notes, follow the DBXR453GT5WW owner’s manual.
Last updated: February 2026
