Whirlpool
Range/Microwave Combo

Model # RM988PXVW4 Official Whirlpool combination microwave/lower oven

Here are the diagrams and repair parts for Official Whirlpool RM988PXVW4 combination microwave/lower oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

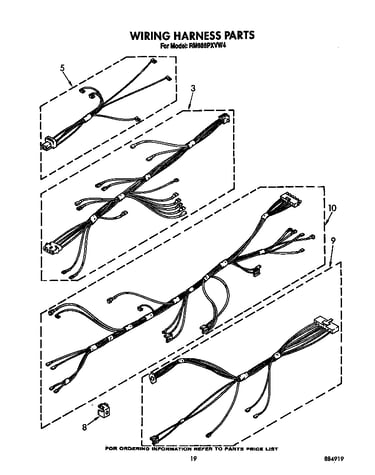

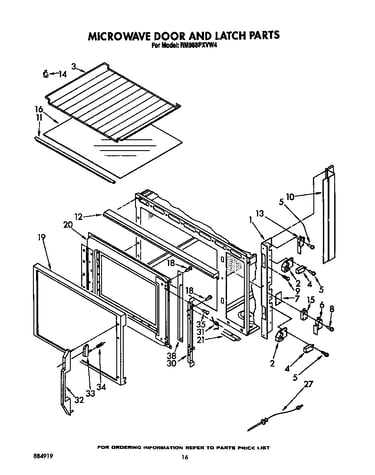

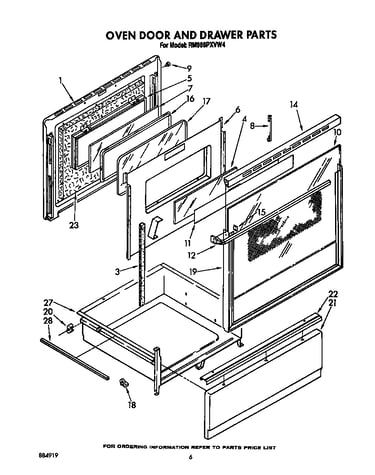

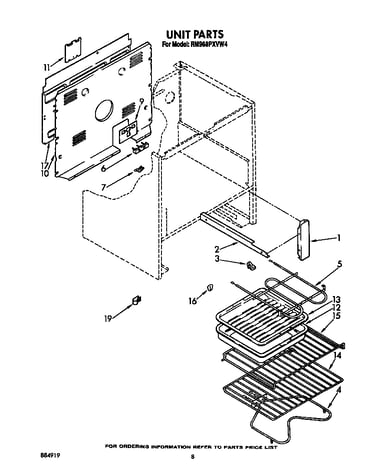

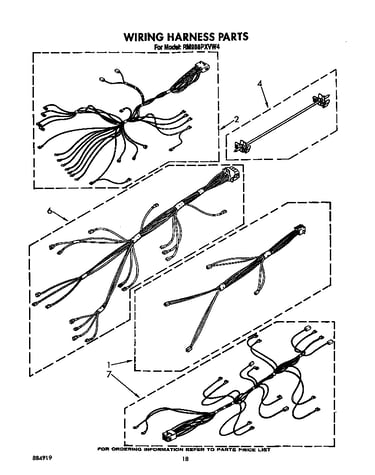

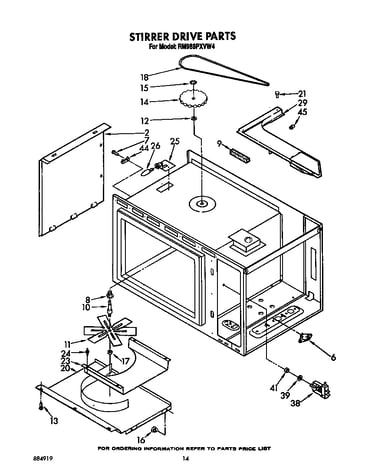

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 364 parts  |
Light Bulb 311255
#11

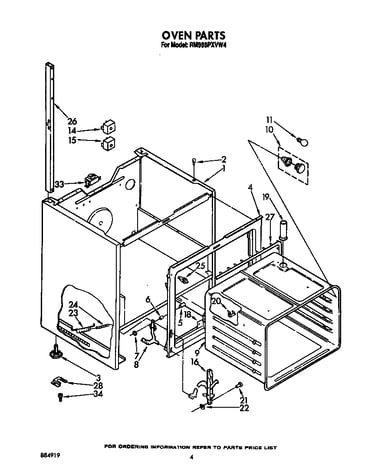

Oven diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$15.39 |
12% OFF Phone Price : $17.39
In Stock
Adhesive 307576

#NI

All parts diagram

Adhesive

Part #307576

Replaced by #W10841140

?
Manufacturer substitution
This part replaces 307576. Substitute parts can look different from the original.
BEST SELLER
$14.99 |
46% OFF MSRP : $28.00
In Stock
Appliance Touch-up Paint 72017

#NI

All parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray W 799343

#NI

All parts diagram

Spray w

Part #799343

Replaced by #350930

?
Manufacturer substitution
This part replaces 799343. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Magnetron 660595
#26

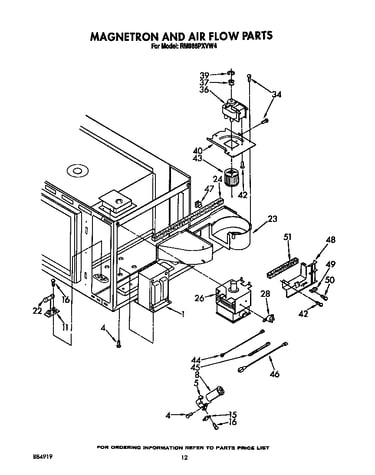

Magnetron and air flow diagram

Magnetron

Part #660595

The manufacturer no longer makes this part, and there's no substitute part

Touchup Al 72107

#NI

All parts diagram

Touchup al

Part #72107

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces 72107. Substitute parts can look different from the original.
BEST SELLER
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Range Coil Surface Element, 8-in 660533
#19A

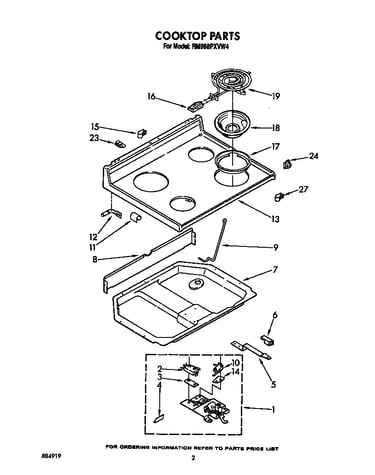

Cooktop diagram

Range coil surface element, 8-in

Part #660533

Replaced by #WP660533

?
Manufacturer substitution
This part replaces 660533. Substitute parts can look different from the original.
BEST SELLER
$27.06 |
48% OFF MSRP : $52.00
In Stock
Insulation 3149287

#NI

All parts diagram

Insulation

Part #3149287

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 3149287. Substitute parts can look different from the original.
$37.65 |
12% OFF Phone Price : $42.65
In Stock
Clip 3148790
#24

Cooktop diagram

Clip

Part #3148790

Replaced by #814103

?
Manufacturer substitution
This part replaces 3148790. Substitute parts can look different from the original.
This item is not returnable
$5.35
In Stock
Light Switch (black) 314134
#32

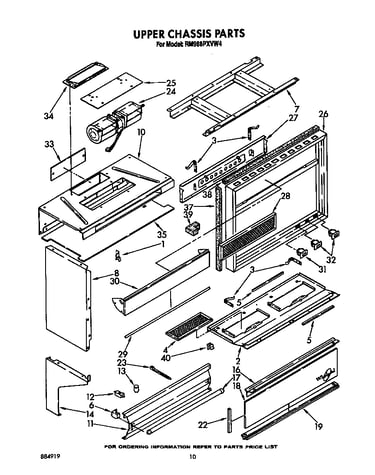

Upper chassis diagram

Light switch (black)

Part #314134

Replaced by #WP4314961

?
Manufacturer substitution
This part replaces 314134. Substitute parts can look different from the original.
$35.52 |
12% OFF Phone Price : $40.52
In Stock
