Model # DW80J9945US/AA-01 Official Samsung dishwasher

Here are the diagrams and repair parts for Official Samsung DW80J9945US-AA-01 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

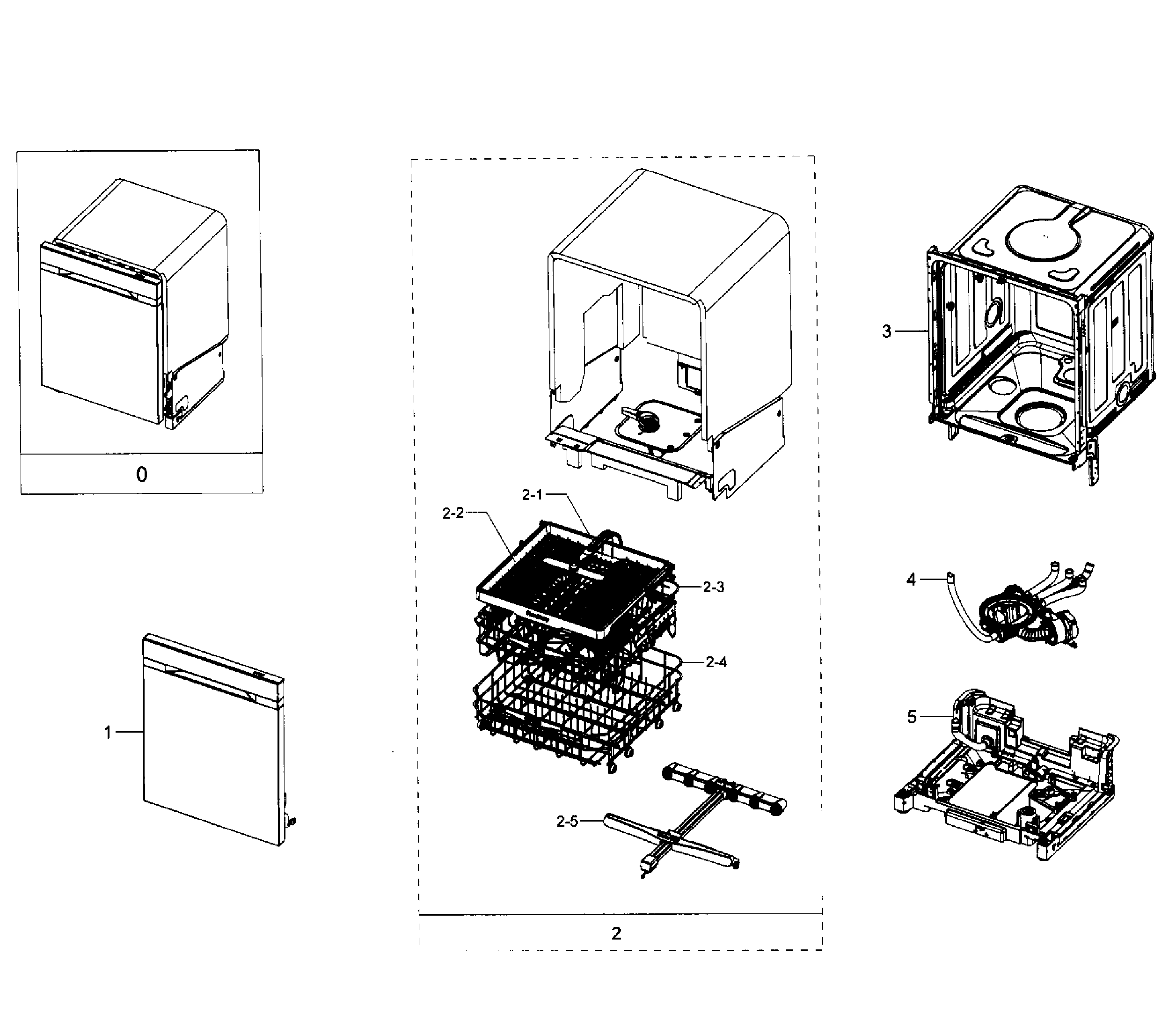

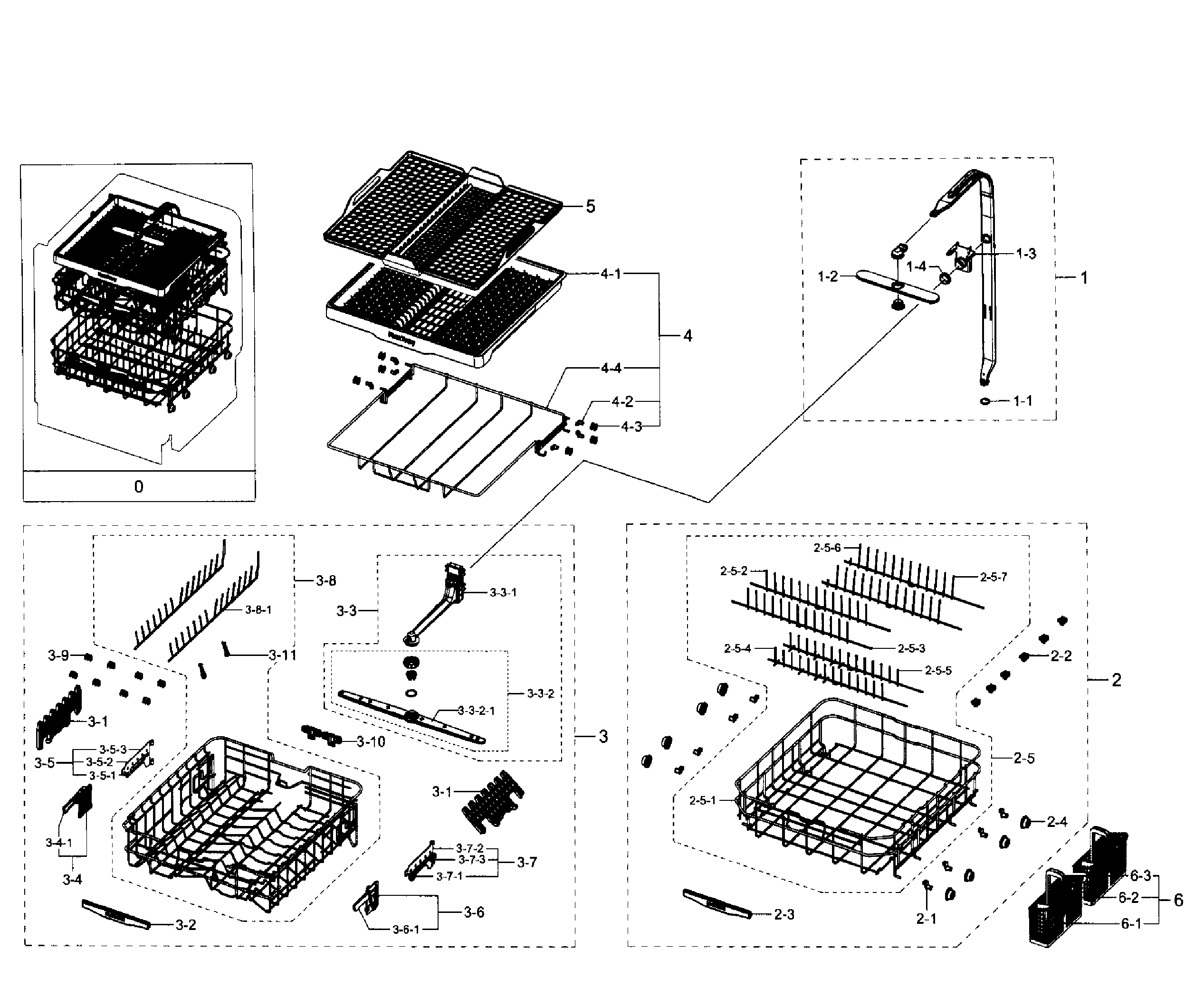

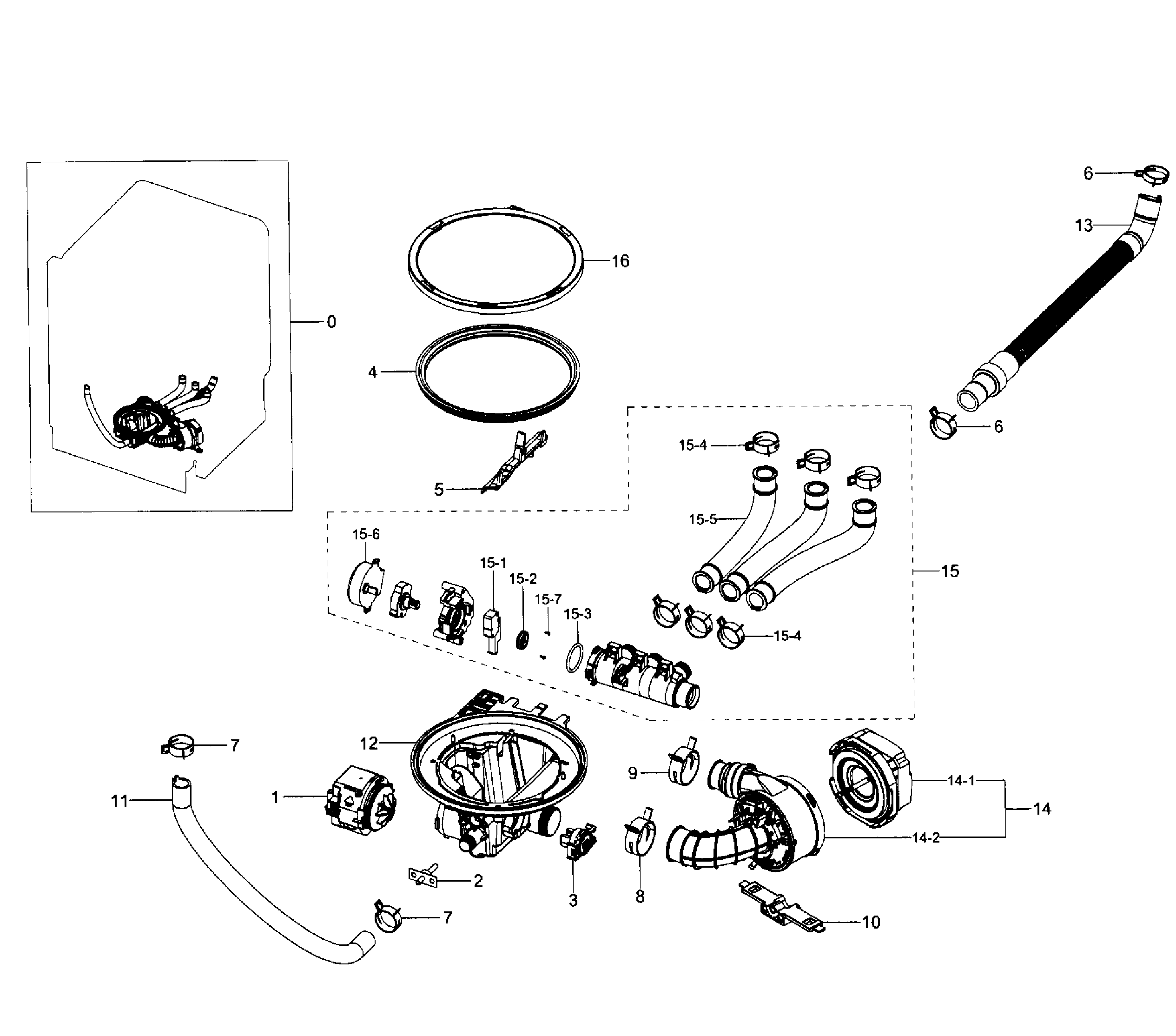

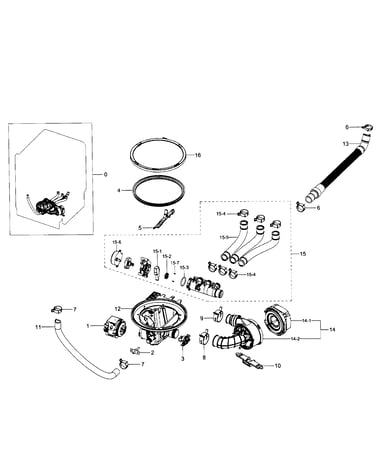

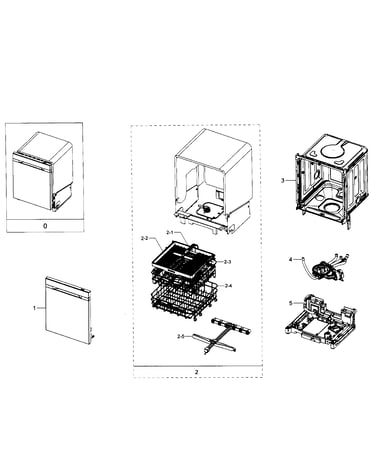

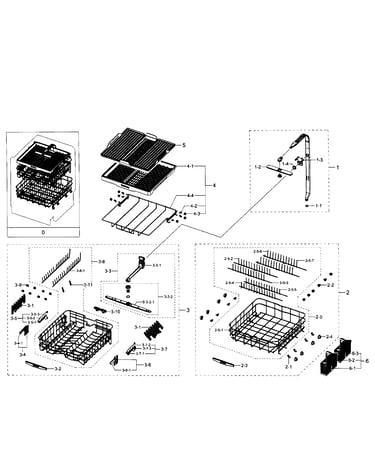

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 223 parts  |
Dishwasher Installation Bracket DD61-00465A
#1122

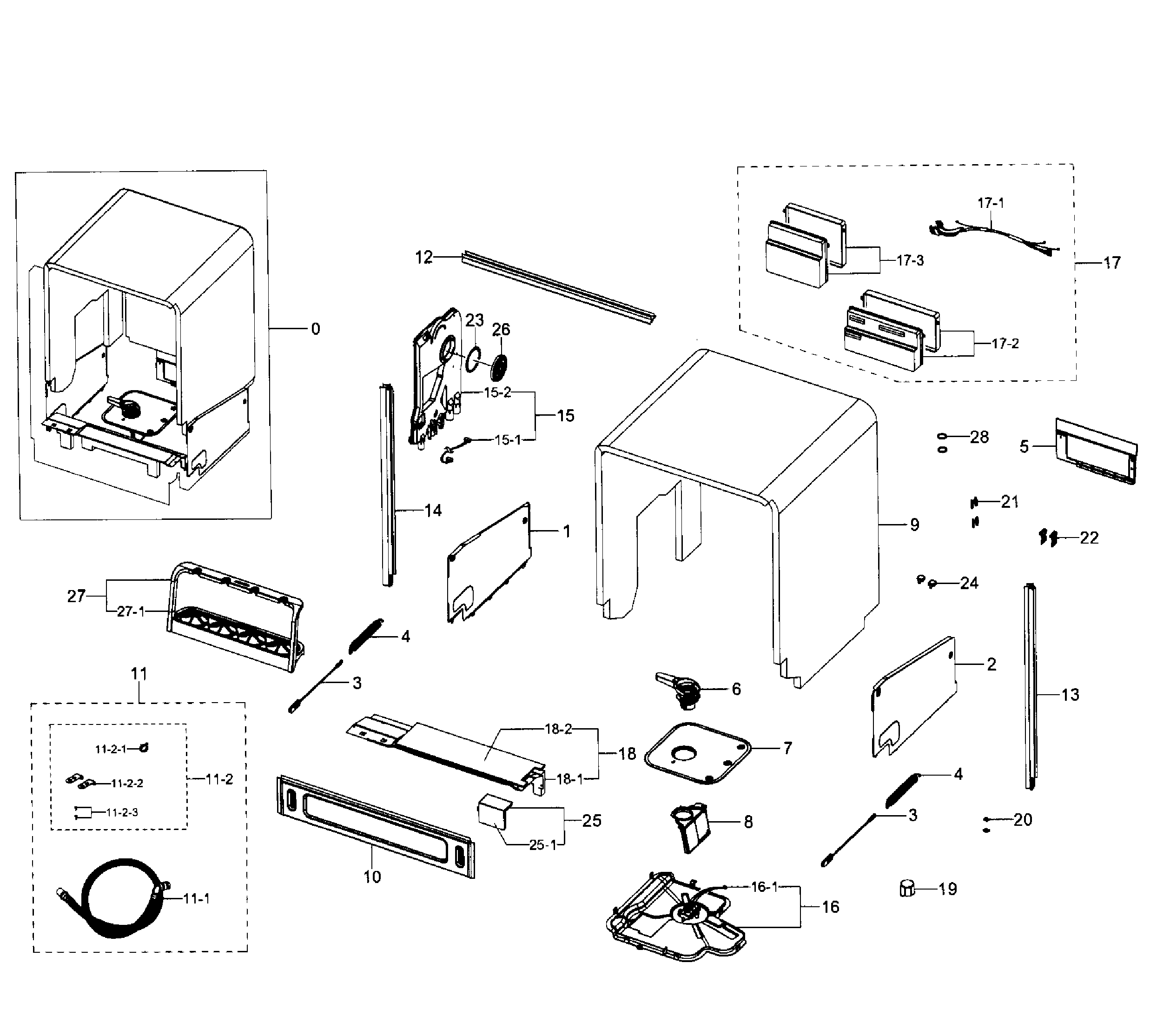

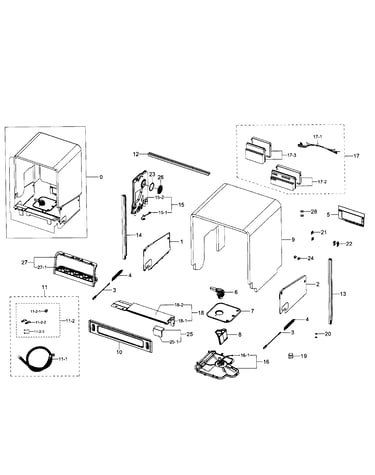

Cabinet diagram

Dishwasher installation bracket

Part #DD61-00465A

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Dishwasher Toe Panel DD63-00254A
#10

Cabinet diagram

Dishwasher toe panel

Part #DD63-00254A

BEST SELLER
$40.32 |
13% OFF Phone Price : $46.32
In Stock
Dishwasher Tub Gasket DD62-00097B
#10

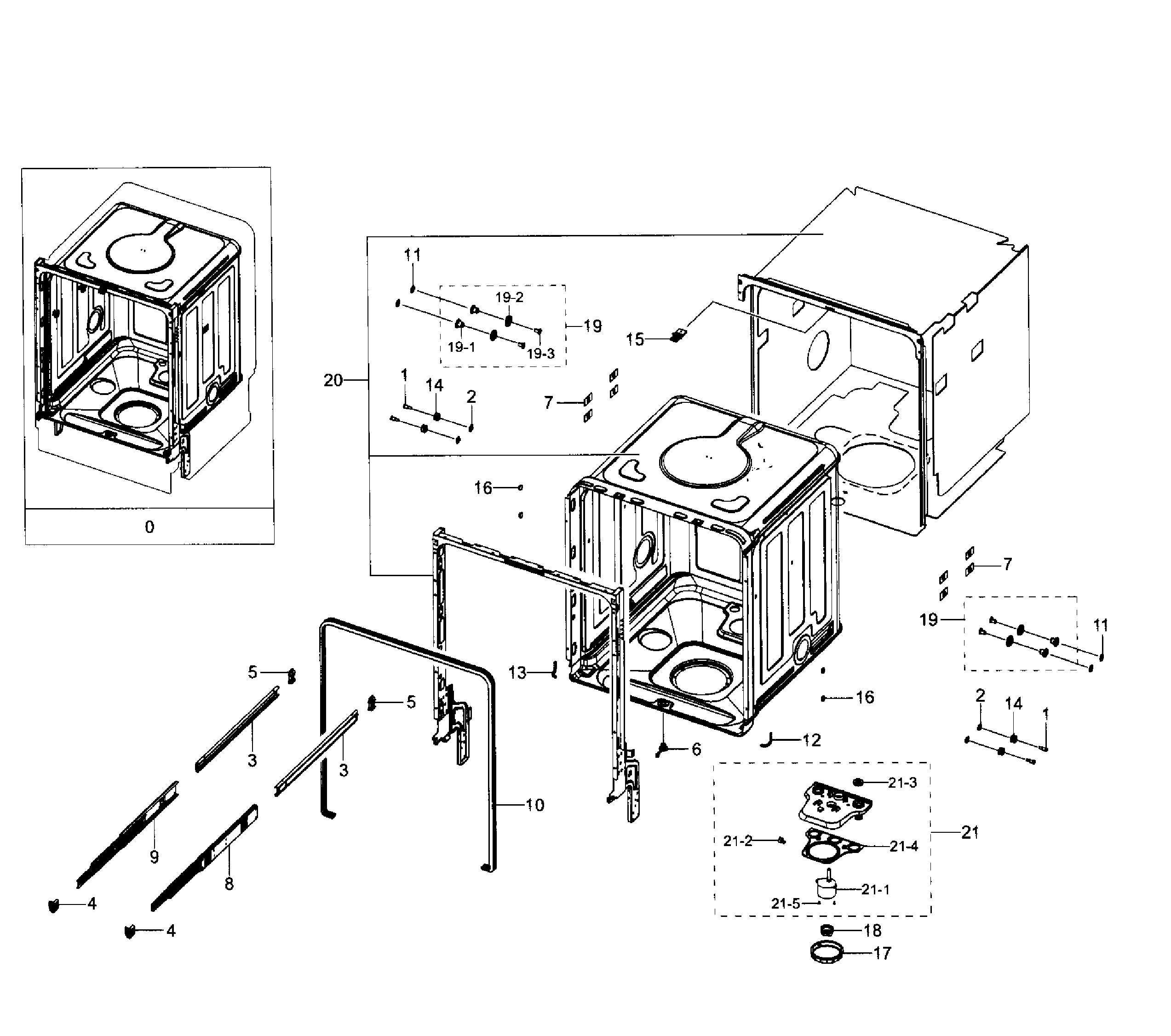

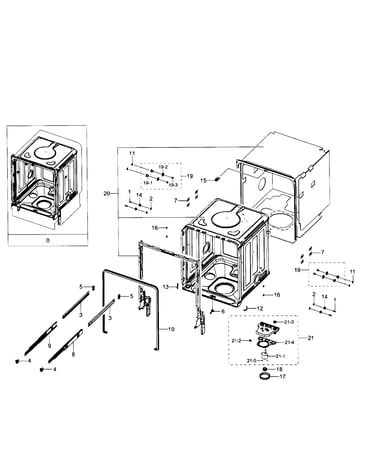

Tub diagram

Dishwasher tub gasket

Part #DD62-00097B

BEST SELLER
$76.58 |
7% OFF Phone Price : $82.58
In Stock
Dishwasher Detergent Dispenser Assembly DD59-01002A
#8-2

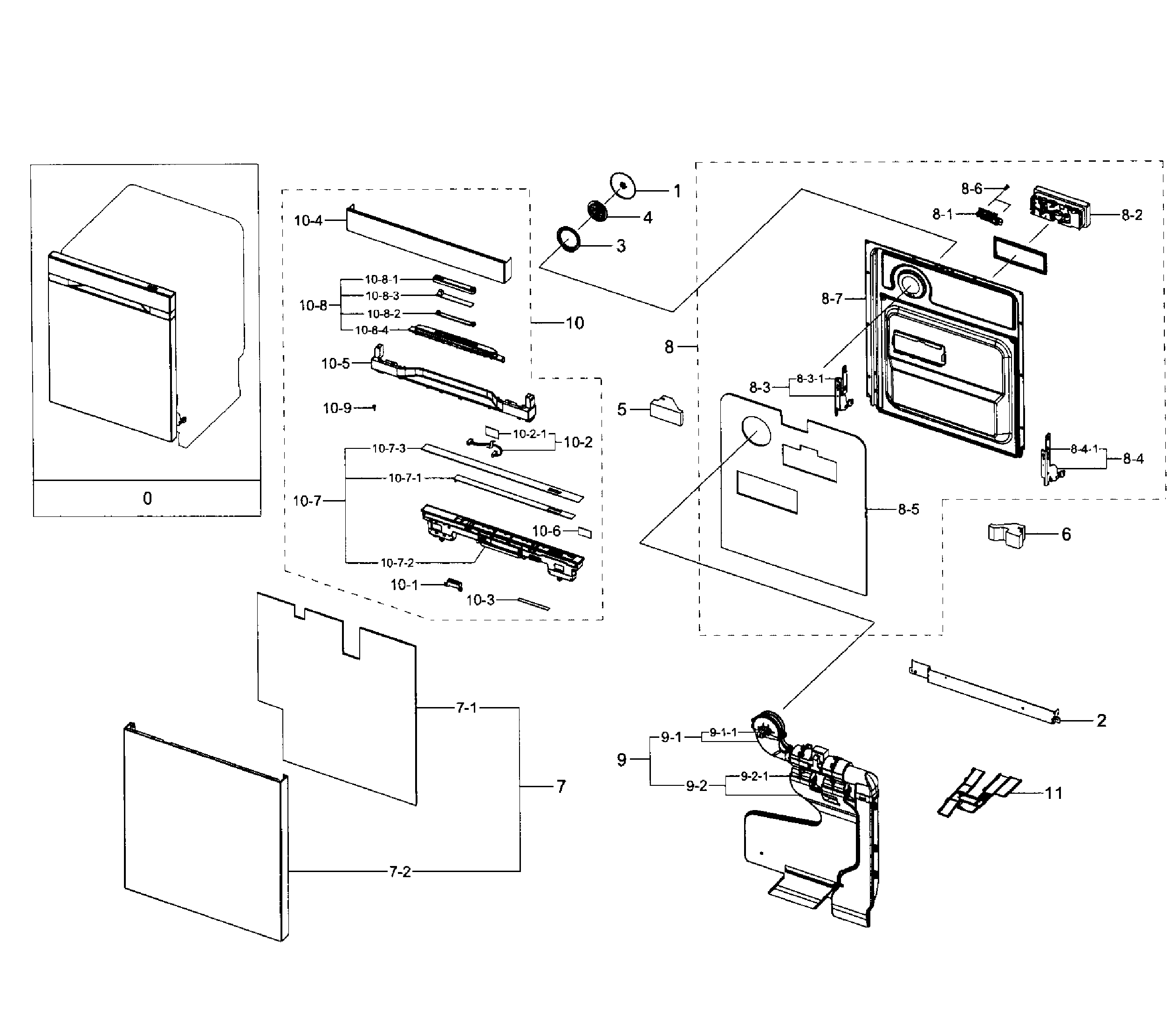

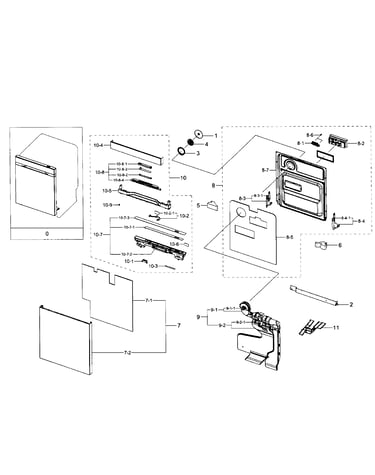

Door diagram

Dishwasher detergent dispenser assembly

Part #DD59-01002A

BEST SELLER
$119.93 |
10% OFF Was : $133.26
In Stock
Dishwasher Dishrack Slide Rail Holder DD61-00497A
#22

Cabinet diagram

Dishwasher dishrack slide rail holder

Part #DD61-00497A

BEST SELLER
This item is not returnable
$3.32 |
23% OFF Phone Price : $4.32
In Stock

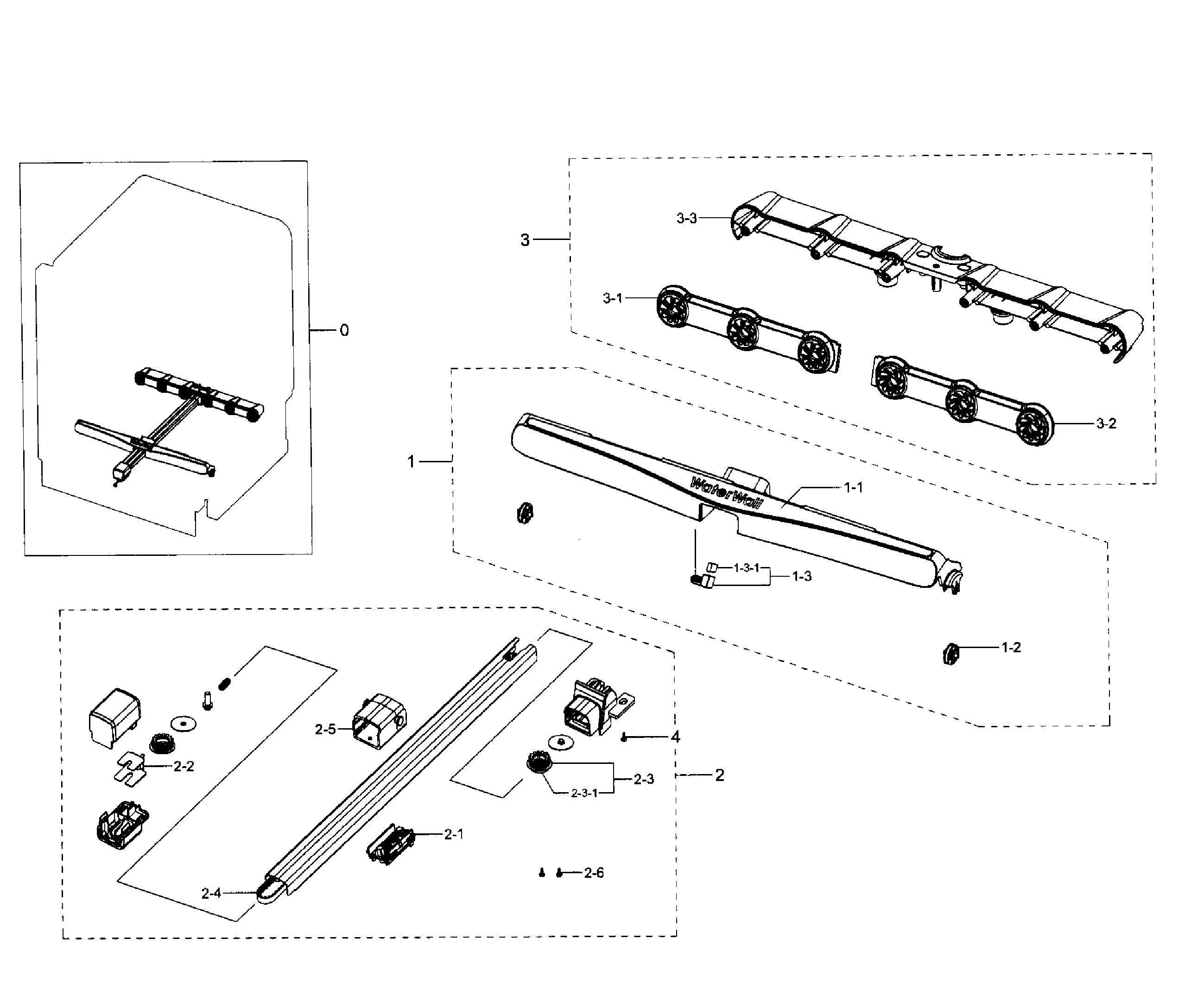

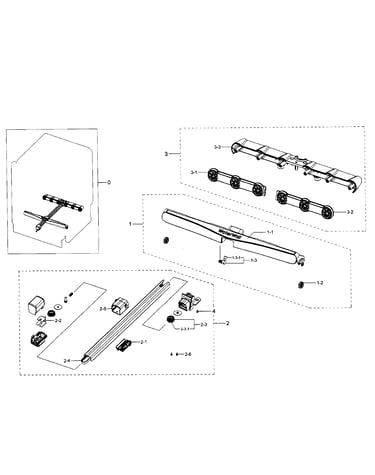

Dishwasher Waterwall Spray Arm Motor DD31-00013B
#21-1

Tub diagram

Dishwasher waterwall spray arm motor

Part #DD31-00013B

BEST SELLER
$132.79 |
8% OFF Phone Price : $144.79
In Stock
Dishwasher Motor Shaft Seal DD62-00053A
#21-3

Tub diagram

Dishwasher motor shaft seal

Part #DD62-00053A

BEST SELLER
This item is not returnable
$30.96 |
16% OFF Phone Price : $36.96
In Stock
Dishwasher Door Switch DD34-00007A
#8-1

Door diagram

Dishwasher door switch

Part #DD34-00007A

BEST SELLER
$22.76 |
21% OFF Phone Price : $28.76
In Stock
Dishwasher Leveling Leg DD61-00331B
#5

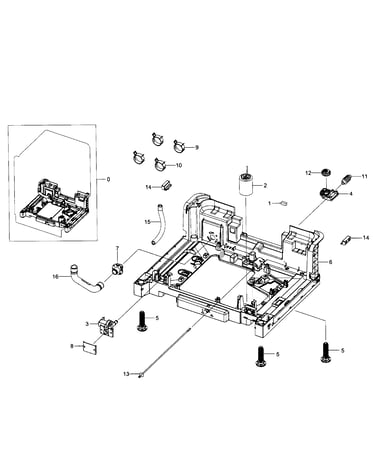

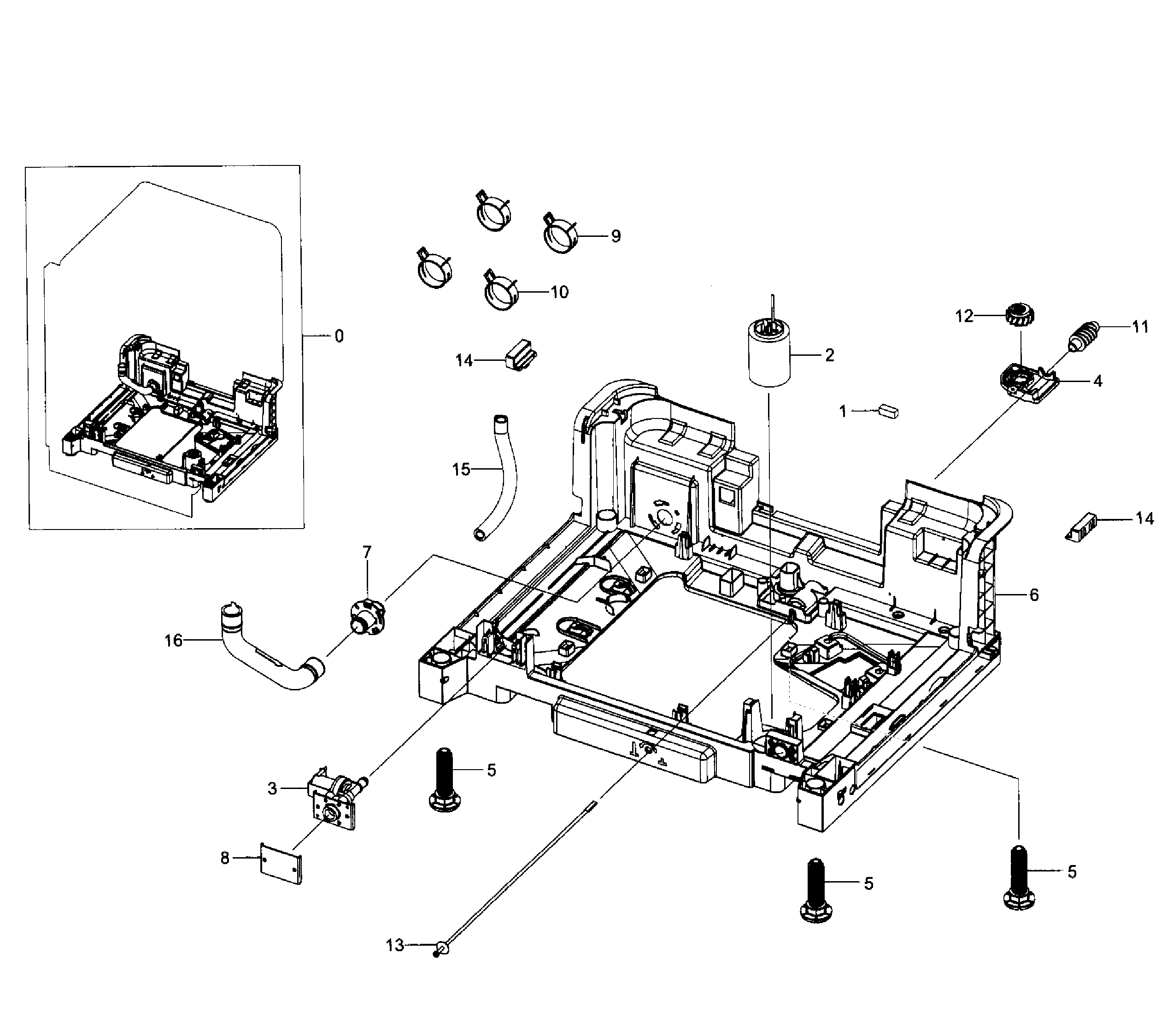

Base diagram
