Whirlpool
Top-Mount Refrigerator

Model #W8FRNGFVD00 Whirlpool refrigerator

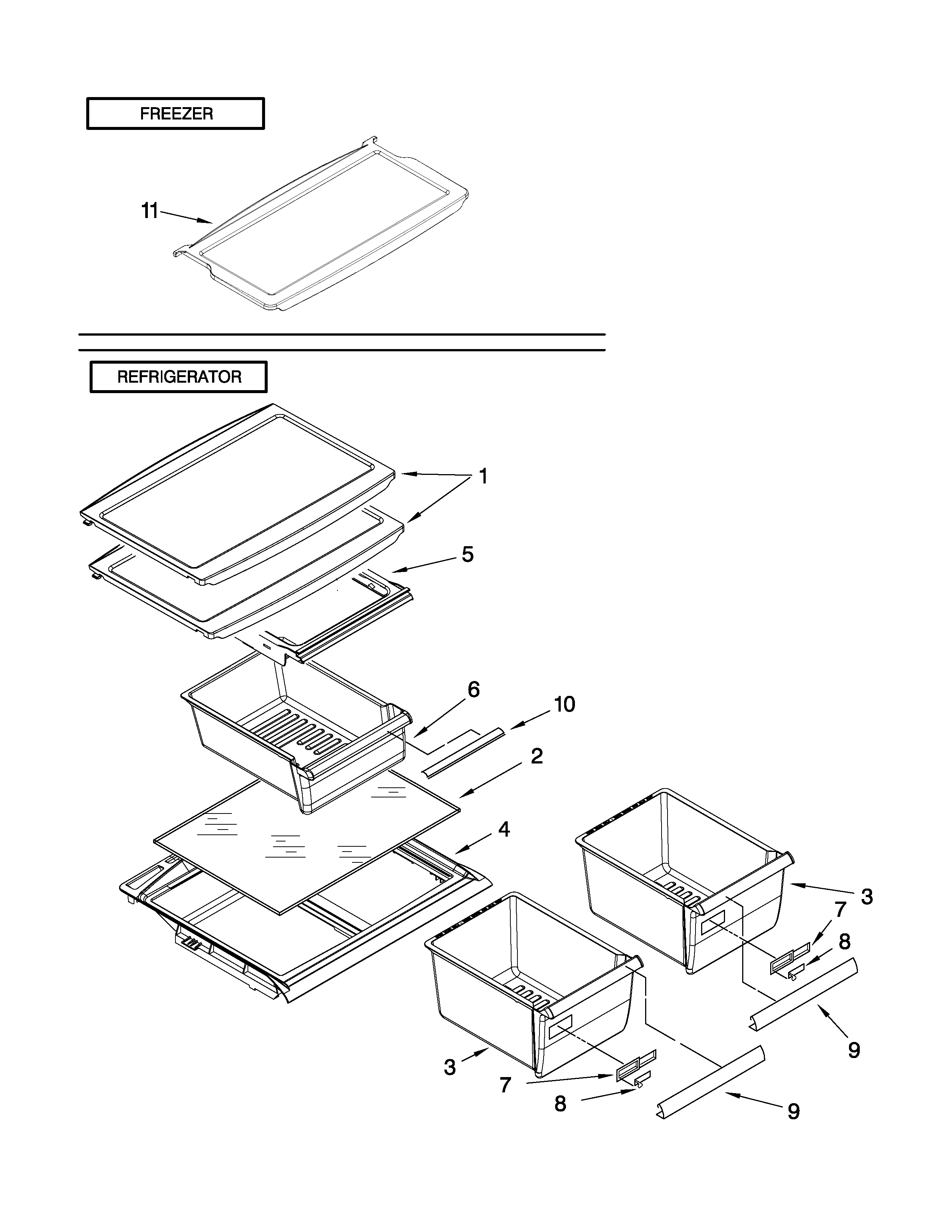

Here are the diagrams and repair parts for Whirlpool W8FRNGFVD00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes

    Showing 10 of 168 parts

    Appliance Light Bulb, 40-watt#17

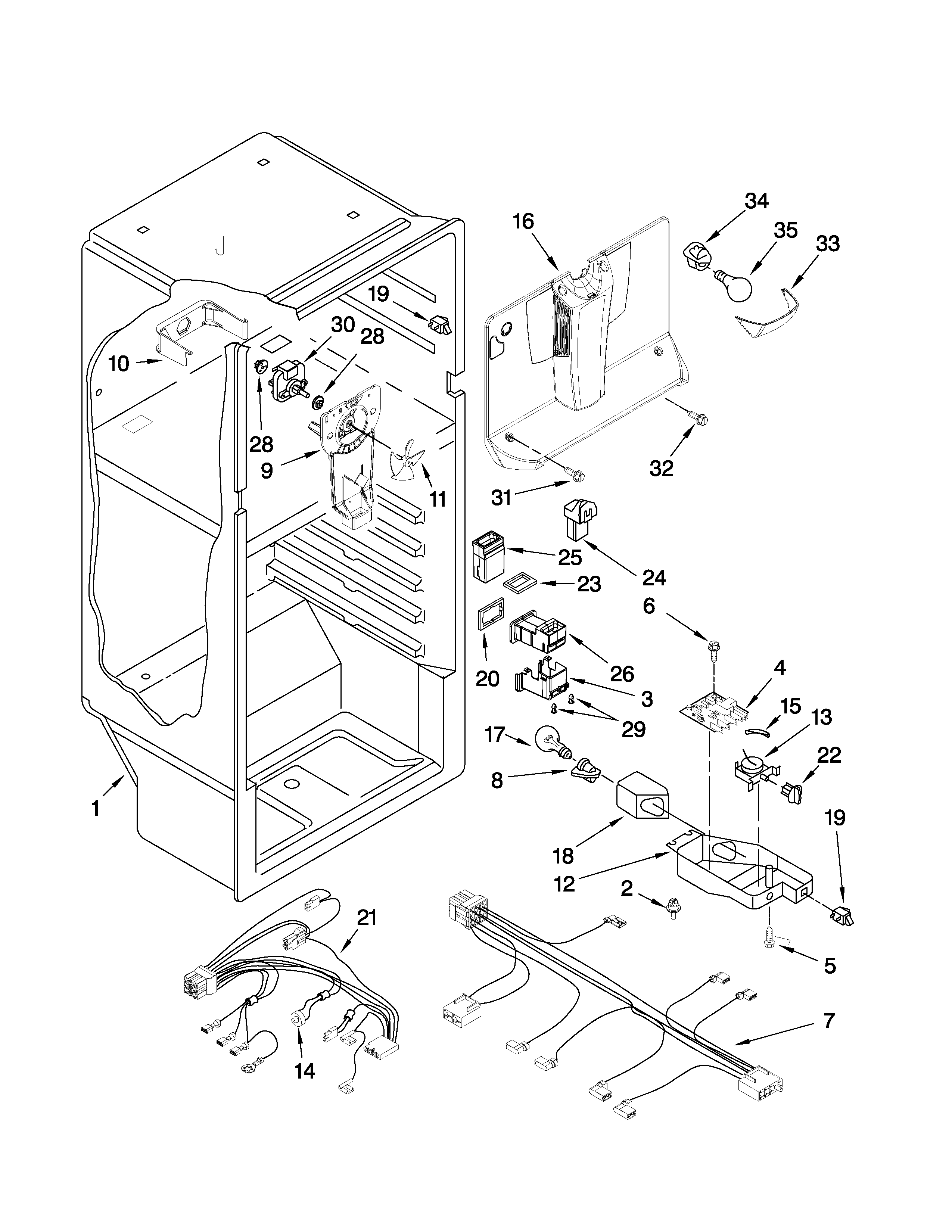

    Liner parts Diagram

    Refrigerator light bulb

    Part #2311792
    Replaced by #40A15
    ?
    Manufacturer substitution
    This part replaces 2311792. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $6.39
    Refrigerator Defrost Bi-Metal Thermostat#14

    Liner parts Diagram

    Refrigerator defrost bi-metal

    Part #2266067
    Replaced by #WPW10225581
    ?
    Manufacturer substitution
    This part replaces 2266067. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $38.99
    Appliance Touch-Up Paint, 0.6-oz (White)#NI

    Optional parts (not included) Diagram

    Appliance touch-up paint, 0.6-oz (white)

    Part #72017
    BEST SELLER
    This item is not returnable
    Back Order
    $8.29
    Refrigerator Door Stop#17

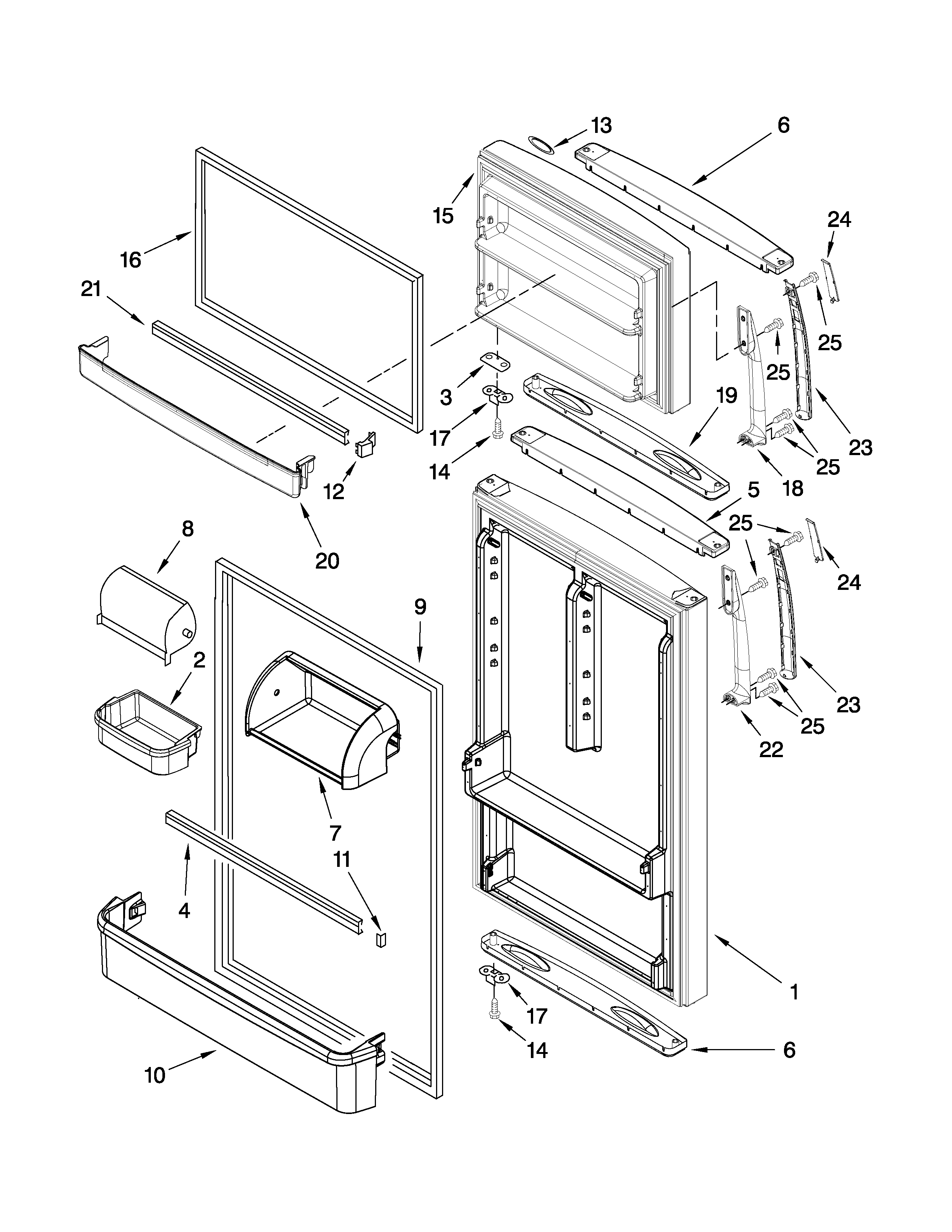

    Door parts Diagram

    Door bracket

    Part #2189202
    Replaced by #WP2183805
    ?
    Manufacturer substitution
    This part replaces 2189202. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $10.89
    Refrigerator Screw#13

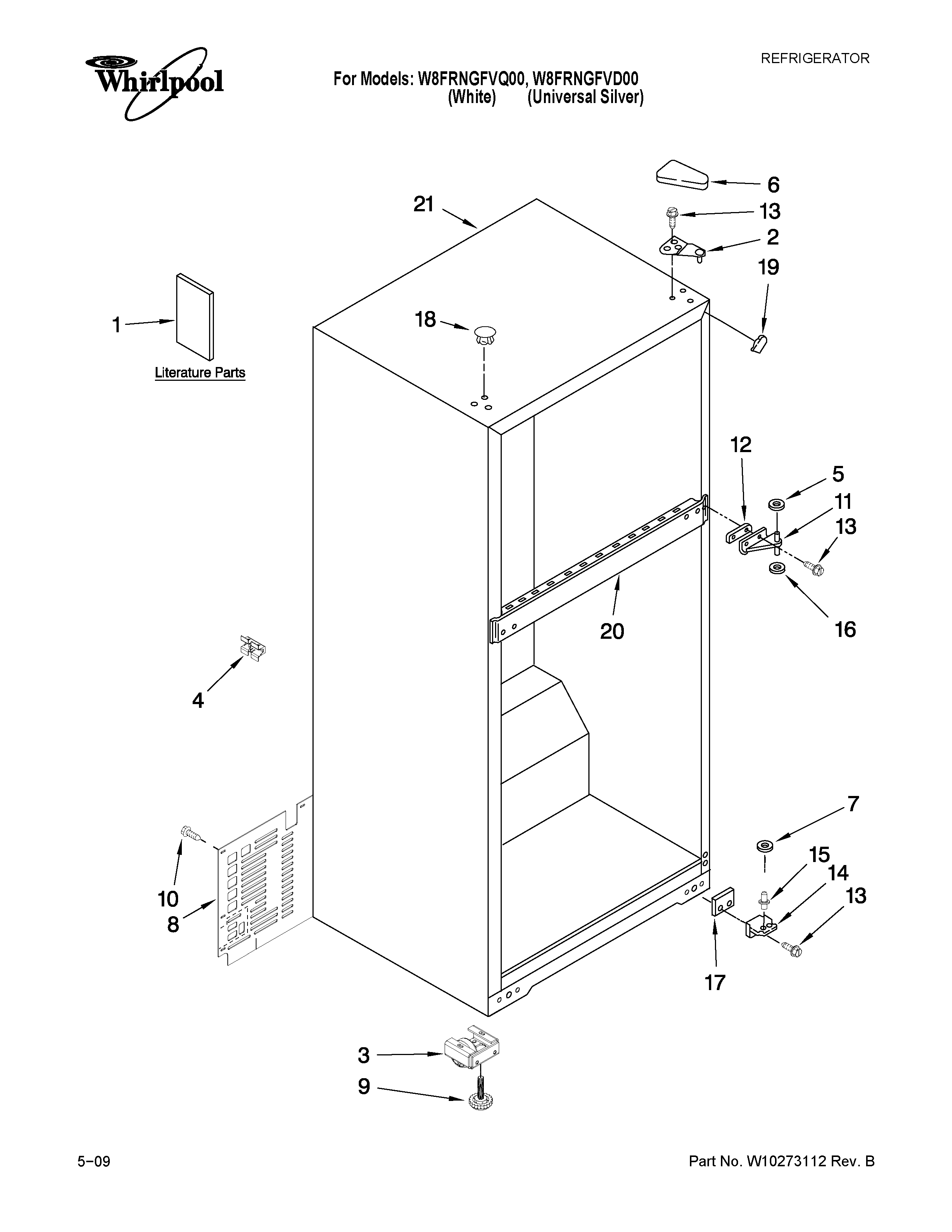

    Cabinet parts Diagram

    Refrigerator screw

    Part #489497
    Replaced by #WP489497
    ?
    Manufacturer substitution
    This part replaces 489497. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $7.99
    Appliance Spray Paint (White)#NI

    Optional parts (not included) Diagram

    Spray paint (white)

    Part #350930
    Replaced by #350930
    ?
    Manufacturer substitution
    This part replaces 350930. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $15.69
    Refrigerator Roller#12

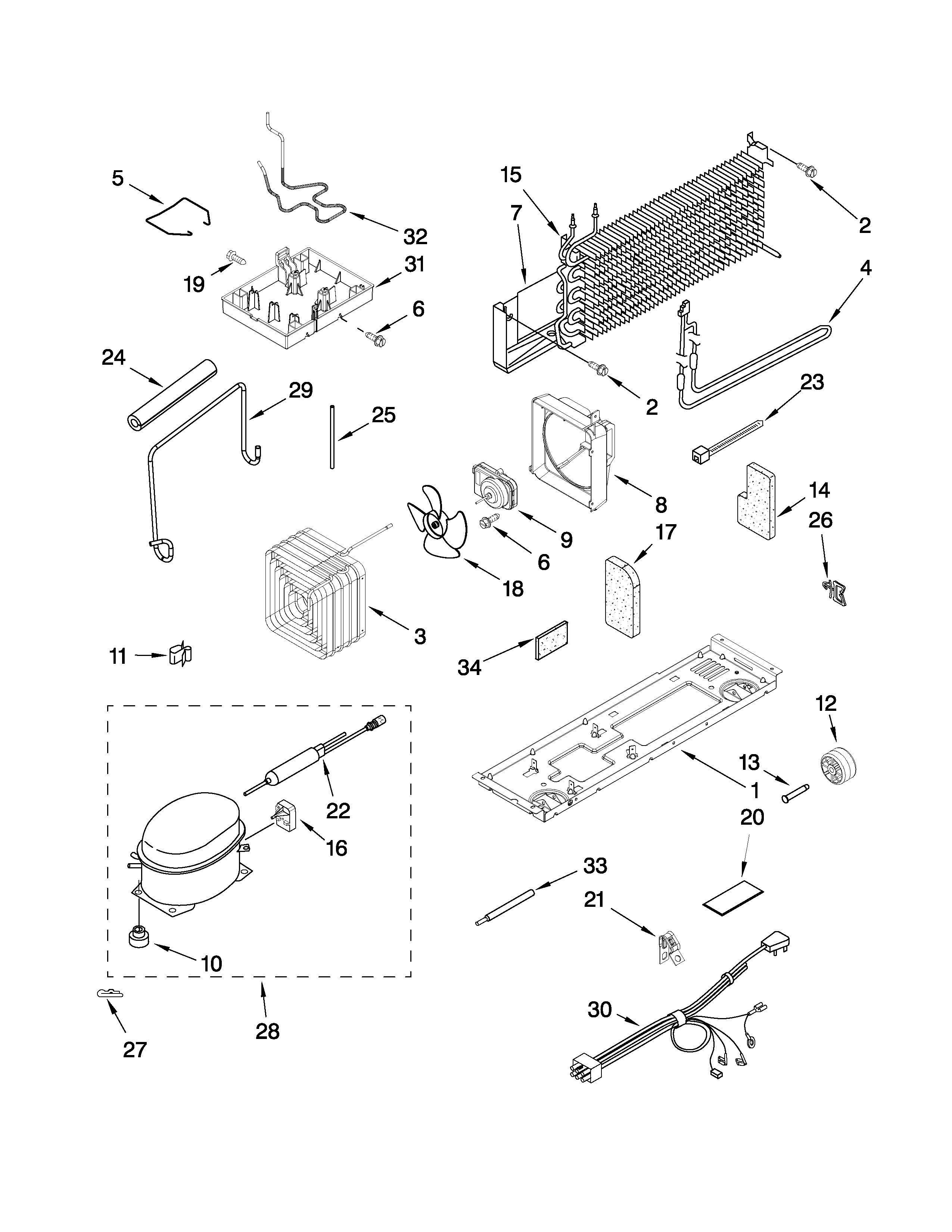

    Unit parts Diagram

    Cabinet roller

    Part #2150304
    Replaced by #WPW10475495
    ?
    Manufacturer substitution
    This part replaces 2150304. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $20.19
    Refrigerator Screw#25

    Door parts Diagram

    Refrigerator screw

    Part #W10002730
    Replaced by #WP489491
    ?
    Manufacturer substitution
    This part replaces W10002730. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $4.39
    Appliance Touch-Up Paint, 0.6-oz (Biscuit)#NI

    Optional parts (not included) Diagram

    Appliance touch-up paint, 0.6-oz (biscuit)

    Part #4392899
    BEST SELLER
    This item is not returnable
    In Stock
    $14.09
    Refrigerator Washer

    See All Related Diagrams

    Refrigerator washer

    Part #487576
    Replaced by #WP487576
    ?
    Manufacturer substitution
    This part replaces 487576. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $6.39

    Symptoms common to all refrigerators

    Choose a symptom to see related refrigerator repairs.

    Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan not running
    Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, clean the drain pan
    Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freezer not cold enough
    Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer or control board
    Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost timer problems
    Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, sensor problems
    Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condenser fan not working
    Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubing, leaking door seal
