Kenmore Elite dimensions vary by the exact model and style (side-by-side, French door, top freezer). For your Kenmore 10641512101 side-by-side refrigerator, the most reliable place to confirm the exact height, width, and depth is the owner's manual, which lists the model-specific specifications and installation clearances.

How to measure your refrigerator correctly

Use a tape measure and record measurements in inches. For the most accurate fit, measure the cabinet opening too.

• Width: left cabinet side to right cabinet side (not just the doors)
• Height: floor to top of hinge cover (or top of cabinet if higher)
• Depth (cabinet): back to front of cabinet (excluding handles)
• Depth (overall): back to front of handles (important for walkways)
• Door swing clearance: space needed to open doors fully and remove bins

Typical size range for Kenmore side-by-side refrigerators

If you are comparing “Kenmore Elite” models generally, most side-by-side units fall into these common ranges.

Measurement	Typical range (side-by-side)	Why you care
Width	32 to 36 in.	Must match cabinet cutout
Height	65 to 71 in.	Prevents hinge or trim interference
Depth (without handles)	28 to 34 in.	Helps avoid sticking out past counters
Depth (with handles)	30 to 36 in.	Impacts aisle clearance

Why the exact dimensions matter

Correct dimensions prevent installation problems like doors hitting walls, poor airflow around the condenser area, and drawers that cannot fully open. They also help you plan for leveling and door alignment so the gaskets seal properly.

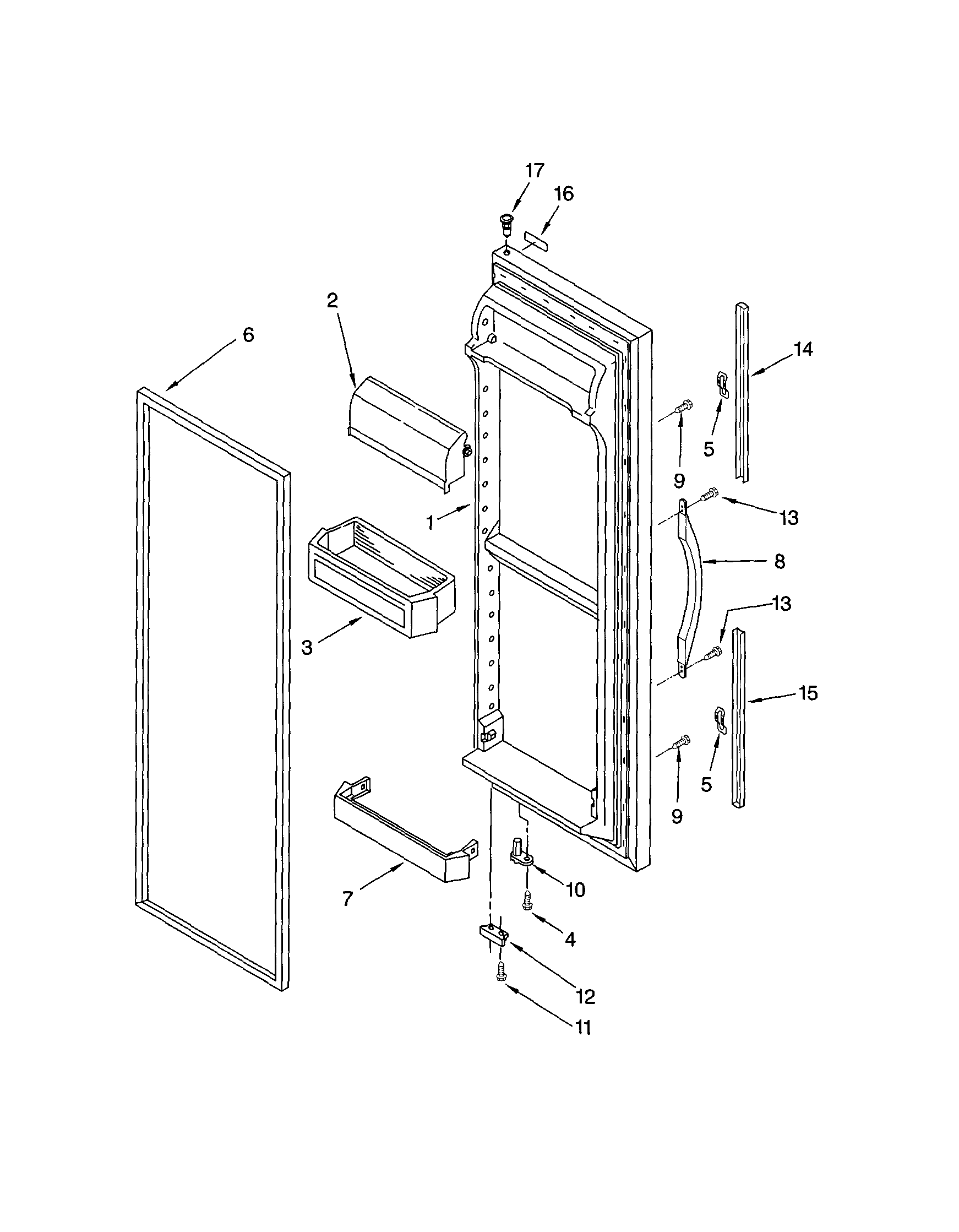

Parts that can affect “fit” symptoms (not cabinet dimensions)

If the refrigerator seems like it is not closing or sitting right after moving it, these parts commonly affect door behavior:

• Refrigerator door cam (black) WP2182179 (helps the door close and align at the hinge)
• Refrigerator thimble WP2182181 (hinge bushing that supports smooth door movement)

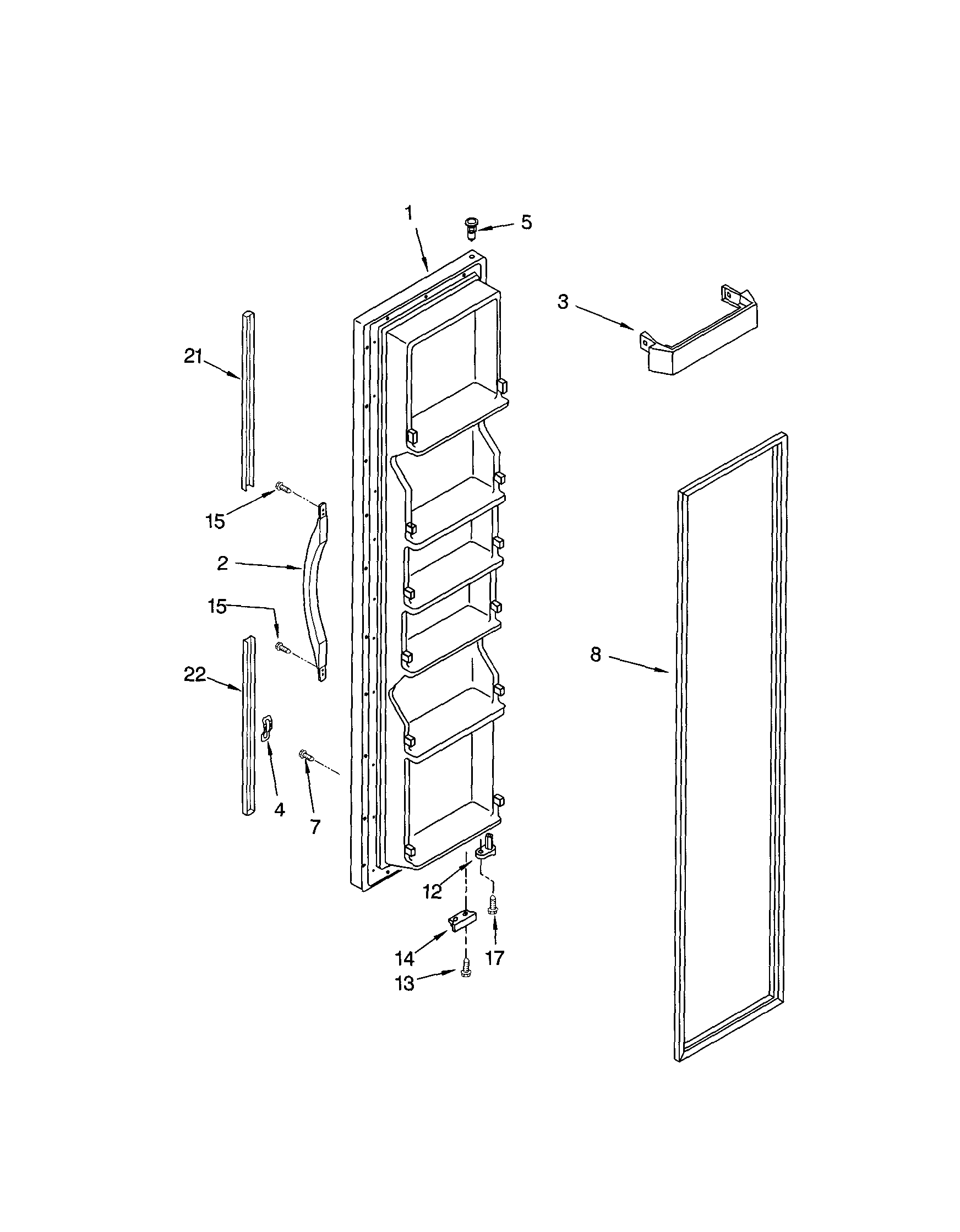

• Door gaskets (a poor seal can mimic alignment issues)

Ordering parts for your model

We list model-matched replacement parts for Kenmore 10641512101 on this page, and you can also search by model number on Sears PartsDirect if you are shopping for additional accessories.

Last updated: February 2026

On Kenmore side-by-side refrigerator model 10641512101, the model number is printed on the model and serial number label inside the refrigerator compartment, typically on an inside wall. Use the full model number from that label when ordering parts or checking specifications in the owner's manual.

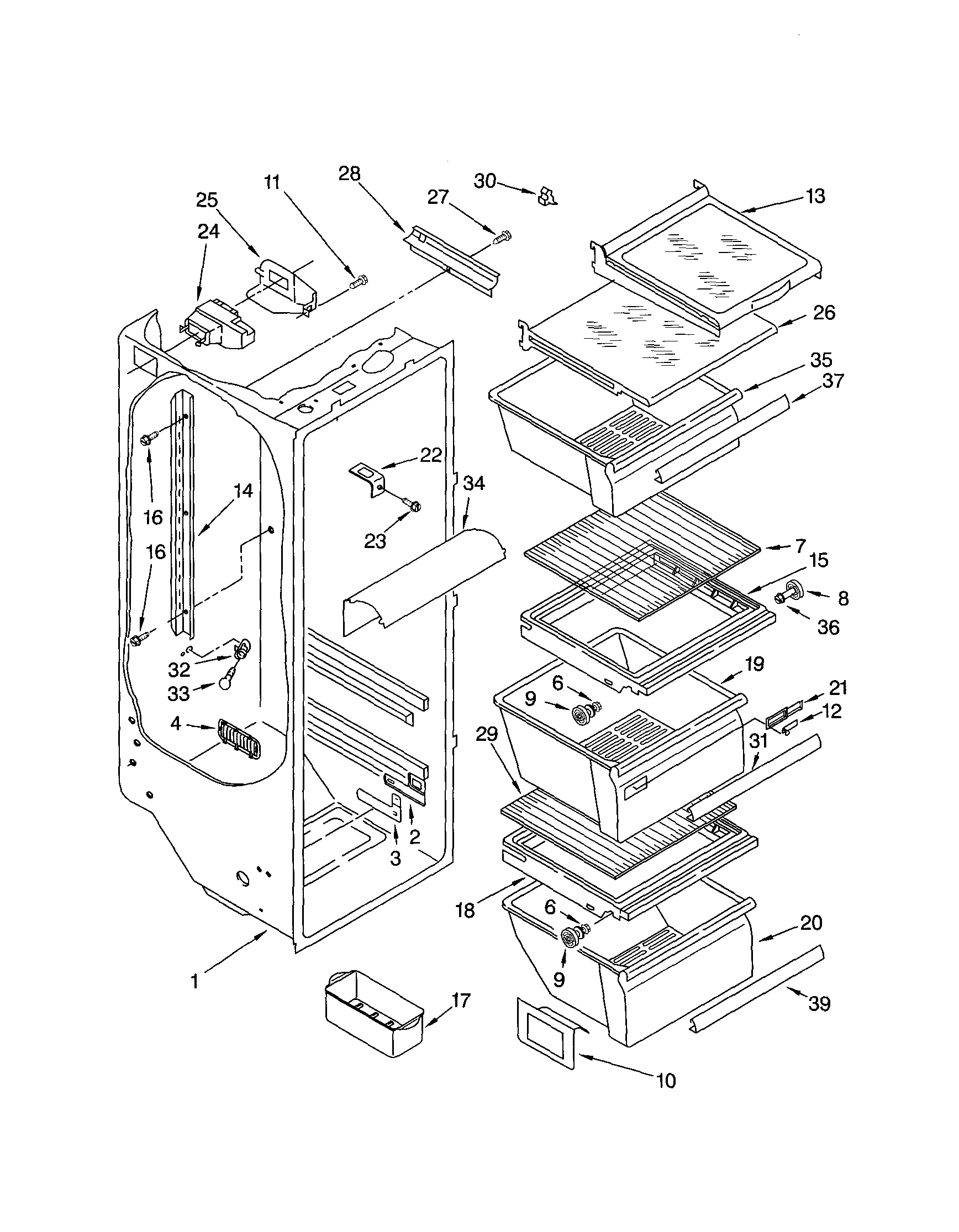

Where to look (fast checklist)

• Open the fresh food (refrigerator) door, not the freezer door
• Check the inside side walls near the front edge
• Look around the crisper area and lower side walls
• Check near the ceiling light housing area inside the compartment
• Wipe the area clean; labels can be hard to read through residue

What you should write down

Record these exactly as shown on the label:

• Model number (for this unit: 10641512101)
• Serial number (unique to your refrigerator)
• Purchase date (helpful for your records)

Item	What it’s used for	Example format
Model number	Matching the correct parts diagrams and parts list	10641512101
Serial number	Identifying production details for service and compatibility checks	Letters + numbers

Why it matters

Kenmore model numbers can look similar across different side-by-side refrigerators. Using the exact model number from the inside label prevents ordering the wrong items (like a thermostat, door gasket, or ice maker) and helps you follow the correct procedures in the manual.

Ordering parts once you find it

After you confirm the model number on the label, order replacement parts from the parts list for 10641512101, or search by model on Sears PartsDirect.

Last updated: February 2026

On Kenmore model 10641512101 side-by-side refrigerators, the defrost function is typically controlled by an automatic defrost system; if your unit uses a mechanical defrost timer, it’s most often located in the control housing (fresh food section ceiling) or behind the lower front toe grille area. Use the 10641512101 owner's manual to confirm the control layout for your exact configuration.

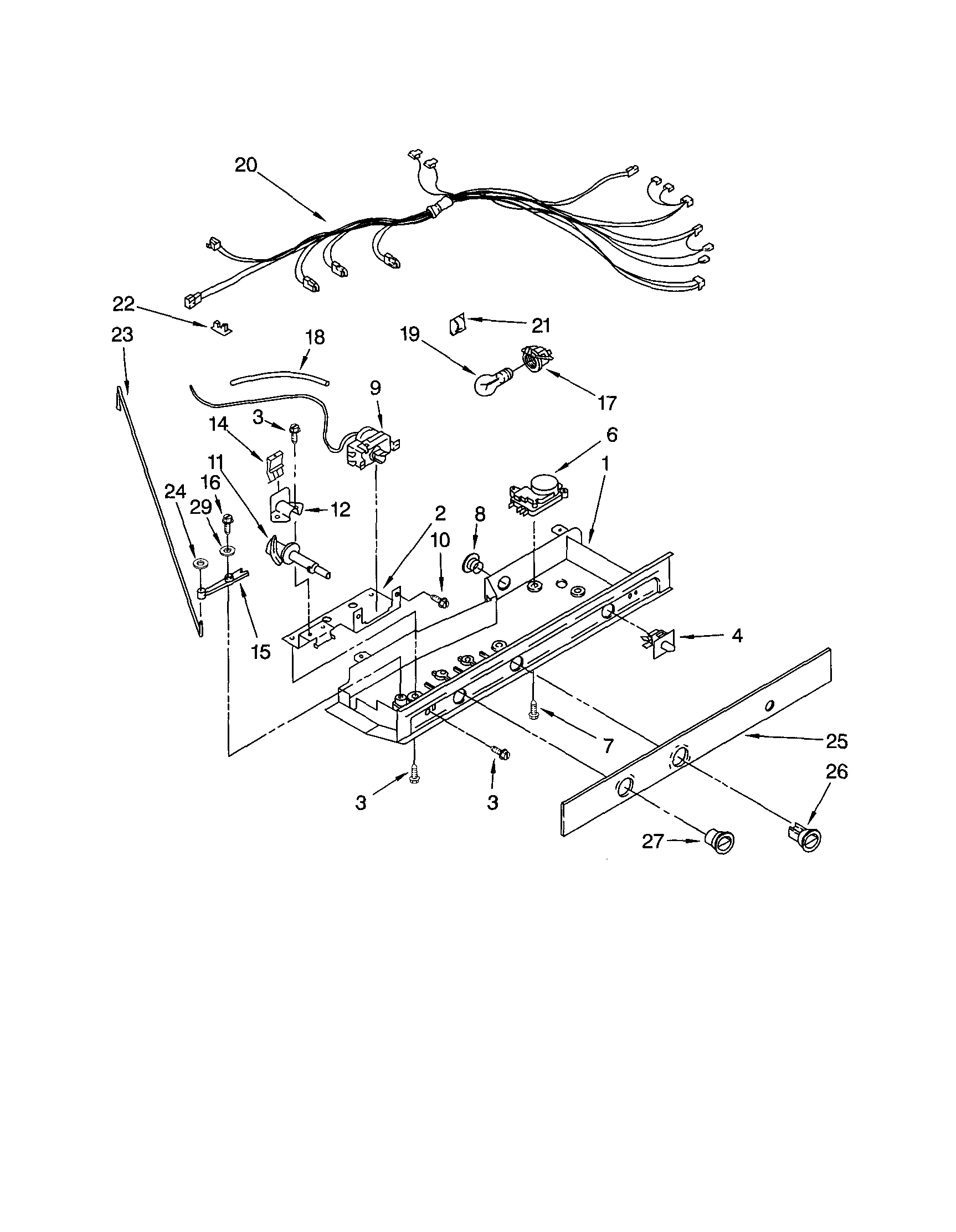

Common defrost timer locations to check

Unplug the refrigerator before accessing panels or wiring.

• Fresh food control housing: inside the refrigerator compartment, near the temperature controls
• Behind the toe grille: at the bottom front of the cabinet (sometimes near the condenser area)
• Rear service area: behind the lower back access cover (less common on many side-by-sides)
• Control box area: near the thermostat and wiring harness connections

How to identify what your refrigerator actually uses

Many Kenmore 106-series designs use an adaptive defrost control (electronic) instead of a stand-alone timer. Here are quick clues:

What you see	What it usually means	What to do next
Small round timer body with a dial/advance slot	Mechanical defrost timer	Locate it in the control housing or toe grille area and verify wiring matches the diagram in the manual
No timer dial; you see a control board/module	Adaptive defrost control	Focus troubleshooting on defrost heater, defrost thermostat (bi-metal), and sensors
Heavy frost on evaporator cover; warm fridge	Defrost system not clearing frost	Check heater circuit and defrost thermostat first

Parts that commonly affect defrost performance

If you’re chasing a “not defrosting” symptom, these parts are frequent causes on side-by-side refrigerators:

• Defrost thermostat/bi-metal: refrigerator defrost bi-metal WPW10225581
• Defrost heater: refrigerator heater WP2323198
• Temperature control issues that mimic defrost problems: refrigerator thermostat WP2198202

Why it matters

A failed defrost system lets frost build up on the evaporator, which blocks airflow. That leads to warm refrigerator temperatures, longer run times, and poor ice production even when the compressor is running.

Ordering the right replacement part

We recommend matching parts by the full model number 10641512101 and the part diagram for your exact section. You can order model-matched parts from the list for this refrigerator, or search by model on Sears PartsDirect.

Last updated: February 2026

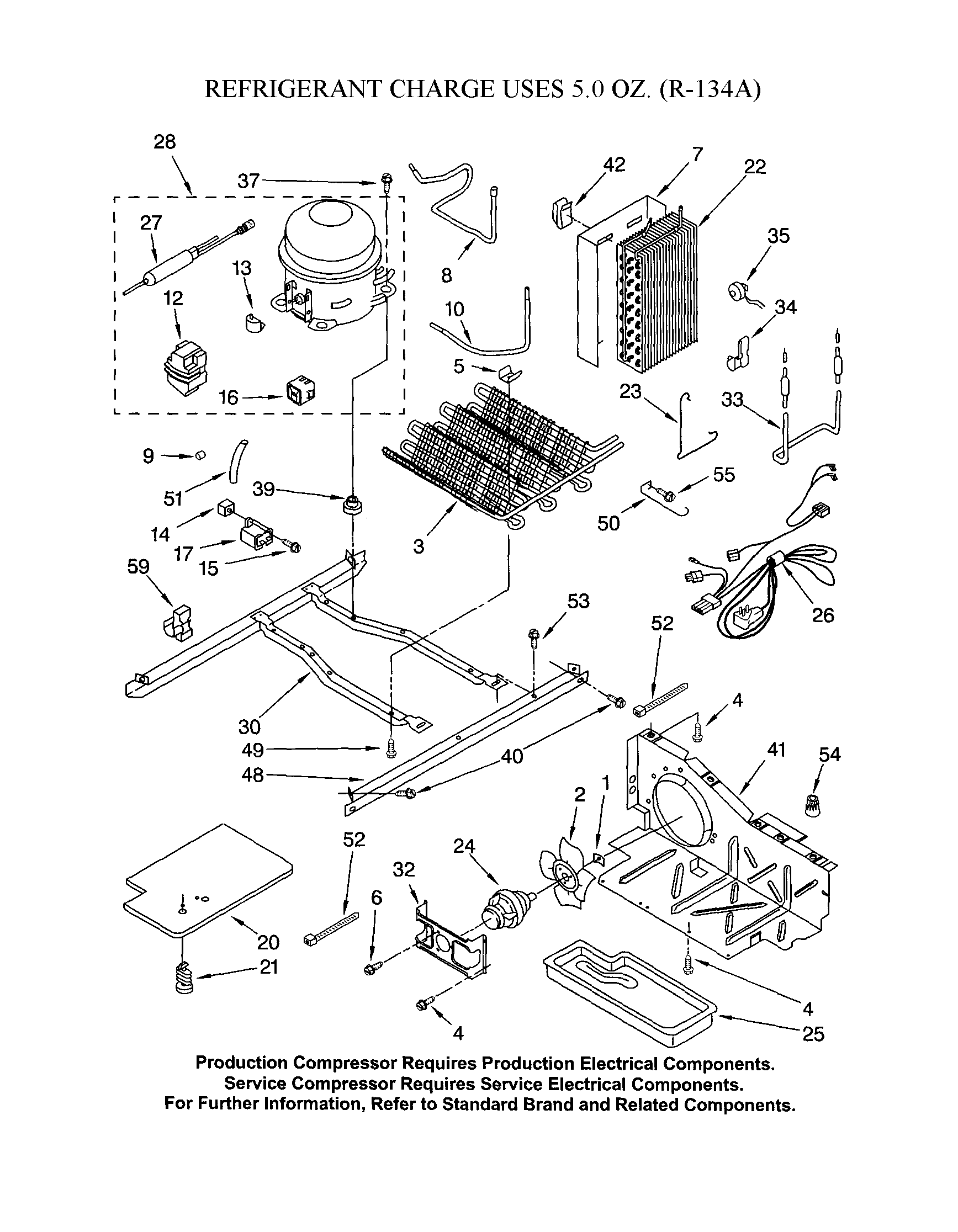

Cleaning the condenser coils on your Kenmore side-by-side refrigerator model 10641512101 means removing dust and pet hair so the refrigerator can release heat properly. Dirty coils reduce cooling efficiency and can make the compressor run longer; we recommend cleaning them regularly.

Before you start (safety and access)

• Unplug the refrigerator or disconnect power at the breaker.
• Pull the refrigerator straight out so you can work safely behind or below it.

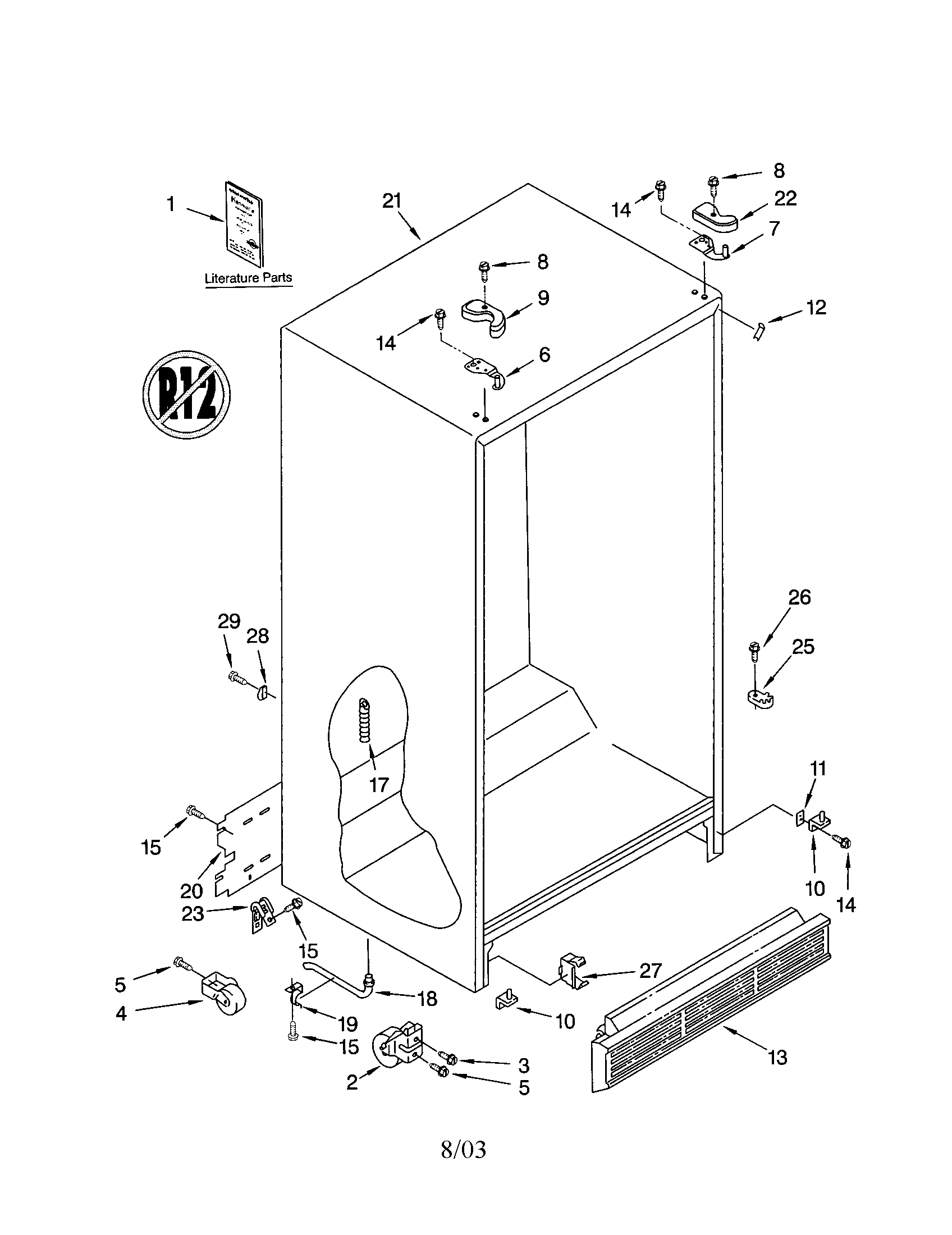

• Remove the base grille if your model uses one (the 10641512101 owner's manual shows how the grille and front roller area are accessed).
• Use only nonflammable cleaners around the appliance.

How to clean the condenser coils

1. Locate the coils: On many Kenmore side-by-side units, coils are behind the base grille at the front or on the back near the bottom.
2. Dry clean first: Use a coil brush to loosen packed dust.
3. Vacuum thoroughly: Use a crevice tool to vacuum along the coil fins and the surrounding floor area.
4. Clean the fan area (if accessible): Carefully vacuum around the condenser fan and air passages.
5. Reinstall the base grille and push the refrigerator back into place.

Quick tool checklist

• Coil cleaning brush
• Vacuum with crevice attachment
• Flashlight
• Soft cloth

How often should we clean the coils?

Most homes do best with coil cleaning every 6 months. If you have pets, heavy dust, or the refrigerator sits near a kitchen vent, clean coils every 3 months.

Home condition	Recommended interval
Typical household	Every 6 months
Pets or high dust	Every 3 months
Noticeably warm cabinet sides or long run times	Clean now, then every 3 to 6 months

Signs the coils need cleaning

• Refrigerator runs a lot or seems louder than usual
• Freezer temperature drifts upward
• Cabinet sides feel hotter than normal
• Dust buildup visible behind the grille or on the back panel

Why it matters

The manual notes that dirty condenser coils prevent proper heat transfer and make the motor work harder, which can lead to longer run times and weaker cooling. Keeping coils clean helps protect key components like the compressor and condenser fan.

If you are also dealing with warm temperatures or airflow issues, checking the evaporator fan system can help; the how to fix your evaporator cooling fan guide walks through common symptoms and fixes.

Last updated: February 2026

The most common problems we see on Kenmore refrigerators like model 10641512101 are poor cooling, water leaks, ice maker or dispenser issues, and unusual noises. These usually trace back to airflow restrictions, defrost system trouble, or worn door seals.

Common symptoms and what they point to

• Not cooling or warm temps: dirty condenser coils, failed evaporator fan, or frost buildup from a defrost issue
• Freezer cold but fresh food warm: weak airflow through the evaporator area or an iced-over evaporator
• Water under the refrigerator: clogged defrost drain or a water supply connection issue
• Ice maker not making ice: water supply problem, frozen fill tube, or failed ice maker
• Clicking, buzzing, rattling: fan blade hitting ice, failing motor, or items vibrating against the cabinet

Quick checks we recommend first

• Set temps to 0°F (freezer) and 37°F (fresh food)
• Confirm doors close fully and gaskets seal all the way around
• Clean condenser coils and clear airflow at the toe grille
• Listen for the evaporator fan when the compressor runs (press the door switch to test)
• Check for heavy frost on the back freezer panel (defrost problem)

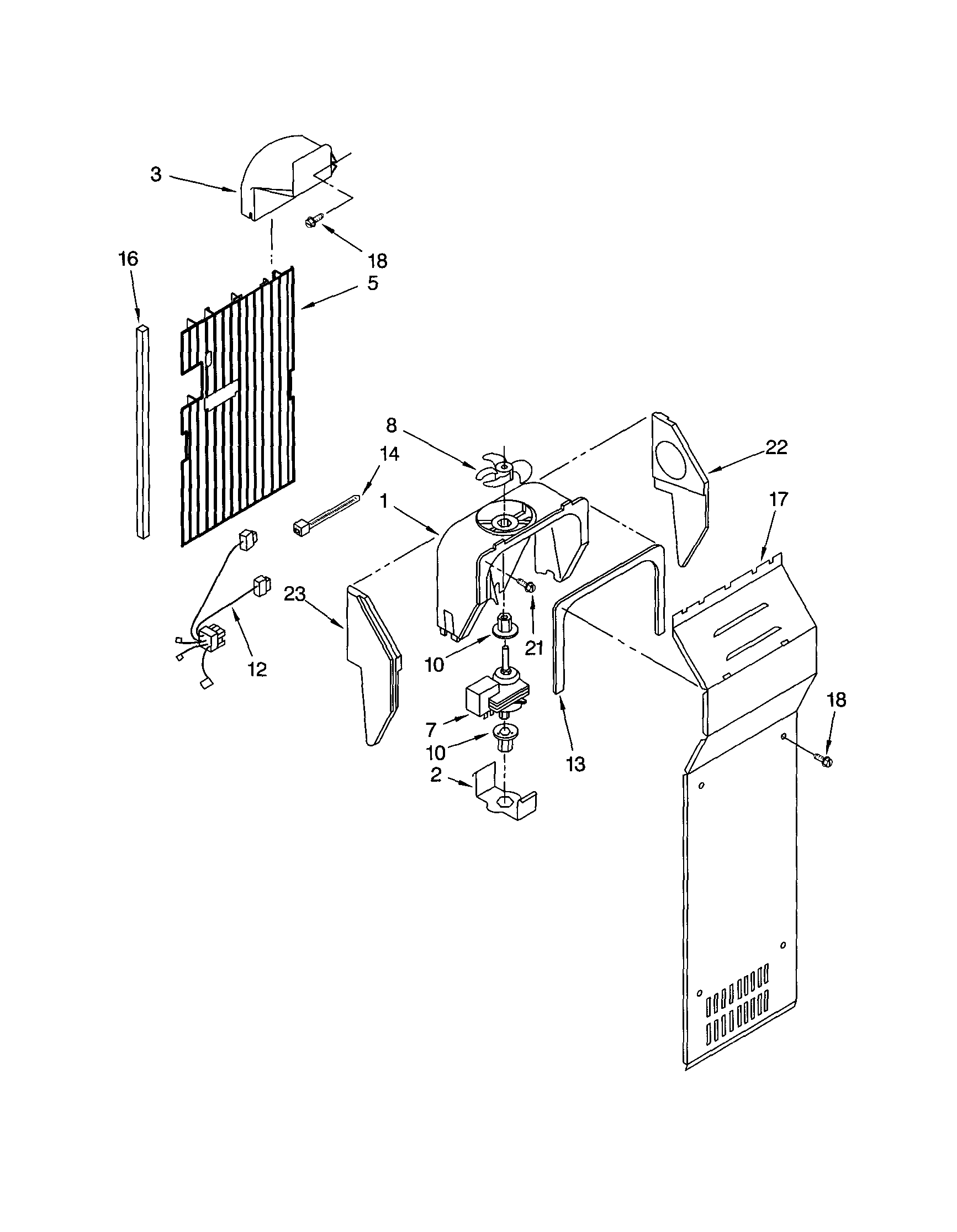

Parts that often fix these issues on 10641512101

Problem area	What commonly fails	Example part for this model
Poor airflow, warm temps	Evaporator fan motor or blade	Refrigerator evaporator motor 4389144, refrigerator evaporator fan blade WP2169142
Frost buildup (defrost issue)	Defrost heater or defrost bi-metal	Refrigerator heater WP2323198, refrigerator defrost bi-metal WPW10225581
Door not closing right	Hinge cam/bushing wear	Refrigerator door cam (black) WP2182179
Ice production problems	Ice maker assembly	Ice maker W11700559

Why it matters

Most cooling, leaking, and ice complaints share root causes: restricted airflow, ice buildup from defrost failures, or air leaks at the doors. Fixing the cause protects food temperatures and reduces compressor run time.

Helpful resources

• Follow cleaning and safe handling steps in the 10641512101 owner's manual.
• Use our Kenmore 106 model refrigerator error codes guide when you have a display or diagnostic code.

You can order replacement parts from the parts list for model 10641512101, or search by model number on Sears PartsDirect.
