Bosch SHE43C05UC/22 dishwasher Parts

Most Bosch dishwashers, including the Bosch SHE43C05UC, typically last 10 to 15 years with normal household use. Consistent maintenance (especially keeping filters clear), correct installation, and good water quality are the biggest factors that help you reach the high end of that range.

What affects lifespan the most

• Filter and sump cleanliness: A clogged filter restricts water flow and makes the wash system work harder.
• Water quality and temperature: Hard water and low water temperature can increase cycle time and wear; many installations target about 120°F hot water.
• Proper fill and drain performance: Slow filling or poor draining strains the pump system.
• Door sealing and leak prevention: Leaks can damage components and shorten service life.
• Electrical and plumbing setup: A dedicated, properly grounded circuit and correct water pressure help prevent nuisance failures.

Maintenance checklist (best ROI)

Use this routine to extend the life of your SHE43C05UC:

• Clean the filter area regularly; remove debris from the sump.
• Run a dishwasher cleaner periodically to reduce grease and mineral buildup.

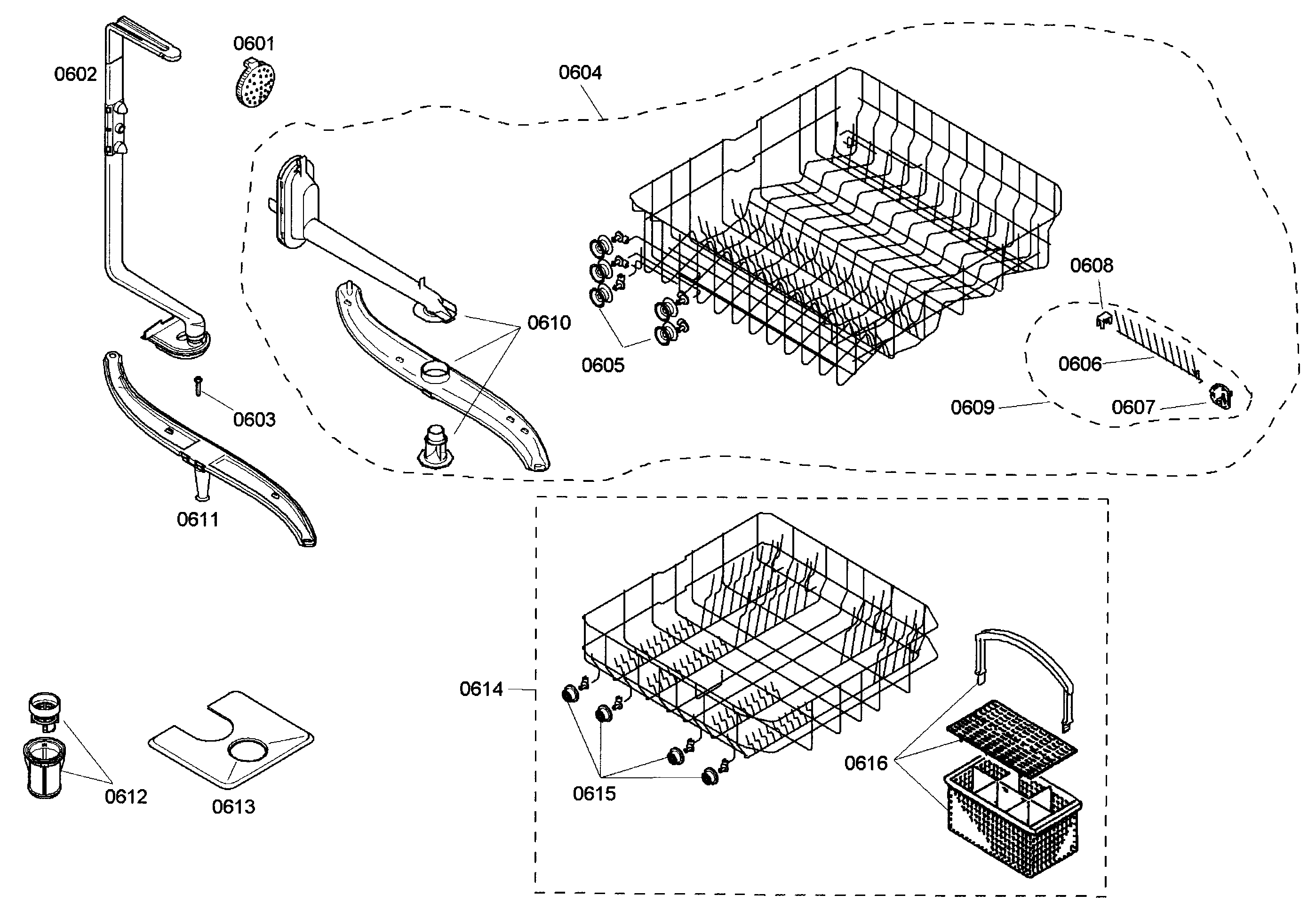

• Verify the spray arms spin freely and are not blocked.
• Use quality detergent and the right amount for your water hardness.
• Inspect for leaks at the door and under the unit; address drips quickly.

Common wear items and what they do

Part	What it impacts	Typical symptom when failing
Diswasher mesh filter 00615079	Keeps debris out of the wash system	Poor cleaning, gritty residue
Door seal 00432490	Prevents water leaks at the door	Water on floor, damp insulation
Dishwasher water inlet valve 00425458	Controls filling	Not filling, slow fill

Why it matters

A dishwasher that is maintained and installed to spec runs with less strain on the recirculation pump, inlet valve, and seals. That reduces overheating, leaks, and long cycle times, which are the most common reasons dishwashers get replaced early.

For installation-related specs (electrical supply, water pressure, and hot water setup), follow the installation guide.

Last updated: February 2026

The most common Bosch dishwasher issue we see on the SHE43C05UC is poor cleaning or poor draining, usually caused by restricted water flow (clogged filters or spray arms) or a drain setup problem. A no-fill symptom is also common when the inlet valve or supply is restricted; use the SHE43C05UC installation guide to confirm the drain hose routing.

Most common symptoms and what typically causes them

• Not cleaning well: clogged filter, blocked spray arms, low water temperature, overloading
• Not draining: clogged filter/sump, kinked drain hose, drain hose installed too low
• Not filling: shutoff valve partially closed, kinked supply line, inlet valve problem
• Leaks: worn door seal, loose hose connections, over-sudsing
• Won’t start or stops mid-cycle: door not latching, control issue, error code condition

Quick checks you can do first (no tools)

1. Remove and rinse the filter area; clear debris from the sump.
2. Spin spray arms by hand and clear any blocked holes.
3. Confirm hot water is available at the sink before starting a cycle.
4. Check the drain hose routing: it needs a high loop; Bosch specifies keeping part of the drain hose at least 20 inches off the cabinet floor to help prevent draining problems.
5. If the dishwasher shows an error, look it up in Bosch dishwasher error codes.

Parts that commonly solve these problems

Symptom	Common part involved	Example part for SHE43C05UC
Not filling	Water inlet valve	Dishwasher water inlet valve 00425458
Not draining or poor wash circulation	Sump/filter restriction	Sump filter 00441905
Leaking at the door	Door seal wear	Door seal 00432490

Why it matters

Restricted water flow or an incorrect drain hose high loop can make a Bosch dishwasher seem like it has a major failure when it really needs cleaning, a hose correction, or a targeted part replacement. Fixing the root cause improves wash performance and helps prevent repeat clogs and leaks.

Last updated: February 2026

Yes. You can buy replacement parts for the Bosch SHE43C05UC dishwasher, including common wear items (filters, seals, hoses) and repair parts (pumps, valves, control boards) to fix leaks, draining problems, and wash performance issues. Use the SHE43C05UC installation guide to confirm connection and installation requirements.

Common dishwasher parts people replace

• Water inlet valve (fills the tub)

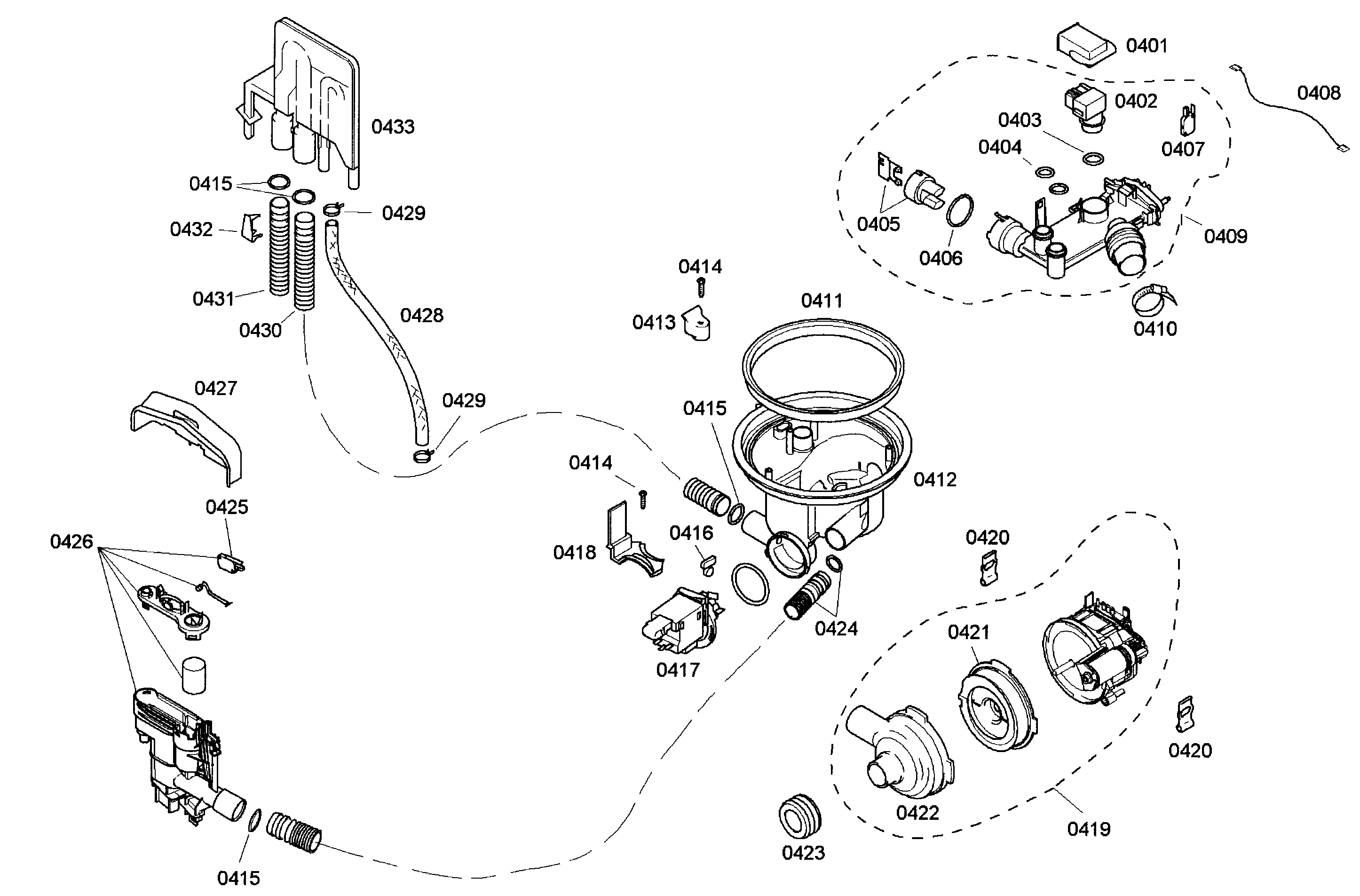

• Recirculation pump assembly (circulates wash water through spray arms)
• Drain hose (routes wastewater to the sink drain or disposer)

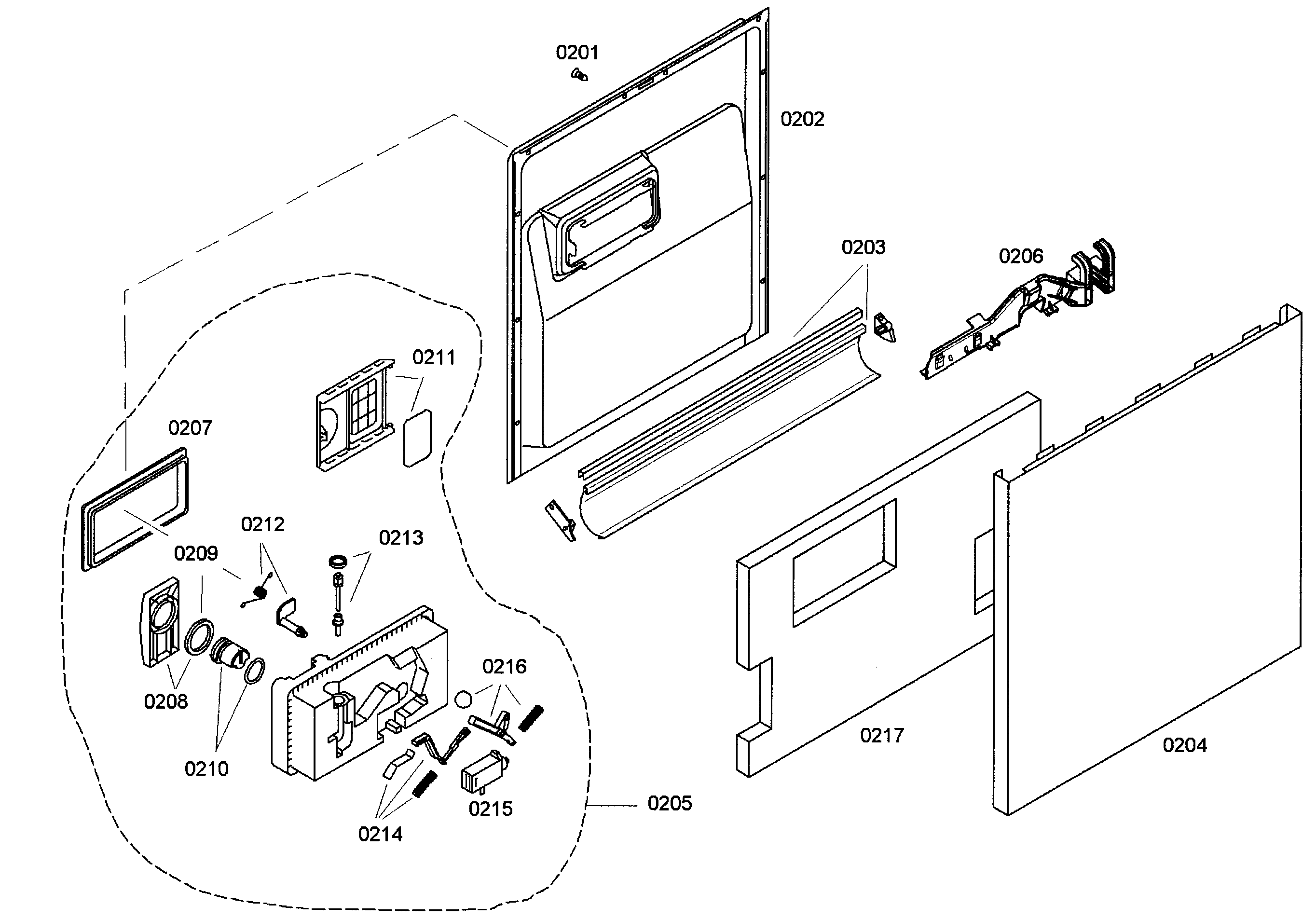

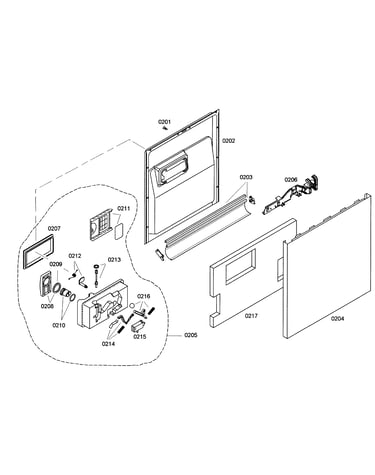

• Door seal (helps prevent leaks at the bottom of the door)
• Filters and sump parts (help prevent clogs and protect the pump)

Model-matched parts available for SHE43C05UC

Here are a few examples of model-specific parts that are commonly replaced:

Symptom	Likely part to check	Example model-matched part
Not filling or filling slowly	Water inlet valve	Dishwasher water inlet valve 00425458
Poor cleaning, weak spray	Recirculation pump, filters, sump	Dishwasher recirculation pump assembly 00442548
Leaking at the door	Door seal	Door seal 00432490
Not draining well	Drain hose, drain path restrictions	Drain hose 00263099

Before you order: quick checks that prevent wrong-part returns

• Match the full model number on the dishwasher label to your parts lookup (Bosch models often have a slash and revision).
• Compare your old part’s markings and connector style to the replacement listing.
• For draining complaints, confirm the drain hose is routed with a high loop; the installation instructions call for a portion of the hose to be at least 20 inches off the cabinet floor.
• For leaks, inspect the door seal area for debris and check that the dishwasher is level.
• For “won’t run” issues, check for error indicators and basic power and door-latch operation.

Why it matters

Dishwashers rely on correct water fill, strong circulation, and proper draining. Replacing the right Bosch dishwasher parts restores cleaning performance, prevents leaks, and helps protect major components like the sump and electronic control.

Last updated: February 2026

Yes, repairing a Bosch dishwasher like model SHE43C05UC is usually worth it when the unit is under about 10 years old and the problem is limited to one repair (for example a leak, drain issue, or fill problem). We recommend comparing the repair total to replacement cost; repairs that stay under about half the cost of a new dishwasher are typically a smart choice.

Quick decision checklist

• Age: Under 6 to 10 years old usually favors repair.
• Repair scope: One clear failure is better than multiple symptoms.
• Part cost: Mid-priced parts often make sense; very high-cost parts can change the math.
• Condition: If racks, door seal, and tub are in good shape, repair value goes up.
• Performance: If it cleaned well before the failure, repair is usually worthwhile.

Common repairs that are often worth it on SHE43C05UC

Many Bosch dishwasher issues come down to a few serviceable components:

Symptom	Likely area	Example part for this model
Not filling or fills slowly	Water supply, inlet valve	Dishwasher water inlet valve 00425458
Poor wash action, weak spray	Circulation/recirculation system	Dishwasher recirculation pump assembly 00442548
Leaking at the bottom of the door	Door sealing surface	Door seal 00432490
Not draining well	Drain path, hose routing	Drain hose 00263099

What to check before you spend money on parts

1. Confirm the symptom with a simple test cycle after installation or troubleshooting steps; the installation instructions recommend running a complete cycle to verify operation. See the SHE43C05UC installation guide.
2. Look for easy wins first: clean filters, clear the sump area, and verify the spray arms spin freely.
3. If it will not drain: make sure the drain hose is routed correctly; Bosch installation guidance calls for a portion of the drain hose to be at least 20 inches off the cabinet floor to help prevent draining problems. See the SHE43C05UC installation guide.
4. If you see an error code: use Bosch dishwasher error codes to narrow the failure to a specific system.

Why it matters

Dishwashers are built as a system; fixing the correct root cause (fill, wash, drain, or leak) prevents repeat breakdowns and protects key components like the electronic control board and pump assemblies.

Last updated: February 2026
