GE GSS23QSTASS refrigerator - t series

GE GSS23QSTASS refrigerator - t series Parts

Here are the diagrams and repair parts for GE GSS23QSTASS refrigerator - t series, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for GSS23QSTASS Refrigerators

  • G.e. Refrigerator Water Filter for GE GSS23QSTASS - Part MWFP

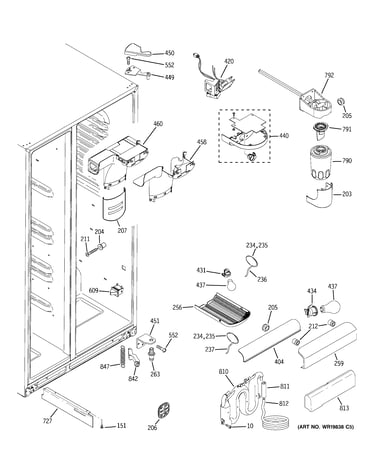

    Fresh food section diagram

    Ge Refrigerator Water Filter

    Part #MWF

    Replaced by #MWFP

    Info Icon
    Manufacturer substitution
    This part replaces MWF. Substitute parts can look different from the original.
    Get free shipping with Automatic Reorder
    In Stock
    $63.66
    9% OFF Phone Price : $69.66Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Refrigerator Ice Maker Kit for GE GSS23QSTASS - Part WR30X10093

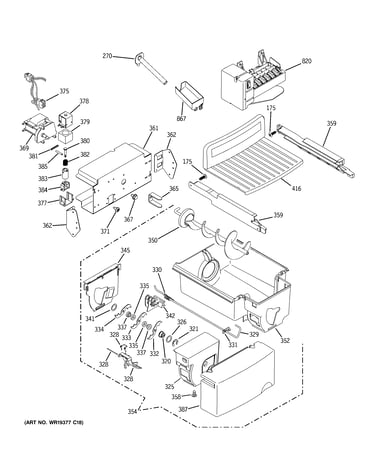

    Ice maker & dispenser diagram

    Refrigerator Ice Maker

    Part #WR30X10012

    Replaced by #WR30X10093

    Info Icon
    Manufacturer substitution
    This part replaces WR30X10012. Substitute parts can look different from the original.
    In Stock
    $255.44
    $12.00 OFF Phone Price : $267.44Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Refrigerator Ice Maker Kit for GE GSS23QSTASS - Part WR30X10093

    Ice maker & dispenser diagram

    Electronic I

    Part #WR30X10061

    Replaced by #WR30X10093

    Info Icon
    Manufacturer substitution
    This part replaces WR30X10061. Substitute parts can look different from the original.
    In Stock
    $255.44
    $12.00 OFF Phone Price : $267.44Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Filter Dryer for GE GSS23QSTASS - Part WR86X25269

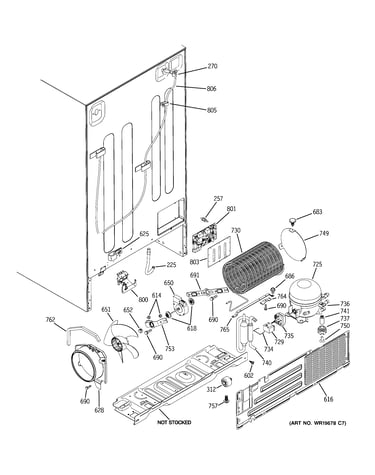

    Sealed system & mother board diagram

    Dryer Filter

    Part #WR86X0096

    Replaced by #WR86X25269

    Info Icon
    Manufacturer substitution
    This part replaces WR86X0096. Substitute parts can look different from the original.
    In Stock
    $46.36
    45% OFF Was : $83.96Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Defrost Bi-metal Thermostat for GE GSS23QSTASS - Part WR50X10068

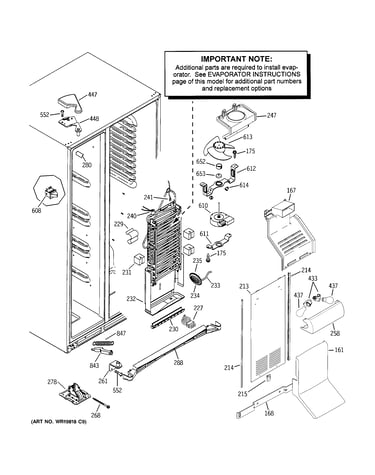

    Freezer section diagram

    Refrigerator Defrost Thermostat

    Part #WR50X10028

    Replaced by #WR50X10068

    Info Icon
    Manufacturer substitution
    This part replaces WR50X10028. Substitute parts can look different from the original.
    In Stock
    $24.47
    20% OFF Phone Price : $30.47Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Dispenser Ice Chute Door Kit for GE GSS23QSTASS - Part WR17X11653

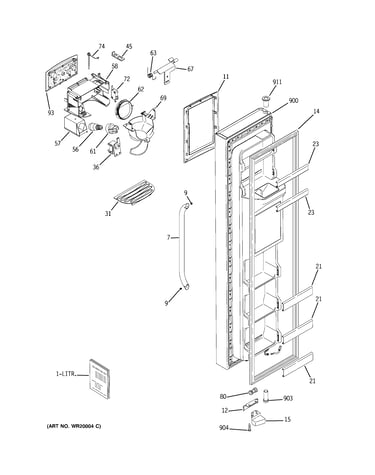

    Freezer door diagram

    Refrigerator Dispenser Ice Chute Door Kit

    In Stock
    $19.31
    9% OFF Phone Price : $21.31Info Icon
    Minus Item
    Qty
    Plus Item
  • Rca Refrigerator Dispenser Ice Chute Door Solenoid for GE GSS23QSTASS - Part WR62X10055

    Freezer door diagram

    Refrigerator Solenoid

    Part #WR62X10020

    Replaced by #WR62X10055

    Info Icon
    Manufacturer substitution
    This part replaces WR62X10020. Substitute parts can look different from the original.
    In Stock
    $58.99
    9% OFF Phone Price : $64.99Info Icon
    Minus Item
    Qty
    Plus Item
  • Mwf Manifold for GE GSS23QSTASS - Part WR02X45206

    Fresh food section diagram

    Refrigerator Filter Head And Tub

    Part #WR17X11028

    Replaced by #WR02X45206

    Info Icon
    Manufacturer substitution
    This part replaces WR17X11028. Substitute parts can look different from the original.
    In Stock
    $66.21
    8% OFF Phone Price : $72.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Run Capacitor for GE GSS23QSTASS - Part WR55X24064

    Sealed system & mother board diagram

    Capacitor

    Part #WR62X0079

    Replaced by #WR55X24064

    Info Icon
    Manufacturer substitution
    This part replaces WR62X0079. Substitute parts can look different from the original.
    In Stock
    $66.51
    8% OFF Phone Price : $72.51Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Appliance Light Bulb, 40-watt for GE GSS23QSTASS - Part 40A15

    Refrigerator Light Bulb

    Part #60A

    Replaced by #40A15

    Info Icon
    Manufacturer substitution
    This part replaces 60A. Substitute parts can look different from the original.
    In Stock
    $14.95
    12% OFF Phone Price : $16.95Info Icon
    Minus Item
    Qty
    Plus Item

GE Refrigerator - T Series GSS23QSTASS FAQs

Yes. GE side-by-side refrigerators like model GSS23QSTASS are a solid choice for everyday use because they typically deliver reliable cooling, easy organization, and convenient features such as an in-door ice and water dispenser. Normal operating sounds (hums, whooshes, clicks) are also expected on newer designs.

What “good” usually means for a side-by-side

A good side-by-side refrigerator balances consistent temperatures, usable storage, and low-maintenance operation.

  • Keeps fresh food and freezer temps steady with normal door use
  • Offers adjustable shelving and door bins for flexible storage
  • Provides convenient ice and water dispensing (when the water line is installed correctly)
  • Runs with typical modern sounds as the compressor and fans cycle
  • Supports routine maintenance like filter changes and condenser cleaning
Quick checklist: how to judge your GSS23QSTASS

Use this as a practical scorecard.

What to check What you want to see What it points to
Temperature stability Food stays safely cold, minimal swings Good airflow and controls
Noise level Occasional hum/whoosh/click Normal operation on many models
Ice and water performance Steady flow, normal ice production Healthy water supply and valve
Interior condition Shelves and liners stay intact Proper cleaning habits
Why it matters

A “good” refrigerator is one that preserves food safely and predictably. For side-by-side models, airflow and water supply setup are especially important because the dispenser and icemaker add extra components (water valve, filter head, tubing) that affect day-to-day performance.

Tips to keep it performing like a “good” refrigerator
  • Follow the cleaning and care guidance in the GSS23QSTASS owner’s manual (avoid harsh cleaners that can damage interior surfaces).
  • Replace the water filter on schedule; a clogged filter can reduce dispenser flow and affect ice production (use the GE refrigerator water filter MWFP).
  • If you hear new or louder sounds, compare them to the normal sound descriptions in the manual before assuming a failure.
  • When moving the refrigerator for cleaning, pull it straight out and push it straight back to help prevent floor damage and avoid rolling over the power cord or water line.

Last updated: January 2026

On the GE GSS23QSTASS side-by-side refrigerator, “freezing up” is usually caused by restricted airflow, doors not sealing or closing fully, or a defrost system issue that lets frost build on the evaporator and blocks circulation. We recommend checking airflow paths and door closure first, then moving to defrost and temperature checks using the GSS23QSTASS owner's manual.

Quick checks that fix most freeze-ups
  • Make sure no packages are holding a door open; frequent or long door openings can cause frost and ice crystals.
  • Keep food from blocking the rear air louvers (air tower in fresh food section and air tunnel in freezer).
  • Confirm the temperature controls are not set to the coldest setting.
  • Verify the doors close fully and align evenly; a partially open door can create heavy frost.
  • If the water dispenser line is freezing, inspect for slow seepage from the inlet valve.
Common causes and what to do next
Symptom you see Most likely cause What we do next
Frost sheet on freezer back wall Defrost problem or door left ajar Check door seal and closure; then inspect defrost components
Items freezing in fresh food section Airflow imbalance or control set too cold Clear vents; adjust control one step warmer
Water dispenser tube freezes Water valve not fully closing Test/replace the refrigerator water valve WR57X33326
Temps swing, random freezing Sensor or airflow issue Check placement of food; consider testing the GE profile refrigerator temperature sensor WR55X10025
Why airflow matters on this model

This GE design uses an air tower (refrigerator) and an air tunnel (freezer) to maximize temperature control. When vents are blocked by food containers or frost, cold air can concentrate in one area and cause freezing while other areas run warm.

Safety and service note

We always unplug the refrigerator before cleaning or making repairs. For electrical testing (multimeter checks) or sealed-system concerns, we recommend using a qualified technician.

Last updated: January 2026

Cooling problems are the most common issue we see with GE refrigerators like model GSS23QSTASS. In many cases, the root cause is simple (dirty condenser coils, a door left ajar, or a control setting), but it can also involve airflow, defrost, or sealed-system components.

Most common causes to check first

Start with the easy, high-impact checks before replacing parts:

  • Confirm the doors close fully and nothing is holding them open.
  • Verify temperature controls are set correctly (note: setting controls to 0/off does not remove power to the light circuit).
  • Clean dust from the condenser area (restricted airflow can reduce cooling).
  • Listen for the evaporator fan running; weak airflow often points to a fan or frost buildup issue.
  • Look for heavy frost on the freezer back wall (often a defrost problem).
  • If ice is hollow/small or water flow is weak, replace the water filter.
Quick symptom-to-likely-cause guide
Symptom Common cause What to do next
Fridge warm, freezer OK Airflow/damper issue Check vents, listen for fans, inspect for frost
Freezer warm, fridge warm Dirty coils, fan issue, sealed-system problem Clean coils; check fans; escalate if still warm
Heavy frost on freezer panel Defrost system issue Defrost/diagnose defrost thermostat, heater, sensor
Small/hollow ice cubes Clogged filter or low water flow Replace GE refrigerator water filter MWFP
Parts that commonly relate to cooling complaints

If basic checks do not fix the issue, these parts are frequently involved in cooling or temperature stability on this model family:

Why it matters

Cooling issues can spoil food quickly and can also cause secondary symptoms like slow ice production, clumping ice, and odor transfer. Fixing airflow, cleaning, and correct temperature settings often restores normal operation without major repairs.

Safety note before troubleshooting

Unplug the refrigerator before cleaning or making repairs; for model-specific procedures and control details, use the GSS23QSTASS owner’s manual.

Last updated: January 2026

If your GE GSS23QSTASS makes ice but will not dispense it, the most common causes are a jammed ice chute, clumped ice in the bin, or the dispenser being locked. Clearing the chute and breaking up clumps usually restores dispensing; then check the auger and chute door.

Quick checks we recommend first
  • Confirm the dispenser is not locked; press and hold the Lock pad for about 3 seconds to unlock.
  • Remove the ice storage drawer/bin, dump old ice, and break up irregular clumps.
  • Look up into the chute for a blockage; clear it with a wooden spoon (never use fingers).
  • Avoid narrow glasses and overfilling; backed-up ice can jam the chute and freeze the chute door shut.
  • Do not add loose ice from trays or bags into the storage drawer; it may not crush or dispense well.
What to inspect if it still will not dispense

If the chute is clear and the bin ice is loose, the issue is usually in the dispenser drive parts (auger) or the chute door mechanism.

Symptom Most likely area What we do next
Motor sound but no ice moves Ice clumps or auger jam Empty bin, break up clumps, reinstall bin fully
No sound when pressing paddle Dispenser control or switch Check door is closed, verify lock is off, then test switch/wiring
Ice backs up at the door Chute door not sealing or frozen shut Clear ice, dry area, check chute door kit
Parts that commonly fix “won’t dispense ice”
Why it matters

A jammed chute or clumped ice can make the dispenser seem “dead” even though the icemaker is fine. Clearing the blockage prevents repeat jams, reduces melting and refreezing, and helps the chute door seal properly.

For model-specific dispenser features and operating steps, use the GSS23QSTASS owner's manual.

Last updated: January 2026
