Kenmore Elite 66514815N612 dishwasher Parts

Yes. The Kenmore Elite dishwasher model 66514815N612 uses a filtration system to help trap food soil and protect the wash pump; keeping it clean helps prevent poor cleaning, odors, and drain problems. For the exact filter location and removal steps, follow the 66514815N612 owner's manual.

Where the filter is and what it does

Most Kenmore 665-series dishwashers place the filter assembly in the bottom of the tub, under the lower spray arm area.

Typical filter jobs include:

• Catching food particles so they do not redeposit on dishes
• Protecting the sump and motor from debris
• Helping the dishwasher drain properly
• Reducing odors caused by trapped soil

How we recommend cleaning the filter

Use this quick routine as general guidance; match the details to your model’s instructions in the 66514815N612 owner's manual.

• Turn off power at the breaker (safer when working in the sump area)
• Pull out the lower rack
• Remove any standing water with a cup or towel
• Twist and lift the filter components (common on this platform)
• Rinse under hot water; use a soft brush for grease and buildup
• Reinstall the filter fully seated and locked before running a cycle

Cleaning frequency (practical schedule)

Usage pattern	Filter cleaning interval
Heavy use, lots of starch/soil	Every 1 to 2 weeks
Typical family use	About once a month
Light use, well-scraped dishes	Every 2 to 3 months

Why it matters

A clogged or misinstalled filter can restrict water flow and contribute to cloudy glasses, gritty residue, longer cycle times, and intermittent draining issues. A clean filter also helps the heating and drying system perform more consistently.

Related maintenance that helps

• Use rinse aid for better drying and to reduce hard-water deposits (common on energy-efficient models)
• Run hot water at the sink before starting a cycle for better wash performance
• Clean the tub periodically using the steps in how to clean and maintain your dishwasher

Last updated: February 2026

Yes. Kenmore Elite is Kenmore’s high-end line, and the Kenmore Elite dishwasher model 66514815N612 is built to deliver more premium features and fit-and-finish than standard Kenmore models; exact feature sets vary by model, so we recommend confirming options in the 66514815N612 owner's manual.

What “high end” typically means for Kenmore Elite dishwashers

Kenmore Elite models are usually positioned above Kenmore and Kenmore Pro in terms of features and design. Common upgrades include:

• Quieter operation (more insulation and sound control)
• More wash options and sensor-based cycles
• Better rack flexibility (adjusters, rollers, third rack on some models)
• More robust drying performance (often tied to a heating element and venting design)
• Higher-end exterior styling and controls

Quick comparison: Kenmore vs. Kenmore Elite

Line	Typical positioning	What you usually get
Kenmore	Value to mid-range	Core cycles, basic racks, fewer convenience features
Kenmore Elite	Mid-to-high end	More cycle options, quieter build, upgraded racks and drying

How to confirm what’s “premium” on your exact model

Because “Elite” is a product tier, the best way to judge how high-end your specific dishwasher is, is to verify the features and specs for 66514815N612:

• Check the cycle and option list (sensor wash, high temp, sani rinse, etc.)
• Look for rack features (height adjusters, rack stops, roller style)
• Review drying method and any heater-related notes
• Confirm electrical and installation requirements

For model-specific details, use the 66514815N612 installation guide alongside the manual.

Why it matters

Knowing the exact feature set helps you choose the right detergent, loading pattern, and cycle for best cleaning and drying. It also helps you buy the correct replacement parts if something wears out, such as a rack adjuster or roller.

Last updated: February 2026

Common problems we see on Kenmore dishwashers like model 66514815N612 are poor cleaning, not draining, leaking, and not starting or stopping mid-cycle. Most issues trace back to loading and maintenance (filters and spray arms), or to wear parts such as the door latch, inlet valve, drain hose, or heating element.

Most common symptoms and what usually causes them

• Dishes still dirty or gritty: clogged filter area, blocked spray arms, low water fill, or weak wash circulation
• Water left in the bottom: restricted drain path, kinked hose, or a drain pump/sump issue
• Leaks at the door: door not latching fully, lower door seal wear, or over-sudsing from wrong detergent
• Won’t start: door not fully latched, control not responding, or power supply issue
• Poor drying: heater problem, rinse aid issue, or cycle selection (no heat dry)

Quick checks we recommend first (no parts needed)

1. Confirm the door closes firmly and the cycle actually starts (listen for fill and wash).
2. Clean the filter area and check spray arms for debris.
3. Run hot water at the sink before starting so the dishwasher fills with hotter water.
4. Use dishwasher detergent only (not dish soap) and avoid overfilling.
5. Check for a kinked drain hose and verify the drain path is clear.

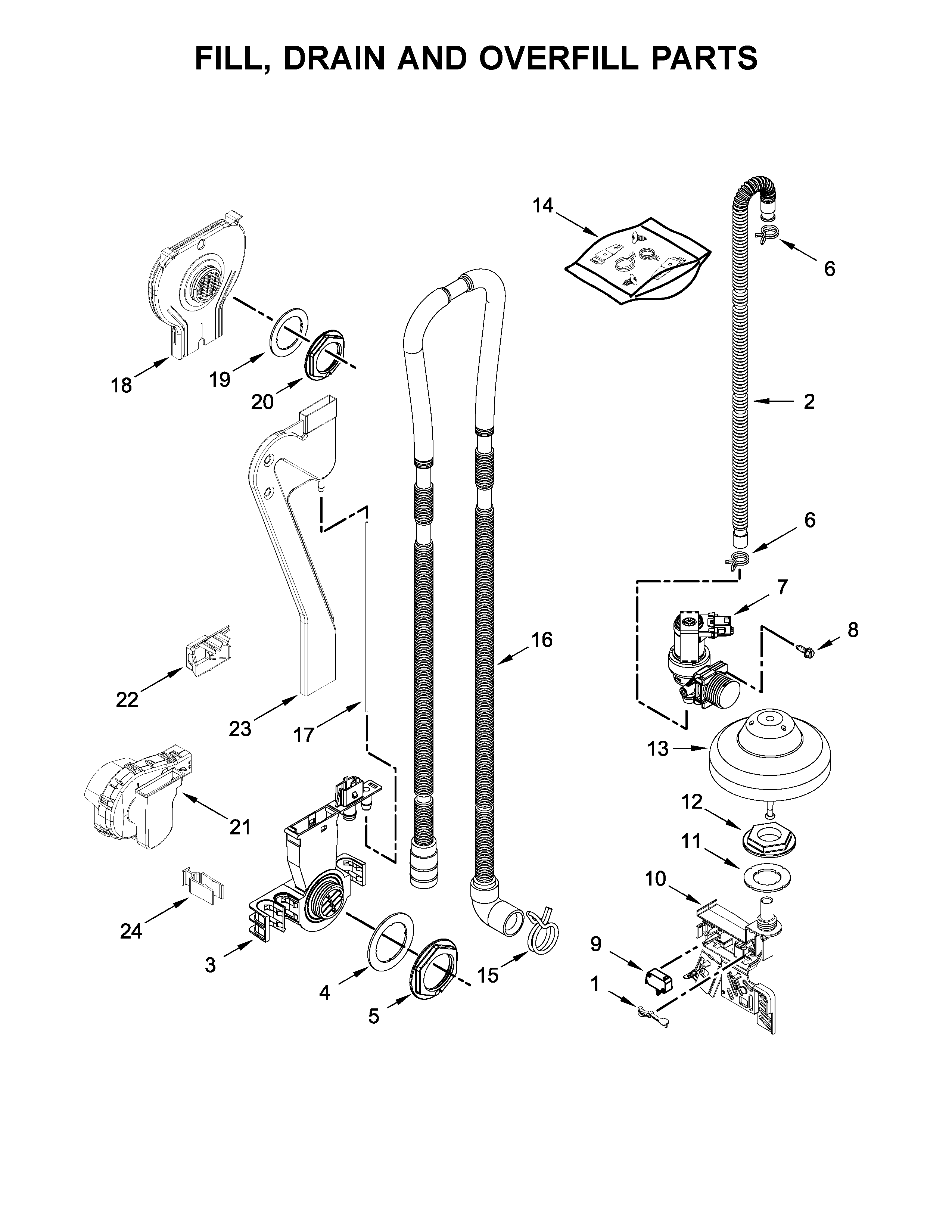

Parts that commonly fix these problems on 66514815N612

If basic checks do not solve it, these model-matched parts are frequent fixes:

Symptom	Common part to check	What it affects
Won’t start or stops	Dishwasher door latch WPW10653840	Confirms the door is closed so the control will run
Not filling well	Dishwasher water inlet valve WPW10327249	Controls water entering the tub
Not draining	Dishwasher drain hose 8269144A	Carries drain water to the sink/disposer
Poor drying	Element assembly W10703867	Heats water and supports drying performance
Leaking at bottom of door	Dishwasher door seal, lower W10909089	Helps seal the door at the lower edge

Why it matters

Dishwashers depend on correct water fill, spray pressure, heating, and draining. A small restriction (like a clogged spray arm) can look like a major failure, while a worn latch or seal can cause leaks and shutdowns.

Helpful model-specific references

• Use the 66514815N612 installation guide for safety and setup details like cabinet clearances, drain routing, and door spring tension adjustment.
• If you’re seeing flashing lights or a fault code, use Kenmore 665 model dishwasher error codes to match the code to the most likely cause.

Last updated: February 2026

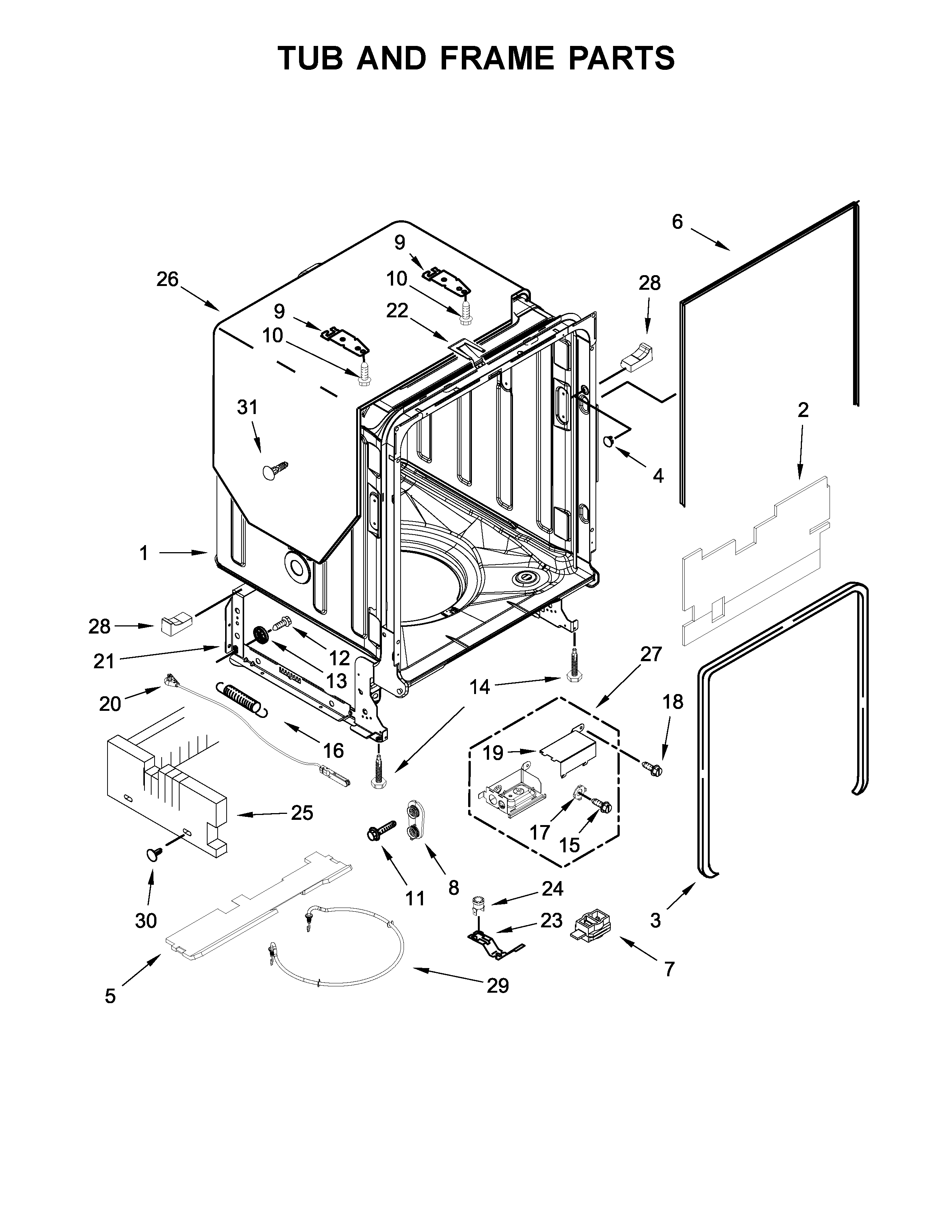

For Kenmore Elite dishwasher model 66514815N612, the installation opening is designed for a standard built-in dishwasher space: about 24 inches deep and a minimum 23 5/8 inches wide, with an opening height typically 34 to 34 1/2 inches (measured from the lowest point under the countertop to the floor). See the 66514815N612 installation guide for the exact fit rules and measurement points.

Cabinet opening dimensions to plan for

Use these as your planning dimensions for the cutout and clearances:

• Depth: 24 inches (door panel and handle can extend farther forward)
• Width: minimum 23 5/8 inches at the narrowest point
• Height: typically 34 to 34 1/2 inches; can be reduced to about 33 1/2 inches with specific adjustments
• Toe-kick clearance: allow roughly 3 1/2 to 4 1/4 inches depending on toe-kick height
• Measure correctly: height is measured from the lowest underside of the countertop to the highest point on the floor

Quick reference table

Measurement	What to measure	Typical value for this install spec
Opening width	Narrowest point of cabinet opening	Min. 23 5/8 in.
Opening depth	Front of cabinet to back wall	24 in.
Opening height	Underside of countertop to floor	34 to 34 1/2 in.

Why your measured height can vary

This model’s install spec allows height adjustment using wheel position and front leveling legs. In some installations, the rear wheels and a perforated section of the insulation blanket can be removed/cut to fit a shorter opening.

• Factory preset height is commonly set for about 34 1/2 inches
• If the opening is under 34 inches, adjustments may be required
• Built-up floors (tile not extending into the opening) may require shims so the dishwasher sits correctly

Why it matters

Correct opening dimensions prevent rubbing, door interference, and leveling problems that can cause leaks, poor draining, or noisy operation. We also recommend following the utility routing guidance so water lines, drain hose, and wiring do not contact the motor or legs.

Last updated: February 2026

On the Kenmore Elite dishwasher model 66514815N612, the filter is in the bottom of the tub, directly under the lower spray arm area. In most setups, you pull out the lower rack, then twist and lift the cylindrical filter assembly out for cleaning; reinstall it fully seated so the dishwasher drains and washes correctly.

How to access and clean the filter

• Turn off power at the breaker before reaching into the sump area.
• Remove the lower dishrack.
• Look at the center-rear or center-bottom area of the tub floor (under the lower spray arm zone).
• Twist the cylindrical filter counterclockwise (typical) and lift it out.
• Rinse under hot water; use a soft brush to remove grease and debris.
• Reinstall by seating it flat, then twisting until it locks.

For the exact removal method and any model-specific notes, follow the steps in the 66514815N612 owner's manual.

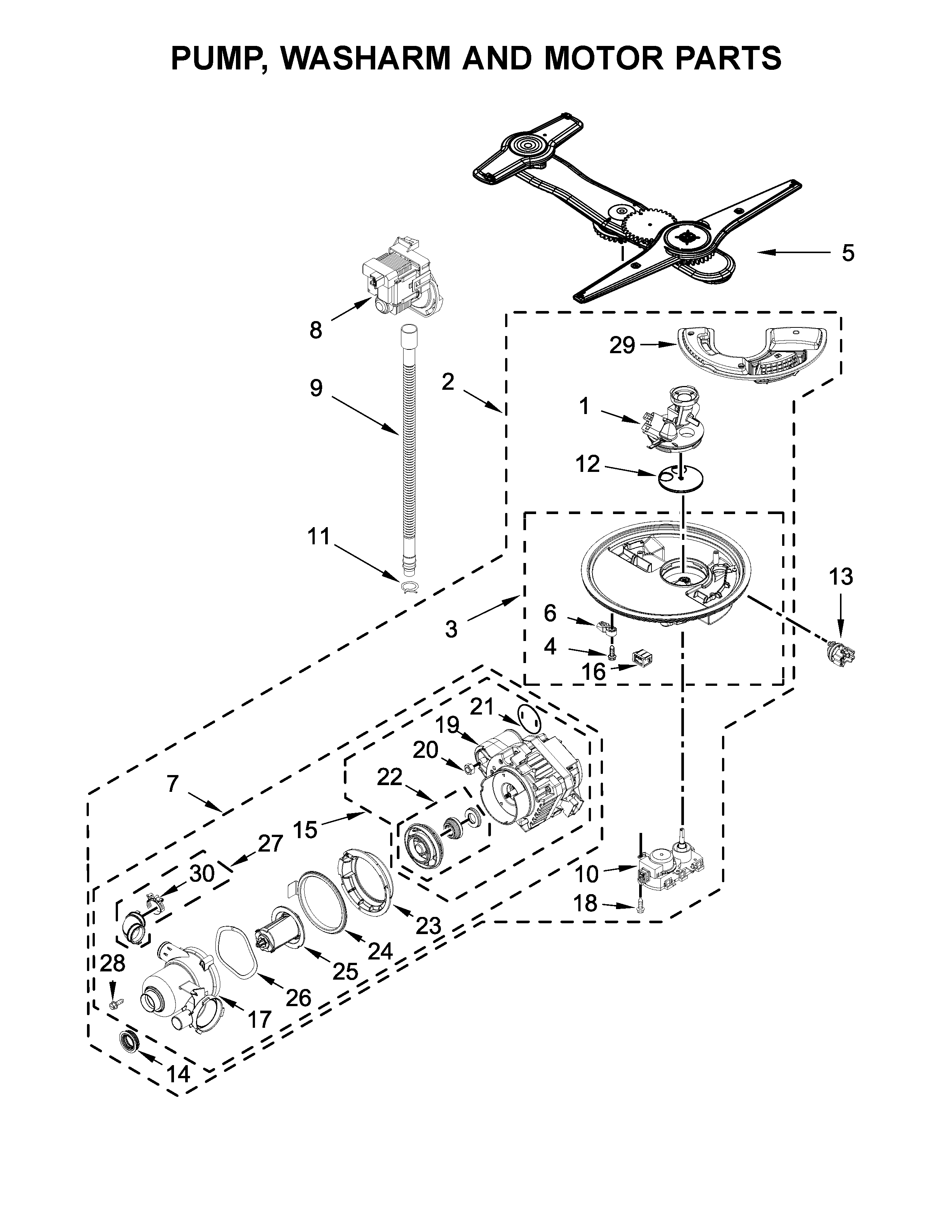

What you should see (typical Kenmore 665 layout)

Item	Location	What it does
Cylindrical fine filter	Bottom of tub, under lower spray arm area	Catches fine food particles
Coarse screen/filter plate	Bottom of tub around/under the cylinder	Stops larger debris from reaching the pump
Sump inlet area	Under the filter assembly	Feeds wash pump and helps protect the impeller

Symptoms of a dirty or misinstalled filter

• Grit or food redepositing on glasses
• Poor wash performance on the lower rack
• Standing water or slow draining after the cycle
• Unusual grinding or rattling during wash

Why it matters

A clean, properly locked filter helps your 66514815N612 maintain strong water flow to the spray arms and keeps debris out of the pump area. That improves cleaning results and reduces drain problems.

Last updated: February 2026

On Kenmore Elite dishwasher model 66514815N612, the model number is printed on the rating label located just inside the door opening, typically along the left-hand side of the tub frame. The same label also lists the serial number.

How to find it fast

• Open the dishwasher door fully.
• Look along the inner left edge of the tub opening (door frame area).
• Find the rectangular rating label (often silver or white).
• Read the model number and serial number directly from that label.
• If the label is dirty, wipe it gently with a damp cloth and dry it.

What the label helps you do

Having the exact model number lets us match the correct Kenmore parts and diagrams for your dishwasher, especially for fit-critical items like a door latch, dishrack rollers, or a heating element.

You need	Use this from the label	Why it matters
Repair parts that fit	Model number (example: 66514815N612)	Ensures correct part compatibility
Warranty or service records	Serial number	Identifies production details
Installation details	Model number	Confirms requirements and clearances

If you cannot see the label clearly

• Use a flashlight and view from the side to reduce glare.
• Check for a label on the door edge and the tub frame area.
• Take a close-up photo and zoom in to read the characters.
• Compare what you see to the format in the 66514815N612 owner's manual.

Why it matters

Kenmore Elite dishwashers can share similar-looking doors and racks across multiple 665-series models, but parts like the dishwasher door latch WPW10653840 and rack hardware can vary by revision. Using the exact model number prevents ordering the wrong replacement.

Last updated: February 2026

Kenmore Elite dishwasher model 66514815N612 was manufactured by Whirlpool. On Kenmore appliances, the 665 prefix is the manufacturer code commonly used for Whirlpool-built dishwashers, so parts, service procedures, and many design features typically align with Whirlpool-built Kenmore units.

How to confirm it on your dishwasher

We use the model number format as the quickest identifier, but you can also verify using the rating label information.

• Check the full model number on the tub frame (usually along the door edge).
• Confirm the prefix is 665 (as in 66514815N612).
• Match the model exactly when ordering parts or looking up diagrams.
• Use the documentation for your exact unit: 66514815N612 installation guide.

What the manufacturer code means for parts and repairs

A Whirlpool-built Kenmore dishwasher often shares engineering and part families with Whirlpool platform designs. That helps when you are troubleshooting issues like poor cleaning, draining problems, or rack hardware failures.

Common Whirlpool-platform service areas include:

• Wash system components (sump, diverter, spray arm)
• Heating circuit (heater and controls)
• Door hardware (latch, seals, balance links)
• Rack hardware (rollers, adjusters)

Examples of model-matched parts on this unit

What you are fixing	Example part for 66514815N612	What it affects
Door will not latch or start	Dishwasher door latch WPW10653840	Door closure and start enable

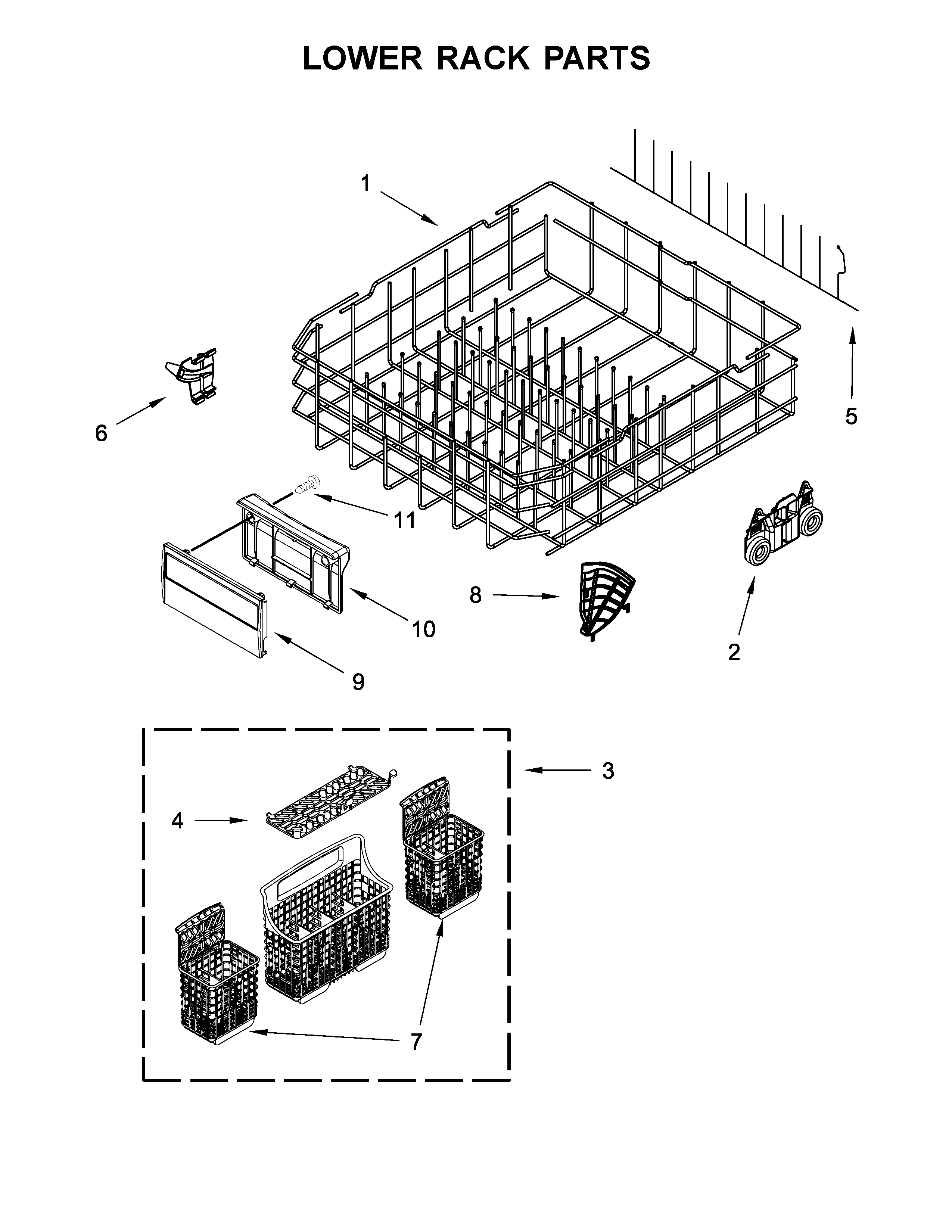

Lower rack not rolling smoothly	Dishwasher dishrack roller assembly, lower WPW10195417	Rack movement and alignment
Not heating or poor drying	Element assembly W10703867	Water heating and drying performance

Why it matters

Knowing Whirlpool built Kenmore model 66514815N612 helps you choose the correct replacement parts and follow the right troubleshooting flow. It also reduces ordering errors when multiple Kenmore dishwashers look similar but use different platforms.

Last updated: February 2026
