Model # 11027072600 Official Kenmore Elite washer
Here are the diagrams and repair parts for Official Kenmore Elite 11027072600 washer, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

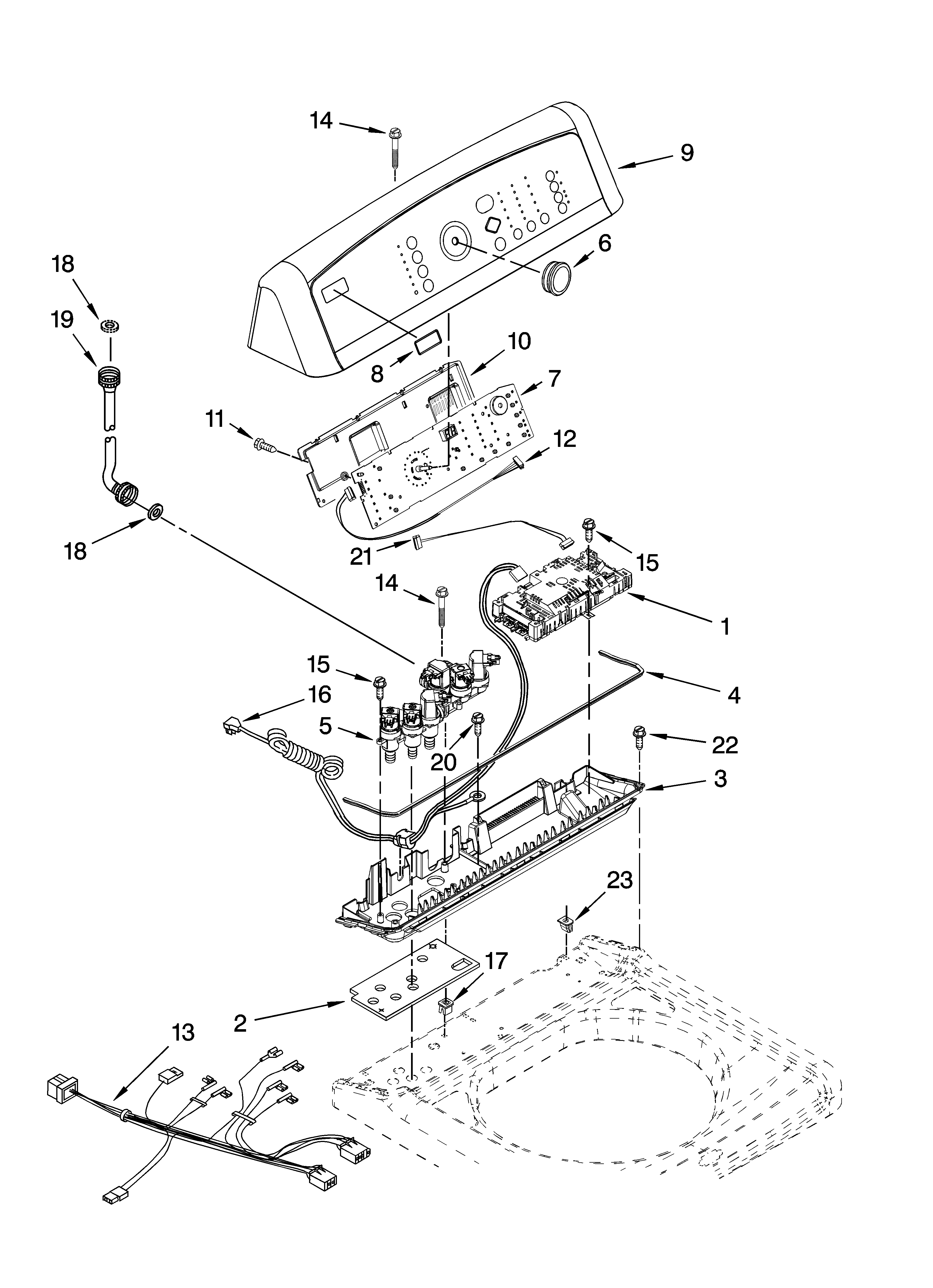

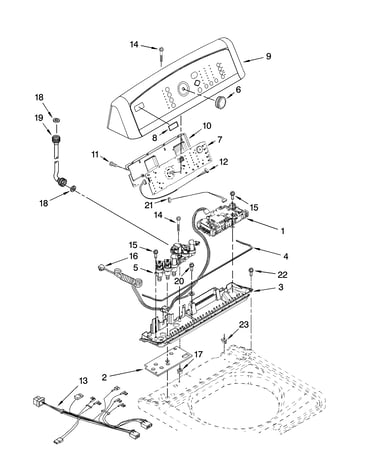

SELECT DIAGRAM
Browse Parts for
11027072600 Washer
#1

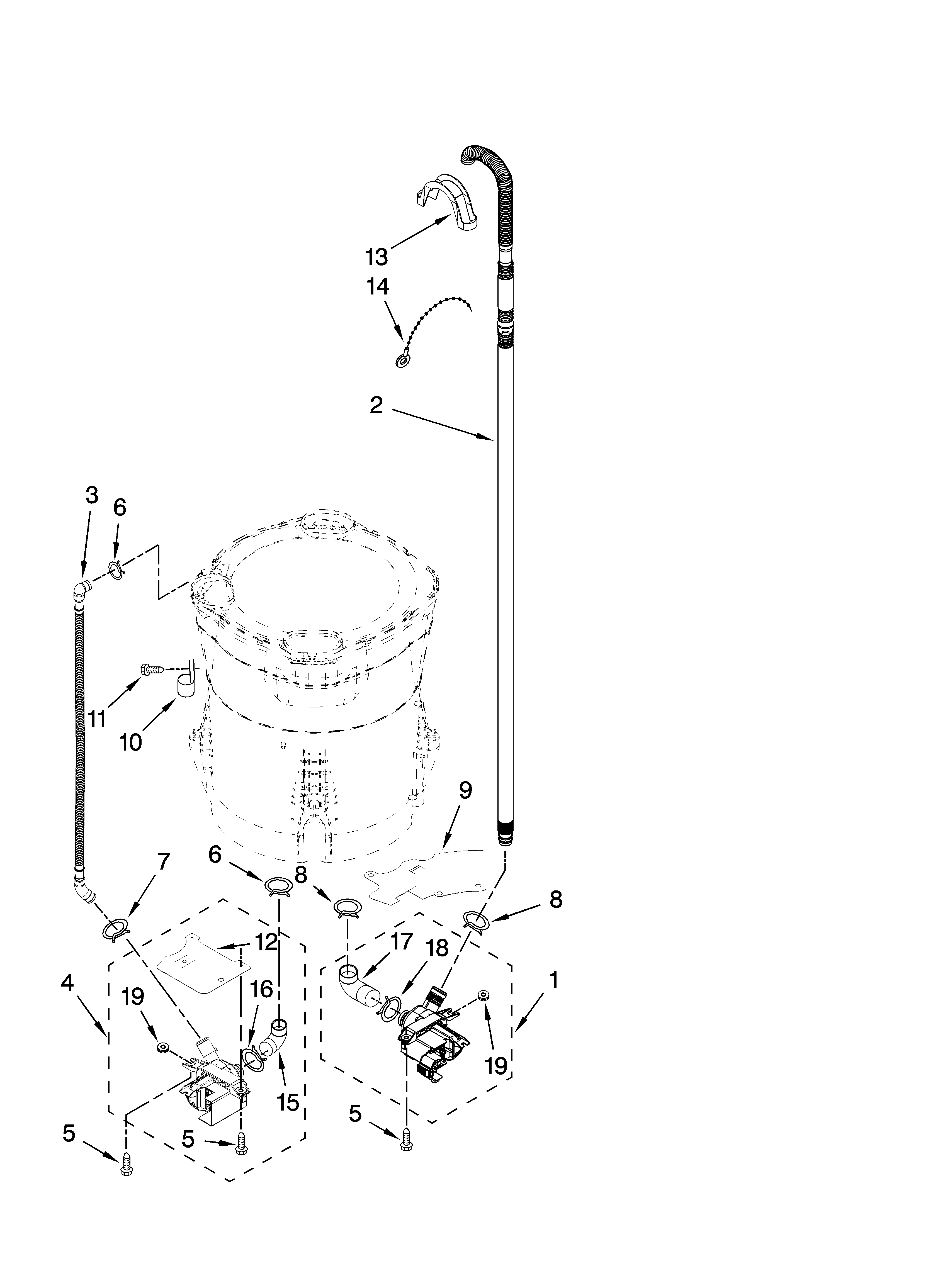

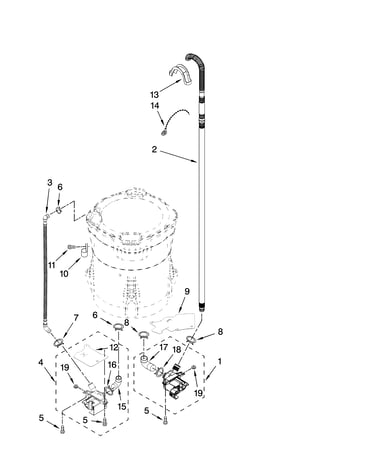

Pump parts, optional parts (not included) diagram
Water pump
Part #8542672
Replaced by #W10536347
?
Manufacturer substitution
This part replaces 8542672. Substitute parts can look different from the original.
$83.34 |
7% OFF Phone Price : $89.34
In Stock
#17

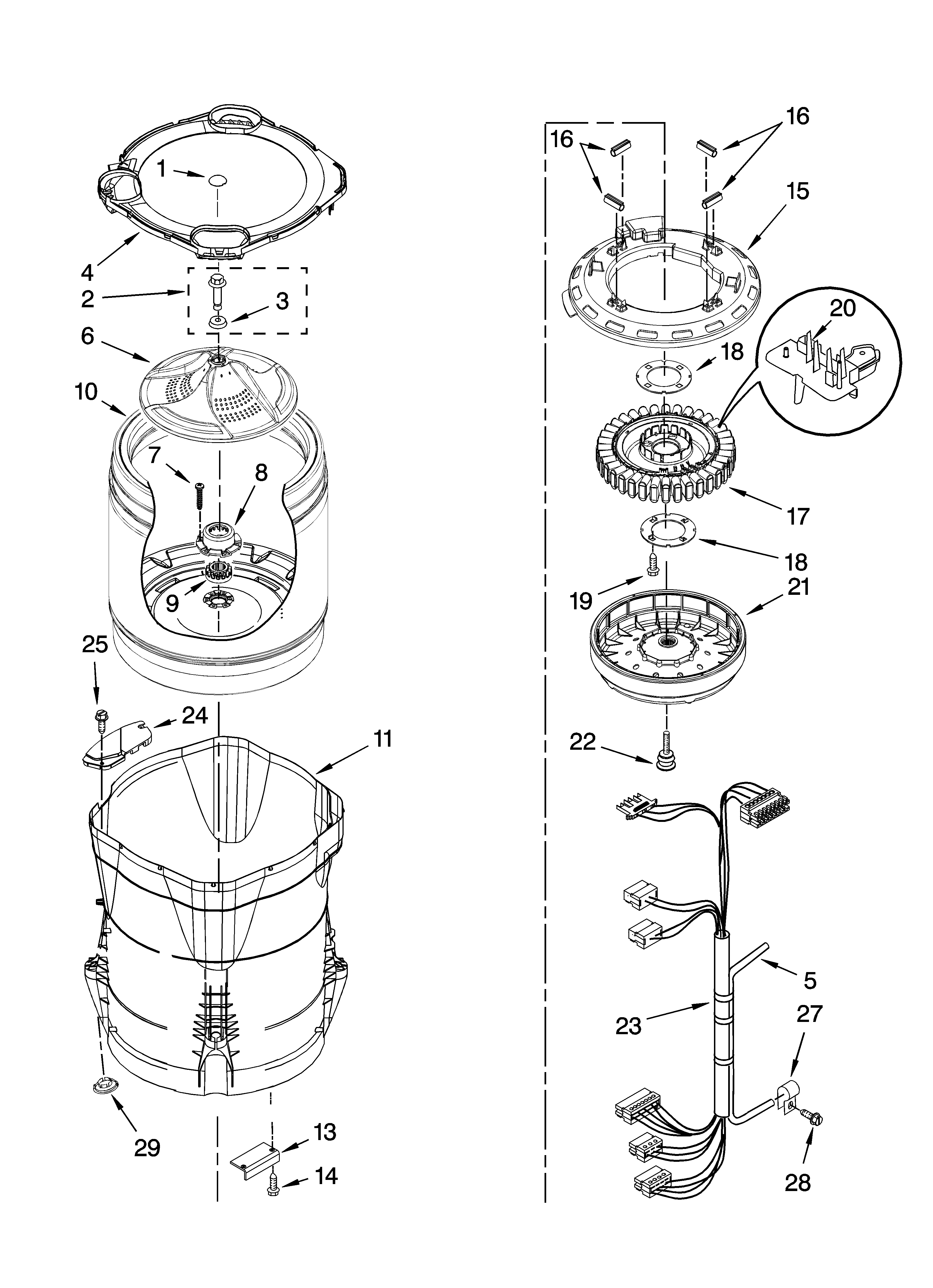

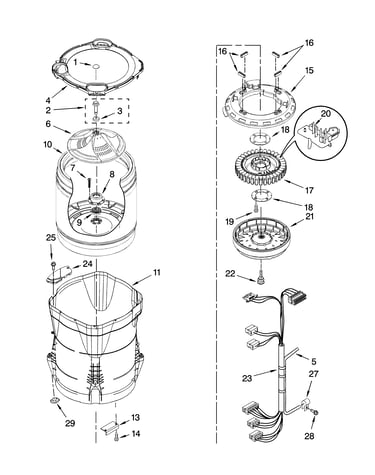

Motor, basket and tub parts diagram
Stator
Part #8565170
Replaced by #WPW10419333
?
Manufacturer substitution
This part replaces 8565170. Substitute parts can look different from the original.
$178.70 |
6% OFF Phone Price : $190.70
In Stock
#21
Motor, basket and tub parts diagram
Rotor
Part #8565177
Replaced by #280146
?
Manufacturer substitution
This part replaces 8565177. Substitute parts can look different from the original.
$183.17 |
6% OFF Phone Price : $195.17
In Stock
#29

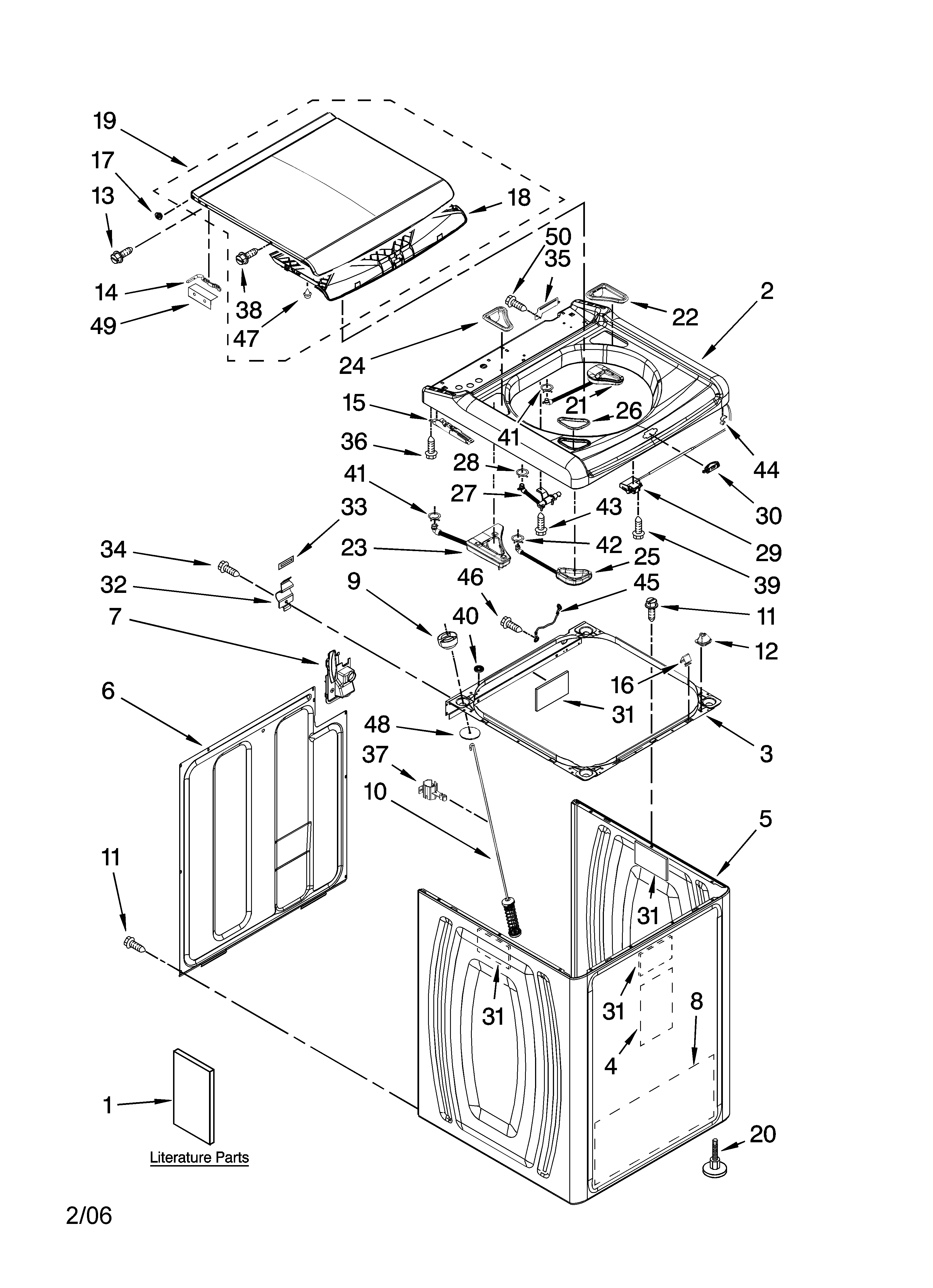

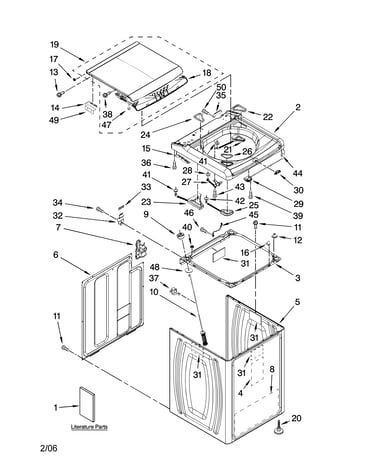

Top and cabinet parts diagram
Latch
Part #8563937
Replaced by #WPW10619844
?
Manufacturer substitution
This part replaces 8563937. Substitute parts can look different from the original.
$82.60 |
7% OFF Phone Price : $88.60
In Stock
#5
Motor, basket and tub parts diagram
Hose
Part #8572540
Replaced by #WP353244
?
Manufacturer substitution
This part replaces 8572540. Substitute parts can look different from the original.
$40.85 |
10% OFF Phone Price : $45.36
In Stock
#41
Top and cabinet parts diagram
Hose clamp
Part #370451
Replaced by #WP596669
?
Manufacturer substitution
This part replaces 370451. Substitute parts can look different from the original.
This item is not returnable
$3.93 |
20% OFF Phone Price : $4.93
In Stock
Clamp
Part #371503
Replaced by #WP596669
?
Manufacturer substitution
This part replaces 371503. Substitute parts can look different from the original.
This item is not returnable
$3.93 |
20% OFF Phone Price : $4.93
In Stock
#50
Top and cabinet parts diagram
Screw
Part #3390647
Replaced by #WP488729
?
Manufacturer substitution
This part replaces 3390647. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
#3
Motor, basket and tub parts diagram
Washing machine washer
Part #3949550
Replaced by #WP3949550
?
Manufacturer substitution
This part replaces 3949550. Substitute parts can look different from the original.
$9.62 |
9% OFF Phone Price : $10.62
In Stock
#25
Motor, basket and tub parts diagram
Screw
Part #8533928
Replaced by #WP8533928
?
Manufacturer substitution
This part replaces 8533928. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
