Model #79551026012 Official Kenmore refrigerator

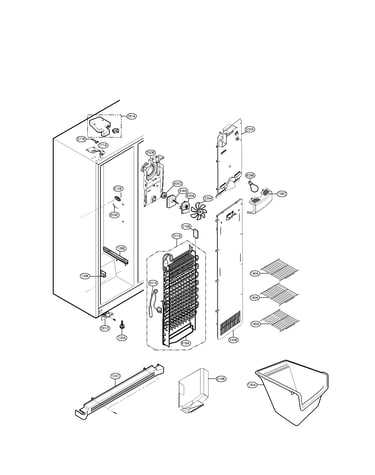

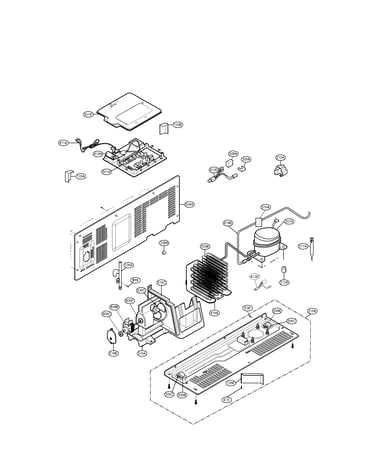

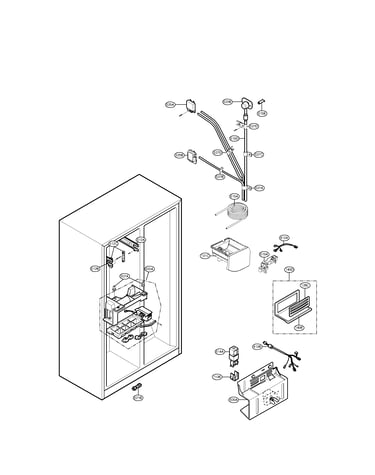

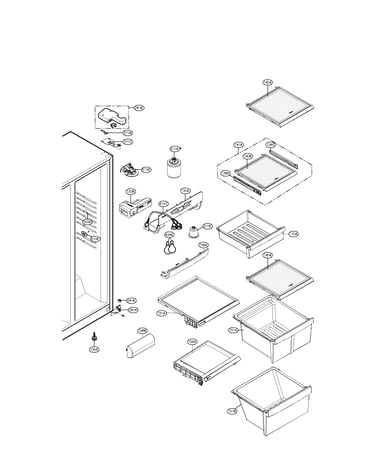

Here are the diagrams and repair parts for Kenmore 79551026012 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual Error Codes

Recommended maintenance parts and accessories

Refrigerator Leveling Leg (replaces 4779JA3001A...

Part #4779JA3001E

In Stock

$9.73 |

9% OFF

Phone Price: $10.73

Qty

Refrigerator Shelf

Part #5027JJ1098D

In Stock

$47.66 |

9% OFF

Phone Price: $52.66

Qty

Refrigerator Light Housing Assembly

Part #ABQ72954502

In Stock

$97.88 |

9% OFF

Phone Price: $107.88

Qty

Refrigerator Roller (replaces 4580JA3024A)

Part #4580JA3024B

In Stock

$14.71 |

12% OFF

Phone Price: $16.71

Qty

Symptoms common to all refrigerators

Choose a symptom to see related refrigerator repairs.

April 20, 2023

Why won't my refrigerator ice maker make ice?

By Lyle Weischwill

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freezer not cold enough

April 20, 2023

Why is frost building up in my refrigerator's freezer?

By Lyle Weischwill

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer or control board

April 20, 2023

Why is my freezer not cold enough?

By Lyle Weischwill

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan not running

April 20, 2023

Why won't my refrigerator run?

By Lyle Weischwill

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost timer problems

April 20, 2023

Why is water dripping from my refrigerator onto the floor?

By Lyle Weischwill

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubing, leaking door seal

April 20, 2023

What routine maintenance does my refrigerator need?

By Lyle Weischwill

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, clean the drain pan

April 20, 2023

Why won't my refrigerator cool at all?

By Lyle Weischwill

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, sensor problems

April 20, 2023

Why isn't my refrigerator cooling well?

By Lyle Weischwill

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condenser fan not working
