Kenmore 11087407110 gas dryer Parts

On Kenmore gas dryer model 11087407110, replacing the drum belt is a straightforward cabinet-access repair: unplug power, shut off gas, remove the front to access the drum, route the new belt around the drum and motor pulley, set belt tension with the idler pulley, then reassemble and test.

Before you start (safety and prep)

• Unplug the dryer from the wall outlet.
• Shut off the gas supply valve to the dryer.
• Let the dryer cool completely.
• Protect the floor; the front panel edges can scratch.
• Take a quick photo of the belt path before removing anything.

Belt replacement steps (typical Kenmore 110-style gas dryer)

1. Remove the lint screen; remove the screws that secure the top (location varies by console style).
2. Lift the top and support it.
3. Remove the front panel (and door switch connector if present) to expose the drum.
4. Release belt tension by pushing the idler pulley toward the motor; slip the old belt off the motor pulley.
5. Pull the drum forward slightly and remove the old belt.
6. Install the new belt with the ribbed side against the drum; position it roughly where the old belt rode.
7. Route the belt through the idler pulley and around the motor pulley; rotate the drum by hand 1 to 2 turns to confirm the belt tracks correctly.
8. Reinstall the front panel, reconnect the door switch, lower the top, reinstall screws and lint screen.
9. Turn gas back on, plug in, and run a short timed cycle to verify smooth tumbling.

Correct part and what it does

Part	What it does	Common symptom when bad
Belt 341241	Turns the drum using the motor and idler pulley	Drum will not tumble; thumping; belt broken/slipped
Dryer idler pulley	Keeps proper belt tension	Squealing; belt slips; poor tumbling

Why it matters

A worn belt can slip, overheat, or break, which stops tumbling and can make drying slow. Replacing the belt and confirming proper tension helps protect the drum support system and keeps airflow and drying performance consistent.

Last updated: February 2026

Most Kenmore gas dryers like model 11087407110 are full-size units that measure about 27 inches wide, 27 to 29 inches deep, and 38 to 44 inches tall (height varies most with the control console and leveling legs). For the exact footprint in your laundry space, measure the cabinet and allow clearance for the vent and gas line.

Typical dimensions and what to measure

Use a tape measure on the dryer cabinet (not the door handle) and note:

• Width: left side panel to right side panel
• Depth: front cabinet face to back panel (add space for vent elbow)
• Height: floor to top of cabinet/control panel
• Clearance: extra room behind for venting and gas connector
• Door swing: space needed for the door to open fully

Quick size guide (common for this style of Kenmore 110 gas dryer)

Measurement	Typical range	Why it varies
Width	~27 in.	Most full-size cabinets are standardized
Depth	~27 to 29 in.	Vent connection and rear panel design
Height	~38 to 44 in.	Console style and leveling leg adjustment

Why it matters

Getting the size right prevents installation headaches. A gas dryer needs room for safe routing of the exhaust vent, the gas supply line, and access to the shutoff valve, and tight installs can also restrict airflow and increase drying time.

Related parts that affect fit and airflow

If you are reworking the back clearance or airflow, these model-compatible parts are commonly involved:

• Dryer blower wheel WP694089 (moves air through the drum and vent)
• Dryer lint chute seal W11415783 (helps prevent air leaks around the lint duct)
• Dryer gas valve coil kit 279834 (heating-related, not sizing, but often serviced during access)

Last updated: February 2026

No. For a Kenmore gas dryer model 11087407110, using a “220 to 110” adapter is not a safe or workable way to power the dryer; it can cause improper operation, overheating, nuisance breaker trips, and serious shock or fire risk. Use the correct dedicated electrical supply and outlet instead.

What to do instead (safe options)

• Use the correct receptacle and circuit for the dryer’s required voltage and amperage.
• If the outlet does not match, have a qualified electrician install the proper outlet and verify grounding.
• If you are moving the dryer to a different location, confirm the circuit rating and wiring size before plugging in.
• If you are unsure whether the dryer is configured correctly, stop and have the installation checked.
• For general setup and safety basics, follow our guide: how to use your clothes dryer efficiently.

Why an adapter is a problem

A plug adapter does not “convert” power the way a properly sized transformer or a correct circuit does. Dryers draw significant current; using the wrong voltage or an improvised adapter can:

• Overheat cords, plugs, or connections
• Trip breakers repeatedly
• Damage internal components (motor, controls)
• Create shock and fire hazards

Quick compatibility check

Item to verify	What “right” looks like	What to avoid
Voltage at outlet	Matches the dryer’s rating	Any adapter that changes plug shape without proper circuit changes
Circuit type	Dedicated dryer circuit, properly grounded	Extension cords, multi-plug adapters, shared circuits
Connection	Correct receptacle and cord set	Loose-fitting plugs, warm/hot plug ends

Why it matters

Correct voltage and a properly grounded circuit protect the dryer’s motor, controls, and ignition system, and they reduce the risk of overheating at the outlet. If the dryer will not start after a power change, use our gas dryer wont start troubleshooting video to narrow down common causes.

Last updated: February 2026

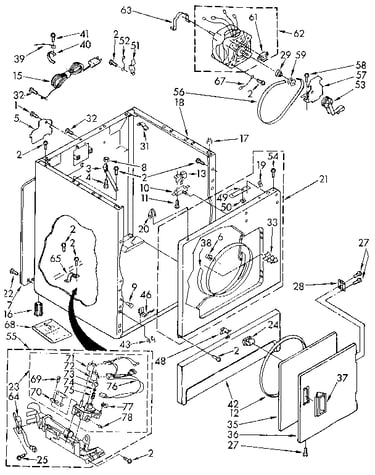

On the Kenmore gas dryer model 11087407110, the front panel typically comes off after you disconnect power and gas, lift the top, remove the mounting screws (often inside the door opening and at the top corners), then lift the panel up and off the lower retaining clips while supporting the drum.

Safety first (gas dryer)

• Unplug the dryer from the wall outlet.
• Shut off the gas supply valve to the dryer.
• If the dryer was running, let it cool completely.
• Wear cut-resistant gloves; cabinet edges are sharp.
• Take a quick photo of any wire connections before you unplug them.

Front panel removal steps (common for this Kenmore/Whirlpool-built style)

1. Remove the lint screen, then remove the screws in the lint screen housing (if present).
2. Release the top panel: insert a putty knife a few inches in from each front corner to release the spring clips, then lift the top.
3. Disconnect the door switch harness (usually near the top right of the front panel).
4. Remove front panel screws:

• Look for screws along the inside of the door opening.
• Remove the screws at the upper left and upper right that secure the front panel to the cabinet.

5. Lift and remove the front panel: pull the top of the panel slightly forward, then lift it up to unhook it from the bottom clips.

What you can access once the front is off

Removing the front panel is usually the first step for belt and drum support repairs.

Symptom you are fixing	Parts commonly involved on 11087407110
Drum will not turn, motor runs	Belt 341241, idler pulley, drum rollers (if equipped)
Loud thumping or scraping	Drum supports, blower wheel, seals
Door will not start dryer	Door switch, door catch/strike

Why it matters

Getting the front panel off correctly prevents bent cabinet tabs, broken plastic clips, and damaged door switch wiring. It also makes belt routing and drum alignment much easier during reassembly.

Last updated: February 2026

To reset a Kenmore gas dryer like model 11087407110, we power-cycle it: turn the dryer off, unplug it (or switch the breaker off) for 1 minute, then restore power and try a normal cycle. This clears many temporary control glitches.

Reset steps (safe, quick)

• Turn the dryer OFF.
• Unplug the power cord (or turn the circuit breaker OFF).
• Wait 60 seconds.
• Restore power.
• Open and close the door once, then select a cycle and press Start.

If it still will not start after a reset

These checks solve most “dead” or “won’t start” complaints on Kenmore gas dryers:

• Confirm the outlet has power (try a lamp or reset the breaker).
• Make sure the door is fully closed; a failed door switch can prevent starting.
• Check the Start button and timer or cycle selector for normal feel and operation.
• If the motor hums but the drum will not turn, inspect the belt and idler pulley.

Symptom after reset	Most likely area	Common next step
No lights, no response	Power supply	Check breaker, outlet, cord
Runs but drum does not turn	Drive system	Inspect belt 341241 and dryer idler pulley WP691366
Clicks but will not run	Door circuit	Test door switch W10820036

Why it matters

A reset fixes control lockups, but it will not bypass a real failure such as a broken belt, a bad door switch, or a seized blower wheel. Matching the symptom to the right system prevents unnecessary parts replacement.

Related DIY help

• Use our gas dryer wont start troubleshooting video to narrow the cause step-by-step.

Last updated: February 2026

Kenmore gas dryer model 11087407110 is a full-size platform; most Kenmore 110-series full-size dryers of this type are about 7.0 cu. ft. capacity (large capacity). For the exact number for your unit, match the complete model ID on the rating label and compare it to the spec listing for 11087407110.

What “capacity” means on a dryer

Capacity is the drum volume (cubic feet). It affects how much laundry you can dry per load and how well bulky items tumble.

• 6.0 to 6.5 cu. ft.: medium loads, smaller households
• About 7.0 cu. ft.: typical full-size, good for family loads
• 7.3+ cu. ft.: extra-large, best for bulky bedding

Quick load-size guidance (works well for Kenmore gas dryers)

Use these as practical targets so clothes dry evenly and the burner cycles correctly.

Load type	How full to load the drum	What to watch for
Everyday mixed load	About 1/2 to 2/3 full	Items should tumble freely
Towels/jeans	About 1/2 full	Overloading causes long dry times
Comforter/bulky	About 1/3 to 1/2 full	Stop if it “balls up” and won’t tumble

Why capacity can seem “wrong” in real use

Even with a large-capacity drum, drying performance depends heavily on airflow and heat.

• Clean the lint screen every load
• Check the vent for crushing, kinks, or long runs

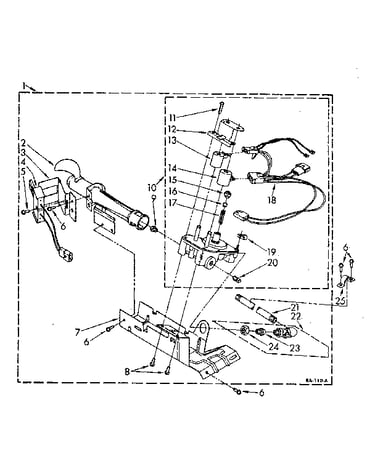

• If the drum turns but heat is weak or intermittent, inspect ignition and gas valve components such as the dryer igniter 279311 and dryer gas valve coil kit 279834

Why it matters

Using the right load size for the drum capacity helps prevent long dry times, overheating, and premature wear on drive parts like the belt and idler pulley.

Last updated: February 2026
