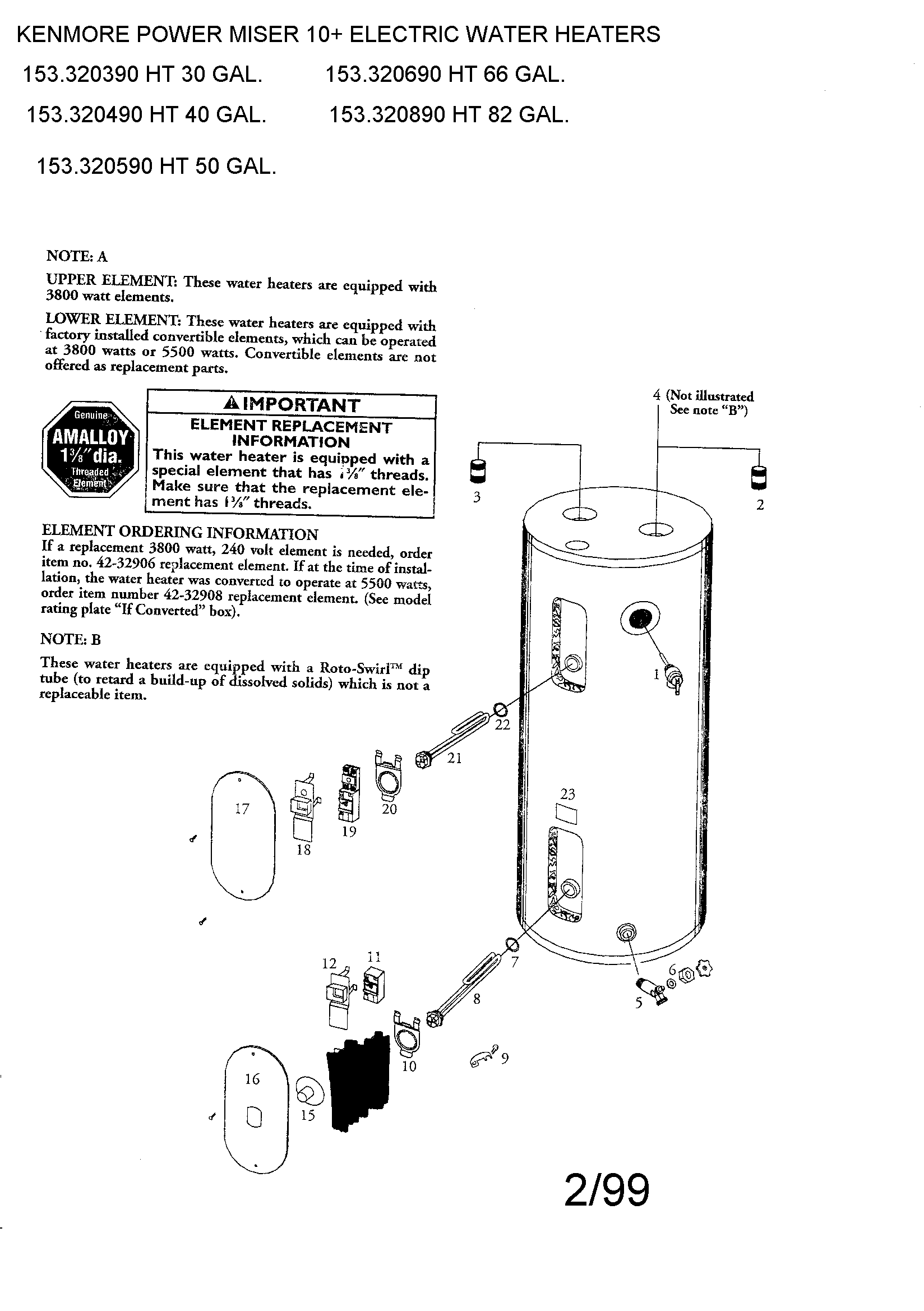

Kenmore 153320590HT power miser 12+ electric water heater Parts

Yes. On the Kenmore 153320590HT electric water heater, we can replace common service parts such as heating elements, thermostats, gaskets, and drain-valve components to restore heating and stop minor leaks. If the tank itself is leaking, replacing the entire water heater is the practical fix.

Parts you can typically replace on this model

These are common, serviceable items for the 153320590HT:

• Heating element (restore hot water when an element is open or scaled)
• Upper and lower thermostats (fix water that is too hot, too cool, or inconsistent)
• Heating element gasket (stop seepage at the element flange)
• Thermostat cover and bracket (protect and secure controls)
• Drain valve parts (address dripping at the drain)

Examples of parts available for 153320590HT

Symptom	Likely part to check	Example part on this page
No hot water or slow recovery	Heating element	Element 5500 100093526
Water temperature swings	Thermostat	Thermostat 100108683 (upper), thermostat 100108421 (lower)
Seepage around element	Element seal	Water heater heating element gasket 100108379

Safety steps we follow before any repair

Electric water heaters use high voltage and can cause severe shock or burns. Before removing access panels or servicing:

• Turn OFF power at the breaker and confirm power is off
• Let water cool if possible to reduce scald risk
• Shut off the cold-water supply to the heater
• Drain the tank to a safe level for the repair (element, drain valve, fittings)
• Refill the tank completely before turning power back on

For model-specific procedures (draining, element service, and refilling), use the owner's manual.

When replacement makes more sense than repair

A few issues point away from part replacement:

• Water is coming from the tank body or a tank seam
• Corrosion is severe around fittings and ports
• Multiple major components have failed at once

Why it matters

Replacing a thermostat, element, or gasket is often the fastest way to restore hot water and prevent water damage. Following the correct drain, refill, and power-on sequence also prevents dry-firing a new element.

Last updated: February 2026

On the Kenmore 153320590HT Power Miser 12+ electric water heater, an E05 code is not a standard diagnostic shown in the owner documentation; we treat it like an electrical or temperature-control shutdown and start by safely resetting the high-limit, confirming the tank is full, and checking the thermostats and heating elements. See the 153320590HT owner's manual.

Safety first (do this before any checks)

• Turn OFF power at the breaker before removing access panels.
• Confirm the tank is completely full of water before turning power back ON.
• Let hot water cool if needed to reduce scald risk.
• If wiring looks burned or insulation is damaged, stop and have a qualified technician inspect it.

Step-by-step checks that fix most “E05-style” shutdowns

• Reset the high-limit (ECO) switch: remove the upper access panel and press the red RESET button on the upper thermostat.
• Restore insulation and covers: the insulation block must fully cover the thermostat and element before re-energizing.
• Verify power is ON: confirm the breaker is on and the heater has proper supply voltage.
• Check for “no hot water” causes: make sure the cold water supply valve is open and piping is correct.
• Inspect heating components: if the reset trips again, test the thermostats and elements for failure.

Parts that commonly solve repeated shutdowns

If the high-limit keeps tripping or water stays cold, these model-matched parts are common fixes:

Symptom	Most likely part to check	Example part for this model
Trips reset, inconsistent temps	Upper thermostat	Thermostat 100108683
Trips reset, lower element not heating	Lower thermostat	Thermostat 100108421
Slow recovery, lukewarm water	Heating element	Element 5500 100093526
Seepage at element after service	Element seal	Water heater heating element gasket 100108379

Why it matters

A high-limit trip is the water heater protecting itself from overheating or an electrical fault. Resetting without fixing the cause can lead to repeated shutdowns, no hot water, or damaged wiring.

Last updated: February 2026

Most electric tank-style water heaters last 10 to 15 years. For a Kenmore 153320590HT (Power Miser 12+ electric water heater), regular maintenance and correct temperature settings help you reach the upper end of that range, while hard water and heavy use shorten tank life.

Typical lifespan and what changes it

• 10 to 15 years is the normal range for an electric tank water heater.
• Hard water speeds up sediment buildup, which makes the heater work harder.
• Higher thermostat settings increase wear and can raise the risk of overheating.
• Infrequent flushing lets sediment insulate the heating element and reduce efficiency.
• Corrosion protection depends heavily on the anode rod condition.

Signs your tank is near end of life

• Hot water runs out faster than it used to
• Rumbling or popping sounds (sediment heating)
• Rust-colored water from the hot side
• Moisture or leaking around the tank base
• Repeated tripped breaker or frequent reset needs

Maintenance that extends life

Use the schedule and procedures in the 153320590HT owner's manual. In general, these steps help most electric water heaters:

Maintenance task	Typical frequency	Why it helps
Flush a few gallons from the drain valve	Every 6 to 12 months	Reduces sediment and noise
Check thermostat setting	1 to 2 times per year	Helps prevent overheating and saves energy
Inspect for leaks/corrosion at fittings	Every 3 to 6 months	Catches problems early
Inspect/replace anode rod (if equipped)	About every 2 to 5 years	Slows tank corrosion

If your drain valve is leaking or won’t close after flushing, replacing it is a common fix; the ao smith water heater drain valve 100108605 is one option listed for this model.

Why it matters

A tank that’s past its typical lifespan is more likely to lose efficiency, deliver inconsistent hot water, and develop leaks. Staying ahead of sediment and corrosion helps protect the heating elements, thermostats, and the tank itself.

Last updated: February 2026

For a typical 4500 W, 240-volt electric water heater on a dedicated circuit, we use 10 AWG copper with a 30-amp double-pole breaker in most homes. For your Kenmore 153320590HT, the owner's manual wiring chart also shows 10 AWG when the heater is set up for higher-wattage operation.

Quick sizing guide (most common residential setups)

• 4500 W at 240 V: 10 AWG copper, 30A double-pole breaker
• 3800 W at 240 V: 12 AWG copper, 20A double-pole breaker
• Use a dedicated circuit (water heater only)
• Use copper conductors rated for the application (the manual references 60°C copper wire)
• If the run is long (roughly over 90 ft), size up per local electrical code

What the Kenmore 153320590HT manual calls out

The manual’s product specifications and conversion notes indicate:

• Some configurations use a 3800 W element and allow 12 AWG with a 20A breaker.
• If the lower element is converted to 5500 W, the manual specifies 10 AWG wiring and 30A overcurrent protection.

Common combinations

Heater element setup	Minimum wire size (copper)	Max breaker/fuse
3800 W @ 240 V	12 AWG	20A
4500 W @ 240 V (typical)	10 AWG	30A
5500 W @ 240 V	10 AWG	30A

Why it matters

Correct wire gauge and breaker sizing prevent overheated wiring, nuisance breaker trips, and damage to components like the heating element and thermostats.

Related parts you may replace during service

If you’re troubleshooting slow recovery or no hot water, these model-matched parts are commonly involved:

• Element 5500 100093526
• Thermostat 100108683
• Thermostat 100108421

Last updated: February 2026
