Whirlpool 4KWED4705FW0 dryer Parts
Here are the diagrams and repair parts for Whirlpool 4KWED4705FW0 dryer, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part

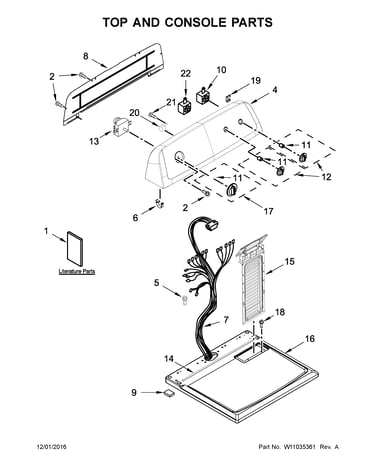

SELECT DIAGRAM
Browse Parts for 4KWED4705FW0 Dryer

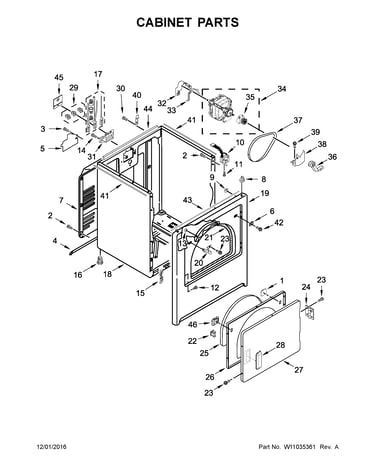

Cabinet parts diagram
Drive Motor
Part #W10289660Replaced by #W11618508
Manufacturer substitutionThis part replaces W10289660. Substitute parts can look different from the original.In Stock$328.11
Qty

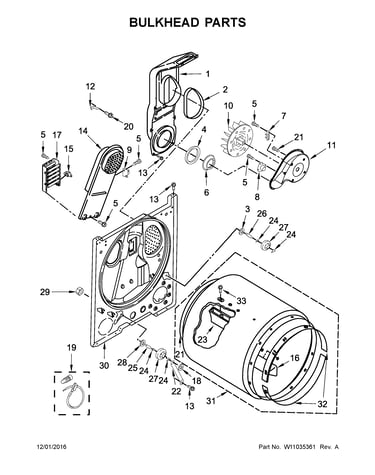

Bulkhead parts diagram
Dryer Drum Baffle
Part #692490Replaced by #WP692490
Manufacturer substitutionThis part replaces 692490. Substitute parts can look different from the original.In Stock$66.728% OFF Phone Price : $72.72
QtyCabinet parts diagram
Dryer Motor Pulley
Part #W10832956Replaced by #W11233559
Manufacturer substitutionThis part replaces W10832956. Substitute parts can look different from the original.In Stock$59.859% OFF Phone Price : $65.85QtyCabinet parts diagram
Screw
Part #8533974Replaced by #W10850756
Manufacturer substitutionThis part replaces 8533974. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyBulkhead parts diagram
Dryer Drum Support Roller Shaft
Part #W10359269Replaced by #WPW10359269
Manufacturer substitutionThis part replaces W10359269. Substitute parts can look different from the original.In Stock$50.5311% OFF Phone Price : $56.53QtyCabinet parts diagram
Dryer Terminal Block
Part #3397659Replaced by #WP3397659
Manufacturer substitutionThis part replaces 3397659. Substitute parts can look different from the original.In Stock$17.6810% OFF Phone Price : $19.68QtyCabinet parts diagram
Dryer Cabinet Hole Plug
Part #W10567345Replaced by #W11684591
Manufacturer substitutionThis part replaces W10567345. Substitute parts can look different from the original.In Stock$28.03QtyBulkhead parts diagram
Screw
Part #W10219342Replaced by #W10853898
Manufacturer substitutionThis part replaces W10219342. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyBulkhead parts diagram
Bearing Ring
Part #692526Replaced by #279441
Manufacturer substitutionThis part replaces 692526. Substitute parts can look different from the original.In Stock$49.6811% OFF Phone Price : $55.68QtyCabinet parts diagram
Dryer Door
Part #W10463967Replaced by #WPW10463967
Manufacturer substitutionThis part replaces W10463967. Substitute parts can look different from the original.In Stock$104.7510% OFF Phone Price : $116.75Qty
