How to hard reset a Frigidaire dishwasher?
To hard reset a Frigidaire dishwasher like model LGBD2431NF0B, we typically restore power by turning the dishwasher circuit breaker OFF for about 5 minutes, then turning it back ON. This clears many control glitches and lets the electronic control restart cleanly; see the LGBD2431NF0B installation instructions for safe power-disconnect guidance.
- Turn the dishwasher OFF at the control panel (if it responds).
- Switch the dishwasher circuit breaker OFF (or remove the fuse).
- Wait 5 minutes (minimum 1 minute; 5 is more reliable).
- Turn the breaker ON.
- Start a short cycle and listen for normal fill and wash sounds.
A hard reset will not fix a failed component. If the unit has power but the buttons do nothing, focus on the door latch and the control.
- Confirm the door closes firmly and latches; a dishwasher will not start if it thinks the door is open.
- If the dishwasher is dead or erratic after a reset, the control may not be booting correctly.
- If the dishwasher starts but stops mid-cycle, check for standing water, a kinked drain hose, or a drain restriction.
| Symptom after reset | What to check next | Example compatible part for LGBD2431NF0B |
|---|---|---|
| Won’t start, door feels loose | Door latch engagement | Dishwasher door latch 5304525218 |
| No response or random lights | Electronic control | Dishwasher electronic control board 807024501 |
Resetting power is the fastest way to clear a temporary software lockup on Frigidaire Gallery-style dishwashers. If the problem returns quickly, it usually points to an underlying issue (door latch not sensing closed, wiring, or a failing control board).
Last updated: January 2026
What is the most common problem with the Frigidaire dishwasher?
For the Frigidaire LGBD2431NF0B dishwasher, the most common service issues we see are draining problems (water left in the tub) and fill or wash problems (not enough water flow for strong spray). These are often tied to a clogged filter, a restricted drain hose, or a pump-related issue; see the LGBD2431NF0B installation instructions for drain-hose routing basics.
- Cancel the cycle and listen: do you hear the drain motor running but water stays?
- Check the sink/disposer connection for a blockage (especially if recently installed).
- Verify the drain hose has a high loop and is not kinked or crushed.
- Clean the dishwasher filter area and remove debris.
- Confirm hot water supply is on and household water pressure is normal.
If the basics check out, these model-matched parts are common suspects:
- Dishwasher filter 154283005 if dishes are dirty or water flow seems weak
- Drain hose 807117001 if the unit drains slowly or backs up (kinks, restrictions, leaks)

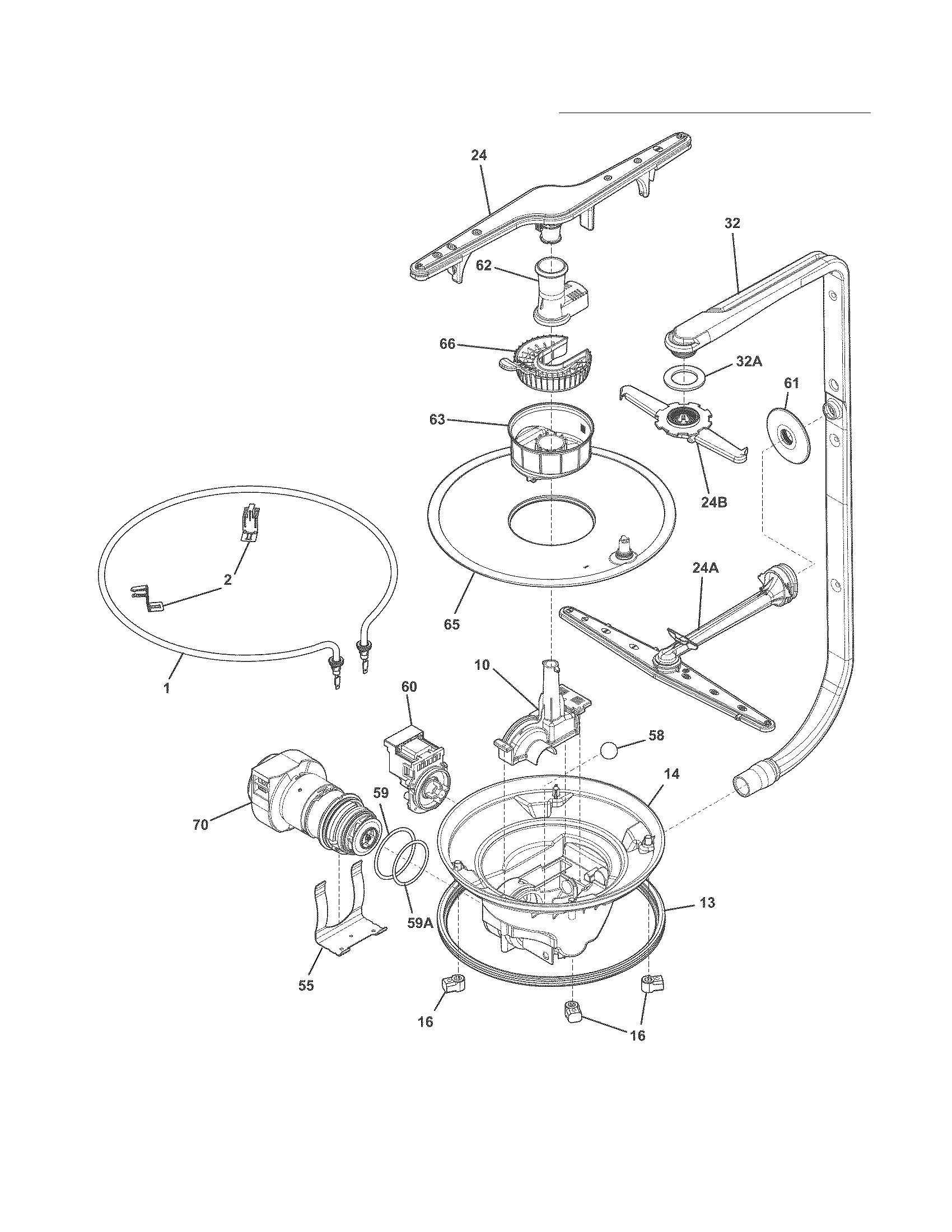

- Dishwasher pump and motor assembly 154844301 if wash pressure is low or the unit won’t circulate properly
- Pump A00126401 if you have abnormal pump noise or poor pumping performance
| Symptom | Most common cause | What we do next |
|---|---|---|
| Water left in bottom | Drain restriction or hose routing | Inspect/clear hose and connection, then consider drain-side parts |
| Not cleaning well | Clogged filter or weak circulation | Clean filter, check spray performance, then evaluate pump/circulation |
| Hums but little water movement | Pump issue or blockage | Check for obstructions, then test/replace pump components |
Drain and water-flow problems can cause poor cleaning, odors, and standing water that stresses seals and pump components. Catching a clogged filter or kinked hose early can prevent bigger repairs later.
Last updated: January 2026
Why does my dishwasher keep having power failure?
On the Frigidaire LGBD2431NF0B dishwasher, repeated “power failure” symptoms are most often caused by an unstable power supply (breaker, outlet, loose wiring), a door that is not latching consistently, or an intermittent control issue. We start by confirming steady 120V power and a solid door latch before suspecting the control board.
- Reset the circuit breaker fully (OFF, then ON) and see if the issue returns.
- If the unit is plugged in, confirm the plug is fully seated and the outlet is not loose.
- If the unit is hardwired, turn power off and check the junction box connections for tight, clean wire-nut connections.
- Close the door firmly and try starting once; repeated Start presses can confuse some control logic.
- Look for moisture or corrosion around the control area (steam leaks can cause intermittent resets).

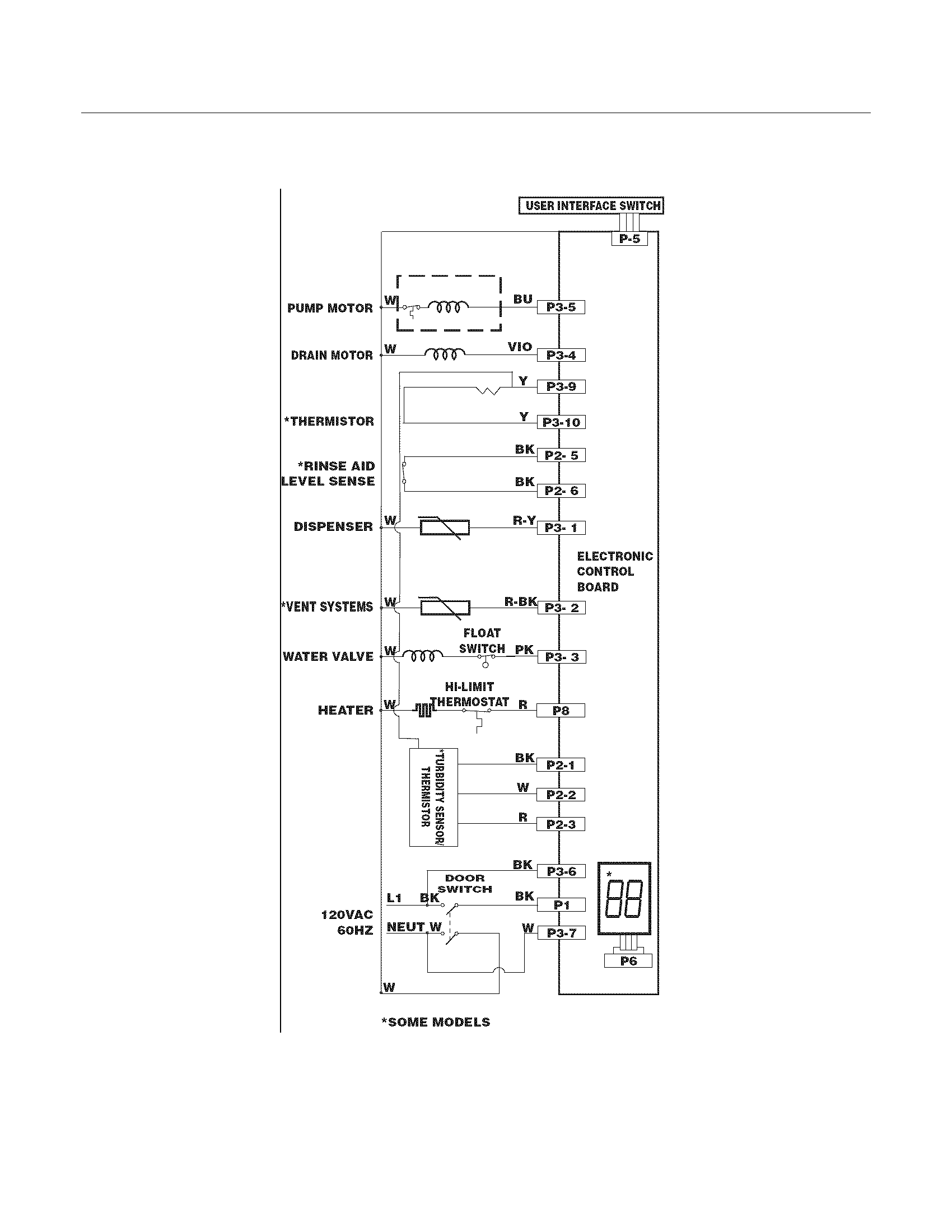

Your installation instructions call out the electrical junction box location behind the kickplate area and the need for a dedicated 120V, 15-20 amp grounded circuit. Use the LGBD2431NF0B installation guide to confirm the wiring route, junction box access, and basic electrical requirements.
If the dishwasher loses power when the door is bumped or during wash motor operation, the door switch circuit is a prime suspect. A worn latch can momentarily open the door switch and “drop” the controls.
- Consider inspecting the dishwasher door latch 5304525218 for wear, looseness, or a misaligned strike.
- If power is steady but the display resets or beeps randomly, the control may be failing intermittently; the compatible part is the dishwasher electronic control board 807024501.
| What you notice | Most likely cause | What to do next |
|---|---|---|
| Unit goes completely dead | House power issue, loose connection | Check breaker, outlet, junction box wiring |
| Power drops when door moves | Door latch not engaging consistently | Inspect latch and strike alignment |
| Random resets mid-cycle | Control board or harness connection issue | Check harness seating; consider control board |
| Works after reset, then fails again | Intermittent supply or failing control | Verify steady power; then test components |
Intermittent power loss can stop the wash cycle, leave water in the tub, and increase the chance of control damage over time. Catching a loose connection or weak latch early can prevent bigger repairs.
Last updated: January 2026
