Maytag MEDC300BW0 electric dryer Parts

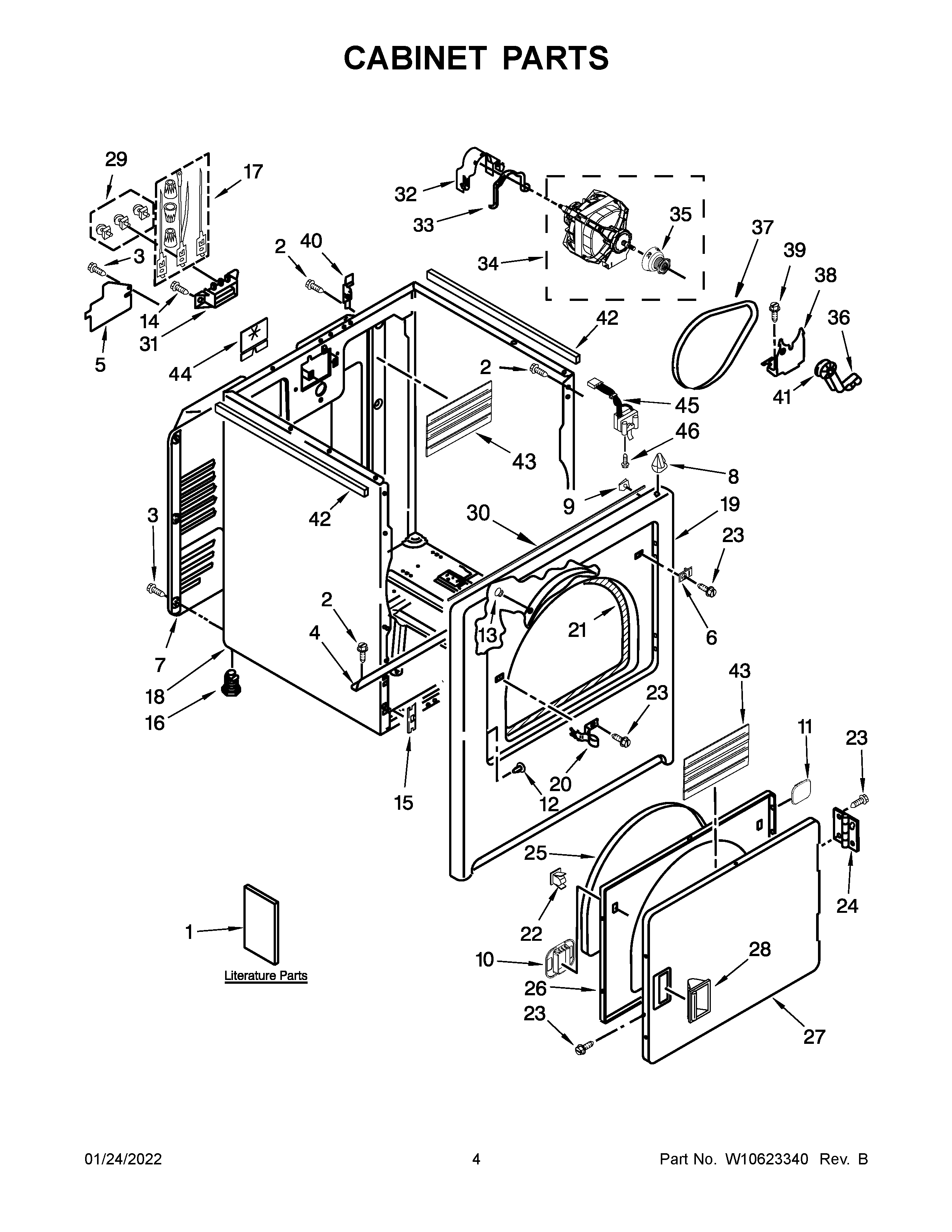

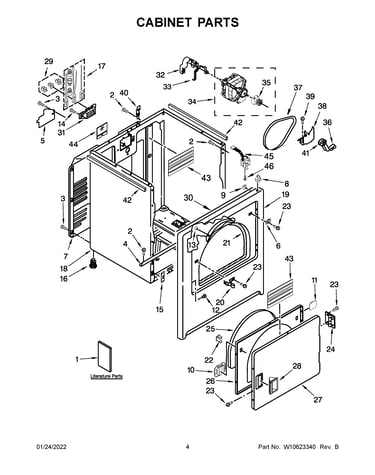

To open your Maytag MEDC300BW0 electric dryer for service, we typically remove the lint screen, release the top panel clips, then remove the front panel screws so the front can lift off. Follow the cabinet-disassembly steps in the MEDC300BW0 installation guide for safe access.

• Unplug the dryer (or switch off both dryer breakers if hardwired).
• Let the heater and drum cool completely.
• Pull the dryer forward so you can work from the front and sides.
• Protect the floor and cabinet finish with a towel or cardboard.
• Keep screws grouped by location so reassembly is easy.

1. Remove the lint screen from the top opening.
2. Release the top panel: most Maytag 29-inch style cabinets use spring clips near the front corners; a putty knife at the seam helps pop the clips.
3. Lift the top and support it.
4. Remove the front panel fasteners (typically inside the top lip and/or along the lower front edge).
5. Disconnect the door switch harness so the front panel can come off cleanly.
6. Lift the front panel up and off the mounting tabs.

Many MEDC300BW0 service jobs require front access:

Opening the cabinet the right way prevents bent panels, broken clips, and pinched wiring. It also helps you reach the heating element, thermal cut-off, drum rollers, and door switch without damaging the drum seal or harness connections.

Last updated: February 2026

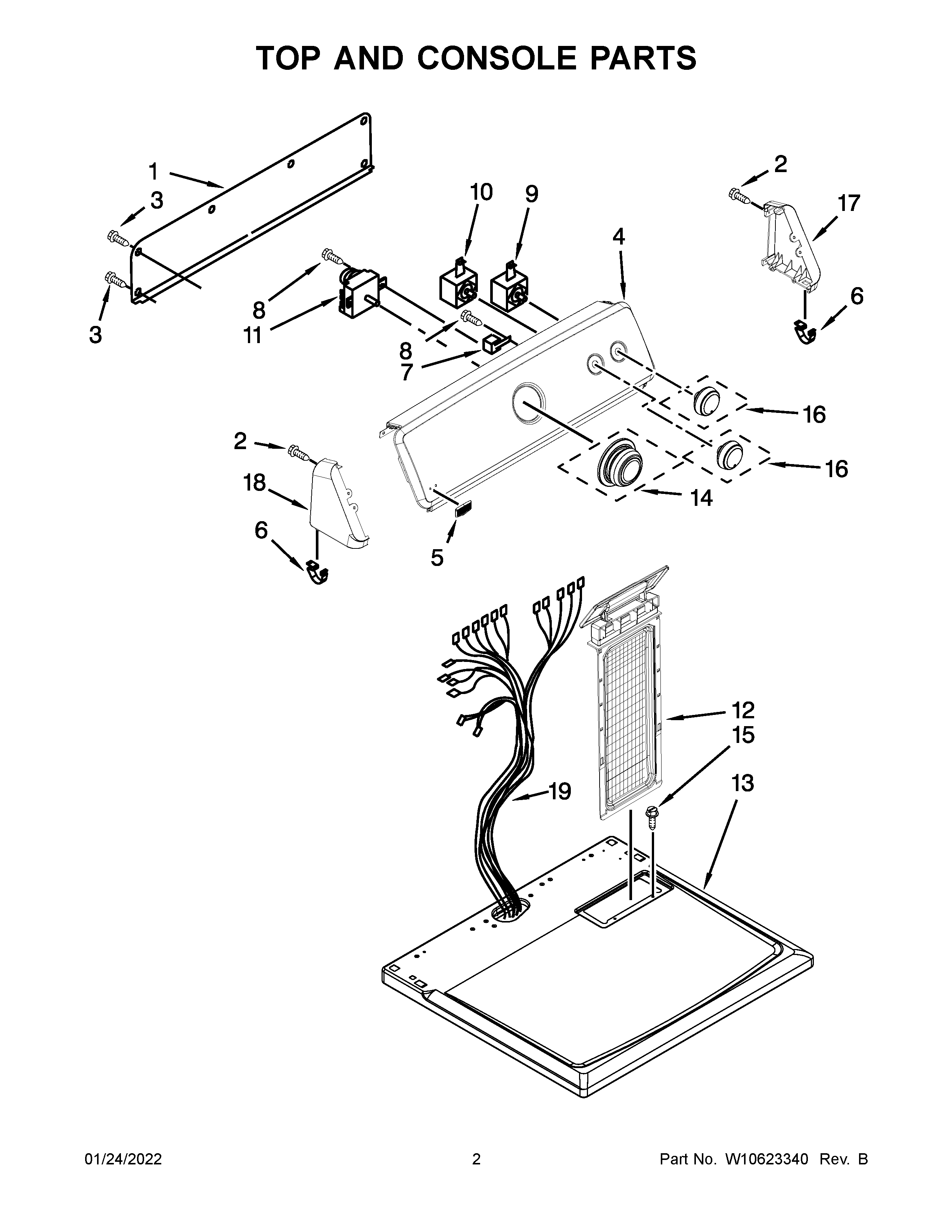

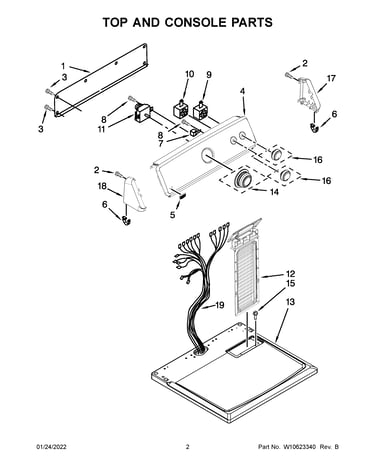

The main parts of a Maytag MEDC300BW0 electric dryer are the drum and drive system (belt, motor, idler), the airflow system (blower wheel and venting), and the heating and safety controls (heating element, thermostats, thermal cut-off). For diagrams and locations, use the MEDC300BW0 owner's manual.

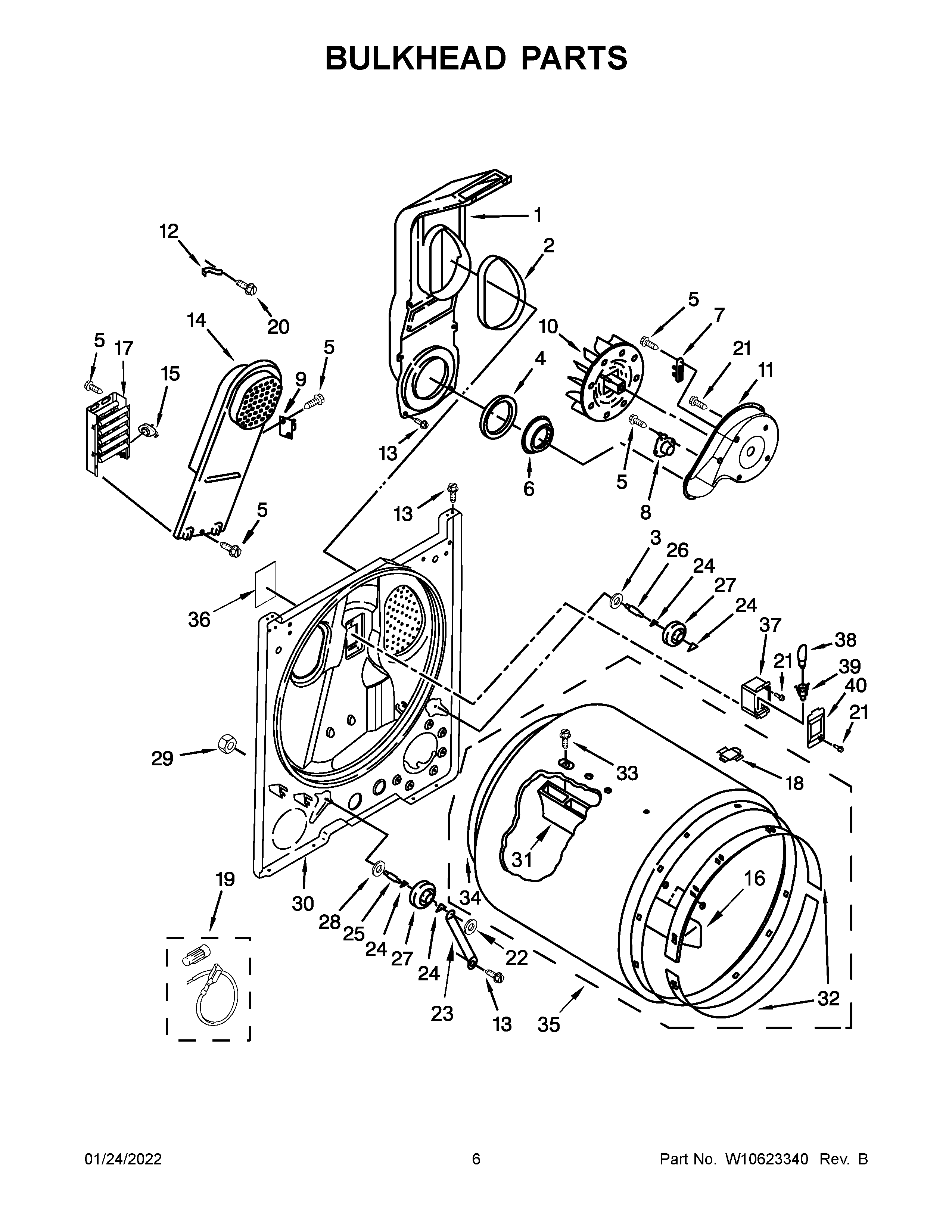

• Drum and support: tumbles clothes; supported by rollers and a front bearing.
• Drive system: turns the drum using the motor, belt, and idler pulley.
• Heating system (electric): creates heat using a heating element and heater housing.
• Airflow system: moves air through the drum using the blower wheel and exhaust vent.
• Temperature and safety controls: regulate heat and shut the heater down if temperatures get unsafe.
• Controls and switches: timer and door switch manage operation and safety.

Knowing which system is involved helps you troubleshoot faster. For example, long dry times usually point to airflow and venting, while “runs but no heat” often points to the heating element or thermostats.

• Clean the lint screen every load; check the exhaust vent for restrictions.
• If the dryer runs but does not heat, inspect the heating circuit parts first (element, thermostats, thermal cut-off).
• If you hear squealing or thumping, check rollers, idler pulley, and the drum bearing surfaces.
• If the dryer will not start, confirm the door switch is clicking and the timer is set to a run cycle.
• For electrical and venting requirements during setup, follow the MEDC300BW0 installation guide.

Last updated: February 2026

For your Maytag MEDC300BW0 electric dryer, we recommend buying replacement parts from a trusted appliance-parts source that lets you match parts by model number and confirm fit. Start with the parts list and diagrams in the MEDC300BW0 owner's manual to identify the exact part you need.

When you shop, always search using the full model number MEDC300BW0 and then verify the part number and description.

• Sears PartsDirect (model-based diagrams and verified fit by model)
• Maytag (OEM parts catalog by model)
• Established appliance parts retailers (model lookup plus part cross-references)
• Local appliance repair shops (often can source OEM parts quickly)
• Major marketplaces (use extra caution and confirm return policy)

A correct match prevents repeat repairs and return hassles.

• Confirm the model number from the label inside the door opening
• Use the exploded-view diagram to identify the part location and name
• Match the part number and any revision notes
• Compare photos, terminals, and mounting points to your original part
• For heating or no-heat issues, confirm the failure first (element, thermostat, fuse, airflow)

Dryer parts are highly model-specific. Using MEDC300BW0 to match the correct Maytag part helps ensure proper electrical ratings, safe operation, and correct fit, especially for heating and safety components.

Last updated: February 2026

On your Maytag electric dryer model MEDC300BW0, the model and serial number label is located inside the door opening, typically in the upper door cavity. Confirm the exact spot and label format in the MEDC300BW0 installation guide.

• Open the dryer door and look along the upper inside frame of the door opening
• Check the inside cabinet opening near the top (not on the door itself)
• Look for a label that lists Model and Serial together
• Wipe lint and dust off the area so the print is readable

The tag usually includes:

• Model number (example: MEDC300BW0)
• Serial number
• Electrical ratings (often 240V for electric dryers)
• Manufacturer information

We use the full model number to match the correct Maytag dryer parts and diagrams. Even small model-number differences can change items like the heating circuit, door switch style, or drum support components.

Once you have the model number, match parts by description and symptom. For example, if you are diagnosing a no-heat issue, the dryer element 279838 is one of the common heating components used on this model family.

Last updated: February 2026

If your Maytag MEDC300BW0 electric dryer is not starting, the most common causes are a control not set to run, the Start button not being pressed firmly, loss of power at the outlet or breaker, or the door not fully closed. Use the MEDC300BW0 installation guide checklist to confirm the basics first.

• Confirm the cycle knob is set to a timed or automatic cycle (not Off).
• Press and hold Start firmly for 1 to 2 seconds.
• Make sure the dryer door closes completely and latches.
• Verify the dryer is plugged in securely.
• Check the household fuses or breakers; many electric dryers use two fuses or breakers.
• If the drum light works but the dryer will not run, continue with component checks below.

Unplug the dryer before opening panels or testing parts.

• Door switch: If the switch does not close electrically, the dryer will not run. Replace with dryer door switch WP3406107 if it fails a continuity test.
• Thermal cut-off or thermal fuse: A blown safety fuse can prevent the motor from running. If it is open, replace the kit with dryer thermal cut-off fuse kit 279816 and correct the overheating cause (usually vent restriction).
• Drive motor: If the motor hums, overheats, or will not run with proper power, the motor may be failing. The correct replacement is drive motor 279827.

A no-start condition is often a simple power or door-latch issue, but it can also be a safety shutdown from overheating. Fixing airflow problems at the same time as replacing a thermal cut-off helps prevent repeat failures.

Last updated: February 2026
