Magic Chef CTF1920ARW refrigerator Parts

Here are the diagrams and repair parts for Magic Chef CTF1920ARW refrigerator, as well as links to manuals and error code tables, if available.

Magic Chef CTF1920ARW refrigerator
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for CTF1920ARW Refrigerators

  • Whirlpool Refrigerator Ice Maker (d7824706q) for Magic Chef CTF1920ARW - Part D7824706Q

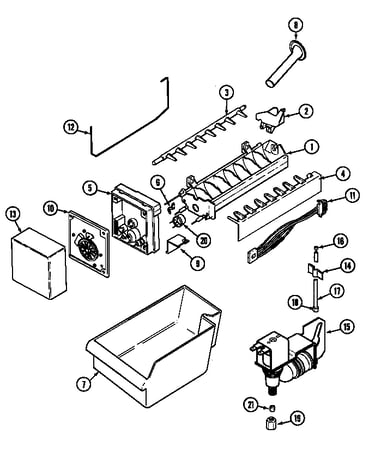

    Ice maker diagram

    Refrigerator Mold And Heater

    Part #95098-1

    Replaced by #D7824706Q

    Info Icon
    Manufacturer substitution
    This part replaces 95098-1. Substitute parts can look different from the original.
    In Stock
    $101.86
    11% OFF Phone Price : $113.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Ice Maker Module for Magic Chef CTF1920ARW - Part 95109-1

    Ice maker diagram

    Refrigerator Ice Maker Module

    Part #95109-1

    The manufacturer no longer makes this part, and there's no substitute part

  • Refrigerator Condenser Fan Motor for Magic Chef CTF1920ARW - Part 833697

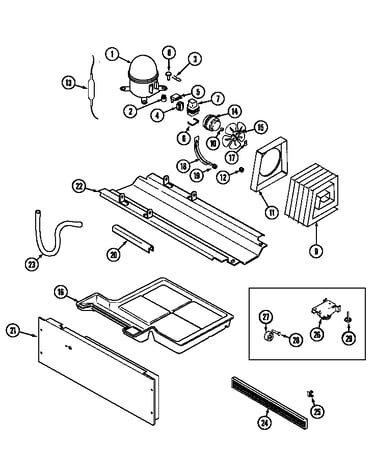

    Compressor diagram

    Refrigerator Condenser Fan Motor

    Part #61001016

    Replaced by #833697

    Info Icon
    Manufacturer substitution
    This part replaces 61001016. Substitute parts can look different from the original.
    In Stock
    $62.89
    9% OFF Phone Price : $68.89Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Appliance Screw for Magic Chef CTF1920ARW - Part WP488729

    Compressor diagram

    Refrigerator Screw

    Part #65275-49

    Replaced by #WP488729

    Info Icon
    Manufacturer substitution
    This part replaces 65275-49. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.93
    17% OFF Phone Price : $5.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Defrost Bi-metal Thermostat for Magic Chef CTF1920ARW - Part WP61005254

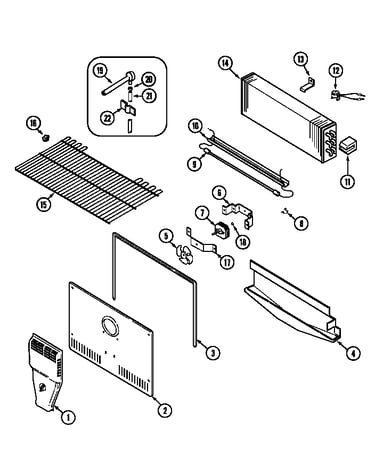

    Freezer compartment diagram

    Refrigerator Thermostat

    Part #61001932

    Replaced by #WP61005254

    Info Icon
    Manufacturer substitution
    This part replaces 61001932. Substitute parts can look different from the original.
    In Stock
    $75.20
    7% OFF Phone Price : $81.20Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Evaporator Fan Motor for Magic Chef CTF1920ARW - Part WP61004888

    Freezer compartment diagram

    Evaporator Motor

    Part #61001939

    Replaced by #WP61004888

    Info Icon
    Manufacturer substitution
    This part replaces 61001939. Substitute parts can look different from the original.
    In Stock
    $98.37
    11% OFF Phone Price : $110.37Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Ice Maker Cube Ejector for Magic Chef CTF1920ARW - Part WP627843

    Ice maker diagram

    Refrigerator Ice Ejector

    Part #95101-1

    Replaced by #WP627843

    Info Icon
    Manufacturer substitution
    This part replaces 95101-1. Substitute parts can look different from the original.
    In Stock
    $46.48
    11% OFF Phone Price : $52.48Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Tubing for Magic Chef CTF1920ARW - Part WPB5705307

    Tubing Valve

    Part #67579-7

    Replaced by #WPB5705307

    Info Icon
    Manufacturer substitution
    This part replaces 67579-7. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $11.94
    14% OFF Phone Price : $13.94Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Inlet Valve Assembly for Magic Chef CTF1920ARW - Part WP61005273

    Ice maker diagram

    Refrigerator Water Valve

    Part #61001884

    Replaced by #WP61005273

    Info Icon
    Manufacturer substitution
    This part replaces 61001884. Substitute parts can look different from the original.
    In Stock
    $64.37
    9% OFF Phone Price : $70.37Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Freezer Door Gasket (white) for Magic Chef CTF1920ARW - Part WP61004007

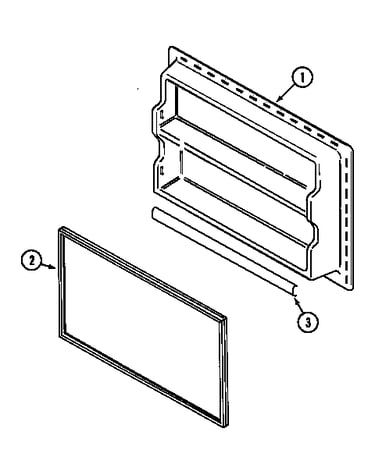

    Freezer inner door diagram

    Seal, Frz. D

    Part #61002054

    Replaced by #WP61004007

    Info Icon
    Manufacturer substitution
    This part replaces 61002054. Substitute parts can look different from the original.
    In Stock
    $112.47
    29% OFF Was : $159.26Info Icon
    Minus Item
    Qty
    Plus Item
