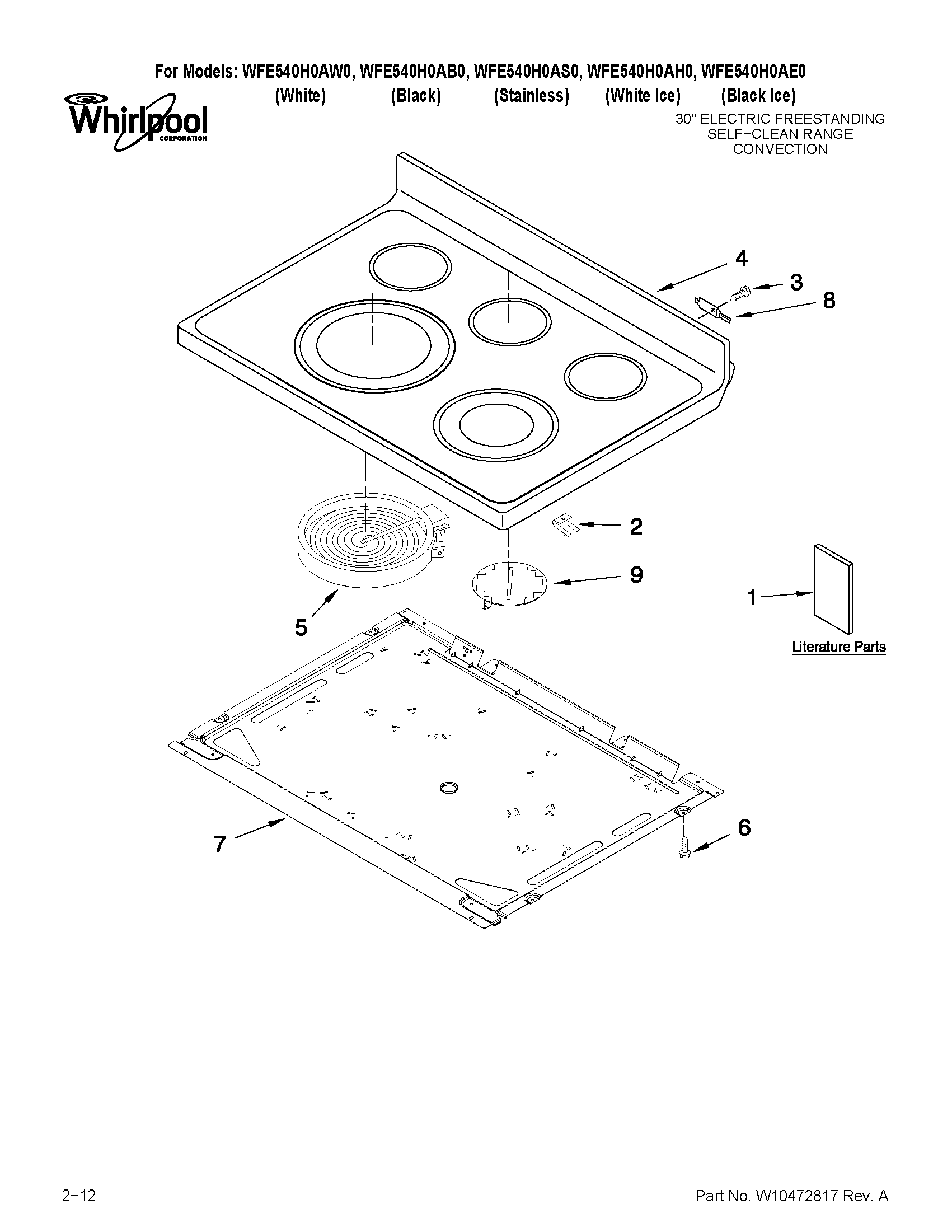

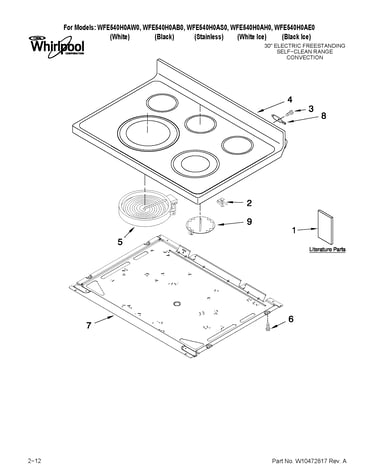

Whirlpool WFE540H0AW0 electric range Parts

Your Whirlpool electric range model number is printed on the model/serial rating plate. On Whirlpool model WFE540H0AW0, that plate is typically on the oven frame behind a top corner of the oven door, or on either side of the storage or warming drawer opening. See the WFE540H0AW0 installation guide.

Where to look on a freestanding Whirlpool range

Check these common locations first:

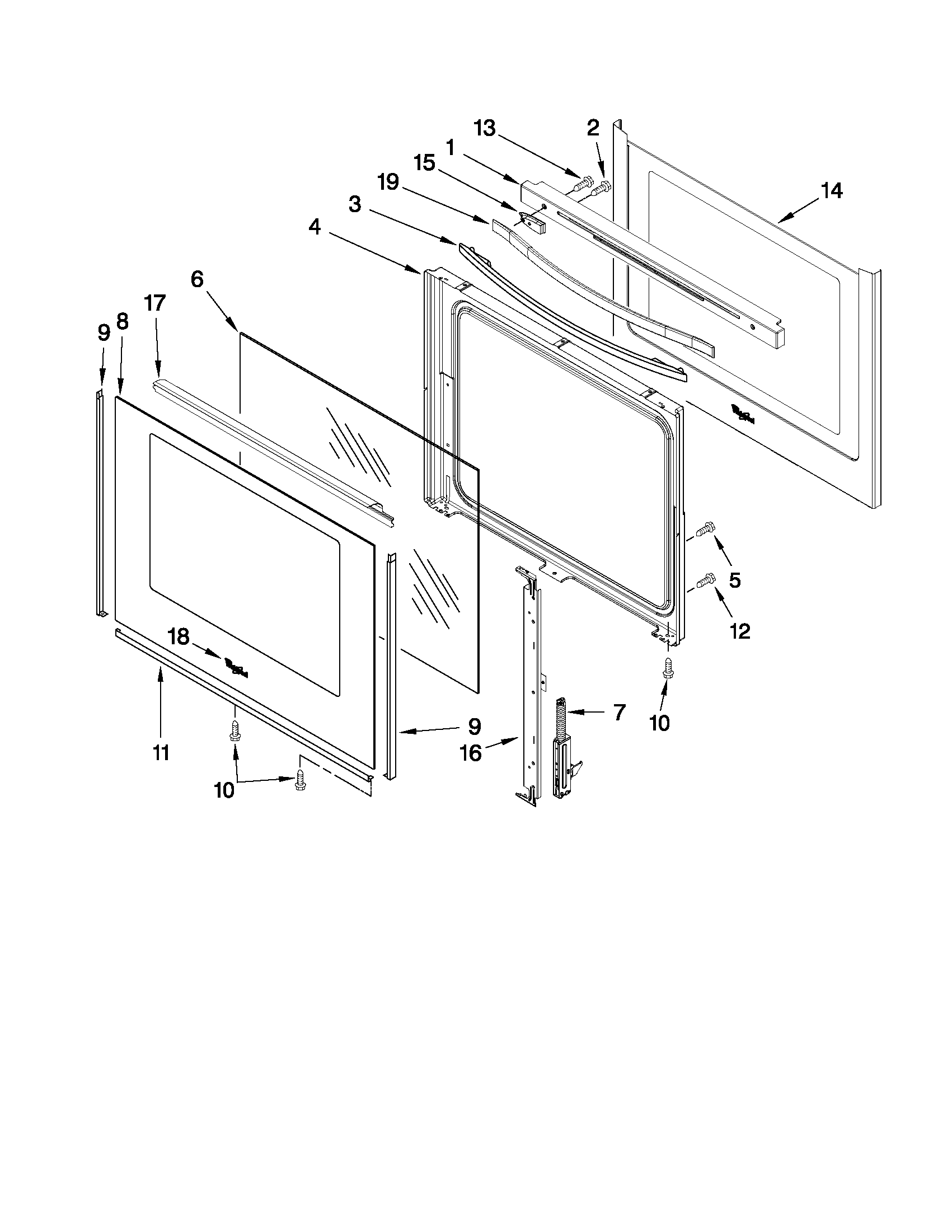

• Open the oven door and look along the front frame near the top corners

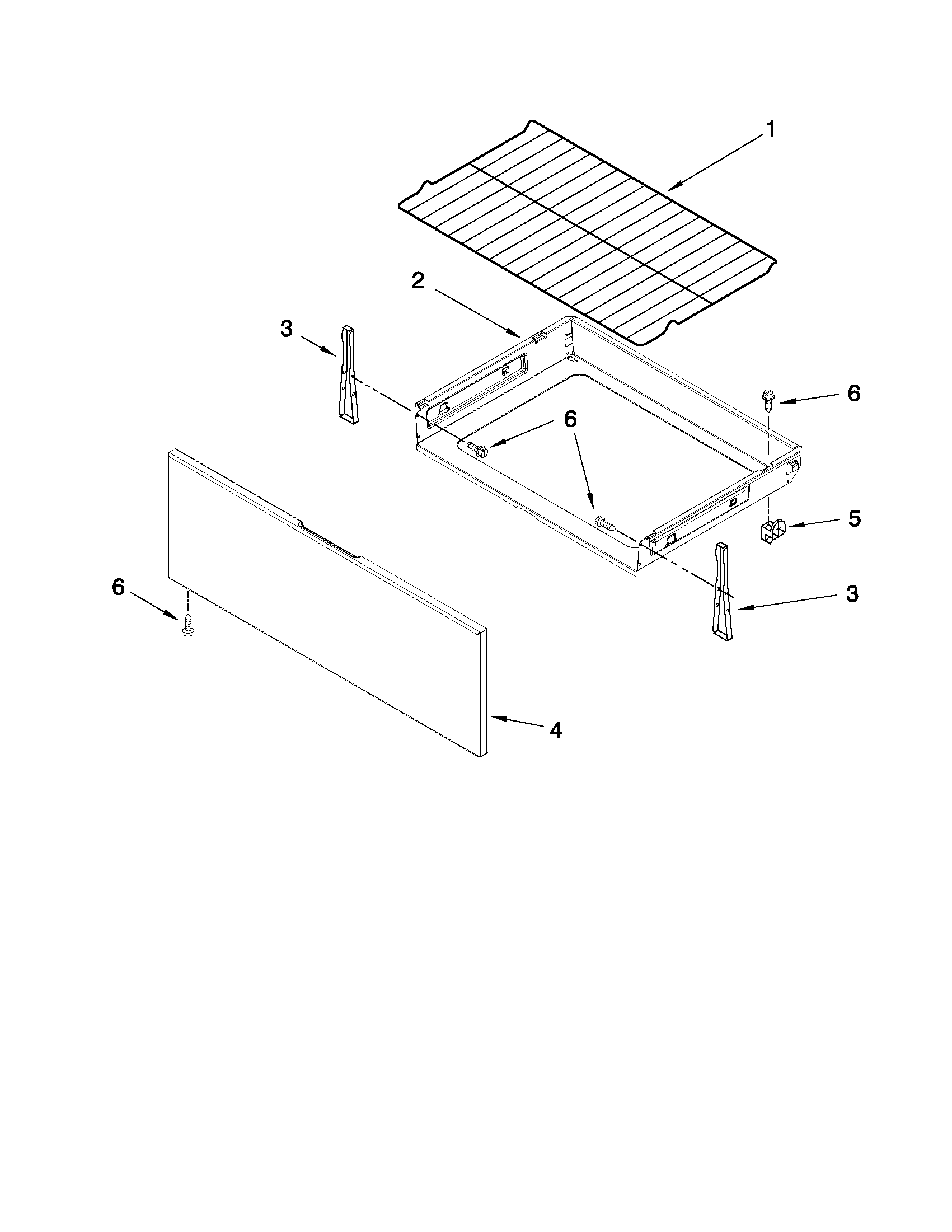

• Pull out the storage drawer or warming drawer and check both side walls of the opening
• Look for a label that says Model and Serial (often called the rating plate)
• Use a flashlight; the label can be easy to miss on dark finishes
• Write the model number exactly as shown (letters and numbers matter)

What the label looks like and what to copy

The rating plate usually includes several fields. Copy these exactly:

Label field	What it’s used for	Example of what to record
Model	Correct parts and diagrams	WFE540H0AW0
Serial	Production details for service	(your serial)
Electrical rating	Confirms power requirements	(listed on label)

Why it matters

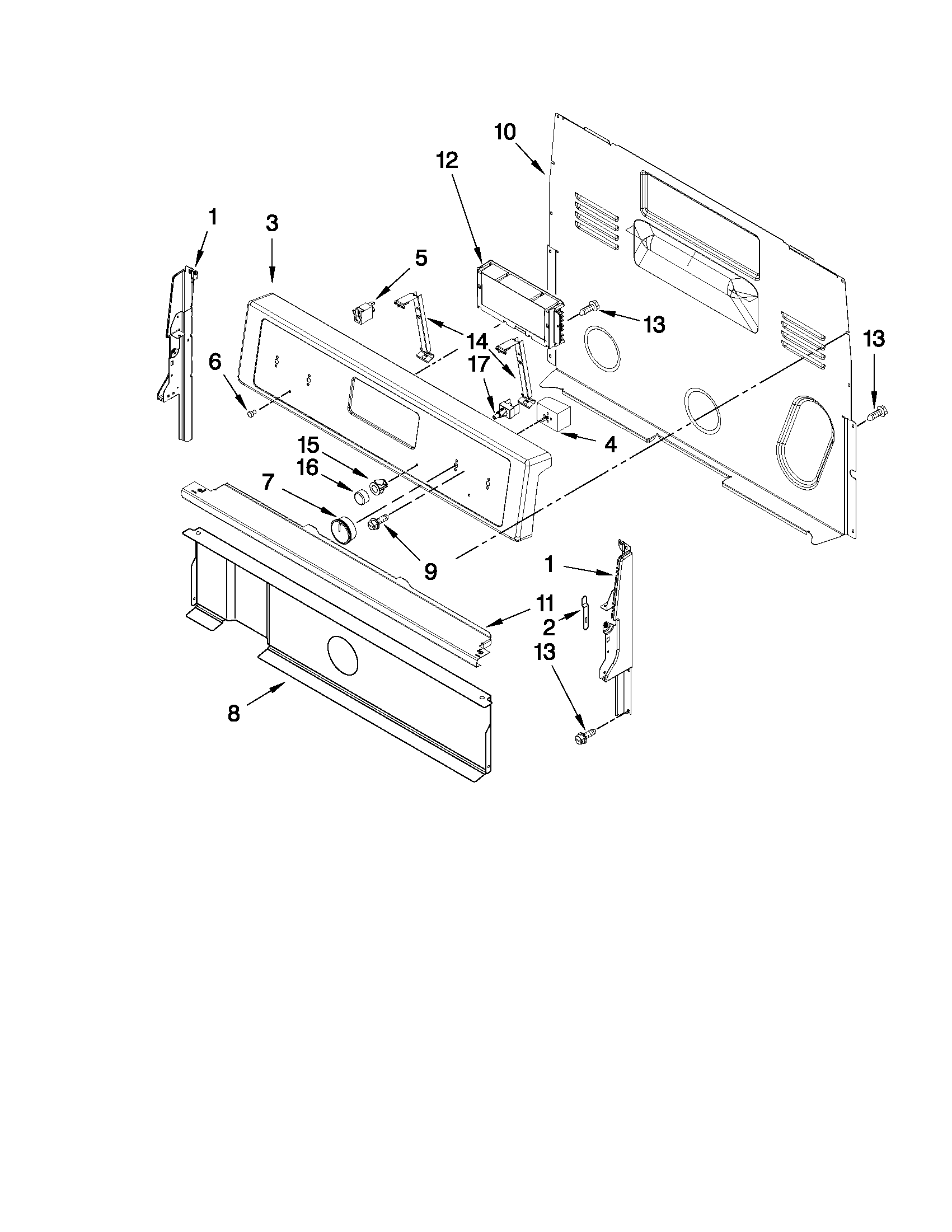

We use the model number to match the correct Whirlpool parts and wiring layout for your exact range. Even small model changes can affect which bake element, oven control board, or surface element switch fits.

Quick tip if you’re checking electrical requirements

The installation instructions note that the range must be connected to the proper electrical voltage and frequency as shown on the rating plate, so finding that label helps with both parts lookup and safe installation.

Last updated: January 2026

A Whirlpool electric range like model WFE540H0AW0 typically lasts 13 to 15 years with normal household use. Consistent cleaning, avoiding repeated high-heat self-clean cycles, and fixing heating or control issues early help you reach (and often exceed) that range.

What affects how long a range lasts

• Heat stress on electronics: frequent high-temperature cycles can shorten the life of the oven control board.
• Element wear: bake and radiant surface elements gradually weaken and can fail after years of heating.
• Power supply quality: loose or overheated connections at the terminal block can cause intermittent operation.
• Cleaning habits: spills left to bake on can damage finishes and increase smoke and overheating.
• Usage level: daily baking and multiple burners running for long periods reduce lifespan faster.

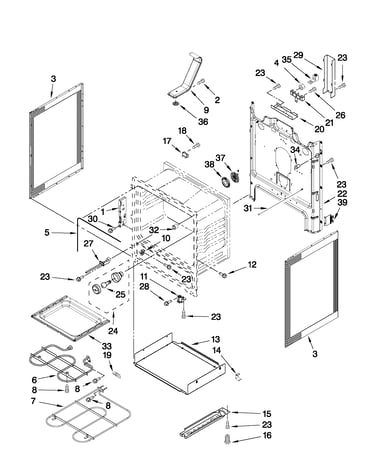

Typical lifespan by component (what usually fails first)

Component	What you may notice	Common fix
Bake element	Oven won’t heat or heats unevenly	Replace the element (example: range bake element W10779716)
Oven temperature sensor	Temps are consistently off	Replace the sensor
Surface element switch	Burner won’t regulate heat	Replace the control switch
Terminal block	Burning smell, power issues	Repair wiring and replace block if damaged

Maintenance that extends life (practical checklist)

• Wipe up spills after the cooktop cools; use a scraper designed for glass tops (example: cooktop scraper WA906B).
• Keep oven racks and the oven cavity reasonably clean to prevent smoke and overheating.
• If preheat times suddenly get long or baking becomes uneven, test the bake element and sensor early.
• If you ever smell hot plastic or see discoloration near the power cord connection, stop using the range and inspect the terminal block and wiring.
• Follow the electrical and installation requirements in the WFE540H0AW0 installation guide to prevent connection-related failures.

Why it matters

Most “range failures” are actually one worn part (element, sensor, switch) that is replaceable. Catching those symptoms early helps protect higher-cost parts like the oven control board and keeps your Whirlpool range cooking accurately for years.

Last updated: January 2026

On the Whirlpool WFE540H0AW0 electric range, fixing an oven temperature sensor issue usually means checking the sensor wiring connection first, then replacing the sensor if the oven is overheating, underheating, or showing a sensor-related error. Use the WFE540H0AW0 owner's manual for model-specific troubleshooting steps and safety guidance.

Quick checks before replacing the sensor

• Turn off power at the breaker before touching any wiring.
• Confirm the oven is actually off and cool.
• If the oven temperature is consistently off, test with an oven thermometer over multiple bakes.
• Look for a loose plug connection at the sensor harness (a common cause of intermittent readings).
• If the control is showing an error code, use the Whirlpool error codes reference to identify whether it points to a sensor circuit problem.

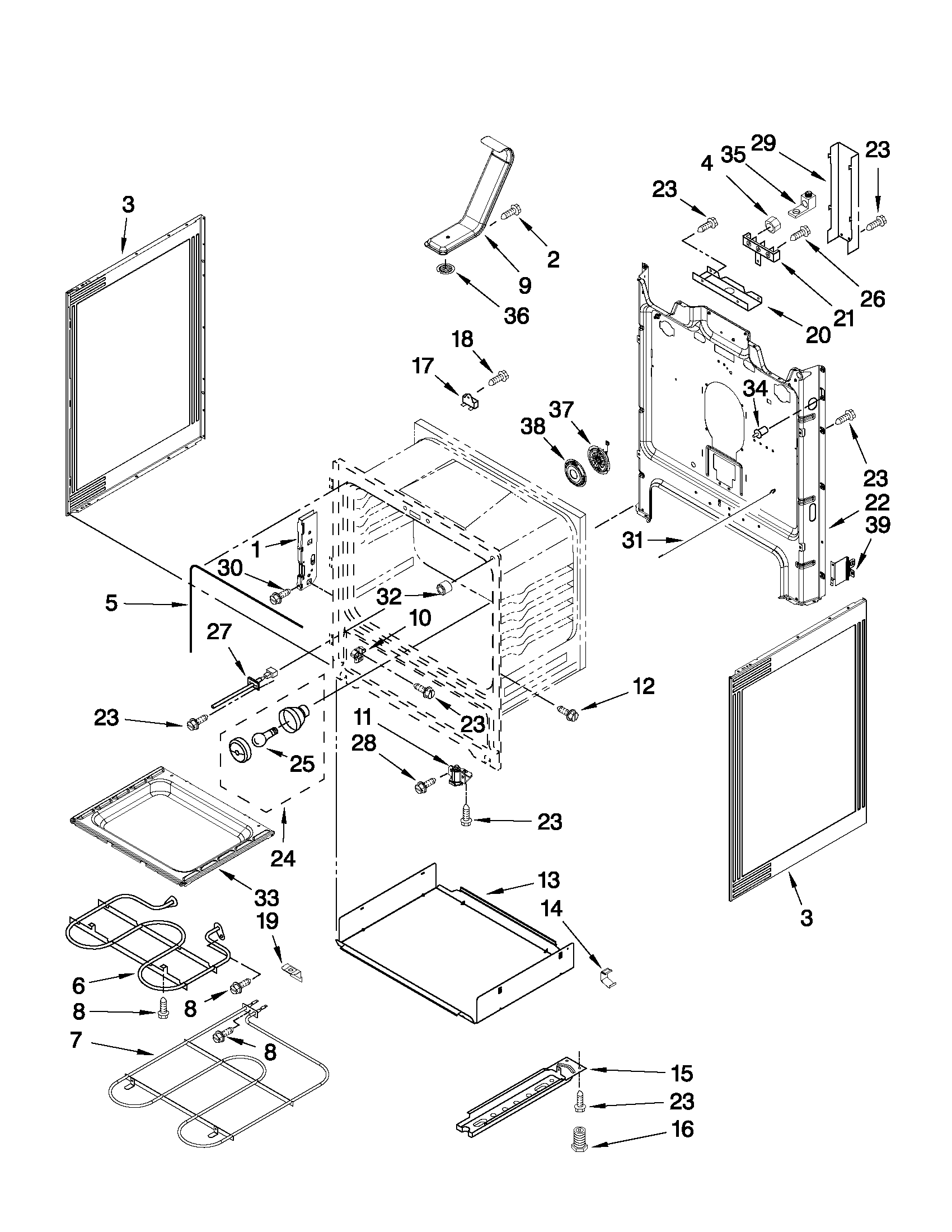

How we replace the oven temperature sensor (typical steps)

These steps are typical for Whirlpool electric ranges like model WFE540H0AW0.

1. Shut off power at the circuit breaker.
2. Remove oven racks for access.
3. Remove the sensor mounting screws inside the oven (usually on the rear wall).
4. Carefully pull the sensor forward and disconnect the wire connector.
5. Connect the new sensor, tuck wiring back so it does not touch hot surfaces, and reinstall screws.
6. Restore power and test bake performance.

Parts that are commonly involved

Symptom	Most common cause	What we check/replace
Oven temp swings high/low	Sensor drifting out of spec	Range oven temperature sensor WPW10181986
Oven not heating correctly	Heating circuit issue	Range bake element W10779716
Error codes or erratic control	Control or wiring issue	Control board and harness connections

Why it matters

The oven temperature sensor tells the control board what the oven temperature is. When the sensor is out of range or the connection is poor, the control can cycle the bake element incorrectly, causing underbaking, overbaking, long preheat, or fault codes.

Last updated: January 2026
