Model #LDG7334AAE Official Maytag washer/dryer

Here are the diagrams and repair parts for Maytag LDG7334AAE washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

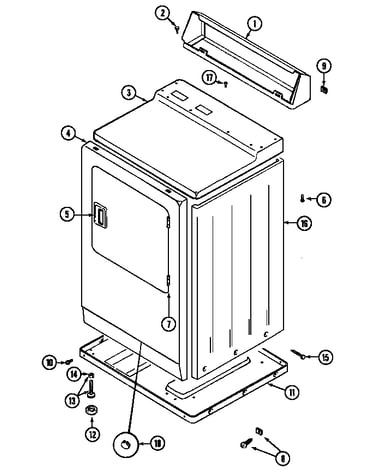

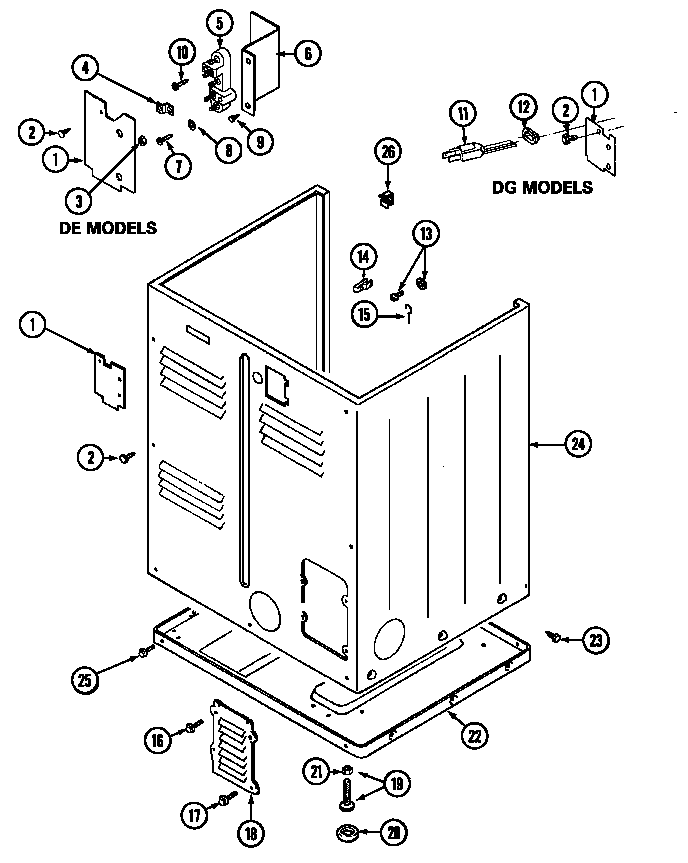

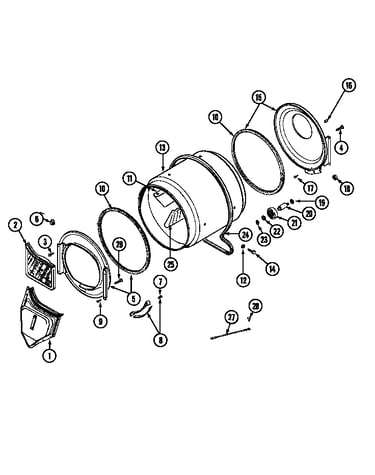

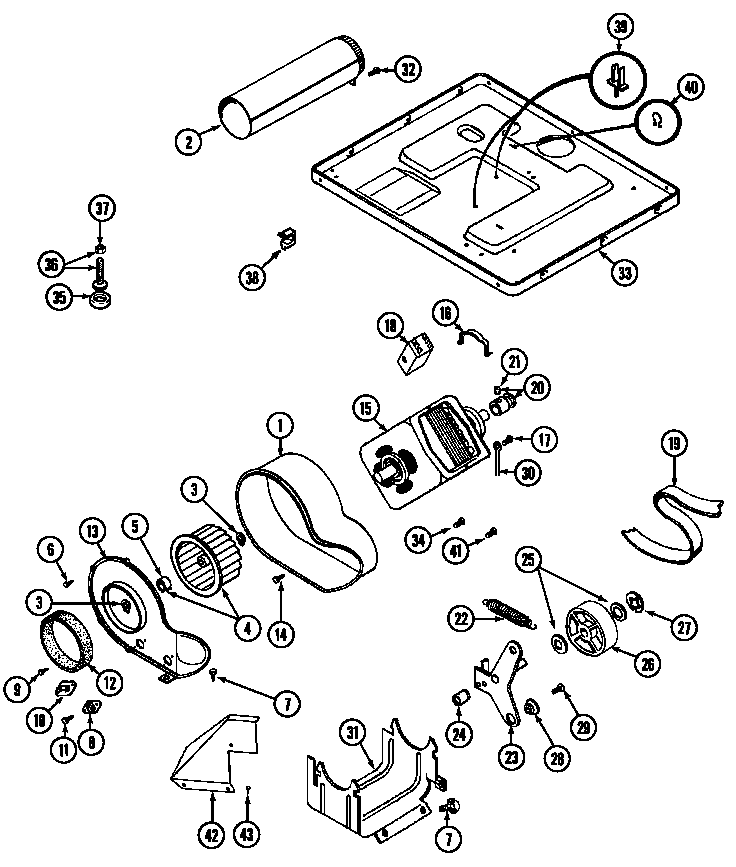

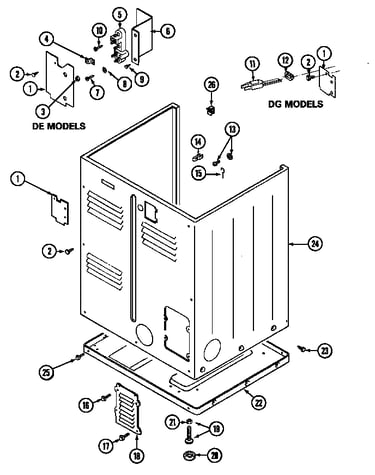

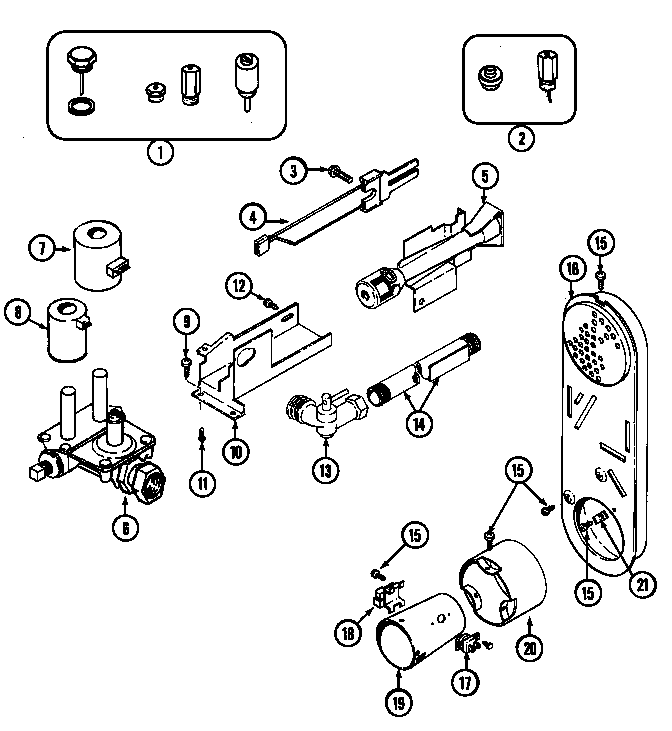

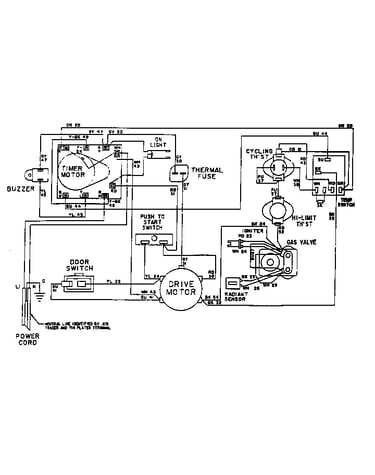

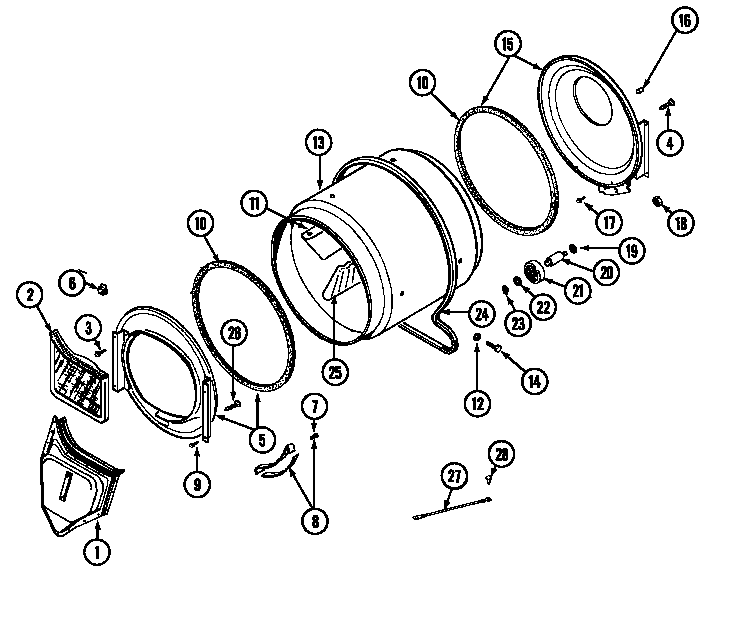

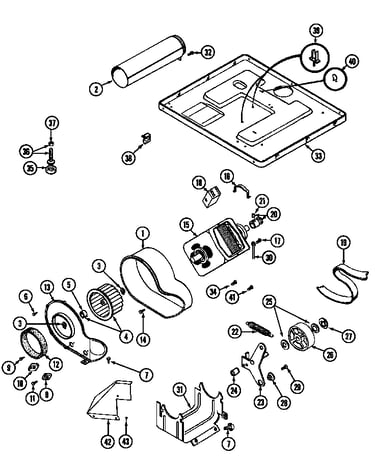

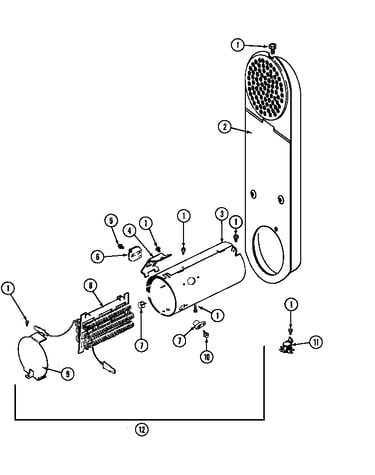

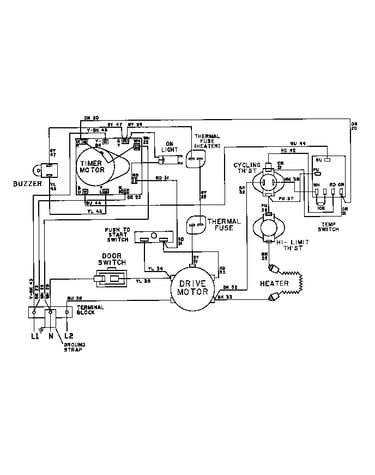

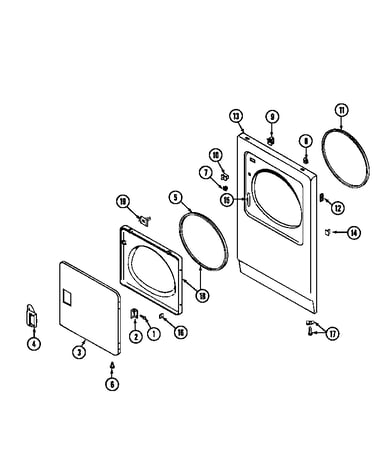

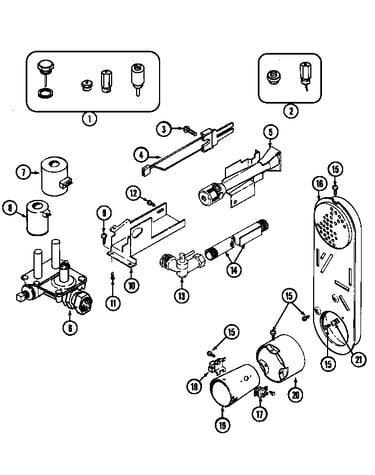

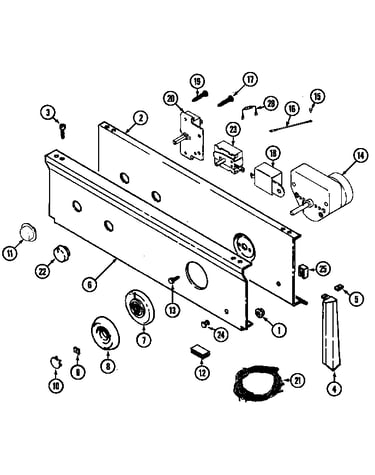

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Search within this model
Parts List

Showing 10 of 193 parts

Dryer Valve Coil Kit (replaces 12001349, 279834BULK, 306106, 694539, 694540)

See All Related Diagrams

Holding coil

Part #306106
Replaced by #279834
?
Manufacturer substitution
This part replaces 306106. Substitute parts can look different from the original.
BEST SELLER
In Stock
$29.09 |
15% OFF
Phone Price: $34.09
Dryer Valve Coil Kit (replaces 12001349, 279834BULK, 306106, 694539, 694540)

See All Related Diagrams

Second coil

Part #306105
Replaced by #279834
?
Manufacturer substitution
This part replaces 306105. Substitute parts can look different from the original.
BEST SELLER
In Stock
$29.09 |
15% OFF
Phone Price: $34.09
Dryer Drum Support Roller (replaces W10116741, Y303373)

See All Related Diagrams

Roller w/bea

Part #303373
Replaced by #12001541
?
Manufacturer substitution
This part replaces 303373. Substitute parts can look different from the original.
BEST SELLER
In Stock
$19.22 |
34% OFF
MSRP: $29.27
Dryer Drum Support Roller Shaft

See All Related Diagrams

Tumbler shaft

Part #312948
Replaced by #WP6-3129480
?
Manufacturer substitution
This part replaces 312948. Substitute parts can look different from the original.
BEST SELLER
In Stock
$7.19 |
12% OFF
Phone Price: $8.19
Dryer Drum Bearing Kit (replaces 312940, 312941)

See All Related Diagrams

In Stock
$11.52 |
46% OFF
MSRP: $21.17
Dryer Radiant Sensor (replaces 338906)

See All Related Diagrams

Gas sensor

Part #303377
Replaced by #WP338906
?
Manufacturer substitution
This part replaces 303377. Substitute parts can look different from the original.
BEST SELLER
In Stock
$43.65 |
10% OFF
Phone Price: $48.65
Dryer Blower Wheel (replaces 303836, Y312913)

See All Related Diagrams

Impeller

Part #303836
Replaced by #Y303836
?
Manufacturer substitution
This part replaces 303836. Substitute parts can look different from the original.
BEST SELLER
In Stock
$22.39 |
18% OFF
Phone Price: $27.39
Dryer Door Switch (replaces 33001508, 33001509, WPY304575, Y304576, Y305753, Y305754, Y504570)

See All Related Diagrams

Door switch

Part #305753
Replaced by #W10169313
?
Manufacturer substitution
This part replaces 305753. Substitute parts can look different from the original.
BEST SELLER
In Stock
$14.65 |
19% OFF
MSRP: $18.00
Dryer Door Switch (replaces 33001508, 33001509, WPY304575, Y304576, Y305753, Y305754, Y504570)

See All Related Diagrams

Door switch

Part #33001509
Replaced by #W10169313
?
Manufacturer substitution
This part replaces 33001509. Substitute parts can look different from the original.
BEST SELLER
In Stock
$14.65 |
19% OFF
MSRP: $18.00
Dryer Drum Support Roller Retainer

See All Related Diagrams

Dryer drum support roller retainer

Part #410233
Replaced by #WP9703438
?
Manufacturer substitution
This part replaces 410233. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$3.79 |
21% OFF
Phone Price: $4.79

Symptoms common to all dryers

Choose a symptom to see related dryer repairs.

Main causes: bad timer or electronic control board, door switch failure
Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
Main causes: damaged door strike, worn door catch
Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure

Repair guides common to all dryers

These step-by-step repair guides will help you safely fix what’s broken on your dryer.

How to replace a dryer drum support roller

If your dryer thumps or squeals, replace the drum support roller to restore quiet to your home.
