Bosch SHE3AR72UC/21 dishwasher Parts

Most Bosch built-in dishwashers, including the Bosch SHE3AR72UC, are designed to fit a standard 24-inch-wide opening; Bosch also makes compact 18-inch models, so size is not universal across the brand. For exact cutout and clearance requirements, use the SHE3AR72UC owner’s manual.

What “standard size” usually means

A “standard” built-in dishwasher opening in the U.S. typically targets:

• Width: about 24 inches (full size) or about 18 inches (compact)
• Height: adjustable to fit under a standard countertop (often around 34 inches)
• Depth: designed to align with standard base cabinets (often around 24 inches)

Because cabinetry and leveling legs vary, we recommend confirming the required opening dimensions and toe-kick clearance for your exact installation.

Quick size comparison

Dishwasher type	Typical width	Common use case
Full-size built-in	~24 in.	Most U.S. kitchens
Compact built-in	~18 in.	Small kitchens, apartments
Portable/freestanding	Varies	No built-in opening available

How to confirm fit for your kitchen

Use these checks before ordering parts or planning a replacement:

• Measure the cabinet opening width at the front and back
• Measure height from floor to underside of countertop (check for uneven floors)
• Confirm depth to the back wall, including plumbing and electrical clearance
• Verify the door can open fully without hitting adjacent cabinets or an island
• Check that the dishwasher can be leveled (front-to-back and side-to-side)

Why it matters

A dishwasher that is even slightly too tall, too deep, or the wrong width can cause installation problems, door alignment issues, and leaks at the tub seal. Confirming the opening size first helps avoid returns and prevents strain on hoses and wiring.

Last updated: January 2026

For a Bosch dishwasher like model SHE3AR72UC, we reset most error codes by canceling the current cycle: press and hold Start (or Start/Resume) for about 3 to 5 seconds, then close the door so the unit drains and returns to standby. Confirm the exact button sequence in the SHE3AR72UC manual.

Quick reset steps (most Bosch models)

• Open the door and pause the cycle.
• Press and hold Start or Start/Resume for 3 to 5 seconds.
• Watch for the display to change (often to 0:01, 0:00, or blank).
• Close the door to let the dishwasher run the drain/cancel routine.
• When draining stops, select a new cycle and press Start.

Soft reset vs hard reset

Reset type	What it does	When to use it
Soft reset (cancel/drain)	Cancels the program and clears many temporary faults	After a stuck cycle, beeping, or a one-time error code
Hard reset (power reset)	Reboots the control by removing power	If the same code returns immediately after a soft reset

Hard reset tip: Turn the dishwasher off at the breaker (or unplug if accessible) for about 2 to 5 minutes, then restore power and try a normal cycle.

If the error code comes back

A repeating code usually means the dishwasher is detecting an active problem. These checks fix many repeat-code situations:

• Remove standing water and check for a drain restriction (air gap, garbage disposal inlet, sink drain).
• Inspect the drain hose for kinks or a high loop issue.
• Clean the filter area and sump of debris.

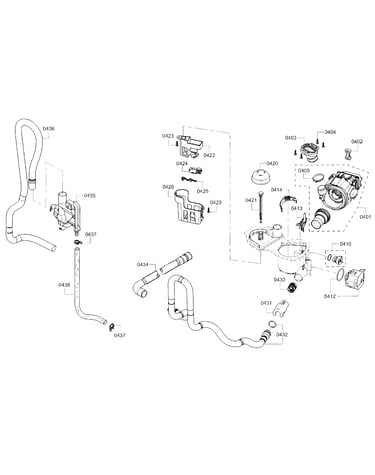

• If the unit will not drain, the dishwasher drain pump 00611332 is a common failure point.
• Look up the meaning of the specific code in Bosch dishwasher error codes.

Why it matters

Resetting clears the control so you can test-run the dishwasher and confirm whether the issue was a one-time glitch or a real drain, fill, heating, or sensor problem that needs repair.

Last updated: January 2026

The most common Bosch dishwasher issue we see is a drain problem: water left in the bottom after a cycle. On the Bosch SHE3AR72UC, this is usually caused by a clogged filter area, a kinked or blocked drain hose, or a drain pump that is jammed or failing.

Quick checks to confirm a drain problem

• Cancel the cycle and run a drain function; listen for the drain pump running.
• Check the sump and filter area for food debris, labels, glass, or bone fragments.
• Inspect the drain hose routing for kinks, crushing, or a sag that traps water.
• Verify the sink drain or garbage disposal inlet is clear (a common blockage point).
• Make sure the high loop or air gap (if used) is installed correctly to prevent backflow.

Parts that commonly fix “won’t drain” symptoms

If cleaning and hose checks do not solve it, these model-matched parts are common fixes:

Symptom	Most likely area	Example model-matched part
Pump runs but little or no water leaves	Blockage or weak pump	Dishwasher drain pump 00611332
Slow drain or intermittent drain	Hose restriction or backflow	Dishwasher drain hose (inspect routing and connections)
Drains, then water returns	Backflow from sink plumbing	High loop/air gap setup, sink/disposal inlet

Why drainage is the “most common” issue

Dishwashers move a lot of food soil and grease through a small filter and drain path. When that path narrows, the dishwasher can stop mid-cycle, leave standing water, or trigger an error code related to draining.

When to use the manual and error code help

• Use the SHE3AR72UC manual to find the correct cancel-drain steps and the recommended filter cleaning routine.
• If the display shows an error, match it to the symptom using Bosch dishwasher error codes so you can focus on the right system (drain, fill, heating, or door latch).

Last updated: January 2026

On a Bosch SHE3AR72UC dishwasher, an E21 error points to a wash motor (circulation) problem, most often caused by restricted water flow from debris in the sump area or a pump that is not moving water correctly. Start by safely draining any standing water and checking for blockages.

What to check first (fast, no-parts steps)

• Turn off power at the breaker before servicing.
• Cancel the cycle and remove standing water from the tub.
• Pull out the lower rack and inspect the sump area for glass, labels, or food debris.
• Clean the filter system and make sure it seats fully.
• Spin the impeller area gently (if accessible) to confirm it is not jammed.
• Restore power and run a short cycle to see if the error returns.

For model-specific access steps and safety notes, follow the SHE3AR72UC manual.

When E21 is caused by a drain-side restriction

Sometimes a poor drain condition can leave water in the sump and contribute to motor load issues.

• Check the sink drain/disposer inlet for a clog.
• Verify the drain hose is not kinked or crushed.
• Confirm the high loop (or air gap) is installed correctly.

If the hose is damaged or collapsing internally, replace the dishwasher drain hose 00668108 (or match your exact hose routing and connection style).

Parts that commonly resolve E21 symptoms

If the dishwasher hums, struggles to circulate, or repeatedly faults after cleaning the sump and filters, these parts are common suspects:

Symptom you notice	Most likely area	Example part for this model
Hums but weak or no wash action	Circulation pump/motor	Dishwasher circulation pump with heater 00705174
Won’t drain well, water remains	Drain pump or hose	Dishwasher drain pump 00611332
Intermittent operation, odd behavior	Control or sensing	Dishwasher turbidity sensor 00611323

Why it matters

E21 usually means the dishwasher is not moving water at the correct rate. Fixing the restriction early helps prevent repeat shutdowns, poor cleaning, and overheating stress on the motor and pump.

Last updated: January 2026
