Samsung DV365GTBGWR/A3-01 dryer Parts

For the Samsung DV365GTBGWR dryer, the heating element part number depends on the exact heater housing and wiring configuration used in your unit. We match it by model and component location; use the DV365GTBGWR parts diagram in the DV365GTBGWR owner's manual to confirm the correct heater assembly before ordering.

How to identify the correct heating element for DV365GTBGWR

Use these quick checks to avoid ordering the wrong part:

• Confirm whether your DV365GTBGWR is gas or electric (gas models use an igniter and gas valve; electric models use a resistance heating element).
• Locate the heater area (typically in the rear or lower cabinet area, depending on design).
• Compare the heater assembly style and terminals to the diagram in the manual.
• If the dryer tumbles but does not heat, also check safety thermostats and sensors.
• If the dryer overheats or shuts off, check airflow and high-limit protection parts.

Parts commonly involved in “no heat” symptoms

Even when the heating element is the issue, these parts often fail with it or cause similar symptoms:

Symptom	Common related part	Example part number on this model page
No heat, runs normally	Thermal cut-off thermostat	DC47-00016A
Overheats, cycles off	High-limit thermostat	DC47-00017A
Heat is erratic, long dry times	Thermistor	DC32-00007A
Gas model: no flame	Burner igniter	DC47-00022A

If you are troubleshooting heat problems, the dryer takes a long time to dry guide helps you rule out venting and airflow issues first.

Why it matters

Samsung dryers like the DV365GTBGWR can use different heater assemblies across revisions, and ordering by a generic “heating element number” can lead to a mismatch. Confirming the heater style in the manual and diagram saves time and prevents repeat disassembly.

Last updated: February 2026

Yes, it’s usually worth replacing the heater circuit parts in a Samsung dryer like model DV365GTBGWR when the rest of the dryer is in good shape; the repair cost is typically far less than replacing the whole unit, and it often restores normal drying performance in one visit. Confirm the failure first using the DV365GTBGWR owner's manual.

When replacement is the right call

Replacing heat-related parts is a good value when the dryer:

• Tumbles normally but clothes stay cool or take too long to dry
• Has no burning smell and no obvious wiring damage
• Has good airflow (strong exhaust outside)
• Is otherwise reliable (no repeated shutdowns, no loud drum noise)
• Has a clean lint filter and a clear vent path

What commonly causes “no heat” on this model

On Samsung gas dryers, “no heat” is often caused by a safety device or sensor, not just the heater circuit. These parts are common culprits:

• Dryer thermal cut-off thermostat DC47-00016A (opens if overheating occurs)
• Dryer high-limit thermostat DC47-00017A (protects against unsafe temperatures)
• Dryer thermistor DC32-00007A (feeds temperature data to the control)
• Restricted venting (kinked duct, crushed flex vent, clogged wall cap)

Quick symptom-to-likely-cause table

Symptom	Most likely issue	What to check first
Runs but no heat	Thermostat/thermistor, igniter circuit, airflow	Venting and heat safety parts
Heats briefly then stops	Overheating from poor airflow	Lint filter, duct, outside damper
Long dry times but warm air	Partial vent restriction	Duct length, bends, lint buildup

Why it matters

A dryer that is not heating correctly often has an airflow or overheat-protection problem. Fixing the root cause (especially vent restriction) prevents repeat failures of thermostats, sensors, and other heat components.

What we recommend before buying parts

• Clean the lint screen and the lint screen housing
• Inspect and clear the entire exhaust path, including the outside vent hood
• Verify the cycle and temperature settings (some cycles limit heat)
• Use the diagnostic and test guidance in the DV365GTBGWR owner's manual

Last updated: February 2026

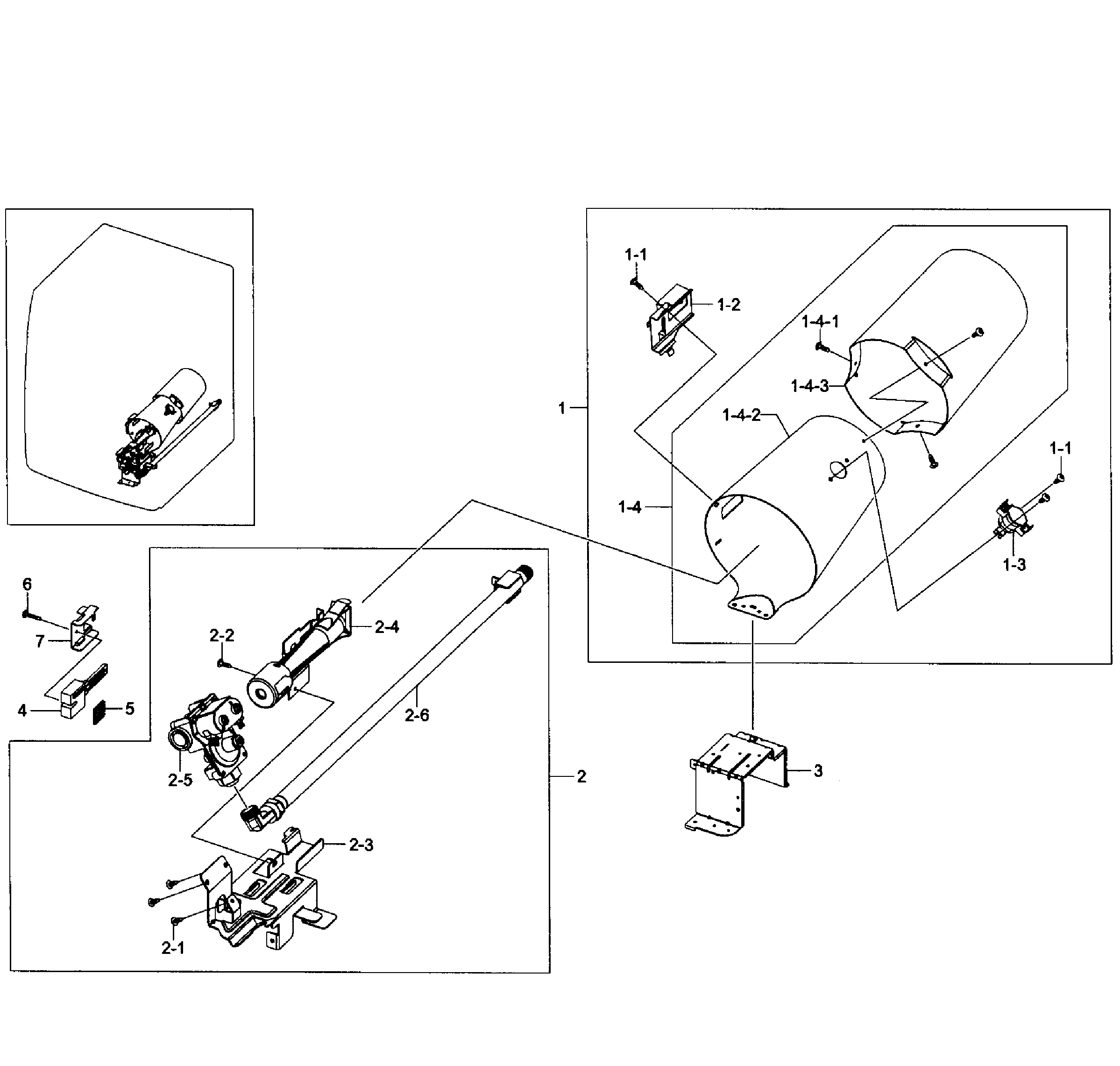

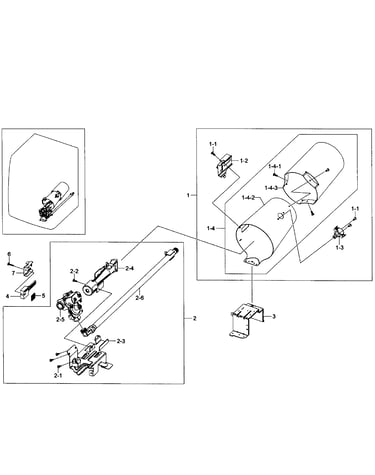

On the Samsung DV365GTBGWR gas dryer, “no heat” is not caused by an electric heating element because this model heats with a gas burner system. To pinpoint the failure, we check ignition and safety components such as the igniter, radiant sensor, thermostats, and thermistor using basic visual checks and multimeter tests.

What to check first on DV365GTBGWR (gas heat)

• Confirm the dryer is set to a heated cycle (not Air Fluff or No Heat)
• Verify the gas supply valve is fully open
• Make sure the exhaust vent is clear and not crushed (restricted airflow can trip safeties)
• Listen for burner ignition: click, igniter glow, then flame
• Check for error codes if your model displays them (use Samsung dryer error codes)

How we test the common “no heat” parts

Always unplug the dryer before testing continuity.

• Igniter: inspect for cracks; test for continuity. A cracked or open igniter will not light gas (see dryer burner igniter DC47-00022A).
• Radiant sensor (flame sensor): if it does not sense heat, the gas valve may not open correctly (see dryer radiant sensor DC32-00008A).
• Thermal cut-off and high-limit thermostat: if either is open, the burner will not run (see dryer thermal cut-off thermostat DC47-00016A and dryer high-limit thermostat DC47-00017A).
• Thermistor: a failed thermistor can cause temperature control problems and shut down heat (see dryer thermistor DC32-00007A).

Quick test guide (what “bad” looks like)

Part	Typical symptom	Meter check (unplugged)
Igniter	No glow, no flame	Open circuit (no continuity)
Thermal cut-off / high-limit	Runs but never heats	Open circuit (no continuity)
Radiant sensor	Igniter glows but flame drops out	Incorrect switching/continuity behavior

Why it matters

Gas dryers rely on a chain of safety and ignition parts; one open safety thermostat or a failed igniter stops heat completely. Testing the correct components prevents replacing the wrong part and restores normal drying time.

For model-specific access steps and panel removal, follow the DV365GTBGWR manual.

Last updated: February 2026
