What are the common problems with Kenmore Elite refrigerators?
Kenmore Elite refrigerators like model 79571323412 most often have cooling problems, ice maker or water dispenser issues, frost buildup from defrost or door-seal leaks, and unusual noises from fans or the compressor area. We focus first on airflow, temperature settings, and simple maintenance steps in the 79571323412 owner's manual.
Most common symptoms and what they usually mean
- Not cooling or warm fridge/freezer: dirty condenser area, blocked vents, evaporator fan not running, or a temperature sensor issue
- Ice maker not making ice: water supply problem, frozen fill tube, or a failed ice maker assembly
- Water dispenser slow or no water: clogged filter, low water pressure, or a weak inlet valve
- Frost buildup or water under drawers: defrost drain restriction, door not sealing, or frequent door openings
- Buzzing/clicking/humming: condenser fan area, compressor start components, or ice maker cycling
Quick checks we recommend before replacing parts
- Confirm controls are set to normal temperatures (avoid the warmest setting).
- Make sure air vents inside the refrigerator are not blocked by food containers.
- Clean dust from the condenser area (unplug first).
- Check door gaskets for gaps; a dollar-bill pull test helps spot weak sealing.
- If you have water/ice issues, verify the shutoff valve is fully open and the supply line is not kinked.
Parts that commonly solve these problems on 79571323412
| Symptom | Common part to inspect | What it affects |
|---|---|---|
| Bad-tasting water, slow dispense | Genuine Kenmore refrigerator water filter 9690 AGF80300801 | Water flow and filtration |

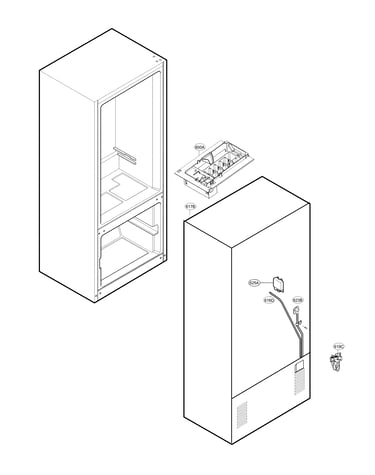

| No ice, small cubes | Lg refrigerator ice maker assembly model AEQ72909603 AEQ72909603 | Ice production |
| No water to dispenser/ice maker | Refrigerator water inlet valve AJU73672505 | Water supply into the unit |
| Warm temps, poor airflow | Refrigerator evaporator fan motor EAU65058315 | Cold air circulation |
| Erratic temps | Refrigerator temperature sensor 6500JB2002X | Temperature feedback to control |
Why it matters
Cooling and frost problems usually start as airflow or sealing issues; catching them early helps protect food, reduces energy use, and prevents ice buildup that can lead to leaks.
Last updated: January 2026
What does DH mean on Kenmore Elite refrigerator?
On Kenmore Elite model 79571323412, dH (often shown as Er dH) points to a defrost heating problem: the refrigerator is not warming the evaporator enough during the defrost cycle, so frost can build up and airflow can drop. Check the defrost system steps in the 79571323412 owner's manual.
What you’ll usually notice
- Refrigerator section warming up while the freezer still seems cold
- Frost or ice buildup on the rear freezer panel
- Fan noise changes (fan hitting ice) or weak airflow from vents
- Water leaking or ice under the crisper if the drain freezes
Quick checks we recommend (safe, no tools)
- Power reset: unplug for 5 minutes, then restore power.
- Check door sealing: make sure doors close fully and gaskets are clean.
- Look for heavy frost: if the back freezer panel is packed with frost, defrost performance is the likely issue.
- Confirm airflow: blocked vents or overpacked shelves can mimic a defrost problem.
Parts commonly involved (and why)
| What can fail | What it causes | Example part on this model page |
|---|---|---|
| Defrost system not heating | Frost buildup, poor cooling | (Defrost heater is not listed in the parts shown here) |
| Temperature sensing/control issue | Defrost ends too soon or never heats | Refrigerator temperature sensor 6500JB2002X |
| Control not driving defrost correctly | Intermittent or repeated dH errors | Lg refrigerator electronic control board EBR81182758 |
Why it matters
A true dH/Er dH condition lets frost accumulate on the evaporator, which restricts airflow. That can make the fresh food section warm, increase run time, and eventually stop cooling properly.
Last updated: January 2026
What size is Kenmore refrigerator model 79571323412?
The Kenmore Elite refrigerator model 79571323412 is a 33-inch wide bottom-mount style refrigerator; most units in this series stand about 68 inches tall and are about 31 inches deep (cabinet depth varies with handles). For the exact published dimensions, use the 79571323412 owner's manual.
Typical dimensions you can plan around
These are the most common planning measurements customers use for delivery, cabinetry clearance, and door swing:
- Width: about 33 in.
- Height: about 67 3/4 to 68 in. (to top of case or hinge cover)
- Depth: about 31 in. to cabinet; deeper with handles
- Capacity: many 33-inch Kenmore Elite bottom-mount models are in the low-to-mid 20 cu. ft. range
How to measure your refrigerator correctly
Measure in three places (top, middle, bottom) and use the largest number.
- Measure width across the front of the cabinet (not the doors bowed out)
- Measure height from floor to the highest point (often the hinge cover)
- Measure depth from the back to the front edge of the doors; then add handle depth if needed
- Confirm you have room to remove bins and drawers when doors open
| Measurement | What to include | Why it matters |
|---|---|---|
| Width | cabinet and door edges | fit between cabinets |
| Height | hinge cover if it’s highest | clears overhead cabinets |
| Depth | doors plus handles (if planning tight spaces) | walkway clearance |
Why it matters
A refrigerator that is even 1/2 inch too wide or too tall can prevent proper installation, restrict airflow, and make it hard to open the French doors or pull out the freezer drawer.
Last updated: January 2026
