GE MRSC20KWBEAD refrigerator - b series Parts

Here are the diagrams and repair parts for GE MRSC20KWBEAD refrigerator - b series, as well as links to manuals and error code tables, if available.

GE MRSC20KWBEAD refrigerator - b series
By Schematic
By Part

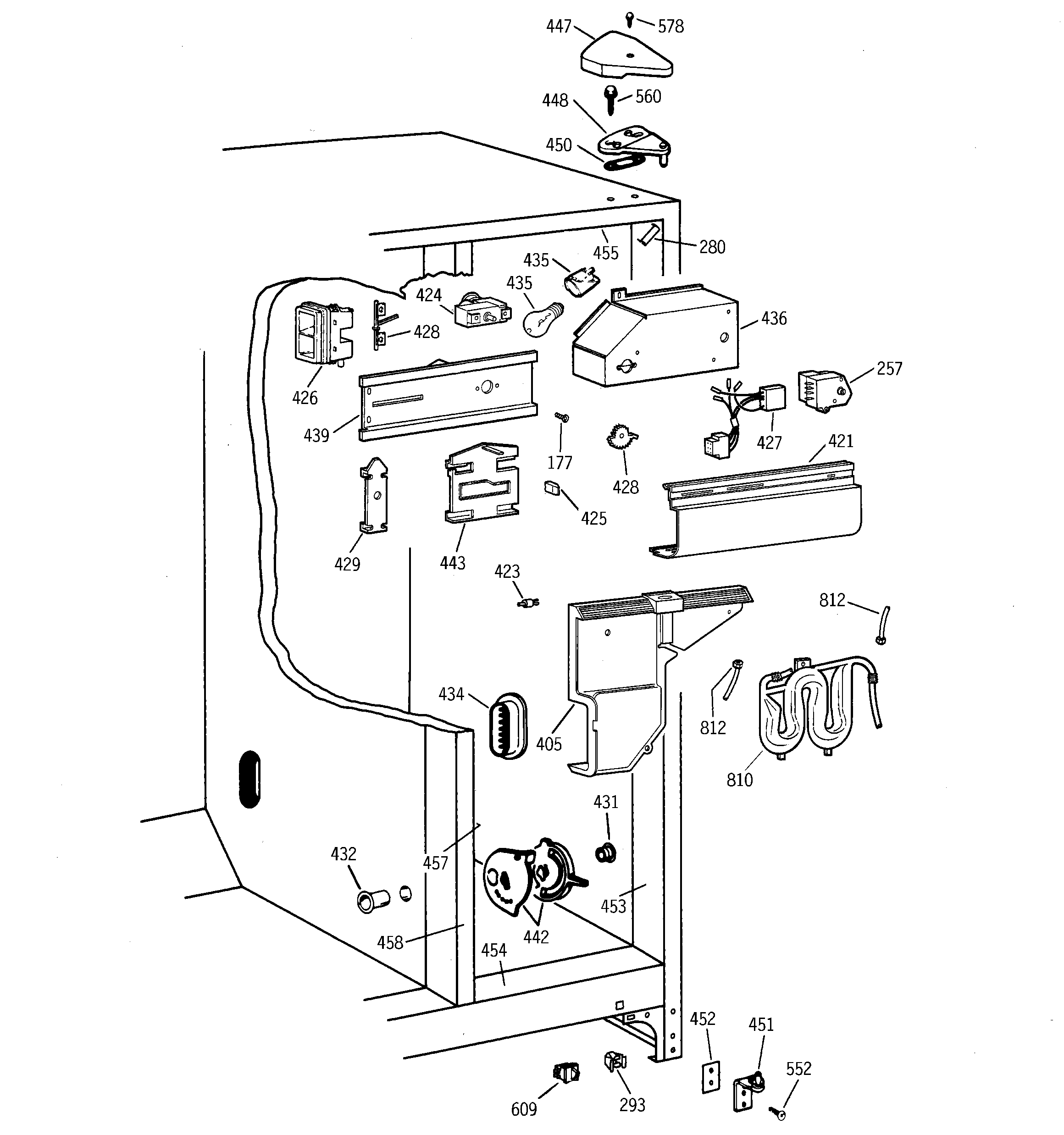

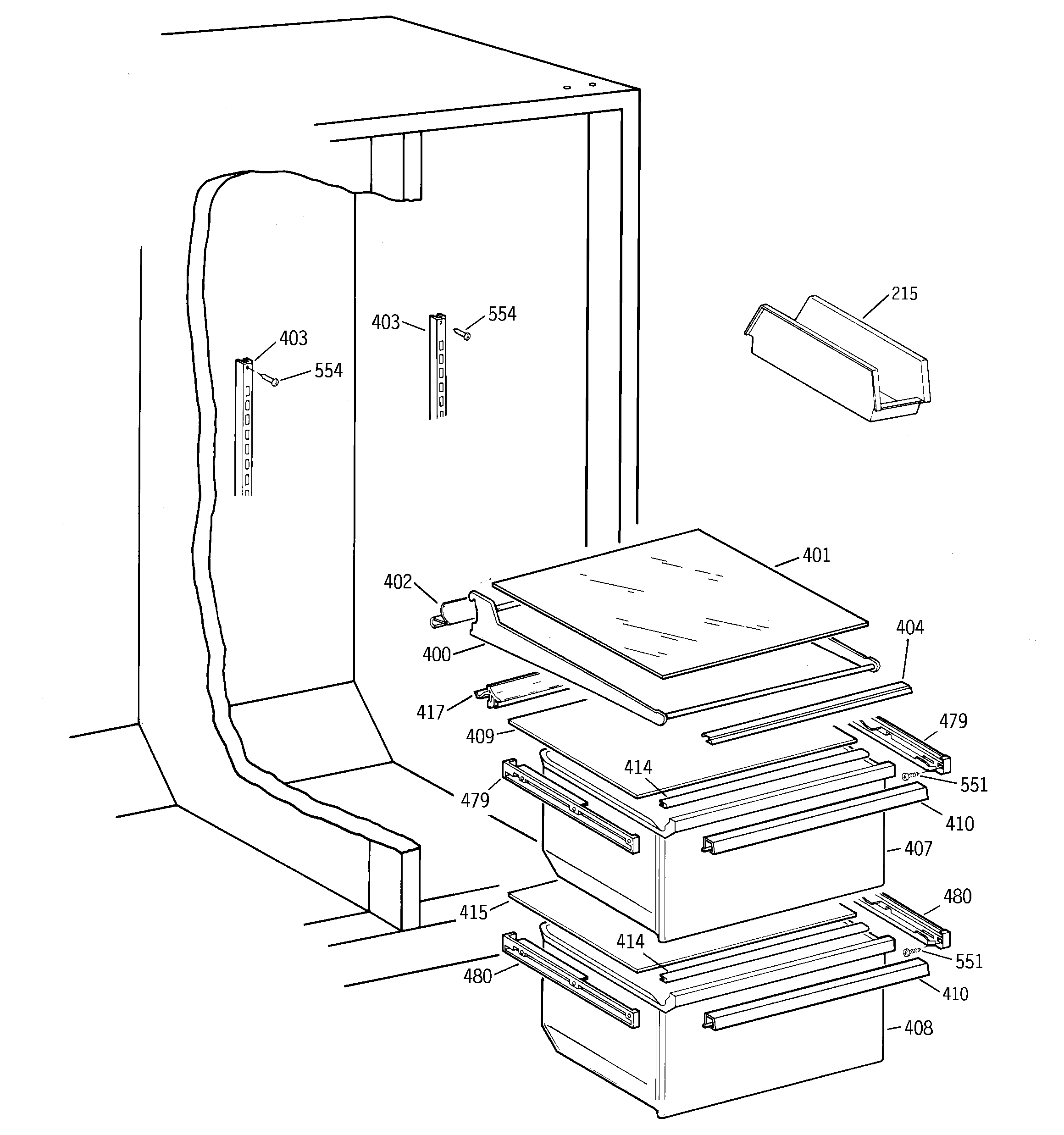

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for MRSC20KWBEAD Refrigerators

  • G.e. Refrigerator Ice Maker Kit for GE MRSC20KWBEAD - Part WR30X10093

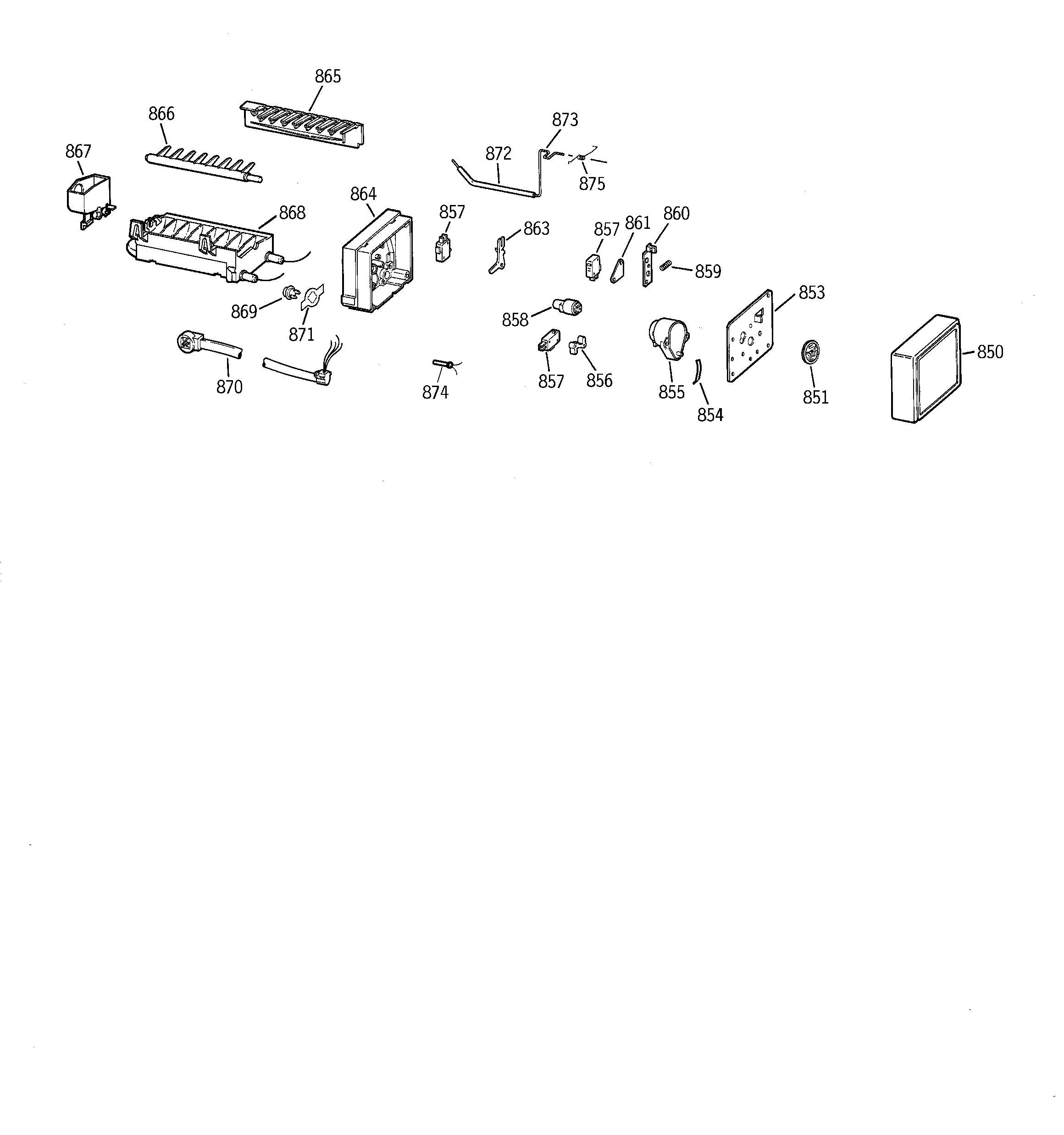

    Icemaker wr30x0327 diagram

    Beam Spring

    Part #WR29X10002

    Replaced by #WR30X10093

    Info Icon
    Manufacturer substitution
    This part replaces WR29X10002. Substitute parts can look different from the original.
    In Stock
    $255.21
    $12.00 OFF Phone Price : $267.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Spacer for GE MRSC20KWBEAD - Part WR2X4138

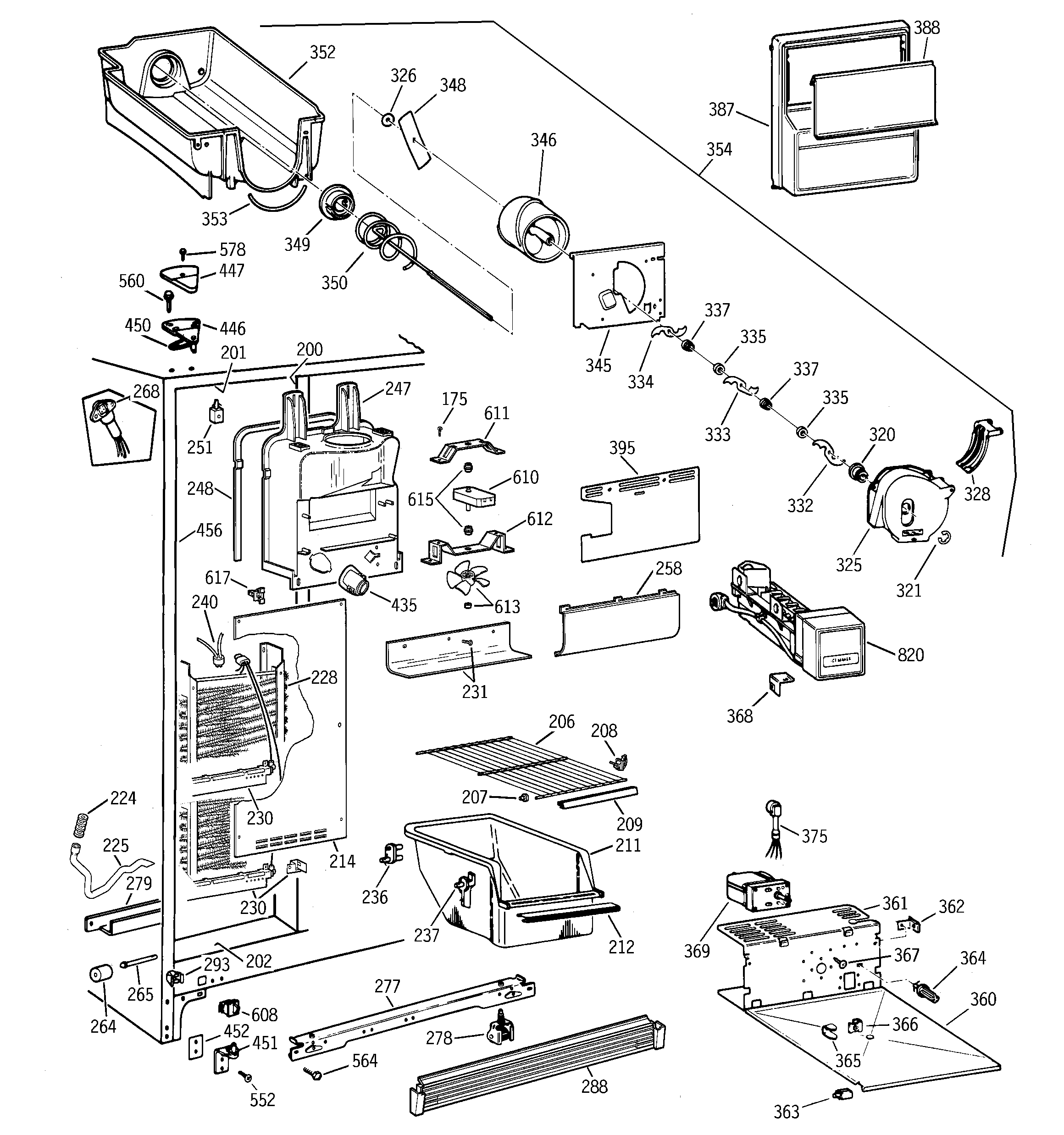

    Freezer section diagram

    Refrigerator Spacer

    Part #WR02X4138

    Replaced by #WR2X4138

    Info Icon
    Manufacturer substitution
    This part replaces WR02X4138. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $17.99
    10% OFF Phone Price : $19.99Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Tubing Clamp for GE MRSC20KWBEAD - Part WR2X4754

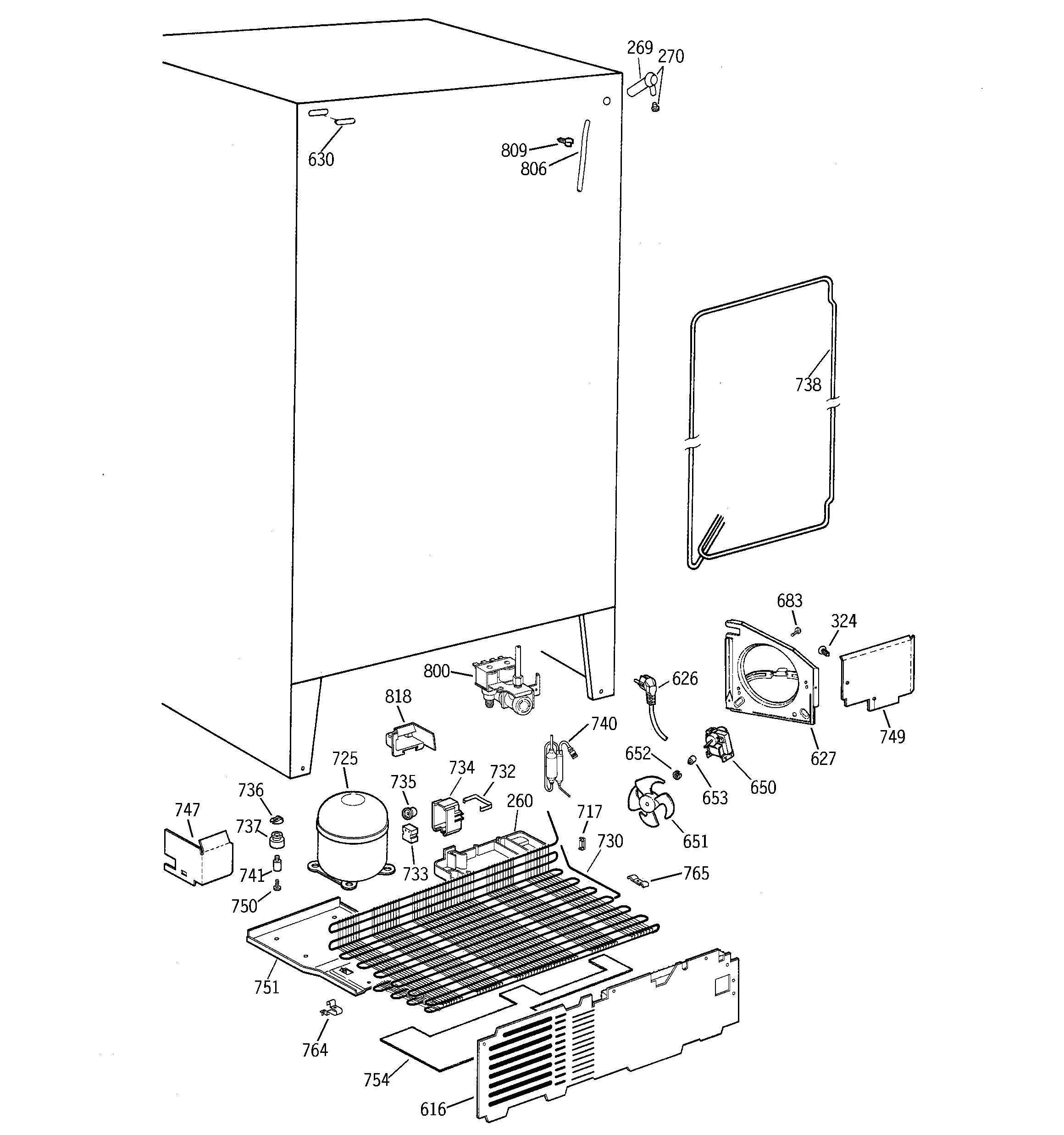

    Unit parts diagram

    Refrigerator Clamp Fill Tube

    Part #WR01X5223

    Replaced by #WR2X4754

    Info Icon
    Manufacturer substitution
    This part replaces WR01X5223. Substitute parts can look different from the original.
    In Stock
    $9.02
    10% OFF Phone Price : $10.02Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Refrigerator Ice Maker Kit for GE MRSC20KWBEAD - Part WR30X10093

    Icemaker wr30x0327 diagram

    Thermal Cuto

    Part #WR29X0185

    Replaced by #WR30X10093

    Info Icon
    Manufacturer substitution
    This part replaces WR29X0185. Substitute parts can look different from the original.
    In Stock
    $255.21
    $12.00 OFF Phone Price : $267.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw for GE MRSC20KWBEAD - Part WE02X10011

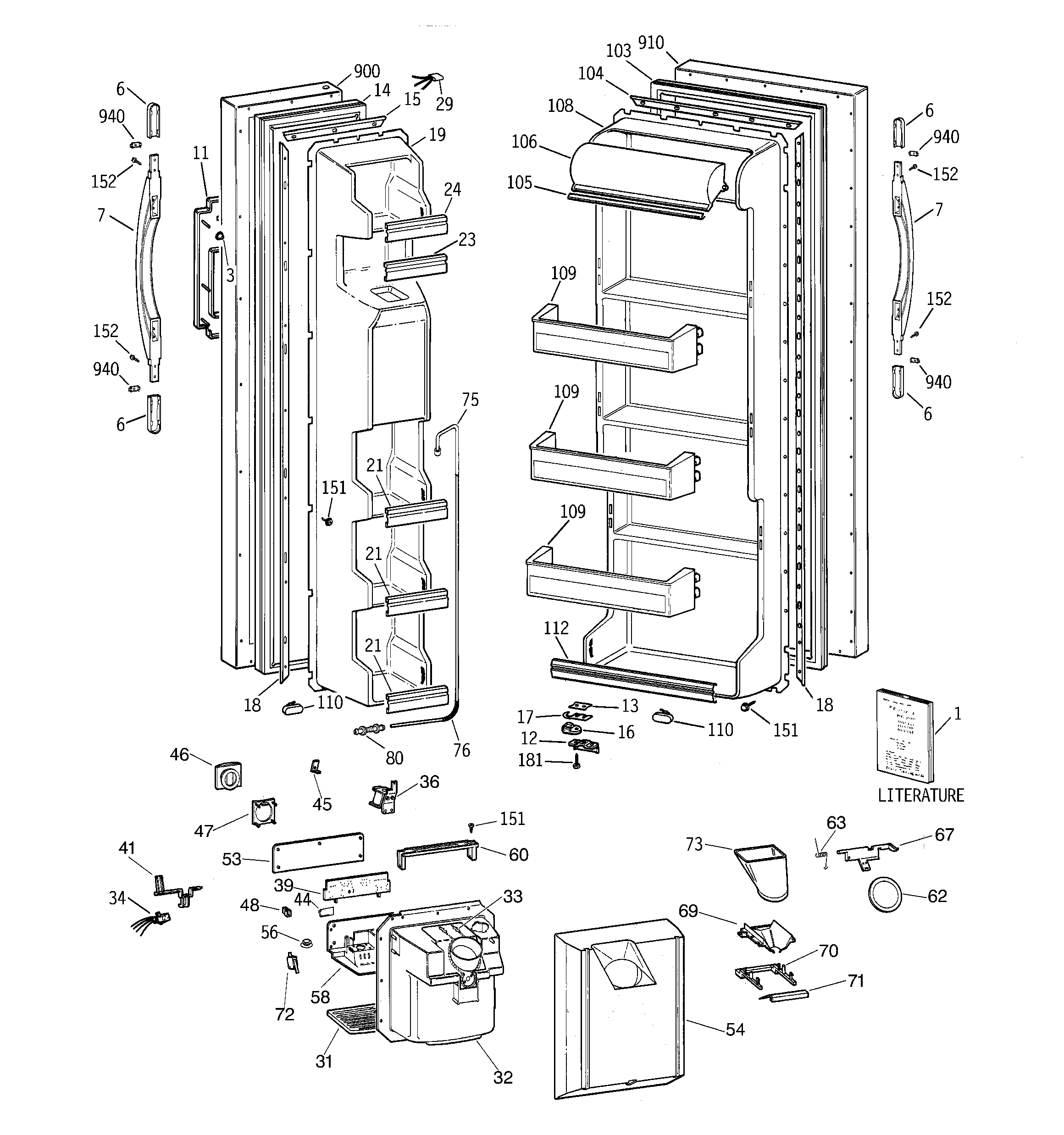

    Doors diagram

    Scr 6-22 Pl

    Part #WR01X1966

    Replaced by #WE02X10011

    Info Icon
    Manufacturer substitution
    This part replaces WR01X1966. Substitute parts can look different from the original.
    In Stock
    $40.27
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for GE MRSC20KWBEAD - Part WR1X1505D

    Doors diagram

    Recess Screw

    Part #WR01X1505

    Replaced by #WR1X1505D

    Info Icon
    Manufacturer substitution
    This part replaces WR01X1505. Substitute parts can look different from the original.
    In Stock
    $29.08
    17% OFF Phone Price : $35.08Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor Mounting Post for GE MRSC20KWBEAD - Part WR1X1779

    Unit parts diagram

    Stud Mtgcomp

    Part #WR01X1779

    Replaced by #WR1X1779

    Info Icon
    Manufacturer substitution
    This part replaces WR01X1779. Substitute parts can look different from the original.
    In Stock
    $8.68
    10% OFF Phone Price : $9.68Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw, 2-pack for GE MRSC20KWBEAD - Part WZ4X230D

    Doors diagram

    Refrigerator Screw

    Part #WZ04X0230

    Replaced by #WZ4X230D

    Info Icon
    Manufacturer substitution
    This part replaces WZ04X0230. Substitute parts can look different from the original.
    In Stock
    $33.21
    15% OFF Phone Price : $39.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for GE MRSC20KWBEAD - Part WR01X10623

    Doors diagram

    Shoulder Screw

    Part #WR01X1554

    Replaced by #WR01X10623

    Info Icon
    Manufacturer substitution
    This part replaces WR01X1554. Substitute parts can look different from the original.
    In Stock
    $32.52
    Minus Item
    Qty
    Plus Item
  • Refrigerator Roller for GE MRSC20KWBEAD - Part WR2X3594

    Freezer section diagram

    Refrigerator Wheel

    Part #WR02X3594

    Replaced by #WR2X3594

    Info Icon
    Manufacturer substitution
    This part replaces WR02X3594. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $28.40
    17% OFF Phone Price : $34.40Info Icon
    Minus Item
    Qty
    Plus Item
