Model #IWU22361 Official Inglis undercounter dishwasher
Here are the diagrams and repair parts for Inglis IWU22361 undercounter dishwasher, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

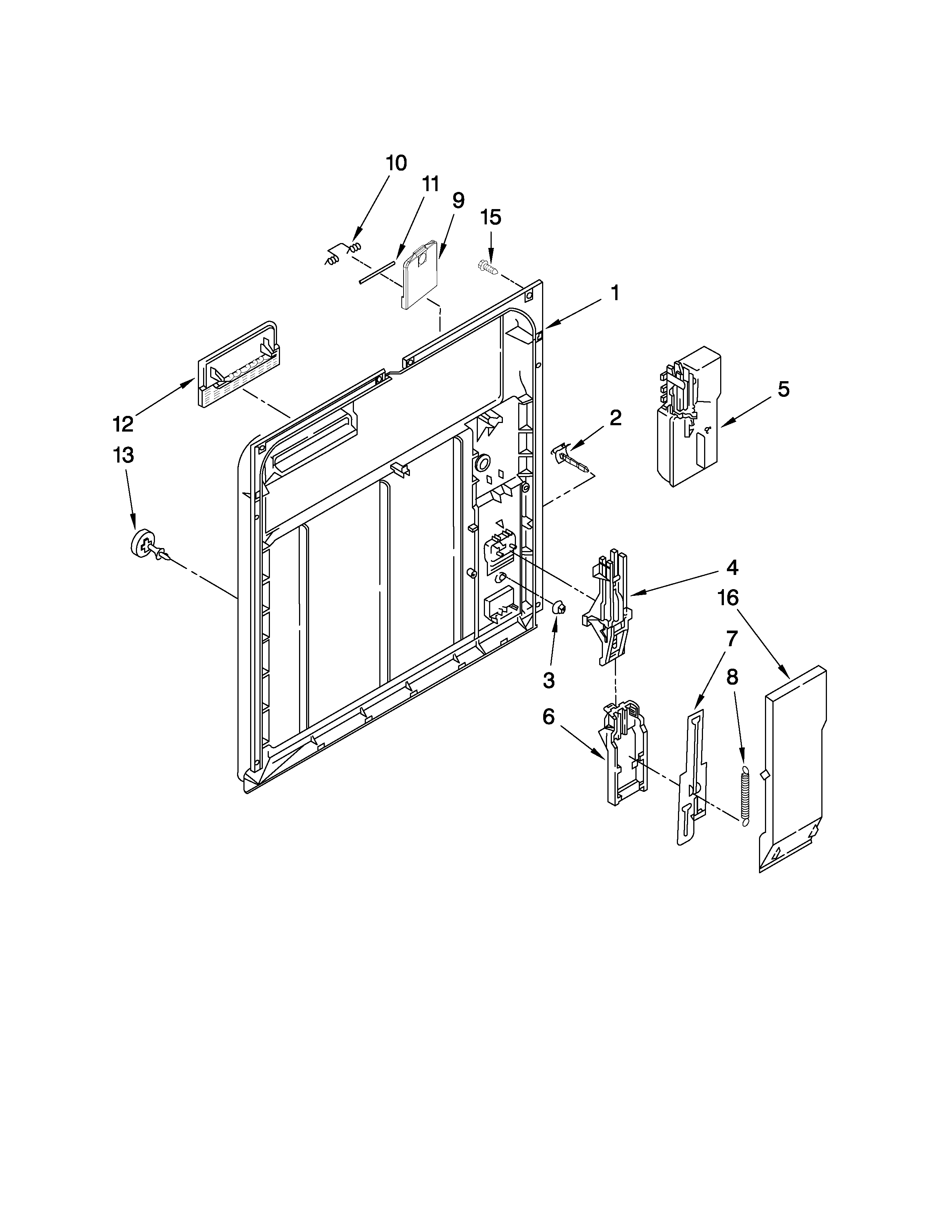

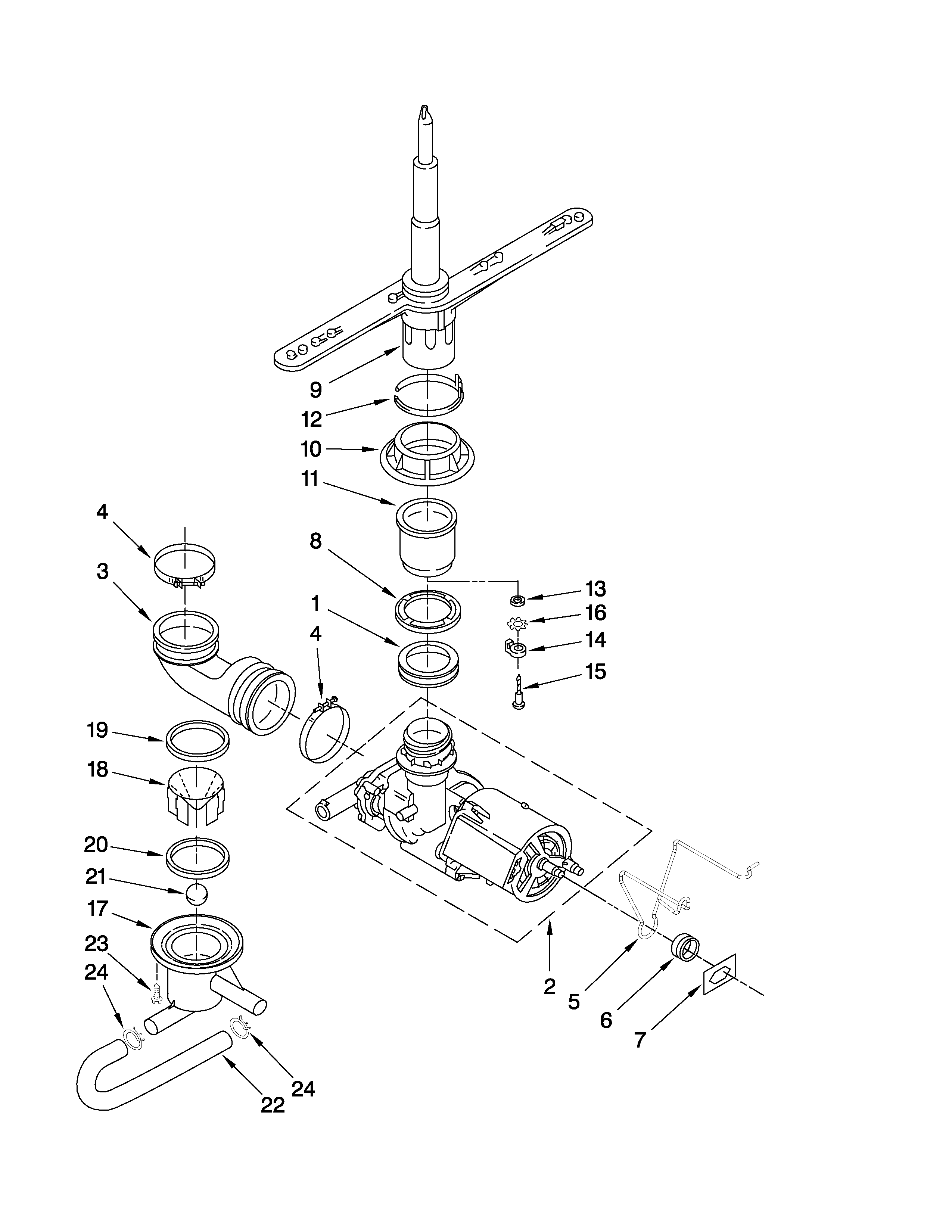

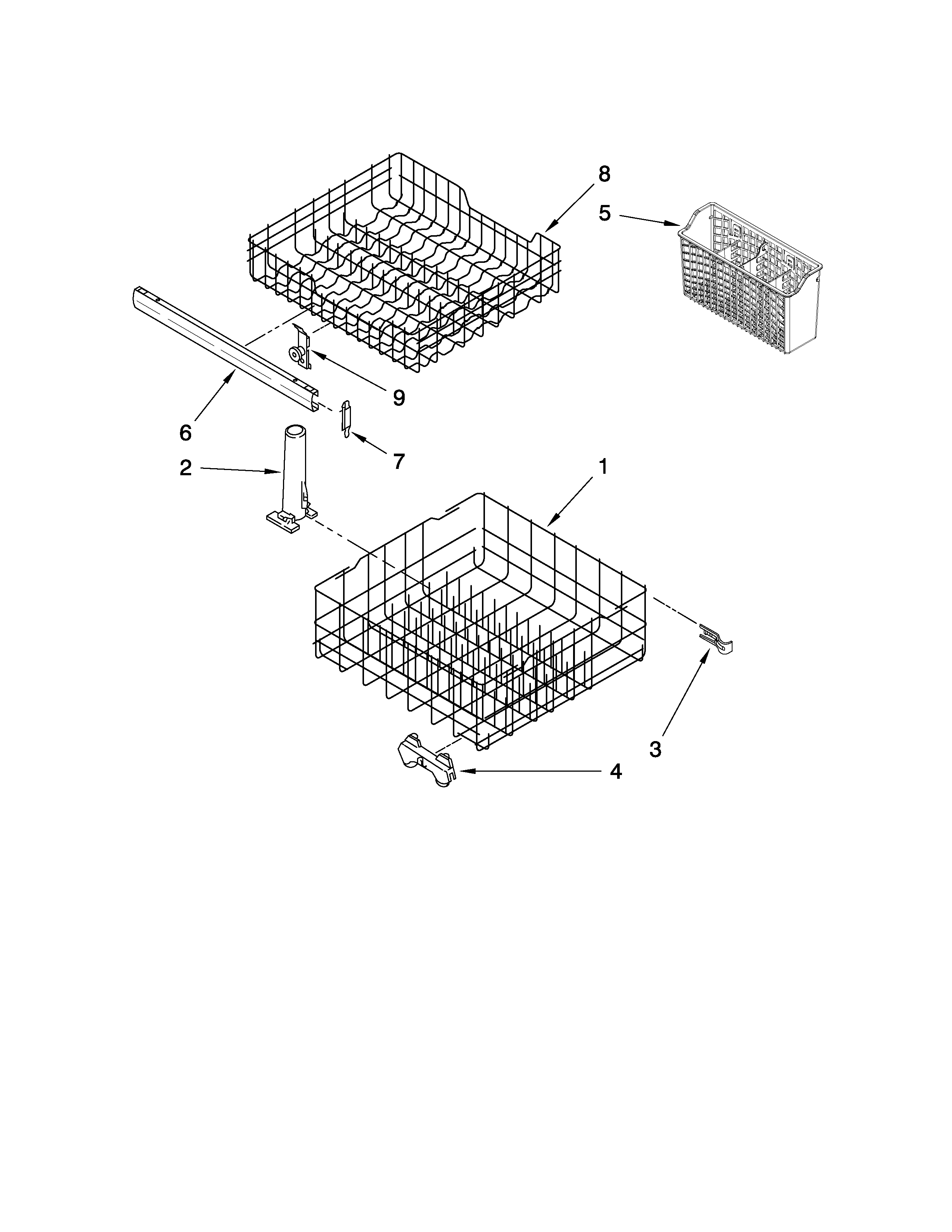

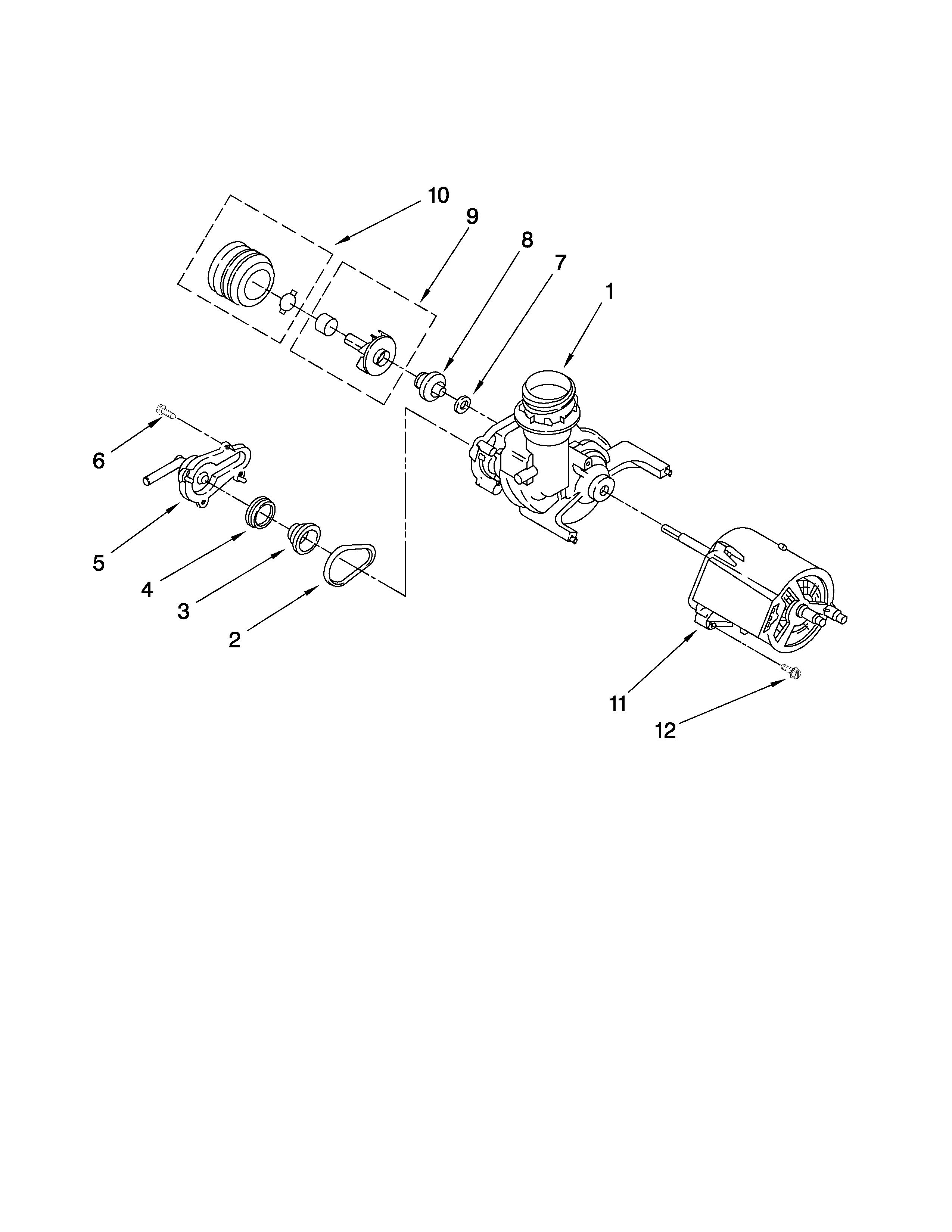

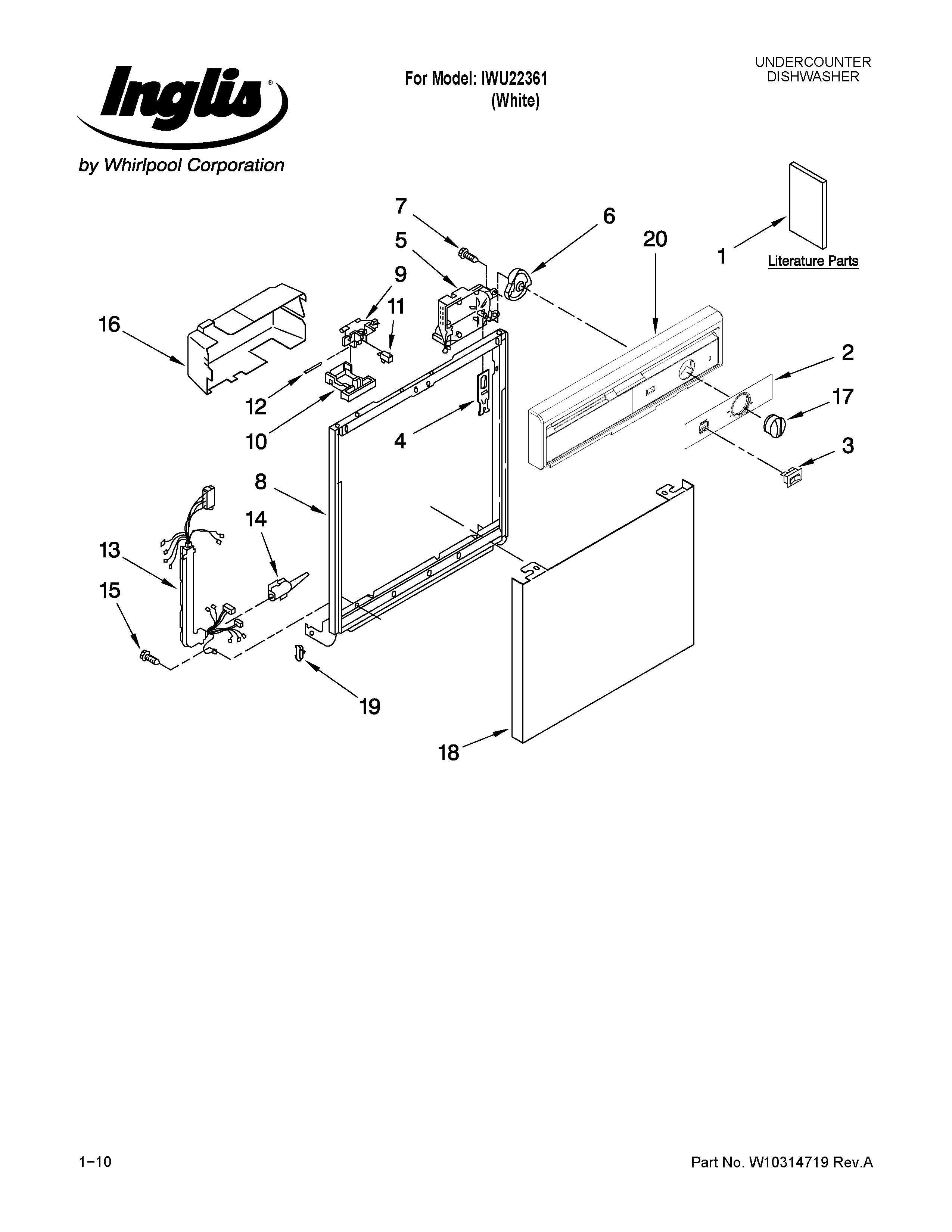

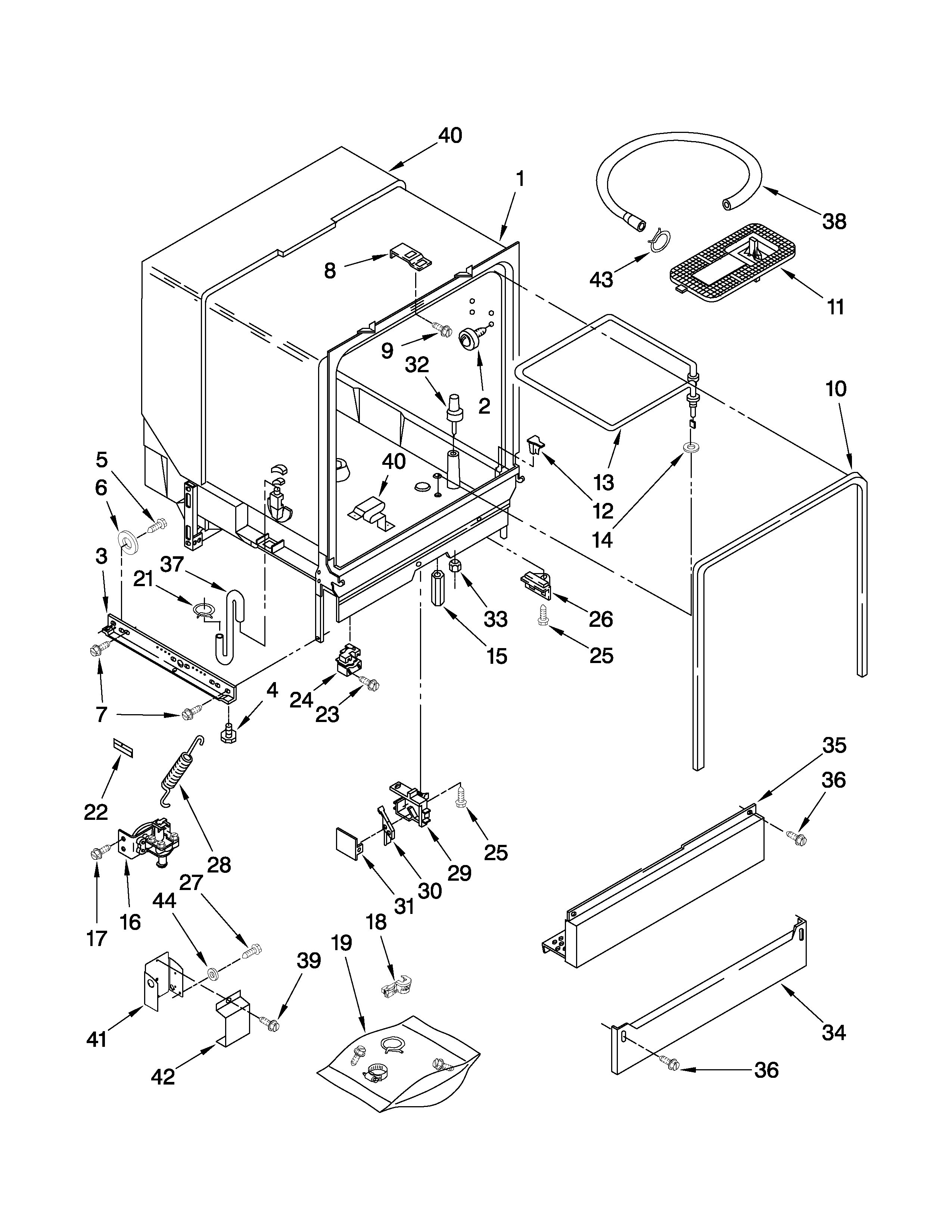

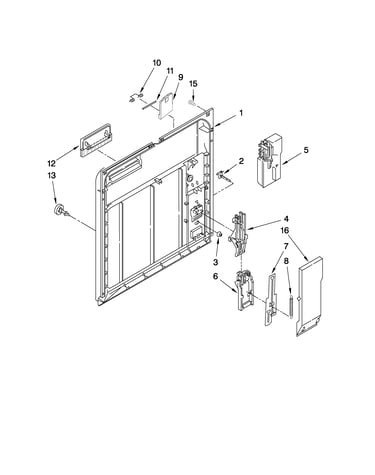

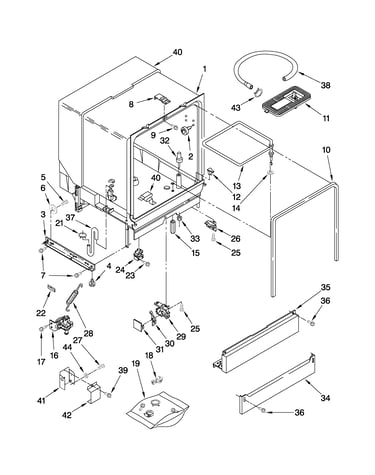

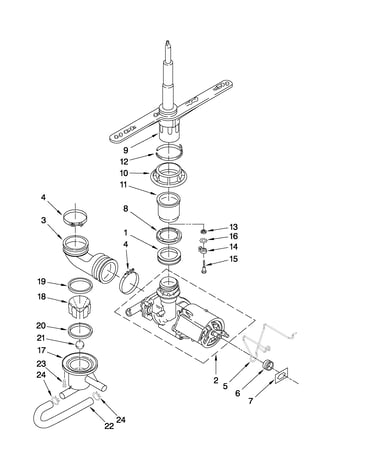

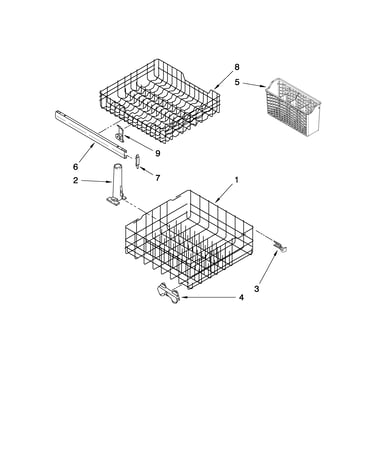

Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 149 parts
Dishwasher door seal
Part #W10082795
Replaced by #WPW10509257
?
Manufacturer substitution
This part replaces W10082795. Substitute parts can look different from the original.
In Stock
$52.35 |
10% OFF
MSRP: $58.00
In Stock
$8.29 |
11% OFF
Phone Price: $9.29
Dishwasher detergent dispenser cover spring
Part #8066018
Replaced by #WP8066018
?
Manufacturer substitution
This part replaces 8066018. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.39 |
19% OFF
Phone Price: $5.39
Dishwasher water inlet valve
Part #W10219643
Replaced by #W10844024
?
Manufacturer substitution
This part replaces W10219643. Substitute parts can look different from the original.
In Stock
$51.85 |
12% OFF
MSRP: $59.00
Paint (white)
Part #350930
Replaced by #350930
?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
This item is not returnable
In Stock
$15.69 |
11% OFF
Phone Price: $17.69
Dishwasher rinse-aid dispenser cap
Part #3378134
Replaced by #WP3378134
?
Manufacturer substitution
This part replaces 3378134. Substitute parts can look different from the original.
This item is not returnable
In Stock
$6.49 |
13% OFF
Phone Price: $7.49
Dishwasher side mounting bracket kit
Part #8212560
In Stock
$27.99 |
15% OFF
Phone Price: $32.99
Dishwasher detergent dispenser cover
Part #3378138
Replaced by #WP3378138
?
Manufacturer substitution
This part replaces 3378138. Substitute parts can look different from the original.
In Stock
$18.69 |
10% OFF
Phone Price: $20.69
Recommended maintenance parts and accessories
In Stock
$27.99 |
15% OFF
Phone Price: $32.99
In Stock
$16.93 |
26% OFF
MSRP: $23.00
In Stock
$5.37 |
42% OFF
MSRP: $9.30
Symptoms common to all dishwashers
Main cause: damaged rack height adjuster
Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure
Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm or pump problems
Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracked water supply line
Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, control system problem
Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure, wiring problem
Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control system problem
Main causes: broken door spring, damaged or broken door hinge
Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in wash pump or drain pump
