Model #MLG31PCBWQ Official Maytag commercial dryer

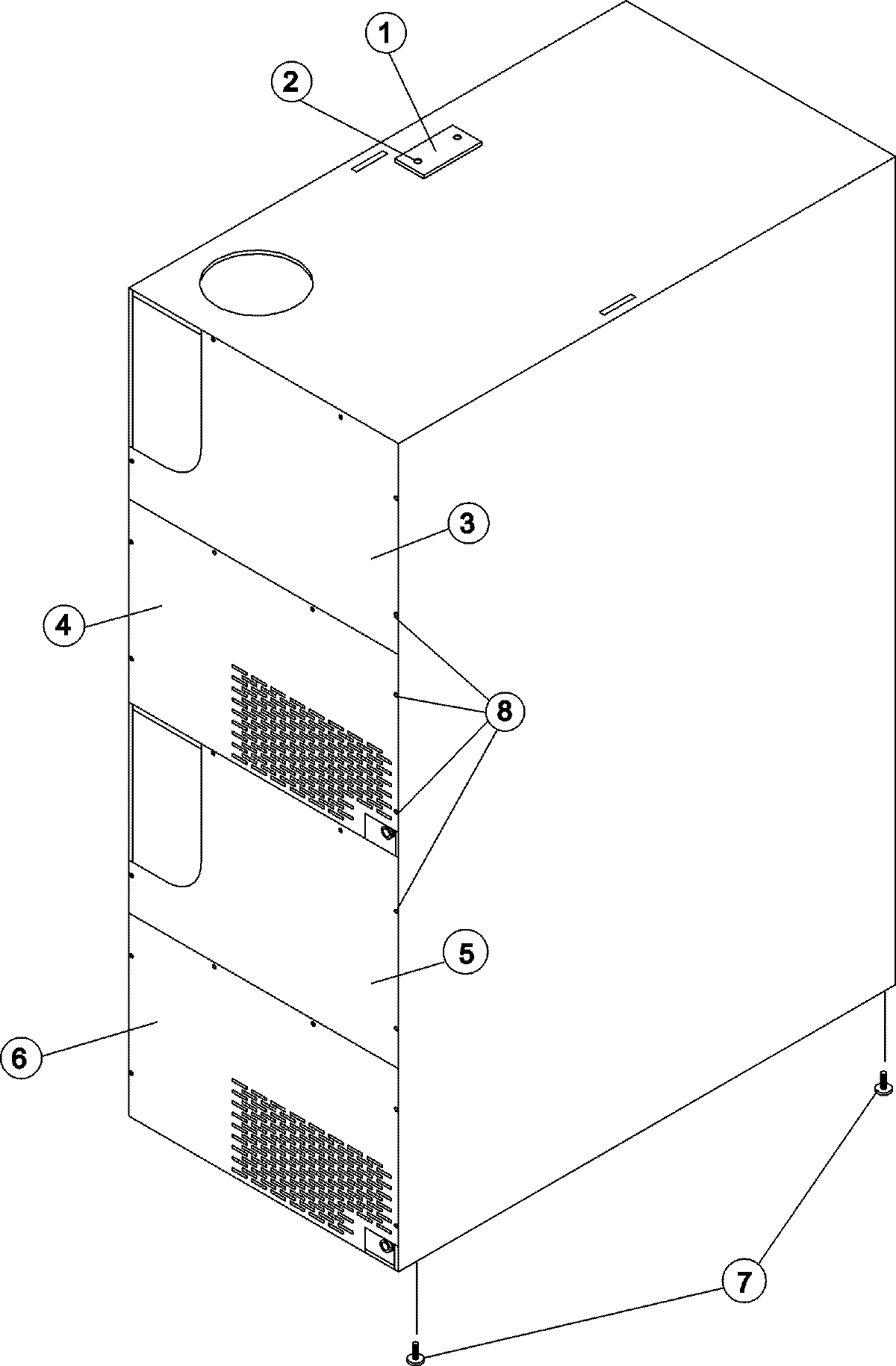

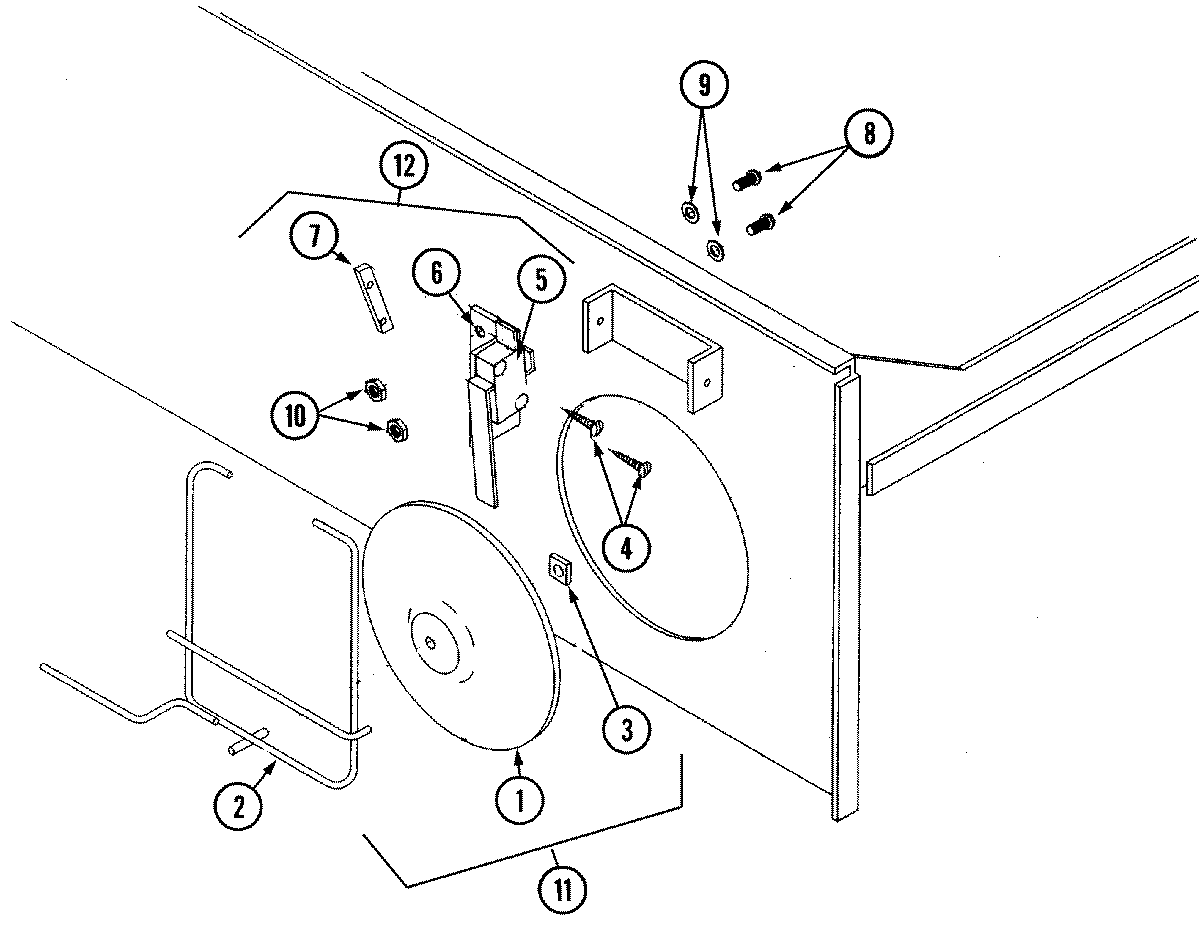

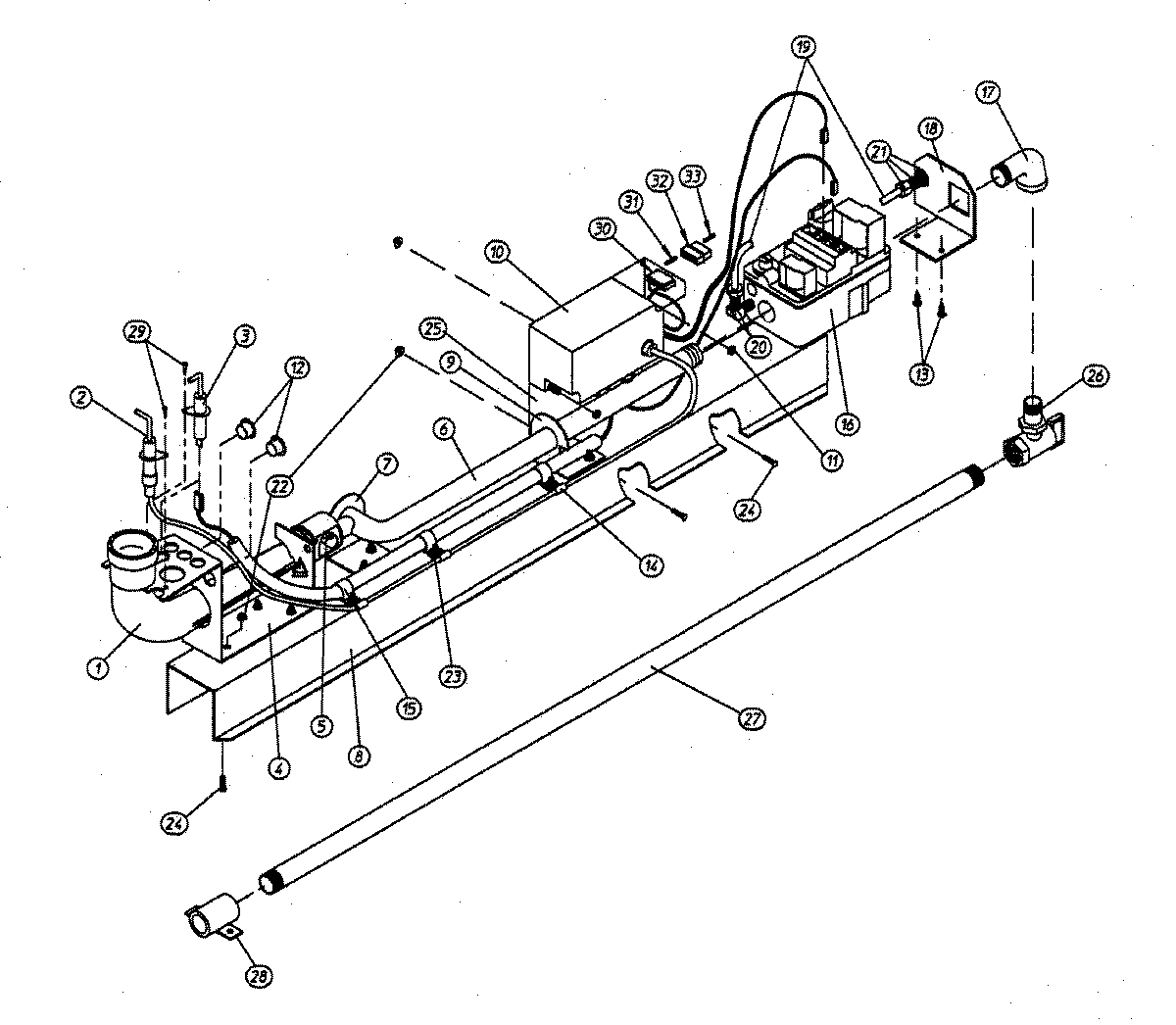

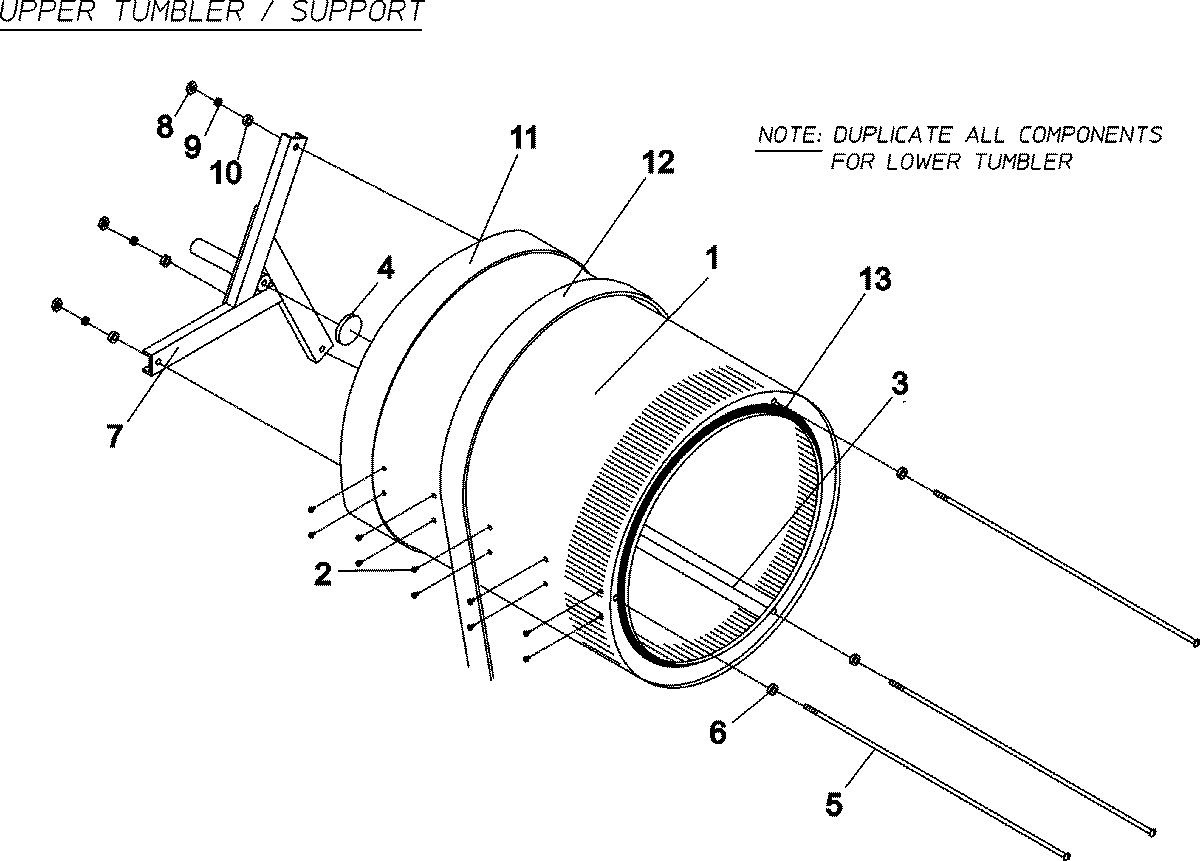

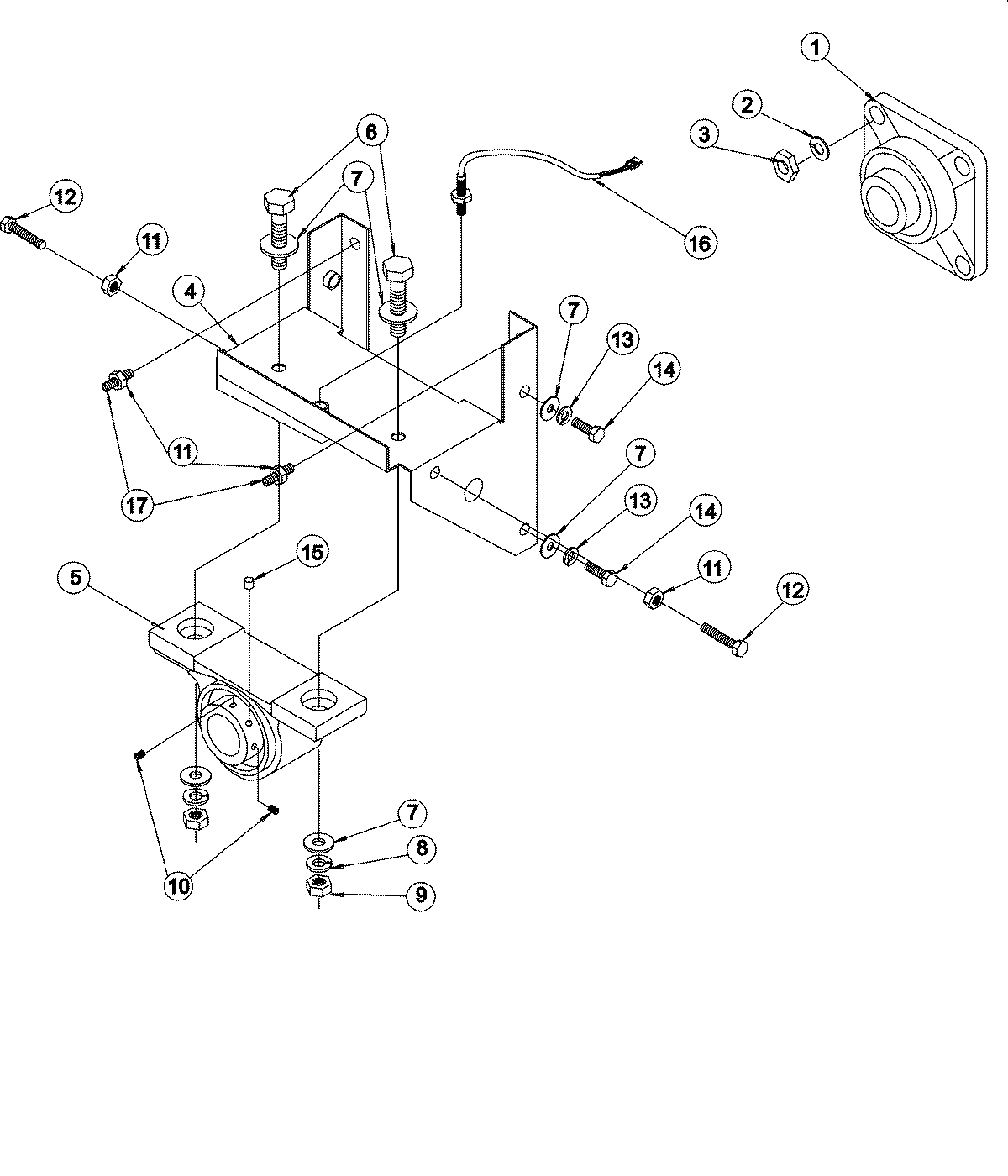

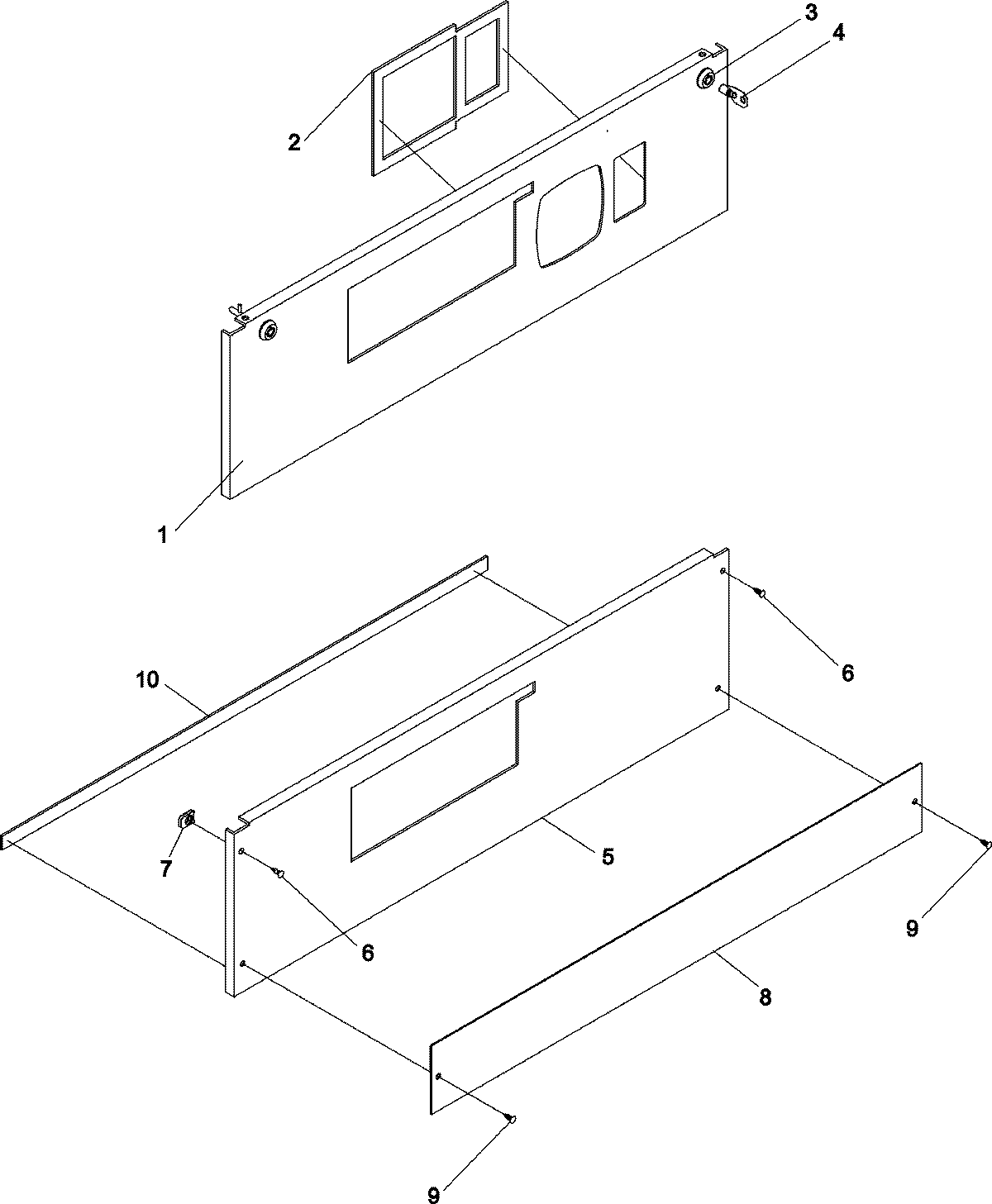

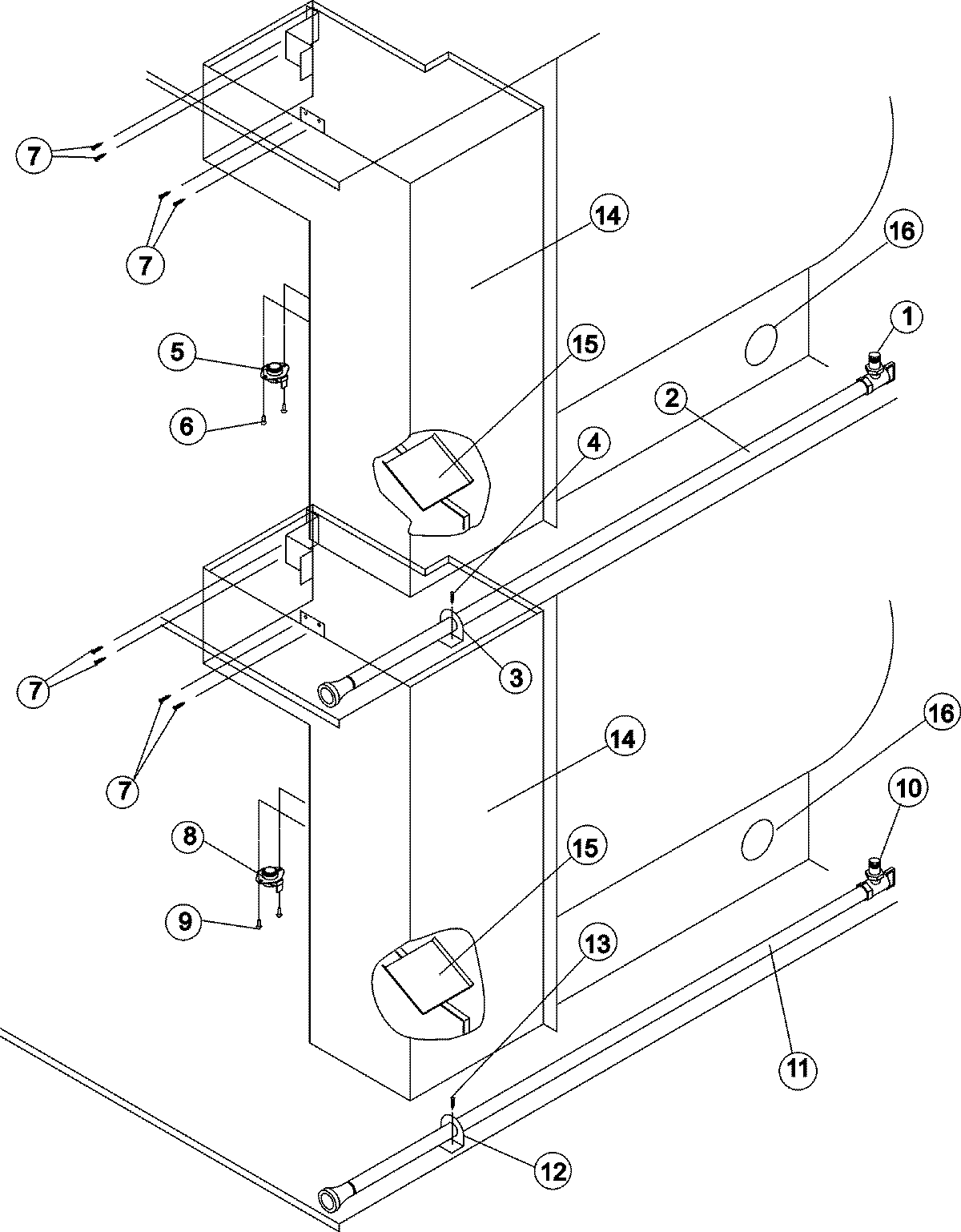

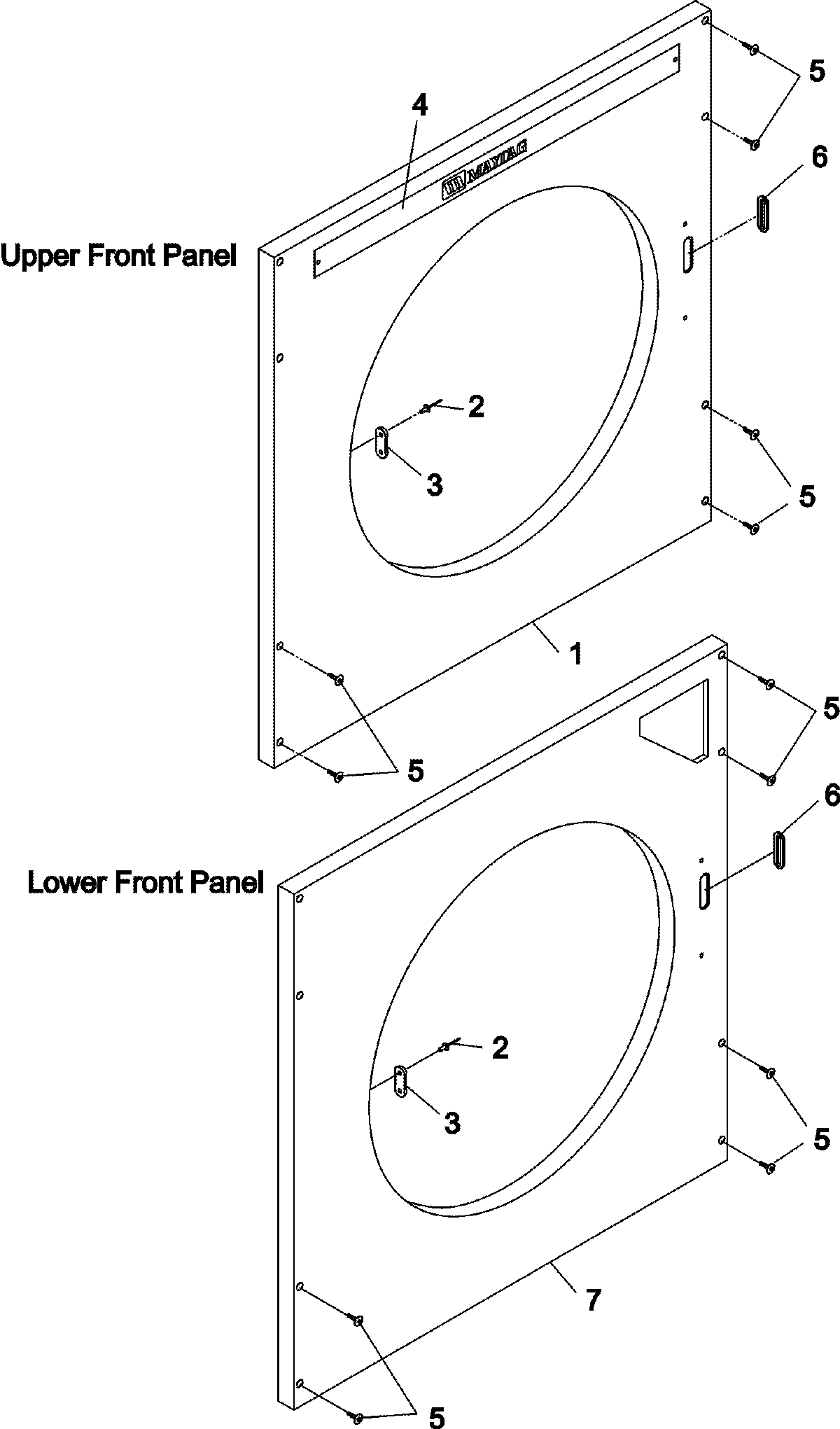

Here are the diagrams and repair parts for Maytag MLG31PCBWQ commercial dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 255 parts

HANDLE EDGE#2

Main door assembly Diagram

Handle edge

Part #A102328

The manufacturer no longer makes this part, and there's no substitute part

CONNECTOR (4 PIN)

See All Related Diagrams

Connector (4 pin)

Part #A122604

The manufacturer no longer makes this part, and there's no substitute part

NON-VENT MOTOR W` PLUG 60HZ#18

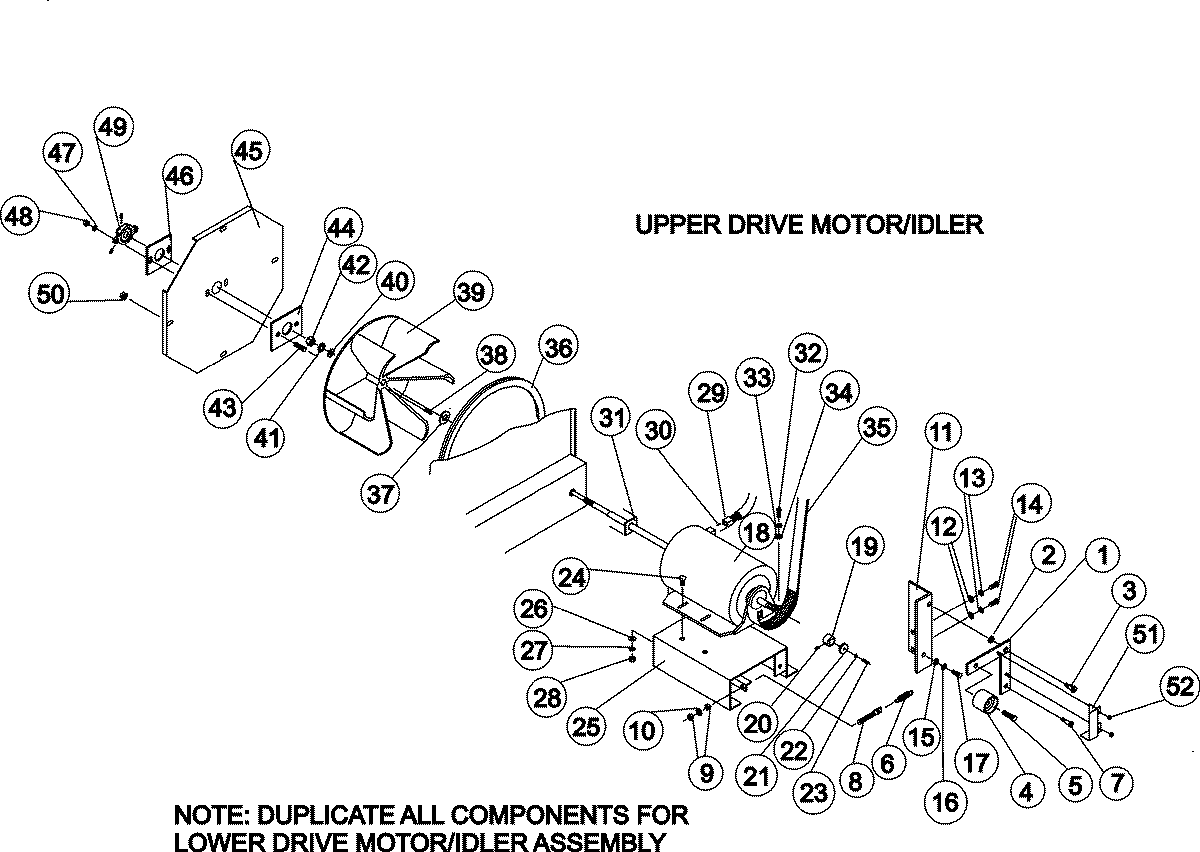

Motor/idler assemblies Diagram

Non-vent motor w` plug 60hz

Part #A100064

The manufacturer no longer makes this part, and there's no substitute part

1/2`` FLANGE BEARING#49

Motor/idler assemblies Diagram

1/2`` flange bearing

Part #A880225

The manufacturer no longer makes this part, and there's no substitute part

5-AMP FUSE#6

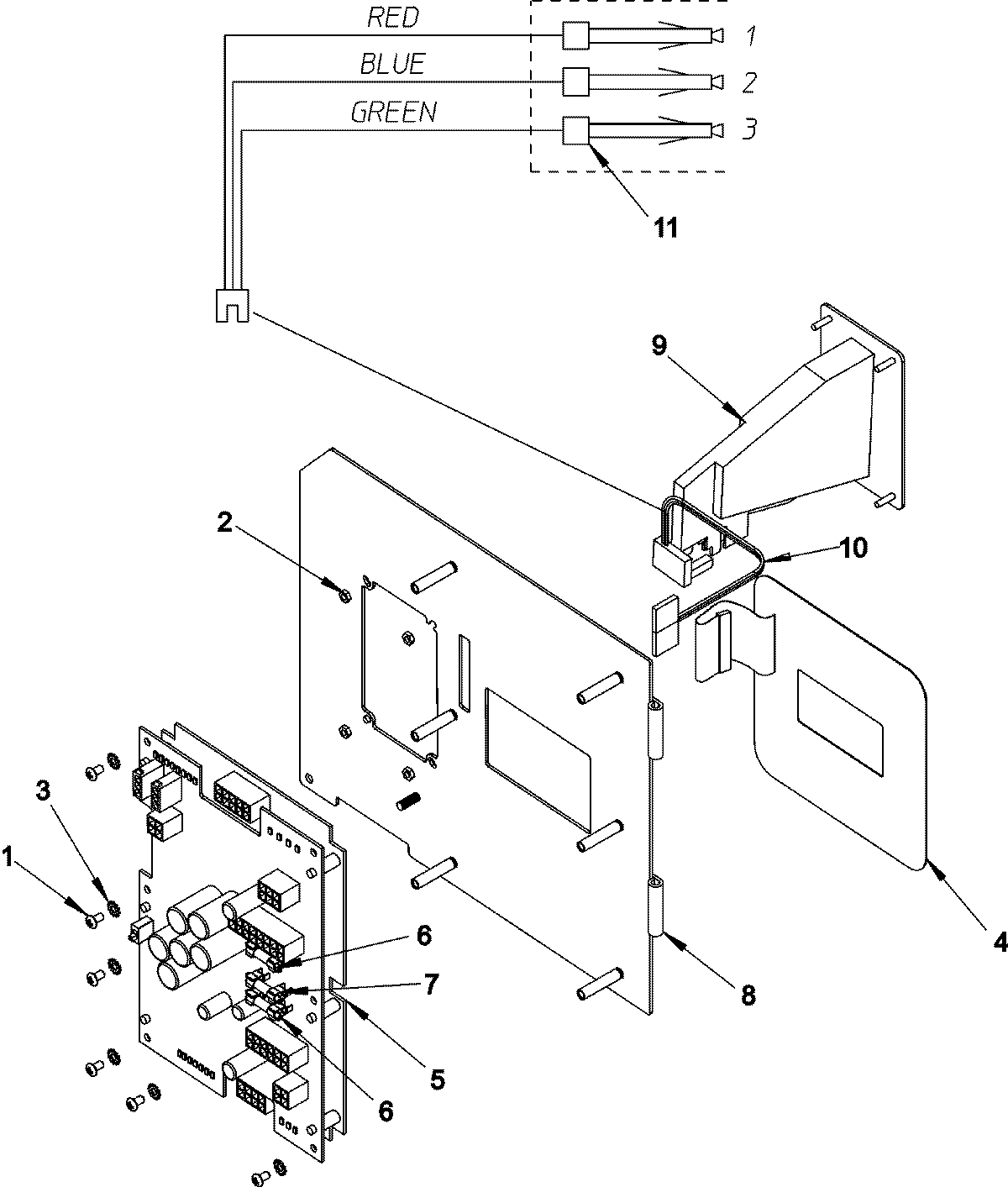

Dmc control panel assembly Diagram

5-amp fuse

Part #A136111

The manufacturer no longer makes this part, and there's no substitute part

FUSE, 3/4-AMP SLO-BLO#8A

Dmc control box assembly Diagram

Fuse, 3/4-amp slo-blo

Part #A136049

The manufacturer no longer makes this part, and there's no substitute part

WASHER, SPLIT LOCK (NO.6)#2

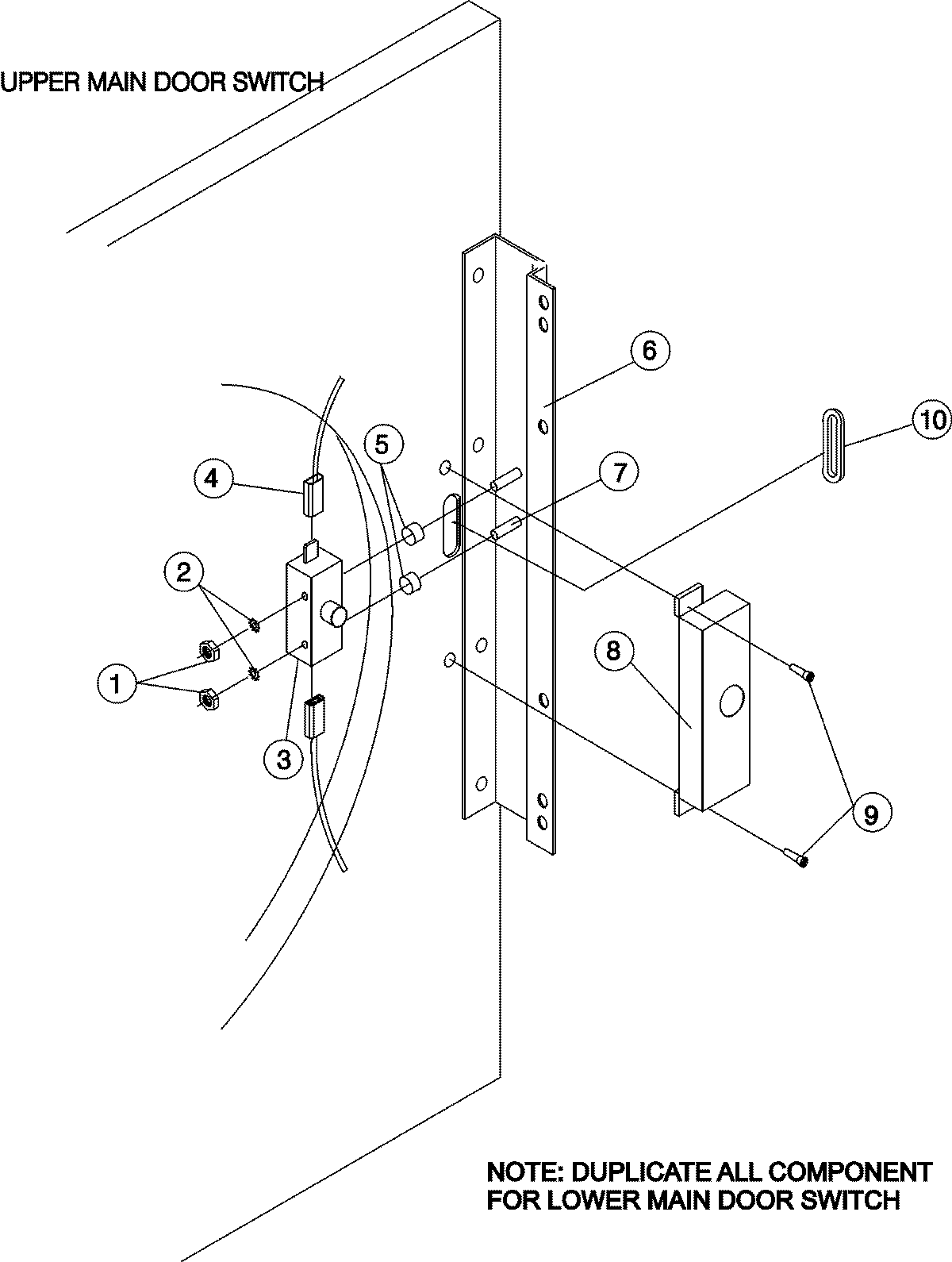

Main door switch assembly Diagram

Washer, split lock (no.6)

Part #A153008

The manufacturer no longer makes this part, and there's no substitute part

THERMOSTAT (330 DEGREE)

See All Related Diagrams

Thermostat (330 degree)

Part #A130403

The manufacturer no longer makes this part, and there's no substitute part

16 PIN CONNECTOR#27

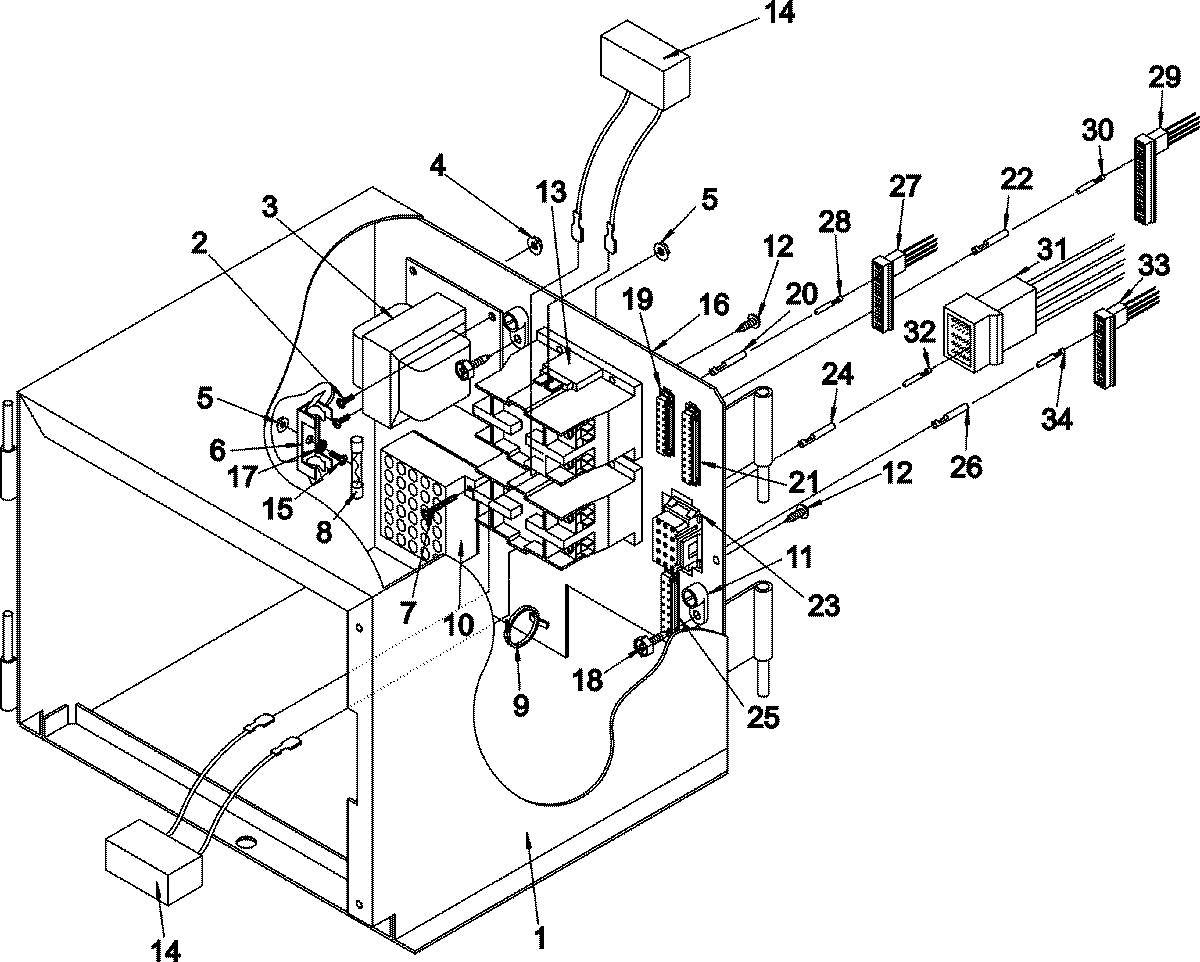

Dmc control box assembly Diagram

16 pin connector

Part #A122667

The manufacturer no longer makes this part, and there's no substitute part

10``X6``X6`` WYE BRANCH DUCT#13

Optional piping & ducting kits Diagram

10``x6``x6`` wye branch duct

Part #A143600

The manufacturer no longer makes this part, and there's no substitute part
