Bosch SHE55C05UC/50 dishwasher

Bosch SHE55C05UC/50 dishwasher Parts

Here are the diagrams and repair parts for Bosch SHE55C05UC/50 dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for SHE55C05UC/50 Dishwasher

  • Dishwasher Circulation Pump for Bosch SHE55C05UC/50 - Part 00442548

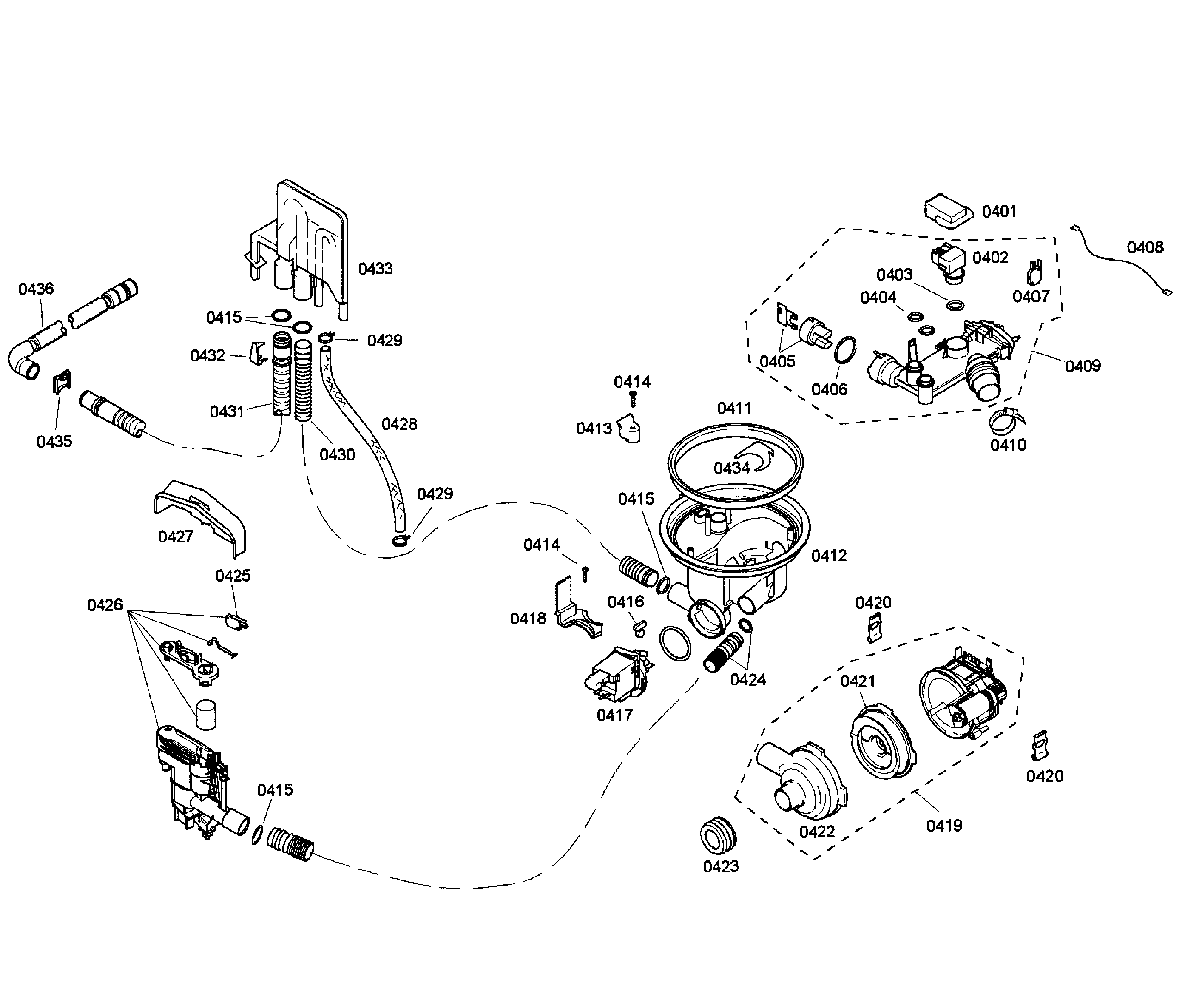

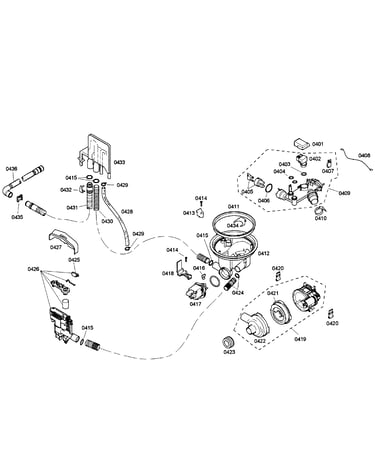

    Pump assy diagram

    Dishwasher Recirculation Pump Assembly

    Part #442548

    Replaced by #00442548

    Info Icon
    Manufacturer substitution
    This part replaces 442548. Substitute parts can look different from the original.
    In Stock
    $294.49
    $12.00 OFF Phone Price : $306.49Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Hose Clamp for Bosch SHE55C05UC/50 - Part 00172272

    Pump assy diagram

    Hose Clamp

    Part #172272

    Replaced by #00172272

    Info Icon
    Manufacturer substitution
    This part replaces 172272. Substitute parts can look different from the original.
    In Stock
    $17.86
    43% OFF Was : $31.15Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Drain Pump for Bosch SHE55C05UC/50 - Part 00642239

    Pump assy diagram

    Drain Pump

    Part #642239

    Replaced by #00642239

    Info Icon
    Manufacturer substitution
    This part replaces 642239. Substitute parts can look different from the original.
    In Stock
    $127.84
    9% OFF Phone Price : $139.84Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Circulation Pump Gasket for Bosch SHE55C05UC/50 - Part 00171598

    Pump assy diagram

    Dishwasher Wash Pump Gasket

    Part #171598

    Replaced by #00171598

    Info Icon
    Manufacturer substitution
    This part replaces 171598. Substitute parts can look different from the original.
    In Stock
    $22.10
    26% OFF Was : $30.02Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Water Inlet Valve for Bosch SHE55C05UC/50 - Part 00607335

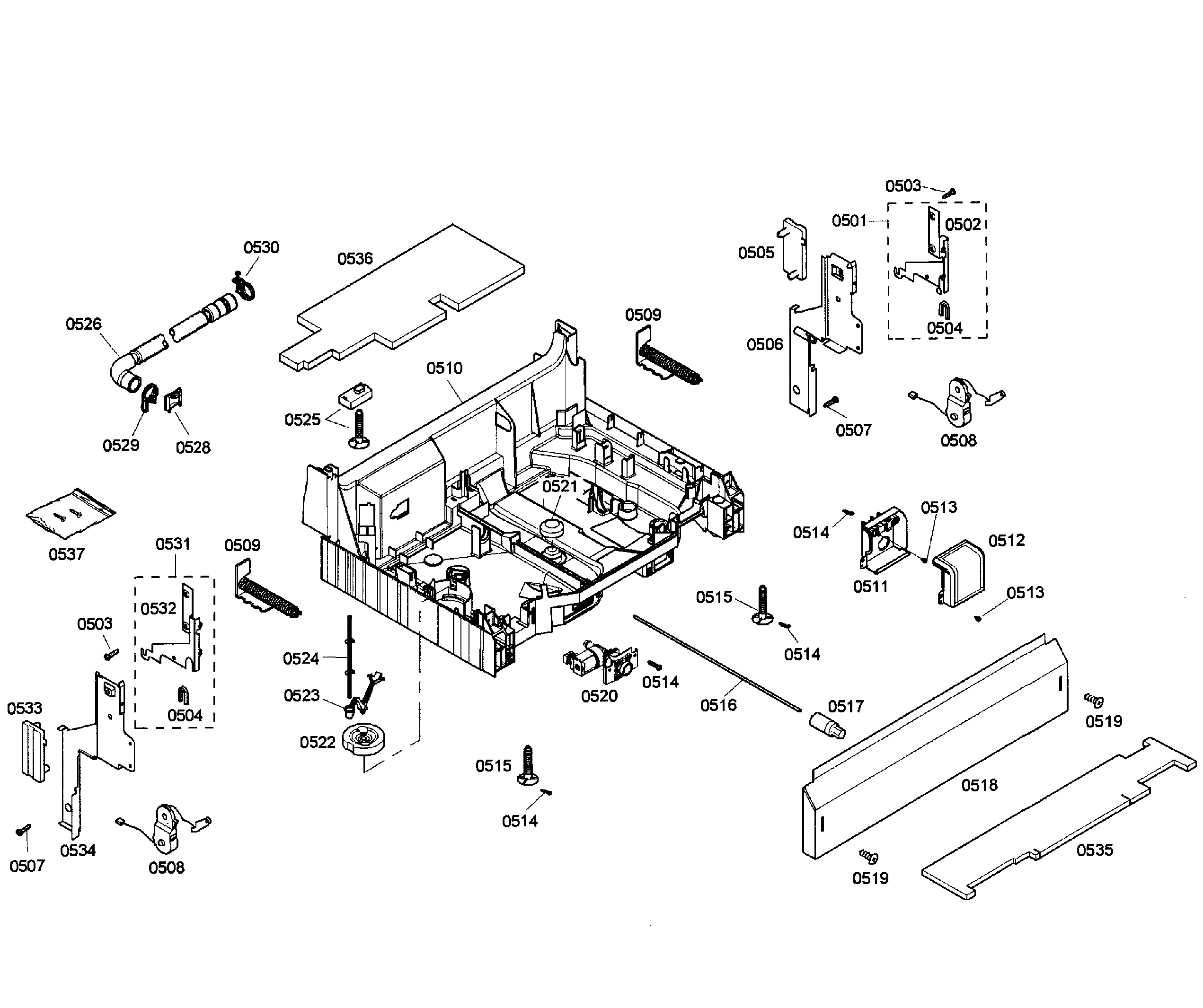

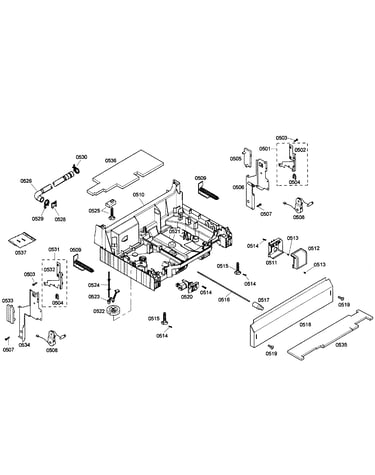

    Base assy diagram

    Dishwasher Water Inlet Valve

    Part #607335

    Replaced by #00607335

    Info Icon
    Manufacturer substitution
    This part replaces 607335. Substitute parts can look different from the original.
    In Stock
    $72.00
    8% OFF Phone Price : $78.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Mounting Bracket Kit for Bosch SHE55C05UC/50 - Part 00619985

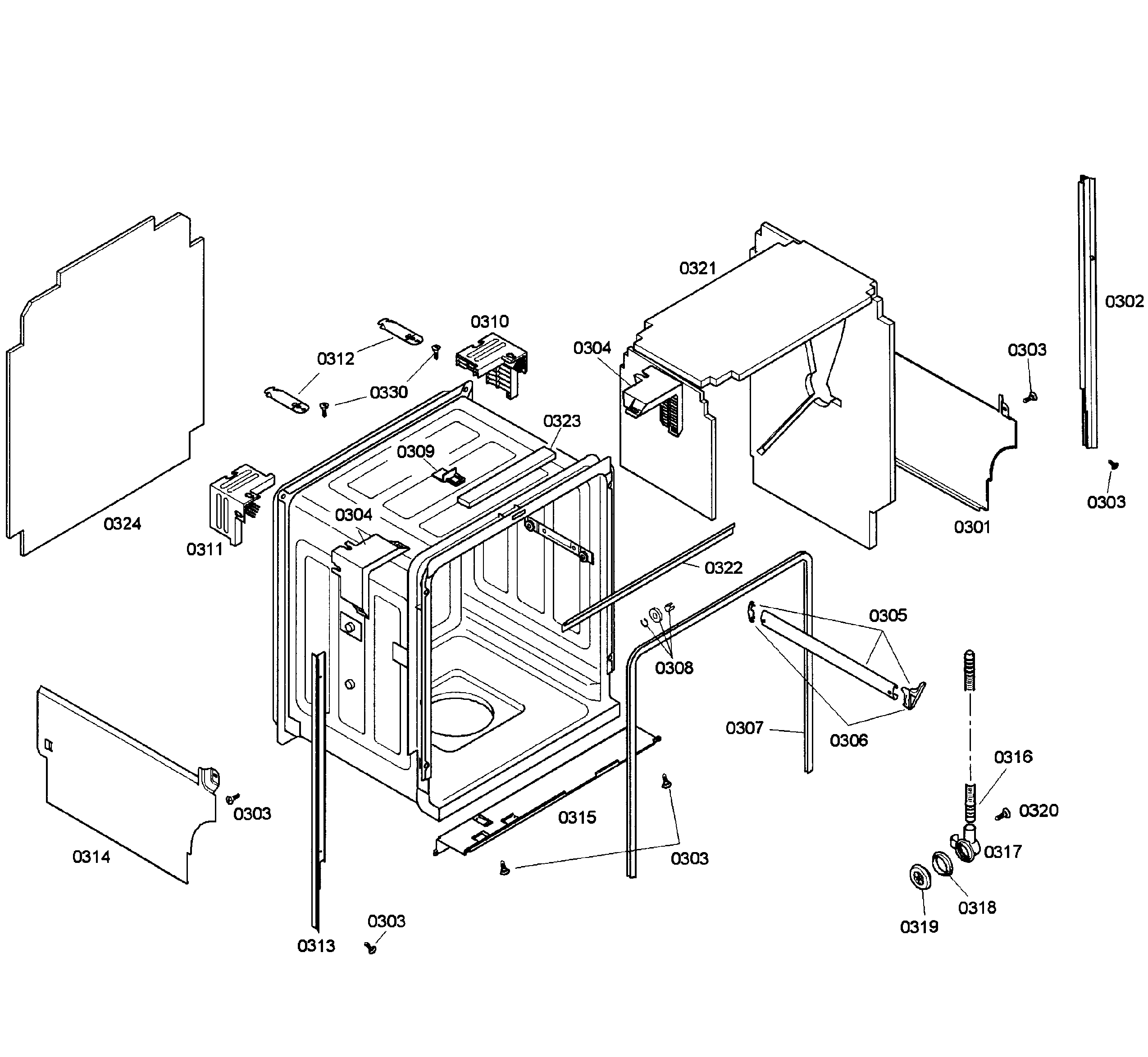

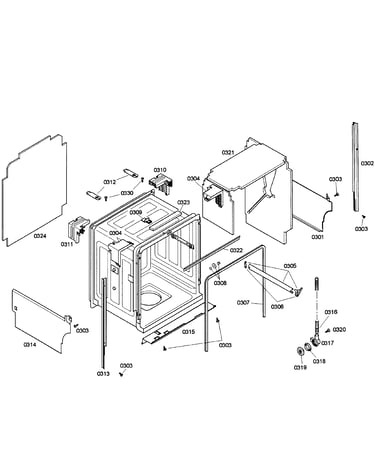

    Cabinet diagram

    Mounting Bracket

    Part #605007

    Replaced by #00619985

    Info Icon
    Manufacturer substitution
    This part replaces 605007. Substitute parts can look different from the original.
    In Stock
    $27.50
    18% OFF Phone Price : $33.50Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Door Latch for Bosch SHE55C05UC/50 - Part 00438026

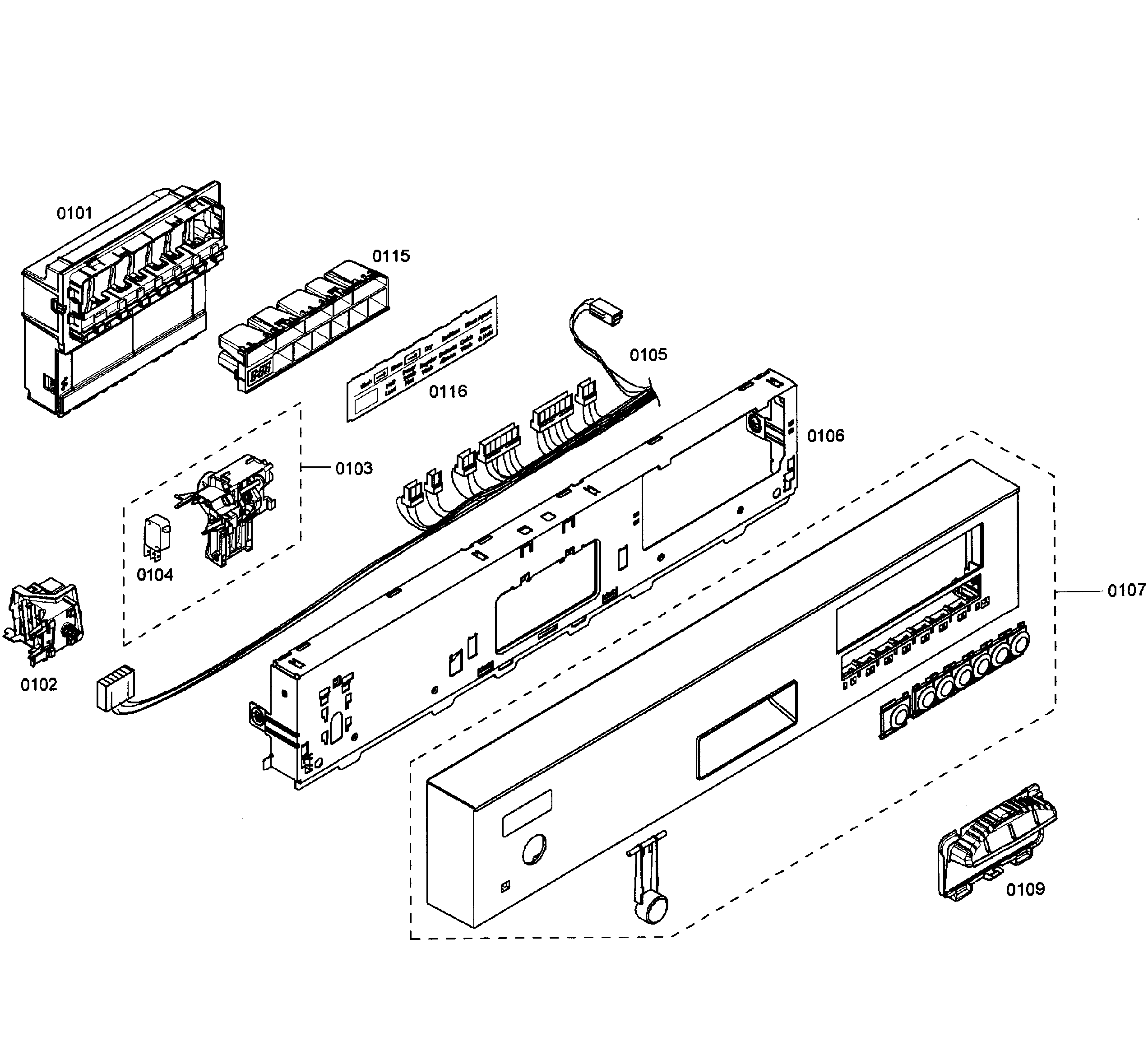

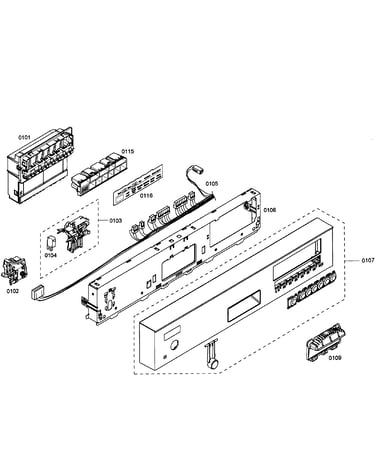

    Control panel diagram

    Dishwasher Door Latch

    Part #438026

    Replaced by #00438026

    Info Icon
    Manufacturer substitution
    This part replaces 438026. Substitute parts can look different from the original.
    In Stock
    $64.92
    8% OFF Phone Price : $70.92Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Dishrack Roller for Bosch SHE55C05UC/50 - Part 00165314

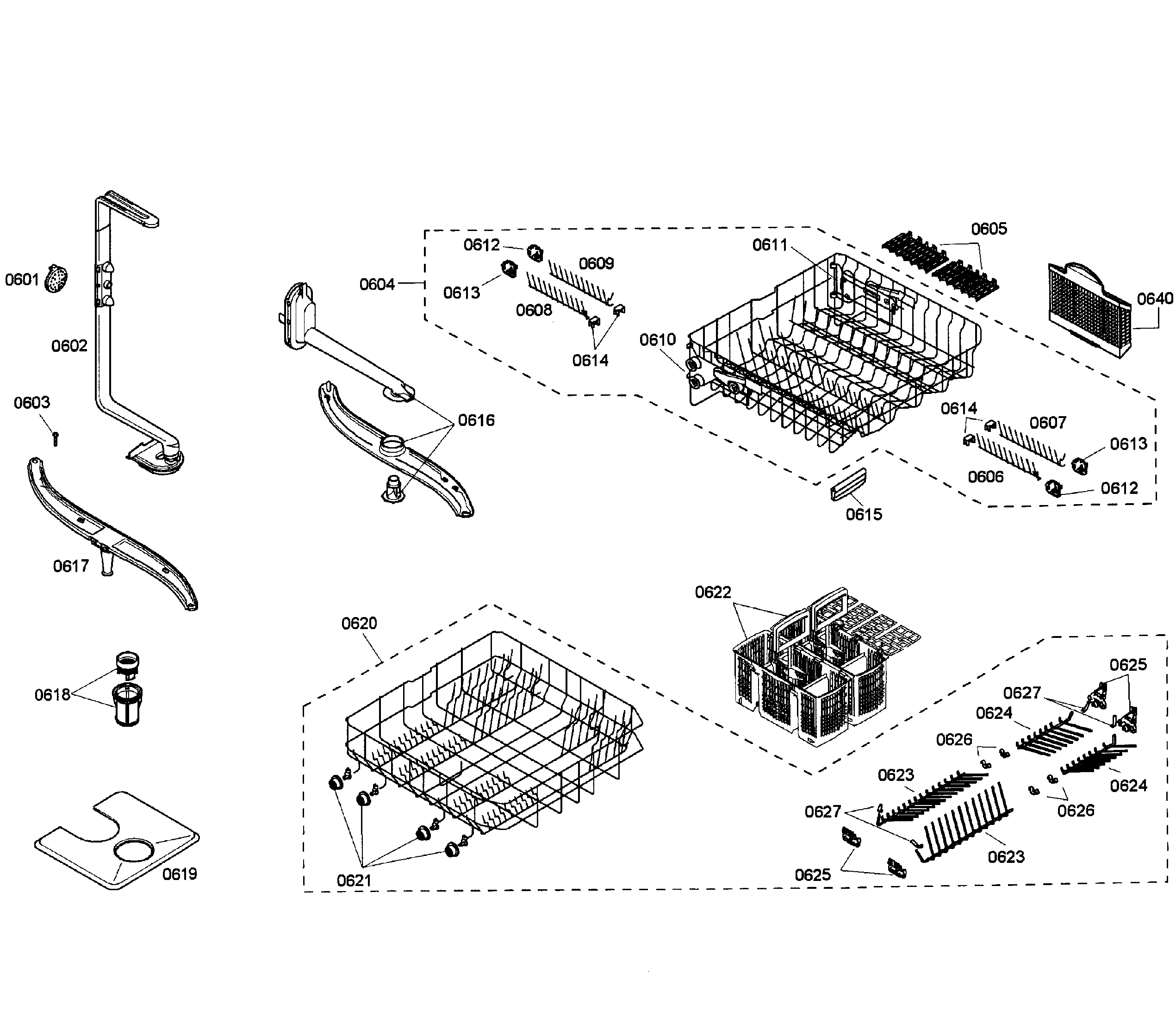

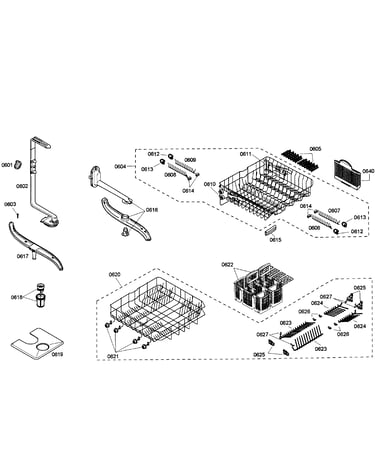

    Baskets diagram

    Dishwasher Lower Rack Wheels

    Part #165314

    Replaced by #00165314

    Info Icon
    Manufacturer substitution
    This part replaces 165314. Substitute parts can look different from the original.
    In Stock
    $24.99
    19% OFF Phone Price : $30.99Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Door Hinge Lever Bearing for Bosch SHE55C05UC/50 - Part 00165296

    Base assy diagram

    Bearing

    Part #165296

    Replaced by #00165296

    Info Icon
    Manufacturer substitution
    This part replaces 165296. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $20.05
    23% OFF Phone Price : $26.05Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Water-level Sensor for Bosch SHE55C05UC/50 - Part 00440670

    Pump assy diagram

    Chamber

    Part #440670

    Replaced by #00440670

    Info Icon
    Manufacturer substitution
    This part replaces 440670. Substitute parts can look different from the original.
    In Stock
    $39.28
    13% OFF Phone Price : $45.28Info Icon
    Minus Item
    Qty
    Plus Item

Bosch Dishwasher SHE55C05UC/50 FAQs

The most common issues we see with Bosch dishwashers like model SHE55C05UC are poor cleaning (usually from a dirty filter or blocked spray arm), draining problems (often a clog or pump issue), and leaks around the door (seal or latch alignment). Regular cleaning and correct water temperature prevent many of these problems.

Most common symptoms and what usually causes them
  • Dishes come out dirty: clogged filter, blocked spray arm holes, low water temperature, or overloading.
  • Dishwasher won’t drain: food debris in the sump, kinked/blocked drain hose, or a failing drain pump.
  • Bad odors: food buildup in the filter area and sump; infrequent cleaning.
  • Leaks at the door: worn door seal, door not latching squarely, or hinge wear.
  • Won’t start or stops mid-cycle: door not fully latched, control lock settings, or an error code.
Quick checks we recommend first (fast, no parts)
  1. Clean the filter area and remove any standing water or debris.
  2. Spin the spray arms by hand; clear any blocked jets.
  3. Run the hot water at the sink for 1 to 2 minutes before starting a cycle.
  4. Confirm the door closes firmly and the latch engages.
  5. If the unit shows an error, match it using Bosch dishwasher error codes.
Parts that commonly fix these problems on SHE55C05UC
Symptom Common fix Example part on this model page
Not draining Replace drain pump or clear drain path Drain pump 00642239
Leaking at door Replace lower door seal Door seal 00432490
Poor wash circulation Replace recirculation pump assembly Dishwasher recirculation pump assembly 00442548
Why it matters

Most “common Bosch dishwasher problems” start as airflow, water flow, or sealing issues. Keeping water hot (about 120°F) and keeping the wash system clear helps your pump, spray arms, and drain system work correctly, which improves cleaning and reduces odors.

For model-specific operating and care steps (including cleaning and self-help guidance), use the owner's manual.

Last updated: February 2026

We do not recommend running your Bosch SHE55C05UC dishwasher with an E22 error because it points to a drain or filter restriction; continuing to run it can leave standing water in the tub and strain the drain system. Clear the filter area first, then test a drain/reset cycle.

What E22 usually means on a Bosch dishwasher

E22 is most commonly tied to water not draining properly due to a clogged filter system or blockage in the sump area.

Check these items first:

  • Remove and clean the filter(s) and the area underneath them (food debris, glass, labels).
  • Make sure the drain path in the sump is clear and the impeller area is not jammed.
  • Verify the sink drain or garbage disposer inlet is not blocked.
  • Confirm the drain hose is not kinked, crushed, or routed incorrectly.
  • Run Cancel/Reset to force a drain and listen for the drain pump.

For model-specific filter removal and cleaning steps, follow the owner's manual.

When it is safe to try one more cycle (and when it is not)

Use this quick guide after you clean the filter area.

What you see after cleaning What to do next
Tub drains fully on Cancel/Reset Run a short cycle and recheck for the code
Water remains in tub, pump sounds strained Stop and inspect drain hose and pump area
No drain sound at all Check for a blockage, then plan for a drain pump diagnosis
Parts that commonly relate to an E22 drain problem

If cleaning does not fix it, the issue is often in the drain path components.

Common related parts for this model include:

Why it matters

An E22 condition means the dishwasher is not moving water out as designed. Fixing the restriction quickly helps prevent odors, poor cleaning, and extra wear on the drain pump and recirculation system.

Last updated: February 2026

Bosch’s highest-rated dishwashers are typically the premium series models (especially the 800 Series and Benchmark Series) because they combine very quiet operation, strong wash performance, and upgraded drying features. For feature details and cycle options on your Bosch SHE55C05UC, use the owner's manual.

What “highest rated” usually means for Bosch dishwashers

Ratings vary by reviewer, but they usually weigh these factors most heavily:

  • Noise level (dBA): quieter models score higher in kitchens that are open to living areas
  • Drying performance: plastics and mixed loads are the toughest test
  • Cleaning performance: soil removal on baked-on foods and heavy loads
  • Rack design and capacity: third rack, adjustability, and smooth-glide rails
  • Reliability and service history: fewer repeat issues over time
Bosch series comparison (quick guide)

These are the common “tiers” shoppers compare when looking for top-rated Bosch models.

Bosch series Typical strengths Best for
300 Series Strong value, quiet, solid cleaning Most households wanting Bosch quality at a lower cost
500 Series More features, improved drying options Buyers who want a step up in convenience
800 Series Premium quietness, top drying performance Shoppers prioritizing drying and low noise
Benchmark Series Flagship features and design upgrades Buyers who want the most premium Bosch lineup
How this relates to your Bosch SHE55C05UC

Your SHE55C05UC is a specific Bosch dishwasher model; the “highest rated” answer depends on whether you’re comparing within your current series or shopping across the full Bosch lineup. If you’re troubleshooting performance (not shopping), the fastest path is to check settings, filters, and any stored fault indicators.

  • Confirm the selected cycle and options match your load type
  • Clean the filter area and check spray arm movement
  • Verify hot water supply is around 120°F (common dishwasher target)
  • If you see an error, use a Bosch-specific code list for interpretation

For code meanings and next steps, we recommend our Bosch dishwasher error codes guide.

Why it matters

A “top-rated” dishwasher is usually the one that matches your priorities (quietness, drying, racks, cycle time). Knowing what reviewers score helps you compare series fairly and avoid paying for features you will not use.

Last updated: February 2026
