Model #66513963K014 Kenmore Elite undercounter dishwasher

Here are the repair parts and diagrams for your Kenmore Elite 66513963K014 undercounter dishwasher.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Showing 10 of 191 parts

Dishwasher Dishrack Adjuster Kit

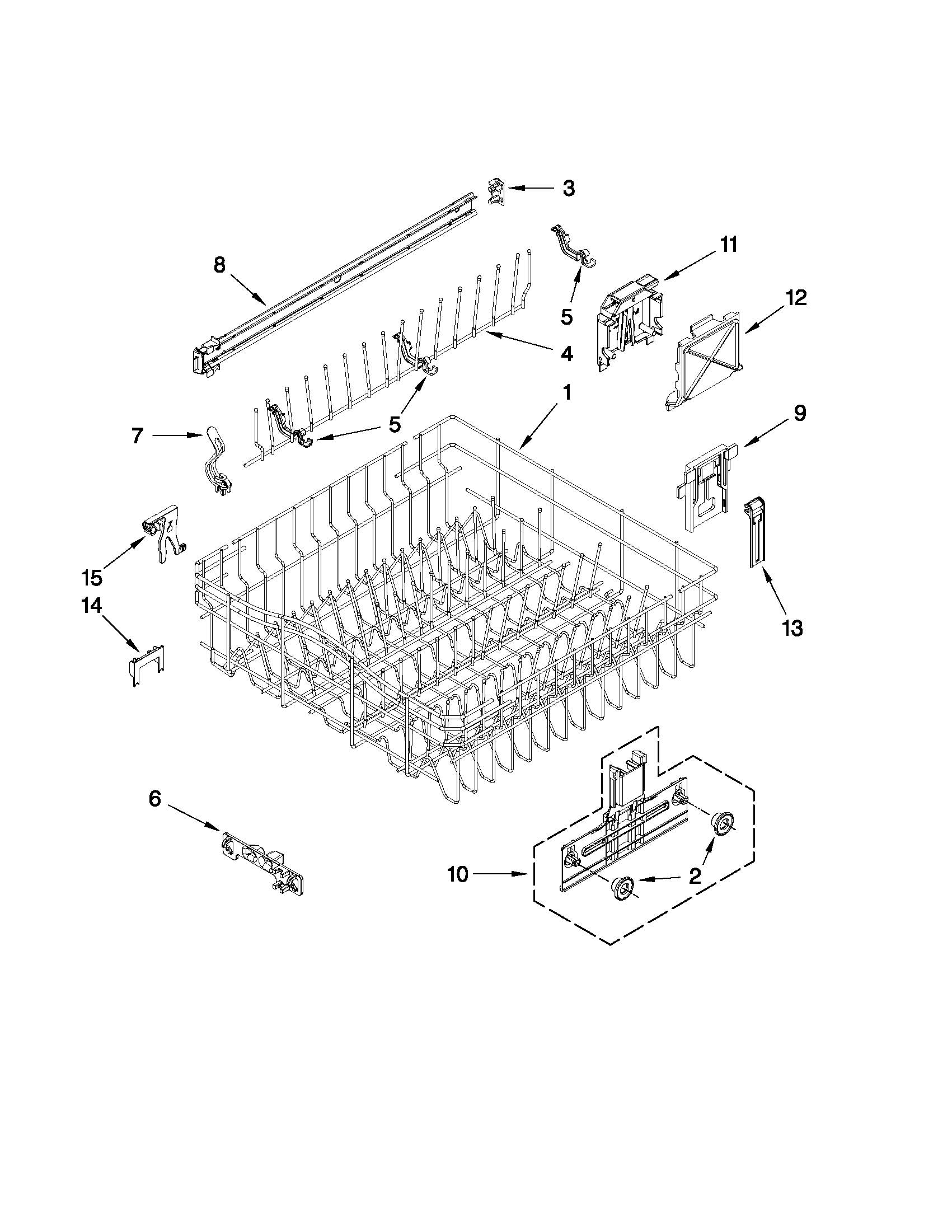

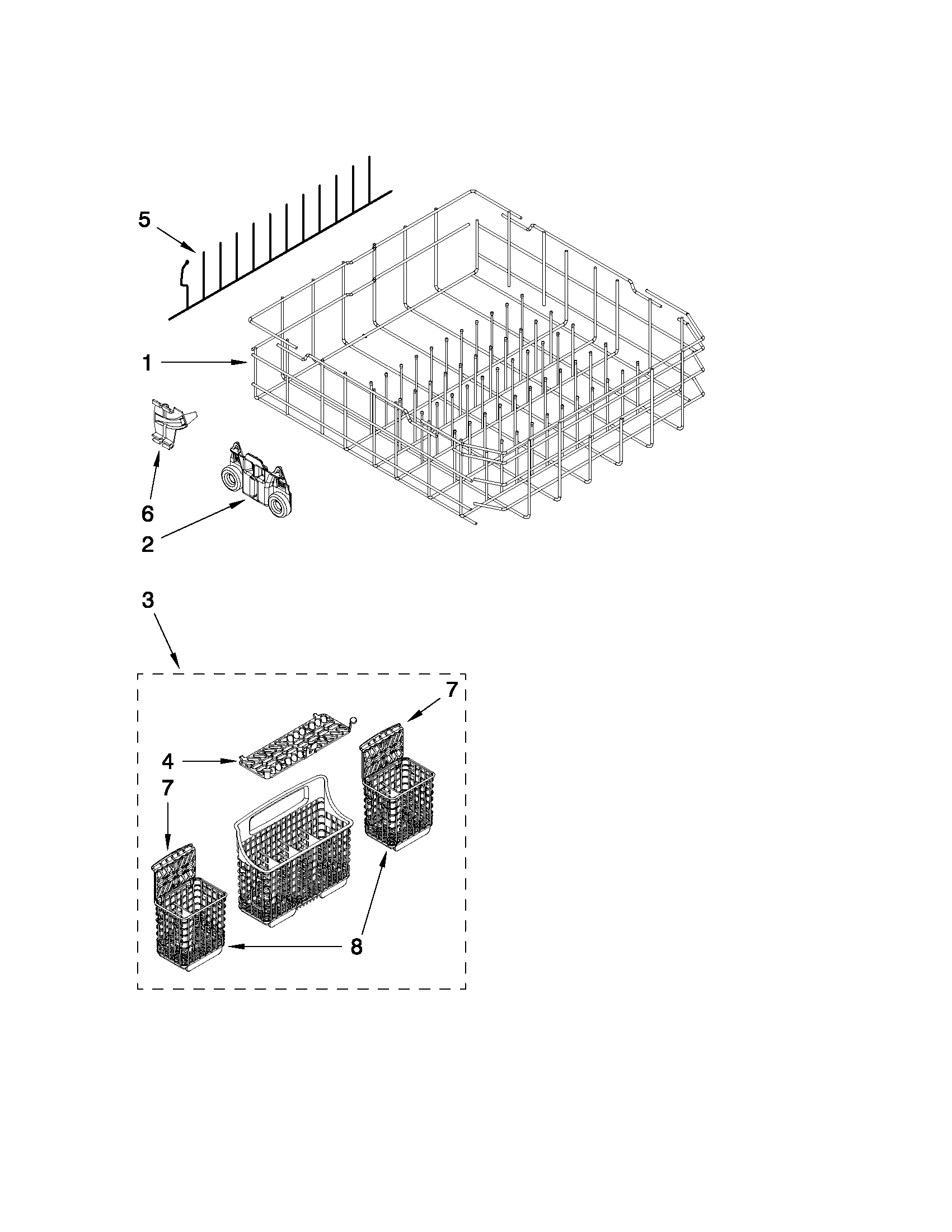

Upper rack and track parts Diagram


In Stock

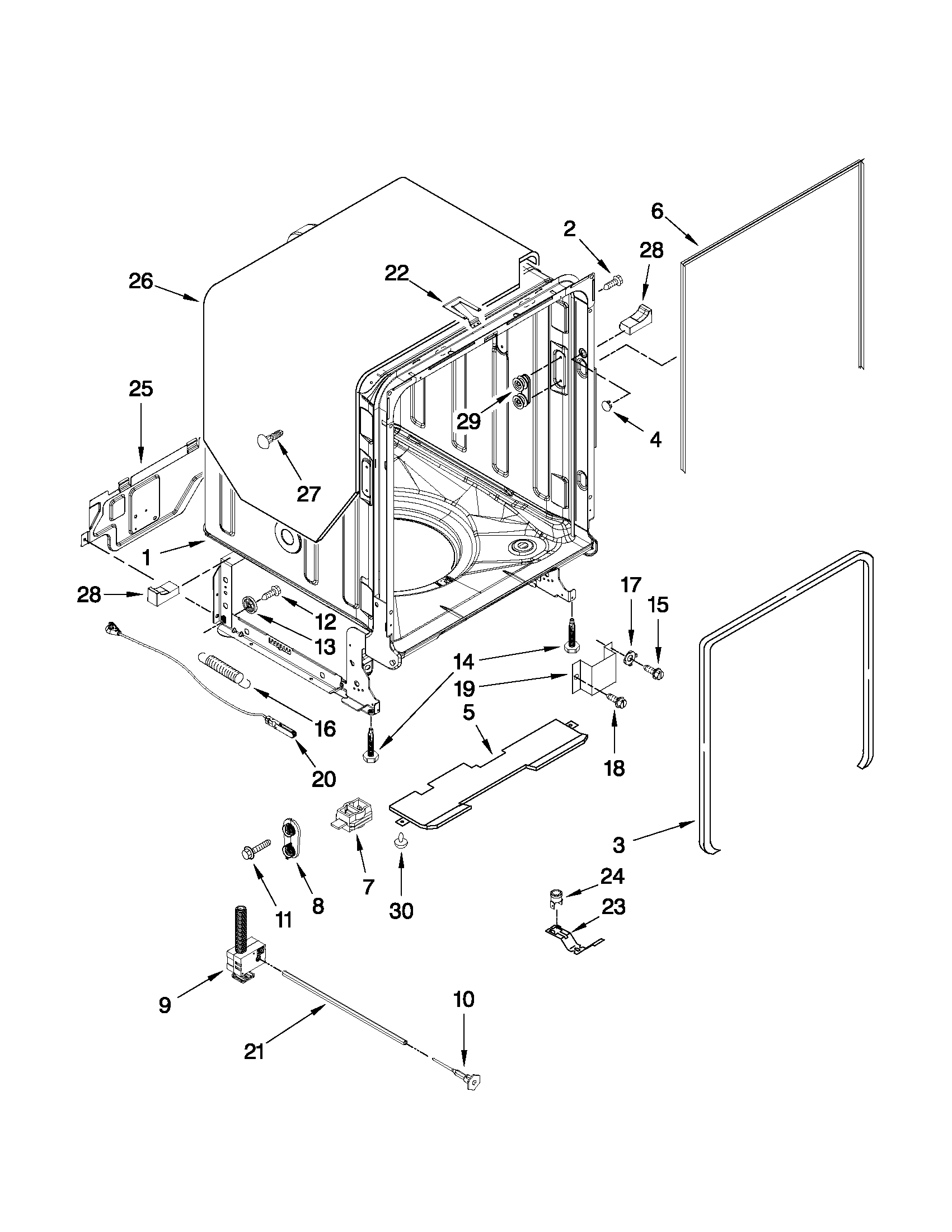

Dishwasher Side Mounting Bracket Kit


Optional parts (not included) Diagram

29% OFFMSRP:$16.32

In Stock

Dishwasher Drain Hose


Optional parts (not included) Diagram

Dishwasher drain hose

Part #3385556
13% OFFMSRP:$16.33

In Stock

Dishwasher Power Cord Kit


Optional parts (not included) Diagram


In Stock

Hose Clamp

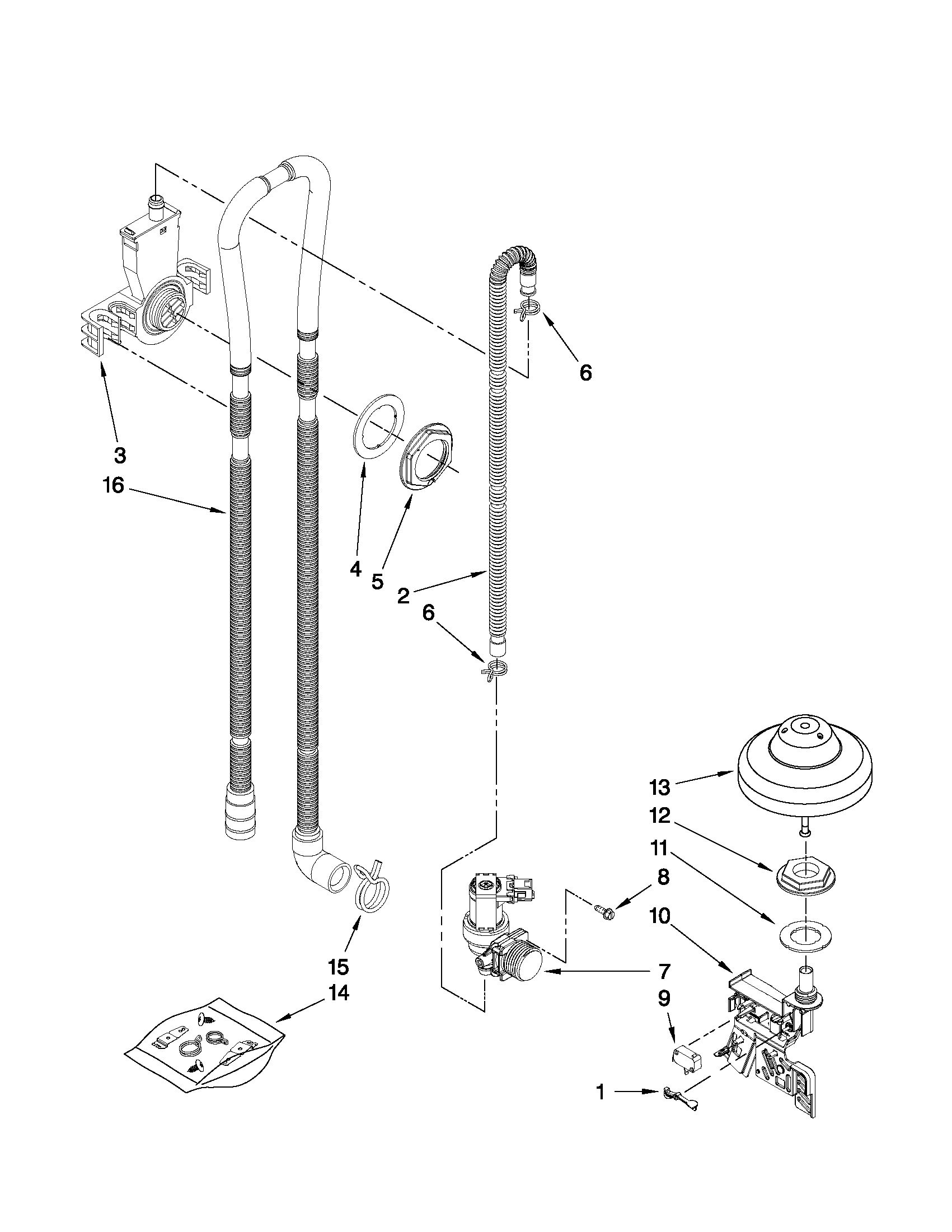

Fill, drain and overfill parts Diagram

Hose clamp

Part #370445
This item is not returnable
25% OFFMSRP:$4.49

In Stock

Dishwasher Moisture Barrier Kit


Optional parts (not included) Diagram

18% OFFMSRP:$9.68

In Stock

Dishwasher Fill Hose

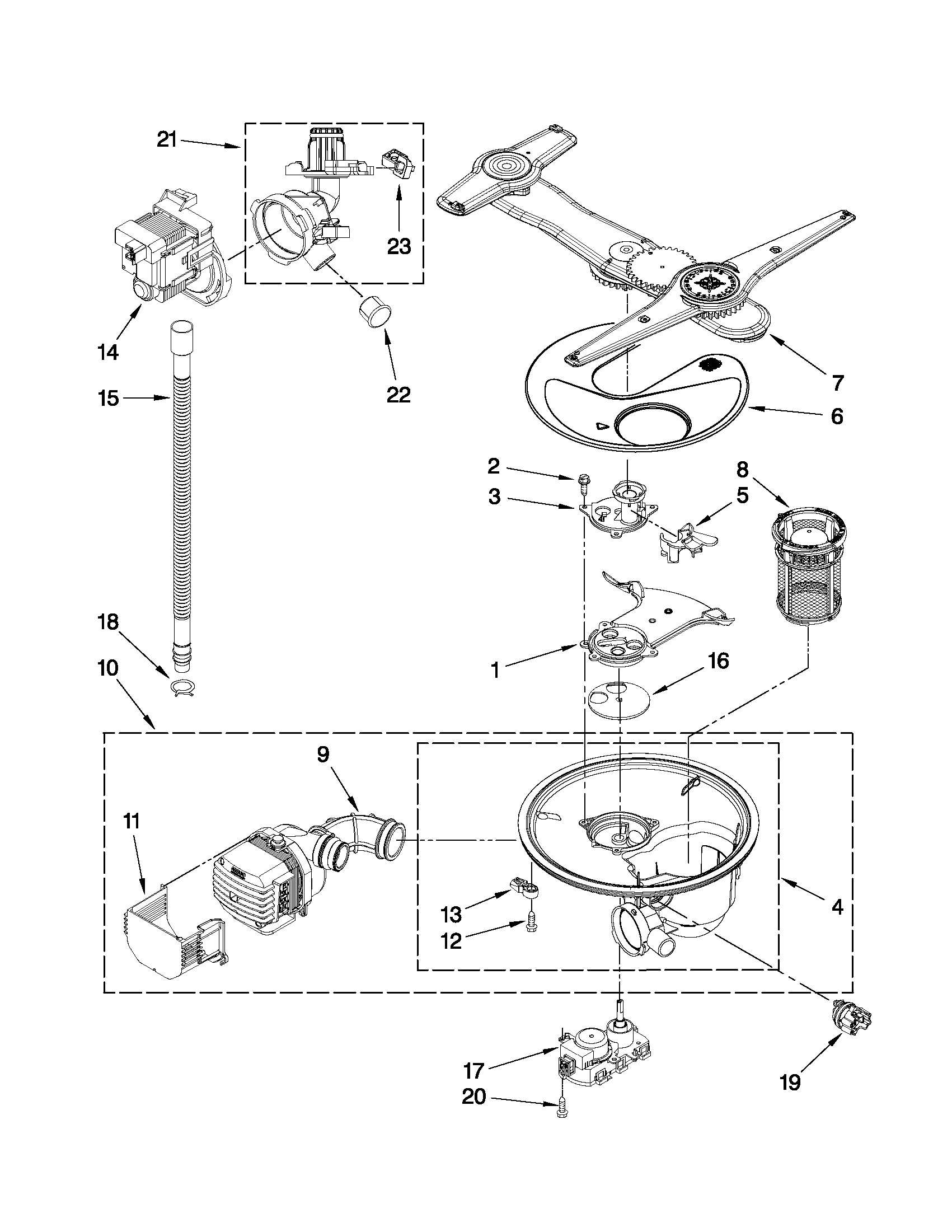

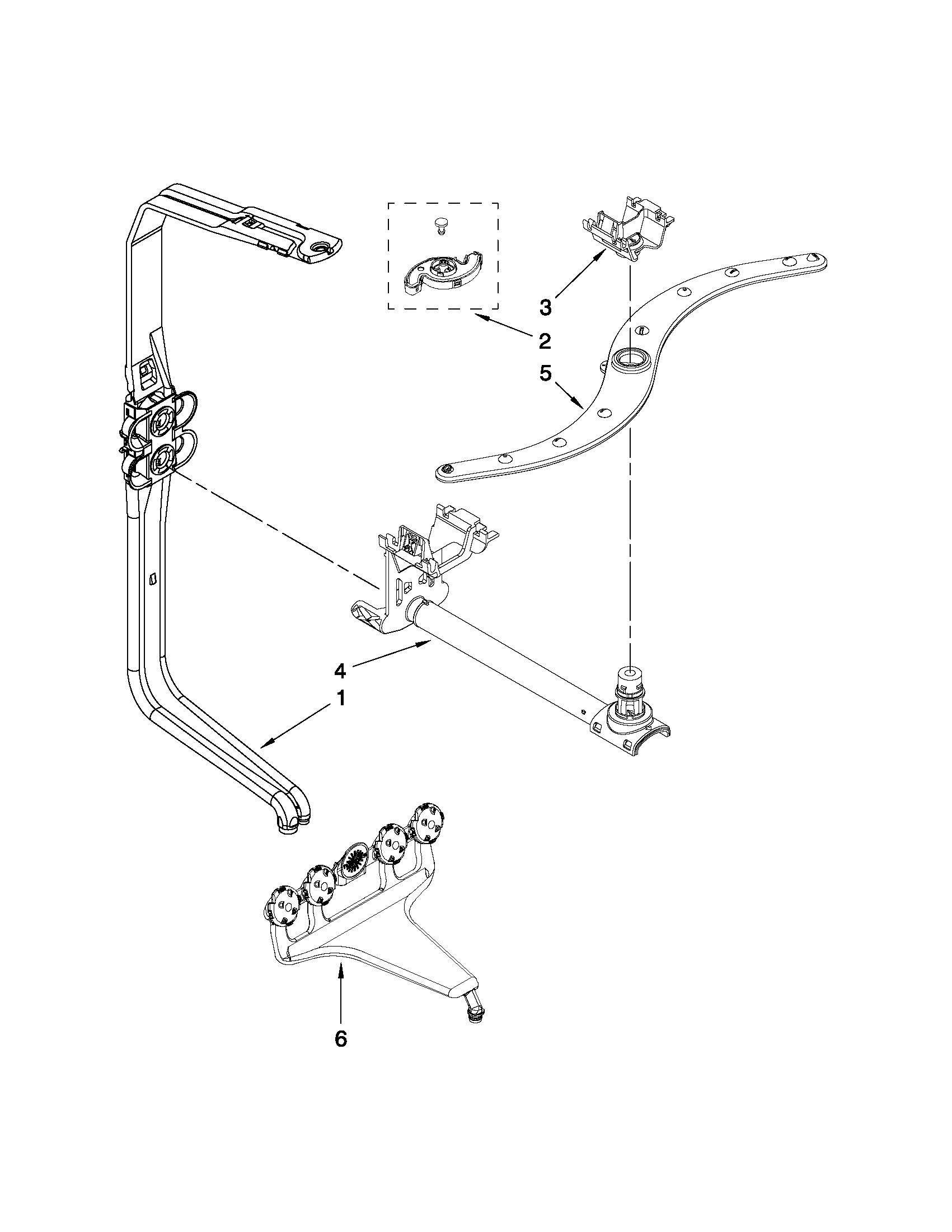

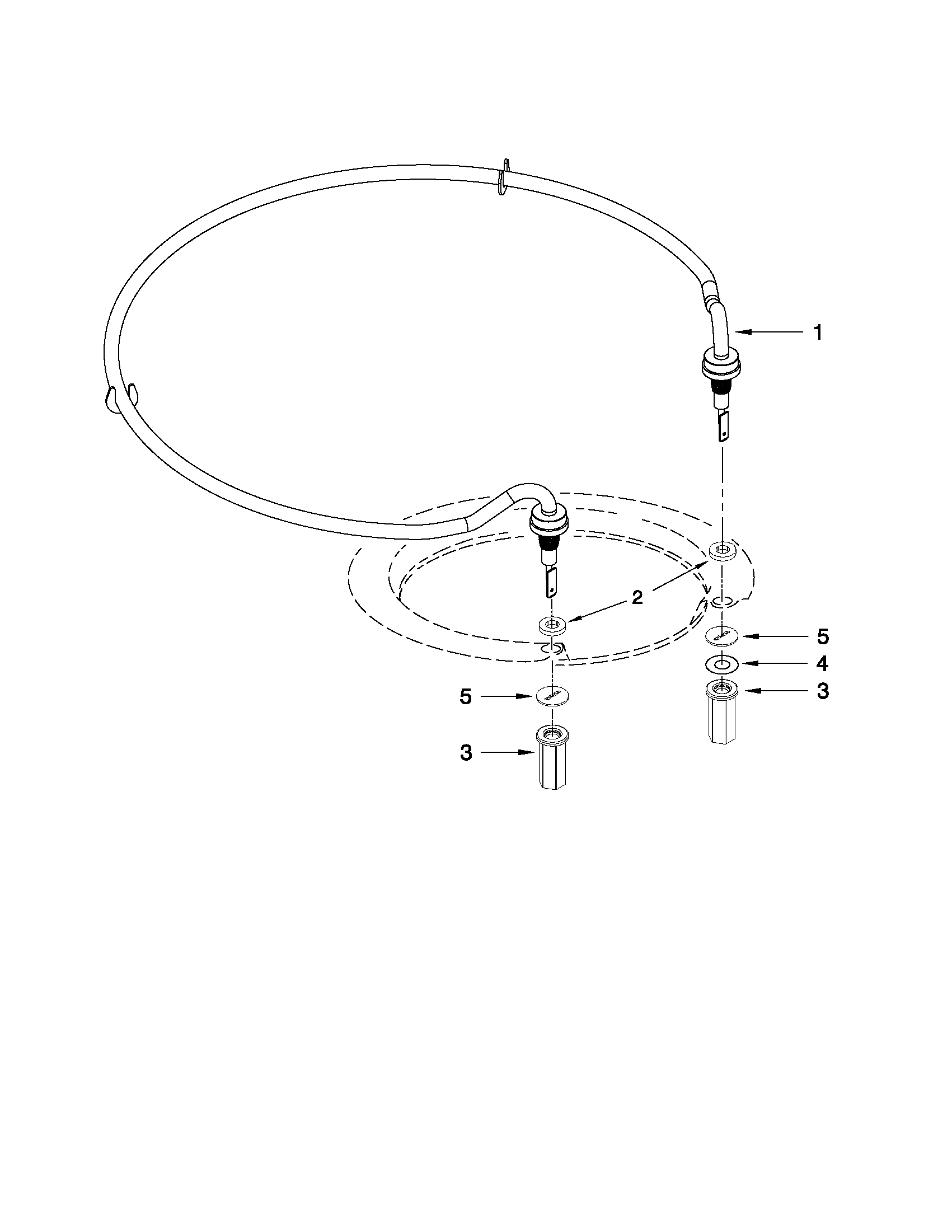

Pump, washarm and motor parts Diagram

Dishwasher fill hose

Part #W10168824
21% OFFMSRP:$150.00

In Stock

Dishwasher Pad Insert

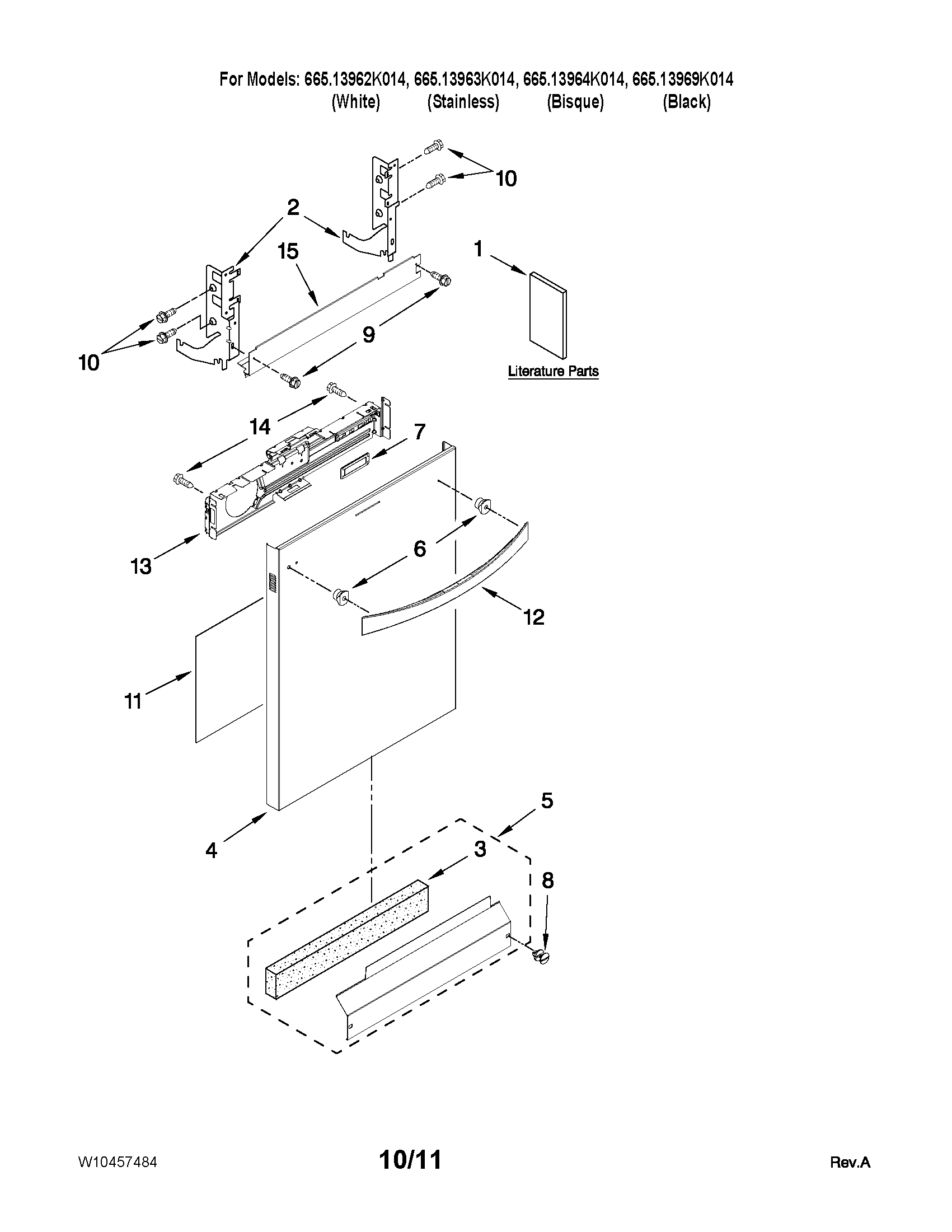

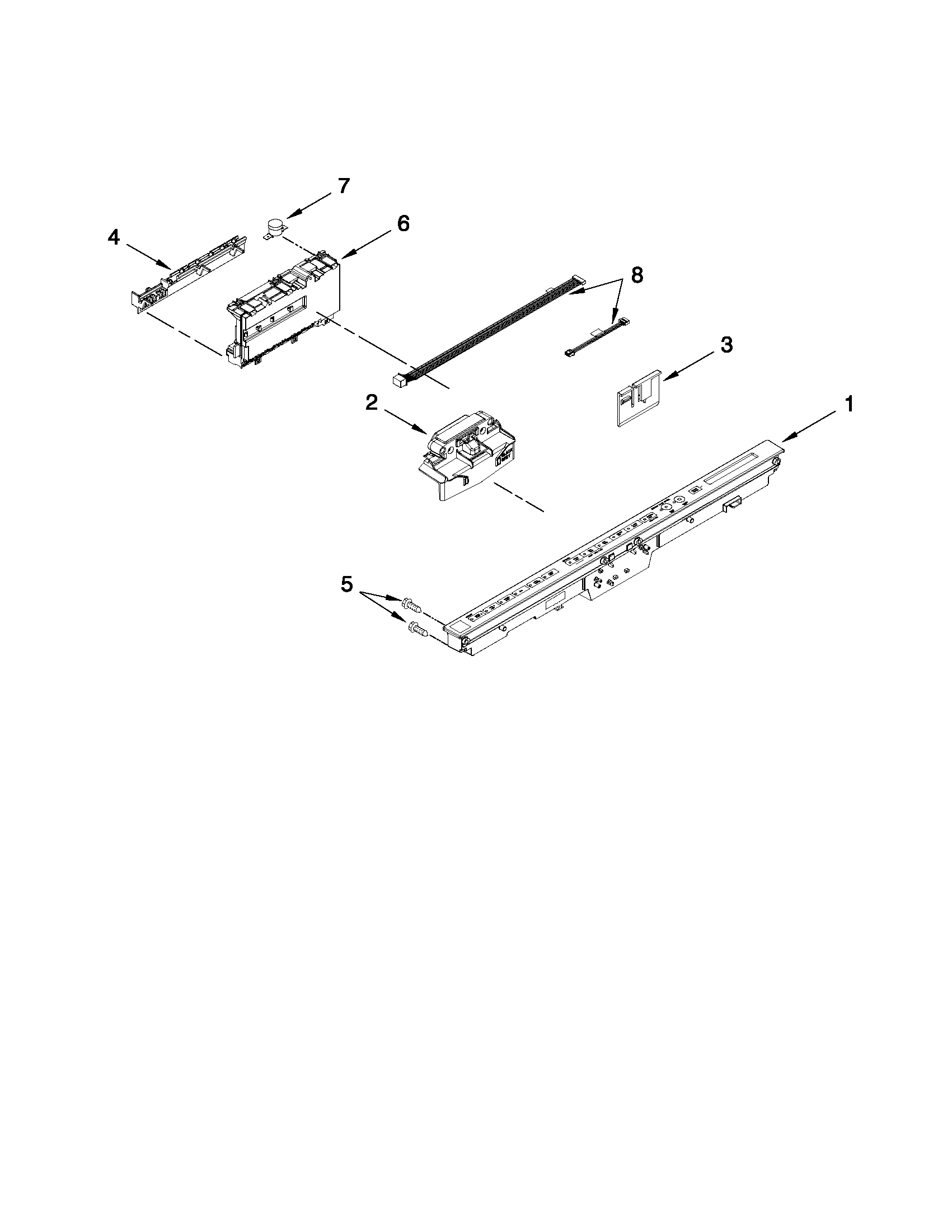

Door and panel parts Diagram

Dishwasher pad insert

Part #W10315897
51% OFFMSRP:$47.84

In Stock

Cup Shelf


Optional parts (not included) Diagram

Cup shelf

Part #W10082805

In Stock

Dishwasher Vapor Barrier


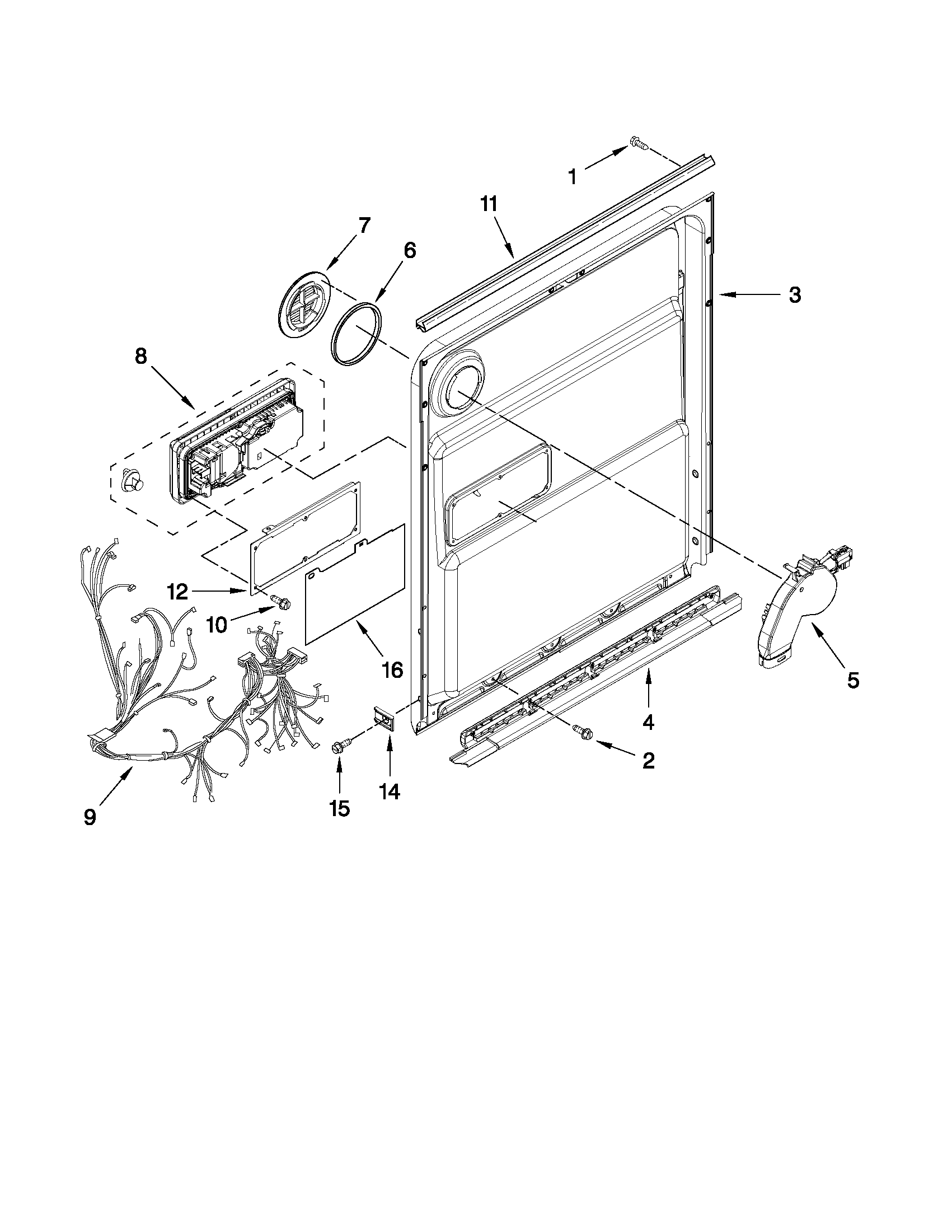

Inner door parts Diagram

Dishwasher vapor barrier

Part #W10195837
7% OFFMSRP:$13.63

In Stock

Symptoms common to all dishwashers

Choose a symptom to see related dishwasher repairs.

Main cause: damaged rack height adjuster
Main causes: broken door spring, detergent dispenser failure, cabinet mounting brackets loose or broken
Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracked water supply line
Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure, wiring problem
Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure
Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control system problem
Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, control system problem
Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in wash pump or drain pump
Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm or pump problems
