Craftsman 917288250 tractor Parts

Yes, many Craftsman mowers and lawn tractors use Briggs & Stratton engines, but it depends on the exact model. For Craftsman model 917288250, the operator documentation indicates a 24.0 HP engine, but it does not identify the engine brand in the available model-specific details; see the 917288250 operator's manual.

We recommend verifying the engine manufacturer using the engine’s ID label, because the tractor model number alone does not always specify the engine brand.

• Look for an engine label on the blower housing, valve cover, or near the starter
• Record the engine model, type, and code (or spec number)
• Match that engine ID to the correct tune-up parts (spark plug, air filter, fuel filter)
• Use the tractor’s parts diagrams to confirm chassis and deck parts by model 917288250
• If you are ordering maintenance parts, confirm whether the part is for the engine or the mower deck

From the model 917288250 manual, we can confirm key operating and maintenance specs that apply regardless of engine brand.

Briggs & Stratton, Kohler, and other engine makers often use different air filters, fuel filters, and ignition parts even when horsepower is similar. Confirming the engine ID helps ensure you get the right maintenance parts and avoid hard-starting or poor performance.

Last updated: January 2026

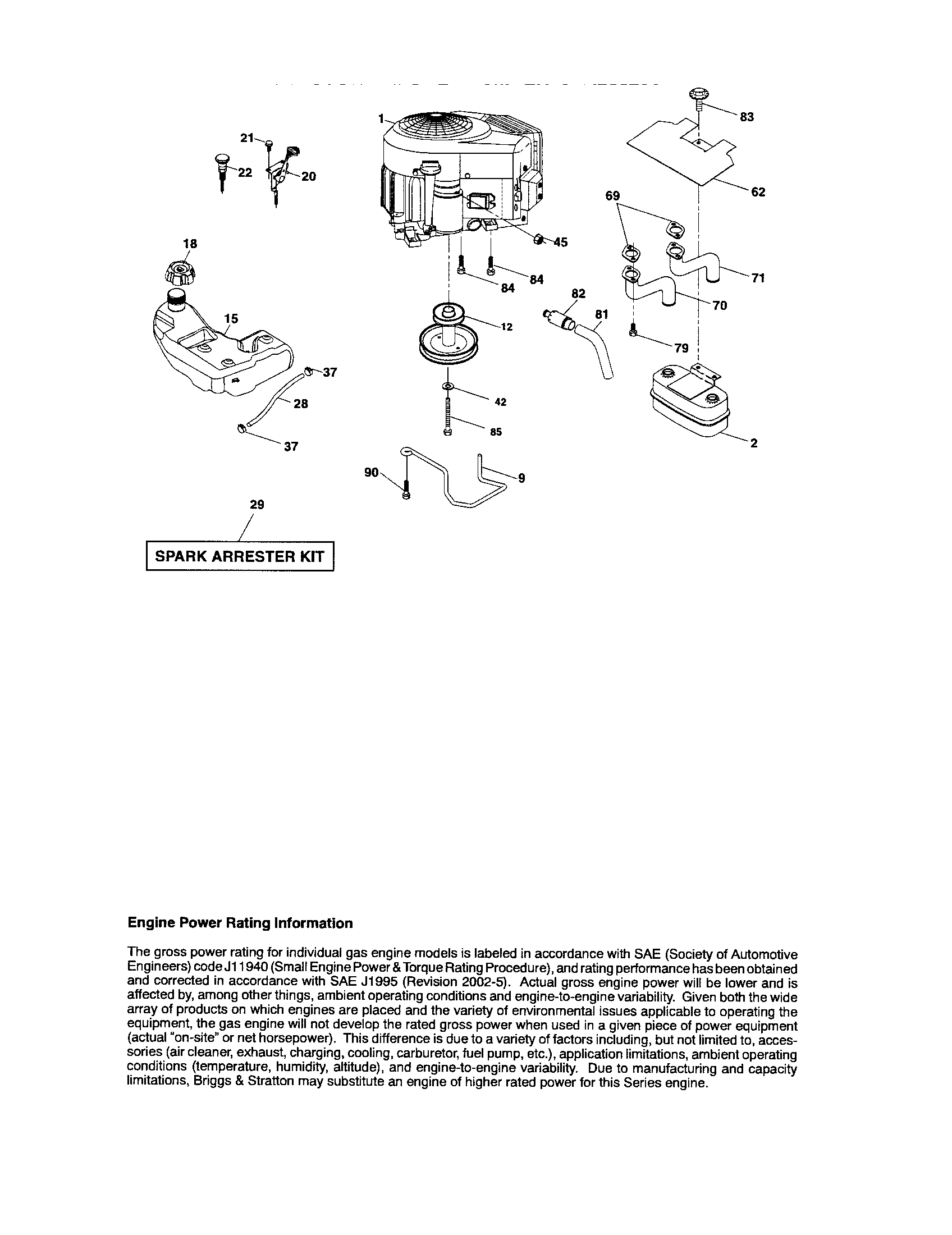

On the Craftsman 917288250 lawn tractor, the engine is made up of core systems that create power (internal parts), deliver fuel and air, ignite the mixture, and manage lubrication and exhaust. Exact component designs vary by engine family, but the major engine parts and systems are consistent across this model type; see the 917288250 owner's manual for maintenance and service guidance.

These are the most common tractor engine components you will hear referenced:

• Cylinder block and cylinder head: the main castings that house the combustion chamber
• Piston, piston rings, and connecting rod: convert combustion pressure into crankshaft rotation
• Crankshaft and bearings: turn reciprocating motion into usable rotary power
• Valve train (valves, springs, guides, lifters, pushrods, rocker arms): controls intake and exhaust flow
• Fuel system (fuel line, filter, carburetor or injection components): meters fuel into the engine
• Ignition system (spark plug, ignition coil, flywheel magnets): creates spark at the right time
• Lubrication system (oil sump, oil pump if equipped, oil passages, filter if equipped): protects moving parts
• Exhaust system (muffler, exhaust tube, gasket): routes exhaust and reduces noise

On a riding lawn tractor like the Craftsman 917288250, these engine-related items are typical wear or service parts:

• Spark plug
• Air filter (foam pre-cleaner and paper cartridge)
• Fuel filter
• Engine oil (and oil filter if equipped)
• Muffler and exhaust gasket (if corrosion or leaks develop)

Knowing the difference between internal engine parts and bolt-on service parts helps you troubleshoot faster and plan maintenance. Most performance issues start with fuel, air, spark, or oil condition before internal engine damage is involved.

Last updated: January 2026

For Craftsman lawn tractor model 917288250, we recommend high-quality detergent 4-cycle engine oil rated API SG-SL; use SAE 30 when operating above 32°F and SAE 5W-30 when operating below 32°F. See the exact oil specs in the 917288250 operator's manual.

Use the viscosity that matches your typical mowing temperature.

This model’s manual lists these capacities:

• With oil filter: 62 oz
• Without oil filter: 60 oz
• Check the dipstick and fill to the FULL mark; do not overfill.

• Check oil level on level ground before each use.
• Change oil about every 50 hours of operation or at least once a year.
• Multi-viscosity oils (like 5W-30) can increase oil consumption in warmer temps; check the level more often.
• Keep the engine cooling fins and air screen clean to help prevent overheating.

Using the correct viscosity helps your 917288250 start easier in cold weather, maintain proper lubrication under load, and reduce wear on internal engine parts during mowing.

Last updated: January 2026

On the Craftsman lawn tractor model 917288250, the model number is typically printed on a product identification label located under the seat, on the frame near the seat, or under the hood near the engine compartment. Use that exact number to match parts and manuals.

Check these spots first (wipe dirt and grass off the label so it is readable):

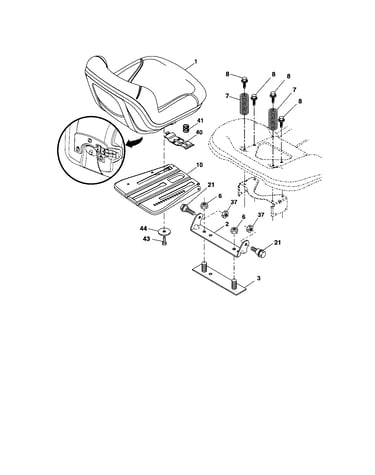

• Under the seat pan (lift the seat up)
• On the rear fender or frame rail near the seat
• Under the hood, on the chassis near the engine
• Near the footrest area on the frame (left or right side)
• On the mower deck shell (less common, but possible)

For this tractor, you want the tractor model number, not an engine-only number.

Craftsman tractors can look similar across years, but small changes in the deck, belts, pulleys, and safety switches can affect fit. Using the exact model number helps us match the correct diagrams, maintenance specs, and compatible replacement parts.

If you are confirming maintenance specs (oil type, spark plug, blade torque, etc.), use the 917288250 operator's manual.

Last updated: January 2026
