What kind of oil do you use in a Craftsman lawn tractor?
For the Craftsman lawn tractor model 917287141, use SAE 30 engine oil when temperatures are above 32°F, and SAE 5W-30 when temperatures are below 32°F. Use 4-cycle oil that meets API service classification SG-SL; see the owner's manual for the viscosity chart and maintenance intervals.
Use the oil grade that matches the outdoor temperature you will be operating in:
| Outdoor temperature | Recommended oil type | Notes |
|---|---|---|
| Above 32°F | SAE 30 | Best for warm-weather mowing |
| Below 32°F | SAE 5W-30 | Helps cold starting; check level more often |
Your tractor’s engine oil capacity depends on whether you change the filter at the same time:
- With oil filter: 56 oz
- Without oil filter: 48 oz
- Check the dipstick after filling; add oil slowly to avoid overfilling.
These steps help prevent hard starting, smoking, and engine wear:
- Park the tractor on level ground before checking oil.
- Remove the oil fill cap/dipstick, wipe clean, reinstall, then recheck.
- Keep the oil level at the FULL mark (do not overfill).
- Change oil every 50 hours of operation or at least once a year.
- In cold weather, switch to the winter grade before the season starts.
Using the correct viscosity helps the engine stay properly lubricated across temperature changes. Oil that is too thick in cold weather can make starting difficult; oil that is too thin for hot conditions can increase oil consumption and wear.
Last updated: February 2026

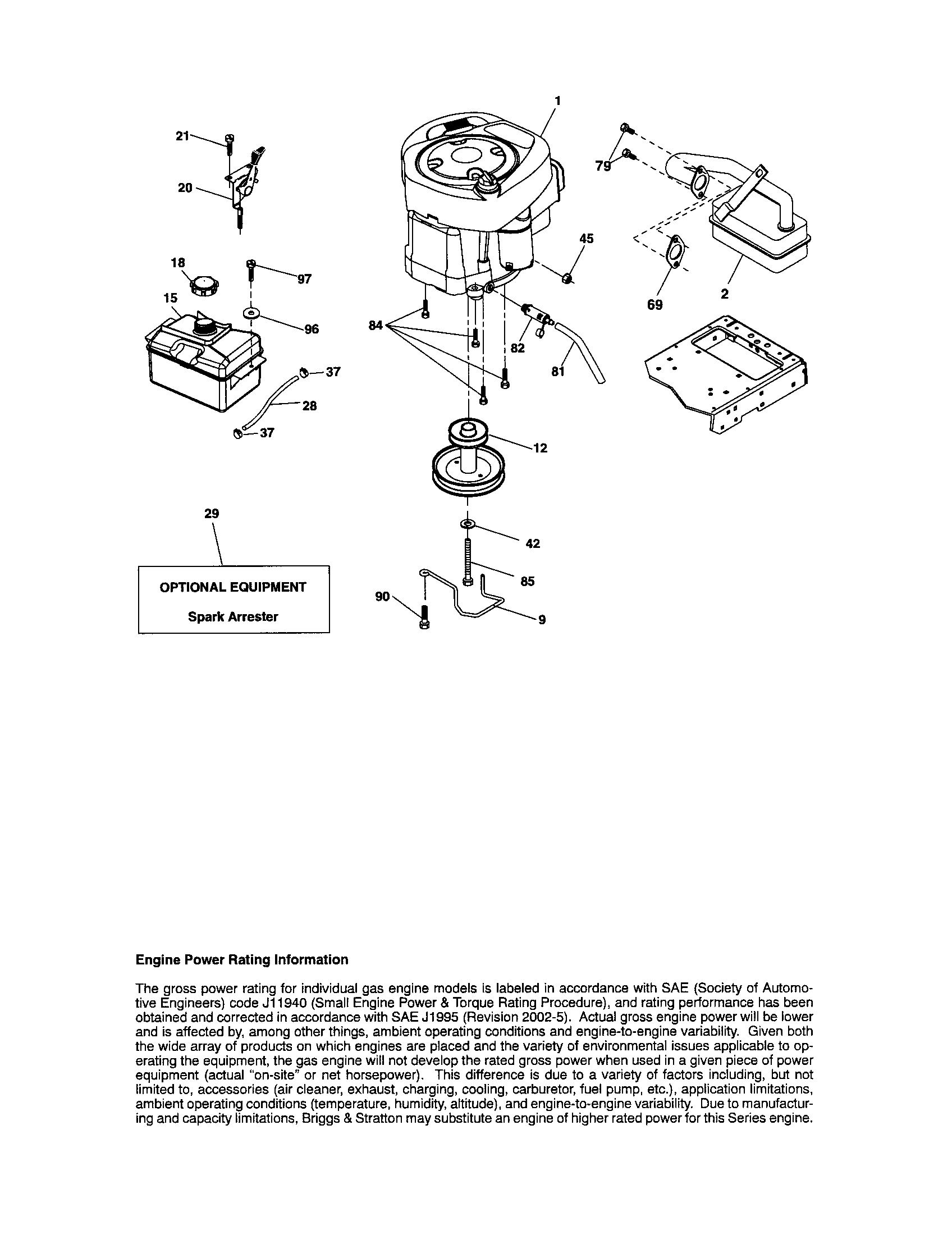

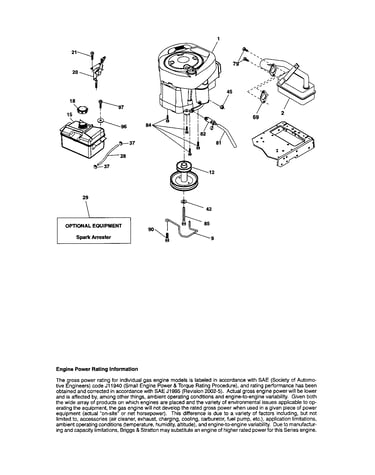

What kind of engine does a Craftsman riding lawn mower have?
The Craftsman riding lawn mower model 917287141 uses a low-emission internal combustion (gas) engine. This model is also equipped with safety interlocks that can shut the engine off if you leave the seat or attempt reverse operation with the mower engaged; see the owner's manual for the exact operating details.
From the model documentation, we can identify these engine-related basics:
- Gas-powered internal combustion engine (low-emission design)
- Engine operation differs from some older designs (follow the starting steps exactly)
- Spark arrester requirements may apply depending on where you operate
- Safety interlock system can shut off the engine in specific conditions
Engine brand and horsepower vary across Craftsman tractors, even within similar deck sizes. For 917287141, use the identification labels on your tractor to match the correct engine specs:
- Engine model/type label: typically on the engine shroud or valve cover area
- Tractor model label: usually under the seat or on the frame
- Manual specifications section: lists the tractor and engine specifications
| What you want to know | Where to find it | What to write down |
|---|---|---|
| Engine brand/model | Engine label plate | Engine model and type code |
| Horsepower rating | Manual/spec label | HP as listed |
| Single vs twin cylinder | Engine label/manual | Cylinder count |
The exact engine make and model determines the correct tune-up parts (spark plug, air filter, fuel filter), oil type, and troubleshooting steps for no-start or stalling issues. It also helps you choose the right repair procedure when the engine clicks, spins, or will not turn over.
If you are diagnosing an engine problem, these guides match the riding mower and tractor category:
- Riding lawn mower engine clicks but doesnt turn over video
- Riding lawn mower engine spins but wont start video
- Riding lawn mower engine wont turn over or click video
Last updated: February 2026
What year did Craftsman make the 917287141?
Craftsman model 917287141 is a model series, not a single year. The exact build year is determined by the serial number/date code on your tractor’s ID tag (commonly under the seat or on the frame). Use the date-code format shown in the 917287141 owner's manual to match your tractor to its manufacture date.
We recommend using the tractor’s ID tag because parts and wiring can change within the same model family.
- Park on a level surface, set the parking brake, and remove the key.
- Look for the model/serial label (often under the seat, on the rear fender pan, or on the frame rail).
- Write down the full serial number exactly as shown.
- Compare the serial/date code to the format described in the 917287141 owner's manual.
- If the label is damaged, check for a second label on the frame or near the engine compartment.
The operator’s manual for this tractor family identifies it as a Craftsman lawn tractor with a 20.0 HP engine and a 46-inch mower deck, and it lists the model as 917.28714 (a printed format that corresponds to 917287141 on parts listings). That confirms you are in the correct manual family for identifying the tractor and decoding the ID tag.
| Item | What it tells you | Where to find it |
|---|---|---|
| Model number (917287141) | The tractor family and parts platform | ID tag, parts listings, manual cover |
| Serial number/date code | The actual manufacture date (year) | ID tag on tractor |
Knowing the exact year helps you match the correct belts, pulleys, ignition parts, and deck components. For example, if you are troubleshooting starting or electrical issues, common replacements for this model family include the lawn tractor ignition switch 532193350 and the lawn tractor starter solenoid 582042802.
Last updated: February 2026
Is it worth replacing a lawn mower engine?
Yes, replacing the engine on your Craftsman 917287141 front-engine lawn tractor is worth it when the tractor’s deck, frame, steering, and transmission are still solid and the total engine-swap cost stays well below the cost of replacing the whole tractor. If multiple major systems are worn out, put the money into a replacement instead.
- The mower deck is not rusted through and the mandrels spin smoothly.
- The tractor drives normally (no slipping, grinding, or loss of power under load).
- The wiring and safety switches are in good shape (no repeated no-crank issues).
- You can complete routine maintenance reliably (oil changes, air filter, spark plug).
- The engine failure is truly internal (thrown rod, no compression) and not fuel, spark, or battery related.
Use this simple guideline to decide quickly.
| If your total engine swap cost is... | Typical recommendation |
|---|---|
| Under ~35% of a comparable replacement tractor | Replace the engine |
| ~35% to 50% | Replace engine only if the rest of the tractor is excellent |
| Over ~50% | Replace the tractor |
Many “dead engine” complaints are actually tune-up or starting-circuit issues. The troubleshooting chart in the owner's manual points to common fixes like battery service, wiring checks, and ignition/solenoid testing.
Start with these high-impact checks:
- Battery condition and clean, tight terminals
- Fuse and wiring connections
- Spark plug and spark plug wire connection
- Air filter condition and fuel freshness (use fuel within about 30 days)
- Safety interlock operation (brake pedal depressed, attachment clutch disengaged)

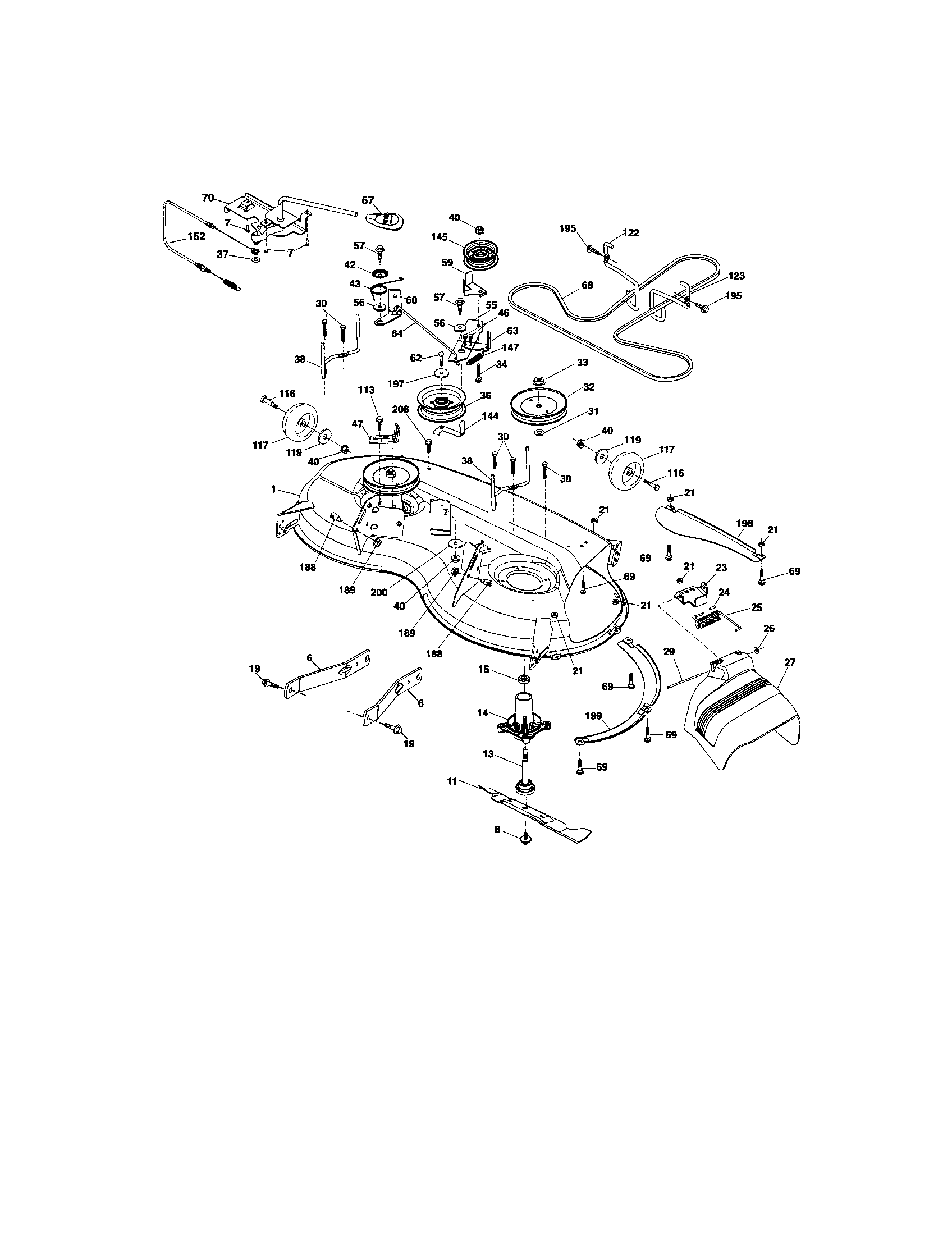

If the tractor has vibration, poor cut, or blades that will not rotate, you may be looking at deck-drive wear instead of an engine problem.
Common deck-drive culprits include:
- Worn belt: husqvarna lawn tractor blade drive belt 584453101
- Frozen or worn pulley: lawn tractor blade idler pulley 532177968
- Worn mandrel assembly: lawn tractor mandrel housing 587819701
An engine swap only pays off when it restores a reliable machine. If the deck, belts, pulleys, and safety systems are already near end-of-life, you can end up chasing repeated breakdowns even after installing a new engine.
