Model # LTF2940FS1 Official Frigidaire washer

Here are the diagrams and repair parts for Official Frigidaire LTF2940FS1 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

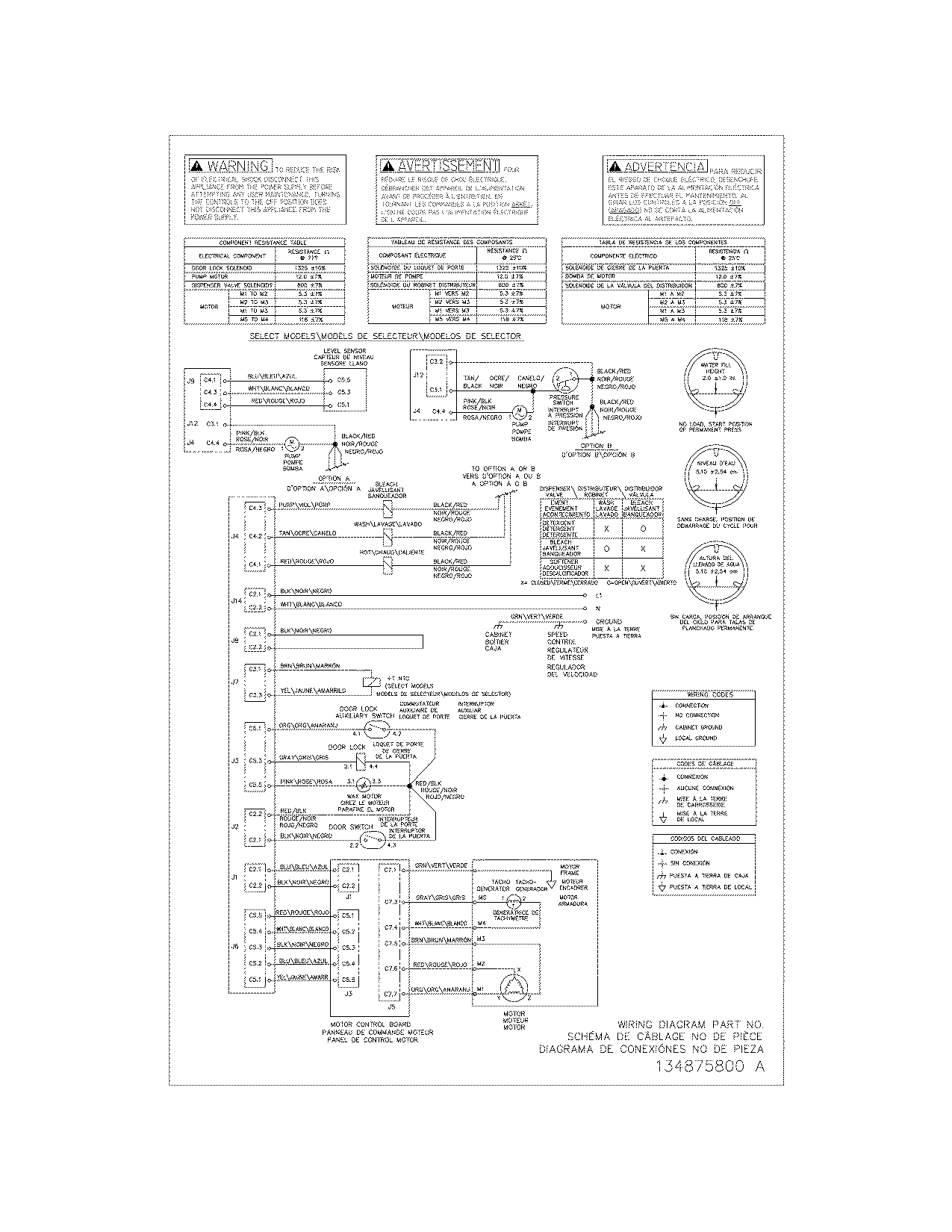

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |

Door Lock Switch 131763245
#8

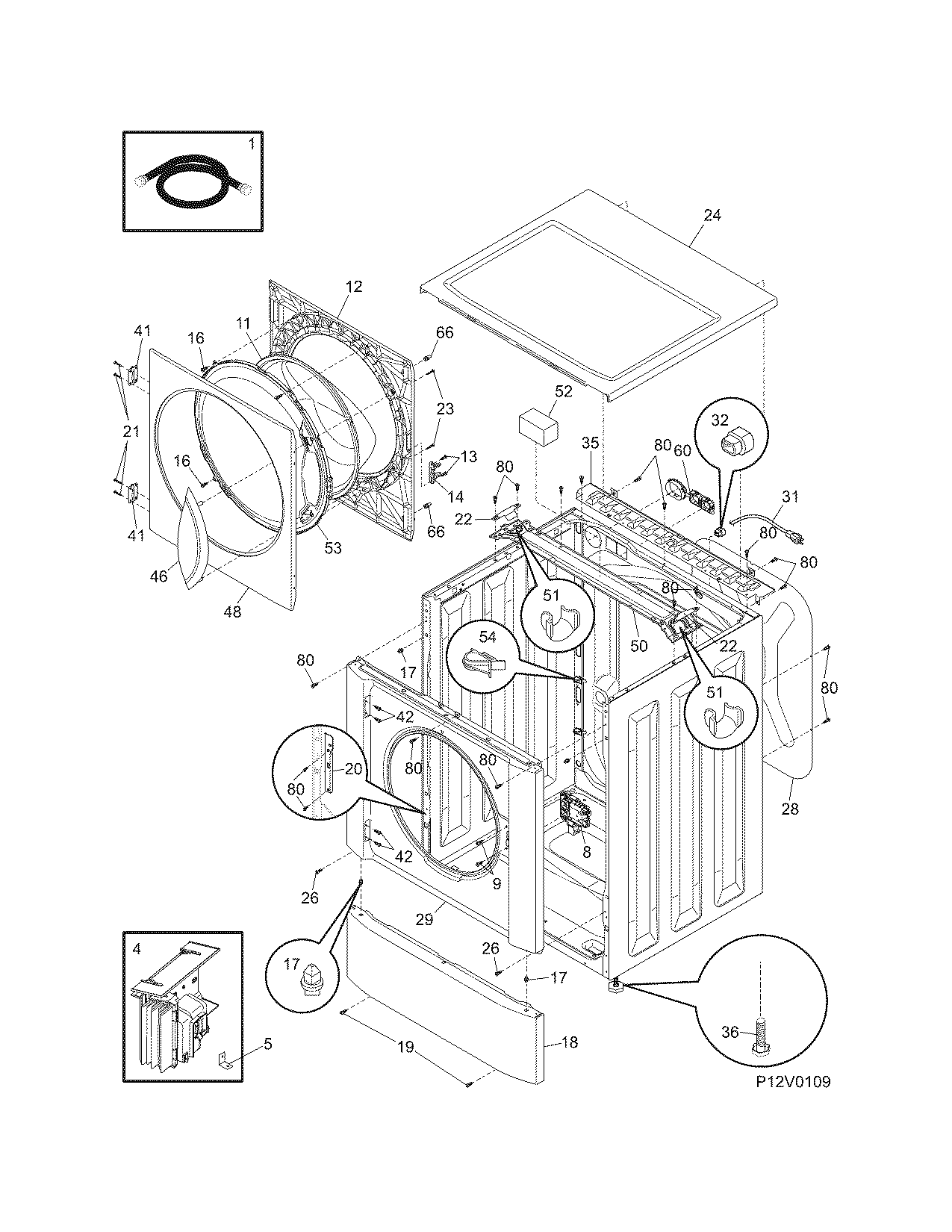

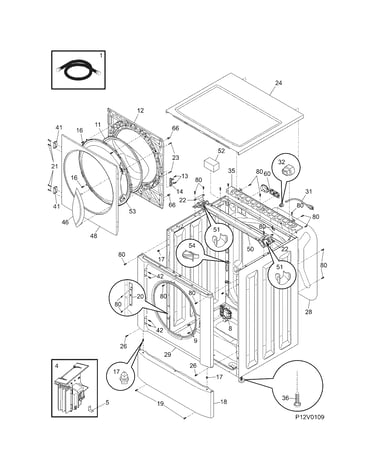

Cabinet/top diagram

Door lock switch

Part #131763245

Replaced by #131763256

?
Manufacturer substitution
This part replaces 131763245. Substitute parts can look different from the original.
BEST SELLER
$114.08
8% OFF Phone Price : $124.08
In Stock
Washer Door Strike (replaces 134456600) 131763310
#14

Cabinet/top diagram

Washer door strike (replaces 134456600)

Part #131763310

BEST SELLER
$13.67
13% OFF Phone Price : $15.67
In Stock
Screw 134547800
Screw

Part #134547800

Replaced by #131168200

?
Manufacturer substitution
This part replaces 134547800. Substitute parts can look different from the original.
BEST SELLER
$10.87
36% OFF MSRP : $17.00
In Stock
Washer Door Boot Spring Clamp (replaces 134365400) 134527100
#49

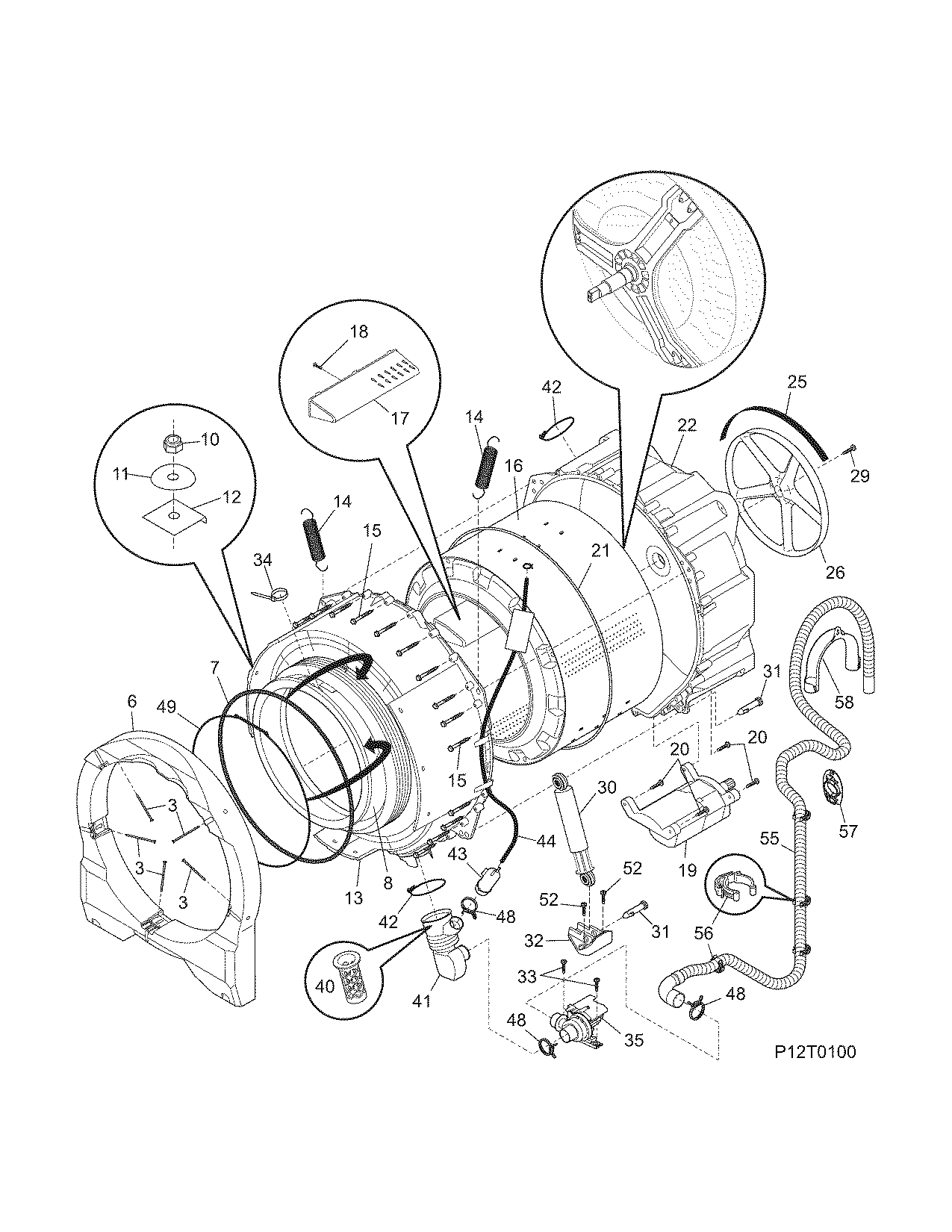

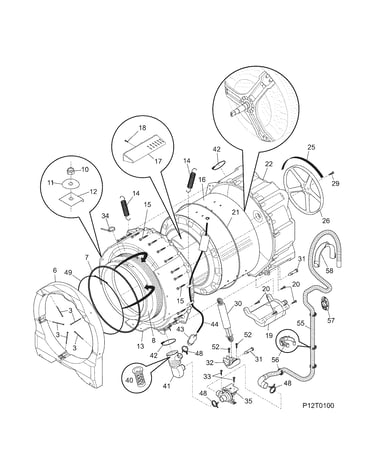

Motor/tub diagram

Washer door boot spring clamp (replaces 134365400)

Part #134527100

BEST SELLER
$34.85
13% OFF Phone Price : $39.85
In Stock
Washer Dispenser Drawer 134370000
#45

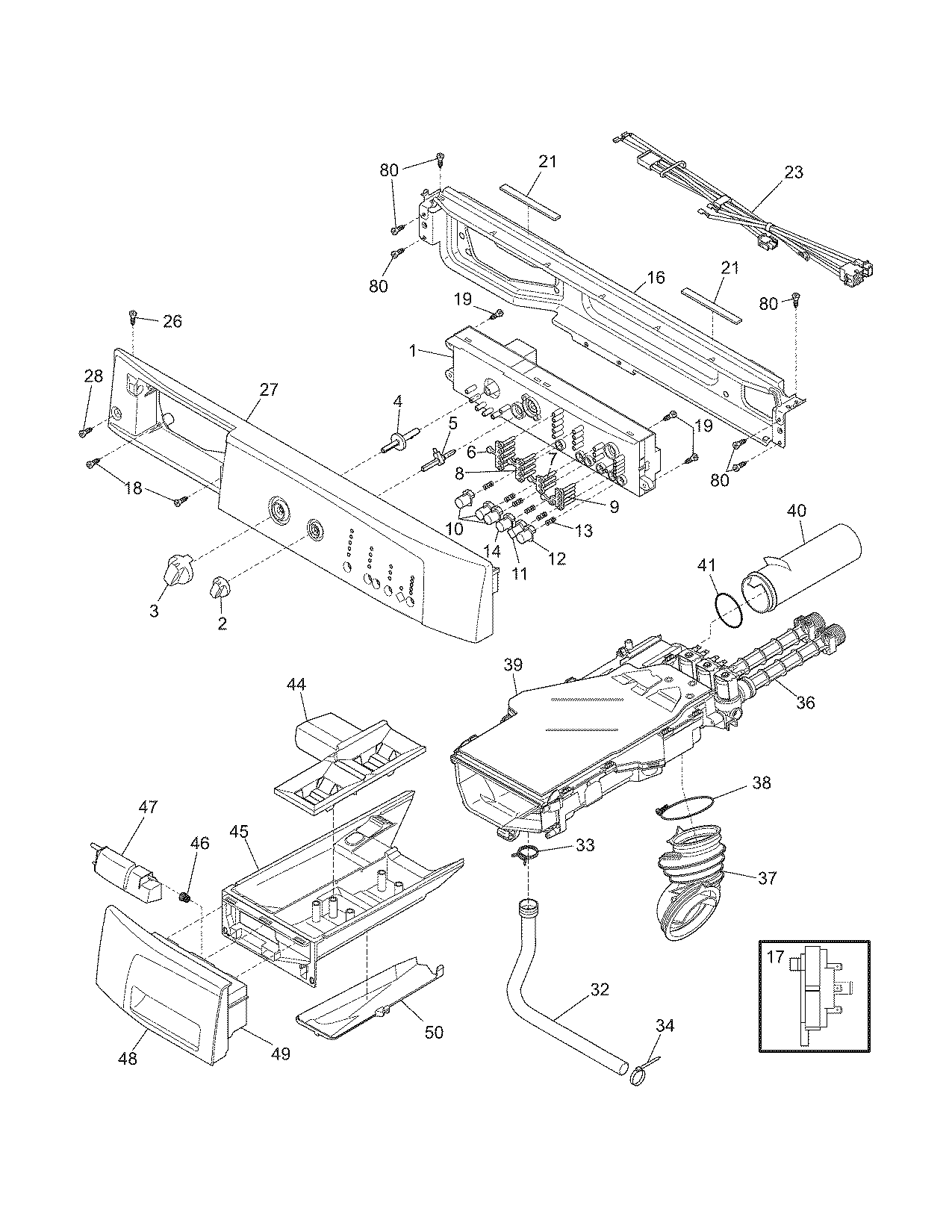

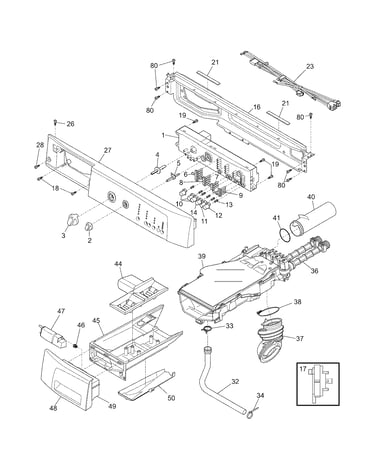

Control panel diagram

Washer dispenser drawer

Part #134370000

BEST SELLER
$46.59
10% OFF Phone Price : $51.59
In Stock
Bellows 134740900
#8

Motor/tub diagram

Bellows

Part #134740900

Replaced by #134515300

?
Manufacturer substitution
This part replaces 134740900. Substitute parts can look different from the original.
BEST SELLER
$254.30
$10.00 OFF Phone Price : $264.30
In Stock
Control Board 134409904
#4

Cabinet/top diagram

Control board

Part #134409904

Replaced by #134743500

?
Manufacturer substitution
This part replaces 134409904. Substitute parts can look different from the original.
BEST SELLER
$232.88
$10.00 OFF Phone Price : $242.88
In Stock
Washer Outer Tub Gasket 134361900
#21

Motor/tub diagram

Washer outer tub gasket

Part #134361900

Replaced by #5304520351

?
Manufacturer substitution
This part replaces 134361900. Substitute parts can look different from the original.
BEST SELLER
$80.82
6% OFF Phone Price : $85.82
In Stock
Washer Shock Absorber Mounting Pin (replaces 7131268300) 131268300
#31

Motor/tub diagram

Washer shock absorber mounting pin (replaces 7131268300)

Part #131268300

BEST SELLER
$17.99
10% OFF Phone Price : $19.99
In Stock
Washer Baffle Screw (replaces 131258400, 131303300, 3205239, 3205406, 7131302800, 713130300) 131302800
Washer baffle screw (replaces 131258400, 131303300, 3205239, 3205406, 7131302800, 713130300)

Part #131302800

BEST SELLER
$14.09
12% OFF Phone Price : $16.09
In Stock
