Kenmore
Canister Vacuum

Model # 11623512300 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 11623512300 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |

Vacuum Motor Safety Filter 8175084
#28

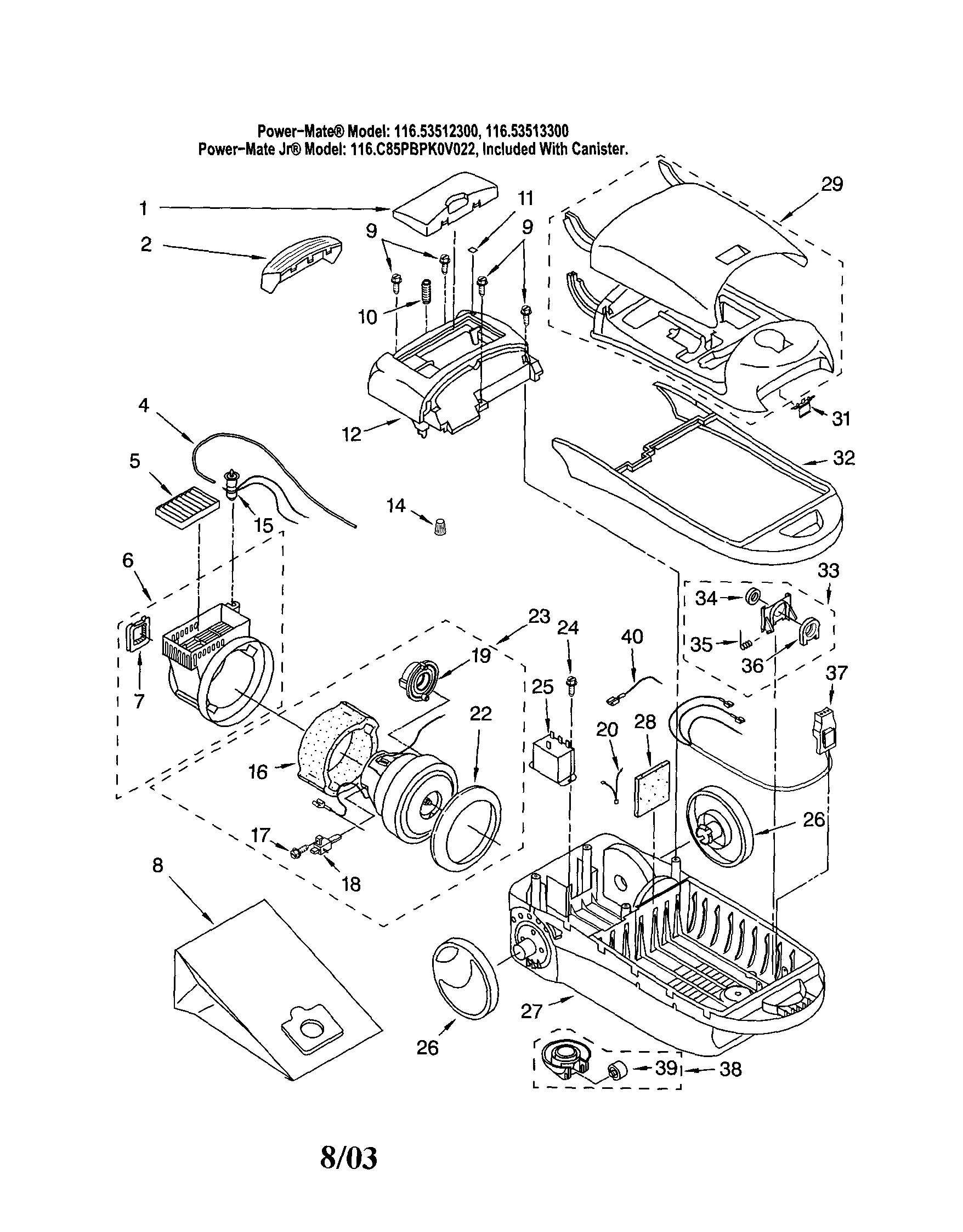

Base/canopy diagram

Vacuum motor safety filter

Part #8175084

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose 8192774
#1

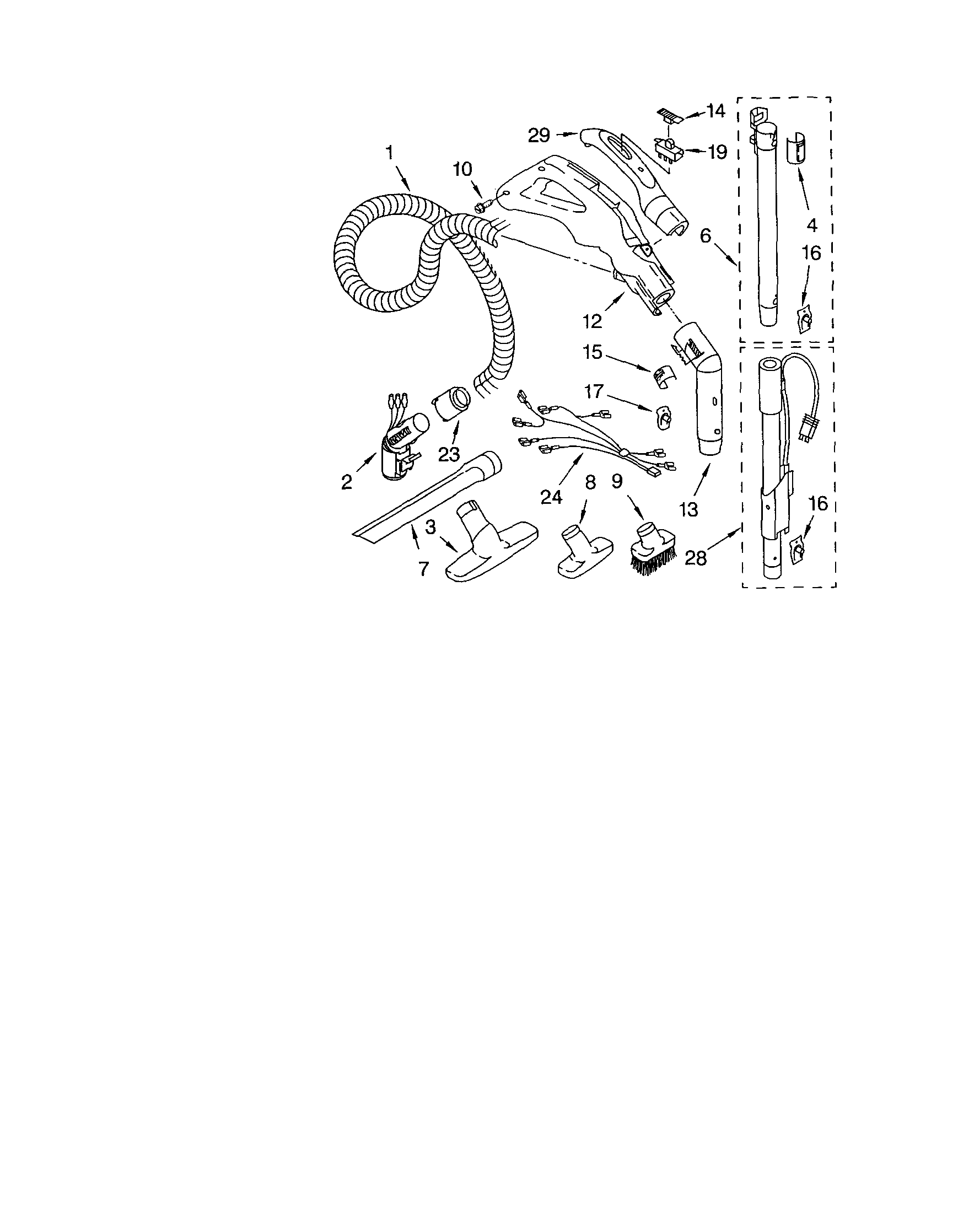

Hose and attachment diagram

Vacuum hose

Part #8192774

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Selector Switch 8191600
#19

Hose and attachment diagram

Vacuum selector switch

Part #8191600

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Floor Brush 4370358
#3

Hose and attachment diagram

Vacuum floor brush

Part #4370358

The manufacturer no longer makes this part, and there's no substitute part

Packing (black) 4370688
#34

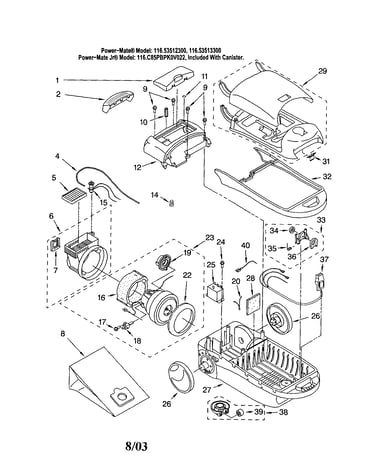

Base/canopy diagram

Packing (black)

Part #4370688

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Cord Reel Assembly 8195114
#3

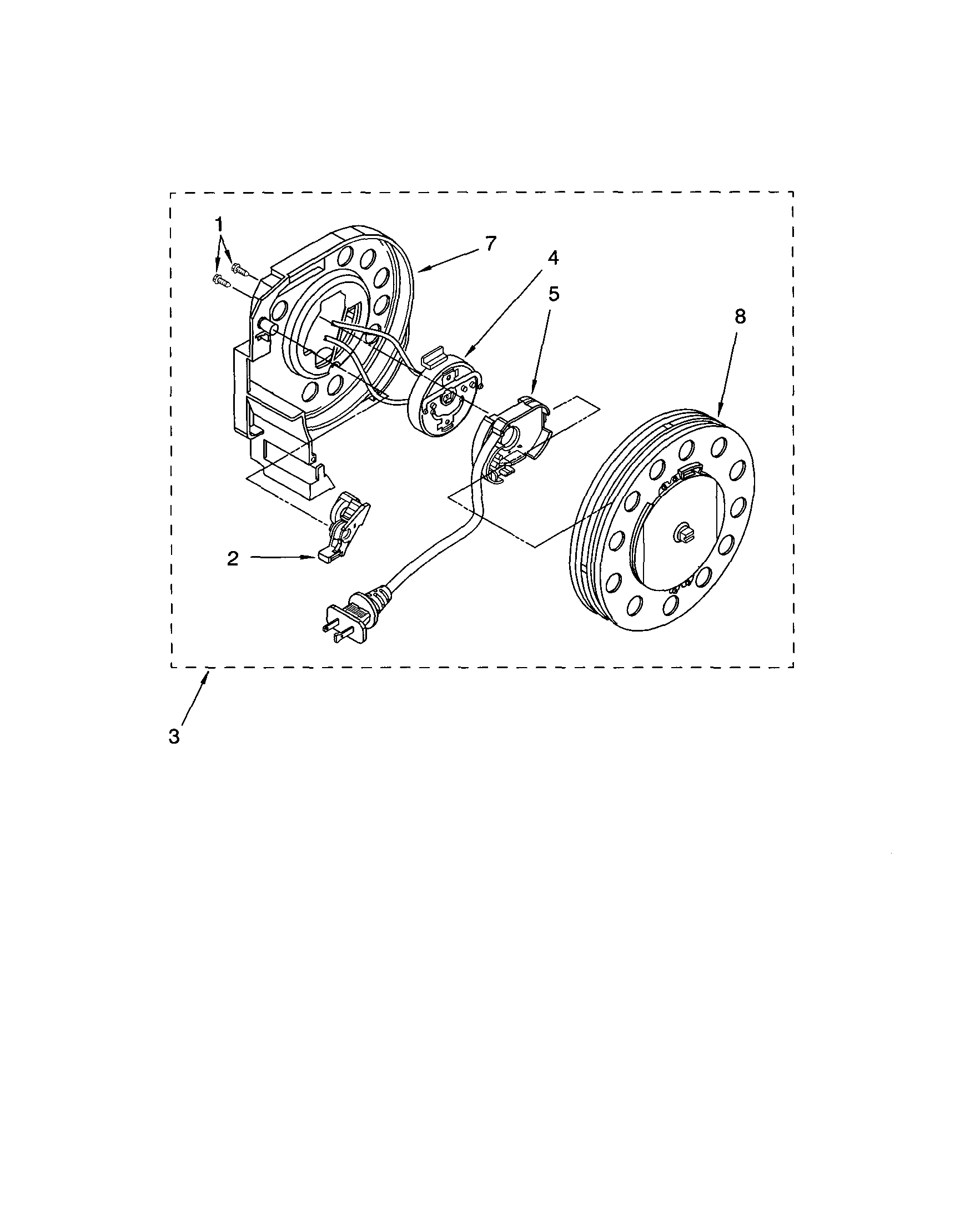

Power cord reel diagram

Vacuum cord reel assembly

Part #8195114

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Caster Wheel 4370691
#39

Base/canopy diagram

Vacuum caster wheel

Part #4370691

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush 4370335
#9

Hose and attachment diagram

Vacuum dust brush

Part #4370335

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 4368563
#1

Power cord reel diagram

Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Bag Mount Assembly 4370617
#33

Base/canopy diagram

Vacuum bag mount assembly

Part #4370617

The manufacturer no longer makes this part, and there's no substitute part
