Jenn-Air JSD2695KES refrigerator Parts

To reset the ice maker on your Jenn-Air JSD2695KES, turn the ice maker OFF (raise the wire shut-off arm), wait about 1 minute, then turn it back ON (lower the arm). After reset, allow 12 to 24 hours for normal ice production.

Quick reset steps (wire shut-off arm models)

• Lift the wire shut-off arm to the OFF position.
• Wait 1 minute.
• Lower the wire shut-off arm to the ON position.
• Confirm the ice bin is seated correctly.
• Discard the first 3 harvests after restarting (or any ice made in the first 12 hours).

For the exact ice maker arm positions and operating notes for JSD2695KES, follow the JSD2695KES owner's manual.

If it still will not make ice after the reset

A “reset” only helps if the ice maker was paused or the system had air in the water line. If ice does not start within 24 hours, check these common causes:

• Ice maker arm is up (ice maker is off)
• Freezer temperature is too warm (target is 0°F to 2°F)
• Water pressure is low (needs 35 to 100 psi; 35 psi minimum is recommended with a filter)
• Kinked copper tubing or a partially closed saddle valve
• Ice bin not installed properly
• Water filter is restricted

Fast checks you can do in 5 minutes

Check	What “good” looks like	What to do if not
Freezer temp	0°F to 2°F	Lower freezer setting; wait 24 hours
Shut-off arm	Down	Lower arm; clear any obstruction
Water supply	Valve fully open, no kinks	Open valve; straighten/replace line
Filter flow	Strong dispenser flow	Replace filter if flow is weak

Parts that commonly affect ice production

If troubleshooting points to a failed component, these are common replacements for this model:

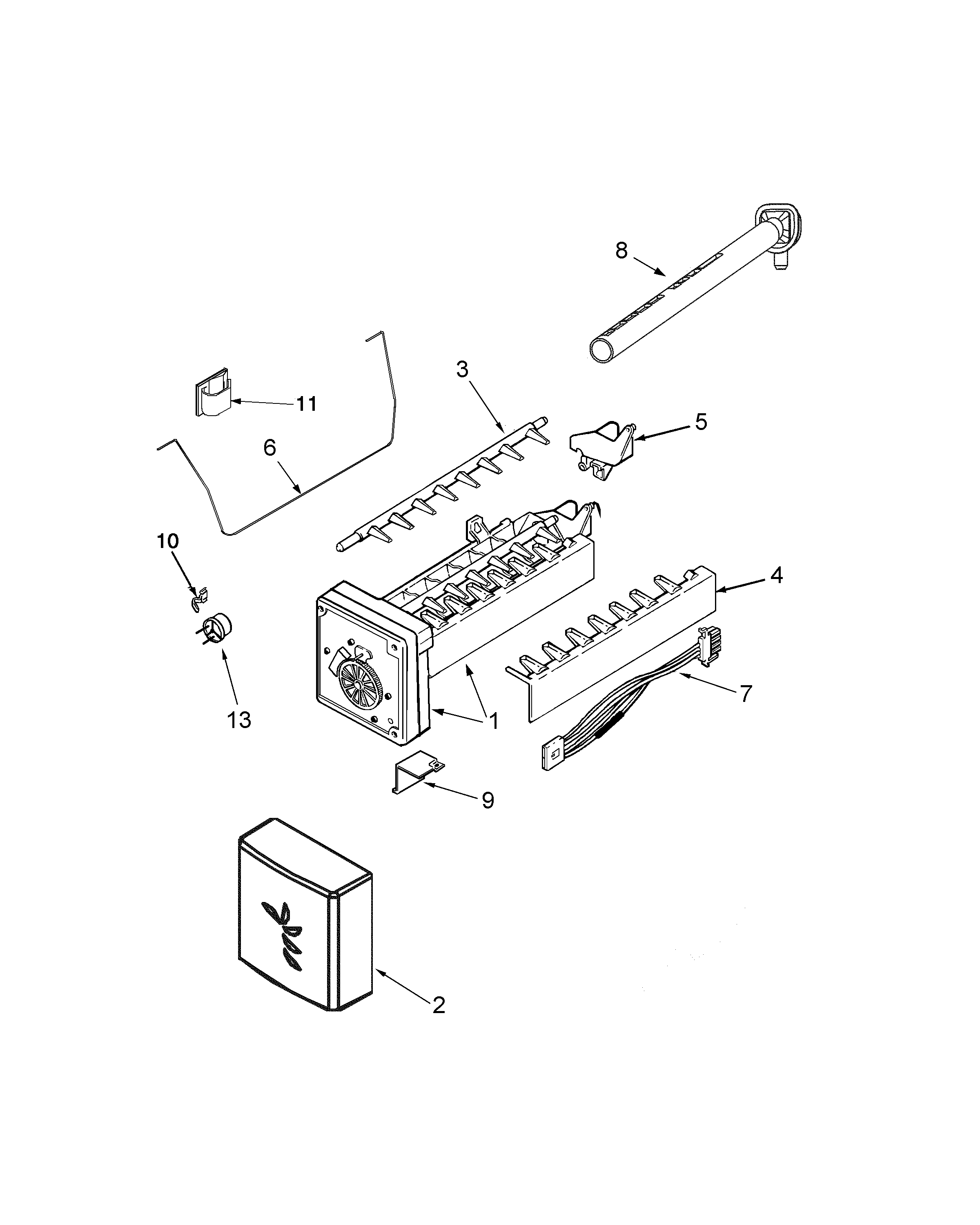

• Refrigerator ice maker D7824706Q (no ice production)
• Refrigerator water inlet valve assembly WP67006531 (no water filling the ice maker)
• Refrigerator water filter EDR4RXD1 (restricted flow, slow fill)

Why it matters

Ice makers depend on correct freezer temperature and steady water flow. A simple OFF/ON reset clears an “off” condition, but temperature, water pressure, and a restricted filter determine whether the ice maker can actually cycle and fill.

You can order replacement parts for your JSD2695KES from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

Common problems we see with the Jenn-Air JSD2695KES side-by-side refrigerator include not cooling well, water leaks, ice maker or dispenser issues, doors not sealing, and unusual fan or compressor behavior. Many of these trace back to airflow, dirty condenser coils, or water-supply components; use the JSD2695KES owner's manual troubleshooting chart to narrow it down.

Most common symptoms and what usually causes them

• Not cooling or warm temperatures: dirty condenser coils, blocked rear air grille, controls set too warm, frequent door openings
• Compressor not running: unit in defrost mode (wait about 40 minutes), power supply issue, control settings
• Water leaking or puddles: loose water line connections, valve seepage, filter head leaks, clogged/iced drain (common on many side-by-sides)
• Ice maker not working: water supply problem, inlet valve issue, failed ice maker module
• Water dispenser not working: air in the water line after filter change, low household water pressure, inlet valve problem
• Door not closing or poor seal: gasket not sealing, cabinet not level, door opened often

Quick checks you can do first (no parts needed)

1. Confirm the refrigerator is plugged in and the breaker is on.
2. Check temperature controls; the manual notes control settings that are too low or too high can cause temperature complaints.
3. Clean condenser coils; dirty coils are a top cause of warm temps and long run times.
4. Make sure the rear air grille is not blocked by food packages.
5. Inspect door gaskets for gaps, tears, or sticky spots; clean the sealing surfaces.

Parts that commonly solve these problems on JSD2695KES

Problem area	Common fix	Matching part on this model page
Water tastes/flow issues	Replace water filter	Refrigerator water filter EDR4RXD1
No ice or slow ice	Replace ice maker assembly	Refrigerator ice maker D7824706Q
No water to dispenser/ice	Diagnose or replace inlet valve	Refrigerator water inlet valve assembly WP67006531
Warm fridge section	Restore airflow (fan)	Evaporator motor WPW10128551
Door not sealing	Replace torn gasket	Refrigerator door gasket W10840101

Why it matters

Cooling, ice, and water systems all depend on steady airflow and clean heat exchange. When coils are dirty or vents are blocked, the refrigerator runs longer, temperatures drift, and you can also see secondary issues like weak ice production and moisture problems.

Last updated: February 2026

A Jenn-Air refrigerator typically lasts 15 years. With steady maintenance (cleaning, good airflow, correct temperatures, and timely part replacement), many units reach 10 to 20 years of service, including the Jenn-Air JSD2695KES.

Typical lifespan and what affects it

Most refrigerator life expectancy comes down to how hard the sealed system and fans have to work.

• Condenser cleanliness: dust buildup makes the compressor run hotter and longer
• Door seal condition: air leaks force longer run times and can cause frost issues
• Evaporator airflow: weak fan airflow reduces cooling and stresses the system
• Water and ice system upkeep: clogs and leaks create nuisance failures and can damage components
• Temperature settings and loading: extreme settings and overpacking reduce efficiency

Quick maintenance schedule (simple, high impact)

Use this as a practical baseline for JSD2695KES side-by-side refrigerators.

Task	How often	What it helps prevent
Clean condenser area	Every 6 months	Overheating, poor cooling, compressor strain
Check door gaskets for gaps/tears	Every 6 months	Warm air leaks, frost, long run times
Replace water filter	Every 12 months	Low water flow, bad taste/odor, valve strain
Confirm freezer is near 0°F and fresh food near 37°F	Monthly	Food spoilage, overwork, icing

For water filter replacement steps and location details, follow the JSD2695KES owner's manual.

Parts that commonly influence “how long it lasts”

When a refrigerator seems “old,” it is often one worn part causing extra run time.

• Water filter: replace on schedule using the refrigerator water filter EDR4RXD1

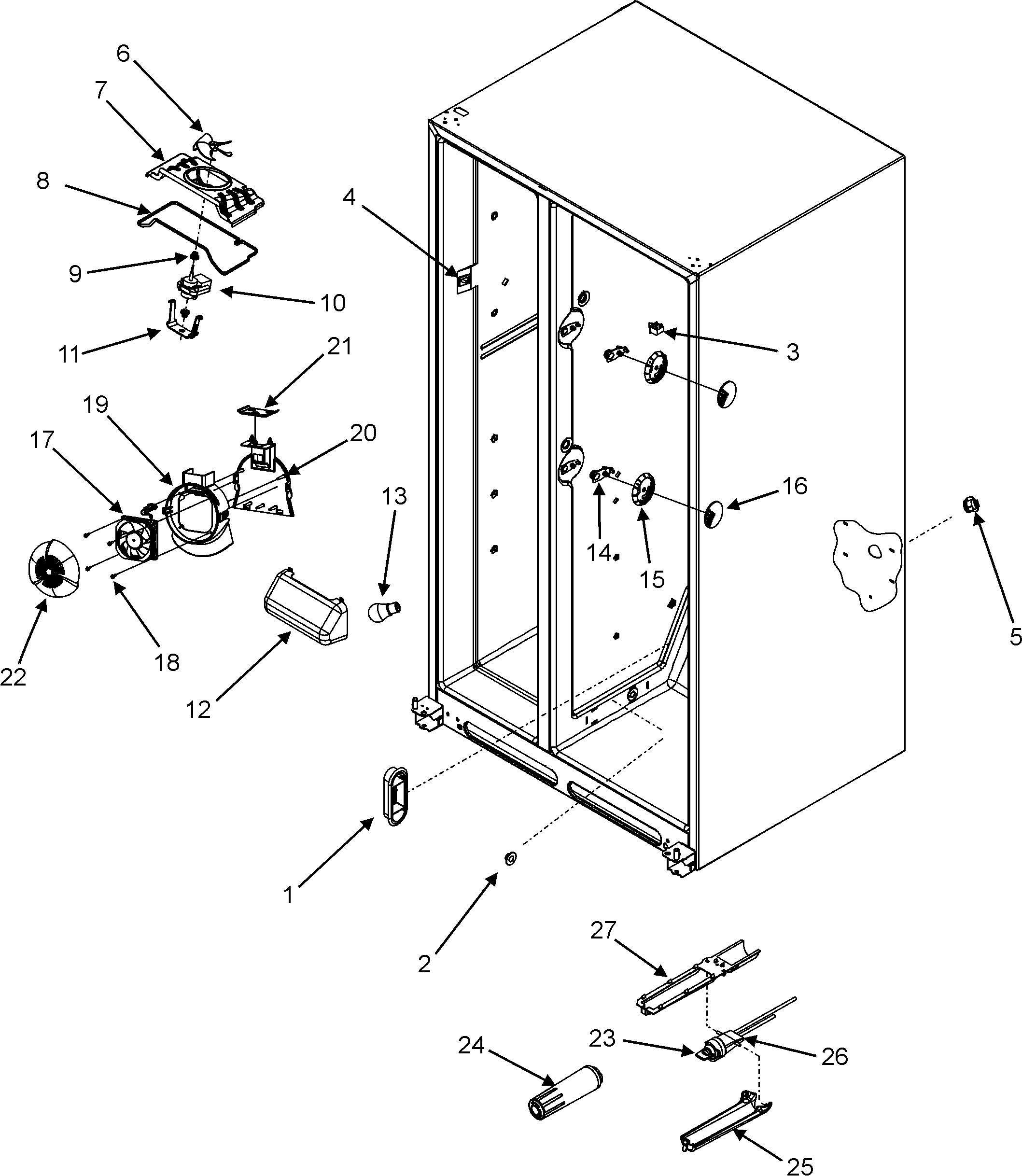

• Evaporator fan components: airflow issues can involve the evaporator motor WPW10128551 or the refrigerator evaporator fan blade WP2169142
• Door sealing: a leaking seal can require a refrigerator door gasket W10133491 (or the correct gasket listed for your door color/side)

Why it matters

A refrigerator that runs longer than normal uses more electricity and accelerates wear on the compressor, fans, and controls. Keeping airflow strong and seals tight is the most reliable way to reach the full expected lifespan.

If you are shopping for replacement parts for JSD2695KES, start with the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026
