Kenmore 79049422313 wall oven

Kenmore 79049422313 wall oven Parts

Here are the diagrams and repair parts for Kenmore 79049422313 wall oven, as well as links to manuals and error code tables, if available.

By Schematic
By Part

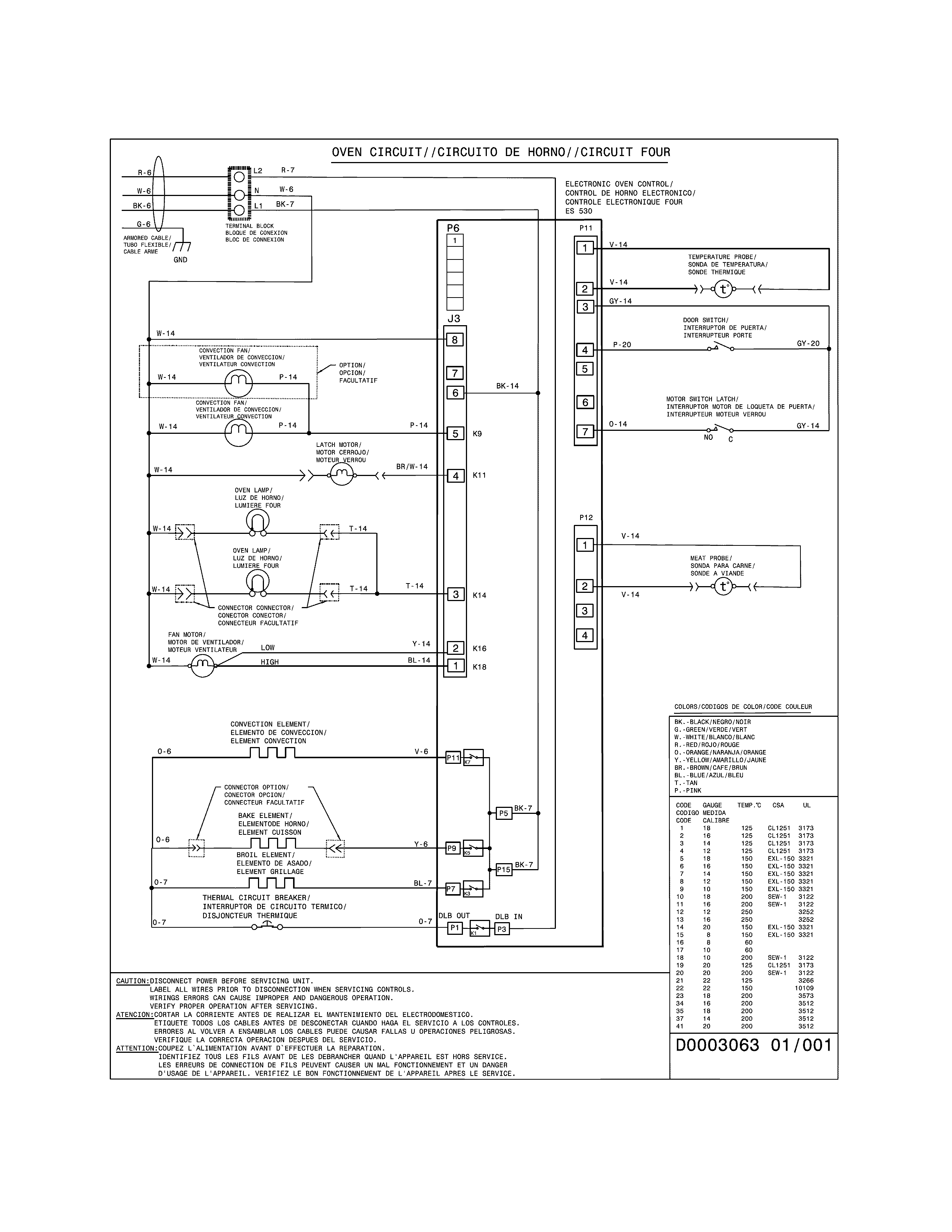

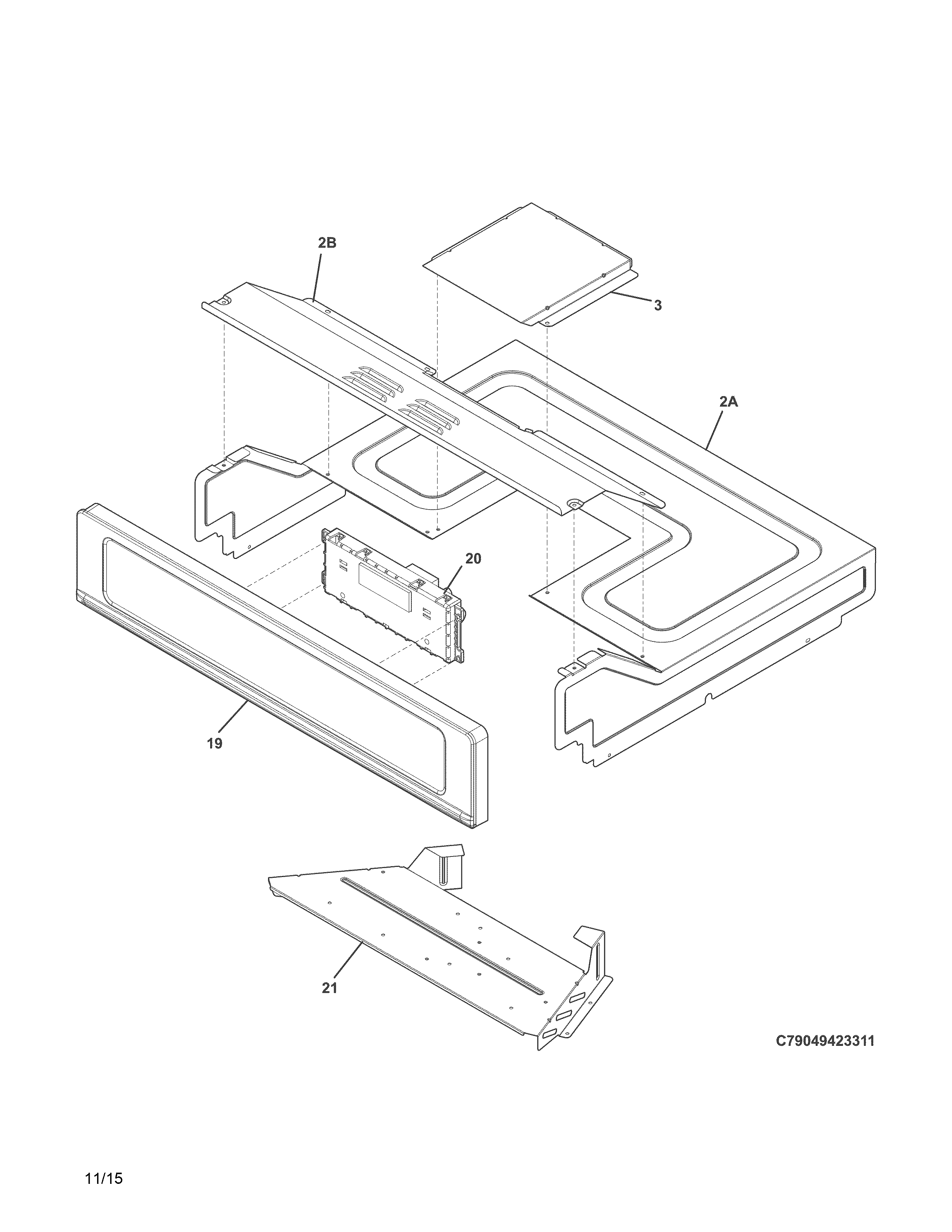

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 79049422313 Wall Ovens

  • Cooking Appliance Oven Temperature Sensor for Kenmore 79049422313 - Part 5304504897

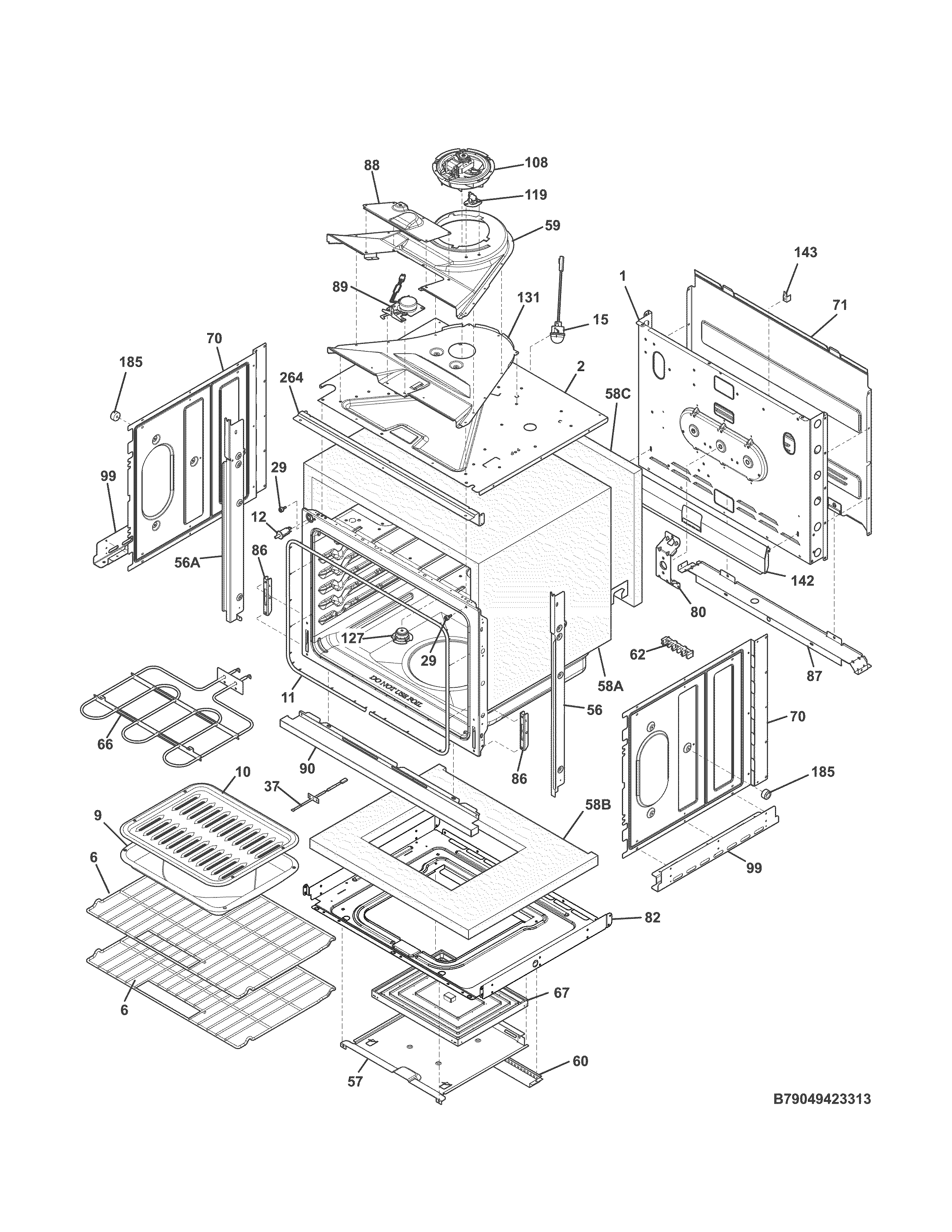

    Body diagram

    Range Oven Temperature Sensor

    Part #318562500

    Replaced by #5304504897

    Info Icon
    Manufacturer substitution
    This part replaces 318562500. Substitute parts can look different from the original.
    In Stock
    $24.70
    20% OFF Phone Price : $30.70Info Icon
    Minus Item
    Qty
    Plus Item
  • Frigidaire Range Bake Element for Kenmore 79049422313 - Part 318601604

    Body diagram

    Wall Oven Bake Element

    Part #808650402

    Replaced by #318601604

    Info Icon
    Manufacturer substitution
    This part replaces 808650402. Substitute parts can look different from the original.
    In Stock
    $181.57
    6% OFF Phone Price : $193.57Info Icon
    Minus Item
    Qty
    Plus Item
  • Frigidaire Range Oven Door Inner Glass for Kenmore 79049422313 - Part 5304503232

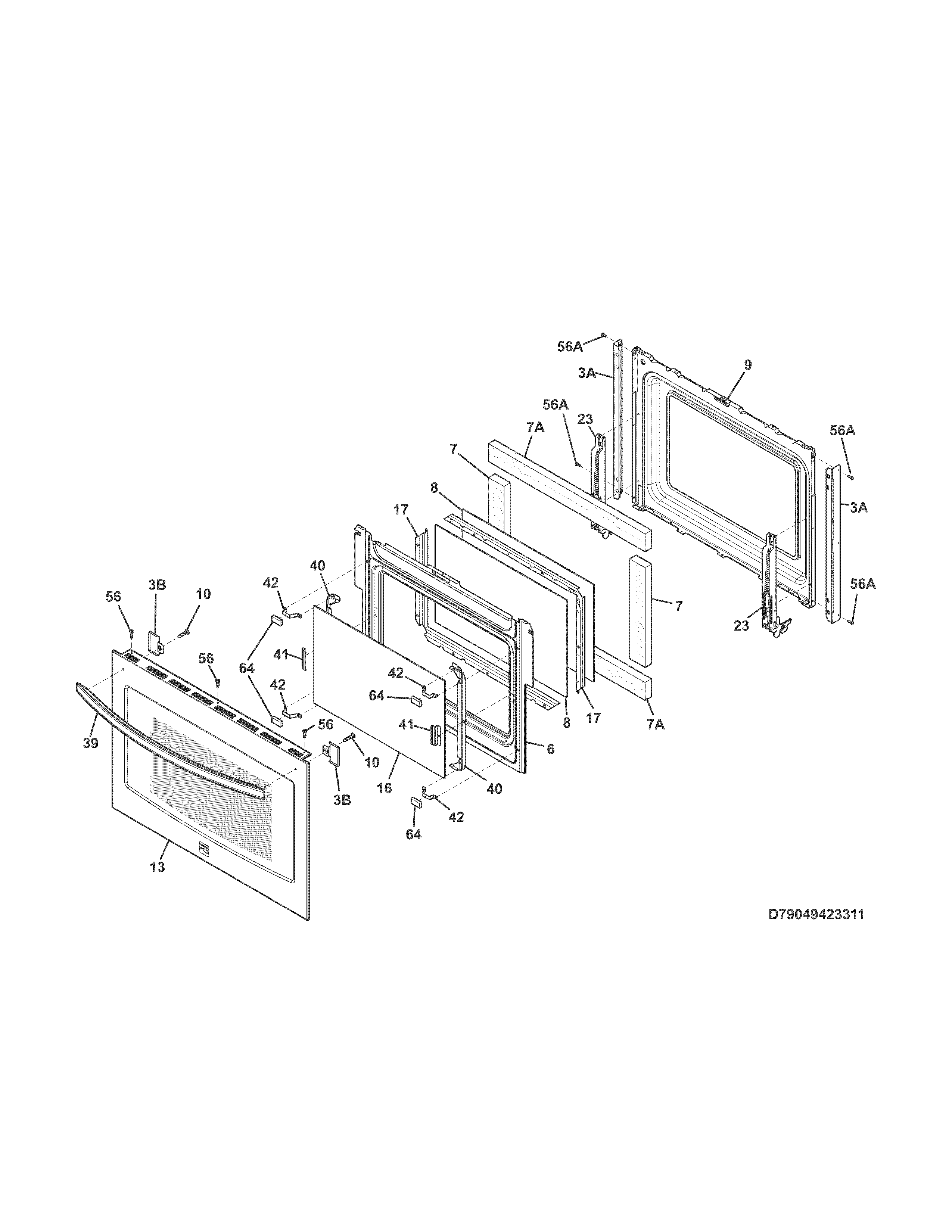

    Door diagram

    Range Oven Door Inner Glass

    Part #316117504

    Replaced by #5304503232

    Info Icon
    Manufacturer substitution
    This part replaces 316117504. Substitute parts can look different from the original.
    In Stock
    $67.96
    8% OFF Phone Price : $73.96Info Icon
    Minus Item
    Qty
    Plus Item
  • Kelvinator Range Terminal Block for Kenmore 79049422313 - Part 5304409888

    Body diagram

    Terminal Block

    Part #316056000

    Replaced by #5304409888

    Info Icon
    Manufacturer substitution
    This part replaces 316056000. Substitute parts can look different from the original.
    In Stock
    $25.30
    19% OFF Phone Price : $31.30Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Control Panel Cooling Fan for Kenmore 79049422313 - Part 318575612

    Body diagram

    Range Control Panel Cooling Fan

    Part #318575612
    In Stock
    $174.67
    6% OFF Phone Price : $186.67Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Outer Glass for Kenmore 79049422313 - Part 316446401

    Door diagram

    Range Oven Door Outer Glass

    Part #316446400

    Replaced by #316446401

    Info Icon
    Manufacturer substitution
    This part replaces 316446400. Substitute parts can look different from the original.
    In Stock
    $67.99
    24% OFF Was : $89.35Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Element for Kenmore 79049422313 - Part 5304521498

    Body diagram

    Range Broil Element

    Part #139008900

    Replaced by #5304521498

    Info Icon
    Manufacturer substitution
    This part replaces 139008900. Substitute parts can look different from the original.
    In Stock
    $68.97
    8% OFF Phone Price : $74.97Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Kenmore 79049422313 - Part 316001017

    Body diagram

    Range Screw

    Part #316001003

    Replaced by #316001017

    Info Icon
    Manufacturer substitution
    This part replaces 316001003. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $3.67
    21% OFF Phone Price : $4.67Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Hinge Receptacle for Kenmore 79049422313 - Part 318561100

    Body diagram

    Range Oven Door Hinge Receptacle

    Part #318561100
    In Stock
    $42.42
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Glass Bracket for Kenmore 79049422313 - Part 318370602

    Door diagram

    Range Oven Door Glass Bracket

    Part #318370602
    This item is not returnable
    In Stock
    $7.41
    50% OFF Was : $14.77Info Icon
    Minus Item
    Qty
    Plus Item
