Where is the drain pump filter on a whirlpool duet washer?

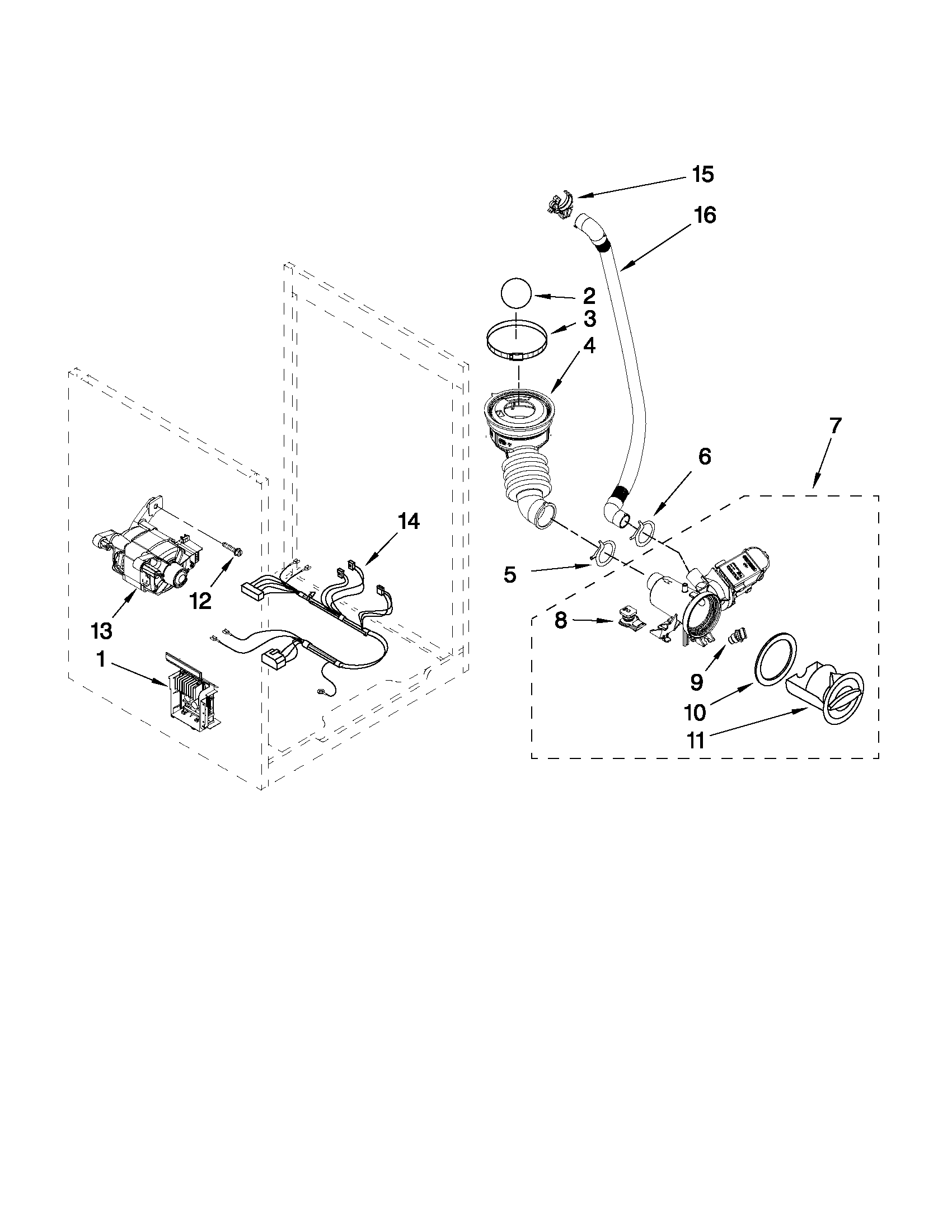

On the Whirlpool WFW9640XW00 (Whirlpool Duet-style front-load) washer, the drain pump filter is typically behind the lower front access panel (the toe-kick) along the bottom front of the cabinet. Once that panel is off, the filter is on the front of the drain pump housing.
- Unplug the washer to prevent the motor from starting.
- Place towels and a shallow pan under the lower front area.
- Remove the lower front access panel (usually a few screws along the bottom edge).
- If your washer has a small drain hose next to the pump, drain water into a pan first.
- Slowly turn the filter cap counterclockwise to let water out, then remove and clean the filter.
- Reinstall the filter snugly (hand-tight), reinstall the panel, then run a quick rinse and drain to check for leaks.
Most Whirlpool front-load designs place these items together in the same area:
| Item | What it does | What to look for |
|---|---|---|
| Pump filter/cleanout | Catches lint, coins, hairpins | Debris, broken plastic, sock fragments |
| Pump inlet/outlet hoses | Moves water from tub to pump and out to drain | Kinks, cracks, loose clamps |
| Pump wiring | Powers the drain pump | Loose connector, corrosion |
If you find water or residue around the pump area, also inspect the washer tub-to-pump hose WPW10467168 and its clamp points.
A clogged pump filter is one of the most common causes of slow draining, “won’t drain,” or “won’t spin” symptoms on front-load washers. Cleaning it restores normal drain flow and helps prevent pump damage.
Panel removal and the exact pump cleanout style can vary by revision, so we recommend following the access steps shown in the WFW9640XW00 owner's manual for your washer.
You can order the correct replacement parts for your Whirlpool WFW9640XW00 from the parts list for this model, or search by model number on Sears PartsDirect.
Last updated: February 2026
What is the most common problem with whirlpool washers?
For Whirlpool washers like model WFW9640XW00, the most common issues we see are drain and spin problems and water leaks. Drain issues often trace to the pump or drain path; leaks commonly come from the door seal area on front-load models.
- Won’t drain or leaves clothes wet: drain pump blockage or failure, kinked drain hose, or a restriction between tub and pump
- Leaks at the door (front load): torn or mis-seated door boot, debris on the seal lip, or a loose clamp
- Door won’t lock or won’t start: failed door lock, hinge misalignment, or latch not engaging
- Excessive vibration or banging: worn shocks, weak suspension, or an unbalanced load
- Error codes: often point to fill, drain, lock, or control issues (use the code to narrow the diagnosis)
- Run a Drain/Spin cycle with the drum empty and listen for the pump.
- Inspect the door seal for small tears, coins, hairpins, or detergent buildup.
- Check the drain hose for kinks and confirm the standpipe is not backing up.
- Reduce suds: use HE detergent and avoid overdosing (oversudsing can mimic drain faults).
- Level the washer and redistribute bulky loads to reduce vibration.
| Symptom | Common fix | Example part for this model |
|---|---|---|

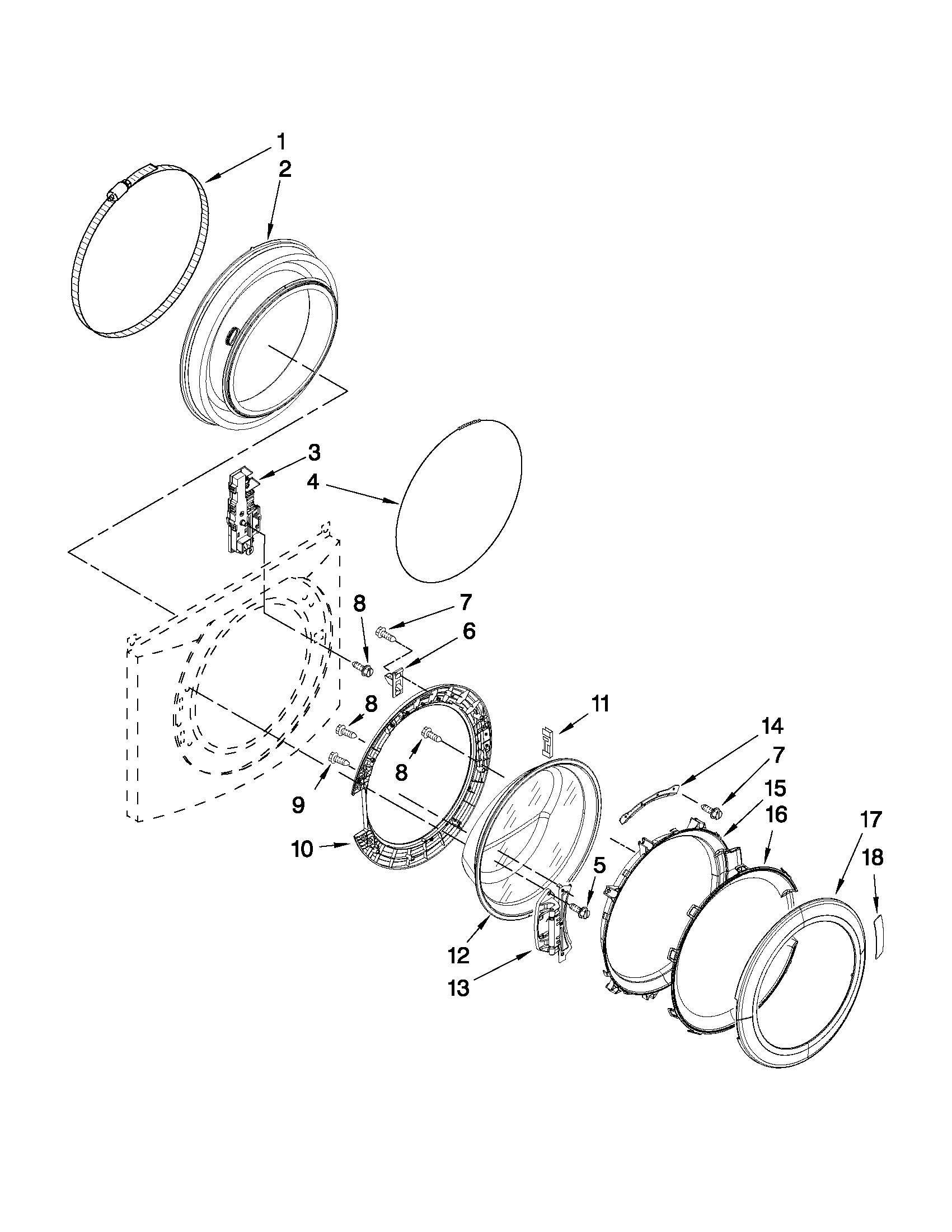

| Leaking at door | Replace door boot and secure clamps | Washer door boot WP8182119, washer door boot spring clamp WP8182210 |
| Won’t drain / slow drain | Clear/replace pump or hose | Water pump 280187, washer tub-to-pump hose WPW10467168 |
| Door won’t lock | Replace door lock or correct alignment | Washer door lock WP8183270, washer door hinge WP8183202 |

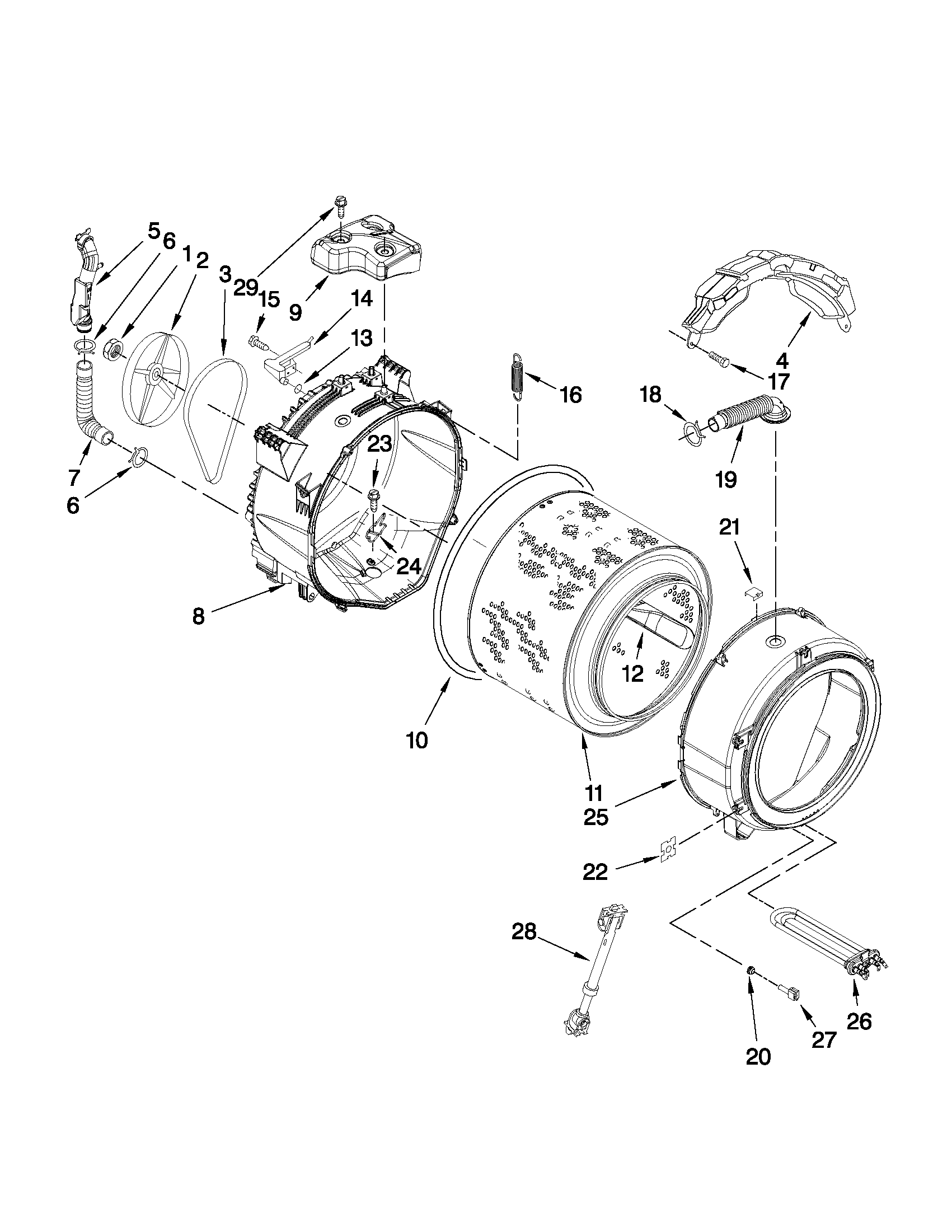

| Excess vibration | Replace shocks | Washer shock absorber W10822553 |
Drain, lock, and leak problems can stop a cycle mid-wash, leave clothes soaking wet, or cause water damage. Catching a worn seal, weak shock absorber, or failing pump early usually prevents bigger repairs.
- Use the troubleshooting and maintenance steps in the WFW9640XW00 owner's manual.
- If your washer is showing a code, match it to symptoms using Whirlpool duet alpha front load washer error codes.
- To order the correct replacement parts by model number, use the parts list for WFW9640XW00 or search on Sears PartsDirect.
Last updated: February 2026
Is 4.5 cu ft a large washer?
Yes. A 4.5 cu. ft. washer is considered large capacity for a residential machine; it typically handles bigger loads and bulky items more easily than standard-capacity washers. For cycle options and load recommendations specific to Whirlpool model WFW9640XW00, use the WFW9640XW00 owner's manual.
Most washers fall into these general capacity ranges:
| Capacity | Common label | Best for |
|---|---|---|
| 2.0 to 3.4 cu. ft. | Compact to small | 1 to 2 people, small spaces |
| 3.5 to 4.4 cu. ft. | Standard | Most everyday laundry |
| 4.5 cu. ft. and up | Large | Families, bulky items, fewer loads |
A large-capacity front-load washer like the Whirlpool WFW9640XW00 is a good fit for:
- Larger mixed loads (more items per cycle)
- Bulky bedding (comforters, blankets) when loaded loosely
- More towels or jeans without overpacking
- Fewer total loads per week for busy households
Large capacity helps most when the load can tumble freely. We recommend:
- Load by volume, not weight; keep items below the top of the drum
- Mix item sizes (small and large) to improve tumbling and rinsing
- Use HE detergent and measure carefully to prevent oversudsing
- Choose the right cycle for bulky items (often “Bulky” or similar)
- If the washer shakes or walks, reduce load size and redistribute
Capacity affects cleaning, rinse performance, and vibration. A larger tub can reduce the number of loads you run, but overfilling can still cause poor cleaning and out-of-balance spinning.
