Whirlpool LSQ8000LQ1 washer Parts

A power surge can damage washer electronics, but the Whirlpool LSQ8000LQ1 is a mechanical-timer top-load washer and does not use an F7E1 error-code system. If you are seeing “F7E1,” it is coming from a different washer model or from a separate device, not this model’s controls.

Use these quick checks so you troubleshoot the correct problem:

• Verify the model tag reads LSQ8000LQ1.
• If your washer has a digital display showing “F7E1,” it is not an LSQ8000LQ1 style control.
• If the washer stopped after an outage, focus on power, lid switch operation, and drive/drain function.
• Review the troubleshooting section in the LSQ8000LQ1 owner's manual.

Because LSQ8000LQ1 uses a timer and simple circuits, surge-related issues usually show up as basic operation failures:

• Washer will not start or is completely dead
• Intermittent operation (starts, then stops)
• Won’t drain or won’t spin after the motor runs
• Won’t fill or fills inconsistently

Unplug the washer for 1 minute, then retry a cycle. If the problem continues, use the symptom to narrow the next step.

Chasing an “F7E1” code on an LSQ8000LQ1 leads to the wrong repair. Matching the symptom to the correct Whirlpool washer design helps you test the right components and replace only what is actually failing.

Last updated: February 2026

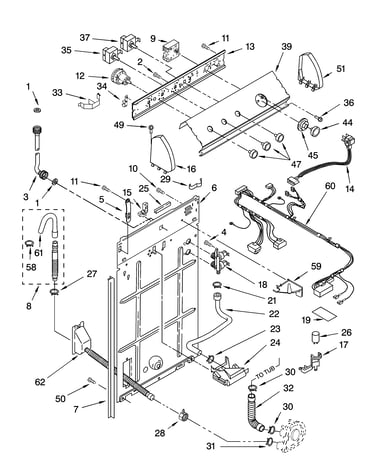

On the Whirlpool LSQ8000LQ1 washer, the most reliable “lid lock reset” is a simple stop and restart: close the lid fully, push in the Cycle Control knob to stop, then pull the knob back out to restart. This clears many lid-closed interruptions without replacing parts. See the owner's manual.

• Make sure the lid is fully closed and not pressing against a bulky load.
• Push in the Cycle Control knob to stop the washer.
• Wait 10 seconds.
• Pull out the Cycle Control knob to restart.
• If the washer still will not agitate or spin, open the lid, redistribute the load, then close the lid and restart.

A top-load washer like the LSQ8000LQ1 will not agitate or spin with the lid open, so anything that prevents a solid lid-closed signal can look like a “lock” problem.

• Lid strike and hinge alignment: confirm the lid closes squarely.

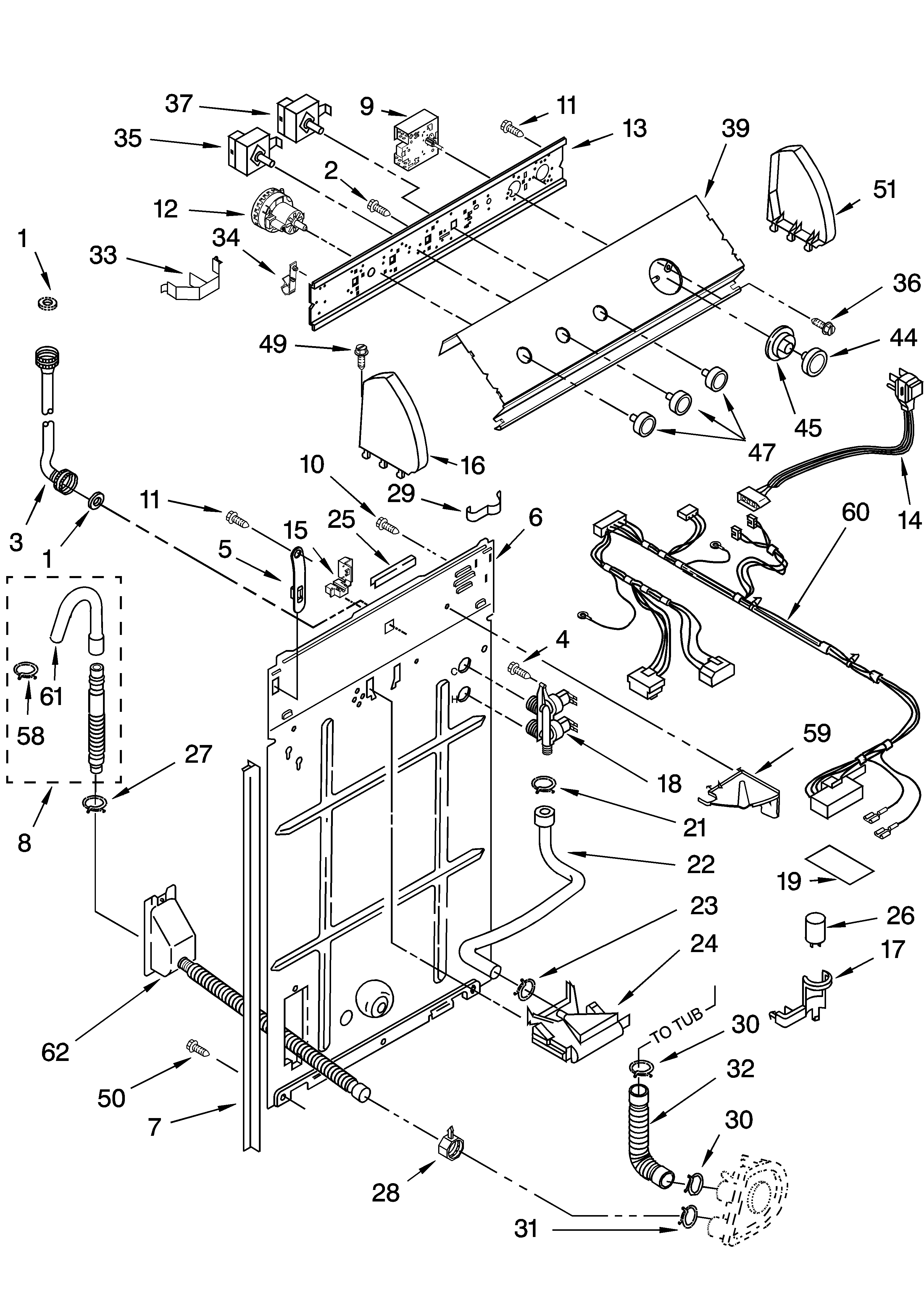

• Cycle timer/knob position: turn the knob clockwise to a fresh cycle position, then start.
• Load size: oversized loads can keep the lid from closing completely.

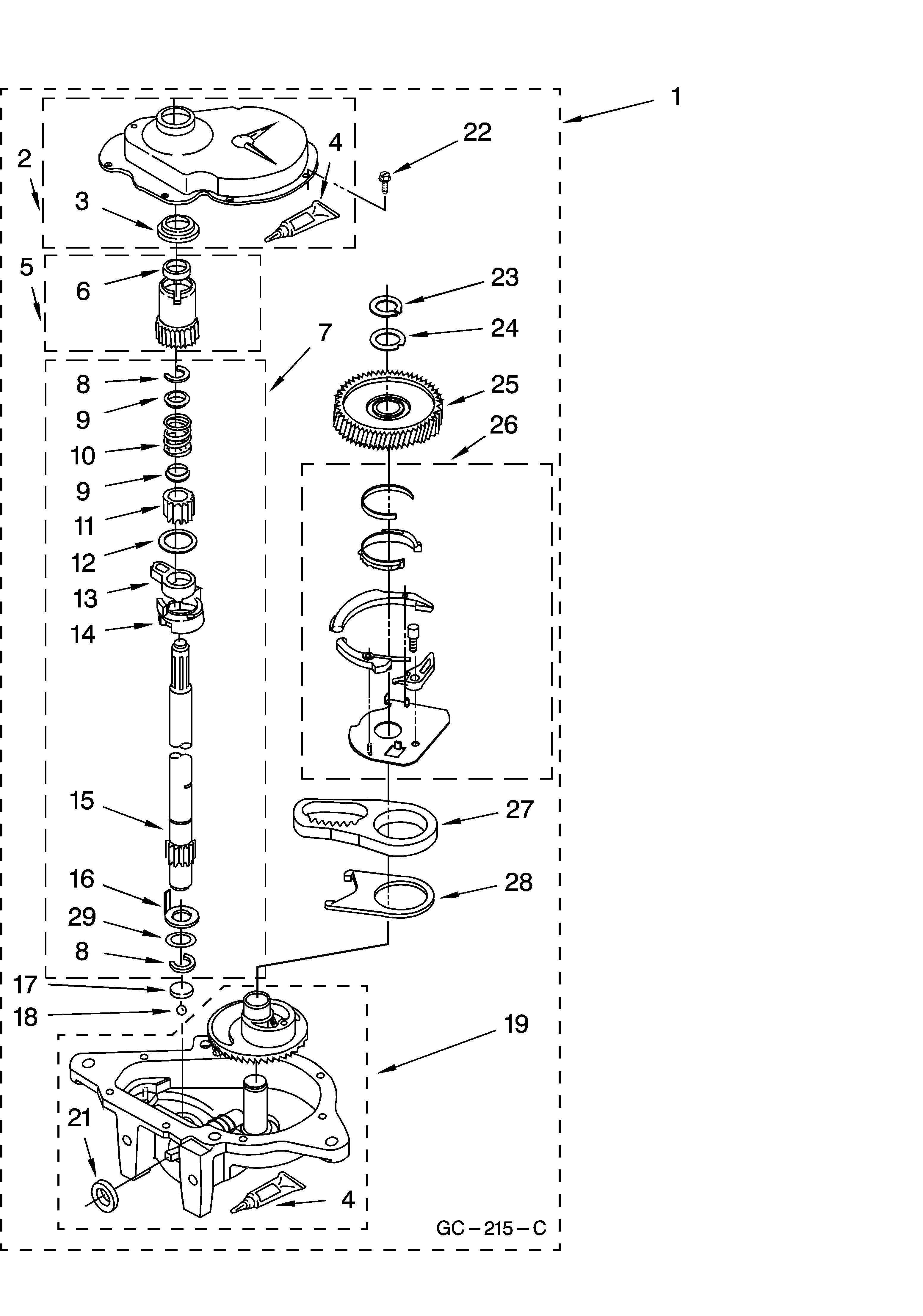

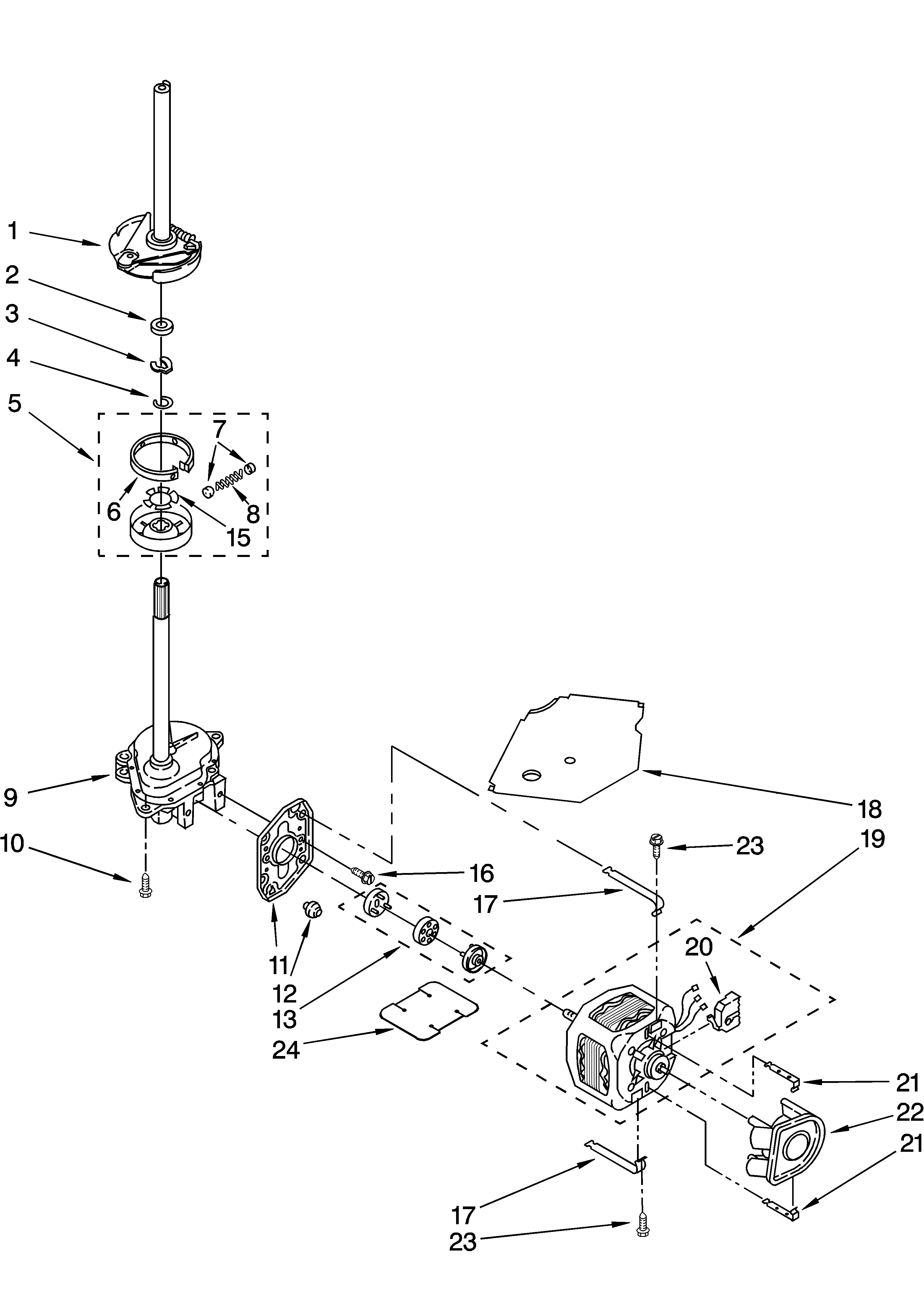

• Spin/drain symptoms: if it drains poorly or will not spin, the issue can be in the drive system or pump, not the lid.

The lid-closed safety system prevents the tub or agitator from moving with the lid open. Resetting by stopping and restarting the cycle is the correct first step because it restores normal operation without bypassing a safety feature.

Last updated: February 2026

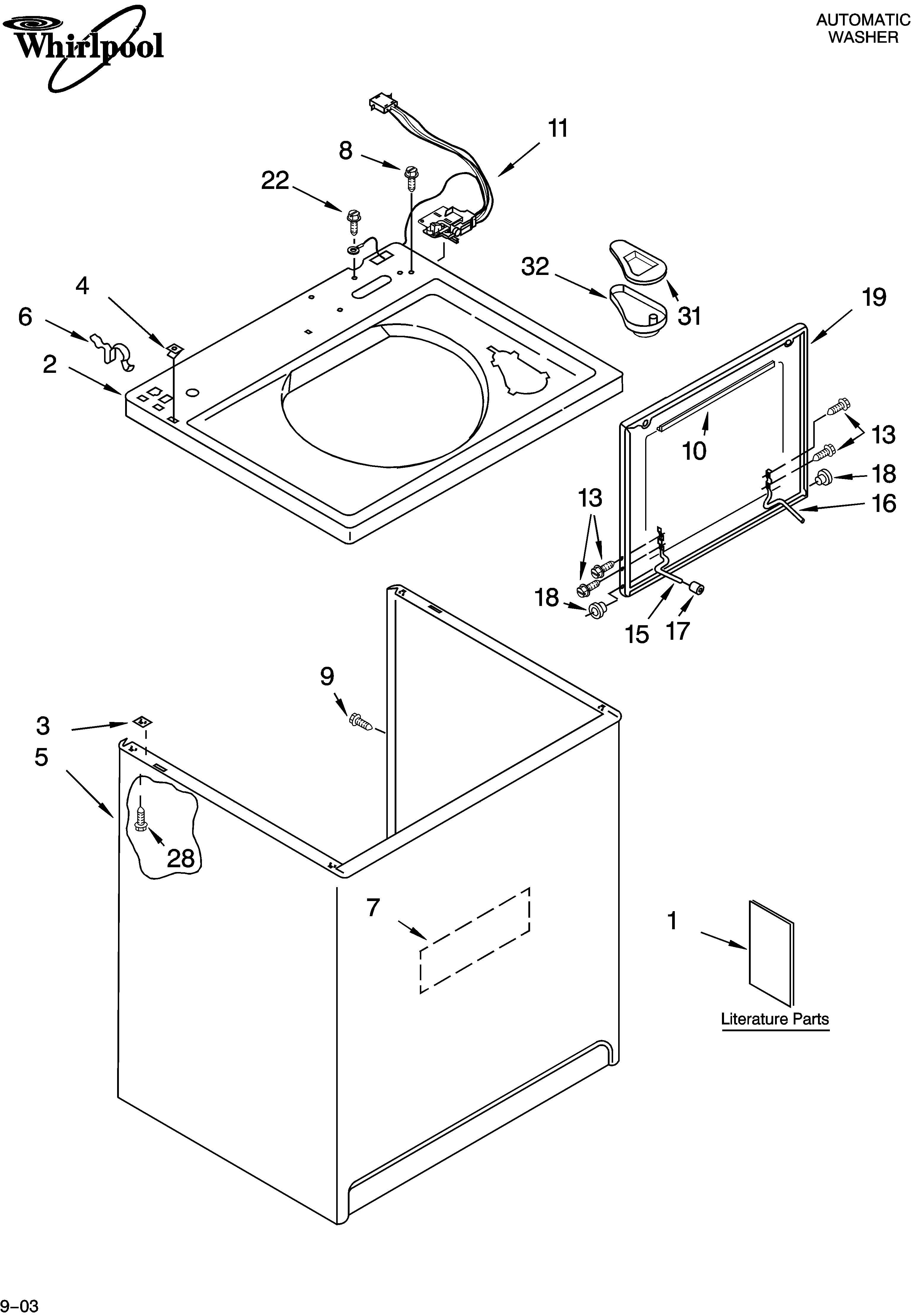

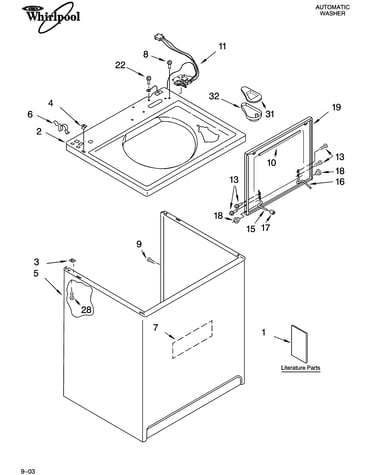

For the Whirlpool LSQ8000LQ1 washer, we find the model number (and serial number) on the model and serial number label located under the washer lid. Lift the lid and look around the underside of the lid opening for the sticker or metal tag.

• Unplug the washer or keep hands clear of moving parts; the lid area is safe, but we avoid accidental starts.
• Lift the washer lid fully.
• Look for a model and serial number label under the lid.
• Check the rim around the tub opening and the underside of the lid.
• Wipe dust or detergent residue off the label so the full number is readable.

We recommend recording both numbers exactly as shown; they help match diagrams and ensure the right Whirlpool replacement parts.

The model number is what we use to match correct parts like a lid switch, drain pump, or inlet valve for your specific washer design. One character difference can change the correct part fit.

For more label-location details and parts identification tips, use the LSQ8000LQ1 owner's manual.

Last updated: March 2026
