GE GDT530PGP4WW dishwasher Parts

If your GE GDT530PGP4WW dishwasher is acting up, the most common causes are a power issue (breaker, wall switch), a door not fully latching, or a control setting such as Control Lock. We recommend starting with quick checks, then using the troubleshooting chart in the GDT530PGP4WW owner's manual.

Quick checks we recommend first

• Reset the circuit breaker (or replace the fuse) and confirm the dishwasher has power.
• Check for a wall switch that controls the dishwasher (often near the garbage disposer switch) and turn it on.
• Close the door firmly; a poor latch can prevent the unit from running.
• If the control panel seems unresponsive, unlock Control Lock (then try starting again).
• If you see suds, stop the cycle and correct the detergent type (hand dish soap causes heavy sudsing).
• Confirm tall dishes are not blocking the detergent dispenser from opening.

Symptom-to-cause guide (fast triage)

Symptom	Most likely cause	What to do next
Won’t run at all	Breaker tripped, wall switch off, Control Lock on	Restore power, unlock controls, retry Start
Starts but cleans poorly	Wrong detergent, blocked dispenser, loading issue	Use automatic dishwasher detergent; reload so spray arms and dispenser are clear
Suds in tub	Wrong detergent or rinse aid spill	Use only automatic dishwasher detergent; wipe spills; follow the manual’s suds removal steps
White film or spots	Hard water minerals	Use rinse aid; run a cleaner cycle as directed

Why it matters

Many “dishwasher problems” on the GDT530PGP4WW come from setup and use conditions (power source, door closure, detergent, loading). Fixing those first prevents unnecessary part replacement and gets wash performance back quickly.

Helpful DIY resources

• Use GE electronic dishwasher error codes if your model displays electronic fault codes.
• Use GE dishwasher error codes for additional GE code explanations and next steps.

Last updated: February 2026

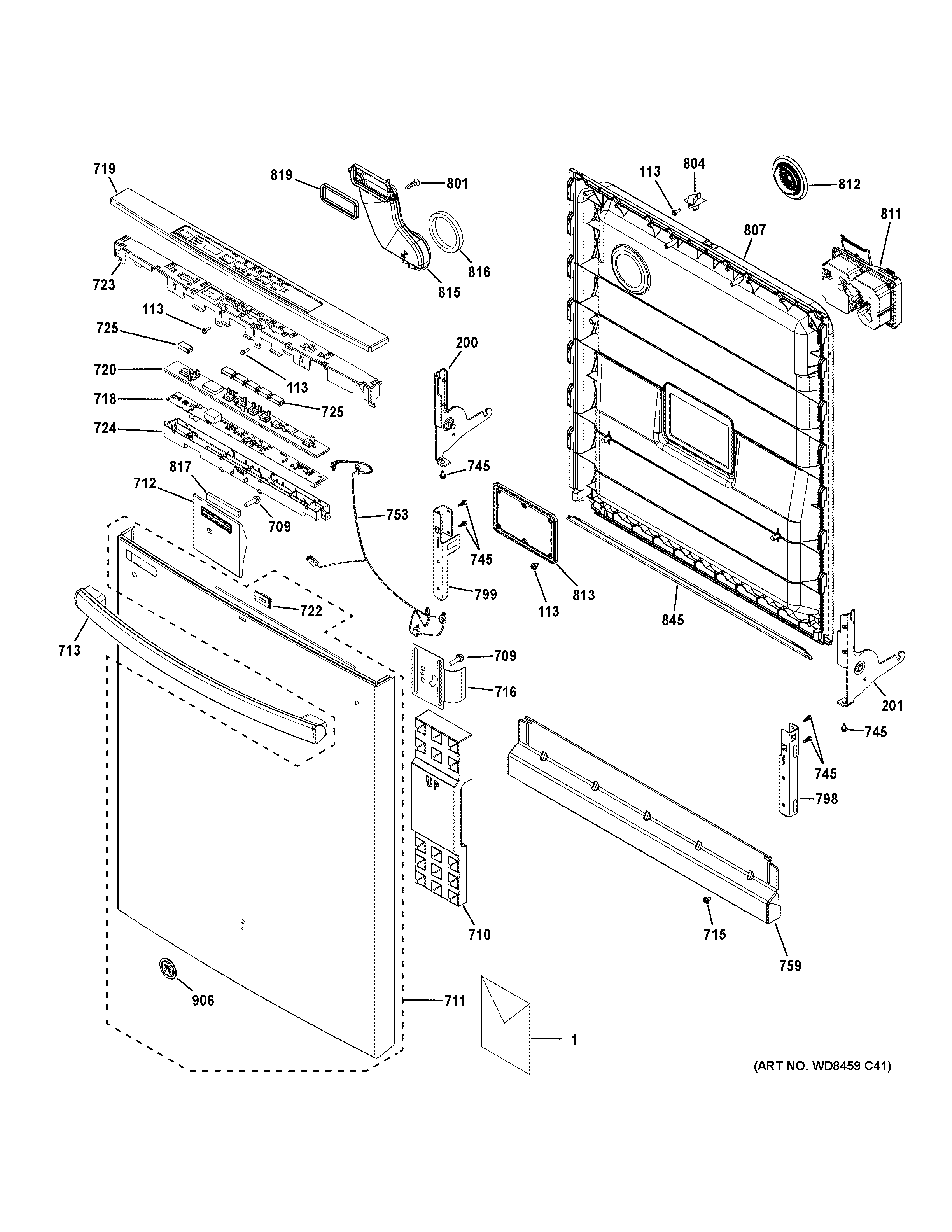

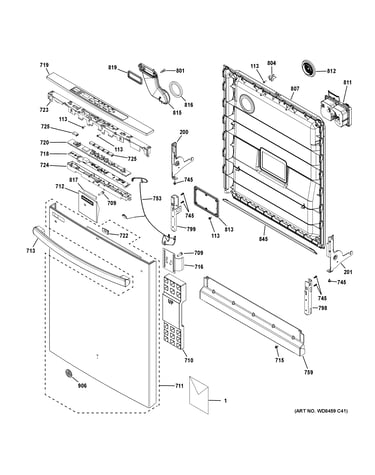

To remove the control panel on a GE dishwasher like model GDT530PGP4WW, we shut off power first, open the door, remove the inner-door screws, then release the control assembly from its retaining tabs and lift it away carefully so the wiring is not strained.

Safety first (do this before touching screws)

• Turn off the dishwasher circuit breaker (or remove the fuse).
• Confirm the control panel is dark and the dishwasher will not start.
• Keep the door supported while you work so it does not drop.
• Use cut-resistant gloves; sheet-metal edges can be sharp.

Steps to remove the control panel (typical GE door design)

1. Open the door fully.
2. Remove the screws around the inner door liner (leave the hinge screws alone).
3. Separate the inner door liner from the outer door panel just enough to access the control area.
4. Release the control assembly from the plastic retaining tabs (a small pick or flat screwdriver helps).
5. Lift the control panel/control assembly up and away.
6. If you need it fully off, disconnect wire connectors one at a time (take a photo first for reassembly).

What to watch for (to prevent damage)

The installation instructions emphasize preventing door and control panel damage; keep the dishwasher centered so the control panel does not contact adjacent cabinets or the countertop, and avoid protruding screw heads that can scratch or interfere with door operation. See the GDT530PGP4WW installation guide.

Tools and time

Item	Typical need
Phillips screwdriver	Inner door screws
Small pick or flat screwdriver	Releasing retaining tabs
Towel or pad	Protecting the door face

Why it matters

The control panel area is where the user interface and door-latch wiring meet. Removing it carefully prevents broken tabs, pinched harnesses, and door alignment issues that can cause a no-start condition or intermittent button response.

For control lock or “won’t run” symptoms after reassembly, follow the control and troubleshooting steps in the GDT530PGP4WW owner’s manual.

Last updated: February 2026

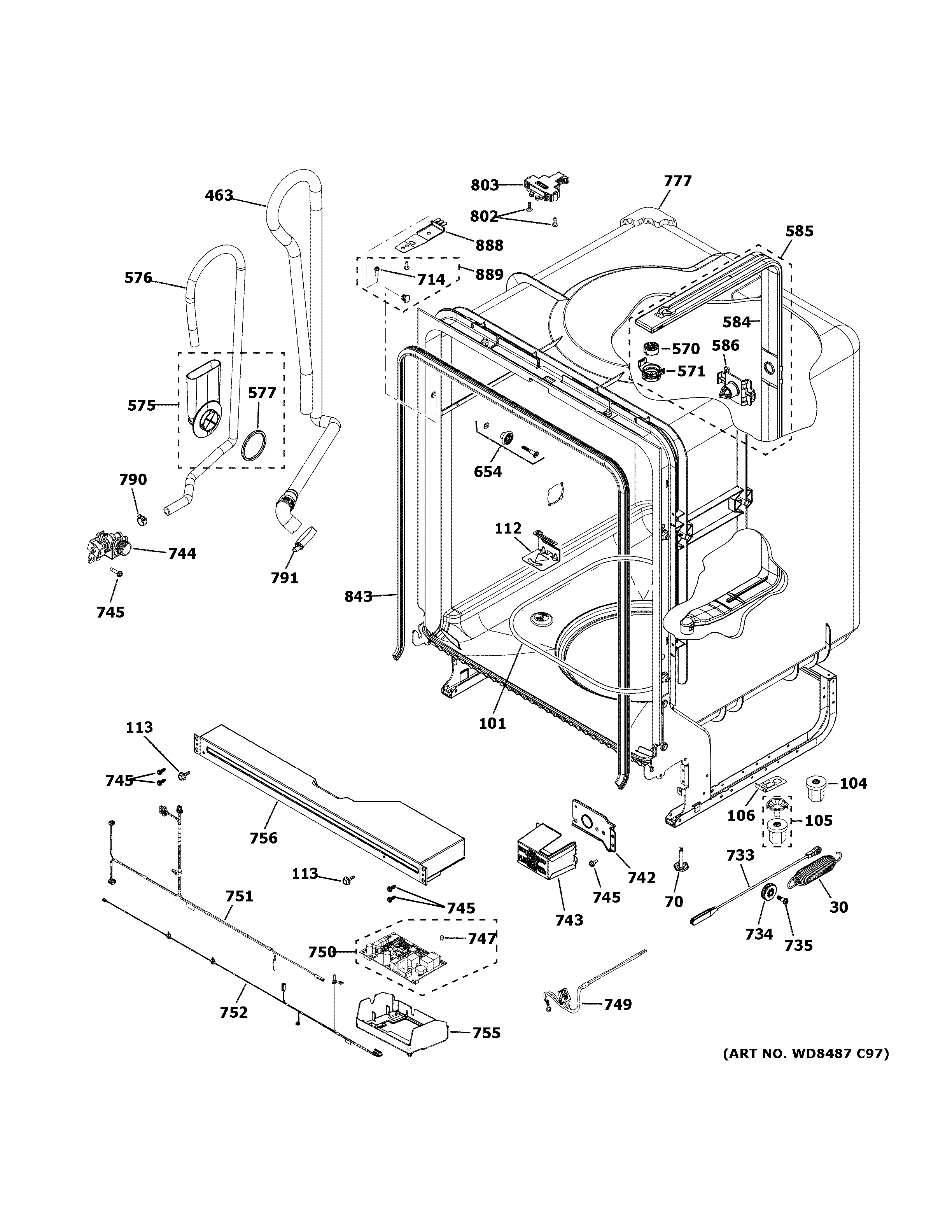

A leak at the bottom of the door on your GE GDT530PGP4WW dishwasher is usually caused by the door not sealing evenly or the door rubbing adjacent cabinets, which lets wash water escape. We focus first on leveling, latch closure, and tub trim seating before replacing parts.

Quick checks that fix most door-bottom leaks

• Confirm the door fully latches and closes without resistance.
• Verify the dishwasher is square and level; all 4 legs must be firmly on the floor.
• Make sure tub trim is fully seated on the tub flange and does not interfere with the door.
• Look for the door rubbing or hitting the cabinet; reposition the dishwasher if it is.
• Check for excess suds (wrong detergent or rinse aid spill) that can push water past the seal.

What to inspect and why

What to check	What you may notice	Why it matters
Level and alignment	Leak only during wash, especially at the bottom corners	A twisted tub or tilted frame prevents an even door seal
Tub trim seating	Drips right under the inner door edge	Trim interference can hold the door slightly open
Cabinet interference	Scuff marks on door edge, leak after install	Door rubbing changes the seal pressure and creates a gap
Suds/foaming	Bubbles at the bottom of the door, intermittent leaking	Suds travel and overflow more easily than water

Step-by-step: confirm it is a door-area leak

1. Run a short cycle and watch the first few minutes of fill and wash.
2. Check under the unit for plumbing leaks first (inlet, drain hose) so you do not misdiagnose.
3. If water appears at the door perimeter, inspect for cabinet contact and re-level.
4. If you see heavy foaming, switch to automatic dishwasher detergent only and clear suds.

Why it matters

Door-bottom leaks often start after a move or installation change. Getting the tub square, level, and unobstructed prevents repeat leaks and protects the floor and toe-kick area.

For model-specific leveling and the wet test procedure, follow the GDT530PGP4WW installation guide. For detergent and suds troubleshooting steps, use the GDT530PGP4WW owner's manual.

Last updated: February 2026

On the GE GDT530PGP4WW dishwasher, an E4 code usually points to a water fill problem (the dishwasher is not getting enough water, or it is detecting an abnormal fill condition). Start by confirming the water supply is on and the dishwasher can fill normally.

What to check first (fast, no tools)

• Make sure the shutoff valve under the sink is fully open.
• Confirm the kitchen faucet has strong cold-water flow (low house pressure can affect filling).
• Check that the inlet hose is not kinked, pinched, or crushed behind the dishwasher.
• Verify the dishwasher door is fully latched; some models will not fill if the latch is not engaged.
• Power-cycle the dishwasher: turn it off at the breaker for 1 minute, then restore power and retry.

Step-by-step troubleshooting (most common causes)

1. Water supply and pressure: If other fixtures are weak, fix the home supply issue first.
2. Inlet hose screen: Sediment can clog the small screen at the water inlet connection.
3. Fill system parts: A failing water inlet valve or a stuck float/overfill protection can trigger fill-related errors.
4. Drain interference: If the unit is partially draining while trying to fill (siphoning), it can look like a low-fill condition.

Quick symptom guide

What you notice	Most likely cause	What we do next
Tub is nearly dry after starting	Shutoff closed, kinked hose, low pressure	Check valve, hose routing, home pressure
Fills a little then stops	Clogged inlet screen, weak inlet valve	Clean screen; test/replace valve
Fills then immediately drains	Drain hose routing/siphon	Correct high loop/air gap setup
Code returns after reset	Control sensing a repeat fill fault	Use diagnostics in the GDT530PGP4WW owner's manual

Why it matters

A true low-fill condition reduces spray-arm pressure, so dishes come out dirty and the pump can run louder than normal. Fixing the water supply issue also helps prevent repeat error codes and long cycle times.

Helpful GE-specific code references

For code definitions and what they mean across GE electronic models, we use: GE electronic dishwasher error codes.

Last updated: February 2026
