Maytag MDE9420AYW dryer Parts

A Maytag dryer like model MDE9420AYW typically lasts 14 to 16 years with normal household use. Regular airflow maintenance and timely replacement of wear parts (such as a thermal fuse, drum seal, or blower wheel) are what most often determine whether it reaches that full lifespan.

Most dryers fail early due to heat and airflow stress, not because the cabinet or drum “wears out.” These factors have the biggest impact:

• Venting kept clear and short (good airflow keeps temperatures stable)
• Lint filter cleaned every load (and the housing cleaned periodically)
• Loads not consistently overloaded (reduces motor and drum support wear)
• No chronic overheating (protects thermostats, heating element, and wiring)
• Worn seals and bearings addressed early (prevents noise and drum drag)

If your dryer is running hot, taking too long to dry, or getting noisy, these model-matched parts are common fixes:

• Dryer thermal fuse, 243-degree f WP307473
• Dryer thermal fuse WP33001762
• Dryer drum rear seal WP33001807
• Dryer drum bearing kit 306508
• Dryer blower wheel 33001790

A dryer that overheats or has poor airflow can shorten the life of the heating system, motor, and safety controls. Keeping airflow strong and replacing small wear parts early is usually the difference between a dryer that lasts 10 to 12 years and one that reaches 14 to 16 years.

Last updated: February 2026

If your Maytag MDE9420AYW dryer runs but clothes stay damp, the most common cause is restricted airflow (lint screen, blower housing, or venting). Heating problems (failed thermal fuse, thermostat, or heating element) and load issues (overloading or very wet laundry) can also prevent proper drying.

• Clean the lint screen completely; wash off any fabric softener film and let it dry.
• Run a timed dry cycle on high heat with a small load to see if performance improves.
• Check airflow at the outside vent hood; it should be strong and steady.
• Inspect the vent path for kinks, crushed flex duct, long runs, or lint buildup.
• Confirm the dryer is not packed too full; clothes need room to tumble.

Poor airflow traps moisture in the drum and can also cause overheating.

Common airflow-related parts for this model

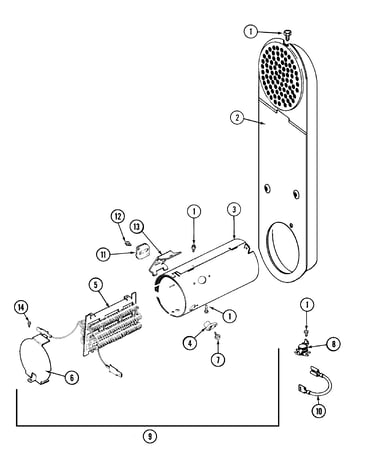

If airflow is good but there is little or no heat, focus on the heating circuit.

• A blown safety fuse can stop heat (and on some designs can stop the motor).
• A failed operating thermostat can cause low heat or cycling issues.
• A broken heating element can cause no heat.

Parts that commonly affect heat on the MDE9420AYW

• Dryer thermal fuse, 243-degree f WP307473
• Dryer operating thermostat WP307249
• Dryer heating element WP307178

A dryer that is not drying usually wastes energy and time; restricted venting also raises internal temperatures, which can damage components like the thermal fuse and thermostat.

For step-by-step symptom-based help, use our dryer takes a long time to dry article.

Last updated: February 2026

The Maytag MDE9420AYW dryer’s exact drum capacity (in cubic feet) isn’t a parts-spec we list on the parts page; capacity is a model specification. Most 27-inch Maytag electric dryers from this era fall in the about 6.0 to 7.0 cu. ft. range, which is considered large-capacity.

Use these checks to match the right spec to your exact model tag and configuration:

• Verify the model number on the dryer’s ID label is MDE9420AYW (not a close variant)
• Look for a capacity listing on the original product label, sales receipt, or spec sheet that came with the dryer
• If you are comparing dryers, use the same measurement type (drum volume in cu. ft.)
• When ordering parts, match by model number first; capacity does not affect most replacement parts

Capacity is fixed, but airflow and drum support determine whether large loads dry evenly and tumble correctly. These model-compatible parts are common fixes:

• Dryer lint filter WP33001808 (restricted lint screen reduces airflow)
• Dryer blower wheel 33001790 (damaged wheel reduces air movement)
• Dryer thermal fuse, 195-degree f WP33001762 (can stop heat if the dryer overheats)
• Dryer heating element WP307178 (failed element causes no-heat or weak-heat drying)

Knowing the correct capacity helps you load the MDE9420AYW properly. Loading within the drum’s intended volume improves tumbling, airflow through the load, and overall dry time.

Last updated: February 2026
