Whirlpool WTW5700SW0 washer Parts

Whirlpool washer parts are only interchangeable when the replacement part is listed as compatible with your exact washer model. For Whirlpool model WTW5700SW0, we recommend using factory-specified parts matched to the model so the fit, performance, and safety features (like lid locking) work correctly.

What “interchangeable” really means

Parts can look identical across Whirlpool-built washers, but small differences (mounting points, electrical connectors, timing, or water-level calibration) can prevent proper operation.

Use these checks before you buy:

• Match the model number WTW5700SW0 on the washer’s tag to the parts listing
• Compare the part number and any substitution notes
• Confirm the part’s function (drain, spin, agitation, sensing) matches your symptom

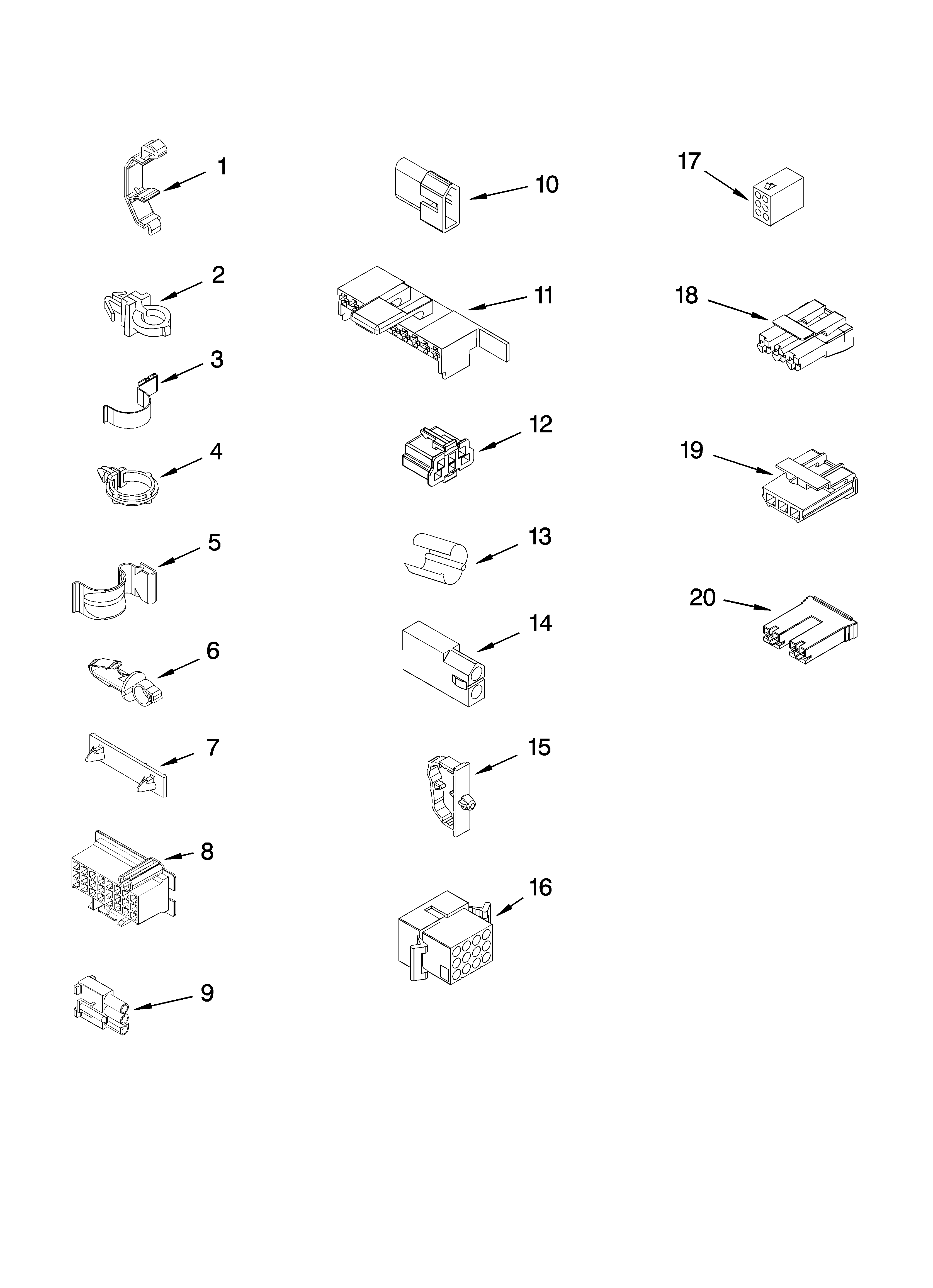

• Verify wiring plugs and hose sizes match your original part
• Use the diagrams and part lists in the WTW5700SW0 owner’s manual

Common WTW5700SW0 parts that are often model-specific

These parts frequently vary by series, even when they appear similar:

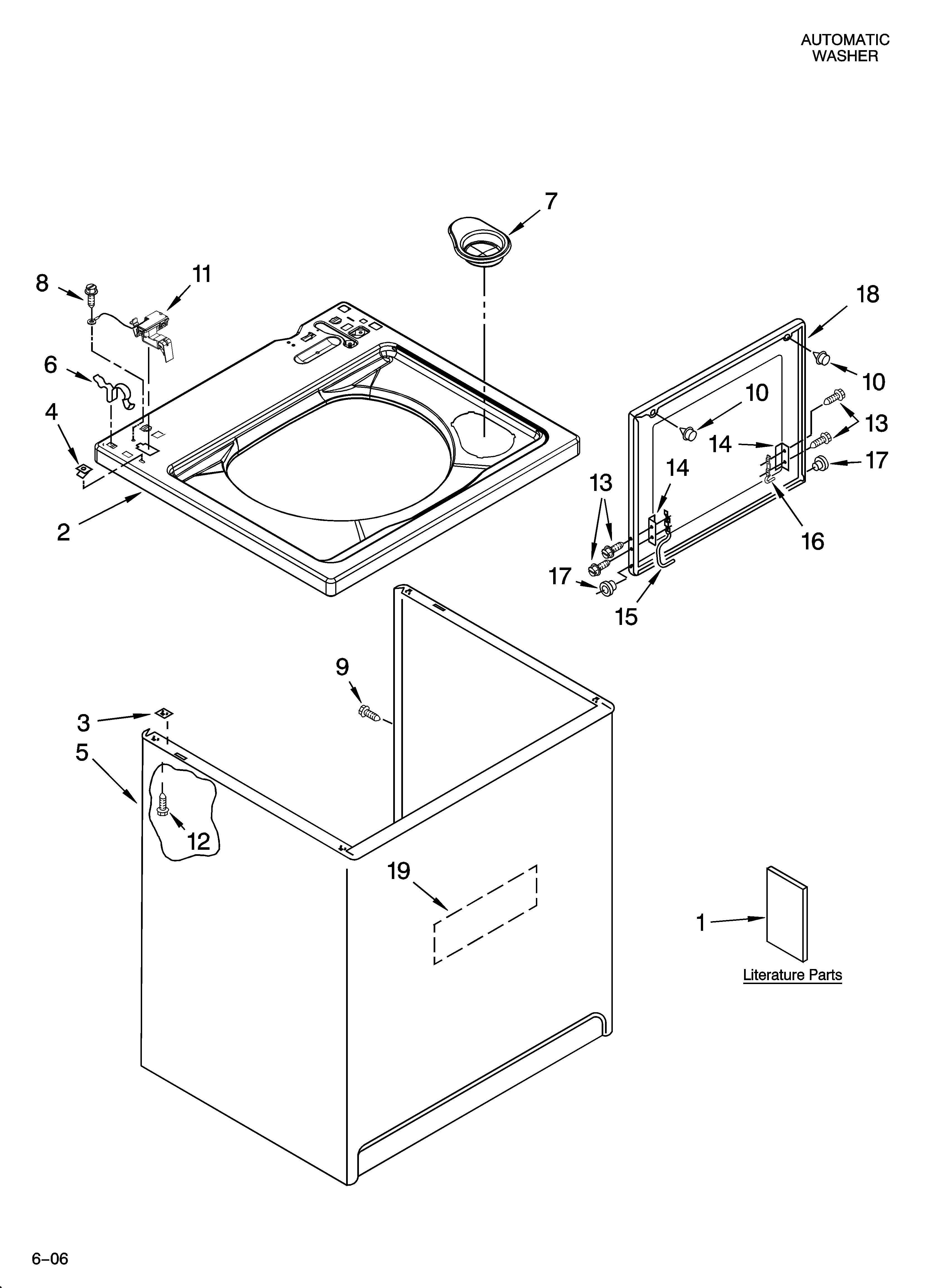

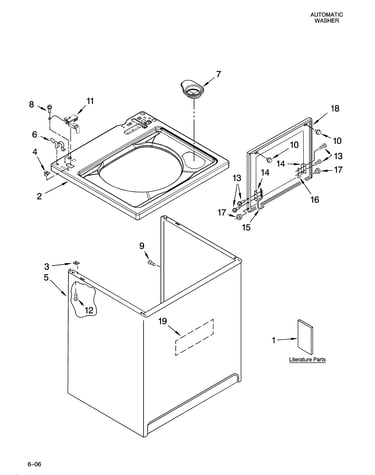

• Lid switch and safety interlock components (example: washer lid switch assembly WP8318084)

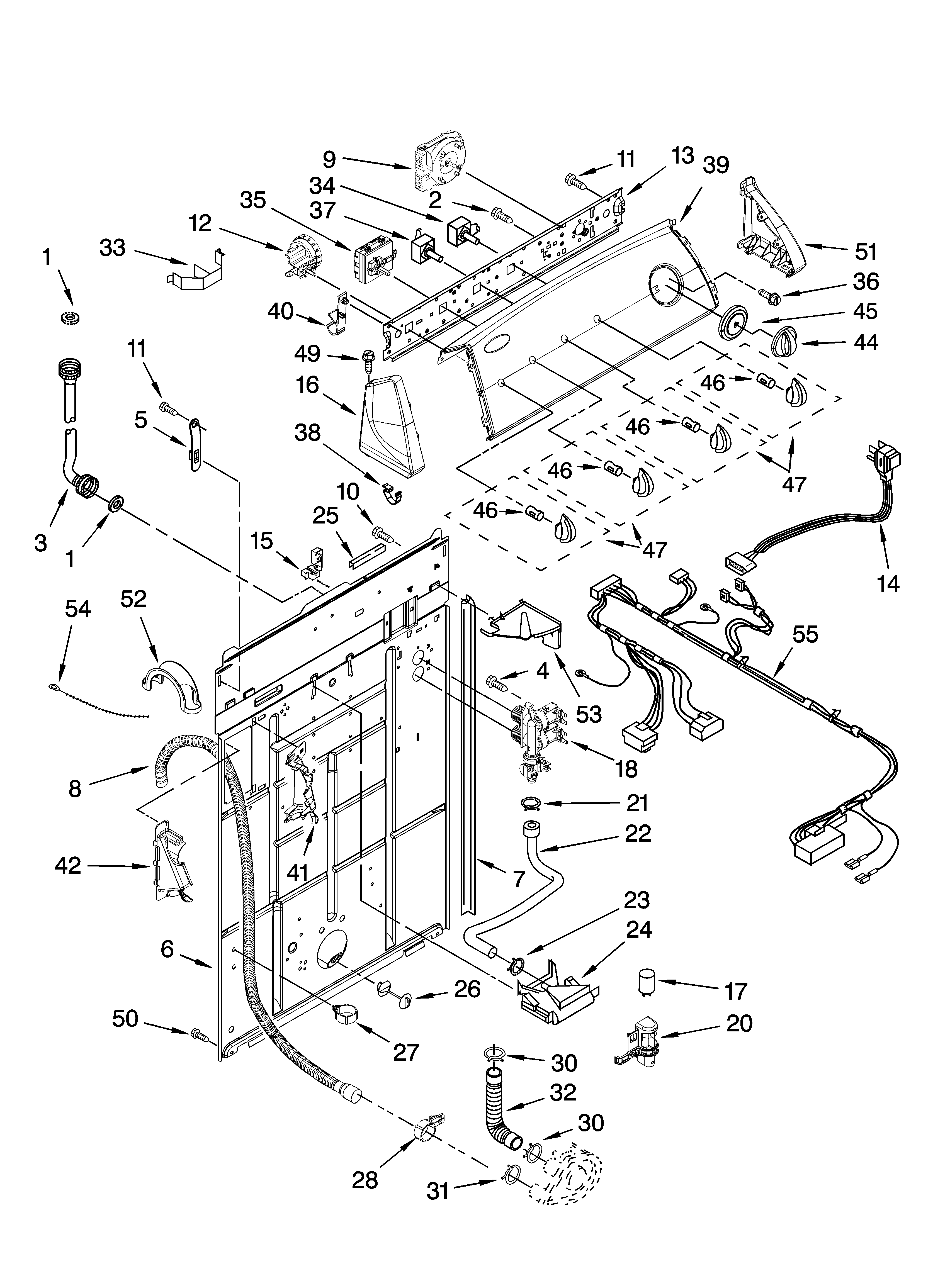

• Drain system components (example: washer drain pump WP3363394)

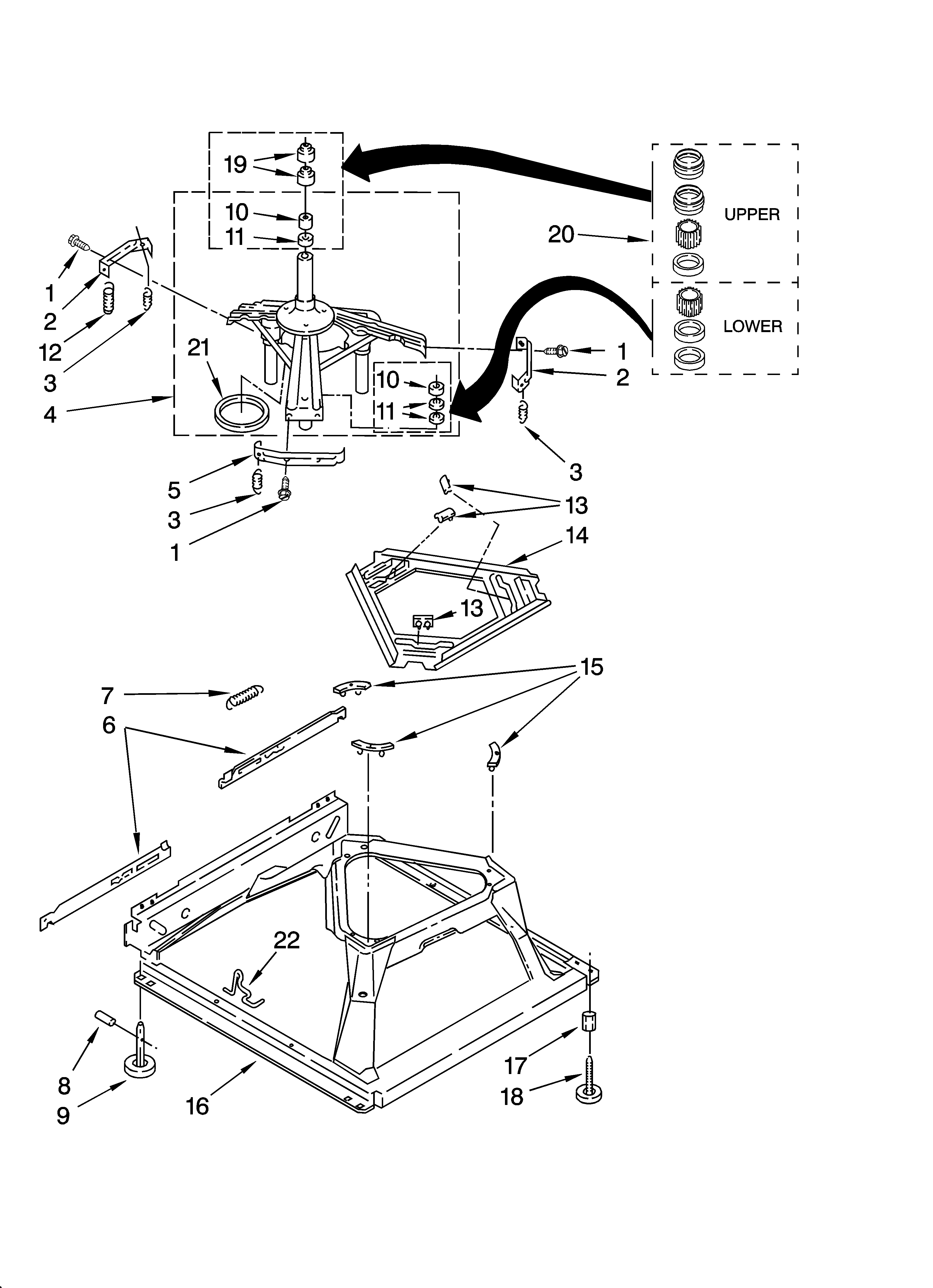

• Drive and agitation components (motor coupling, clutch, drive block)
• Water-level sensing components (pressure switch and hose routing)

Quick compatibility guide

Part type	Can it be “close enough”?	What to do instead
Electrical (switches, timers, actuators)	No	Match by model and part number
Drive train (coupling, clutch, drive block)	Sometimes	Confirm exact fit and revisions
Hoses and inlet washers	Often	Match length, thread, and diameter
Cosmetic items (caps, paint)	Sometimes	Match color and mounting style

Why it matters

Using the correct WTW5700SW0-COMPATIBLE part prevents repeat failures, reduces vibration and leaking risks, and keeps safety systems working as designed. It also helps ensure the repair solves the original symptom instead of creating a new one.

Last updated: February 2026

On the Whirlpool WTW5700SW0 washer, “sensor” can mean different parts (water-level pressure switch, lid switch, or a temperature-related component). We replace it by unplugging power, accessing the correct component, moving wires one at a time, and restoring hoses/connectors exactly as found; then we test a full cycle.

Identify which “sensor” you need on WTW5700SW0

Common sensor-type parts and what they affect:

• Water level sensing: water-level pressure switch and its air hose (fill level, overfill, no-fill symptoms)
• Lid sensing: lid switch (won’t agitate or spin with lid open)
• Drain and spin symptoms: often not a sensor; check pump, hose height, and clogs first

Use the troubleshooting steps in the WTW5700SW0 owner’s manual to match your symptom to the right component.

Safe replacement steps (works for most washer sensors)

1. Unplug the washer from a grounded 3-prong outlet.
2. Turn off both water faucets (hot and cold).
3. Access the part (console, top panel, or cabinet depending on the sensor).
4. Label and move wires one at a time to the same terminals on the new part.
5. If a pressure hose is used, transfer it carefully and make sure it is not kinked or cracked.
6. Reassemble, restore water, and run a test cycle.

Quick checks before you replace anything

These items cause “sensor-like” symptoms on this model:

• Lid not fully closed (washer will not agitate or spin with the lid open)
• Clogged inlet valve screens or kinked inlet hoses
• Timer knob not aligned to a cycle or washer paused mid-cycle
• Drain hose clogged or installed too high (over 96 inches)

Parts that are commonly involved

If your symptom is “won’t spin/agitate unless I press the lid,” the lid switch is a top suspect. If your symptom is “fills wrong” or “water level seems off,” the pressure switch is more likely.

Symptom	Most likely area	What we check first
Won’t agitate/spin	Lid sensing	Lid closes firmly; switch continuity
Won’t fill or fills slowly	Water inlet path	Screens, faucets, hose kinks
Won’t drain/spin	Drain path	Hose clogs; hose height; pump

If you’re replacing the lid switch, use the exact match for this model: washer lid switch assembly WP8318084.

Why it matters

Replacing the correct “sensor” prevents repeat failures and protects the drive system. For example, a bad lid switch can stop spin entirely, while a restricted inlet screen can mimic a failed water-level control.

Last updated: February 2026

The most common Whirlpool washer problem is a no-drain or no-spin condition. On the Whirlpool WTW5700SW0, this is often tied to a lid not fully closed, a drain restriction, or a failed drain component; we start with the quick checks in the WTW5700SW0 owner's manual.

Most common symptoms we see (and what they usually mean)

• Won’t drain or won’t spin: lid open, drain hose issue, or a drain pump problem
• Won’t start or stops mid-cycle: timer not set correctly, power supply issue, or lid switch issue
• Won’t fill or fills slowly: clogged inlet valve screens, kinked inlet hose, or faucets not fully on
• Shakes or bangs: unbalanced load, weak suspension, or overloaded basket

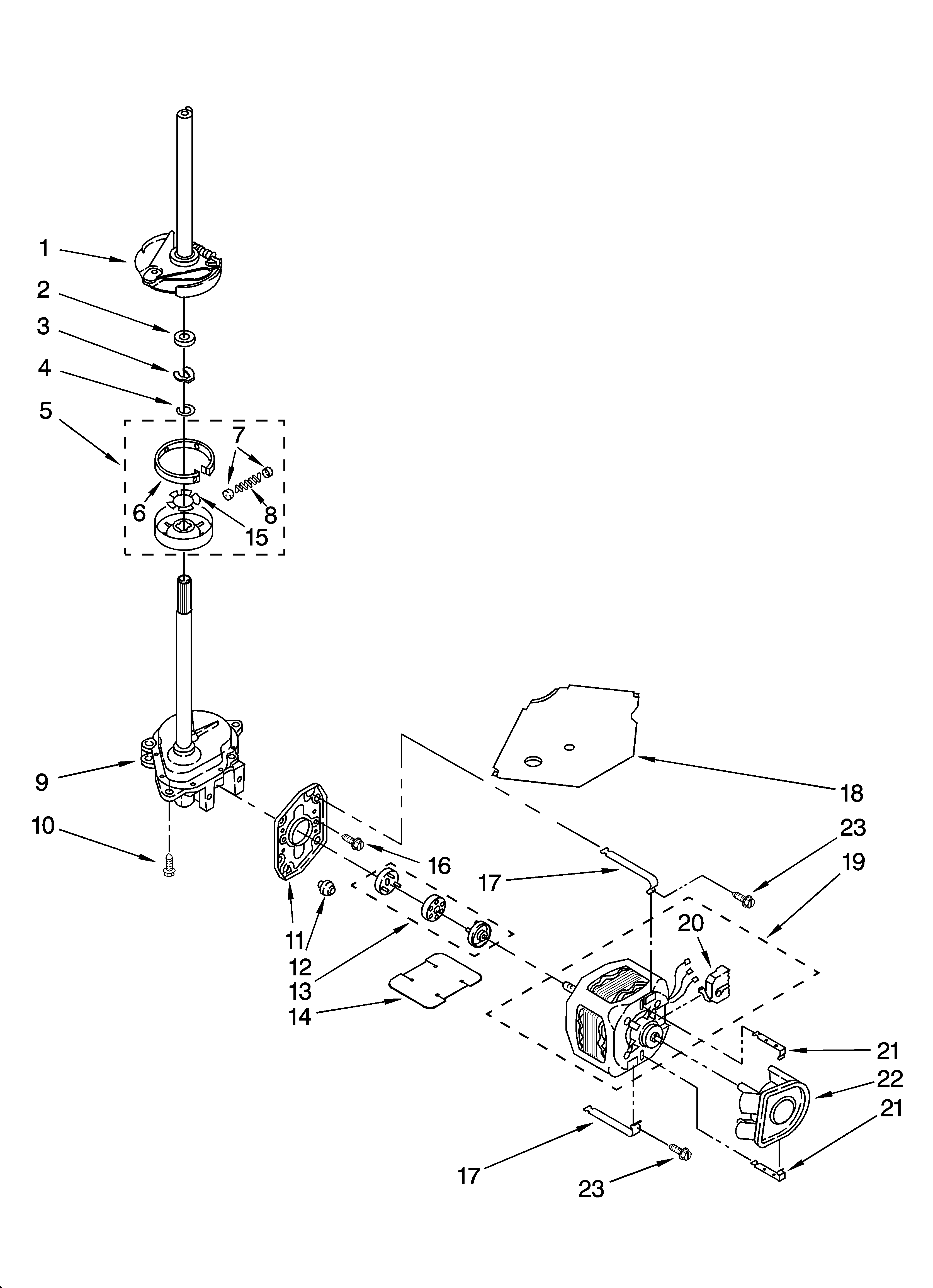

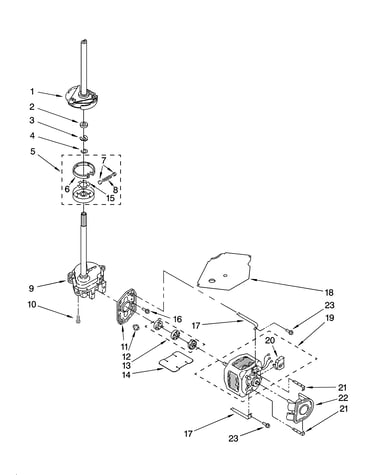

• Loud noise during agitation/spin: worn drive components (coupling, clutch, agitator parts)

Quick checks first (WTW5700SW0)

These are the fastest fixes called out for this style of Whirlpool top-load washer:

• Confirm the washer is plugged into a grounded 3-prong outlet (no extension cord).
• Make sure the lid is closed; this washer will not agitate or spin with the lid open.
• Turn both hot and cold faucets fully on.
• Check inlet hose screens for debris; clean if clogged.
• Verify the drain hose is not clogged and the standpipe height is correct (the drain hose end should not be higher than 96 in. above the floor); see the WTW5700SW0 installation guide.

Parts that commonly fix “won’t drain/spin” on this model

If the quick checks don’t solve it, these parts are frequent culprits on direct-drive Whirlpool top-load designs:

Symptom	Most likely area	Example part for WTW5700SW0
Won’t drain, humming, water left in tub	Drain system	Washer drain pump WP3363394
Won’t spin, stops when lid is lifted	Lid safety circuit	Washer lid switch assembly WP8318084

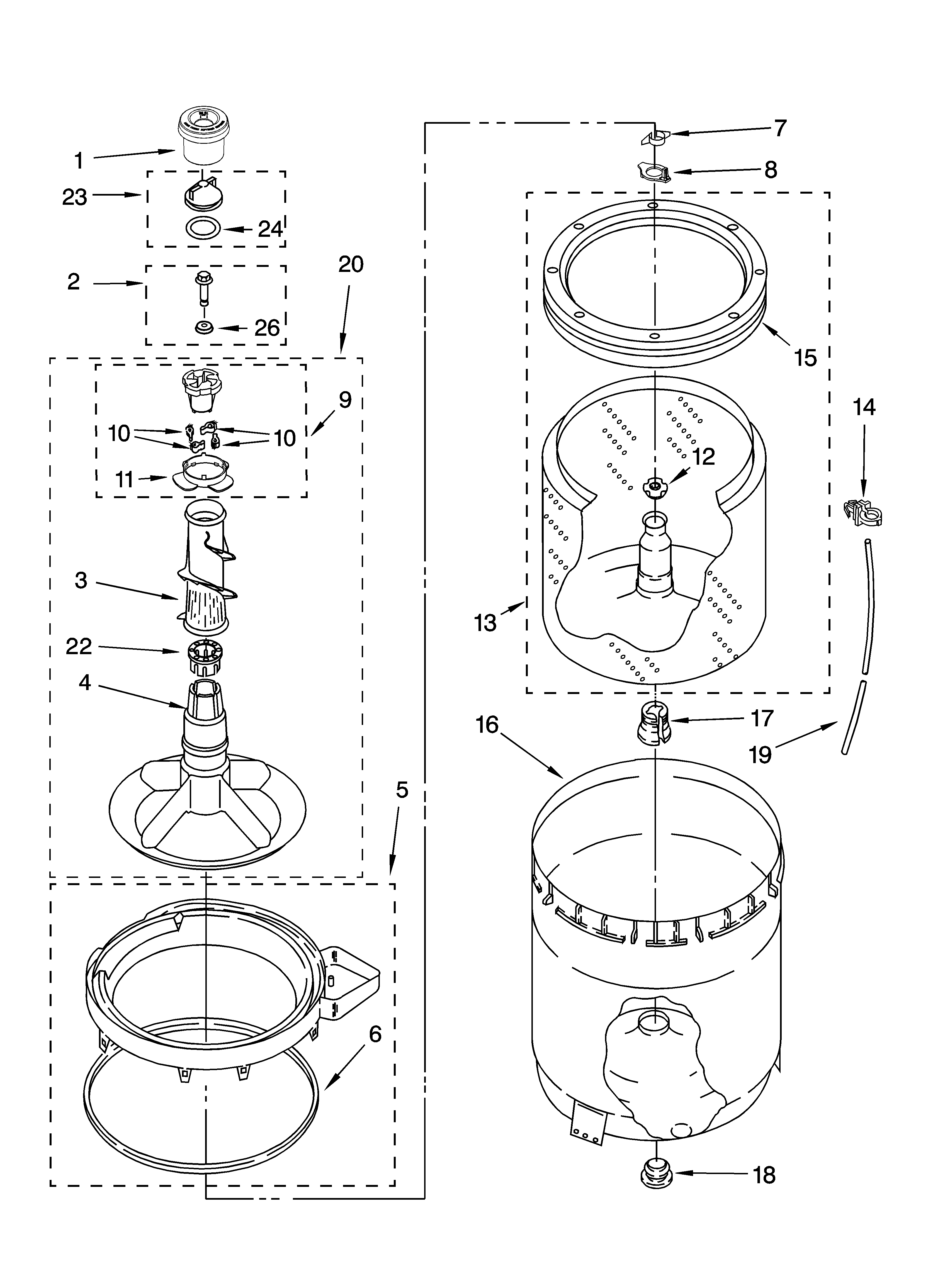

Agitates poorly, clothes not moving well	Agitator drive	Agitator dog 80040

Why it matters

No-drain and no-spin problems can leave clothes soaking wet and can also trigger repeated cycle stops. Fixing the root cause (lid safety, drain path, or drive components) prevents extra strain on the motor, coupling, and clutch.

Last updated: February 2026
