Craftsman 917272140 lawn tractor Parts

The Craftsman lawn tractor model 917272140 uses a 20.0 HP electric-start engine (as shown on the tractor’s owner documentation). For the exact engine make, model, and service details, we follow the specifications and identification steps in the 917272140 owner's manual.

How to identify the exact engine on your 917272140

Even within the same tractor model, the engine brand and spec can vary by production run; the sure method is reading the engine ID label.

• Lift the hood and locate the engine identification label (often on the blower housing or valve cover area).
• Write down the model, type/spec, and code numbers from the engine label.
• Match those numbers to the engine section in the manual for maintenance items (oil, spark plug, valve clearance).
• If the label is dirty, wipe it gently; avoid spraying water directly into electrical components.
• Use the tractor model number 917272140 when selecting chassis parts (belts, switches, steering parts).

What the manual tells us about the engine and key specs

From the product specifications for the 917272140, we use these engine-related service specs for tune-ups and maintenance:

Spec item	917272140 specification
Horsepower (as documented)	20.0 HP
Starting	Electric start
Spark plug	Champion RJ19LM (gap 0.030 in.)
Oil type (above 32°F)	SAE 30
Oil type (below 32°F)	SAE 5W-30

Why it matters

Ordering the right tune-up parts and setting the correct maintenance specs depends on the engine ID, not just the tractor model. Using the correct oil viscosity and spark plug gap helps starting, power under load, and engine life.

Related parts that commonly support starting and blade engagement

If your question is tied to starting or PTO operation, these model-matched parts are commonly involved:

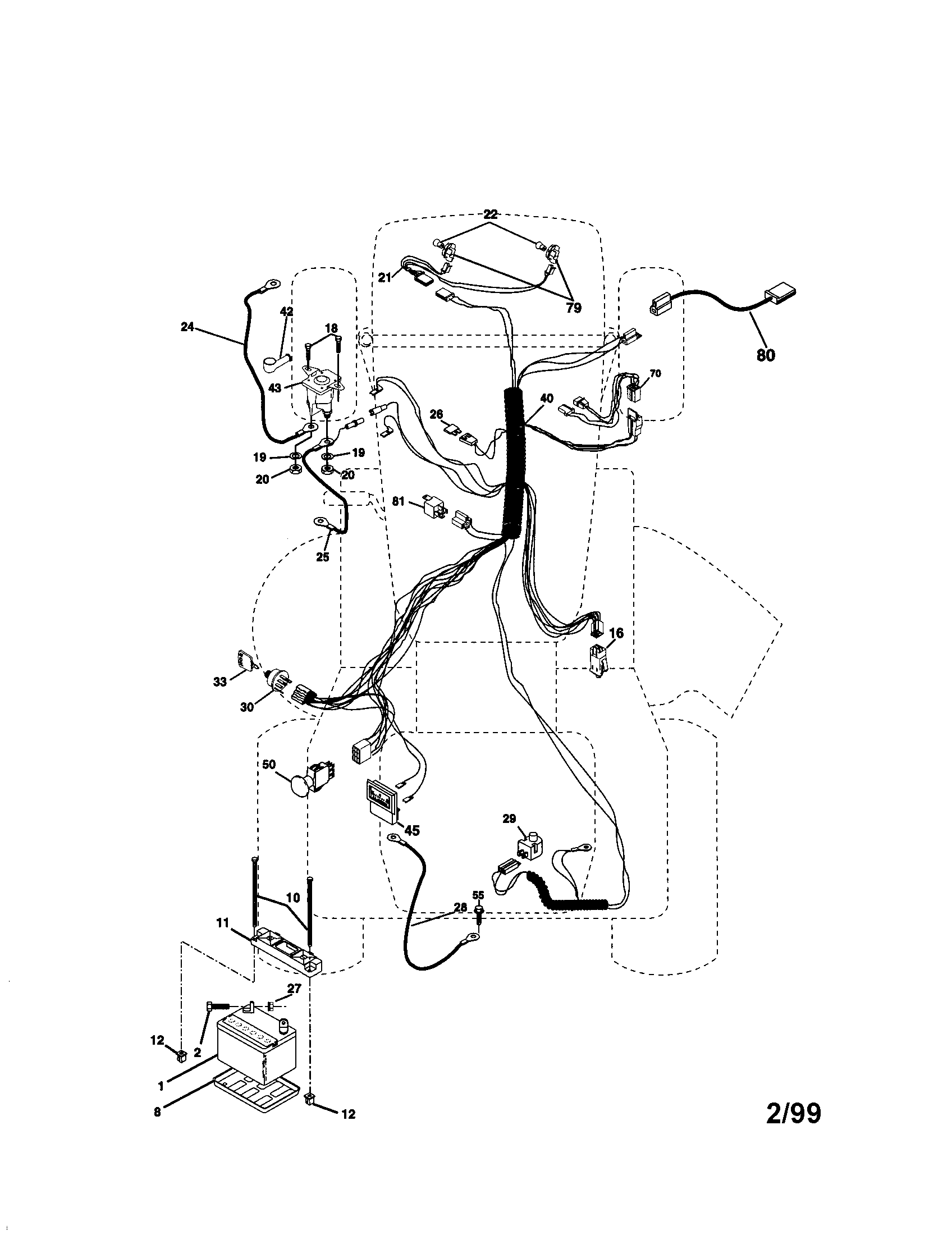

• Solenoid 532146154 (starter circuit)
• Molded ignition key 532140403 (ignition switch operation)
• Switch.pto.3 582107601 (blade engagement circuit)

Last updated: February 2026

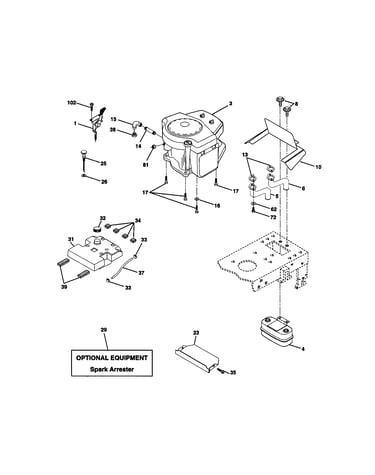

On your Craftsman lawn tractor model 917272140, the engine identification is typically stamped on the engine shroud (sheet metal) near the muffler and air cleaner. Use that stamped model/type/code information to match the correct tune-up and starting-system parts in the 917272140 owner's manual.

Where to look on the engine

Check these common stamp locations first (wipe dirt and grass off so you can read it):

• On the sheet metal directly above the muffler (muffler can be on the right or left side)
• On the front of the engine near the air cleaner housing
• On the engine shroud near common engine markings or symbols
• On a sticker or tag attached to the blower housing (if present)

What to write down (and why)

Record the full set of numbers exactly as stamped; that is what identifies the engine, not the tractor model alone.

• Engine model number
• Engine type (or trim/spec) number
• Code/date number (often used to determine production run)

Quick reference table

What you find	What it’s used for	Examples of what it helps you choose
Engine model/type/code	Identifies the exact engine build	Air filter, spark plug, fuel filter, carburetor parts
Tractor model 917272140	Identifies the chassis and mower system	Belts, steering parts, PTO switch, solenoid

If the tractor clicks or won’t crank after you identify the engine

Once you have the engine ID, you can separate engine issues from starting-circuit issues. For model 917272140, common no-crank causes include a weak battery, corroded terminals, blown fuse, faulty ignition switch, or a bad solenoid.

• Confirm the clutch/brake pedal is fully depressed
• Make sure the attachment clutch (PTO) is disengaged
• Check battery connections for corrosion and tightness
• If you hear a click but no crank, test/inspect the starter solenoid

If you need the common starting-circuit replacement part for this tractor, see the solenoid 532146154.

Why it matters

Using the correct engine identification prevents ordering the wrong maintenance parts and speeds up troubleshooting. It also helps you match symptoms (clicks, no crank, spins but won’t start) to the right system: battery and safety interlocks, starter circuit, or fuel/ignition.

Last updated: February 2026

For your Craftsman lawn tractor model 917272140, the fastest way to find the right replacement part is to use the model-specific parts diagrams and parts list, then match the diagram callout to the exact part ID before ordering. For specs and maintenance items, confirm details in the 917272140 owner's manual.

Step-by-step: how we recommend finding the correct part

• Locate your full model number (917272140) on the tractor’s model tag.

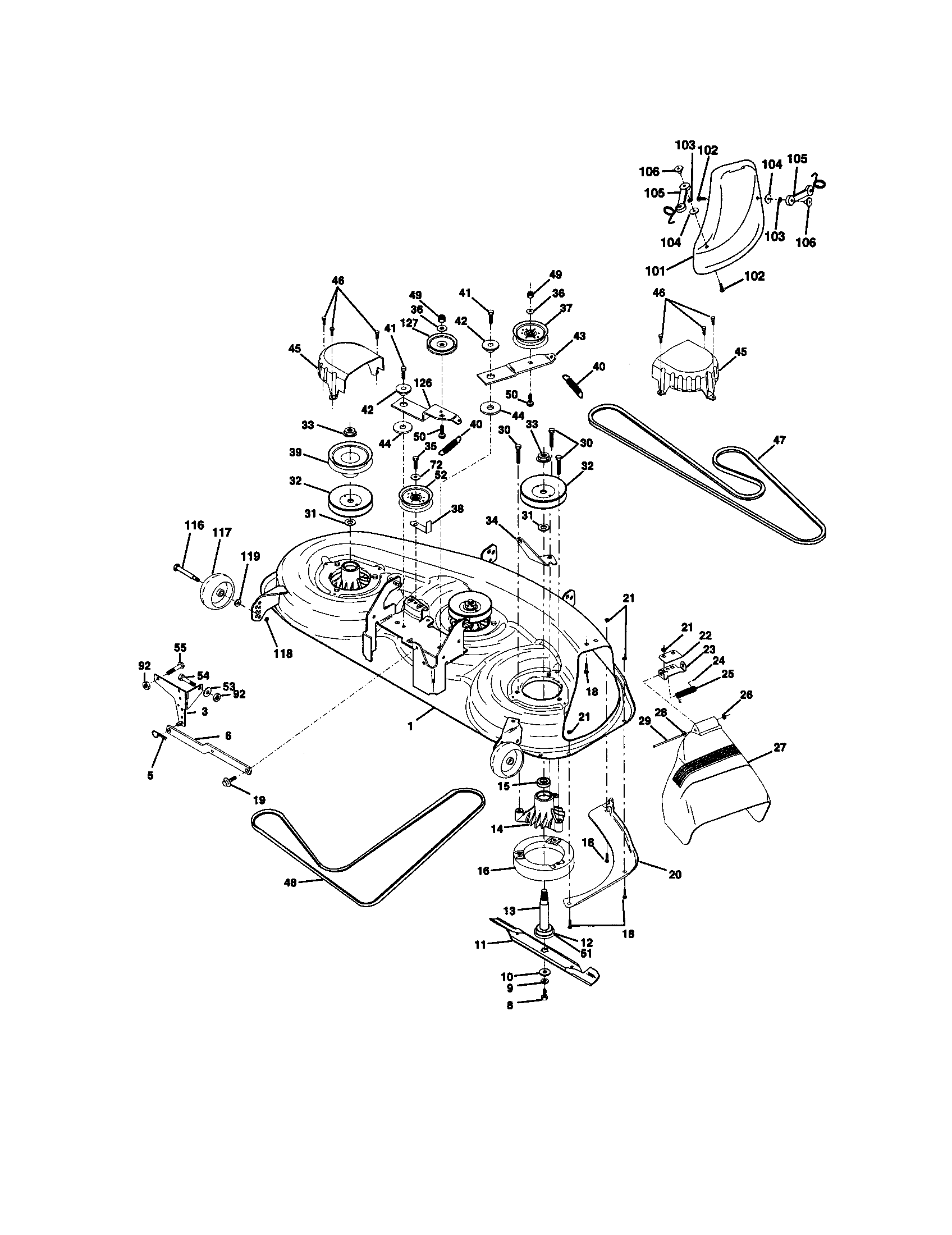

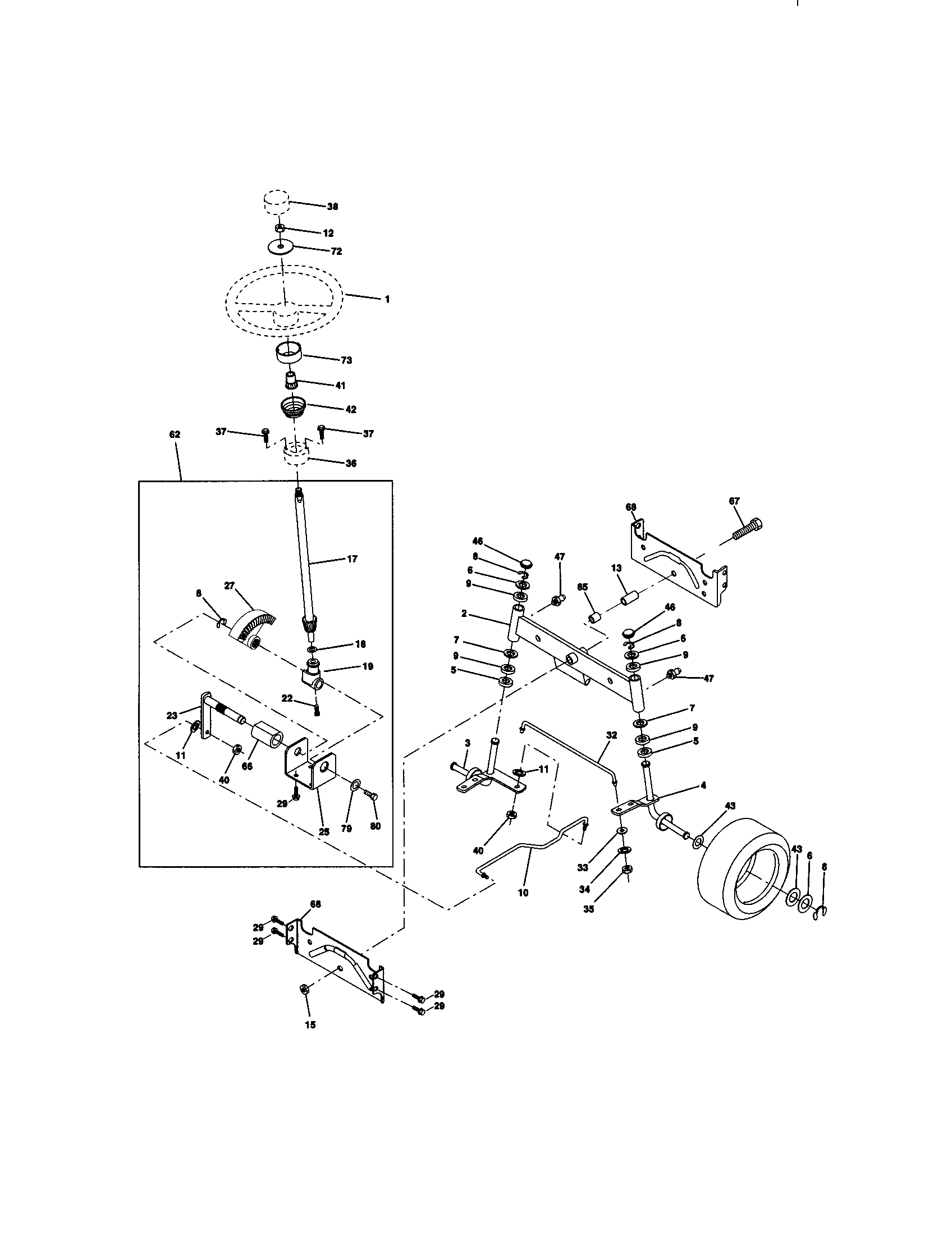

• Open the parts diagrams for your exact model and identify the system (mower deck, steering, drive, electrical).
• Click the diagram callout number to see the matching part ID and description.
• Compare the part name and part ID to what you need (for example, a belt vs. a pulley).
• If you are replacing a wear item, check the manual’s maintenance section for intervals and related items.
• Order using the exact part ID to avoid fit issues.

Common parts customers look up on model 917272140

These are examples of parts shown for this model that people often need during repairs:

Repair need	Example part on this model	What it does
Tractor will not crank or only clicks	Solenoid 532146154	Sends battery power to the starter when you turn the key

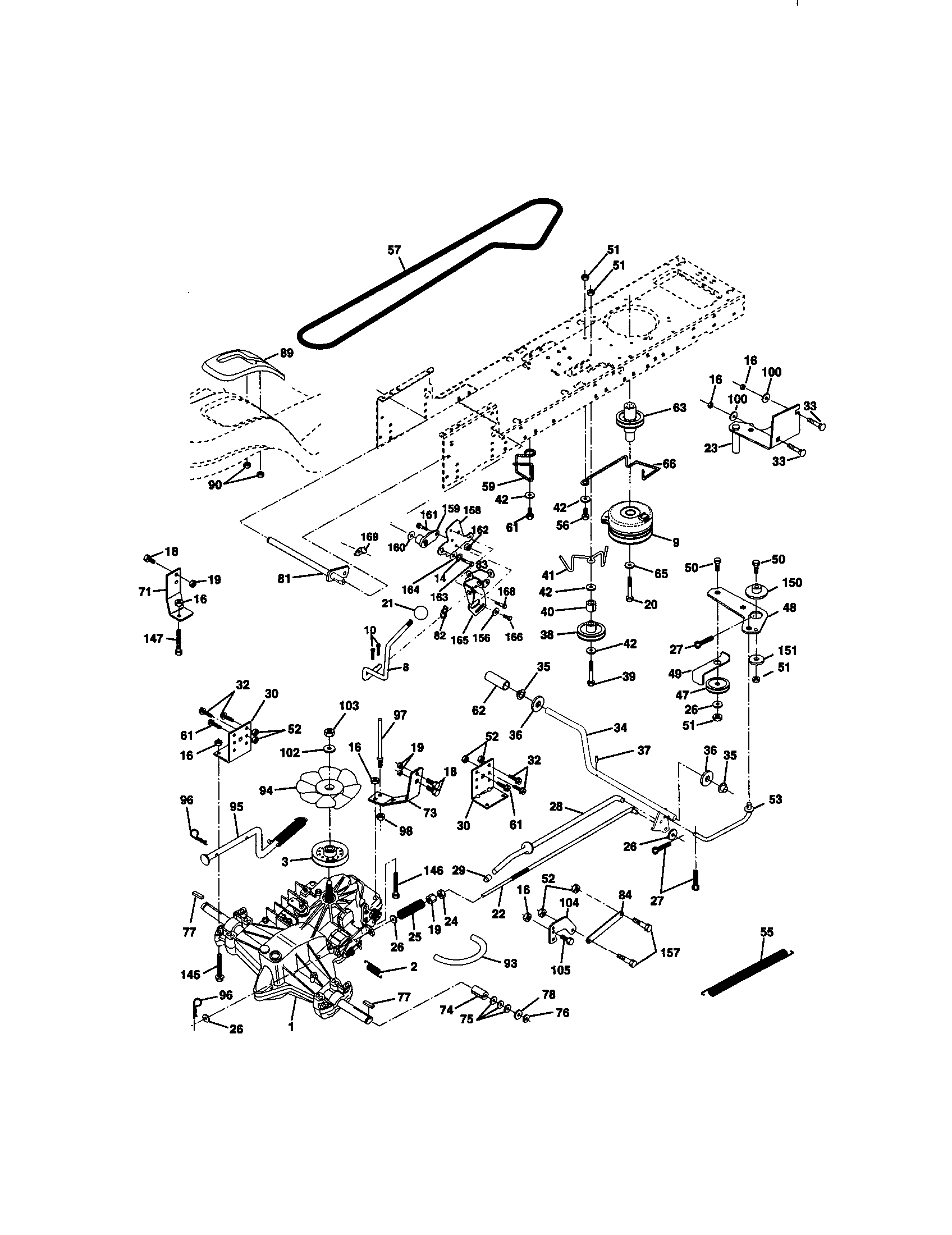

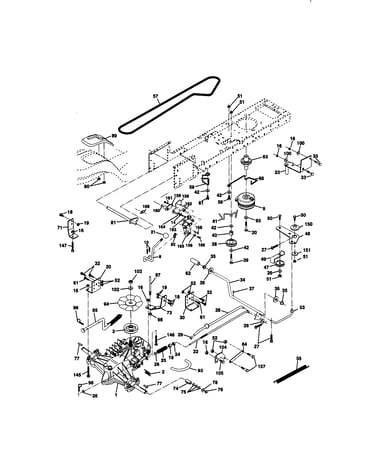

Tractor will not move or drive is slipping	Lawn tractor ground drive belt, 1/2 x 82-in 532140294	Transfers power to the transmission/drive system
Blades will not engage	Switch.pto.3 582107601	Turns the PTO circuit on to engage the mower deck
Lost key or worn key	Molded ignition key 532140403	Operates the ignition switch

Why it matters (and how it prevents wrong-part orders)

Craftsman tractors can look similar across model series, but small differences in deck size, drive setup, and electrical components change which parts fit. Using the 917272140 diagrams and the 917272140 owner's manual keeps the repair matched to your exact configuration.

Helpful specs to confirm while you shop

From the manual’s product specifications, these details help you choose compatible maintenance items and set the tractor up correctly:

• Gas capacity: 3.5 gallons (unleaded regular)
• Oil type: SAE 30 (above 32°F) or SAE 5W-30 (below 32°F)
• Tire pressure: 14 PSI front, 10 PSI rear
• Ground speed: up to 5.5 MPH forward, 2.4 MPH reverse

To search beyond the parts list for this model number, use Sears PartsDirect.

Last updated: February 2026

Yes, replacing the engine on your Craftsman lawn tractor model 917272140 is worth it when the deck, steering, and drive system are still solid and the total engine-swap cost stays well below the cost of replacing the whole tractor. It is not worth it when multiple major systems are worn out at the same time.

Quick decision checklist

• Replace the engine if the mower deck is straight (no rust-through or cracks) and the tractor still cuts evenly.
• Replace the engine if the drive system is healthy (no chronic slipping, burning belt smell, or loss of power under load).
• Replace the engine if the safety interlock system behaves correctly (starts only with clutch/brake depressed and PTO disengaged).
• Skip the engine swap if you also need major deck/mandrel work and drivetrain repairs.
• Skip the engine swap if electrical and safety no-start problems are recurring across multiple components.

For the model-specific safety interlock checks and operating requirements, use the 917272140 owner's manual.

Before you blame the engine

Many “bad engine” complaints on riding tractors are caused by starting, PTO, or belt issues.

Symptom	Often caused by	Example part on this model page
Clicks but will not crank	Weak battery, wiring, starter solenoid	Solenoid 532146154
Blades will not engage	PTO switch, belt/engagement issues	Switch.pto.3 582107601
Tractor moves poorly	Worn/slipping ground drive belt	Lawn tractor ground drive belt, 1/2 x 82-in 532140294

Why it matters

An engine swap is one of the biggest repairs on a lawn tractor. Confirming the starting circuit, safety interlocks, and belt-driven systems prevents spending engine money on a tractor that still will not run or cut correctly.

Helpful DIY guidance

• Riding lawn mower engine clicks but doesnt turn over video
• Riding lawn mower engine spins but wont start video

If you decide to repair, order parts from the list for model 917272140, or search by model number on Sears PartsDirect.

Last updated: February 2026

Common problems on Craftsman riding mowers like model 917272140 include no-start or clicking (battery, wiring, safety interlocks, solenoid), power loss (stale fuel, dirty fuel filter, spark plug), and cutting or drive issues (belt wear, deck buildup, low tire pressure). Use the 917272140 owner's manual troubleshooting chart for model-specific checks.

Most common symptoms and likely causes

• Clicks but won’t crank: weak battery, corroded terminals, loose wiring, failed solenoid
• Cranks but won’t start: stale fuel or water in fuel, dirty fuel filter, spark plug or wire issue
• Loss of power: dirty fuel filter, clogged air screen/fins, carburetor out of adjustment, valves out of adjustment
• Blades won’t rotate: worn belt, frozen idler pulley, frozen mandrel, obstruction in clutch mechanism
• Poor or uneven cut: deck not level, buildup under deck, bent blade/mandrel, low tire pressure

Quick checks we recommend first

• Drain and refill with fresh regular unleaded fuel if fuel is old
• Check tire pressure: front 14 PSI, rear 10 PSI (manual spec)
• Clean grass and debris from under the deck and around mandrels
• Inspect belts for cracking, glazing, or slack
• Clean and tighten battery cables; inspect wiring at switches and solenoid

Helpful model specs (917272140)

Spec	Value	Why it matters
Fuel capacity	3.5 gallons	Old fuel causes hard starting and power loss
Spark plug	Champion RJ19LM (gap 0.030 in)	Misfire and power loss often trace here
Ground speed	Fwd 0 to 5.5 mph; Rev 0 to 2.4 mph	Helps confirm drive system operation

Parts that often fix these symptoms

• For a single click and no crank after battery checks: solenoid 532146154
• For slipping or no movement under load: lawn tractor ground drive belt, 1/2 x 82-in 532140294

Why it matters

Most “major” mower problems start as basic maintenance or wear issues. Catching fuel, airflow, wiring, and belt problems early prevents no-starts, poor cutting, and loss of drive.

You can order replacement parts from the parts list for model 917272140, or search by model number on Sears PartsDirect.

Last updated: February 2026
