Thermador
Dishwasher

Model # DWHD440MFP/01 Official Thermador dishwasher

Here are the diagrams and repair parts for Official Thermador DWHD440MFP-01 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

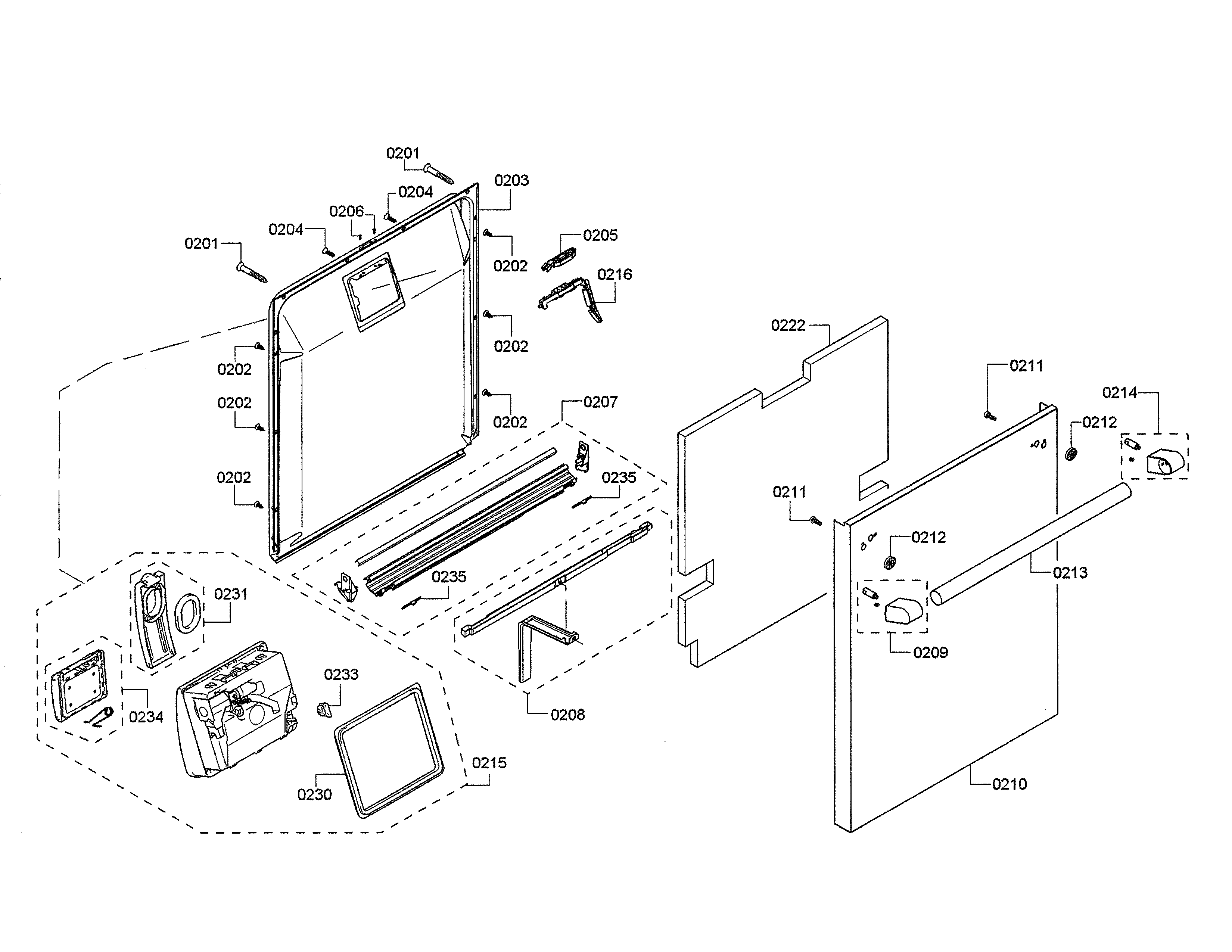

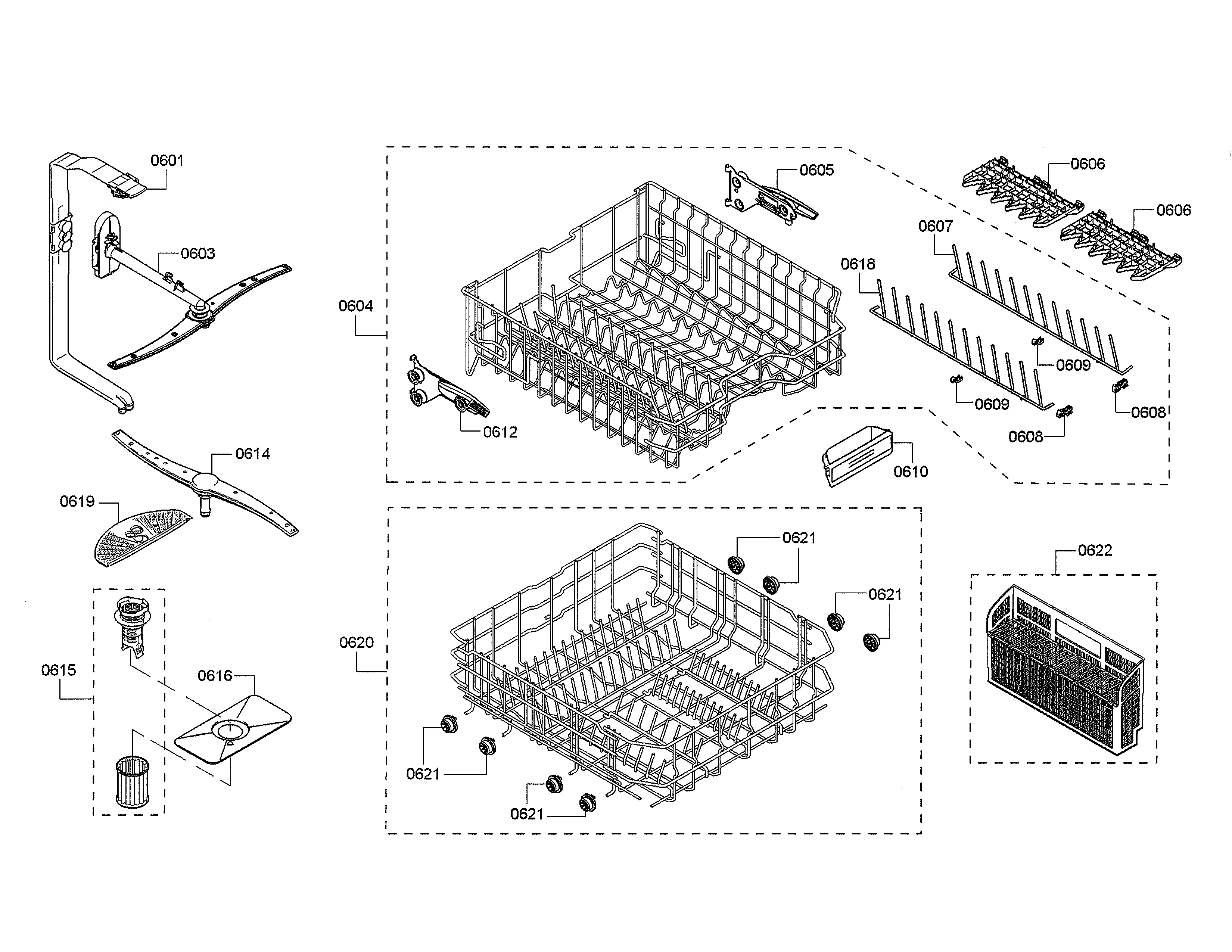

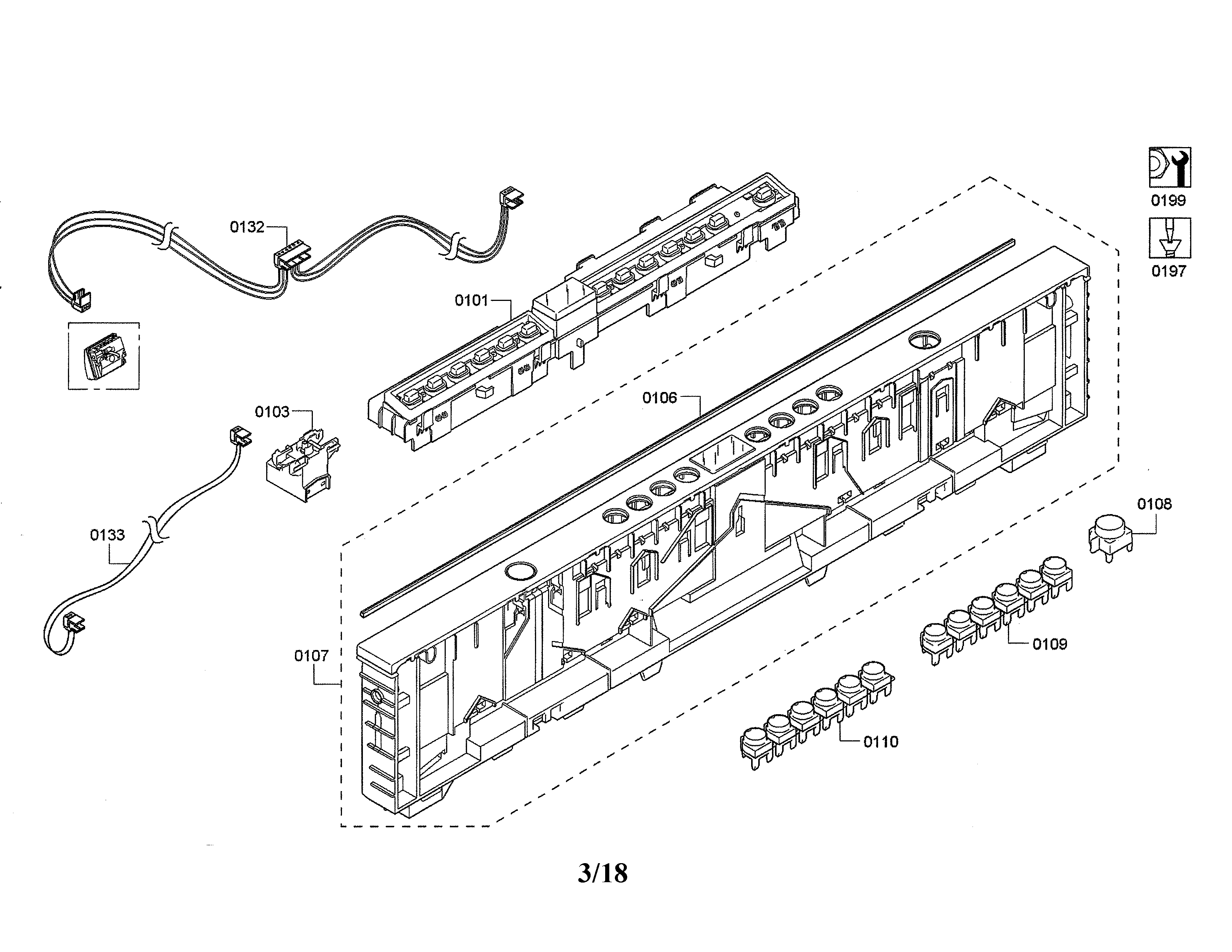

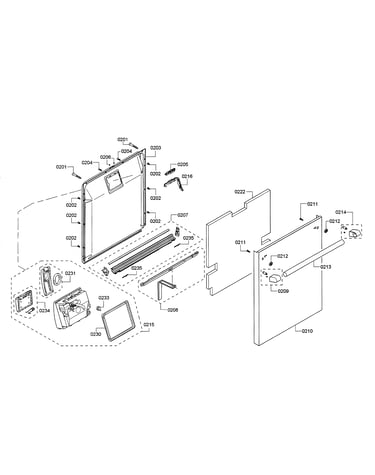

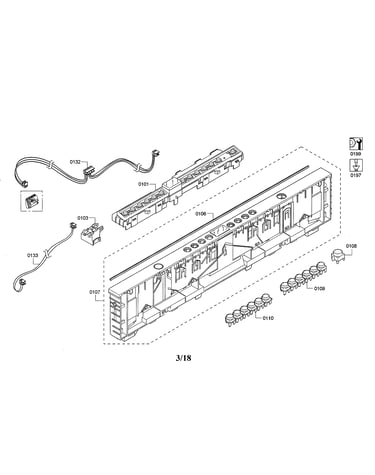

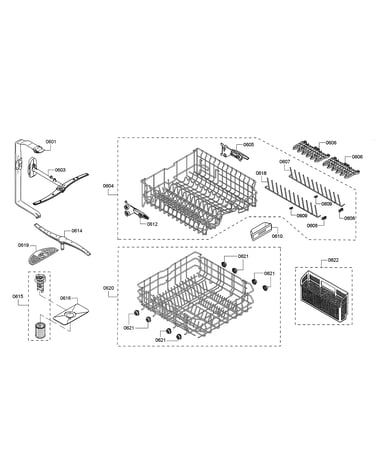

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
Dishwasher Water Inlet Valve (replaces 628334) 00628334
#521

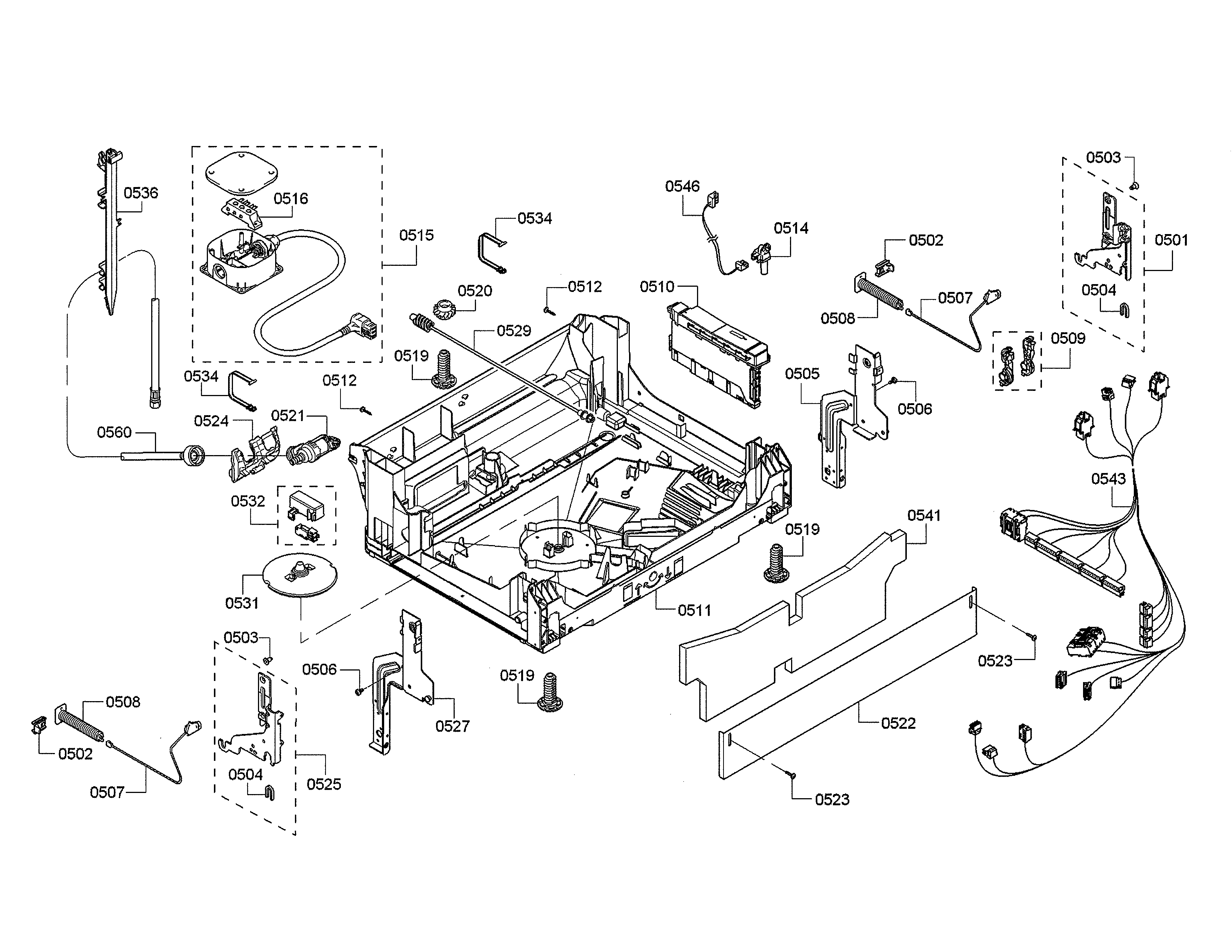

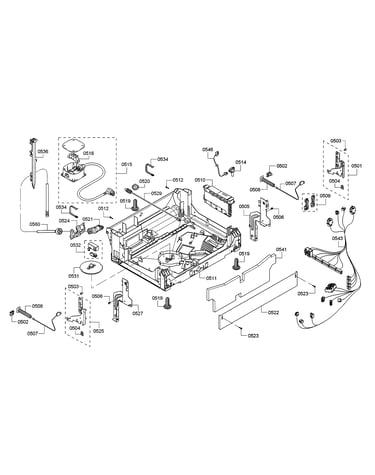

Base/power cord/main harness diagram

Dishwasher water inlet valve (replaces 628334)

Part #00628334

Replaced by #10023852

?
Manufacturer substitution
This part replaces 00628334. Substitute parts can look different from the original.
BEST SELLER
$25.27 |
17% OFF Phone Price : $30.27
In Stock
Dishwasher Door Seal (replaces 494772) 00494772
#307

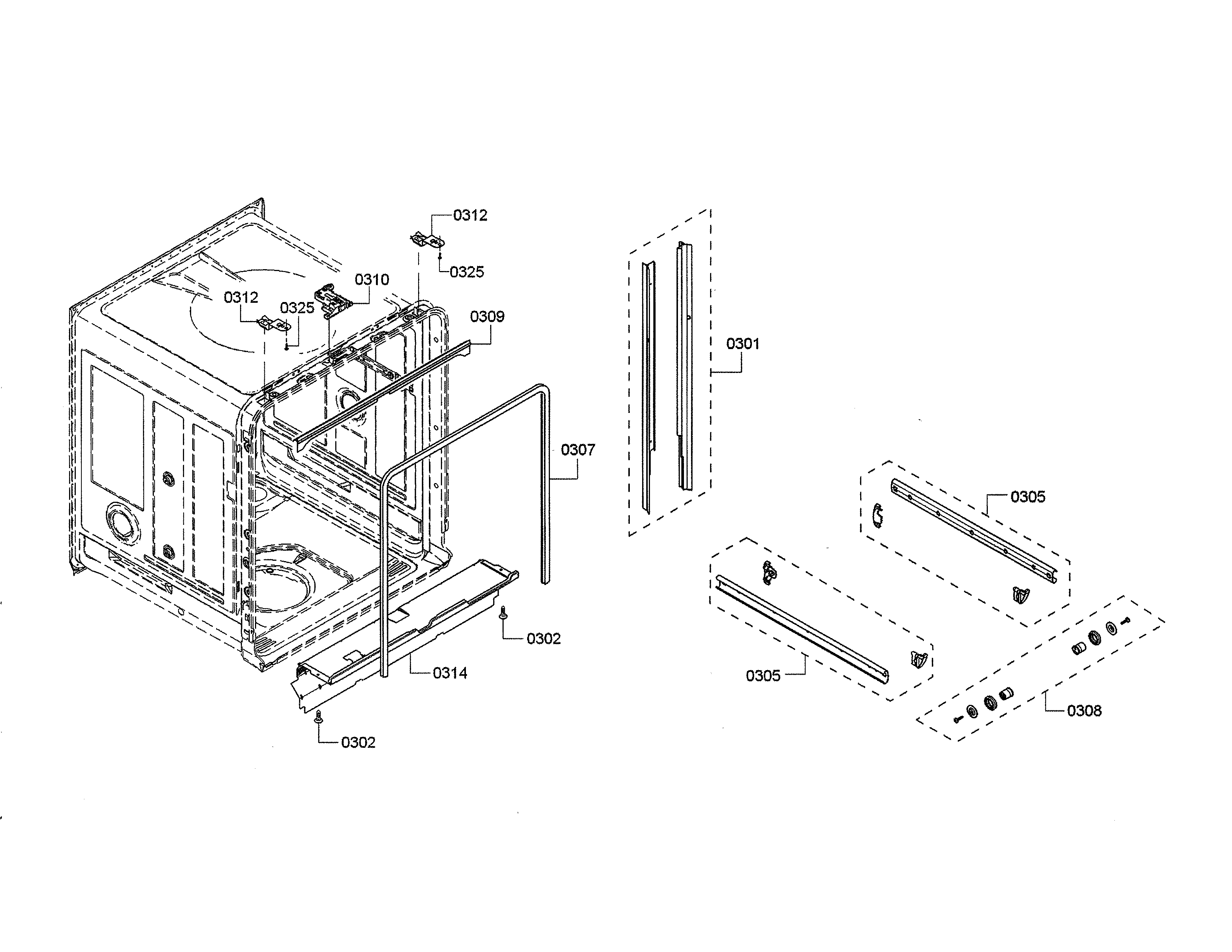

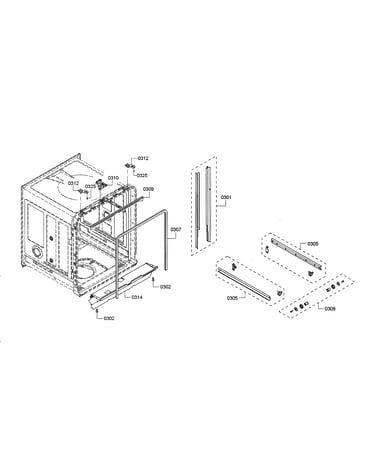

Rail/oven latch diagram

Dishwasher door seal (replaces 494772)

Part #00494772

BEST SELLER
$31.92 |
14% OFF Phone Price : $36.92
In Stock
Dishwasher Diverter Assembly (replaces 751950) 00751950
#406

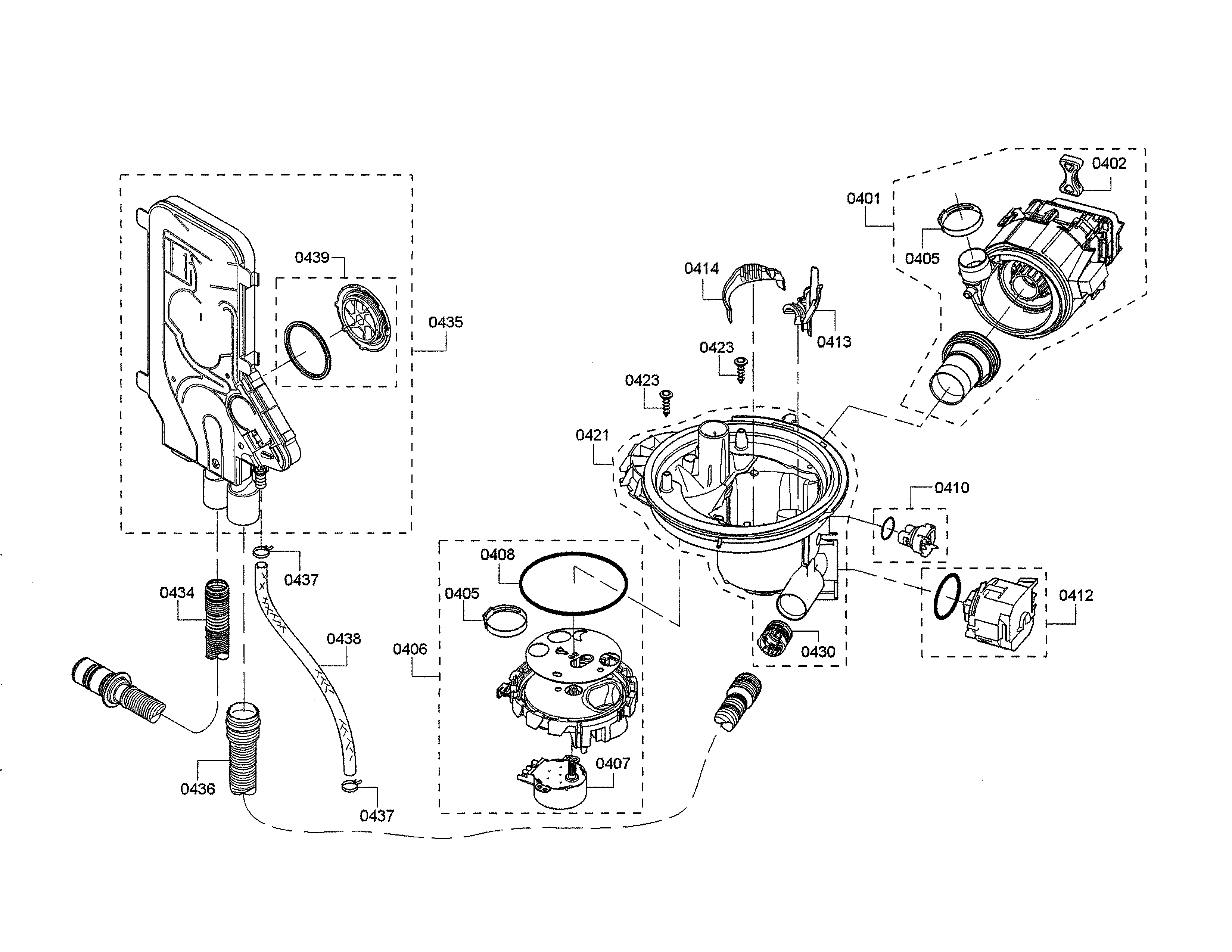

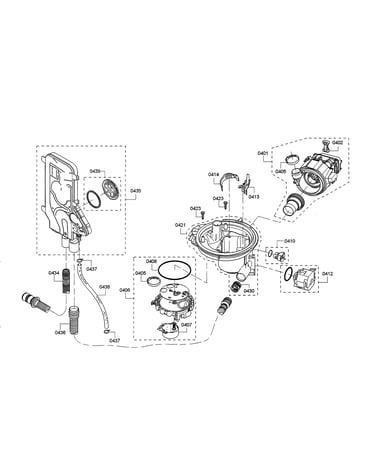

Sump/water inlet/heat pump diagram

Dishwasher diverter assembly (replaces 751950)

Part #00751950

BEST SELLER
$49.82 |
9% OFF Phone Price : $54.82
In Stock
Dishwasher Drain Pump (replaces 620774) 00620774
#412

Sump/water inlet/heat pump diagram

Dishwasher drain pump (replaces 620774)

Part #00620774

BEST SELLER
$66.09 |
7% OFF Phone Price : $71.09
In Stock
Dishwasher Drain Hose (replaces 744881) 00744881
#434

Sump/water inlet/heat pump diagram

Dishwasher drain hose (replaces 744881)

Part #00744881

BEST SELLER
This item is not returnable
$20.49 |
20% OFF Phone Price : $25.49
In Stock
Dishwasher Hose Clamp (replaces 00417502, 00606311, 172272) 00172272
#405

Sump/water inlet/heat pump diagram

Dishwasher hose clamp (replaces 00417502, 00606311, 172272)

Part #00172272

BEST SELLER
$18.72 |
10% OFF Phone Price : $20.72
In Stock
Heat Pump 00746094
#401

Sump/water inlet/heat pump diagram

Heat pump

Part #00746094

Replaced by #00753351

?
Manufacturer substitution
This part replaces 00746094. Substitute parts can look different from the original.
BEST SELLER
$229.09 |
$10.00 OFF Phone Price : $239.09
In Stock
Dishwasher Float Switch Assembly (replaces 751391) 00751391
#532

Base/power cord/main harness diagram

Dishwasher float switch assembly (replaces 751391)

Part #00751391

$11.49 |
15% OFF Phone Price : $13.49
In Stock
Dishwasher Float Assembly (replaces 622036) 00622036
#531

Base/power cord/main harness diagram

Dishwasher float assembly (replaces 622036)

Part #00622036

This item is not returnable
$26.69 |
16% OFF Phone Price : $31.69
In Stock
Adjuster Device 00628835
#528

Base/power cord/main harness diagram

Adjuster device

Part #00628835

Replaced by #00623536

?
Manufacturer substitution
This part replaces 00628835. Substitute parts can look different from the original.
$13.69 |
13% OFF Phone Price : $15.69
In Stock
