Model # DU890SWKQ0 Official Whirlpool dishwasher

Here are the diagrams and repair parts for Official Whirlpool DU890SWKQ0 dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part

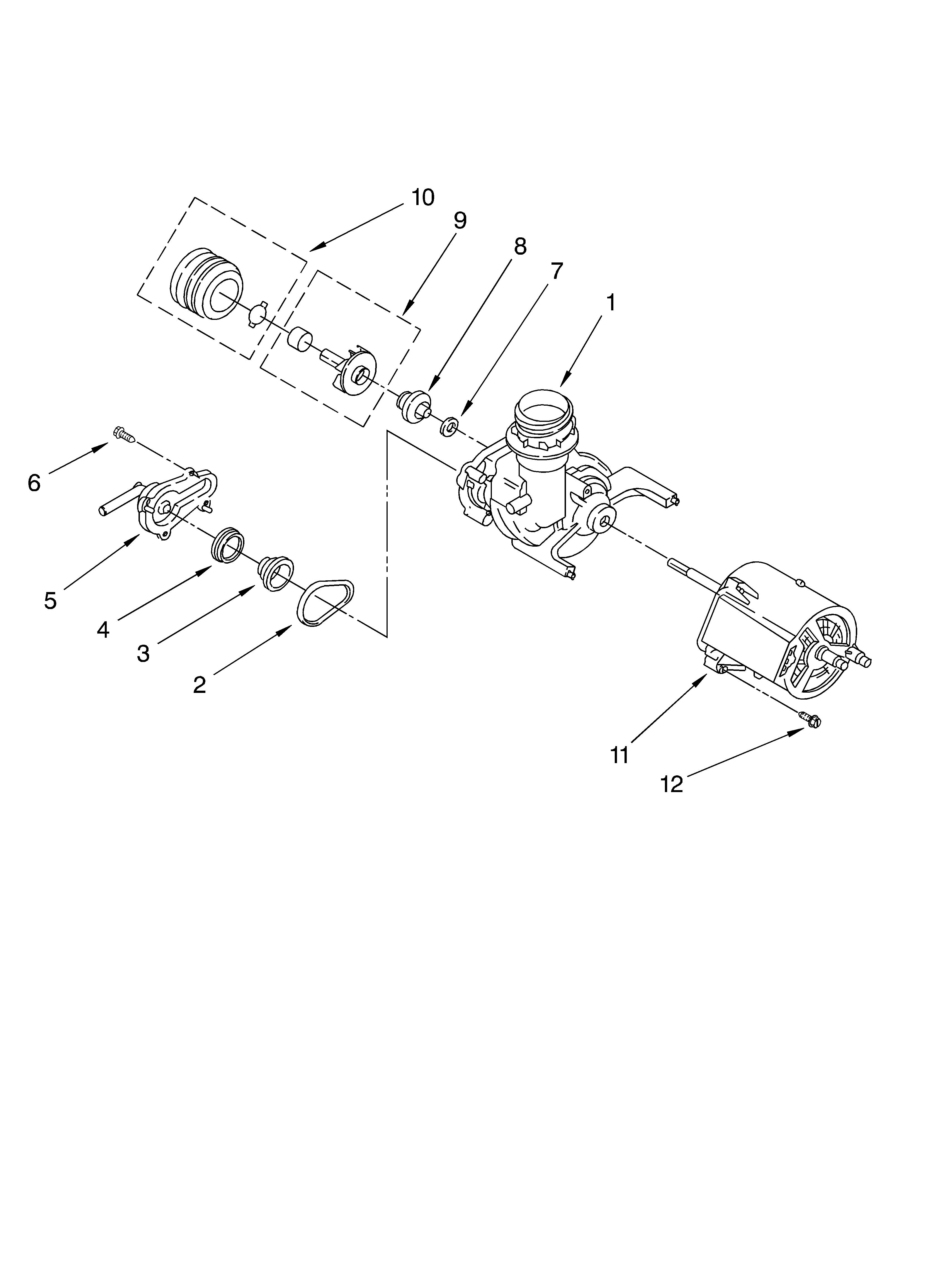

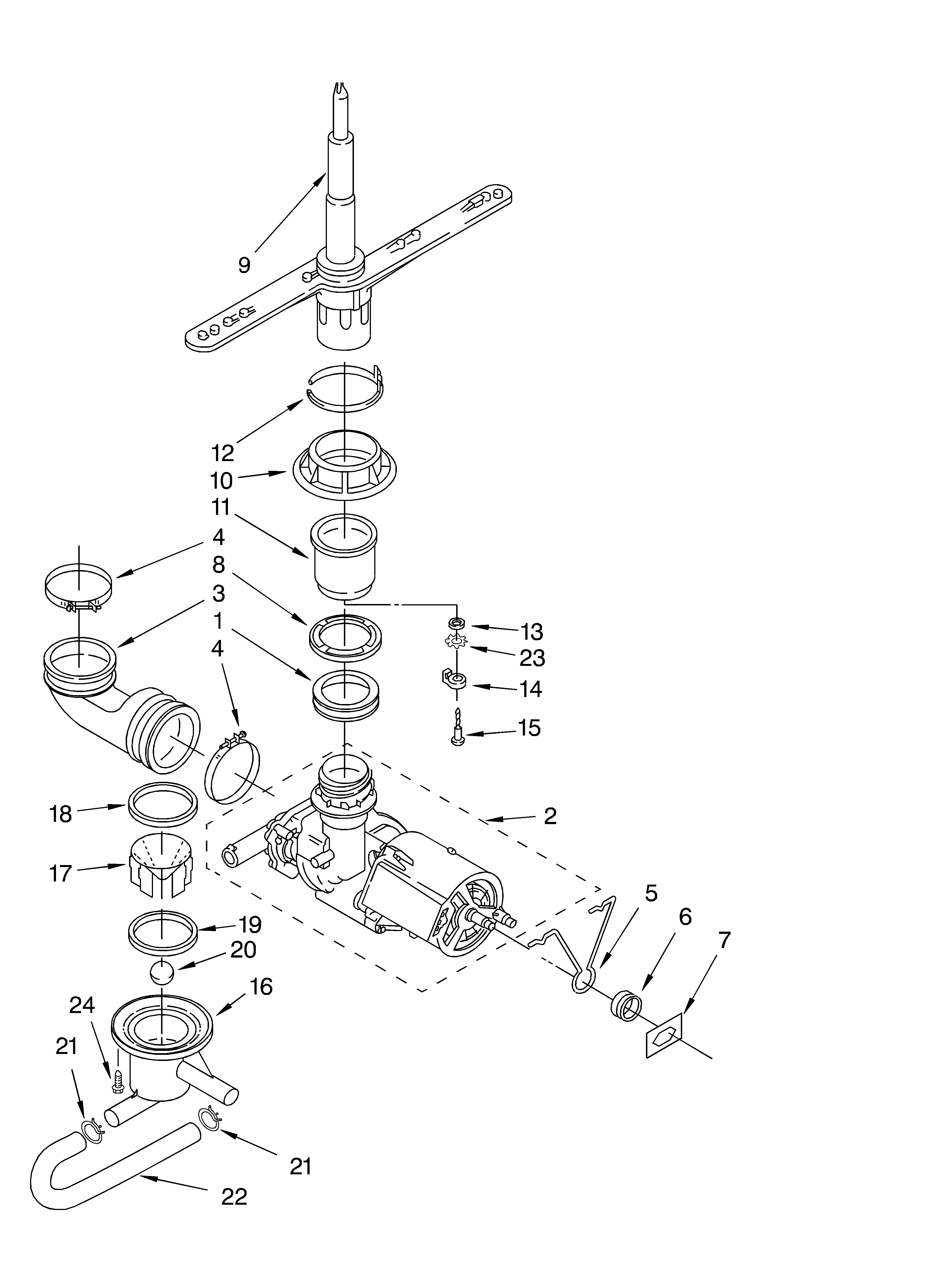

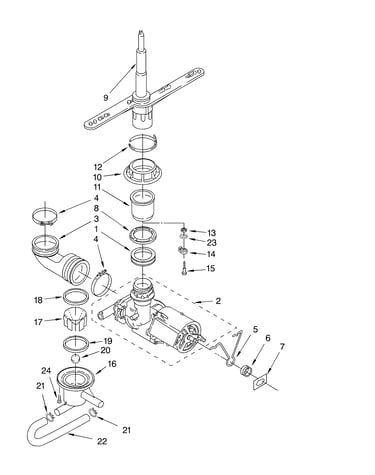

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forDU890SWKQ0 Dishwasher

  • Clamp 301958
    #38

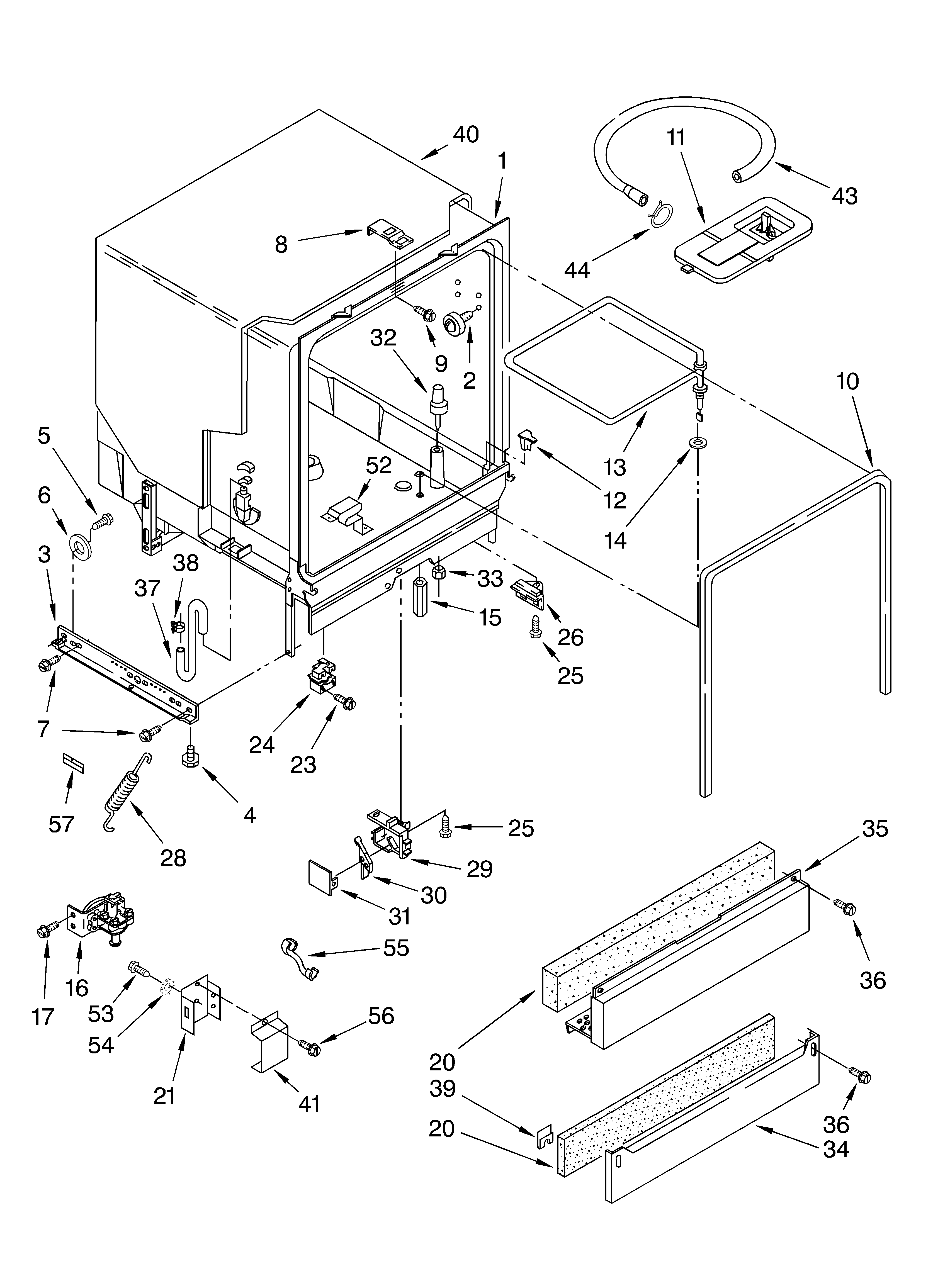

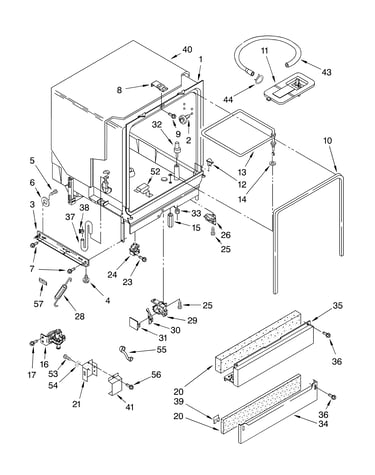

    Tub assembly diagram

    Clamp

    Part #301958

    Replaced by #WP596669

    ?
    Manufacturer substitution
    This part replaces 301958. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.31 |
    19% OFF Phone Price : $5.31
    In Stock
  • Dishwasher Terminal Nut 8268548
    #15

    Tub assembly diagram

    Dishwasher terminal nut

    Part #8268548

    Replaced by #WPW10477552

    ?
    Manufacturer substitution
    This part replaces 8268548. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $6.36 |
    14% OFF Phone Price : $7.36
    In Stock
  • Dishwasher Heating Element Rubber Washer 717273
    #14

    Tub assembly diagram

    Dishwasher heating element rubber washer

    Part #717273

    Replaced by #WP717273

    ?
    Manufacturer substitution
    This part replaces 717273. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.60 |
    22% OFF Was : $5.88
    In Stock
  • Dishwasher Dishrack Roller Assembly 8268820
    #4

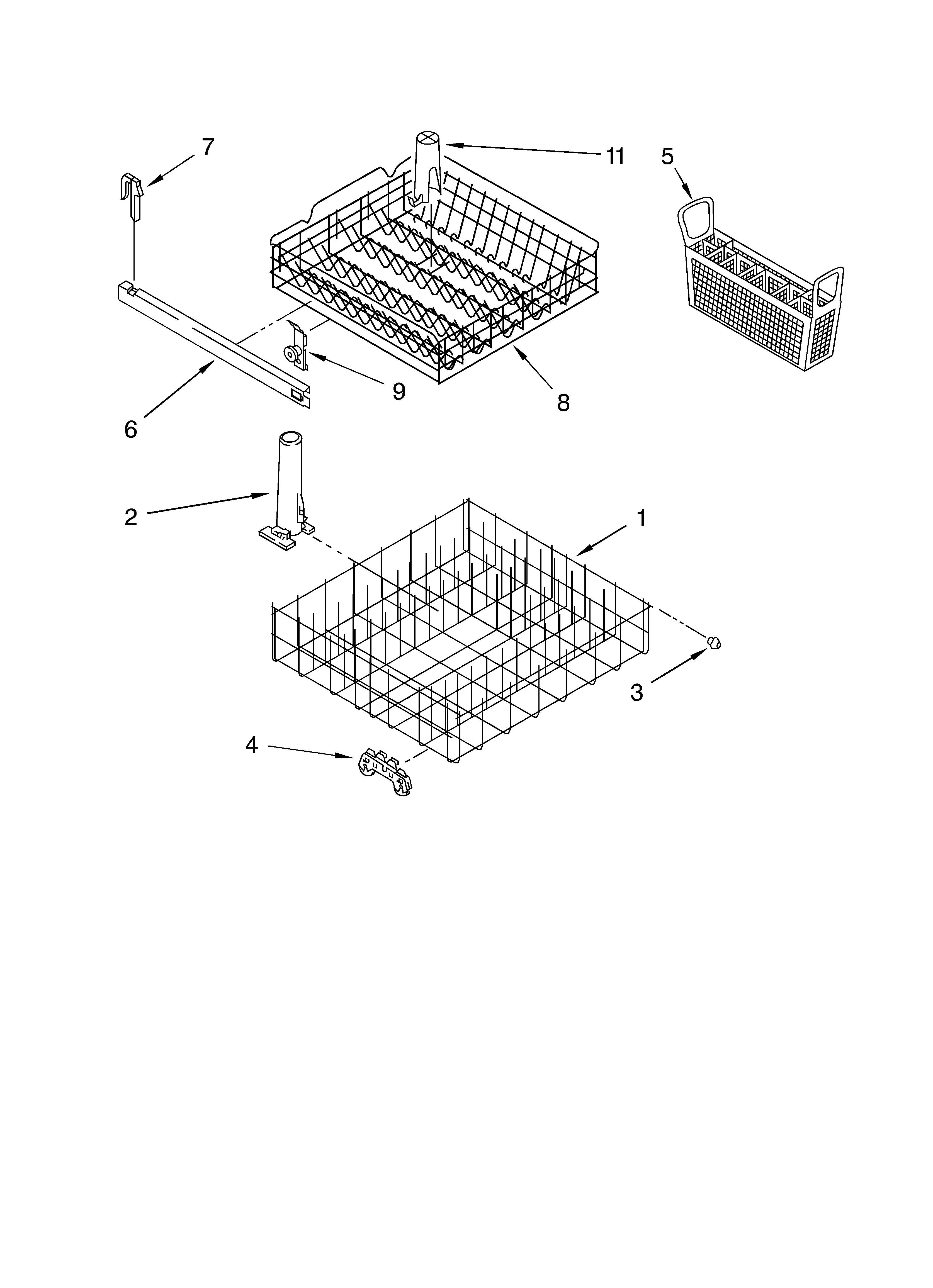

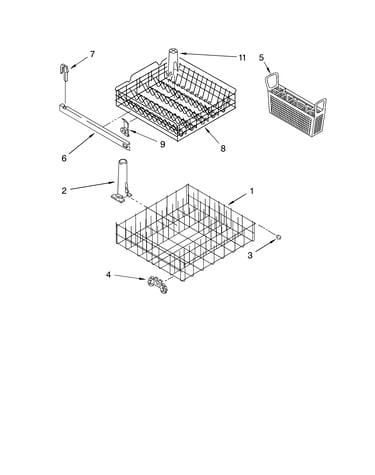

    Dishrack diagram

    Dishwasher dishrack roller assembly

    Part #8268820

    Replaced by #WP8268645

    ?
    Manufacturer substitution
    This part replaces 8268820. Substitute parts can look different from the original.
    BEST SELLER
    $36.32 |
    14% OFF Phone Price : $42.32
    In Stock
  • Dishwasher Door Latch 3380854
    #9

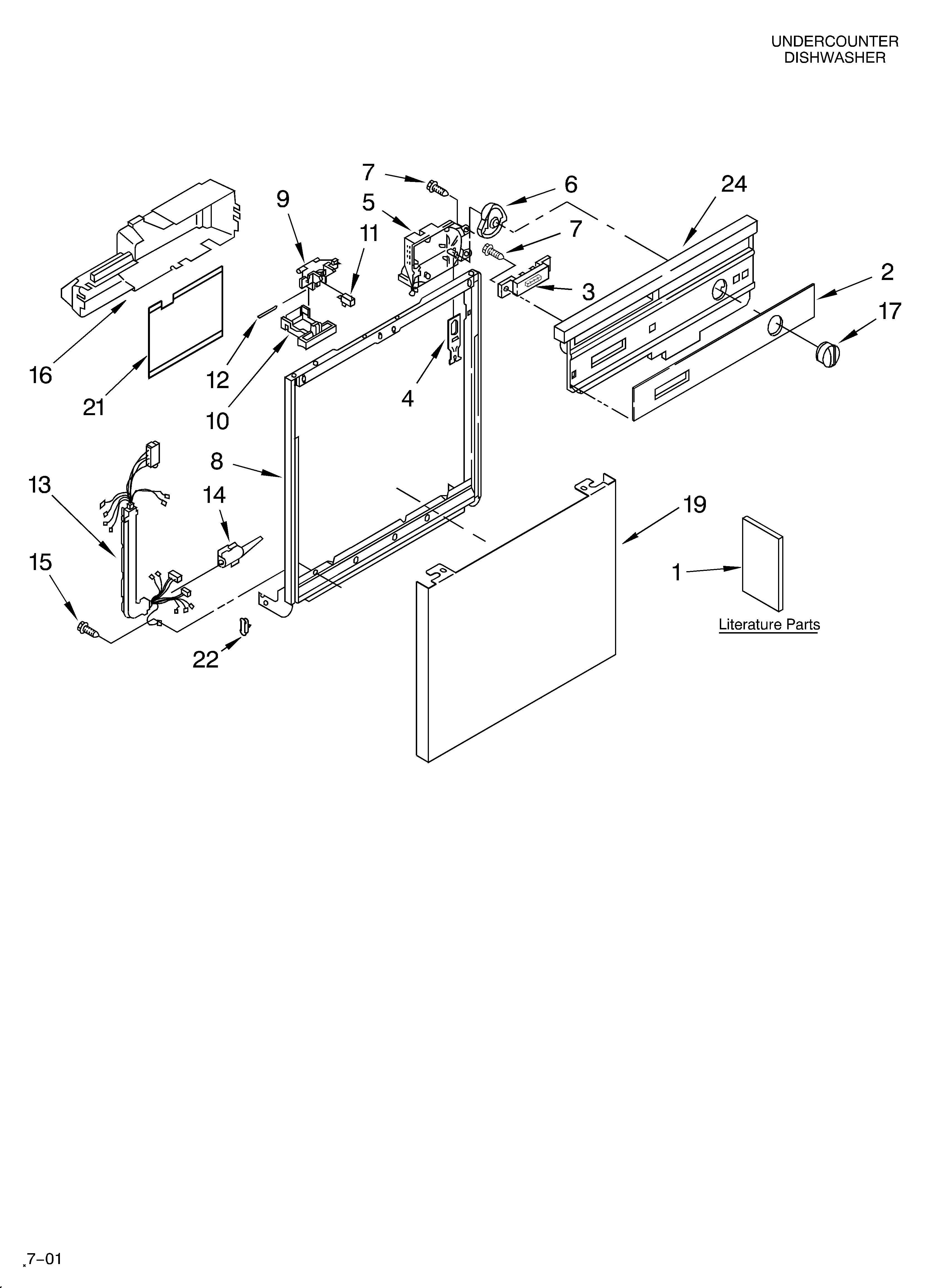

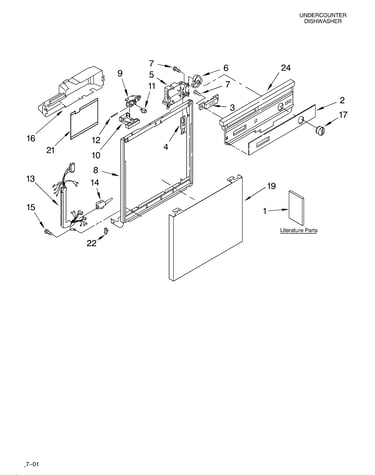

    Frame & console/literature diagram

    Dishwasher door latch

    Part #3380854

    Replaced by #WP3380854

    ?
    Manufacturer substitution
    This part replaces 3380854. Substitute parts can look different from the original.
    BEST SELLER
    $39.72 |
    13% OFF Phone Price : $45.72
    In Stock
  • Dishwasher Detergent Dispenser Cover Spring 8066018
    #10

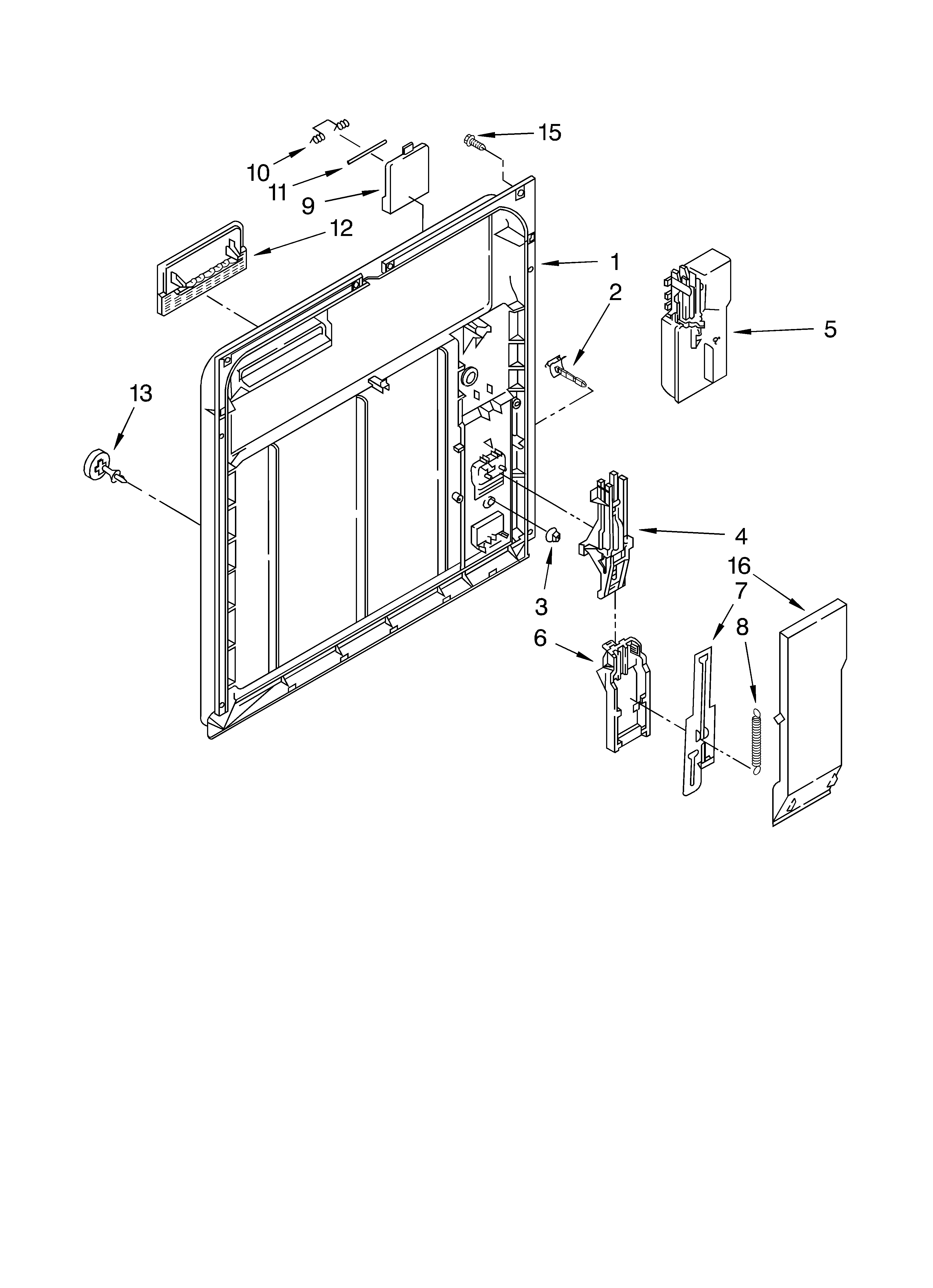

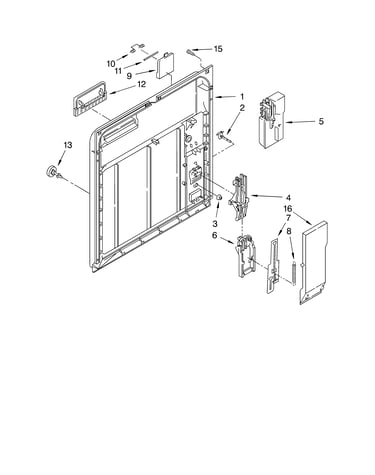

    Inner door diagram

    Dishwasher detergent dispenser cover spring

    Part #8066018

    Replaced by #WP8066018

    ?
    Manufacturer substitution
    This part replaces 8066018. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.46 |
    18% OFF Phone Price : $5.46
    In Stock
  • Dishwasher Screw 302868
    #36

    Tub assembly diagram

    Dishwasher screw

    Part #302868

    Replaced by #WP302868

    ?
    Manufacturer substitution
    This part replaces 302868. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.33 |
    19% OFF Phone Price : $5.33
    In Stock
  • Cover Dispenser 3385001
    #9

    Inner door diagram

    Cover dispenser

    Part #3385001

    Replaced by #WP3378138

    ?
    Manufacturer substitution
    This part replaces 3385001. Substitute parts can look different from the original.
    BEST SELLER
    $18.29 |
    10% OFF Phone Price : $20.29
    In Stock
  • Dishwasher Drawbar Spring 3368999
    #8

    Inner door diagram

    Dishwasher drawbar spring

    Part #3368999

    Replaced by #WP3368999

    ?
    Manufacturer substitution
    This part replaces 3368999. Substitute parts can look different from the original.
    This item is not returnable
    $4.33 |
    19% OFF Phone Price : $5.33
    In Stock
  • Appliance Screw 304392
    #17

    Tub assembly diagram

    Appliance screw

    Part #304392

    Replaced by #WP489069

    ?
    Manufacturer substitution
    This part replaces 304392. Substitute parts can look different from the original.
    This item is not returnable
    $4.33 |
    19% OFF Phone Price : $5.33
    In Stock
