Frigidaire FFHS2611LBRA refrigerator Parts

To reset the Frigidaire FFHS2611LBRA side-by-side refrigerator, press and hold the On/Off button on the temperature control panel for 3 seconds to turn cooling off, then press and hold it again for 3 seconds to turn cooling back on. This restarts the cooling system.

Where the reset control is on this model

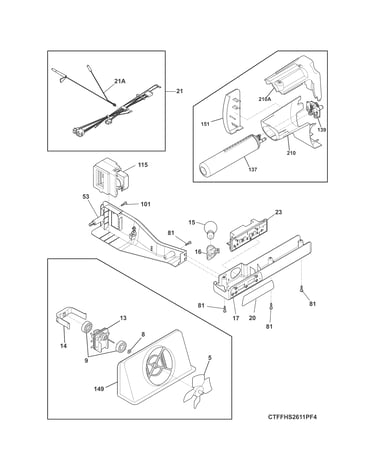

On the FFHS2611LBRA, the temperature control panel is located at the top of the fresh food compartment. The On/Off button is on the left side of that panel (electronic controls). See the FFHS2611LBRA use & care manual.

Reset steps (cooling system reset)

• Open the fresh food (refrigerator) door.
• Locate the temperature control panel at the top.
• Press and hold On/Off for 3 seconds until the display shows cooling is off.
• Wait about 30 seconds.
• Press and hold On/Off again for 3 seconds to turn cooling back on.
• Allow 24 hours for temperatures to stabilize after any control changes.

If you need a full power reset

Sometimes you want to reset the control by removing power (for example, after a power surge or odd display behavior).

• Unplug the refrigerator from the wall outlet.
• Wait 5 minutes.
• Plug it back in.
• If the unit was warm, allow 8 to 12 hours of cooling time before loading it with food.

What “reset” does (and does not) do

Reset type	What it affects	What it does not affect
On/Off button (3 seconds)	Stops and restarts cooling to freezer and fresh food sections	Does not cut power to lights and other electrical components
Unplugging (5 minutes)	Reboots the electronic control by removing power	Does not fix failed parts like a control board or sensor

Why it matters

Using the correct reset method for the FFHS2611LBRA helps you restart the cooling system without changing temperature settings, and it can clear minor control glitches before you move on to troubleshooting parts like the electronic control.

Last updated: January 2026

Frigidaire side-by-side refrigerators (including model FFHS2611LBRA) are made by Electrolux; Frigidaire is an Electrolux brand. For model-specific ownership, operation, and support details, refer to the FFHS2611LBRA use & care manual.

What that means for parts and service

Even though the badge says Frigidaire, many replacement parts and technical references trace back to Electrolux manufacturing and specifications.

• Use the full model number FFHS2611LBRA when ordering parts (not just “FFHS2611”).
• Match parts by model to avoid fit issues with the ice maker, water filter, or dispenser components.
• Follow the manual for installation clearances, water supply requirements, and control settings.
• If you are troubleshooting ice or water issues, start with filter and water supply checks.

Common brand-related parts you may replace on this model

These are examples of model-matched parts customers often shop for on FFHS2611LBRA:

System	Example part	What it affects
Water filtration	Refrigerator water filter WF3CB	Water taste, flow rate, ice quality

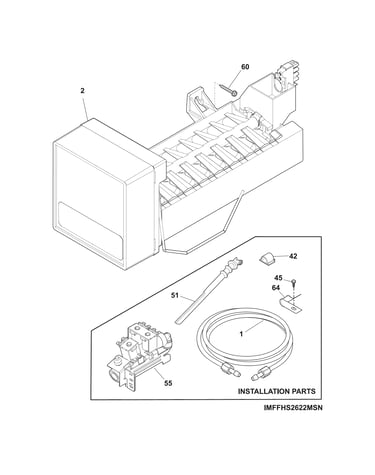

Ice production	Refrigerator ice maker 241798231	Ice maker cycling and ice output
Water supply	Frigidaire refrigerator water inlet valve assembly 242252702	Water to dispenser and ice maker

Why it matters

Knowing Electrolux makes Frigidaire helps because service literature, part engineering, and compatibility standards are tied to Electrolux specifications. That is especially important for water system parts (filter, inlet valve, tubing) and dispenser components.

Last updated: January 2026

The most common Frigidaire refrigerator complaint is not cooling properly. On the Frigidaire FFHS2611LBRA side-by-side, cooling issues are often tied to airflow restrictions, dirty condenser coils, or a defrost problem that leads to frost buildup and warmer temperatures (sometimes triggering a “HI” temp alarm). See the FFHS2611LBRA use & care manual for model-specific operating and alarm details.

Most common issues we see (and what to check first)

Start with the simplest checks before assuming you need a part.

• Not cooling or not cooling well: confirm controls are set correctly and vents are not blocked by food.
• Freezer frost buildup: points to a defrost system issue or a door not sealing.
• Ice maker or dispenser problems: often caused by low water flow, a clogged filter, or ice clumping/jamming.
• Runs constantly: commonly caused by warm room conditions, frequent door openings, dirty coils, or a leaking door gasket.
• Water dispensing slowly: frequently caused by a clogged or poorly seated water filter.

Quick symptom-to-likely-cause guide

Symptom	Common cause	What to do next
Fresh food warm, freezer OK	Airflow/damper issue, vents blocked	Clear vents; verify settings; inspect airflow path
Freezer packed with frost	Defrost system issue, door seal leak	Check door seal; inspect defrost components
Ice maker makes small/hollow cubes	Restricted water flow	Replace filter; verify water pressure and supply
Dispenser jammed	Ice melted/refroze, infrequent use	Empty/clean ice bin; let clumps thaw

Parts that commonly relate to these problems (FFHS2611LBRA)

If troubleshooting points to a specific failure, these are common replacement items for this model:

• Refrigerator water filter WF3CB (clogged filter can slow water dispensing and reduce ice production)
• Frigidaire refrigerator water inlet valve assembly 242252702 (can cause no water to ice maker/dispenser)
• Refrigerator defrost heater 242044113 (failed heater can lead to frost buildup and poor cooling)
• Refrigerator defrost bi-metal thermostat 5303918214 (defrost temperature sensing and safety)
• Refrigerator door gasket (white) 241786013 (poor seal can cause frost and long run times)

Why it matters

A refrigerator that is not cooling correctly can lead to food spoilage, excessive frost, and longer compressor run times. Catching airflow, filter, and door-seal issues early helps protect temperatures and reduces strain on major components.

Last updated: January 2026
