On KitchenAid dishwasher model KUDE20IXBL1, a “rubber seal” problem is usually a door gasket that has pulled out of its channel or a lower door seal that is dirty, twisted, or worn. Reseating the seal evenly and cleaning the sealing surfaces typically stops leaks right away.

Quick fix: reseat and clean the seal

• Turn off power to the dishwasher at the breaker.
• Open the door and inspect the gasket channel around the tub opening.
• Press the gasket back into the channel a few inches at a time using your fingers; keep the gasket flat (no twists).
• Clean the tub lip and the gasket with warm water and mild dish soap; wipe dry.
• Close and latch the door firmly for several hours so the gasket “sets” into position.

For the correct gasket placement and door closing checks for this model, follow the steps in the KUDE20IXBL1 owner’s manual.

If it still leaks: what to check next

A leak can come from the door seal itself or from water being directed at the door by loading or spray issues.

• Loading: Keep tall items from blocking the door from closing fully.

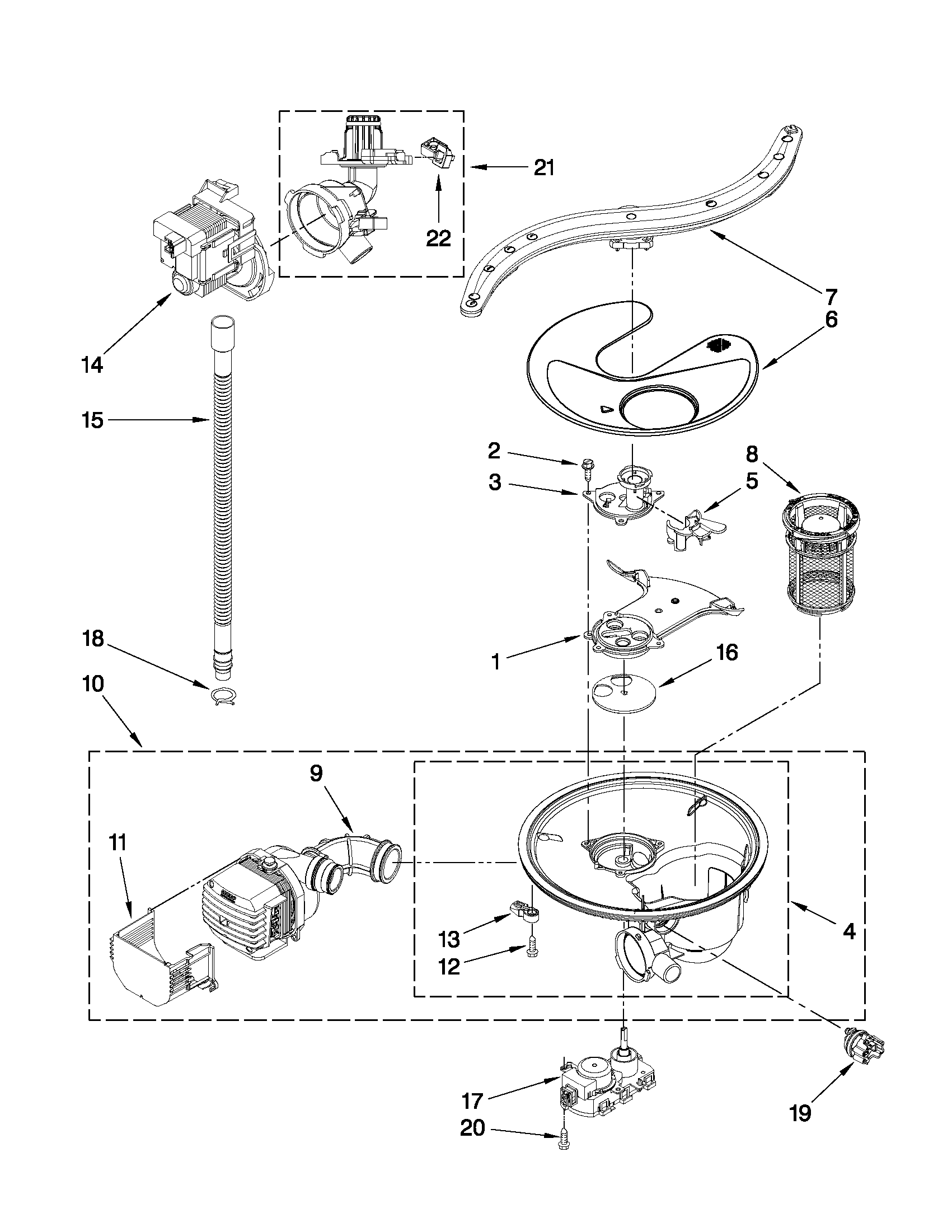

• Spray arm: Make sure the spray arm spins freely and is not cracked or clogged; a damaged arm can spray water toward the door. Consider the dishwasher spray arm WPW10491331 if yours is split or warped.
• Leveling: If the dishwasher is not level side-to-side, the door may not seal evenly; leveling is covered in the KUDE20IXBL1 installation guide.

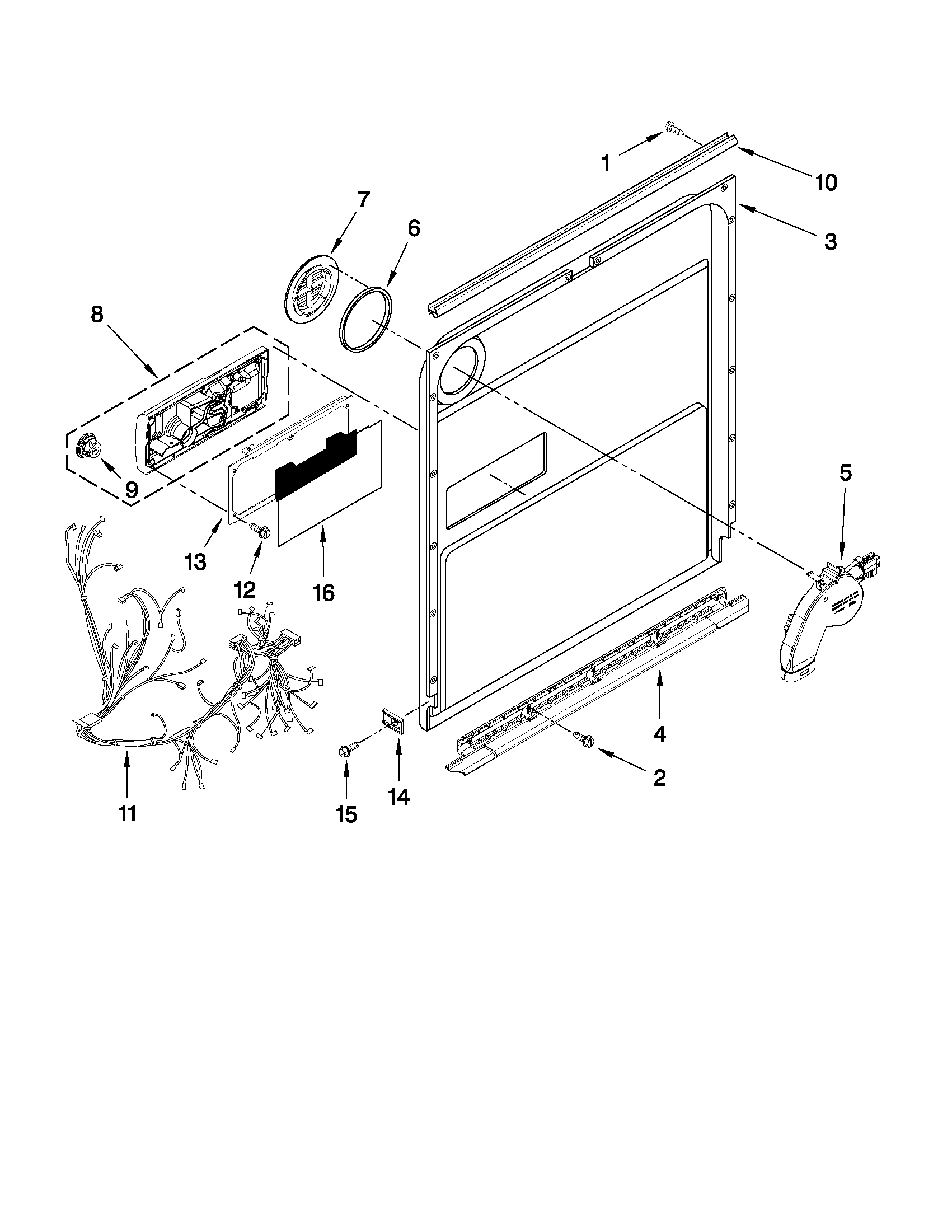

• Lower door seal area: Remove debris along the bottom edge of the inner door and tub lip.
• Hinges and balance: A door that drops or won’t stay aligned can stress the gasket.

Symptoms and most likely causes

Symptom	Most likely cause	Best first step
Drips from corners	Gasket not fully seated	Reseat gasket evenly, latch door
Leak at bottom center	Debris on sealing surfaces	Clean tub lip and inner door edge
Leak only during wash	Spray deflecting toward door	Check spray arm, loading
Door feels misaligned	Leveling or hinge/balance issue	Verify level, inspect hinges

Why it matters

A properly seated door gasket keeps wash water inside the tub, protects the floor, and helps the KUDE20IXBL1 maintain correct wash pressure and drying performance.

Last updated: February 2026

A KitchenAid undercounter dishwasher like model KUDE20IXBL1 typically lasts 10 to 14 years with normal household use. Consistent maintenance (especially keeping the filter area clean and using rinse aid) and fixing small problems early are the biggest factors in reaching the high end of that range.

What affects lifespan the most

• Water quality: hard water speeds up mineral buildup on the heater and internal parts
• Maintenance habits: cleaning the filter area and checking for debris prevents strain on the pump
• Loading and detergent: overloading and excess detergent can reduce cleaning and increase residue
• Cycle choices: long, energy-saving cycles are normal and reduce wear from high-power heating
• Early repairs: addressing draining, filling, or heating issues prevents secondary damage

Maintenance checklist we recommend

Use these habits to keep your KUDE20IXBL1 running longer:

• Clean the filter area regularly; replace the filter cup if it is cracked or won’t seal (dishwasher filter W10872845)
• Use rinse aid for better drying and to reduce hard-water deposits
• Keep spray paths clear; remove and rinse the spray arm if holes clog (dishwasher spray arm WPW10491331)

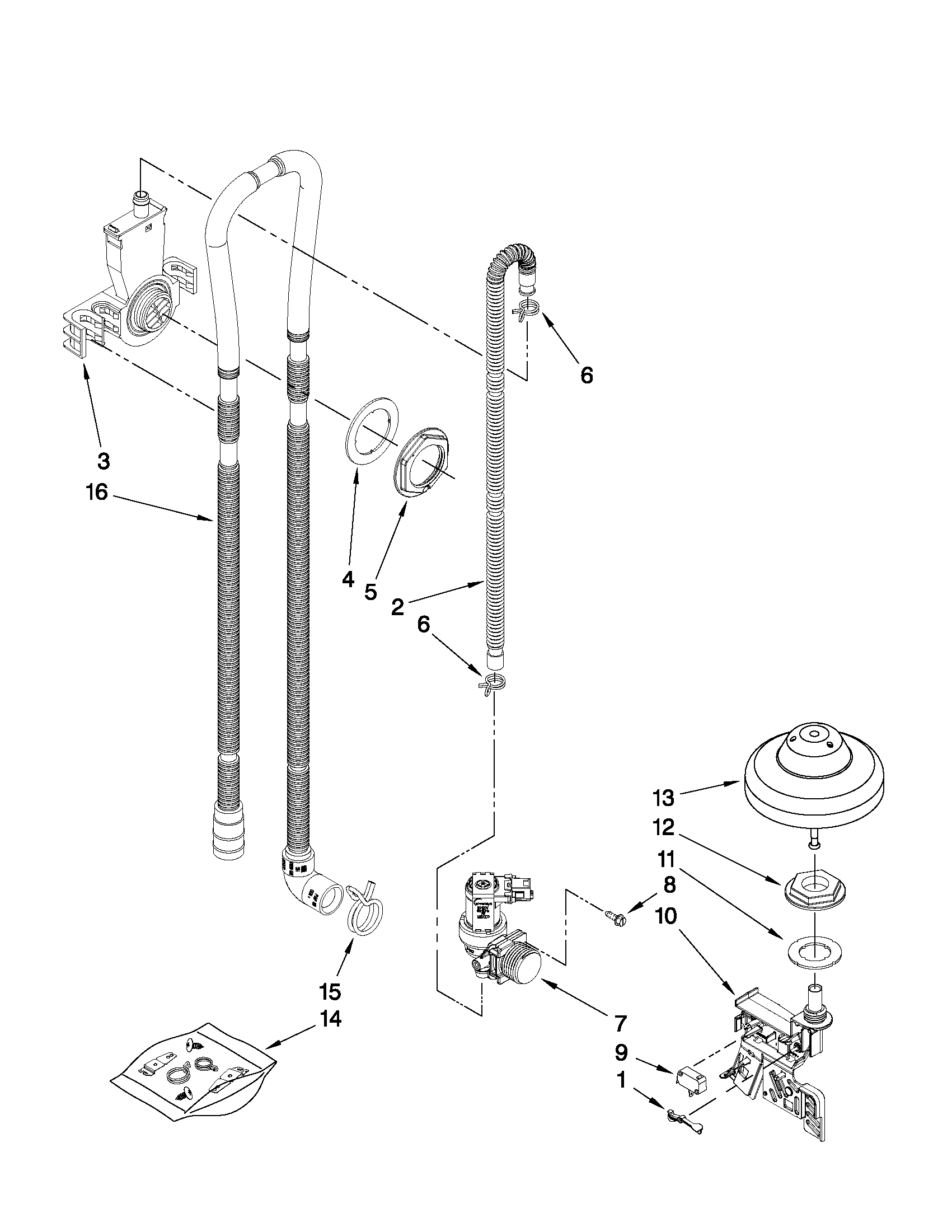

• Watch for slow draining; clear the drain hose routing and replace a weak pump if needed (dishwasher drain pump WPW10348269)
• Confirm the door closes and latches firmly; a poor latch can stop cycles mid-run

Quick “repair or replace” guide

What you’re seeing	Most common cause	Typical fix
Dishes stay wet	No rinse aid, heater issue	Add rinse aid; check heating circuit per KUDE20IXBL1 owner’s manual
Water left in tub	Clog, drain hose issue, drain pump	Clear blockage; inspect hose; replace pump
Poor cleaning	Clogged spray arm, filter buildup	Clean spray arm and filter area
Cycles seem very long	Normal energy-efficient operation	Verify options selected; compare to manual cycle info

Why it matters

A dishwasher that drains, fills, and heats correctly cleans better and puts less stress on the motor, heater, and controls. KitchenAid designs often run longer, energy-saving cycles (commonly 2 to 3 hours), so good maintenance is what keeps performance strong over the full service life.

Last updated: February 2026

The most common problem we see on KitchenAid dishwashers like model KUDE20IXBL1 is poor cleaning (dishes still dirty) caused by restricted water flow from a clogged filter, blocked spray arm ports, or loading that prevents the spray from reaching dishes. Draining, leaks, and no-start issues follow.

Most common symptoms and what they usually mean

• Dirty or gritty dishes: filter area clogged, spray arm holes blocked, or items blocking rotation
• Standing water: drain path restriction, kinked hose, or a weak drain pump
• Won’t start or pauses: door not fully latched, Start/Resume needs to be pressed, or Sleep Mode is active
• Leak at the front/bottom: lower door seal worn or door not closing squarely
• Poor drying: heater or rinse aid issue, or cycle/option selection

Quick checks first (no parts required)

• Confirm the door closes and latches; if Start/Resume is blinking, close the door and press Start/Resume
• Re-load tall items so they do not interfere with the wash system at the back of the tub
• Clean the filter area and remove debris from the sump area
• Inspect spray arm ports for buildup and make sure the arm spins freely

Symptom	Most likely area	Best first step
Dirty dishes	Filter, spray arm, loading	Clean, clear ports, reload
Standing water	Drain hose, drain pump	Check hose routing and blockage
Door leak	Lower door seal	Inspect seal and door alignment

Parts that commonly fix the root cause

If cleaning and loading changes do not solve it, these KUDE20IXBL1 parts are common fixes:

• Dishwasher filter W10872845 (recirculation restriction from debris)
• Dishwasher spray arm WPW10491331 (clogged ports or damaged arm)
• Dishwasher drain pump WPW10348269 (weak or no drain)
• Seal WPW10497235 (leaks at the lower door edge)

Why it matters

When the filter or spray arm is restricted, water pressure at the dishes drops, so even a normal cycle leaves food behind. Drain restrictions can also recirculate dirty water and mimic a wash problem.

For KUDE20IXBL1 loading guidance, ProScrub use, and Start/Resume behavior, use the KUDE20IXBL1 owner’s manual.

Last updated: February 2026
