Kenmore 66515955792 dishwasher Parts

For a Kenmore dishwasher model 66515955792, a “hard reset” is usually done by canceling the current cycle and then restoring power to clear the control. This often brings the keypad and cycle selection back to normal after a glitch.

Quick reset steps (most common)

• Press Cancel/Drain once, then wait for the drain to finish (typically 1 to 2 minutes).
• Turn the dishwasher OFF at the breaker (or unplug it) for 3 minutes.
• Restore power.
• Select a normal cycle and press Start/Resume, then close the door.

Keypad reset (if your console has these options)

Some Kenmore 665-series dishwashers use a button sequence to reset the control. If your control panel has these keys, try:

• Press High Temp
• Press Heated Dry
• Press High Temp
• Press Heated Dry Then close the door and wait about 3 minutes.

If it still will not reset

These checks fix the most common “stuck” or “won’t start” situations:

• Make sure the door is latching firmly; a weak latch can prevent a reset from completing.
• Confirm the breaker is fully ON (flip OFF then ON).
• Check for standing water; a drain problem can keep the control from advancing.
• If the door will not latch consistently, replace the dishwasher door latch WP3380854.
• If the unit will not fill after reset, the water supply valve must be open; a failed fill valve can be the cause (see inlet valve W10844024).

What the symptoms usually mean

Symptom after reset	Most likely cause	What to check next
No lights, no response	No power	Breaker, outlet, wiring
Lights on, won’t start	Door not sensed closed	Latch alignment, latch switch
Starts then stops, water remains	Drain issue	Drain hose routing, disposer knockout
Fills slowly or not at all	Fill issue	Supply valve, inlet valve, float

Why it matters

Resetting clears a “hung” control so you can tell the difference between a one-time electronic glitch and a real hardware problem like a failed door latch, inlet valve, or drain restriction.

Last updated: February 2026

On a Kenmore dishwasher like model 66515955792, the model number is printed on the rating label inside the door area. Open the door fully and look along the inner edge of the tub opening (commonly the left side); the same label usually lists the serial number.

Where to look first

• Open the dishwasher door and inspect the tub frame around the opening
• Check the left inner edge first, then the right inner edge
• Look for a sticker or metal tag labeled Model and Serial
• Wipe the label gently; soap film can hide characters
• Take a photo so you can zoom in and avoid transcription errors

If the label is hard to read

• Use a flashlight and view from an angle to reduce glare
• Clean lightly with a damp cloth; avoid abrasive pads
• Copy the full model number exactly as shown (all digits matter)
• If the label is damaged, use the serial number to help confirm the correct parts list

Why the exact model number matters

Kenmore dishwashers often share similar designs, but parts can vary by revision. Using the exact model number helps us match the correct door seal, inlet valve, racks, and wash system parts for your unit.

What you find	What to do with it
Model number (example: 66515955792)	Use it to look up diagrams and compatible parts
Serial number	Helps confirm production version when parts changed
Partial/blurred label	Photograph it and compare each digit before ordering

Related DIY help

If you are troubleshooting after identifying the model, use Kenmore 665 model dishwasher error codes to interpret flashing lights or error displays.

Last updated: February 2026

Yes. We still carry replacement parts for many Kenmore dishwashers, including model 66515955792. The key is matching parts to your exact model number so items like a door seal, inlet valve, or spray arm fit and seal correctly.

How to find the right part for your Kenmore dishwasher

Use the model number 66515955792 and shop by the symptom or the part category (wash system, door, racks, drainage).

• Confirm the full model number from the tag on the tub frame (inside the door)
• Match the part by description and ID, not just by looks
• Replace seals and mounting hardware if they are worn or distorted
• If you have leaks, check the door seal and spray arm seals first
• If it will not fill, focus on the inlet valve and float system

Common parts we stock for model 66515955792

Here are examples of in-stock parts that are commonly replaced on this model:

Problem you see	Part that often fixes it	Example part for this model
Water leaking at the door	Door gasket not sealing	Dishwasher door seal WPW10509257
Dishwasher not filling	Water valve not opening	Inlet valve W10844024
Poor cleaning, weak spray	Spray arm clogged or cracked	Spray arm WP8268874
Silverware not staying put	Basket broken or missing	Silverware basket W10807920

Why it matters

Kenmore dishwashers are built by major manufacturers, so parts availability stays strong for high-wear items (seals, valves, racks, pumps). Using the correct model-specific part helps prevent leaks, repeat failures, and installation headaches.

Helpful DIY guidance

If you are troubleshooting a fault code or blinking pattern, use our Kenmore 665 model dishwasher error codes guide to narrow the problem to the wash motor, heating circuit, drain system, or water fill.

Last updated: February 2026

Common problems on Kenmore dishwasher model 66515955792 include not starting (often a door-latch issue), not filling, not draining, poor cleaning from spray-arm or filter clogs, leaks at the door, and drying problems tied to the heater circuit.

Most common symptoms and what they usually point to

• Won’t start or stops mid-cycle: door not latching, failed latch/switch, control not sensing a closed door
• Won’t fill or fills slowly: water supply shutoff, inlet screen clogged, failed inlet valve W10844024
• Won’t drain: kinked/clogged dishwasher drain hose WP3374077, blocked sink/disposer connection, failed drain pump
• Leaking at the front: worn dishwasher door seal WPW10509257, door not closing squarely, over-sudsing
• Poor wash results: clogged spray arm, low water temperature, overloaded racks, blocked manifold/tube
• Poor drying: heater not heating, rinse-aid empty, cycle selection (heated dry off)

Quick checks we recommend before replacing parts

1. Confirm the door closes firmly and the latch engages; try starting with gentle inward pressure on the door.
2. Verify the water shutoff valve is fully open and the fill hose is not kinked.
3. Check for standing water; clear the sump area of debris and confirm the drain path to the sink is open.
4. Inspect the door gasket for tears, flattening, or gaps at the corners.
5. Run hot water at the sink for 30 to 60 seconds before starting to improve wash performance.

Symptom-to-part cheat sheet (for this model)

Symptom	Common cause	Model-matched part to consider
Won’t start	Door not latching	Dishwasher door latch WP3380854
Leaks at door	Worn gasket	Dishwasher door seal WPW10509257
No/slow fill	Valve not opening	Inlet valve W10844024
Not draining	Restricted drain path	Dishwasher drain hose WP3374077

Why it matters

Catching the root cause early prevents repeat failures. For example, a weak door latch can mimic a control problem, and a restricted drain hose can cause poor cleaning, odors, and cycle interruptions.

Related troubleshooting help

If your dishwasher is showing a code or flashing pattern, use our Kenmore 665 model dishwasher error codes guide to match the symptom to the most likely circuit or component.

Last updated: February 2026

Yes, repairing a Kenmore dishwasher model 66515955792 is usually worth it when the problem is a wear item (leak, latch, fill, drain) and the repair cost stays well below the price of a replacement. It is most cost-effective when the tub is sound and the unit still cleans and drains reliably.

Quick decision checklist

• Repair it if the issue is a seal, latch, hose, or valve and the dishwasher is otherwise performing well.
• Repair it if you can DIY safely (basic hand tools, no wiring changes) and the fix is straightforward.
• Replace it if the tub is cracked, the unit has repeated major failures, or multiple expensive parts are needed at once.
• Replace it if you have persistent electrical/control problems plus other symptoms (poor wash, leaks, draining issues).
• Repair it if the problem is clearly isolated (for example, a door leak from a worn gasket).

Common repairs that are often worth it on 66515955792

These are typical “high value” fixes because they address common failure points without rebuilding the whole dishwasher:

• Door leaking: replace the dishwasher door seal WPW10509257
• Door won’t latch or pops open: replace the dishwasher door latch WP3380854
• Not filling or filling slowly: replace the inlet valve W10844024
• Not draining: inspect/replace the dishwasher drain hose WP3374077 (and check the sink/disposal connection)
• Poor drying or heating issues: inspect heater circuit components such as the heater WPW10082896

Cost and effort comparison (typical)

Repair type	Typical DIY difficulty	Typical payoff
Door seal or latch	Easy	Stops leaks and restores safe operation
Inlet valve	Medium	Fixes no-fill/slow-fill and cycle errors
Drain hose	Medium	Fixes standing water and drain problems
Heater-related repair	Medium to hard	Improves drying and wash performance

Why it matters

A targeted repair can restore cleaning performance, prevent cabinet or floor damage from leaks, and extend the life of your Kenmore dishwasher without the cost and hassle of replacement.

If you’re deciding based on an error code

Use the Kenmore 665 model dishwasher error codes guide to match the code to the most likely failed part and the right troubleshooting steps.

Last updated: February 2026

Water standing in the bottom of your Kenmore dishwasher model 66515955792 almost always means the unit is not draining fully. The most common causes are a clogged filter area, a kinked or blocked drain hose, or a drain pump problem such as a jammed impeller.

Quick checks we recommend first

• Cancel the cycle and run a Drain (or Cancel/Drain) to see if the water level drops.
• Remove the lower rack and clear debris from the sump area (glass, labels, food).
• Check the sink drain and garbage disposal for a clog; a slow sink often means a slow dishwasher drain.
• Inspect the drain hose routing under the sink for kinks, crushing, or a low loop that is missing.

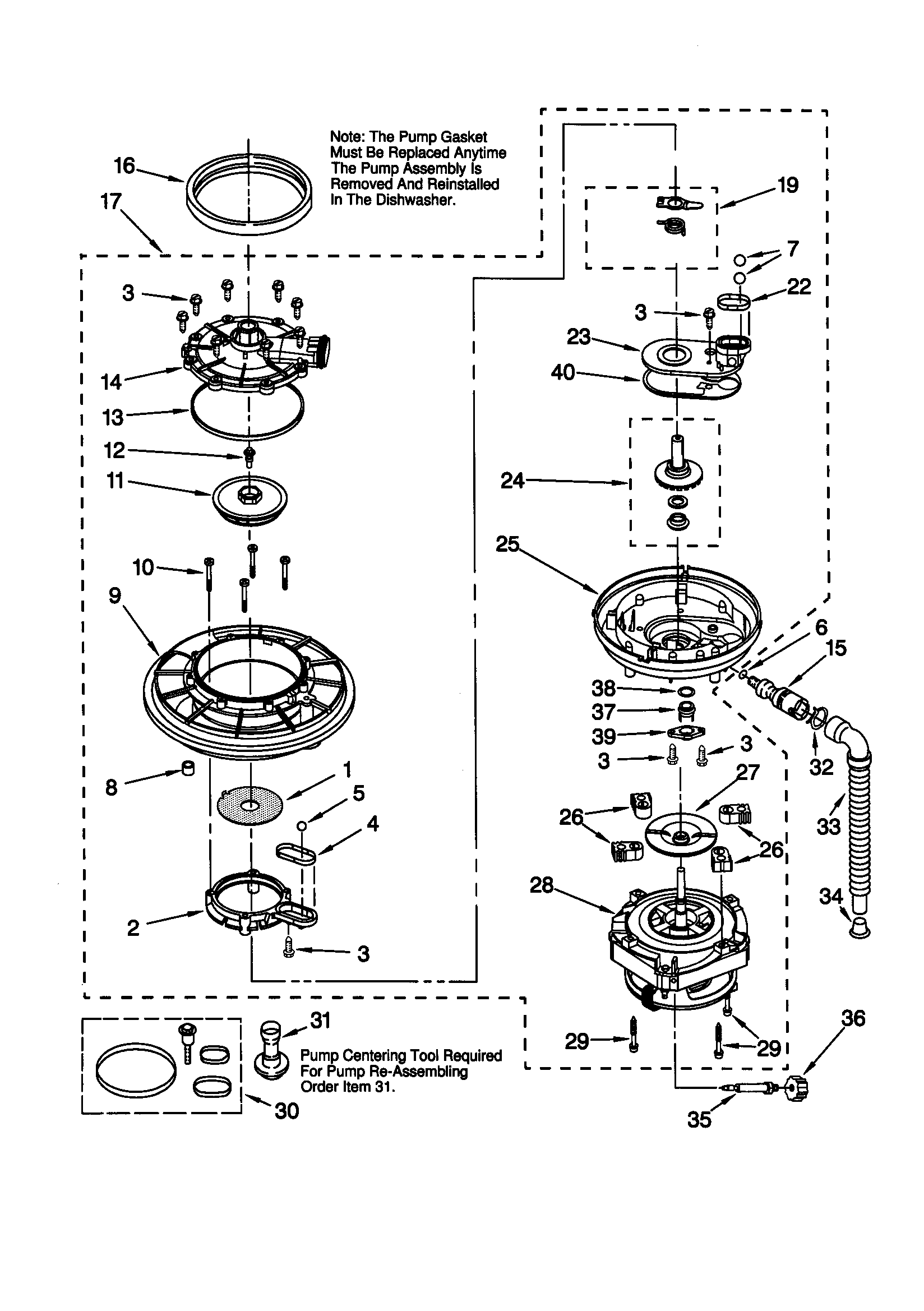

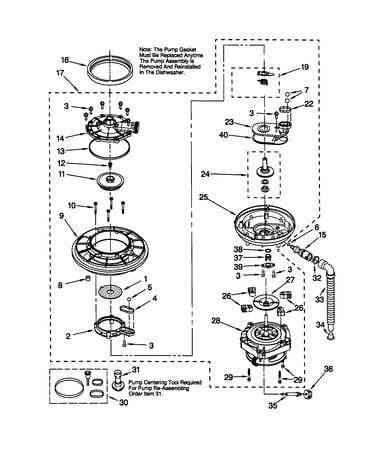

• If you hear a hum but no draining, suspect a jammed pump or damaged pump impeller.

Parts that commonly fix standing water

If cleaning and hose checks do not solve it, these model-compatible parts are common next steps:

Symptom	Most likely area	Model-compatible part to consider
Won’t drain at all	Drain pump	Outlet pump 8194582
Drains slowly or backs up	Drain path/hose	Dishwasher drain hose WP3374077
Overfills then leaves water	Fill control/float stuck	Dishwasher float assembly WP3376397

Why it matters

Standing water can cause odors, redeposit food soil on dishes, and lead to leaks if the dishwasher overfills on the next cycle. Restoring proper drain flow protects the pump, keeps wash performance consistent, and helps prevent repeat clogs.

When to stop and schedule service

• Water is rising above the heating element area.
• You see water leaking from the door or underneath.
• The breaker trips when the dishwasher tries to drain.

Last updated: February 2026

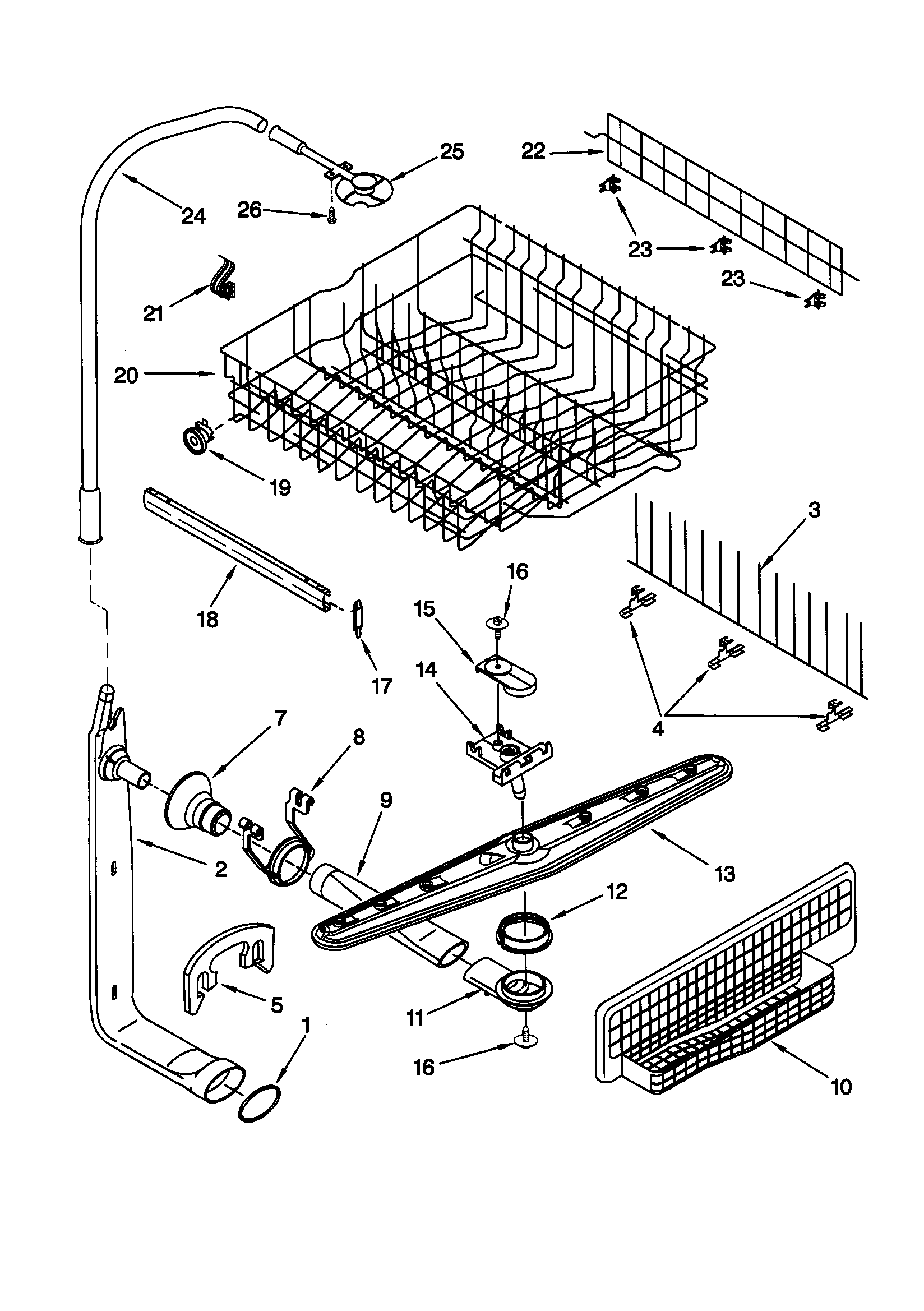

Yes. On Kenmore dishwasher model 66515955792, you can usually replace a spray arm in minutes by removing the rack for access, unfastening the spray arm (nut or clip style), and installing the new arm so it spins freely without rubbing the rack or tub.

Before you start (safety and prep)

• Turn off power at the breaker; do not rely only on the door switch.
• Shut off the water supply if you will be working near the inlet or sump area.

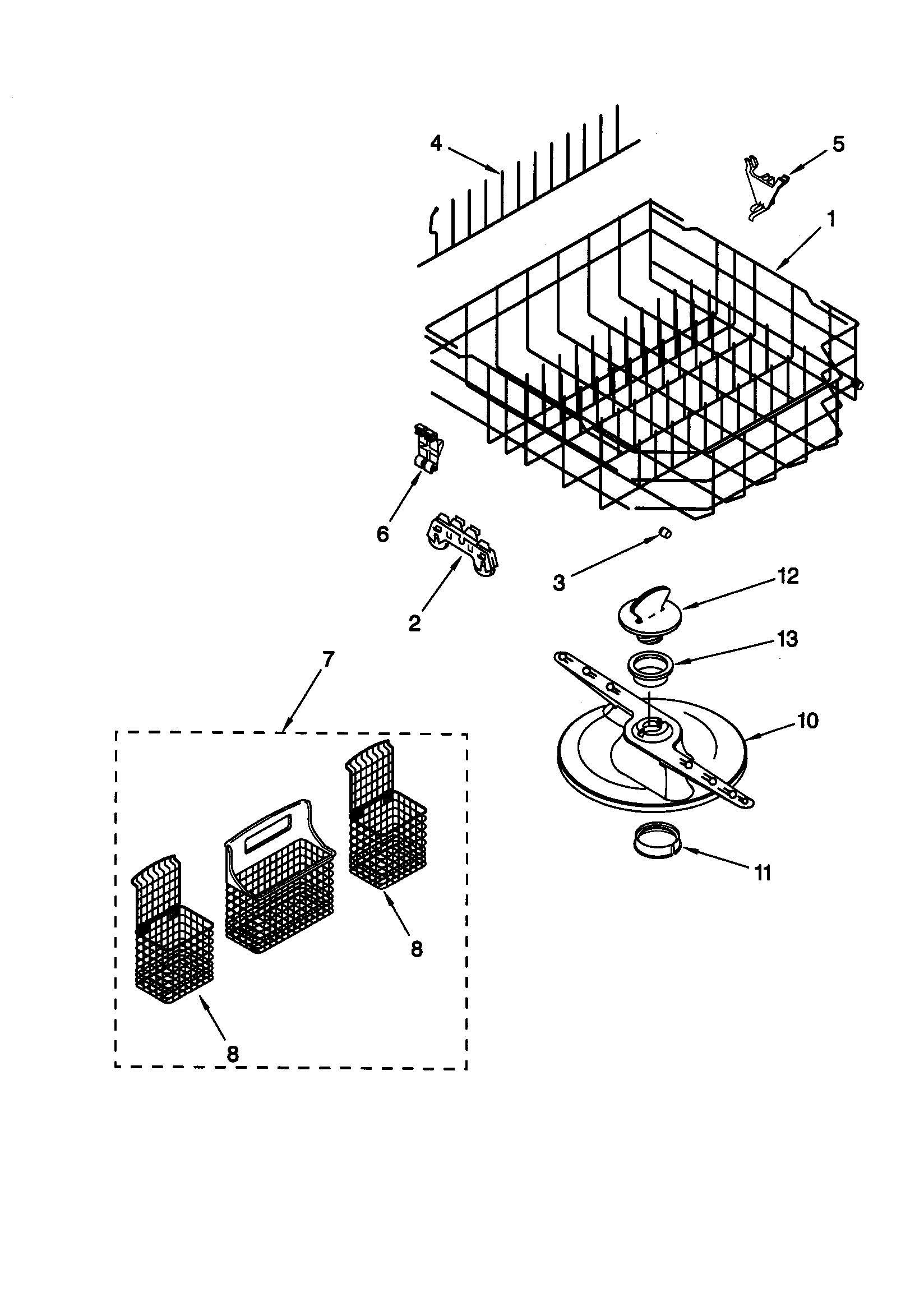

• Pull out the lower rack to access the lower spray arm.
• Keep a towel handy; a small amount of water can spill from the sump.
• Take a quick photo of the original setup (washers, spacers, nut orientation).

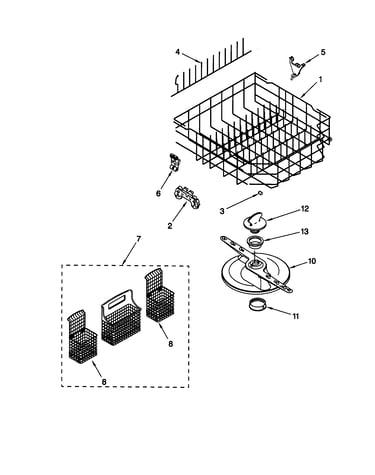

How to replace the spray arm

1. Remove the lower rack.
2. If your spray arm uses a retaining nut, remove the nut; on this model it is commonly the dishwasher spray arm nut WP9742945.
3. Lift the old spray arm straight up and off the hub.
4. Clean the mounting surface and check for debris that could prevent sealing or smooth rotation.
5. Install the replacement spray arm WP8268874.
6. Reinstall the retaining nut (if used) and tighten snugly; do not overtighten.
7. Spin the spray arm by hand; it should rotate smoothly and not wobble.

Quick checks if cleaning is poor after replacement

• Make sure the spray arm holes are not blocked by food or hard-water scale.
• Confirm the arm is installed right-side up and fully seated.
• Verify the lower rack is not loaded with items that block rotation.
• Check the filter area and sump for broken glass, labels, or seeds.
• If the dishwasher is not filling well, inspect the inlet valve W10844024.

Common symptoms and what they point to

Symptom	Most common cause	What to do next
Arm will not spin	Obstruction or incorrect install	Re-seat arm; confirm clearance
Dishes still dirty	Clogged holes or low water fill	Clean holes; check fill and inlet valve
Leaks near spray arm hub	Worn seal/washer	Inspect hub seal and mounting surfaces

Why it matters

A spray arm that is cracked, clogged, or not spinning reduces water pressure at the dishes. Replacing it restores proper wash coverage and helps prevent repeat clogs in the filter and pump.

Related help: how to clean and maintain your dishwasher

Last updated: February 2026
