Craftsman 917255271 36" 10-hp riding lawn tractor with electric start Parts
Here are the diagrams and repair parts for Craftsman 917255271 36" 10-hp riding lawn tractor with electric start, as well as links to manuals and error code tables, if available.
View engine
By Schematic
By Part

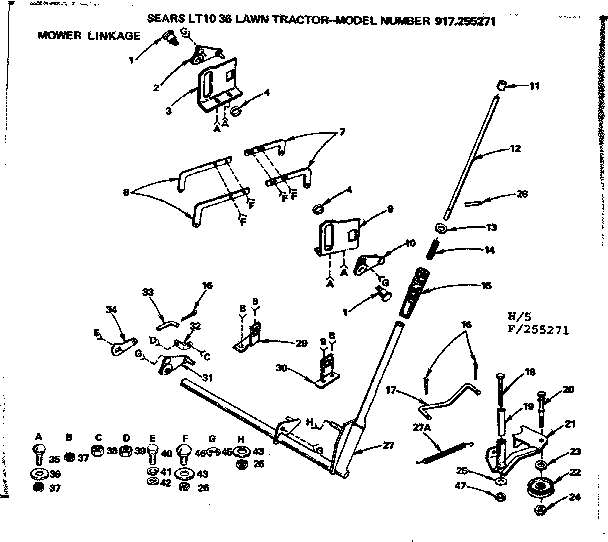

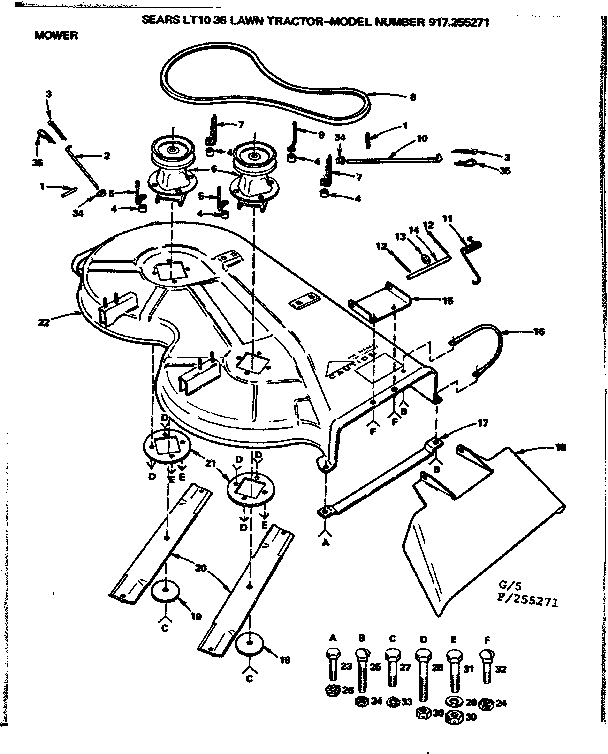

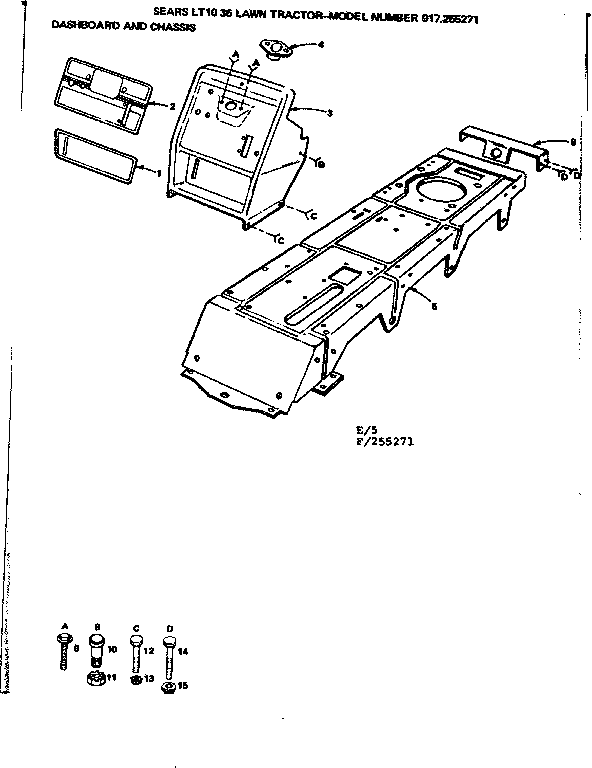

SELECT DIAGRAM
Browse Parts for 917255271 Riding Mowers & Tractors

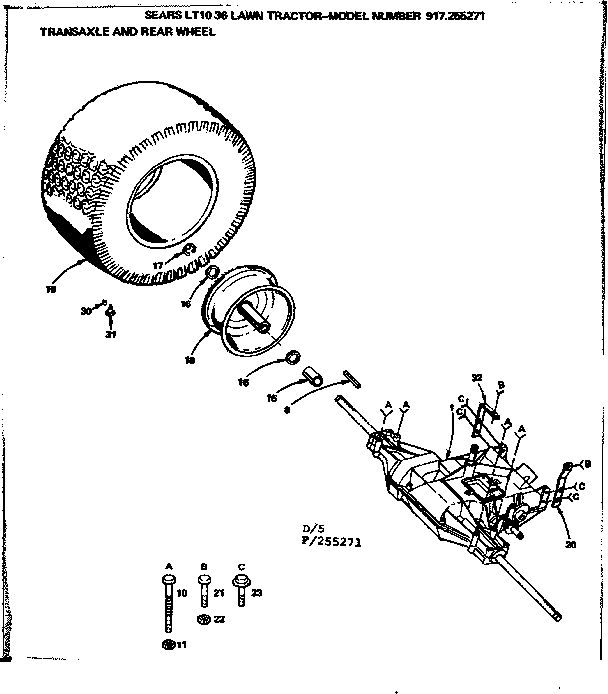

Transaxle and rear wheel diagram
Rim
Part #71652Replaced by #532106108
Manufacturer substitutionThis part replaces 71652. Substitute parts can look different from the original.In Stock$112.1410% OFF Phone Price : $124.14
Qty

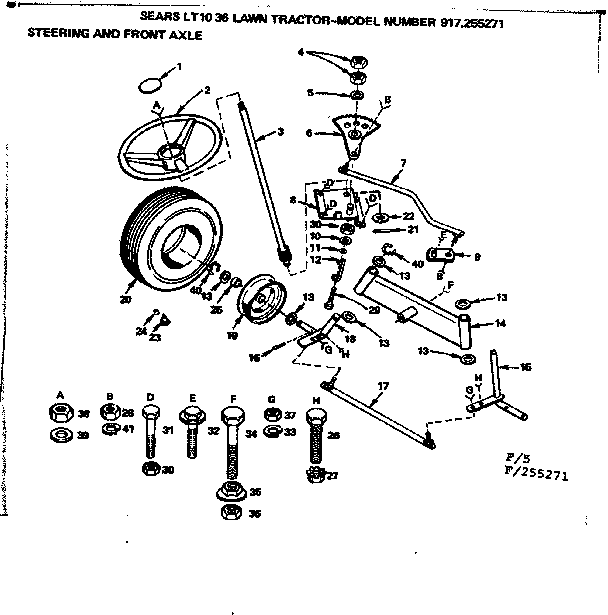

Steering and front axle diagram
Keps Nut
Part #518PReplaced by #873510600
Manufacturer substitutionThis part replaces 518P. Substitute parts can look different from the original.This item is not returnableIn Stock$9.26QtyElectrical diagram

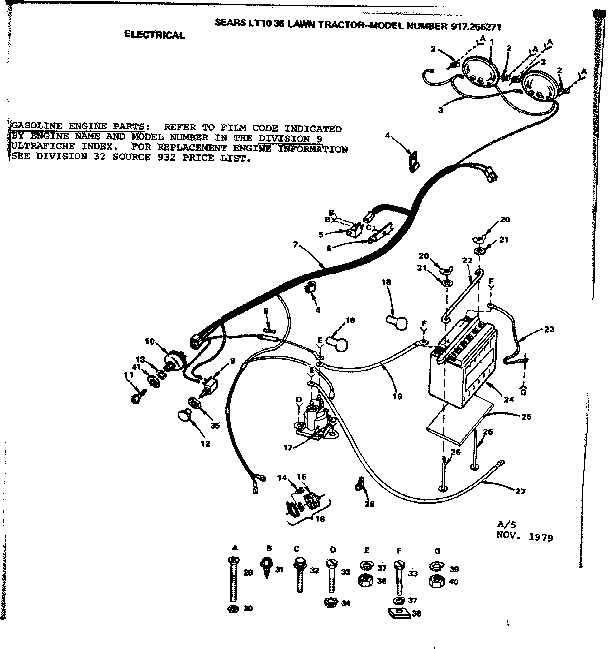

Cover
Part #719JReplaced by #532154336
Manufacturer substitutionThis part replaces 719J. Substitute parts can look different from the original.In Stock$11.11QtyTransaxle and rear wheel diagram
E-ring
Part #5000PReplaced by #812000029
Manufacturer substitutionThis part replaces 5000P. Substitute parts can look different from the original.This item is not returnableIn Stock$3.6522% OFF Phone Price : $4.65QtyClutch-brake and drive diagram
Washer
Part #67725Replaced by #532067725
Manufacturer substitutionThis part replaces 67725. Substitute parts can look different from the original.In Stock$10.0817% OFF Phone Price : $12.08QtySteering and front axle diagram
Hardened Race Thrust Bearing
Part #6266HReplaced by #532006266
Manufacturer substitutionThis part replaces 6266H. Substitute parts can look different from the original.In Stock$10.6216% OFF Phone Price : $12.62QtySteering and front axle diagram
Spingle R.h.
Part #677A246
The manufacturer no longer makes this part, and there's no substitute part

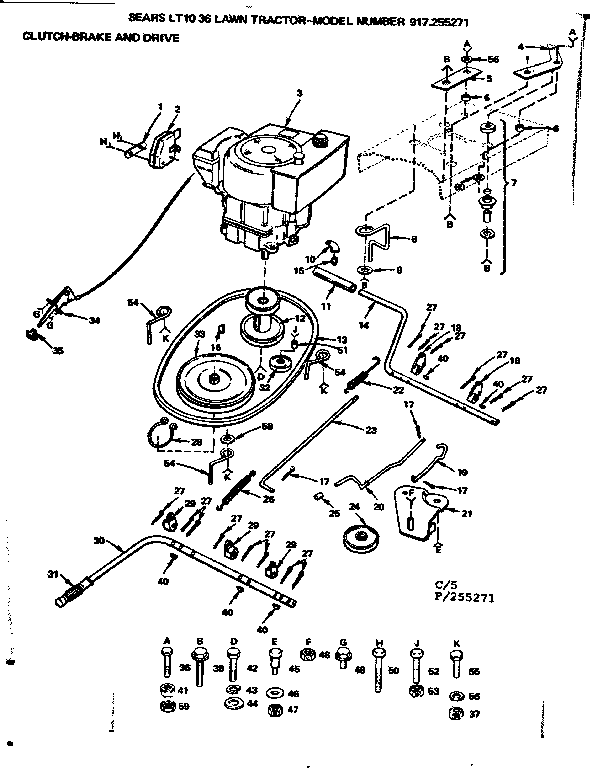

Clutch-brake and drive diagram
Bolt
Part #3400P
The manufacturer no longer makes this part, and there's no substitute part
Cotter Pin
Part #STD560907
The manufacturer no longer makes this part, and there's no substitute part

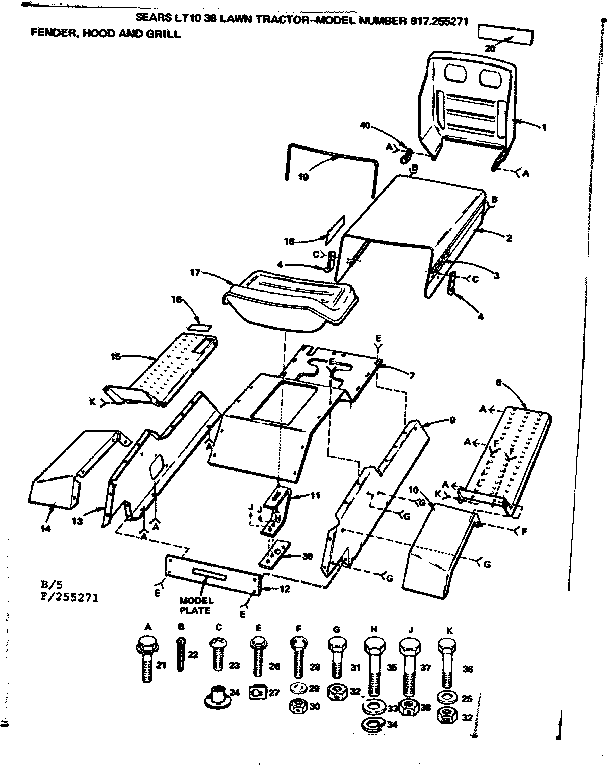

Fender, hood and grill diagram
Panel
Part #2964J
The manufacturer no longer makes this part, and there's no substitute part
