Kenmore 79046784901 electric range Parts
Here are the diagrams and repair parts for Kenmore 79046784901 electric range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual

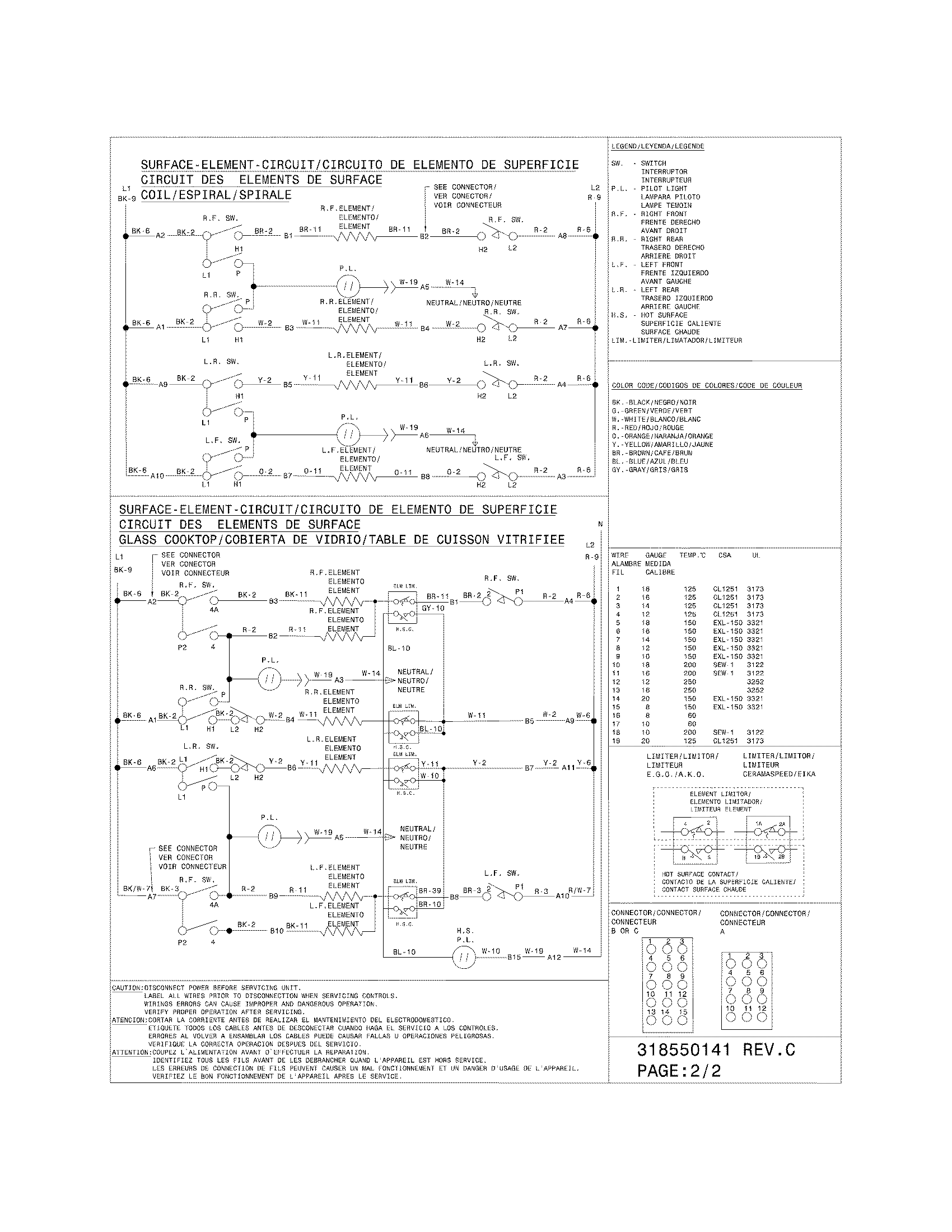

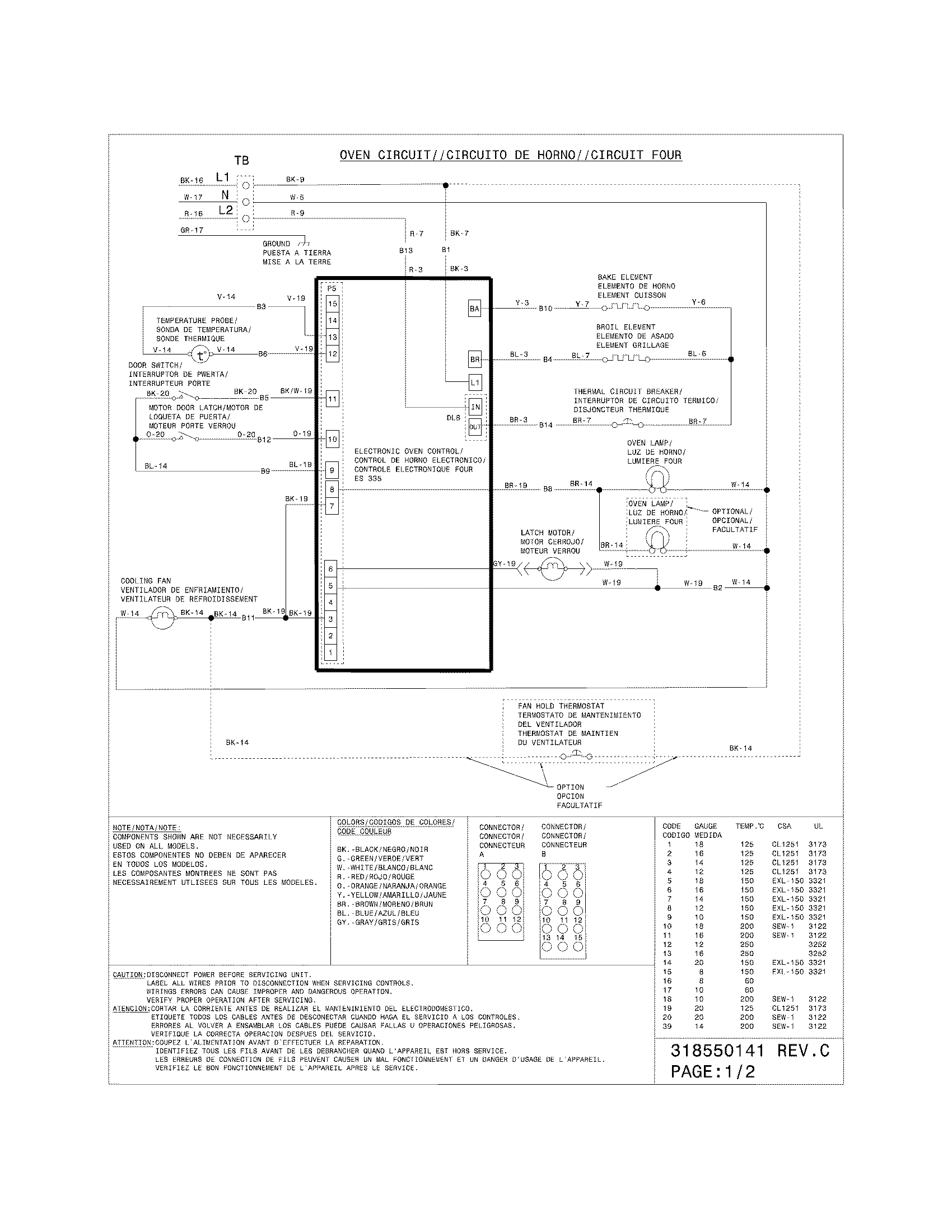

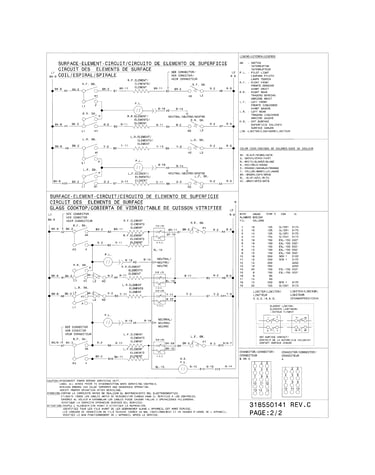

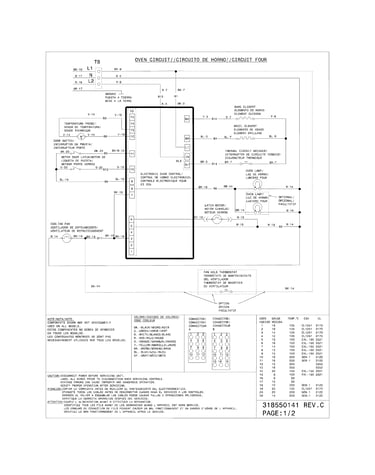

Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for 79046784901 Ranges

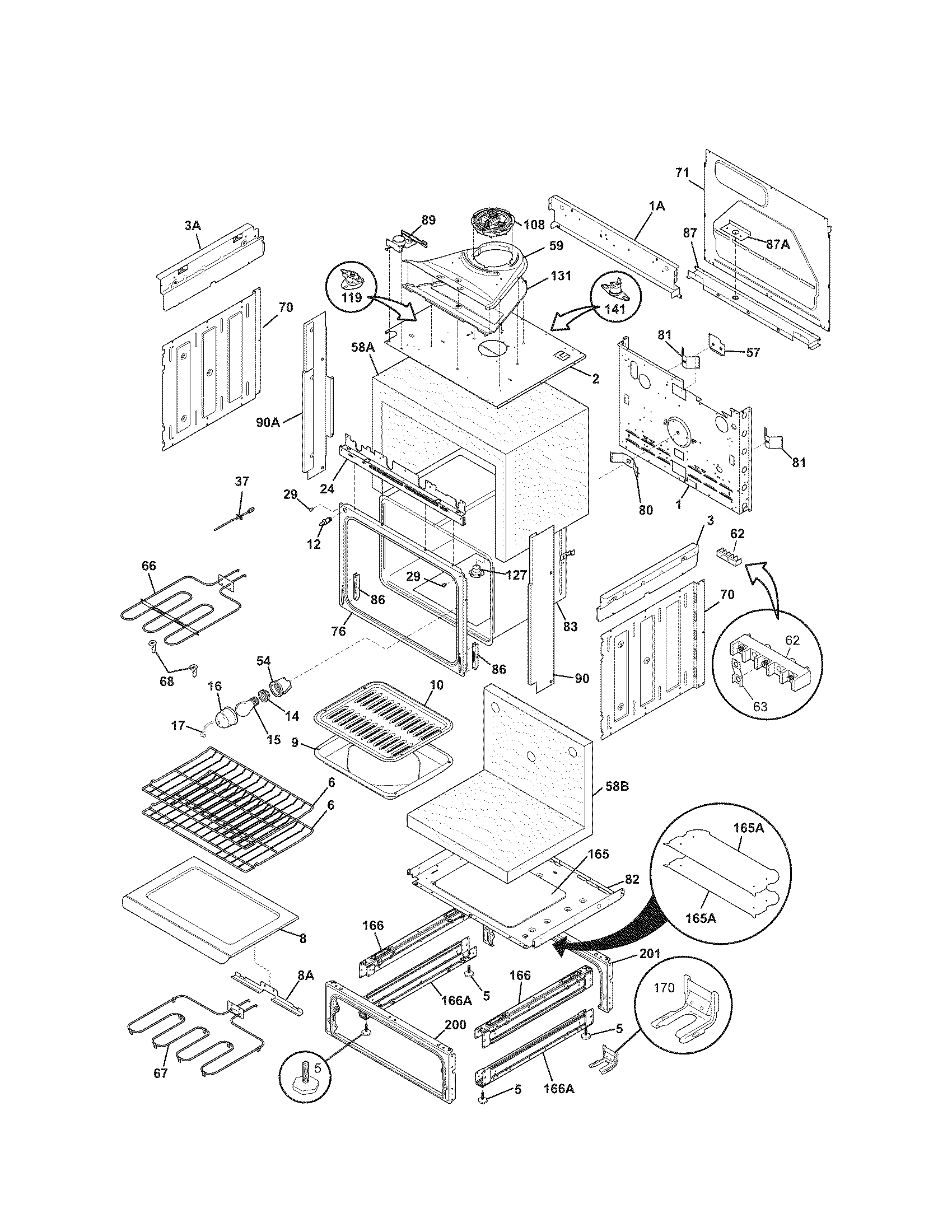

Body diagram
Range Oven Temperature Sensor
Part #318562500Replaced by #5304504897
Manufacturer substitutionThis part replaces 318562500. Substitute parts can look different from the original.In Stock$24.7020% OFF Phone Price : $30.70
Qty
Body diagram
Range Oven Light Bulb
Part #5303013071Replaced by #316538904
Manufacturer substitutionThis part replaces 5303013071. Substitute parts can look different from the original.In Stock$18.4510% OFF Phone Price : $20.45QtyTop/drawer diagram

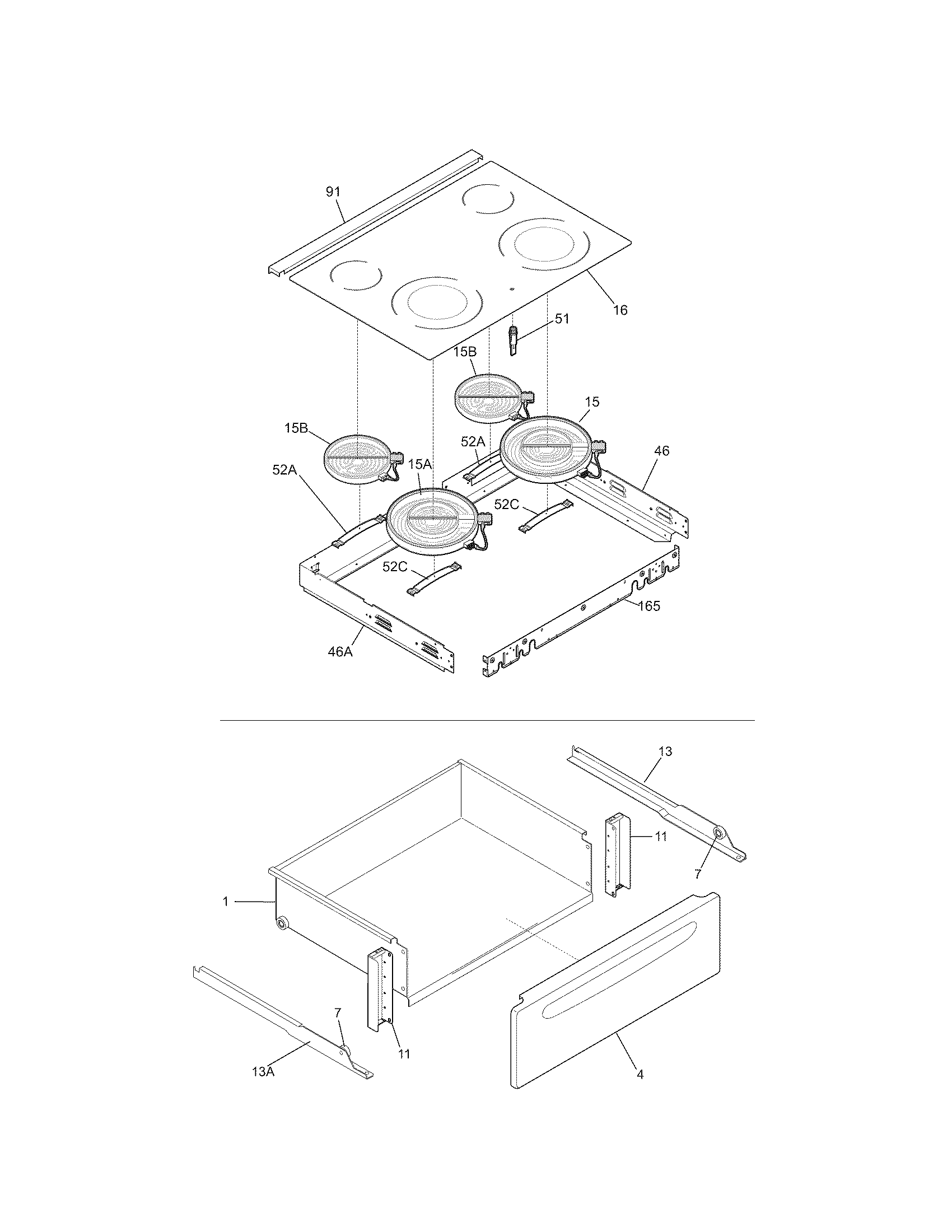

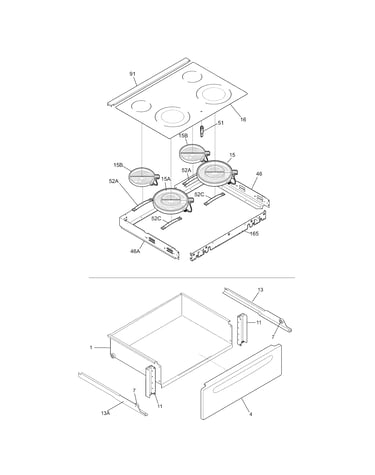

Element
Part #318198830Replaced by #318178110
Manufacturer substitutionThis part replaces 318198830. Substitute parts can look different from the original.In Stock$100.2211% OFF Phone Price : $112.22QtyTop/drawer diagram
Surface Element
Part #316465002Replaced by #5304533520

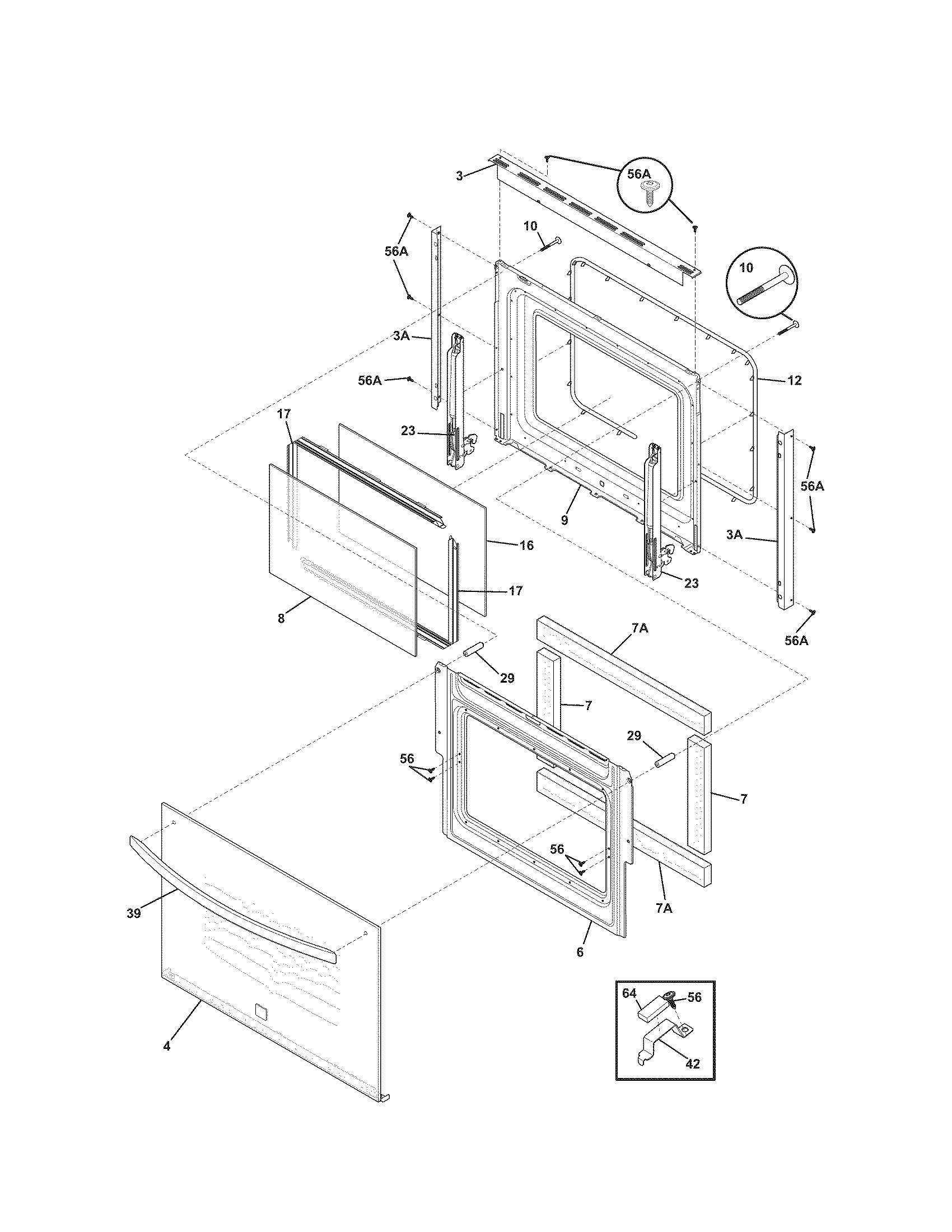

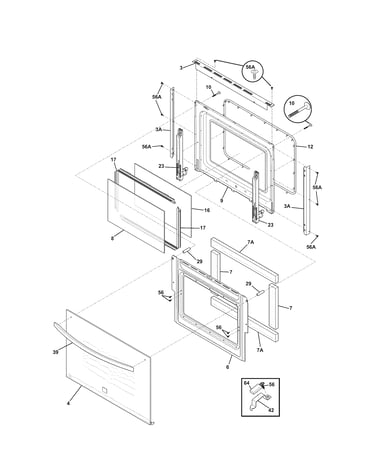

Manufacturer substitutionThis part replaces 316465002. Substitute parts can look different from the original.In Stock$82.507% OFF Phone Price : $88.50QtyDoor diagram
Range Oven Door Inner Glass
Part #316117500Replaced by #5304503232
Manufacturer substitutionThis part replaces 316117500. Substitute parts can look different from the original.In Stock$67.968% OFF Phone Price : $73.96QtyTop/drawer diagram
Range Dual Radiant Surface Element
Part #316418401Replaced by #316555800
Manufacturer substitutionThis part replaces 316418401. Substitute parts can look different from the original.In Stock$141.268% OFF Phone Price : $153.26QtyBody diagram
Terminal Block
Part #5303935061Replaced by #5304409888

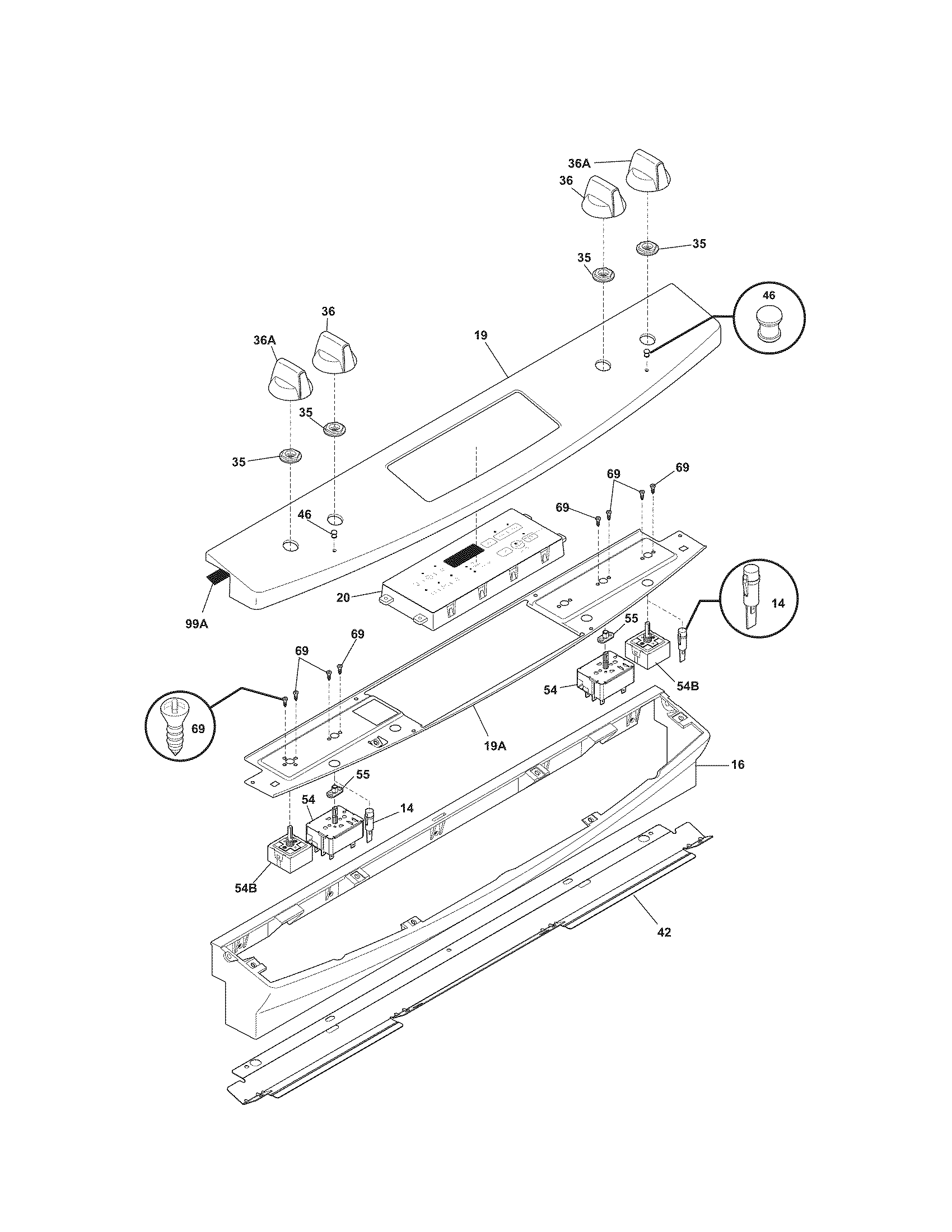

Manufacturer substitutionThis part replaces 5303935061. Substitute parts can look different from the original.In Stock$25.3019% OFF Phone Price : $31.30QtyBackguard diagram
Range Dual Element Infinite Switch
Part #318191027Replaced by #318191023
Manufacturer substitutionThis part replaces 318191027. Substitute parts can look different from the original.In Stock$70.388% OFF Phone Price : $76.38QtyBackguard diagram
Range Oven Control Overlay (black)
Part #318214517Replaced by #316419353
Manufacturer substitutionThis part replaces 318214517. Substitute parts can look different from the original.In Stock$20.1723% OFF Phone Price : $26.17QtyBody diagram
Range Broil Element
Part #318255600Replaced by #318255605
Manufacturer substitutionThis part replaces 318255600. Substitute parts can look different from the original.In Stock$129.638% OFF Phone Price : $141.63Qty
