White-Westinghouse
Dehumidifier

Model #MDD25WW1 White-Westinghouse dehumidifier - 5995263984

Here are the diagrams and repair parts for White-Westinghouse MDD25WW1 dehumidifier - 5995263984, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 79 parts

    Capacitor#46

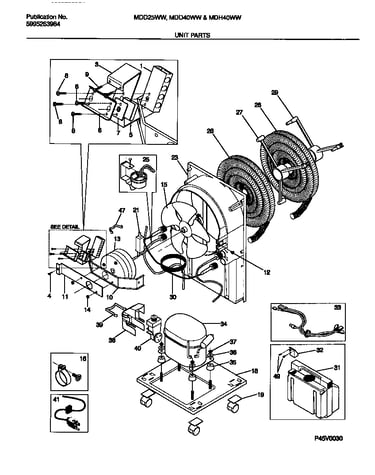

    Unit parts Diagram

    Capacitor

    Part #5303303824
    In Stock
    $30.99
    Cover Capacitor#48

    Unit parts Diagram

    Cover capacitor

    Part #5303303821
    This item is not returnable
    In Stock
    $3.49
    Bracket#6

    Unit parts Diagram

    Bracket

    Part #5303296824
    This item is not returnable
    In Stock
    $2.99
    Switch#5

    Unit parts Diagram

    Switch

    Part #5303012345
    In Stock
    $39.35
    Room Air Conditioner Screw

    See All Related Diagrams

    Room air conditioner screw

    Part #5303015427
    This item is not returnable
    In Stock
    $7.83
    Electronic Harness#33

    Unit parts Diagram

    Electronic harness

    Part #5303289839
    In Stock
    $51.49
    Dehumidifier Screw#8

    Unit parts Diagram

    Dehumidifier screw

    Part #5303007620
    In Stock
    $3.72
    Room Air Conditioner Lock Nut#14

    Unit parts Diagram

    Room air conditioner lock nut

    Part #08007481
    This item is not returnable
    In Stock
    $4.50
    Freezer Compressor Start Relay#42

    Unit parts Diagram

    Relay

    Part #3204486
    Replaced by #216594300
    ?
    Manufacturer substitution
    This part replaces 3204486. Substitute parts can look different from the original.
    In Stock
    $53.69
    Cooktop Indicator Light Lens (Red)#6

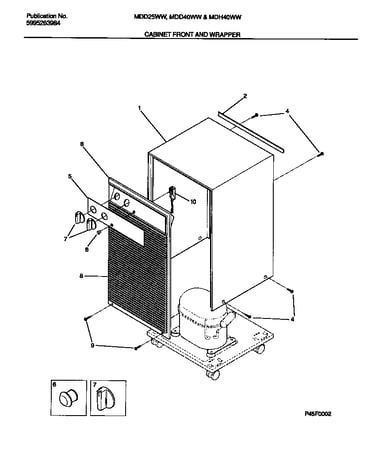

    Cabinet front and wrapper Diagram

    Light lens

    Part #08012705
    Replaced by #318250801
    ?
    Manufacturer substitution
    This part replaces 08012705. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $2.16

    Symptoms common to all dehumidifiers

    Choose a symptom to see related dehumidifier repairs.

    Main causes: dehumidifier too small for the space, bad humidity sensor, faulty evaporator thermistor, low refrigerant, bad compressor
    Main causes: lack of electrical power, wiring failure, electronic control board failure, user interface control failure
    Main causes: collection bucket not installed correctly, cracked collection bucket, loose drain hose connection
    Main causes: collection bucket not installed, collection bucket full of water
    Main causes: room temperature below 65 degrees Fahrenheit, control system failure
    Main causes: clogged drain hose, drain hose not properly connected
    Main causes: weak or dead batteries, out of range, radio frequency interference
    Main causes: dirty air filter, clogged grill, dehumidifier placed too close to the wall, dehumidifier too small for the space
    Main causes: loose fan motor mounting screws, loose compressor mounting bracket screws, bad fan, faulty compressor
