GE DRSR483EG5WW electric dryer Parts

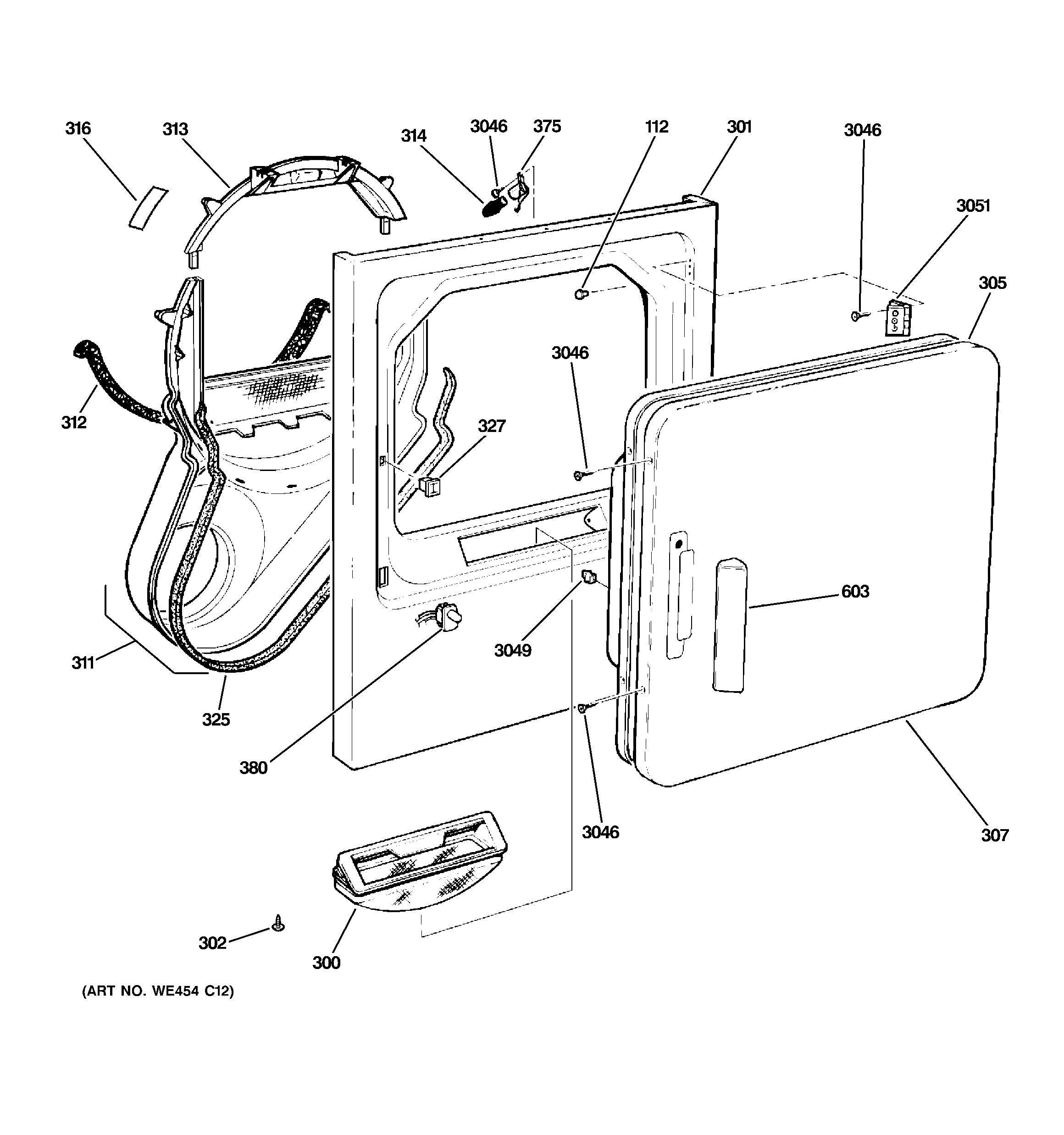

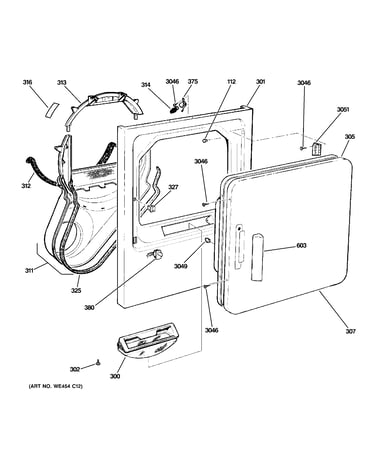

On your GE DRSR483EG5WW electric dryer, the model and serial label is located on the front of the dryer behind the door; that label is the quickest place to confirm the exact model number and identify the correct replacement parts for your unit.

Where to look on the dryer

Check these common label locations first (in order):

• Open the dryer door and look on the front panel behind the door (most common for this model).
• Check the door opening frame around the drum opening.
• Look along the inside edge of the door itself.
• If the label is worn, use a flashlight and look for faint printing or an embossed plate.

For diagrams and the exact label callout for this model, use the DRSR483EG5WW owner's manual.

What numbers you need (and what they mean)

The label usually includes several identifiers. Here is what to capture before ordering parts:

Label item	What it’s used for	Example format
Model number	Ensures parts match your exact dryer design	DRSR483EG5WW
Serial number	Helps date the unit and confirm production run	Letters and numbers
Electrical rating	Confirms power requirements for an electric dryer	Volts/amps

Tips for ordering the right part

Once you have the model number, match parts by part ID and description.

• Use the model number DRSR483EG5WW when searching parts.
• Match the symptom to the part category (heat, drum movement, starting, door shut).

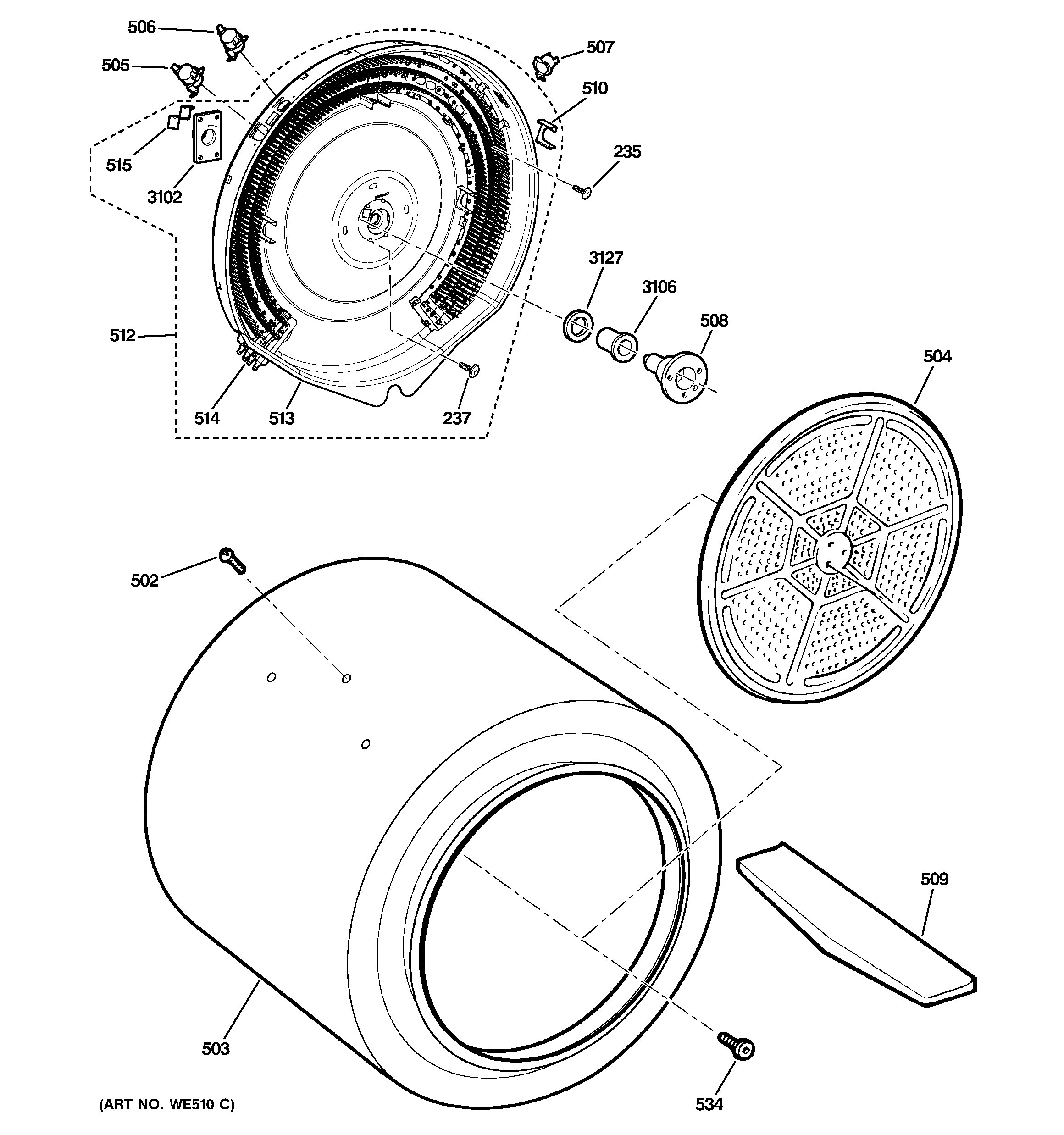

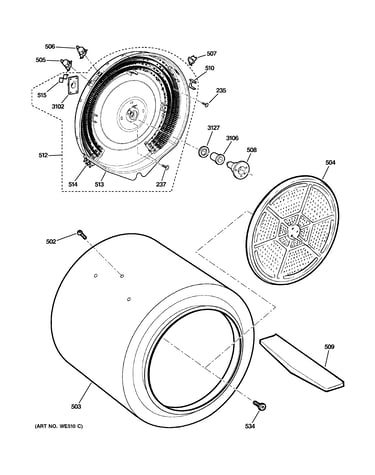

• If the dryer runs but the drum will not turn, a common wear item is the dryer drum belt WE03X29897.
• If the dryer will not start, confirm the door is fully closed and consider the door switch WE4M415 if the switch is not clicking or testing open.
• If the label is unreadable, check your purchase paperwork or any service invoice that lists the model.

Why it matters

GE often uses similar-looking dryers with different internal components. Using the exact model number from the label prevents ordering the wrong belt, thermostat, heating element, or switch.

Last updated: February 2026

On the GE DRSR483EG5WW electric dryer, there is no separate “heat reset” button; heating problems are usually caused by a power supply issue, airflow restriction, or a failed thermostat or heater. We reset the dryer by power-cycling it, then verifying the correct cycle and heat settings.

How to reset and re-check heat settings

• Unplug the dryer (or switch both dryer breakers OFF) for 1 minute.
• Restore power and run a Timed Dry cycle with a heated fabric-care setting.
• Start the cycle, then confirm the drum tumbles and warm air is blowing at the exhaust.
• If the dryer tumbles but does not heat, focus on power and heating components next.

For control and cycle-setting details specific to this model, use the DRSR483EG5WW owner’s manual.

Most common “no heat” causes on this model

The manual’s troubleshooting points to a key issue for electric dryers: the dryer can run on 120V but needs full 240V to heat.

• One house fuse blown or one breaker tripped (dryer tumbles but won’t heat)
• Restricted venting or lint buildup causing overheating and heat shutdown
• Failed heating element (open heater)
• Failed high-limit or safety thermostat
• Failed operating thermostat

Quick checks (fast, high value)

Check	What you’re looking for	What it means
Breaker/fuses	Two breakers ON (or two fuses good)	Missing one leg of power stops heat
Airflow	Strong airflow outside	Poor airflow can overheat and stop heat
Cycle selection	Heated cycle (not “air fluff/no heat”)	Wrong setting mimics a heat failure

Parts that commonly fix “no heat”

If power and airflow are good, these model-matched parts are common next steps:

• Heating element: mica unit WE11M10001
• Overheat protection: dryer safety thermostat WE4M160
• Temperature control: dryer operating thermostat WE4M216

Why it matters

Running an electric dryer with weak airflow or partial power can cause long dry times, repeated overheating, and premature failure of the heating circuit. A correct reset plus the right checks prevents unnecessary part replacement.

Last updated: February 2026

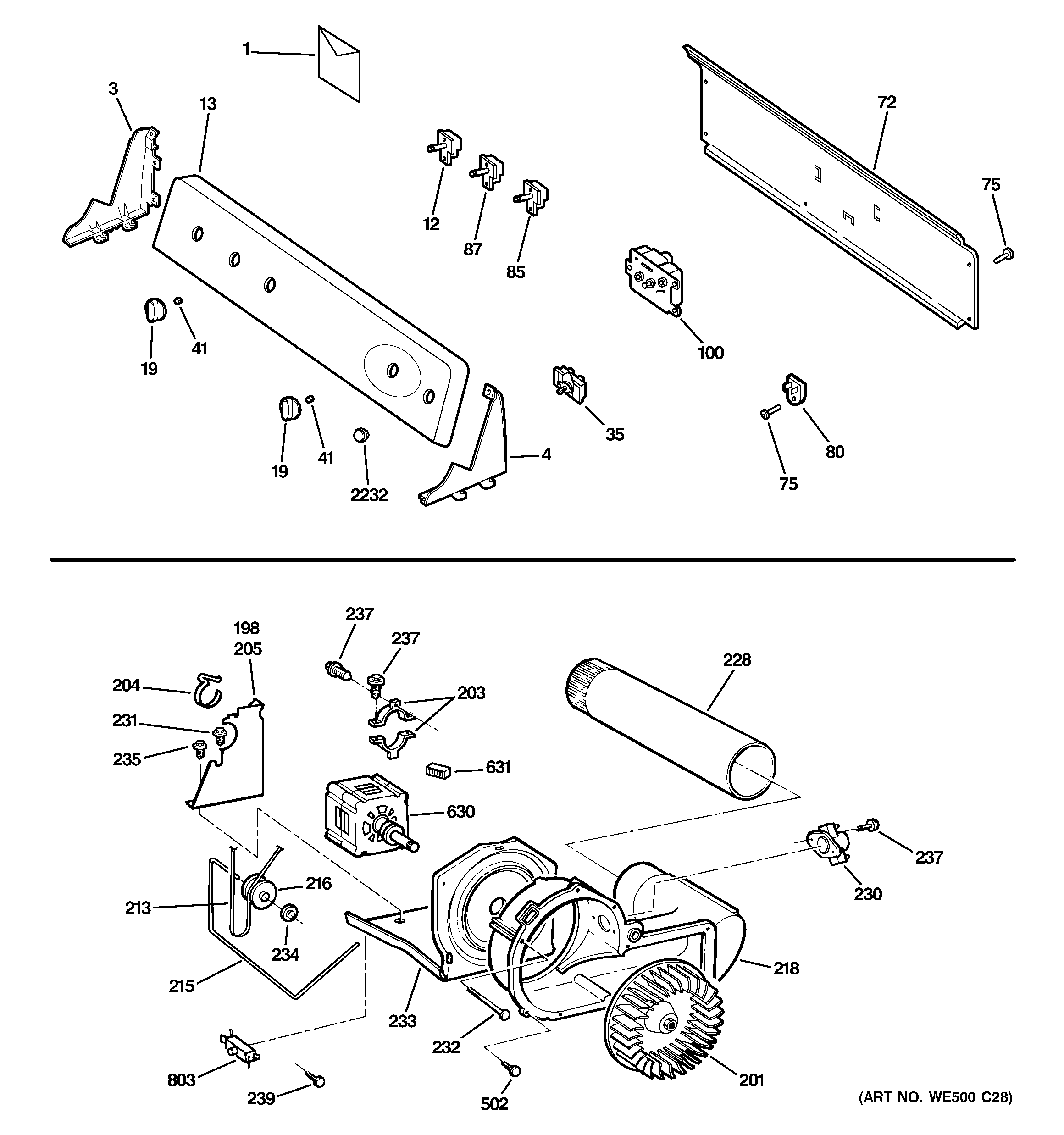

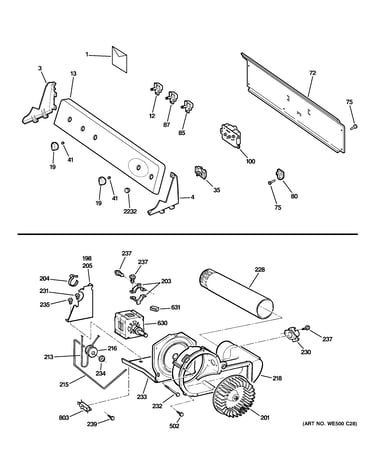

On the GE DRSR483EG5WW electric dryer, the thermal fuse is mounted inside the cabinet on the exhaust air path; on this GE design it is found on the blower housing or on the heater housing, depending on the exact configuration. Use the wiring and component layout in the DRSR483EG5WW owner’s manual to confirm the exact mounting point before disassembly.

Where to look (most common locations on GE electric dryers)

• Blower housing near the exhaust outlet where the vent duct connects
• Heater housing (heater can) near the rear of the drum area
• Close to the high-limit thermostat and cycling thermostat on the heater circuit
• In the rear-panel area where the exhaust ducting routes out of the cabinet

How to access it safely

• Unplug the dryer; electric dryers use 240 volts
• Turn off both breakers (many dryers use a 2-pole breaker)
• Pull the dryer out and disconnect the vent

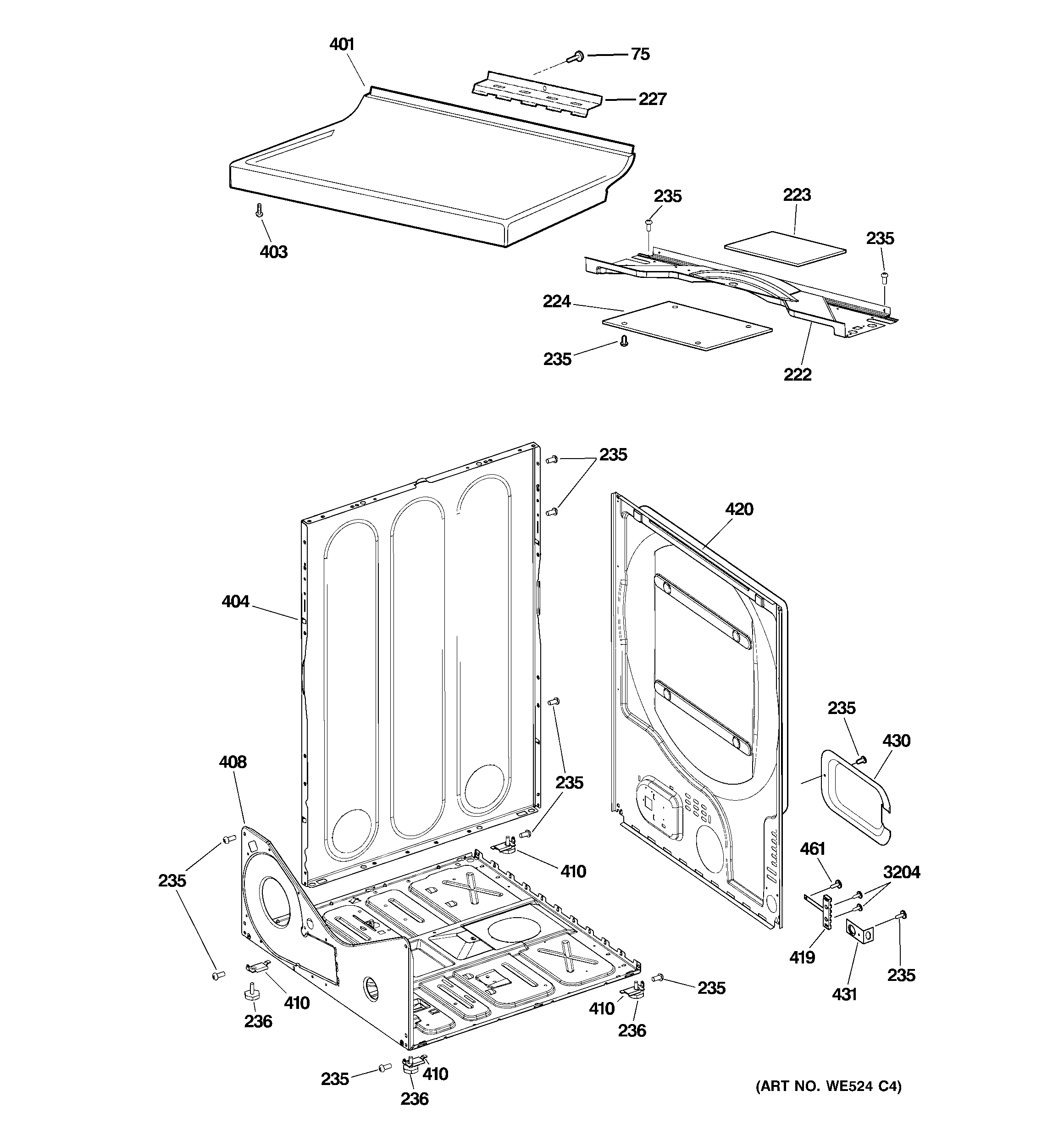

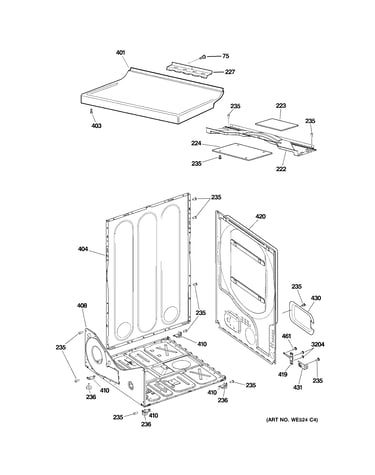

• Remove the rear panel (common on GE electric dryers) and set screws aside
• Trace the exhaust duct to the blower housing and look for a small, flat device with two wires

What to check so the new fuse does not blow again

A thermal fuse opens because the dryer overheated; restricted airflow is the most common cause.

Airflow item	What to do	What “good” looks like
Lint screen and chute	Clean and vacuum	No lint matting in the chute
Vent duct	Inspect for kinks, crushing, buildup	Short, straight, 4-inch metal duct
Outside hood	Verify flap moves freely	Strong airflow, flap opens fully
Blower area	Vacuum lint around housing	No lint packed around intake

Why it matters

The thermal fuse is a one-time safety cutoff. If you replace it without fixing venting and lint buildup, the dryer can overheat again and the replacement fuse will open.

For venting specifications and access guidance, follow the DRSR483EG5WW installation guide.

Last updated: February 2026
