Kenmore 11015962401 washer Parts

The Kenmore washer model 11015962401 has a 3.2 cu. ft. wash capacity. For the most accurate confirmation for your exact configuration and any load-size guidance, we recommend checking the capacity or “features” section in the owner's manual.

How to use that capacity (practical guidance)

A 3.2 cu. ft. top-load washer is designed for everyday family loads. To get the best cleaning and spin performance:

• Load items loosely; don’t pack clothes down
• Keep bulky items (blankets, jackets) balanced around the basket
• Use the correct water temperature for the fabric and soil level
• Use the right amount of detergent to reduce residue and odors
• If the washer shakes, re-level the cabinet and redistribute the load

Typical load examples for 3.2 cu. ft.

These examples help you visualize what “3.2 cu. ft.” means in real use.

Load type	What it usually includes	Best practice
Small	A few shirts, underwear, light items	Spread items evenly
Medium	Mixed clothing for 1 to 2 people	Avoid overfilling above the top row of holes
Bulky	1 comforter (depending on thickness)	Wash alone; stop and rebalance if it thumps

Why capacity matters

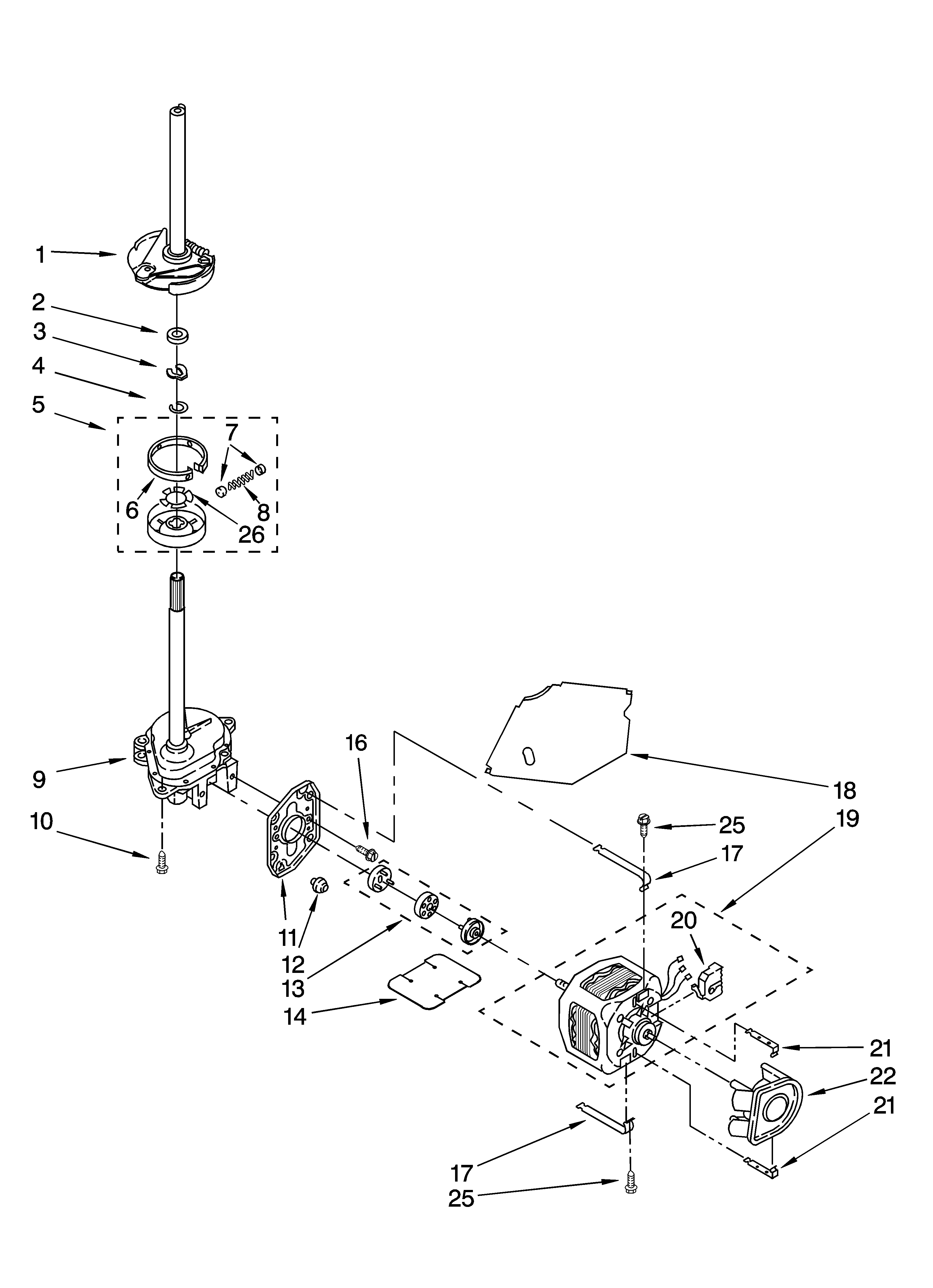

Capacity affects cleaning, rinsing, and spin-out. Overloading can cause poor agitation, out-of-balance spinning, and extra wear on drive components such as the washer motor coupling 285753A and suspension parts.

Related specs that affect performance

Even with the same capacity, installation and supply conditions change results. For this model, the installation guidance calls for:

• Hot water supply capable of 120°F (49°C)
• Water pressure in the 5 to 100 psi range (best performance depends on dispenser setup)
• A level floor (maximum slope about 1 in. under the washer)
• Proper drain setup (standpipe height typically 39 to 96 in.)

If you’re shopping for replacement parts that impact wash action or spin, you can also search by model number on Sears PartsDirect.

Last updated: February 2026

Kenmore washer model numbers are read left to right: the first 3 digits identify the manufacturer, the next group identifies the base design, and the remaining digits show feature or production variations. For your Kenmore washer model 11015962401, the 110 prefix is the key identifier.

Where to find the model number on this washer

On Kenmore model 11015962401, the model and serial number label is located under the washer lid. Use the exact model number from that label when ordering parts or checking instructions in the 11015962401 owner's manual.

• Lift the lid and look along the underside of the lid opening
• Write down the full model number and serial number
• Record the purchase date for your records
• Match every digit when searching parts (one wrong digit can change the parts list)

What each section of the model number tells you

Kenmore model numbers are structured so the prefix points to who built the washer, while the remaining digits narrow down the exact configuration.

Section	Example from 11015962401	What it means	Why it matters
Manufacturer prefix	110	Identifies the manufacturer family	Helps match the correct parts diagrams and service info
Base model digits	15962 (typical grouping)	Core platform and design series	Determines major components like drive system and tub style
Variation digits	401 (typical grouping)	Feature set, revision, or production run	Can affect switches, timers, and small hardware

Why it matters for parts and troubleshooting

Using the full model number helps us match the correct Kenmore washer parts list and avoid ordering a similar looking part that will not fit.

• Electrical parts can vary by revision (example: washer lid switch assembly WP8318084)
• Drive and agitation parts can differ by platform (example: agitator dog 80040)
• Drain components must match hose routing and pump style (example: washer drain pump WP3363394)
• Installation details like hose hookup and leveling steps are model-specific; follow the installation guide

Quick tips when searching parts

• Use the complete model number: 11015962401
• If the label shows extra characters, include them exactly as printed
• When ordering, start with the symptom (won’t spin, won’t drain, noisy) and then confirm the part fits your model
• For broader model-number searches across appliances, use Sears PartsDirect

Last updated: February 2026

On Kenmore washer model 11015962401, an OE code points to a drain problem: the washer is not emptying fast enough. We fix it by checking the drain hose for kinks or clogs, then inspecting the drain pump area for debris and restoring proper water flow and draining (see the 11015962401 installation guide for correct hose routing).

Quick checks that solve most OE drain problems

• Unplug the washer for safety.
• Confirm the drain hose is not kinked, crushed, or shoved too far down the standpipe.
• Make sure the drain hose is installed to the correct depth and positioned at the cabinet stop (hose routing details are shown in the 11015962401 installation guide).
• Run a Drain/Spin cycle and listen for the pump: a steady hum with little or no water movement usually means a blockage.
• Check the tub for small items (coins, socks) that can migrate to the pump.

Clean-out and part checks (most common fixes)

If the hose looks good, the next likely cause is a restriction at the pump or a weak pump.

• Inspect for debris at the pump inlet and outlet hoses.
• Check the pump impeller for damage or binding.
• If the pump is noisy, seized, or not moving water, replace the pump.

Helpful replacement part for this model:

• Washer drain pump WP3363394

What to expect: symptoms and likely causes

What you notice	Most likely cause	What we do
Water drains slowly, pump sounds normal	Partial clog in hose or pump	Clear restriction, verify hose routing
Loud grinding/rattling during drain	Debris in pump or failing pump	Remove debris; replace pump if damaged
Pump hums but little/no draining	Blockage or broken impeller	Check hoses/impeller; replace pump
Intermittent OE after heavy loads	Hose position, suds, or partial restriction	Correct hose depth; reduce suds; clear restriction

Why it matters

An OE drain error can leave water in the tub, prevent the washer from spinning properly, and strain the drain pump. Fixing the hose setup and clearing restrictions restores normal drain and spin performance and helps prevent repeat drain failures.

If you need to order parts for Kenmore 11015962401, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

To force-drain a Kenmore washer model 11015962401, we use the machine’s drain and spin function and correct any drain-hose or lid-switch issues that prevent draining. Most “won’t drain” problems come from a kinked/clogged hose, excessive suds, or a drain pump problem.

Fast way to drain the washer (no disassembly)

• Press the cycle control to select Drain/Spin (or the closest drain and spin setting listed in your installation guide).
• Make sure the lid is fully closed; this model will not drain or spin with the lid open.
• Wait through normal pauses; some cycles pause for about 2 minutes.
• If the tub is full, stop the cycle and run Drain/Spin again to continue removing water.

If it still will not drain: check these first

• Drain hose height: the end of the drain hose should not be more than 96 in. (244 cm) above the floor.
• Kinks and clogs: rotate the hooked end to eliminate kinks; do not force excess hose into the standpipe.
• Air gap: the hose should be secure but loose enough to leave a small air gap so water does not siphon back.
• Excess suds: measure detergent carefully; too many suds can slow or stop draining.
• Lid switch: if the washer will not spin, the lid switch can be the reason.

Parts that commonly fix “won’t drain” on this model

Symptom	Most likely part	What it affects
Hums but won’t pump water out	Washer drain pump WP3363394	Moves water from tub to drain hose
Won’t spin and won’t drain	Washer lid switch assembly WP8318084	Allows drain/spin with lid closed
Drains slowly or backs up	Drain hose/standpipe setup	Prevents kinks and siphoning

Why it matters

Forcing a drain without fixing the cause can lead to repeat stoppages, water backing into the tub, or a no-spin condition. Correct drain-hose routing and a working lid switch are the basics that make Drain/Spin work reliably.

You can order replacement parts for model 11015962401 from the parts list for this washer, or search by model number on Sears PartsDirect.
